SPRH - An ortho for your standard keycap sets - Everything's Shipped!

SPRH (Square Peg, Round Hole): A keyboard by Eye Oh Designs

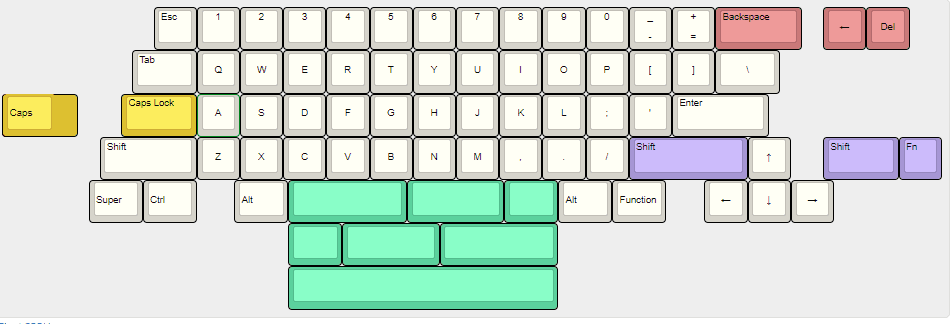

A 65% ortho board compatible with standard keycap sets








Whether you're an ortho user thirsting for a keycap set that doesn't have nearly enough 1u keys, or a staggered user thinking about dipping your toes in the ortho pool, the SPRH has you covered.

The group buy is closed! Thanks to all who participated!
Reminder to pay your invoices. Most have, but there are a few hanging out there! I'm planning to place the orders for the cases and PCBs over the next several days, so pay or let me know if you're unable to participate. Thanks!


Stats:
CNC machined Aluminum available in anodized black or blue

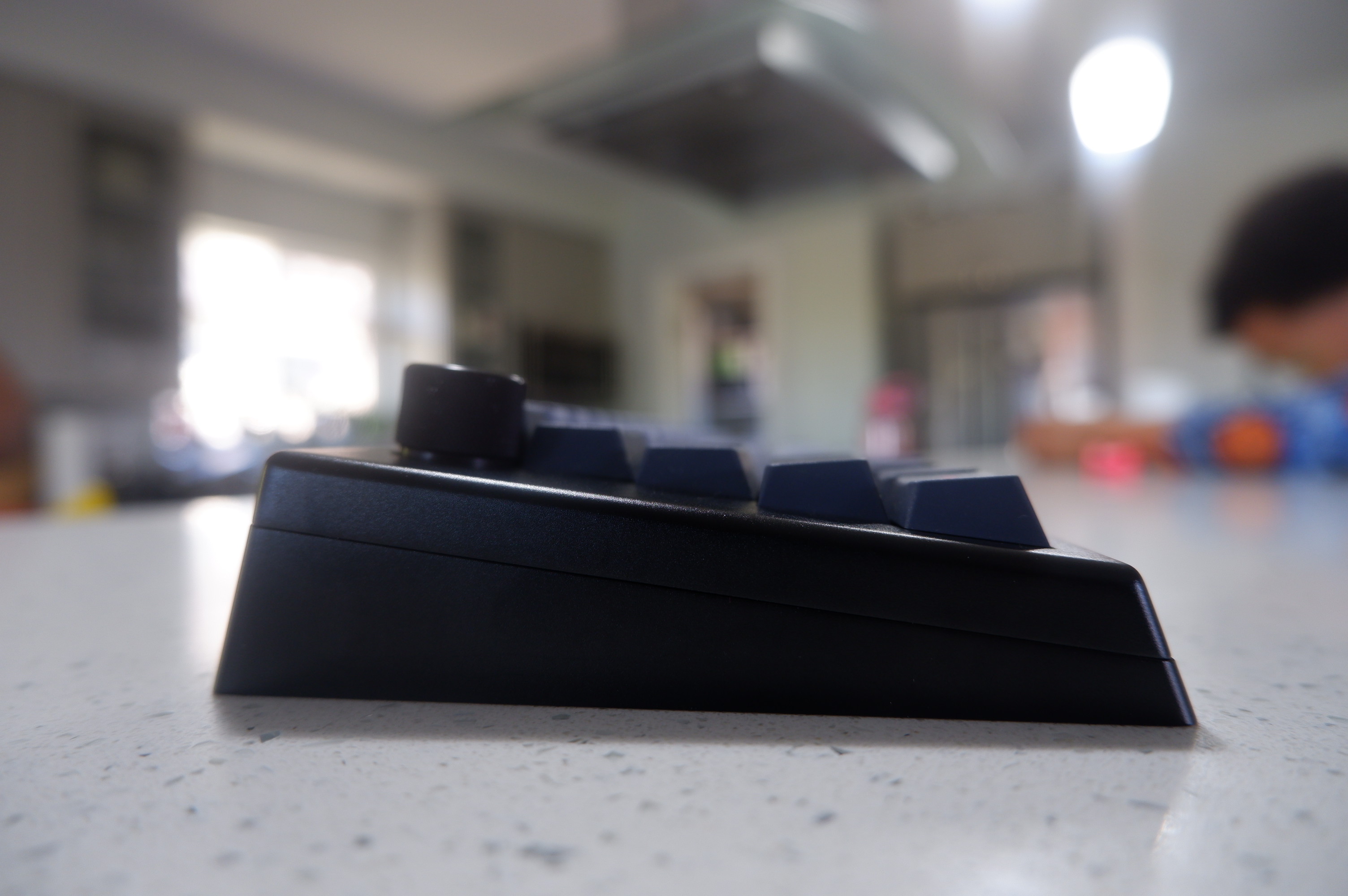

7.5 degree typing angle
Top mount plate in sandblasted brass or FR4
Rotary encoder (2 color options pictured) with button press
Daughterboard with USB-C and protection from overcurrent and ESD conditions
Runs QMK
Includes needed hardware and bumpons
Millmax hotswap service

Pricing:
Basic kit (with either plate material): $350
Extra PCB: $40
Extra Brass Plate: $45
Extra FR4 Plate: $30
Switch Plate Foam (thicc 4mm EVA for you ASMR fiends): $20
Hot Swap Service: $35 (includes cost of mill-max sockets and labor for soldering encoder and mill-max). I may be shutting this down soon so that I don't get overwhelmed with soldering
Shipping: $18 US. Non-US shipping calculated at invoice.

GB Format:
April 9 - April 30
Minimum: 10 units
Max: 50(soft cap) - 75 (hard cap)
Payments: Google Form with Paypal invoicing.
Shipping to start approx 4 months from GB close.

Sound test 1: https://streamable.com/7ly7b4
Brass plate
Novel Keys Dry Series Yellow, lubed with 205g0
Durock Stabs, lubed with dielectric grease
GMK Keycaps

Sound test 2: https://streamable.com/dovj4s
FR4 plate
3mm EVA Foam
JWK T1s, factory lubed slider, body and spring lubed with 3204
Cherry Stabs, lubed with dielectric grease
GMK Keycaps

@eyeohdesigns
/u/eyeohdesigns
