Sweet60 - Gummyworm O-Ring Mount 60% Based on the DZ60 PCB

geekhackauto-imported

0 followers0 bookmarks0 comments

Description

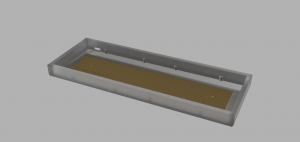

Case Specifications
Typing Angle: ~7 Degree
Front Height: ~20mm
Mounting: GummyWorm O-Ring mount keyboard
Case Material: Polycarbonate
Finish: Sandblasted

PCB
Solder PCB

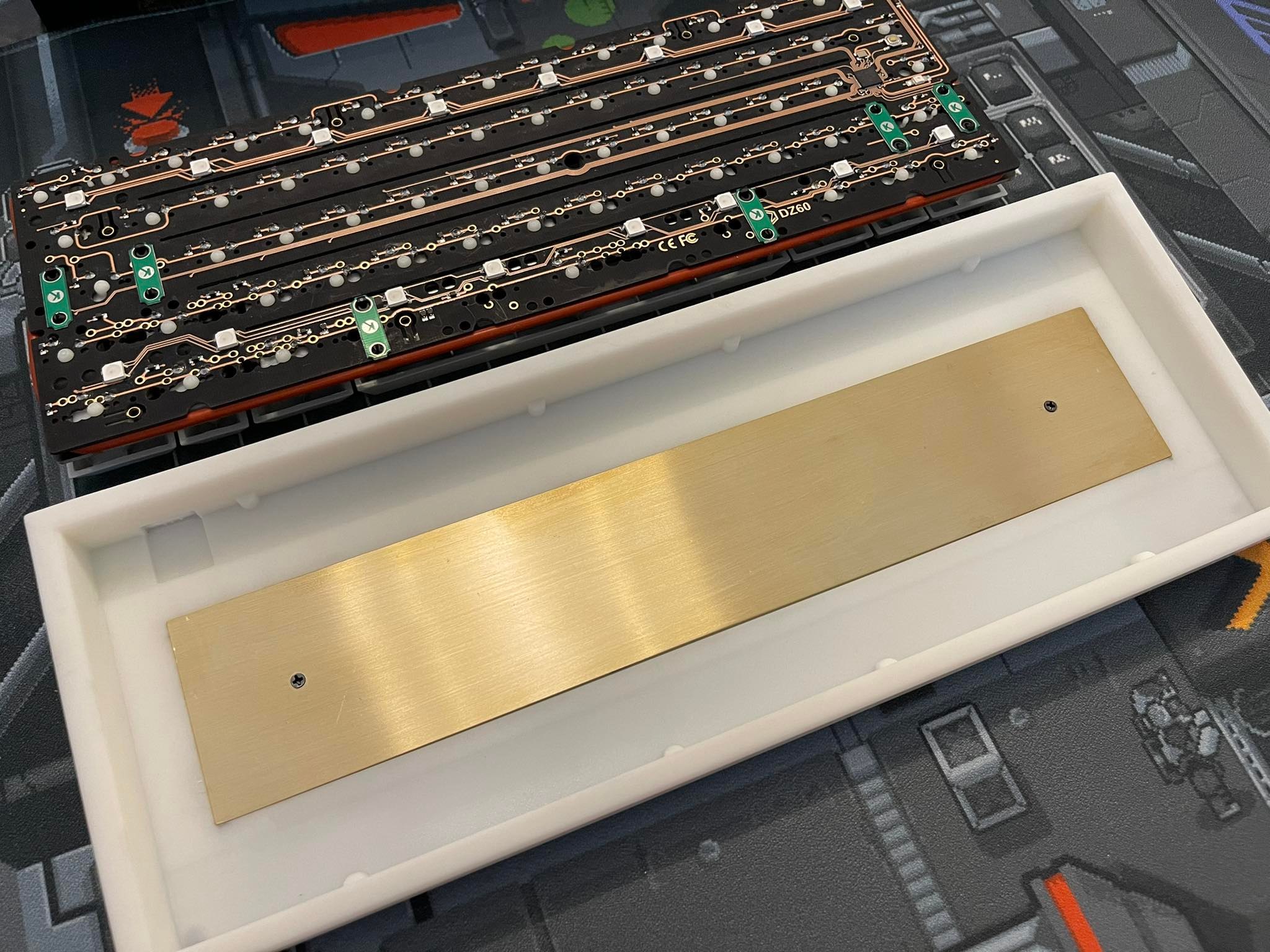

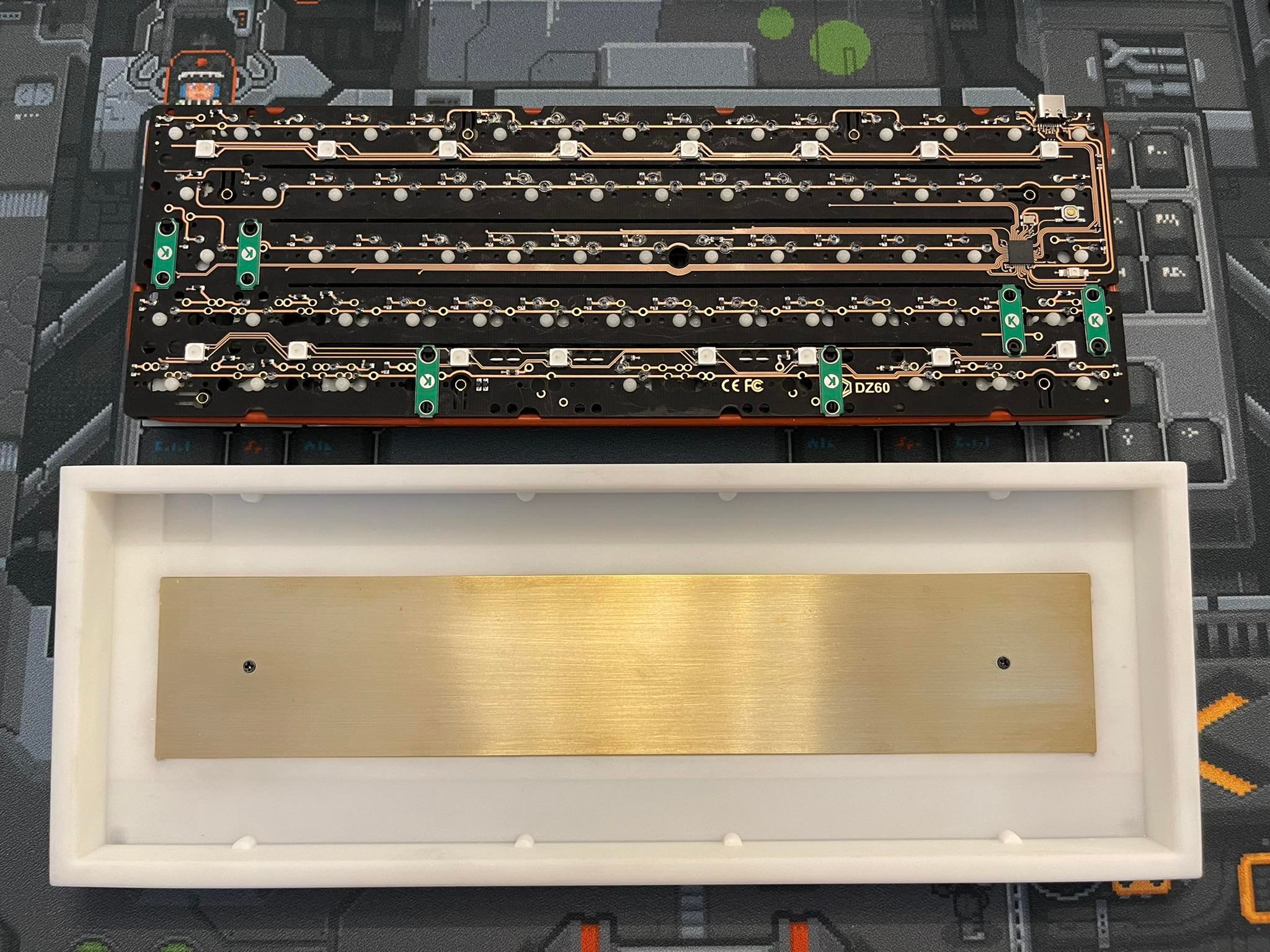

Currently Plan to use dz60 flexcut as the PCB for this keyboard
Hot-Swap PCB
Switch = Cherry-Style Switches only
Facing = South Facing Switches
RGB = 12 RGB Underglow
Thickness = 1.2mm
Firmware = QMK/VIA/VIAL

What's Include in the package
- Hard Carrying Case
- 50A O-ring
- Screw
- Silicon Feet

Price
Quote from the manufacturer that the whole kit should be around 150 to 170 USD

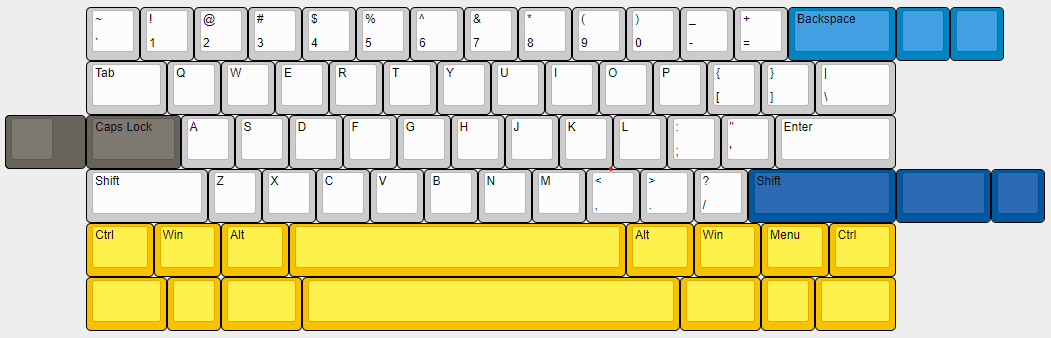

Supported Layout

- Solder PCB as DZ60 Flexcut supported layout
- Hotswap PCB Standard 1.75u shift with stepped capslock supported (Original caps lock south facing hot-swap socket, stepped capslock north facing hot-swap socket)

Additional Stuff
- Slot - 50 to 100 pieces
- The sales format will be GB and an FCFS
- Vendor - TBD

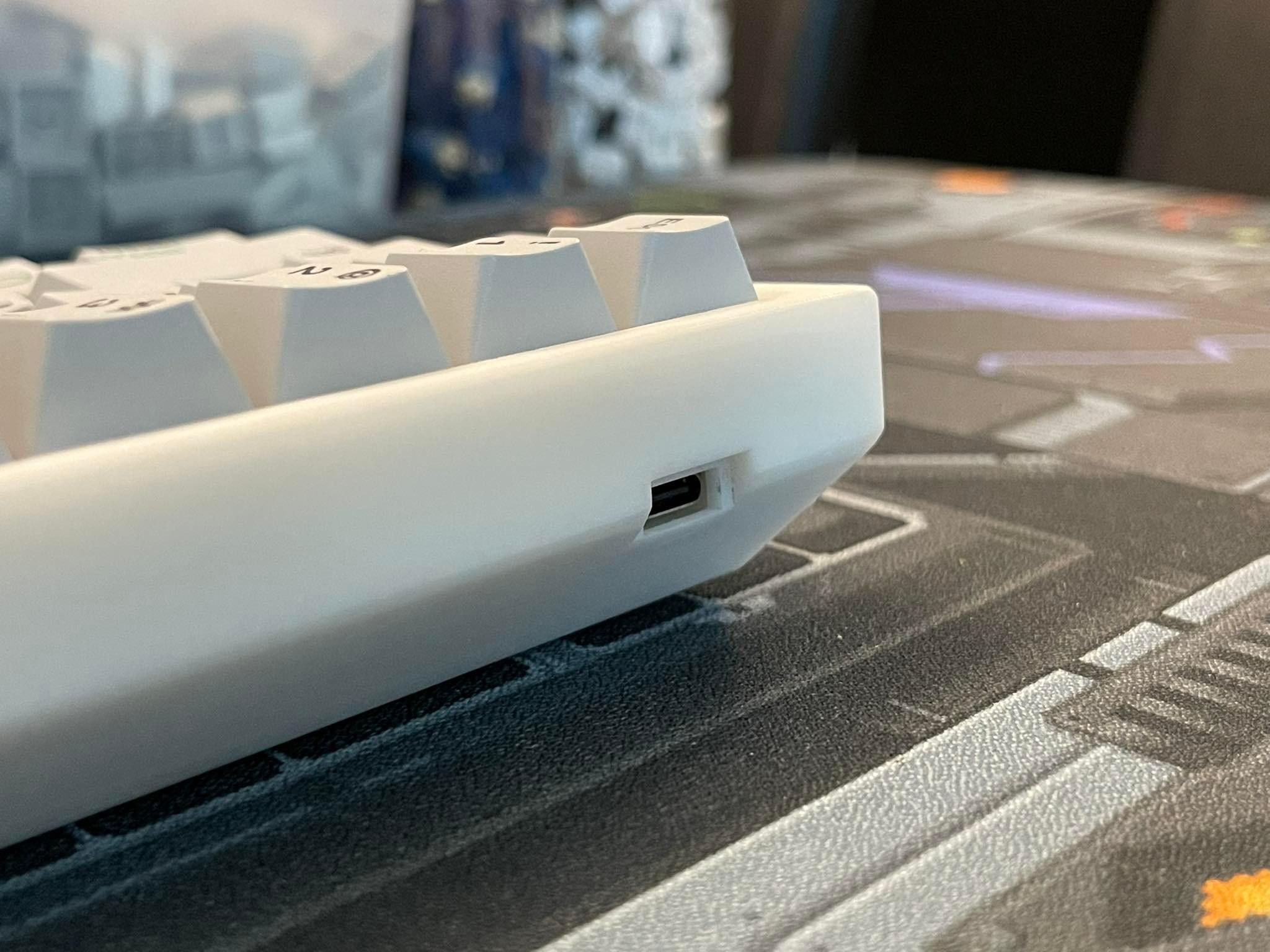

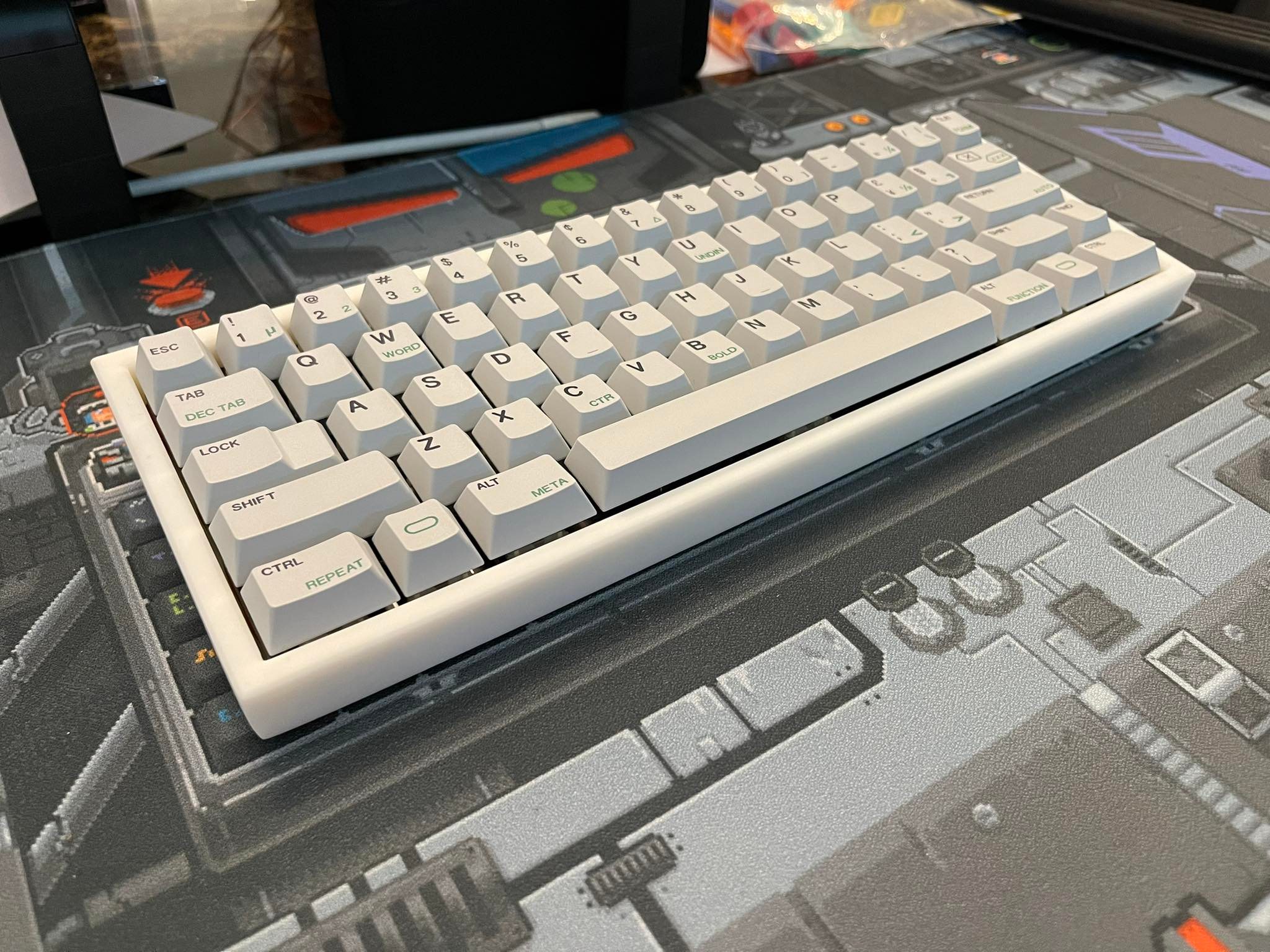

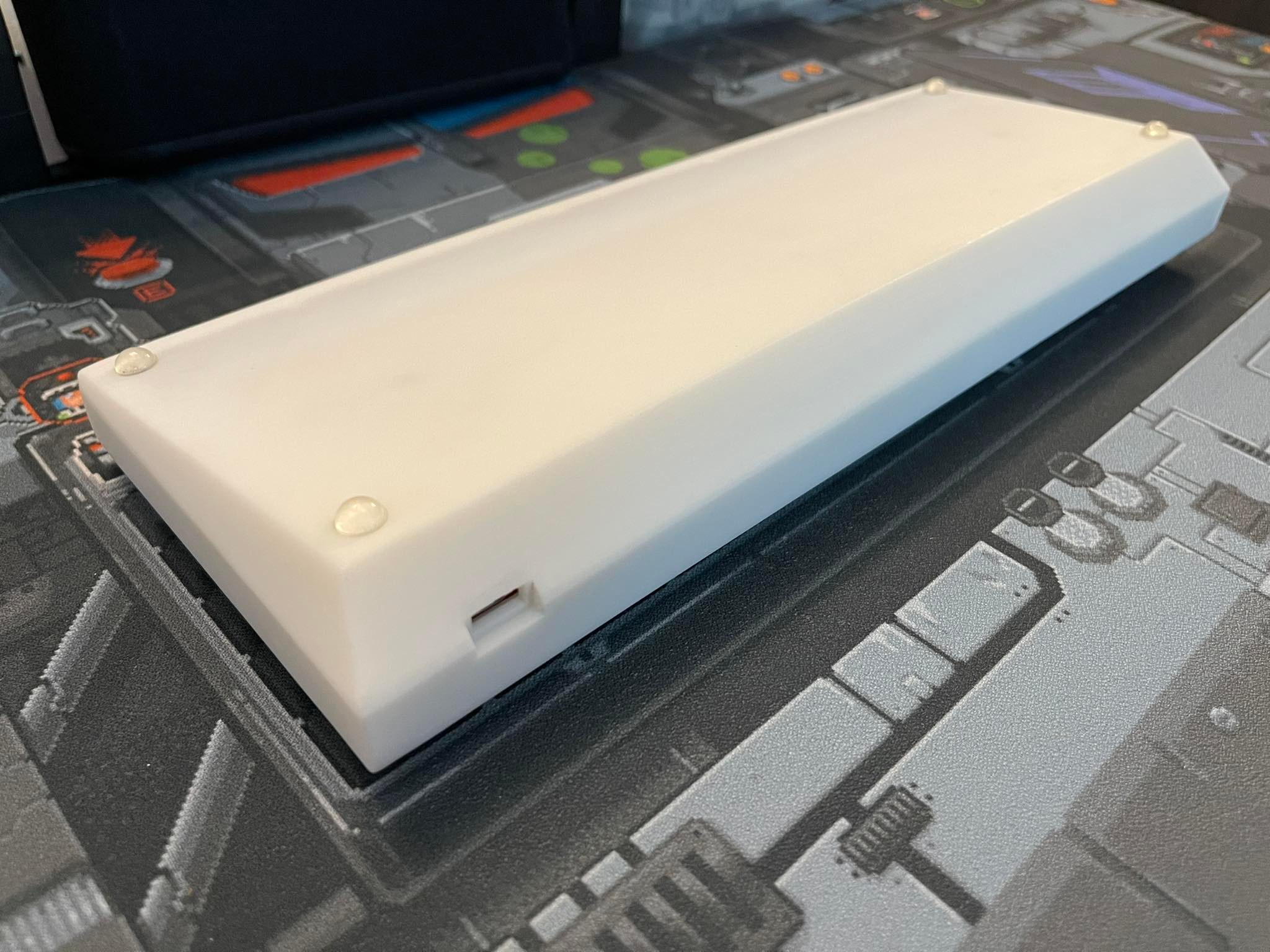

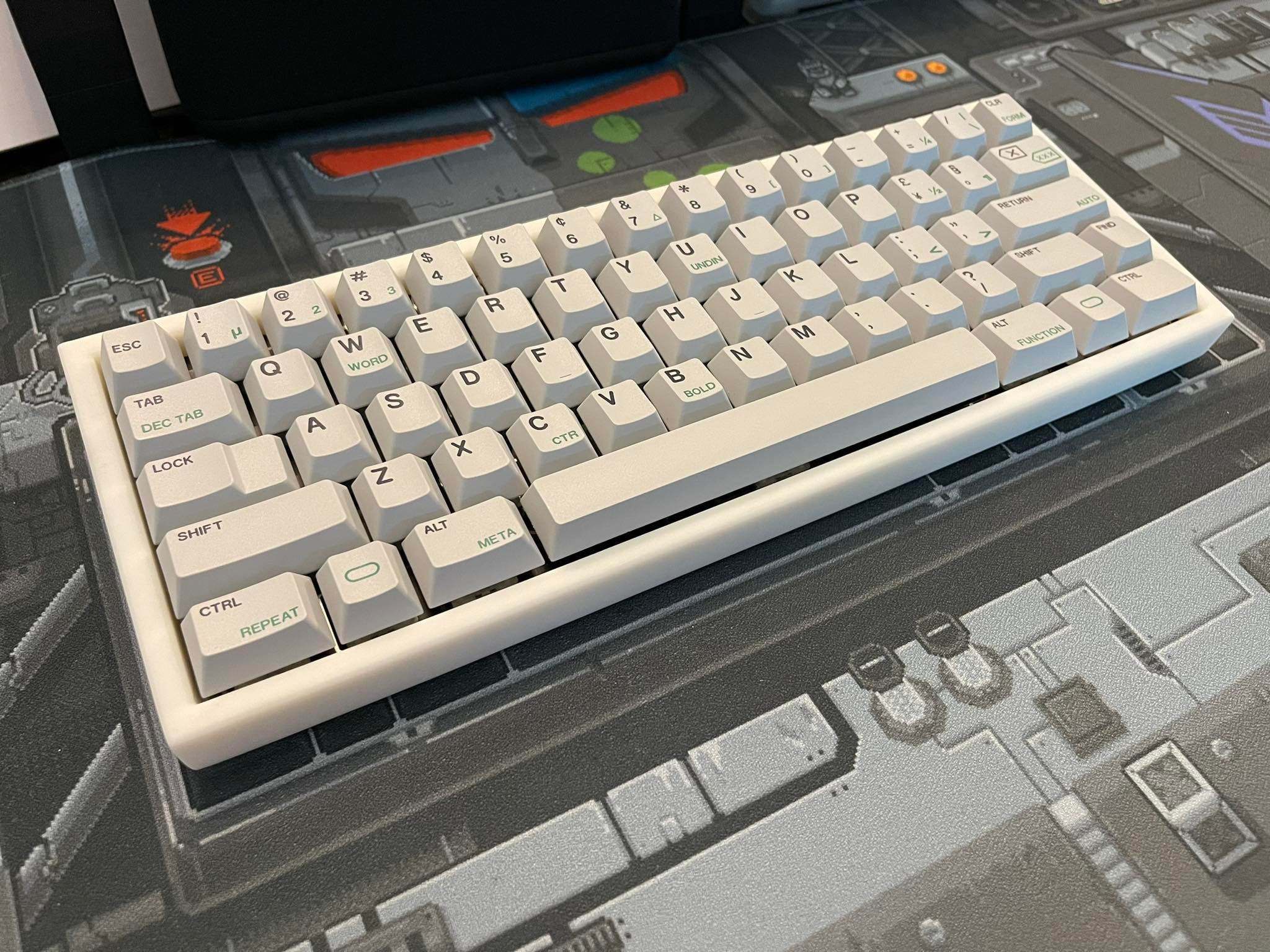

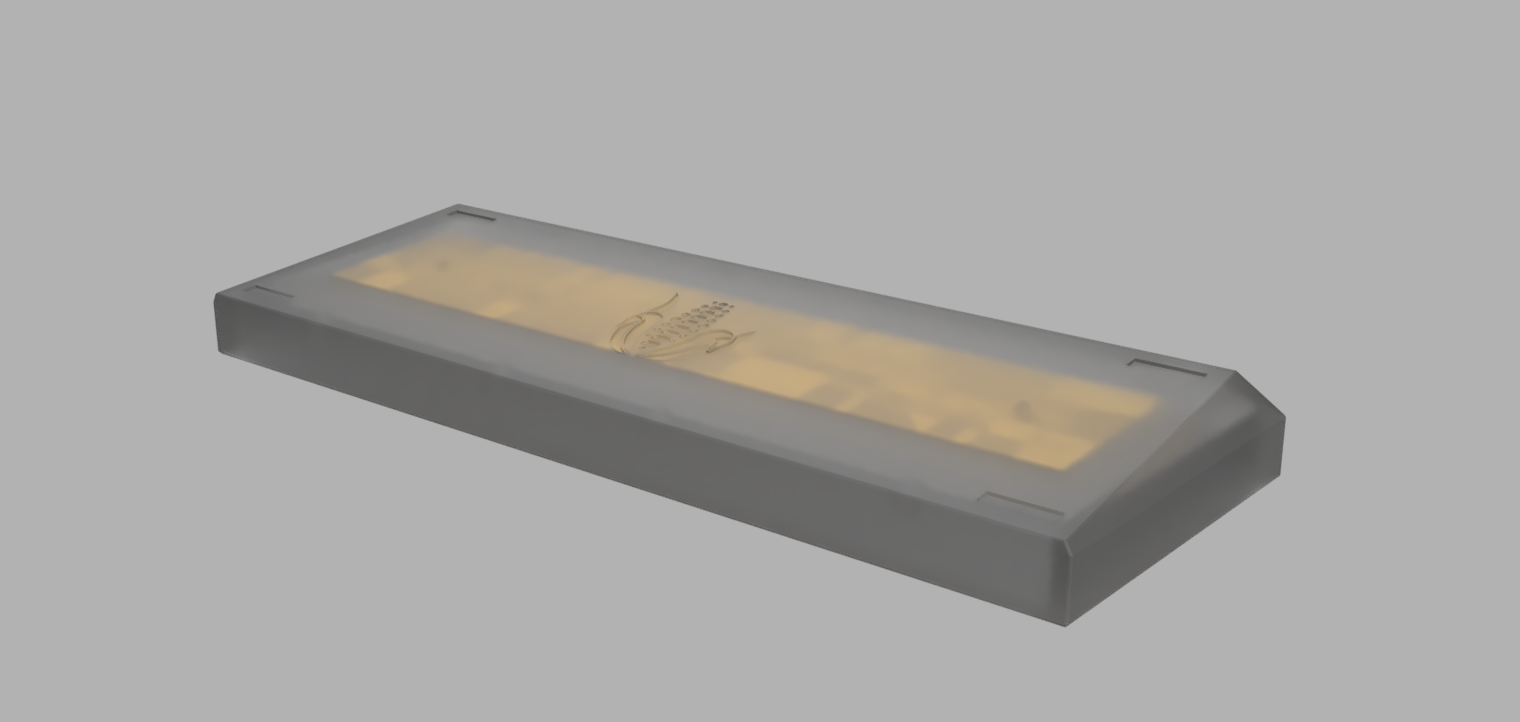

- The one prototype in the picture is printed in resin to test out the fitment of the case. Currently, a proper PC CNC case is under production and the picture will be updated once the keyboard arrives.

IC FORM
https://forms.gle/ikjKhUm5jF1M5hrU7

*UPDATE*
1. Since china government is locking down some places again and apparently the prototype manufacturer is right at the lockdown place, the prototype will now have a delay. When I will receive the prototype is still Unknown according to the manufacturer.

2. After approaching to KBDFans, the pricing for dz60 is not suitable for the GB pricing therefore will now use a different design PCB.

PCB specification
