Teton 78 - A 68 XT | Keyboards arrived - 3 In Stock Extras Available!

Teton 78 GB
By Bennett Balogh - Mountain Mech Designs

Product Page | IC Page | Discord

GB Updates:

8/12/2024 - Group Buy met! Ordering items soon. 5 extras will be available currently on the website.
8/20/2024 - Cases ordered, Carrying cases ordered, Feet in progress, working on logo for pcbs and carrying case
10/16/2024 - Sorry for the lack of updates on GH, but everything has arrived aside from the Daughterboards which should arrive in a week or so. Then I will be able to ship everything out!





After a year of design and several prototypes, I am very excited to announce the group buy for the Teton 78! The goal for this board was a classic-style top mount with a unique layout. While it took a lot of trial and error, I have finally arrived at something I am comfortable sharing with you! Growing up around near Grand Teton National Park, I took inspiration from the Grand Teton mountain range - featured on the weight. Thank you all for the interest and help in the discord to bring this project to life, I am really excited to get this board into your hands. I am very happy with how it turned out, and I hope you will be too! For more info, visit: mountainmechdesigns.com

GB Details:

Sale Dates: July 7th - August 11th July 28th - Extended for Alexotos' Stream on the 25th.
Estimated Shipping: Q4 2024
MOQ: 30 units Lowered to 15 units - MOQ Met
The sale will be sold and fulfilled myself https://www.mountainmechdesigns.com

Colors:

The final colors will be Light Blue and Brown for the top case both with a silver bottom case. Extra top cases will be available for +$175.

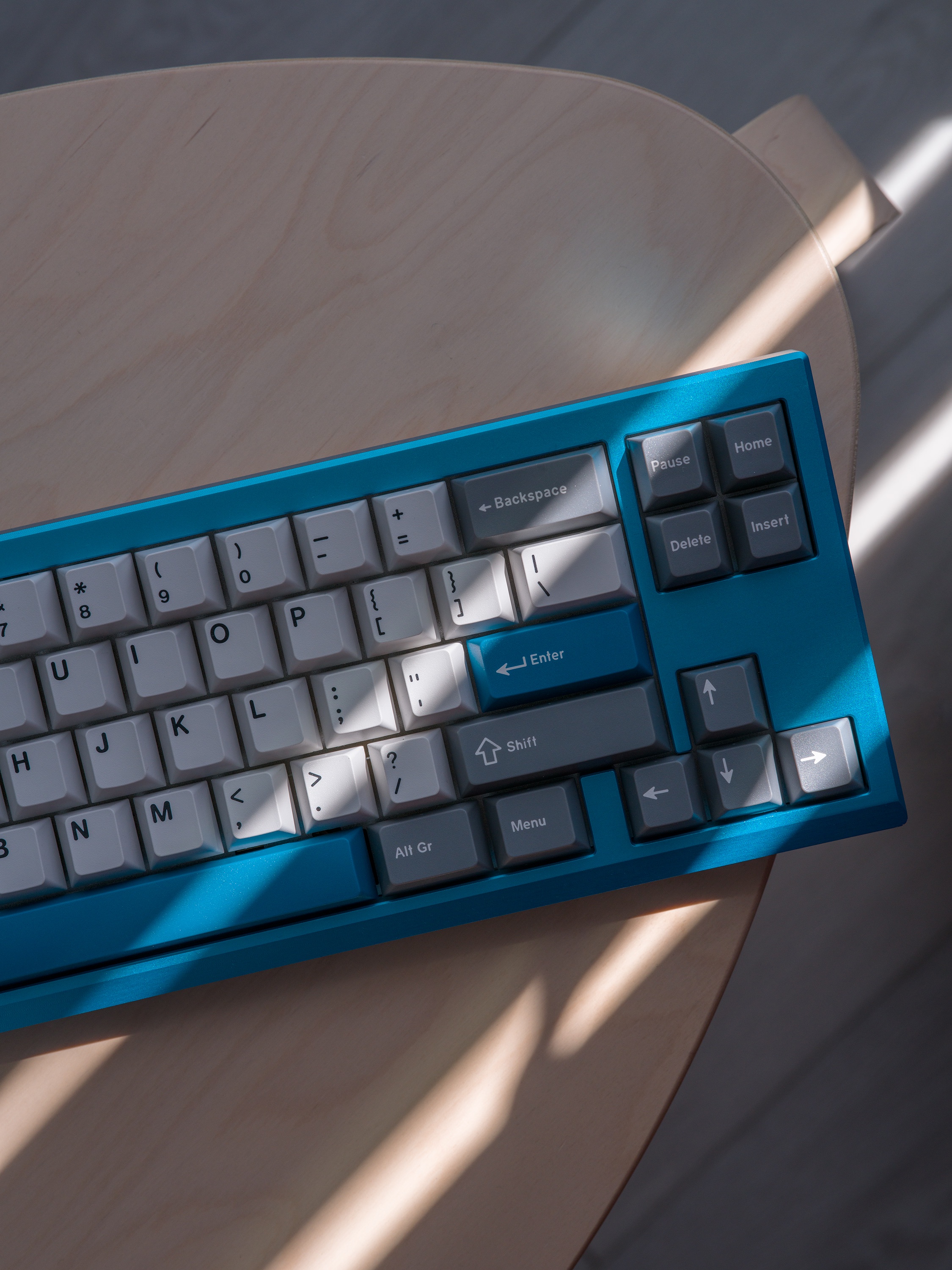

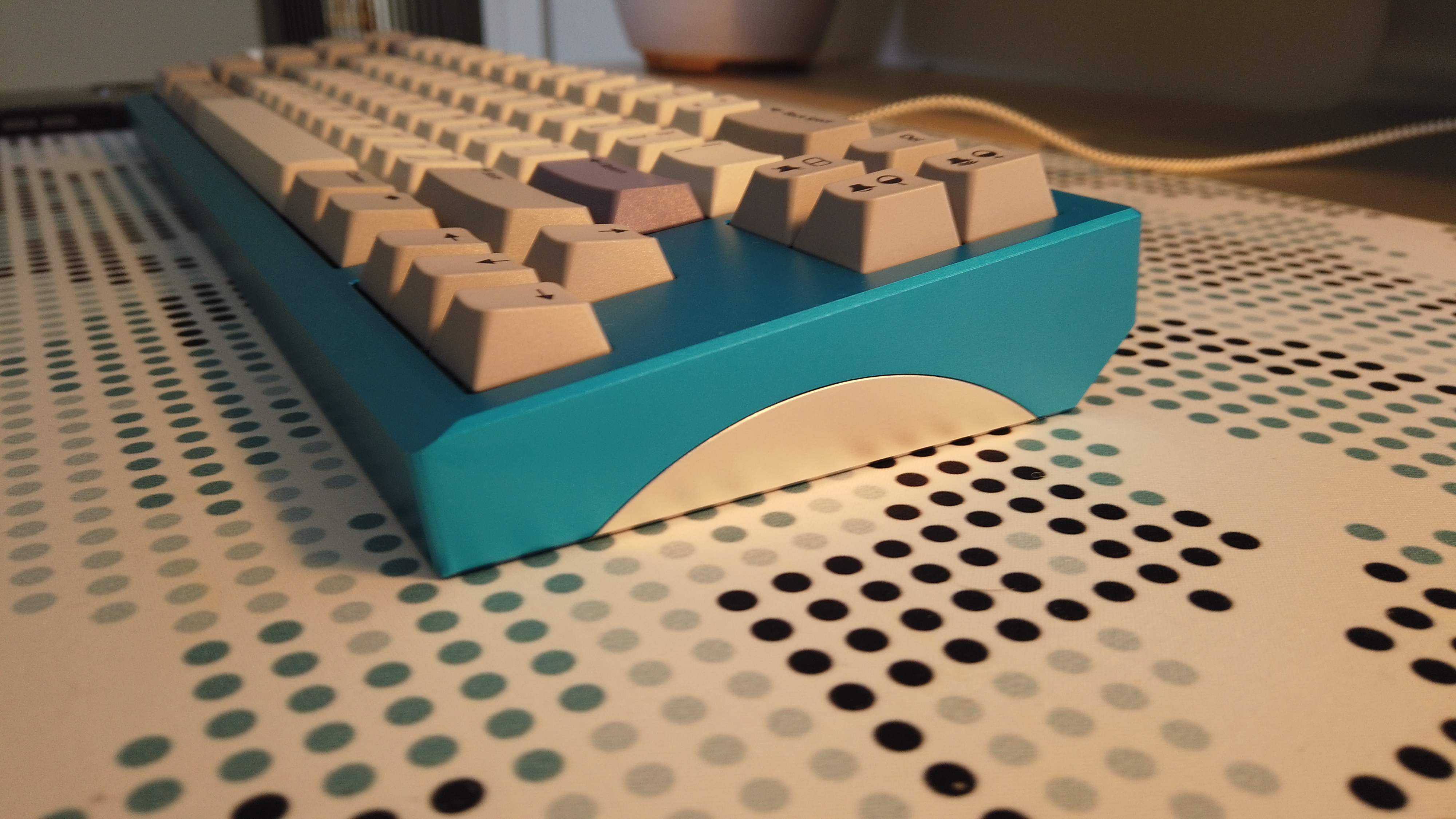

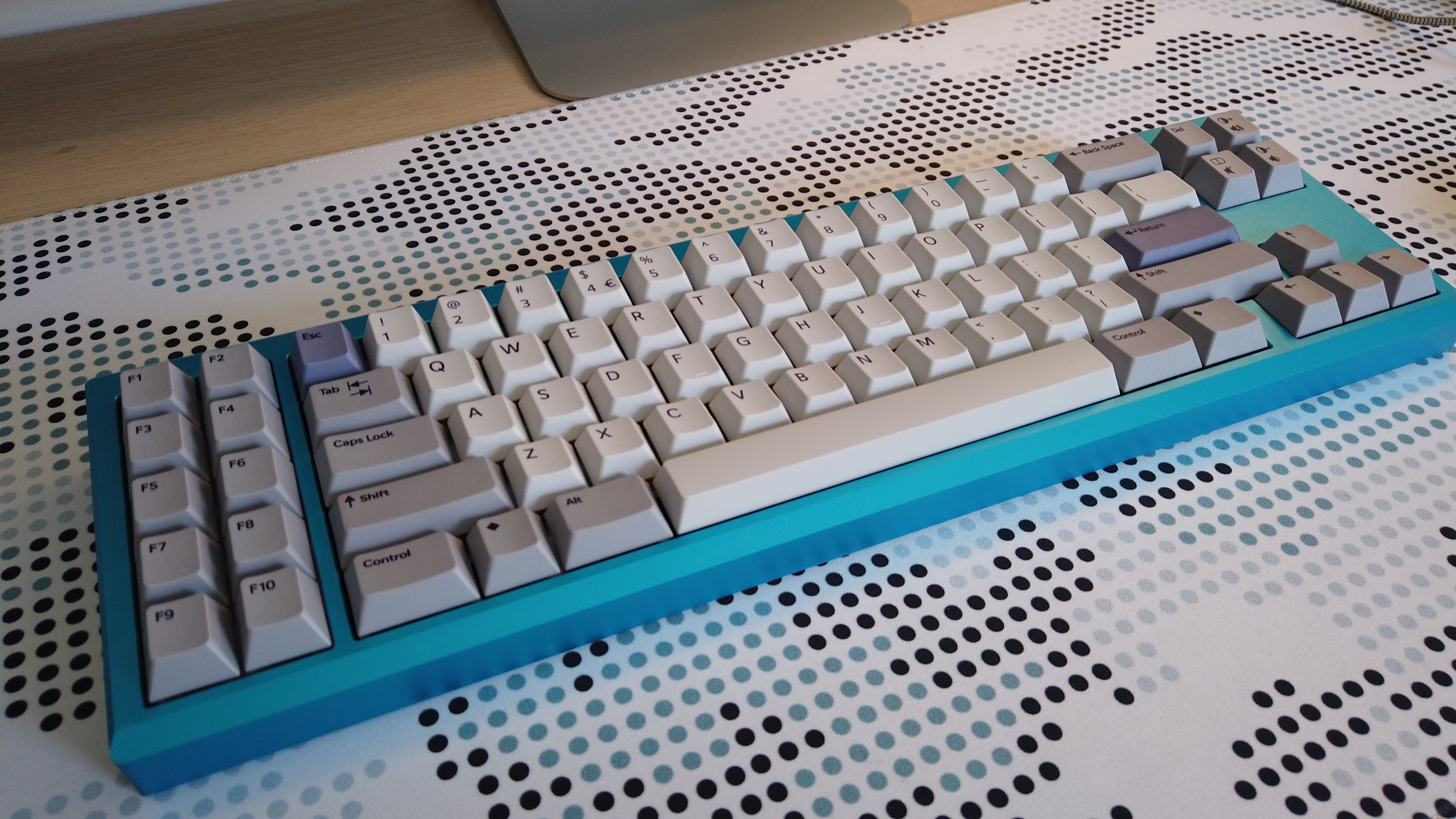

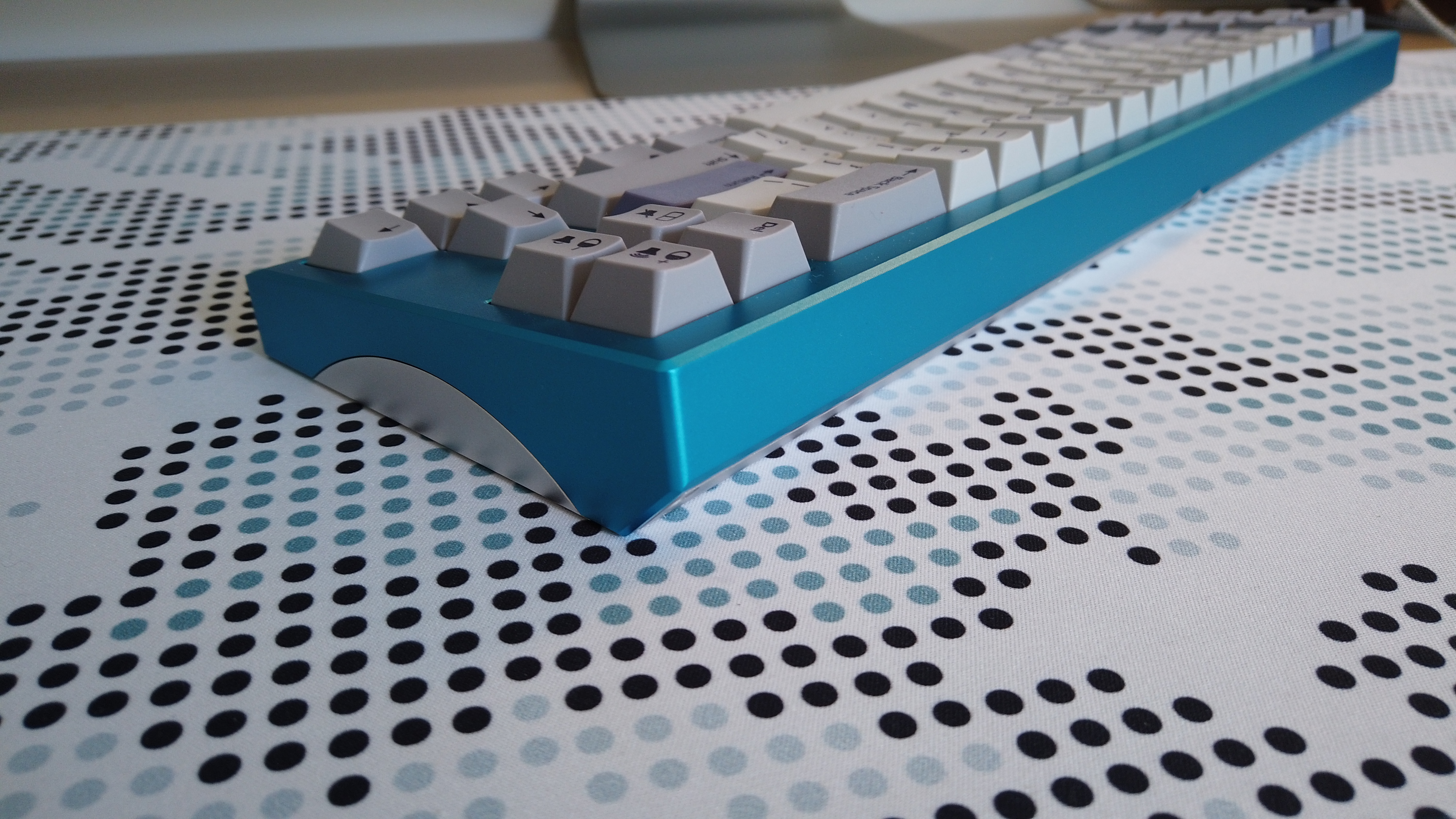

Picture of the Light blue color:

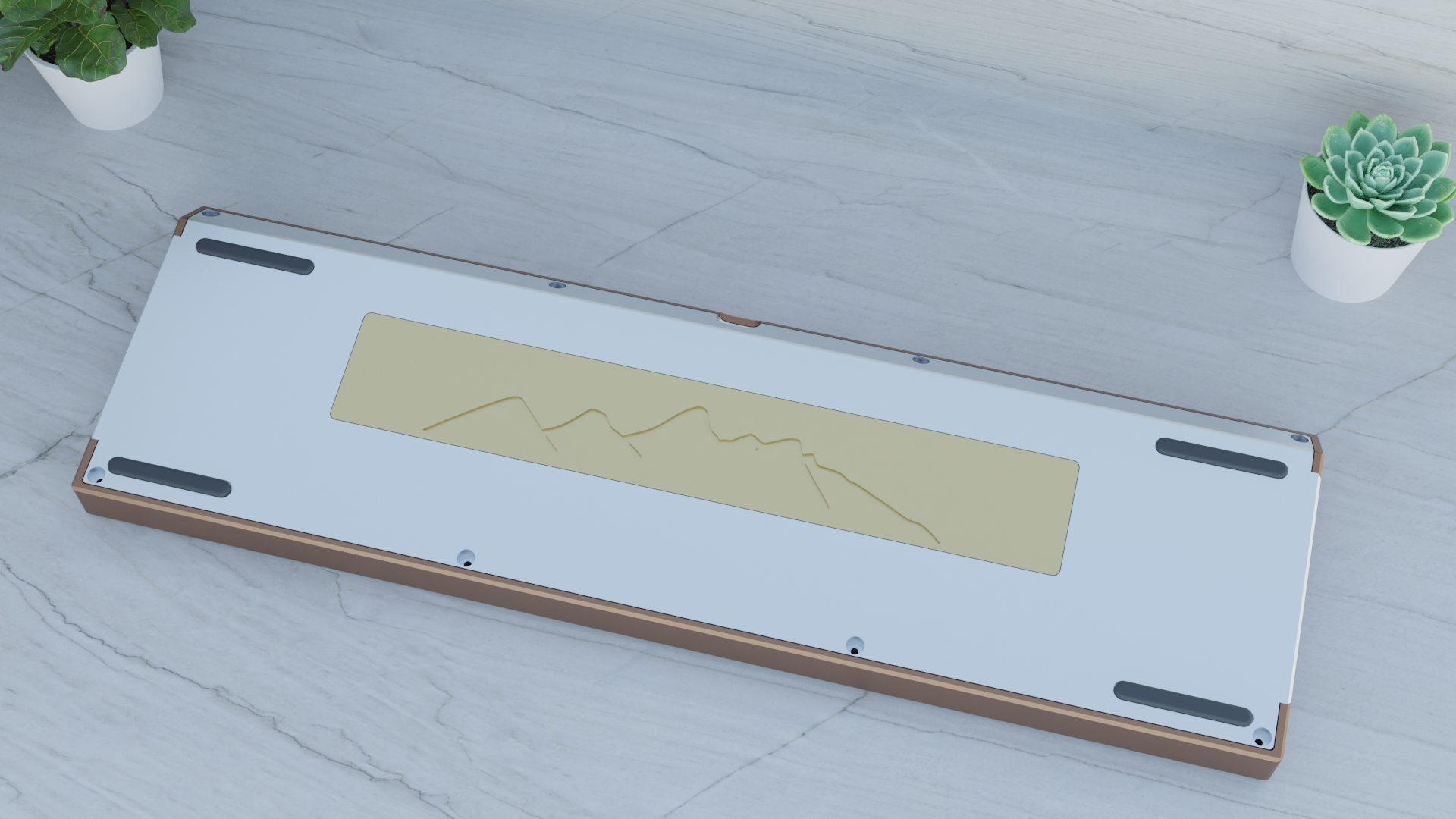

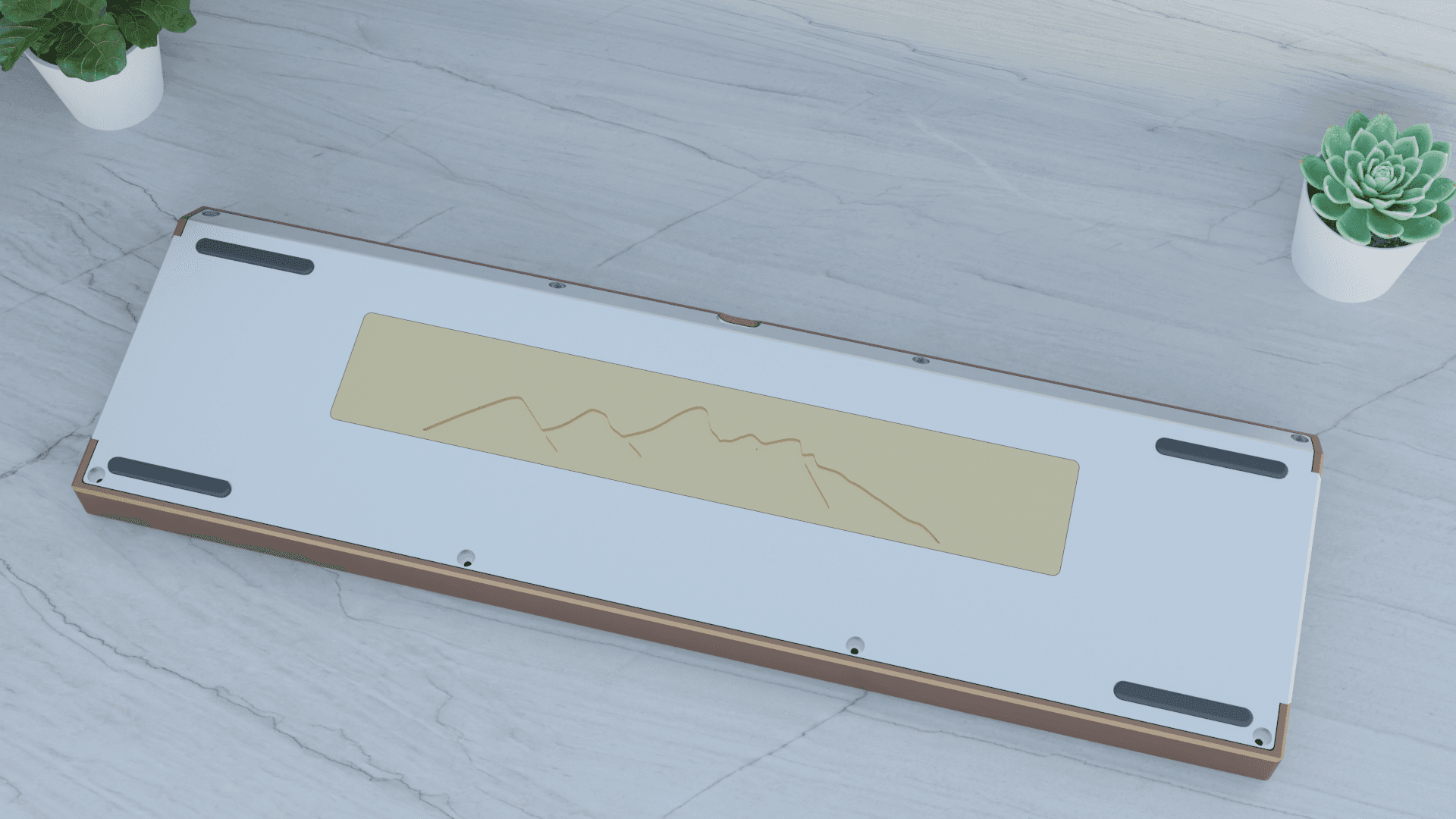

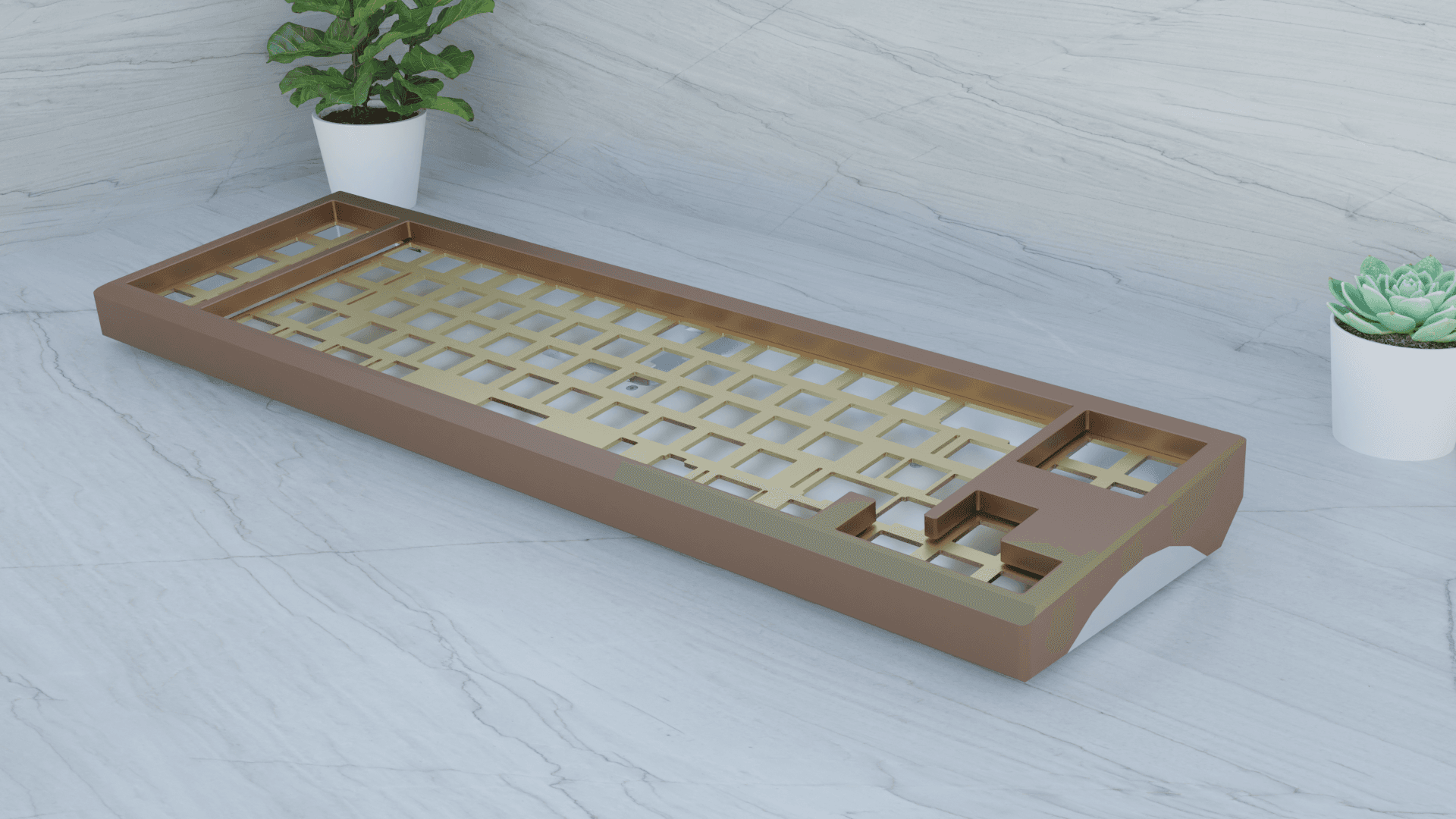

Renders of the Brown color:




Pricing:

The final price will range from $320 - $365 for the Keyboard. Extras can be purchased additionally.

1x 6063 Aluminum anodized top case in either Light Blue or Brown
1x 6063 Aluminum anodized bottom case in Silver natural anodization
1x Aluminum or FR4 plate - +$15 for Brass Plate
1x Brass Engraved Sandblasted weight - +$15 for Polished weight
1x Solder - +$15 for Hotswap PCB
1x C5 Unified DB and JST-JST cable
1x Carrying case
6x Feet (2 Extra)
1x Bag of Screws (Extras included)

MOQ: 30 Units
Visit https://www.mountainmechdesigns.com to pick out the options.

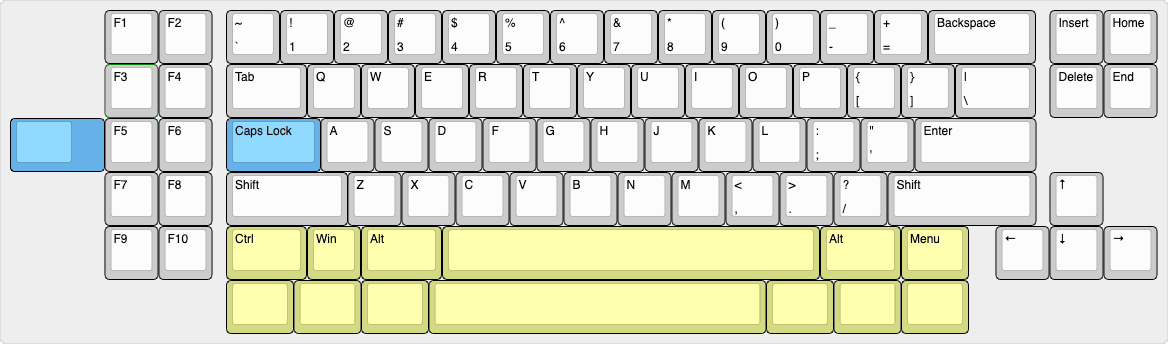

PCB Layouts:

Solder Layout:

Hotswap Layout:

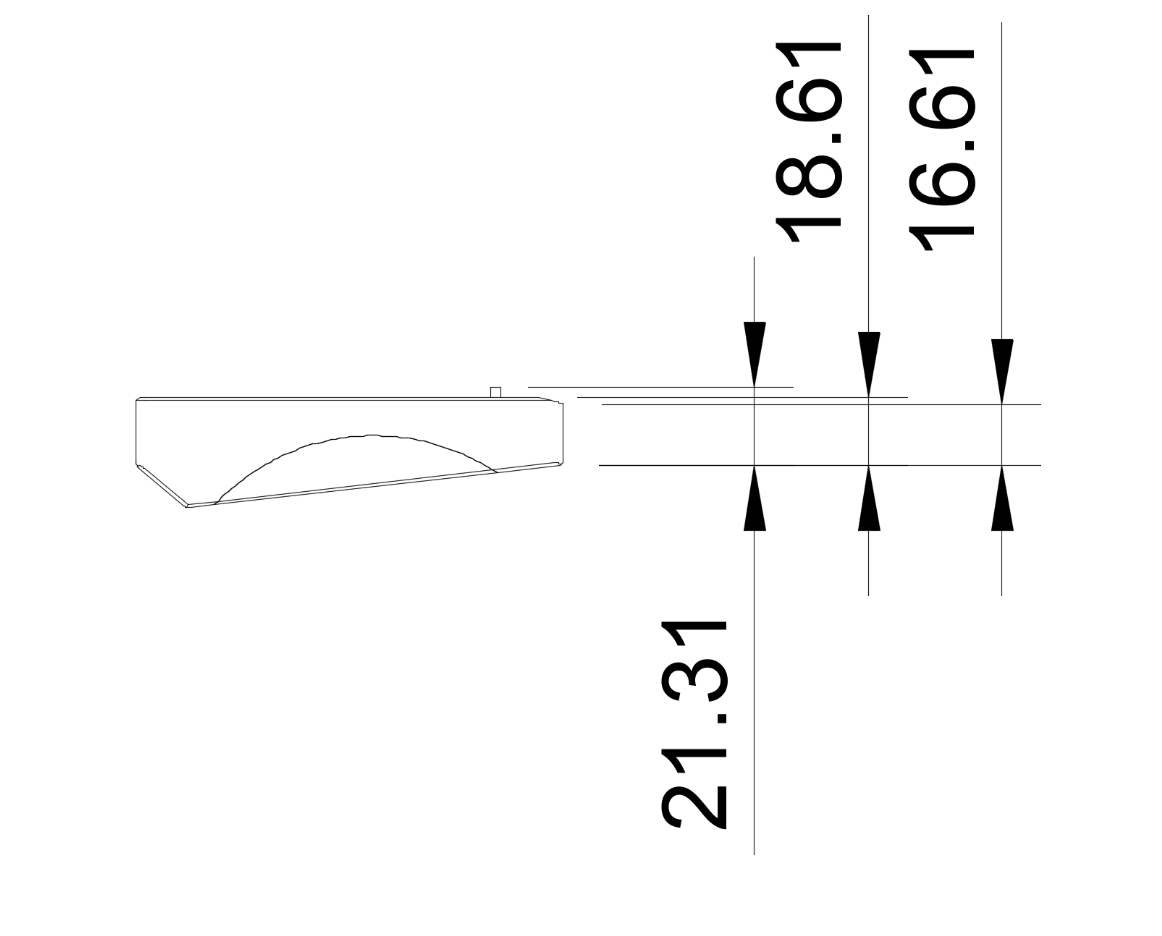

Keyboard Height Details:[/size]



Specs:

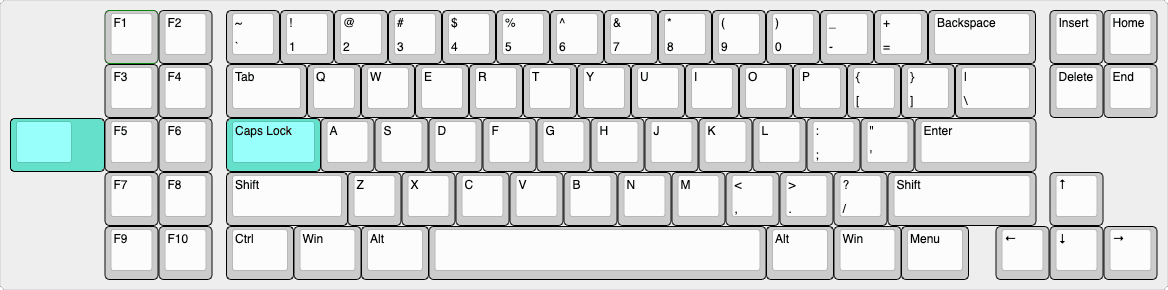

- Layout: 68 XT (78 Keys)
- Mounting: Top Mount
- Typing Angle: 6.5 degrees
- Front Height: 16.61mm
- EKH: 21.31
- Case: 6063 Aluminum Sandblasted and Anodized
- Weight: Brass Sandblasted + Clear Coat or Brass Polished + Clear Coat (Please note Polished ≠ Mirror)
- PCB: Solder 1.6mm and Hotswap 1.6mm with QMK and VIA support
- C5 Unified DB and JST-JST cable
- Weight: ~2.2 kg or 4.85 lbs built
- Plates: Brass, Aluminium, FR4
- SKUF Feet in Black or White


Image Collection Below:

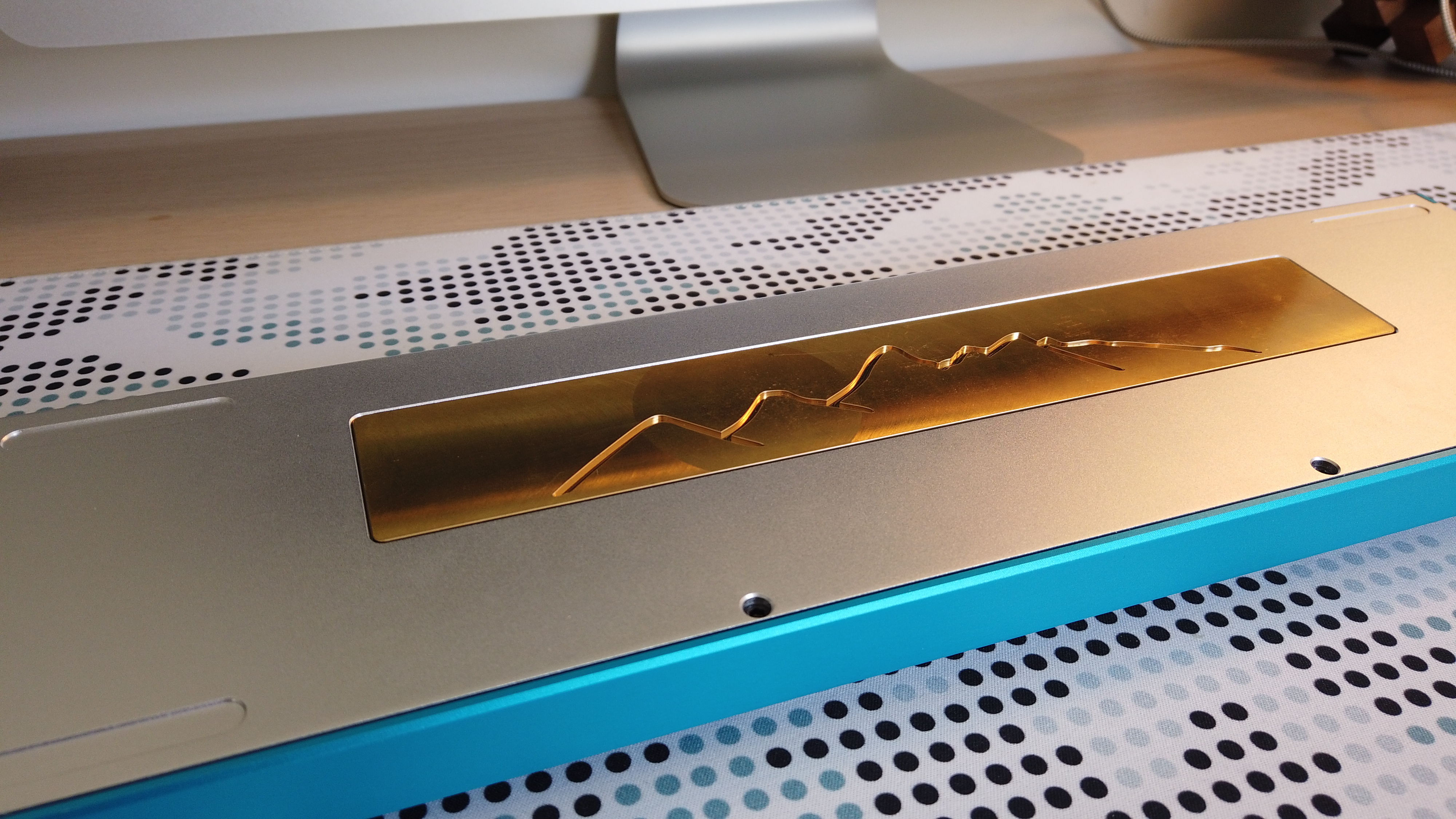

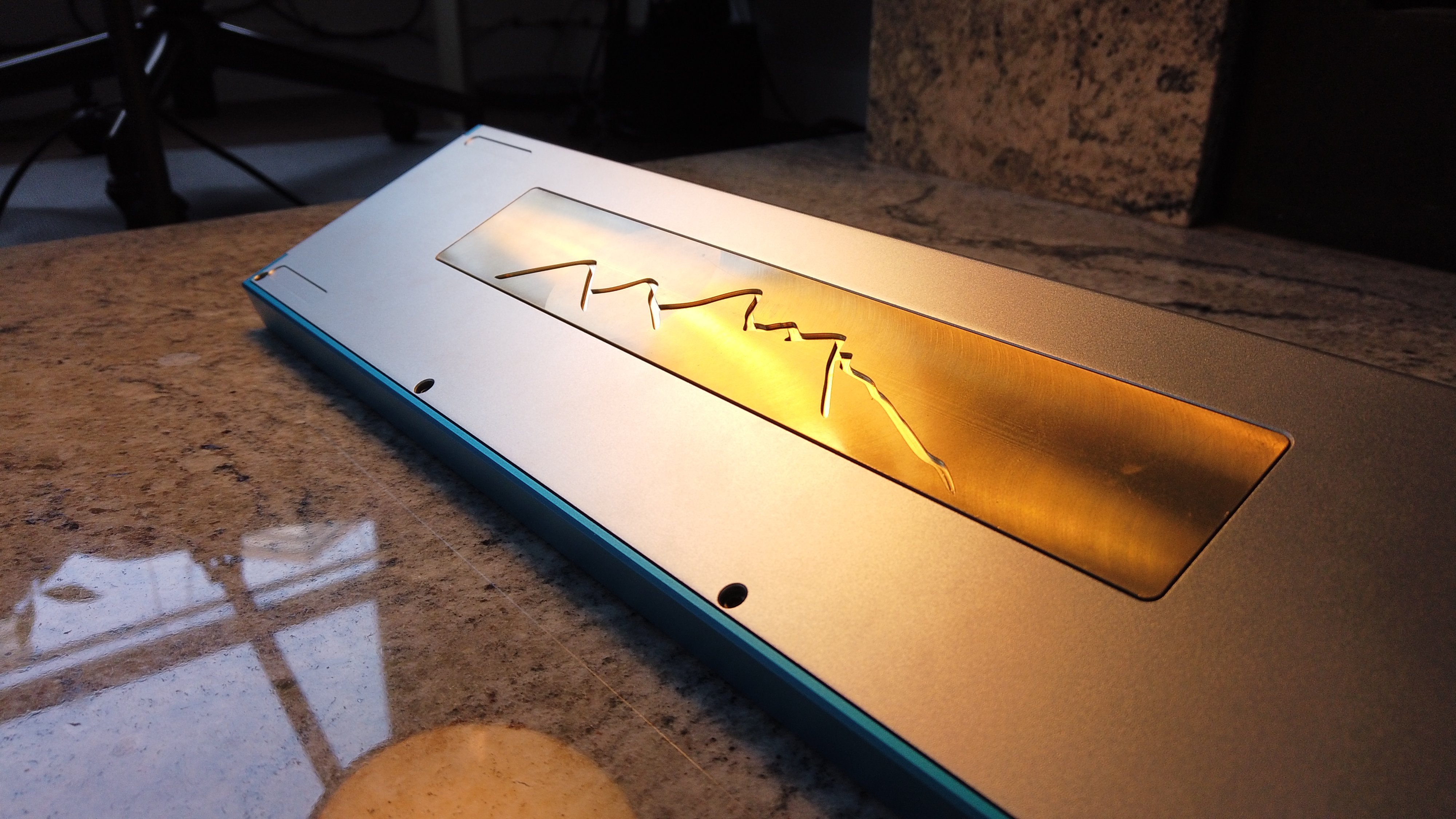

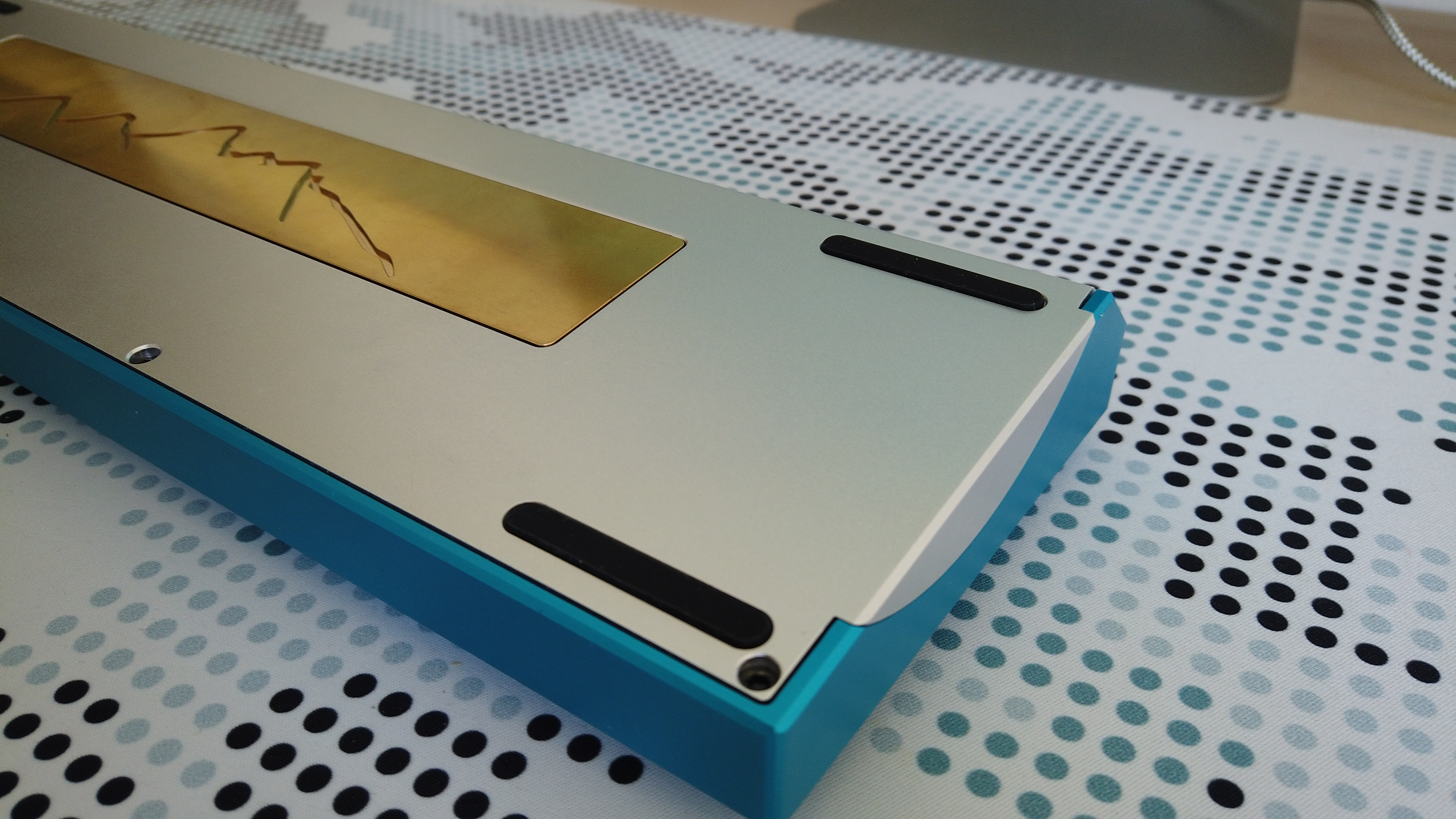

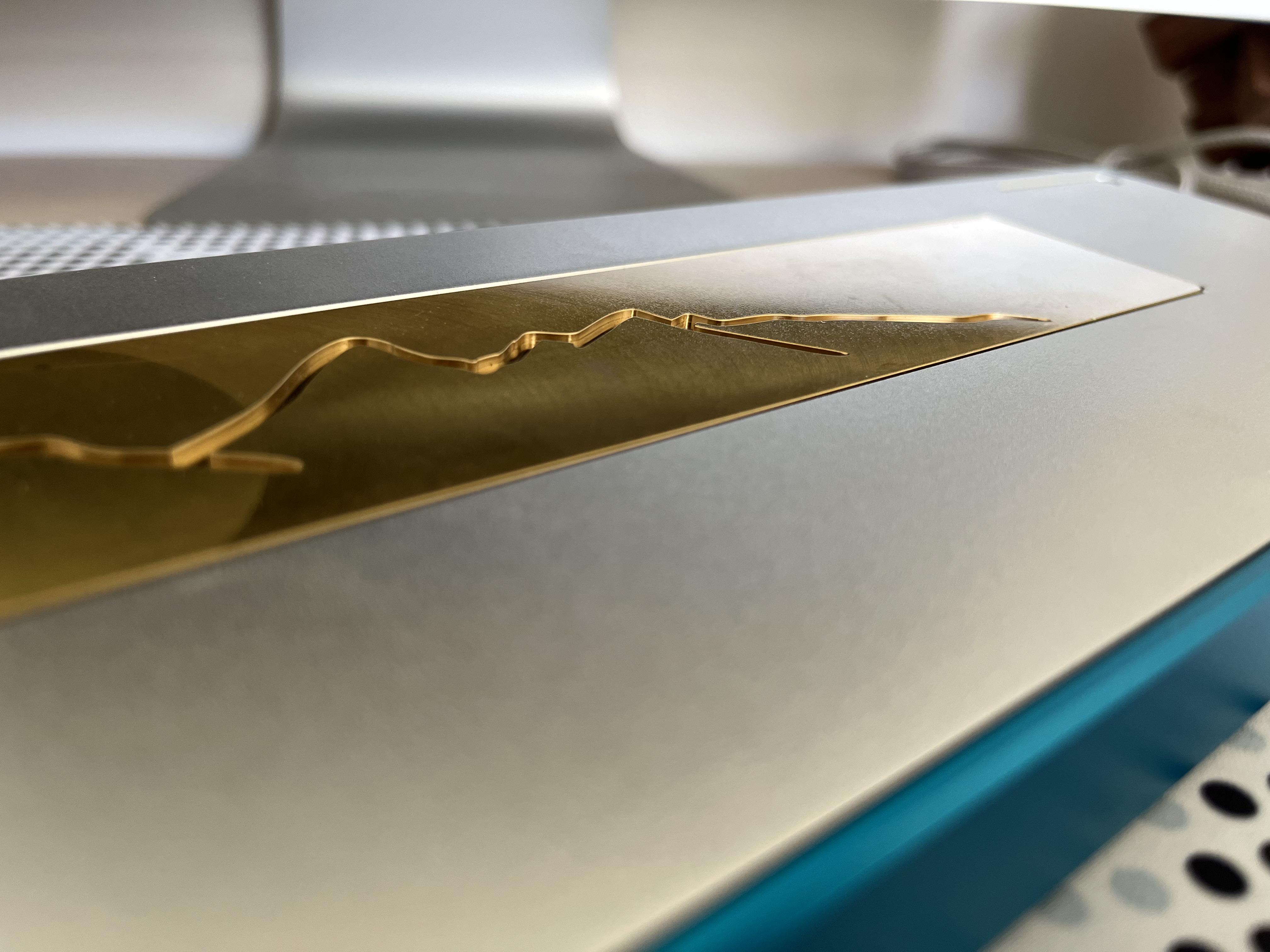

The following weight is raw and will not be offered. The Blue and Silver colors pictured will be offered.

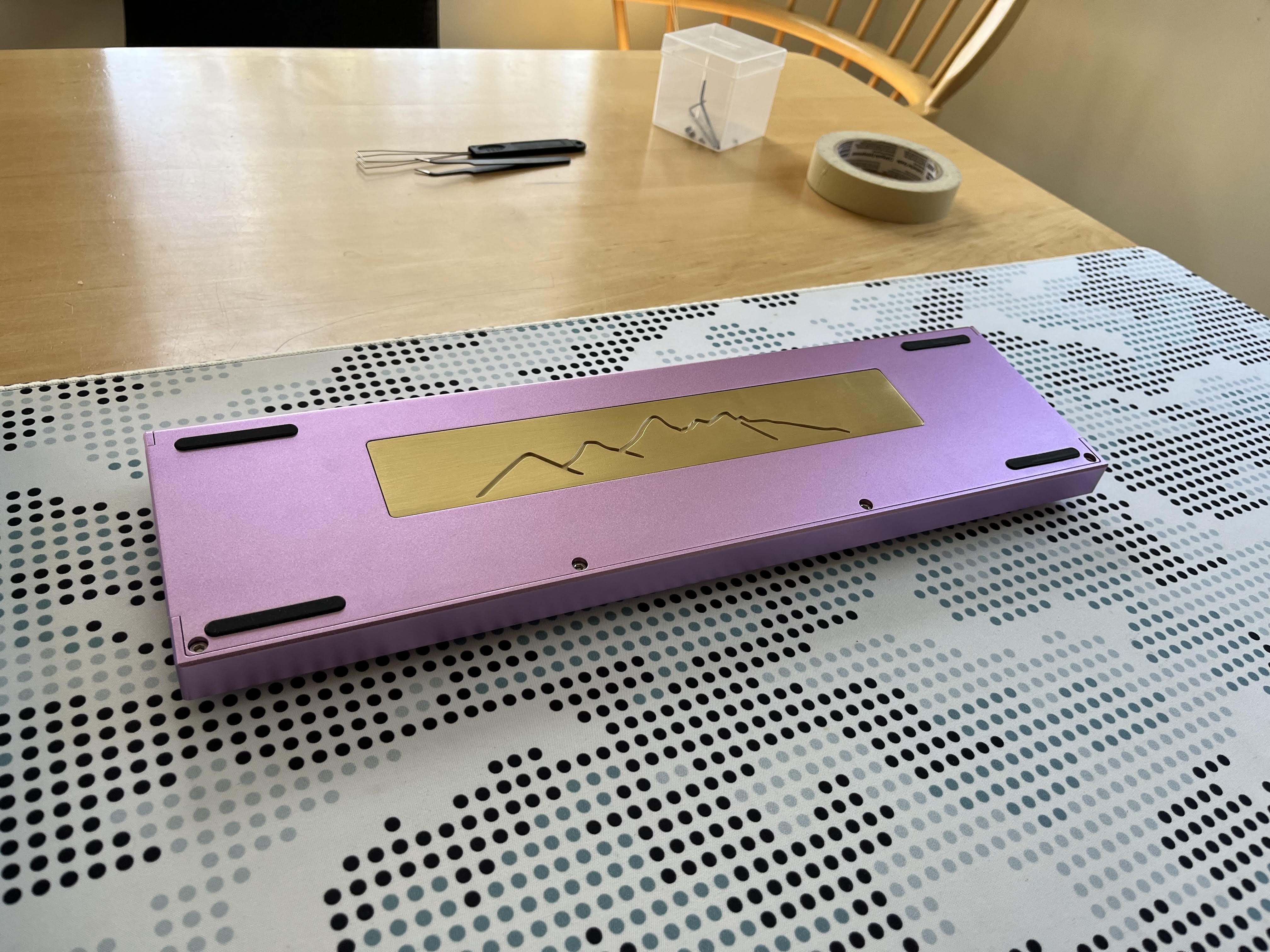

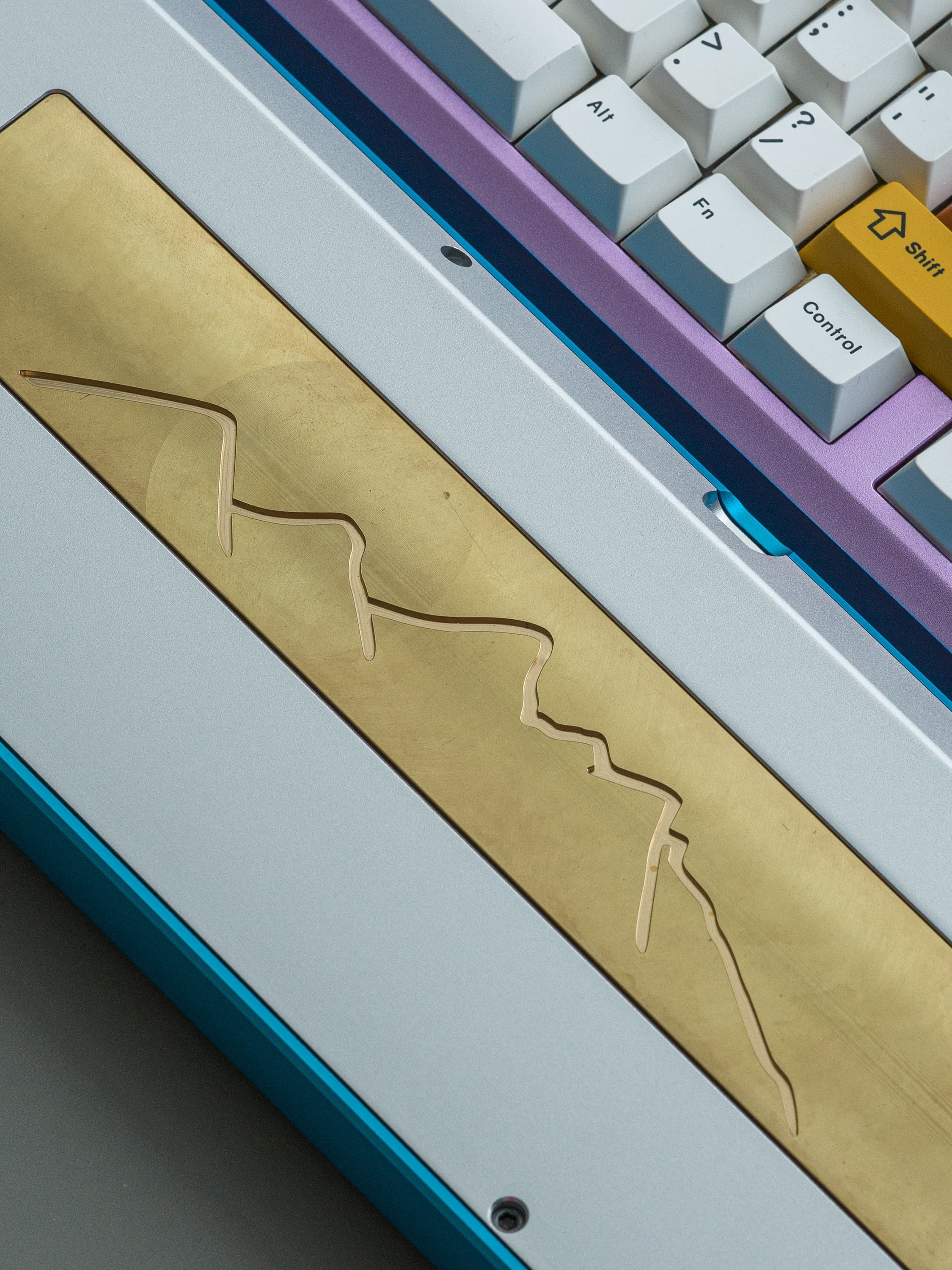

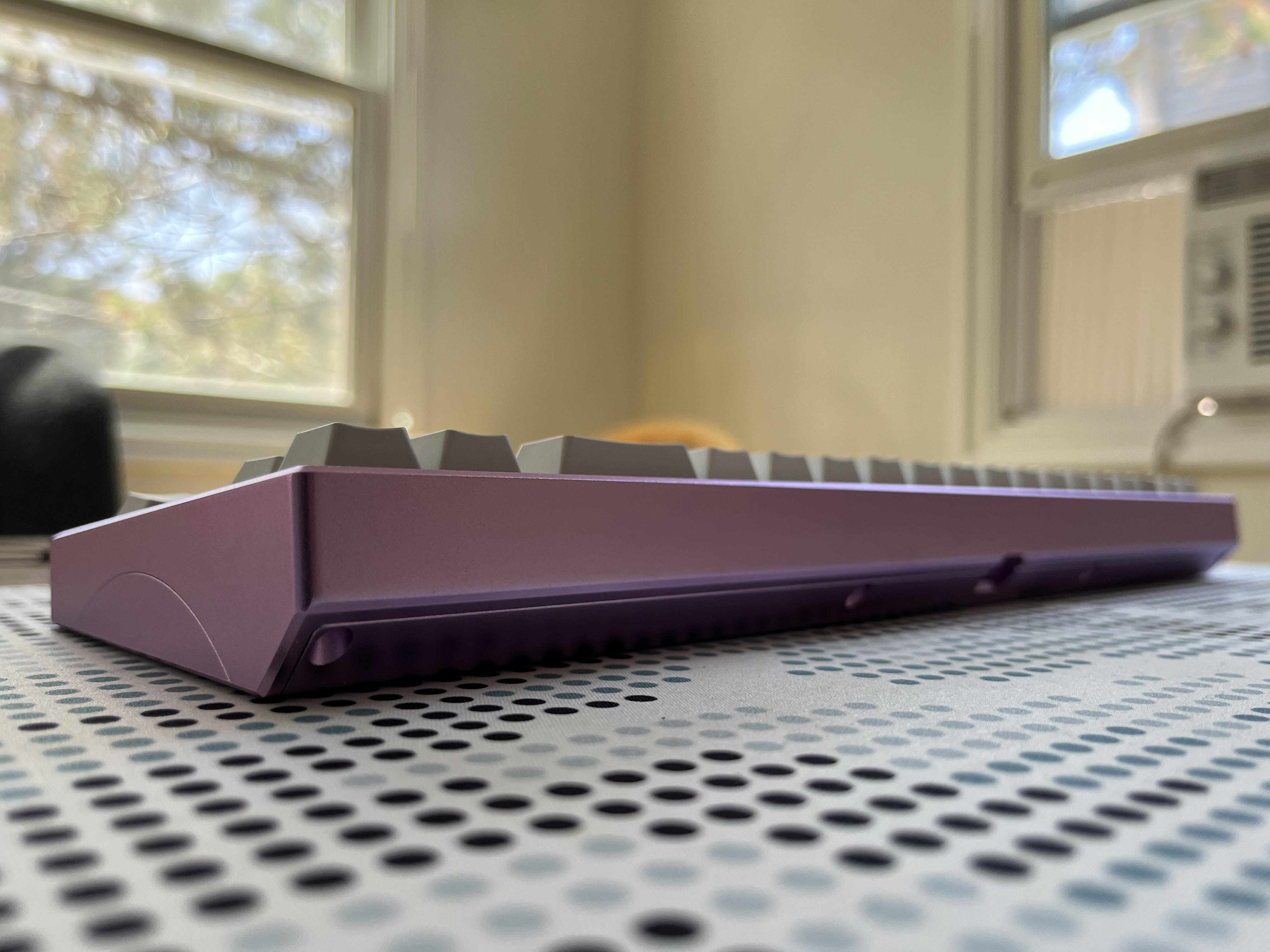

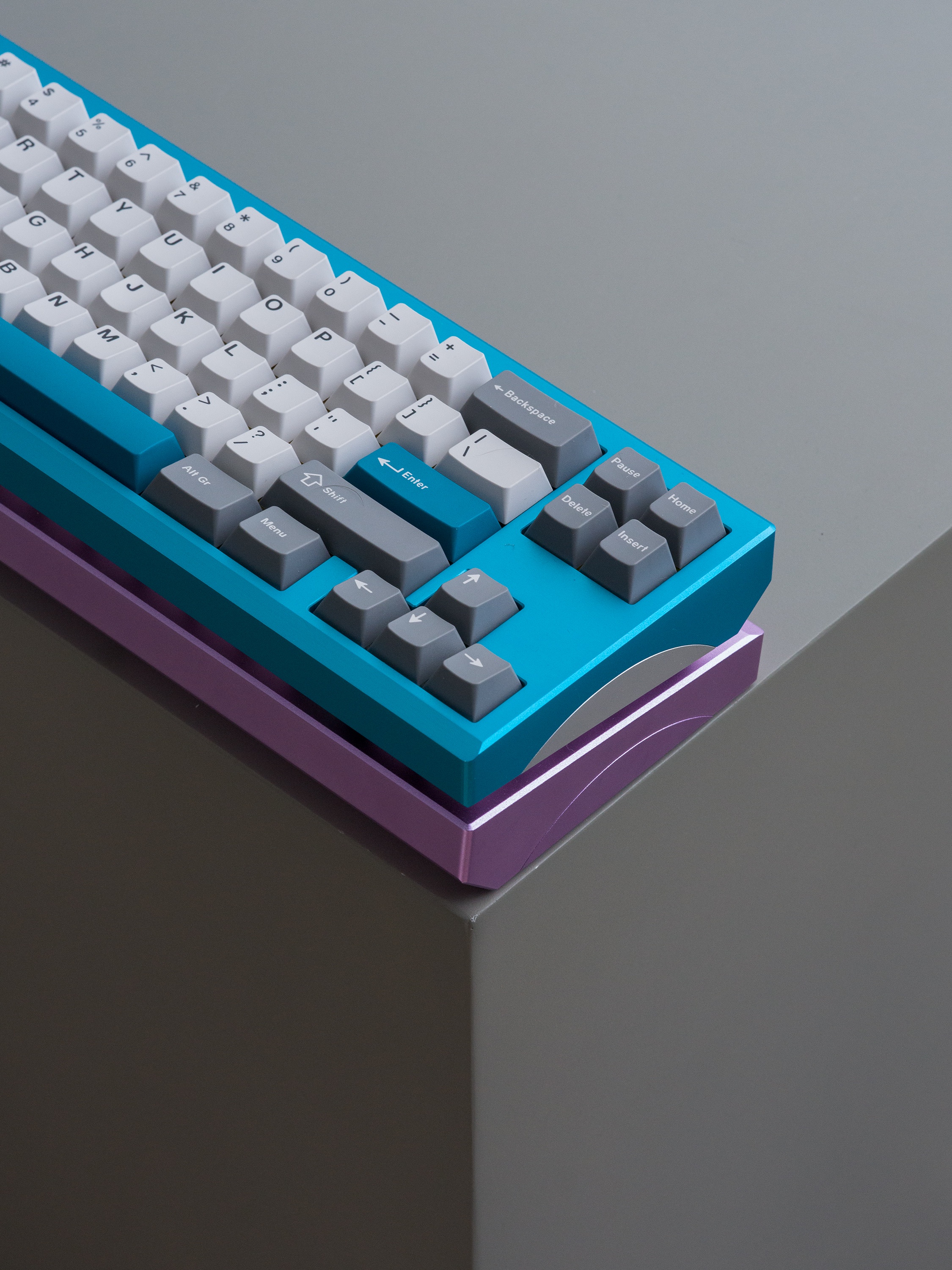

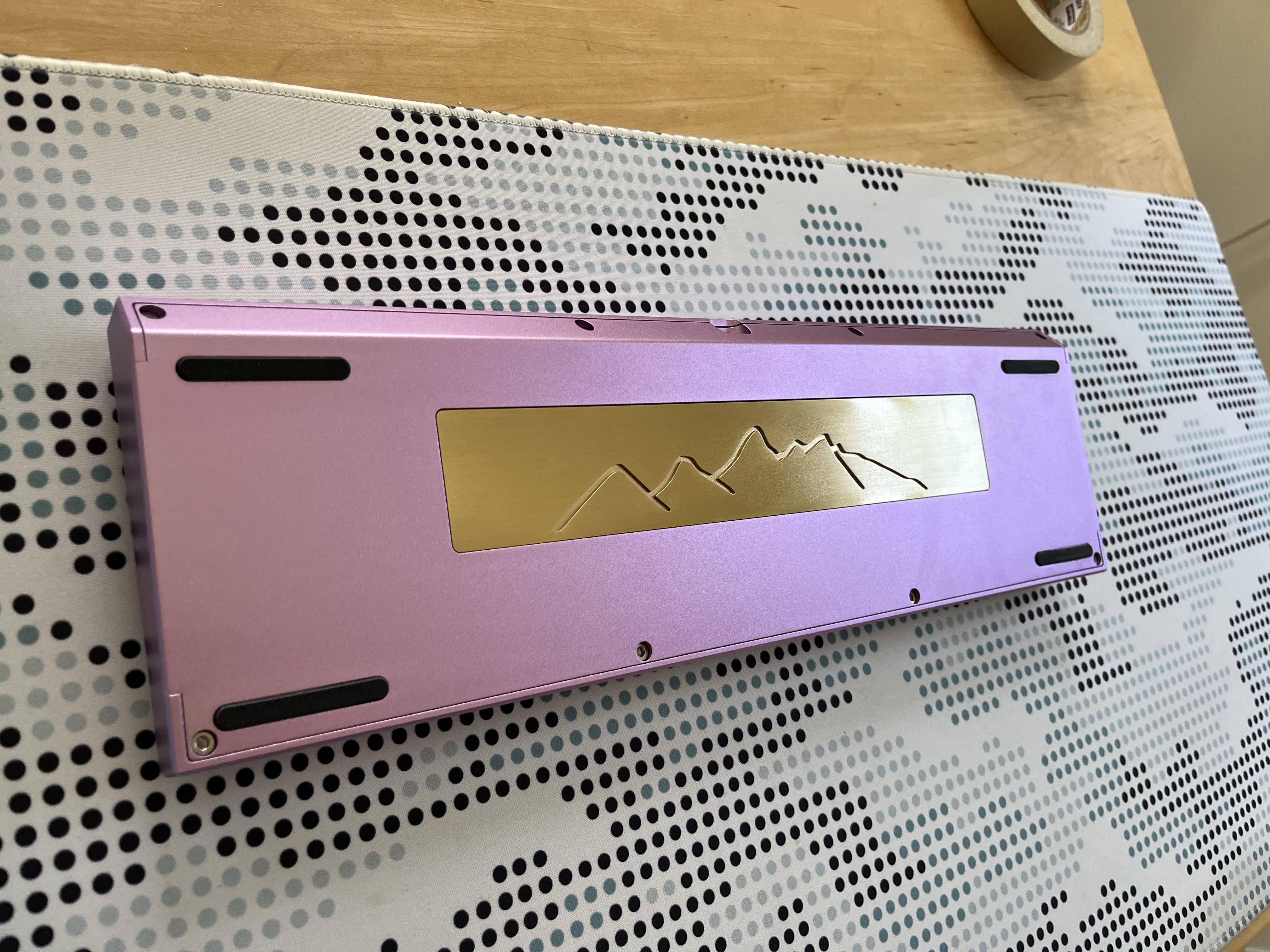

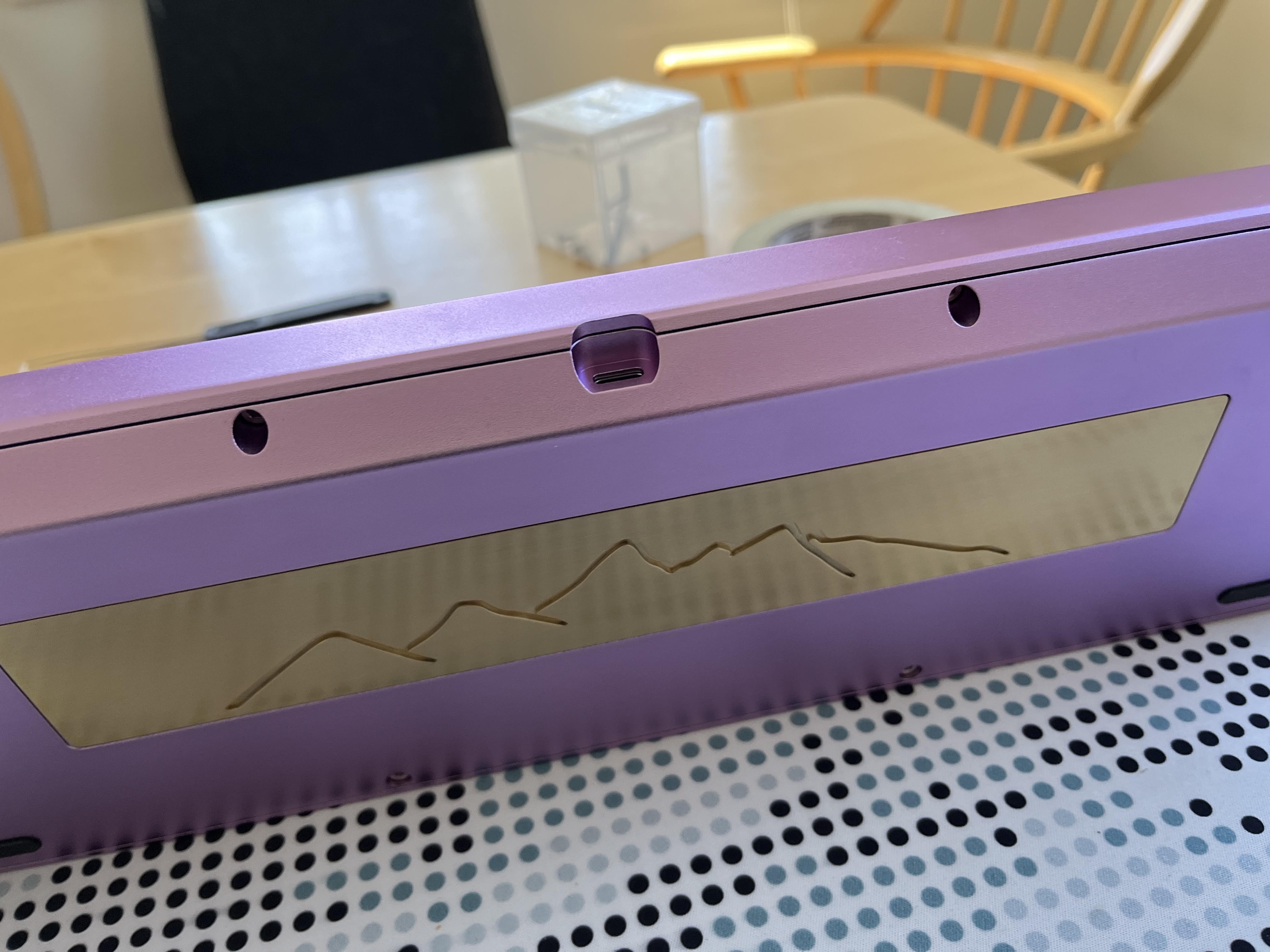

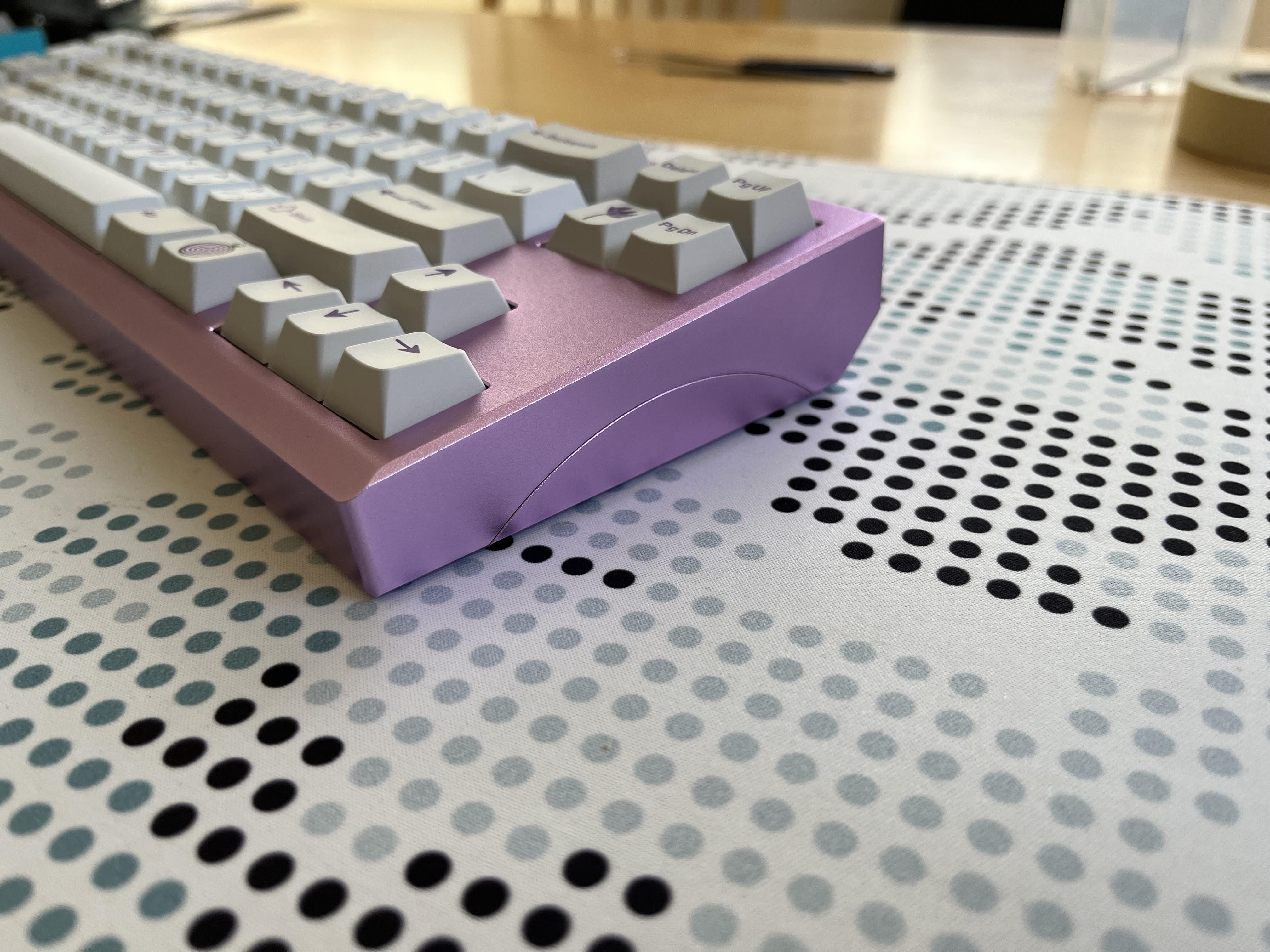

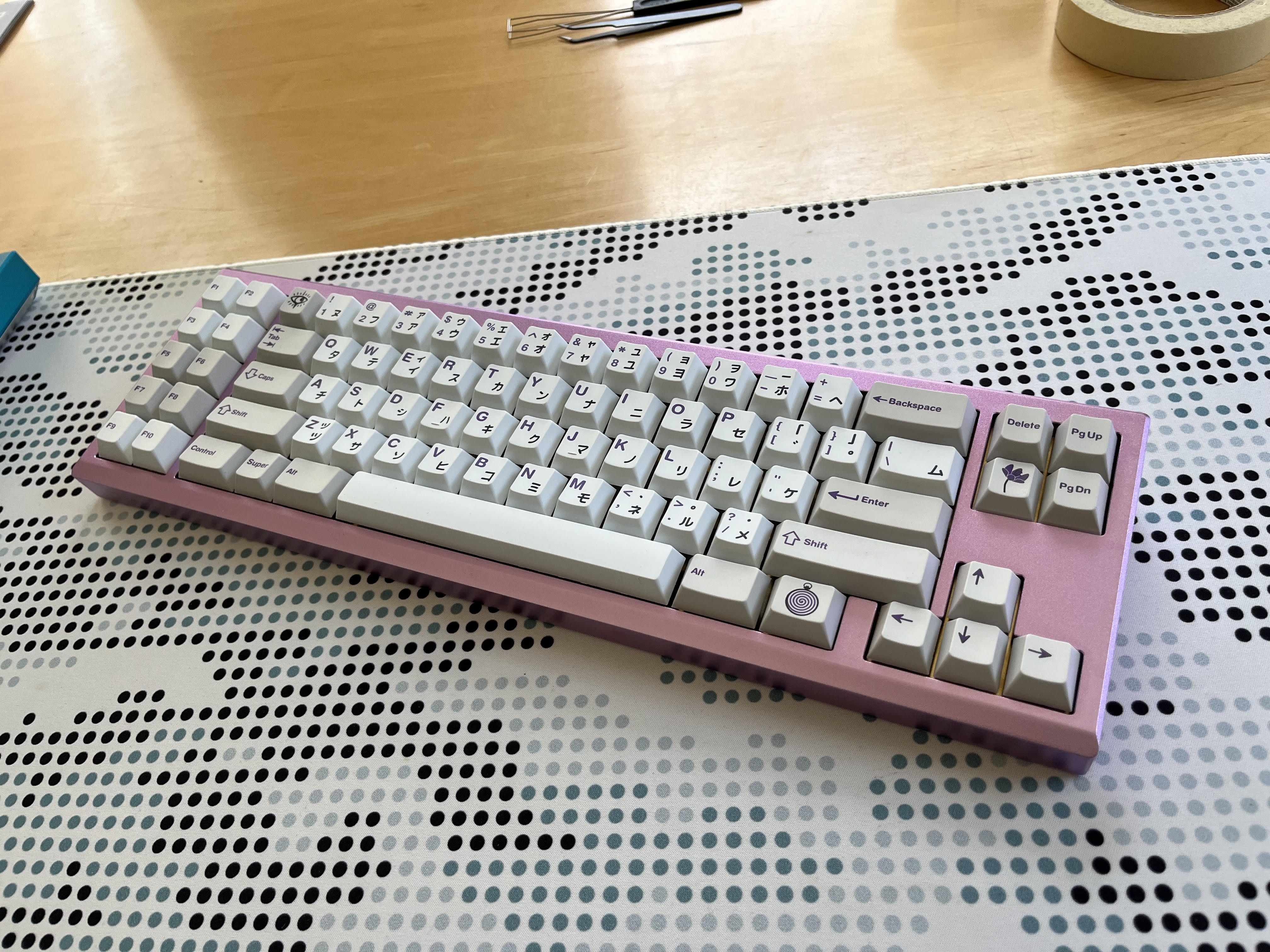

The following weight is polished and will be offered in the group buy. The Lavender color will not be offered due to limited demand.
