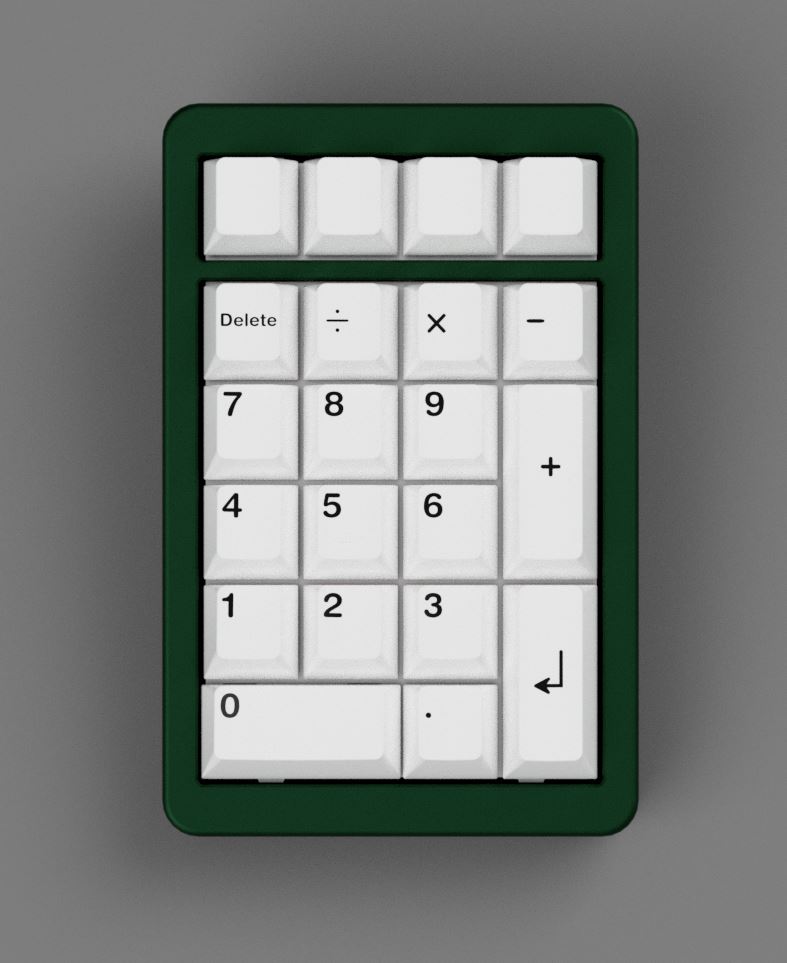

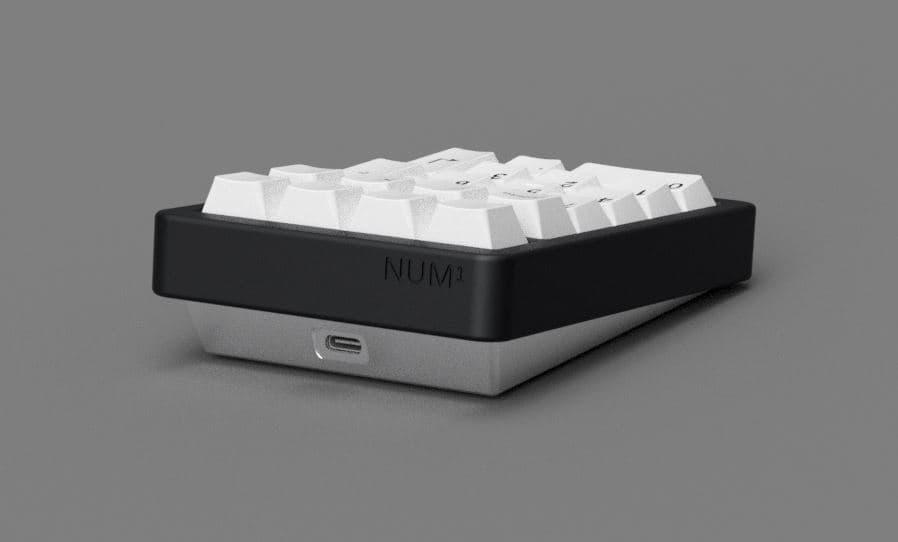

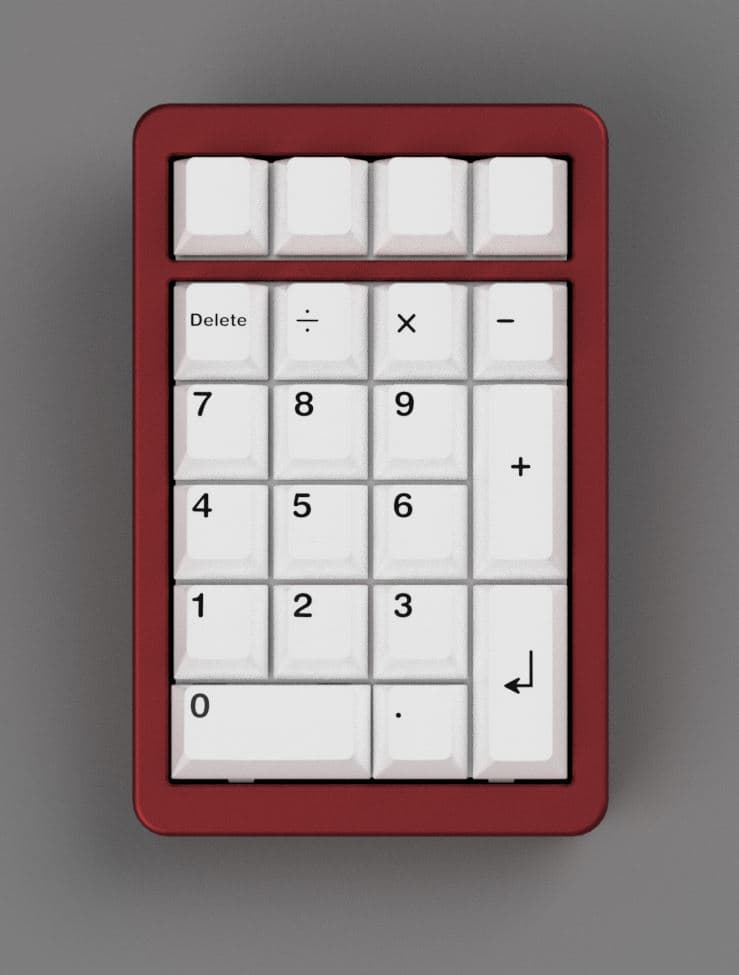

[ The NUM1 ]A gummy o-ring mounted number pad with a Daughterboard, Bluetooth, alternative top mount, and Alps compatibility.
—-----------------------------------------------------

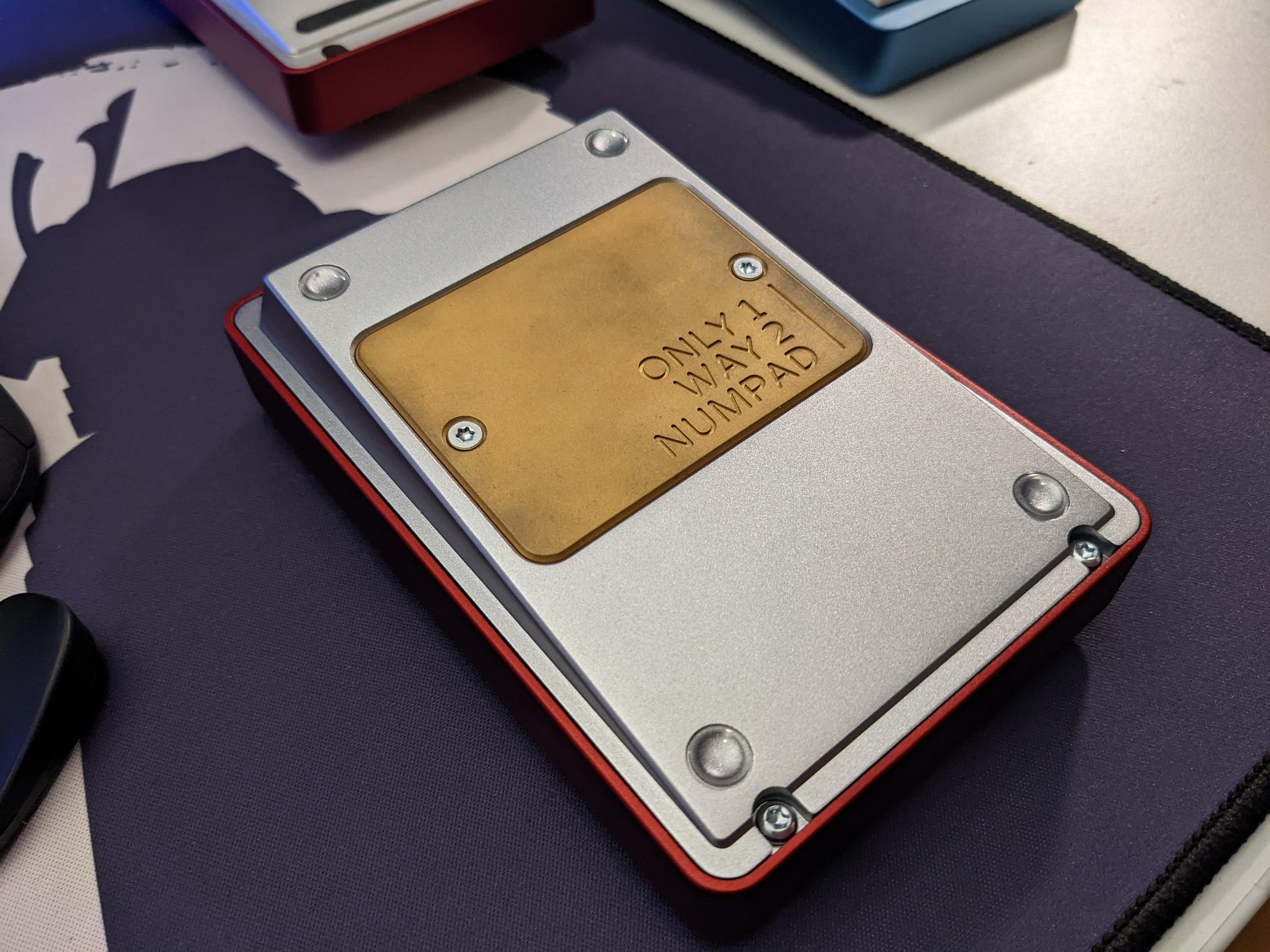

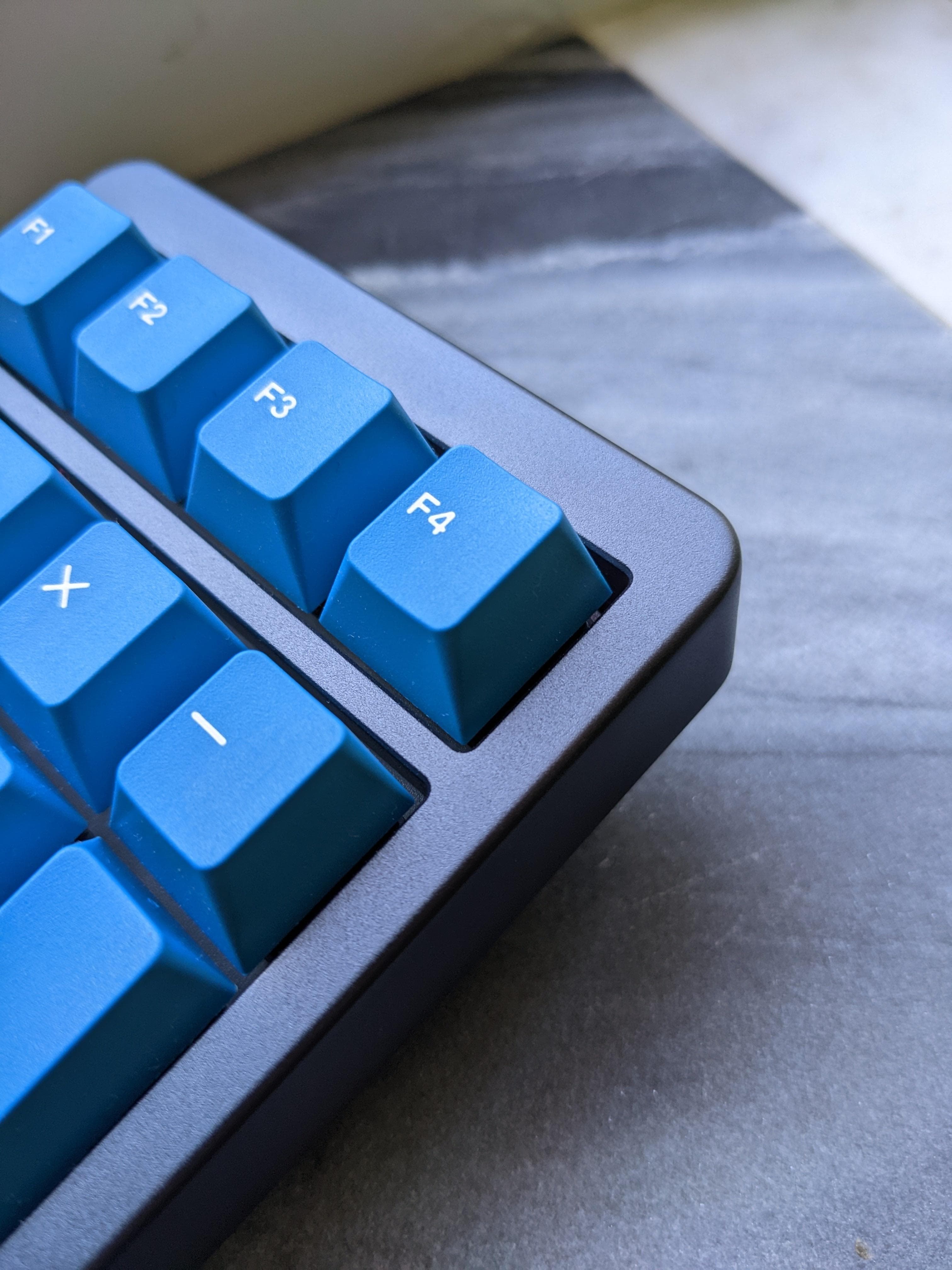

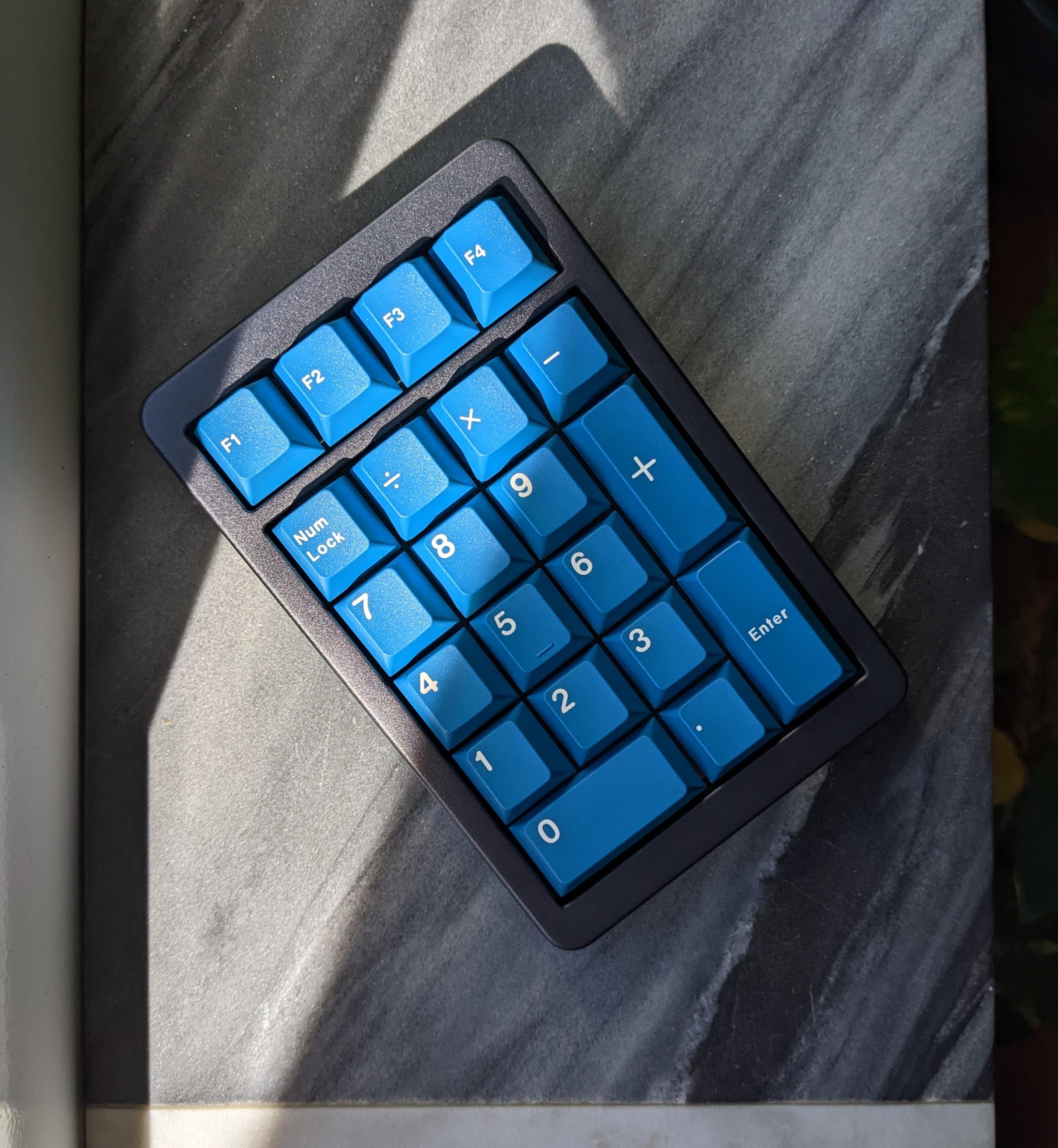

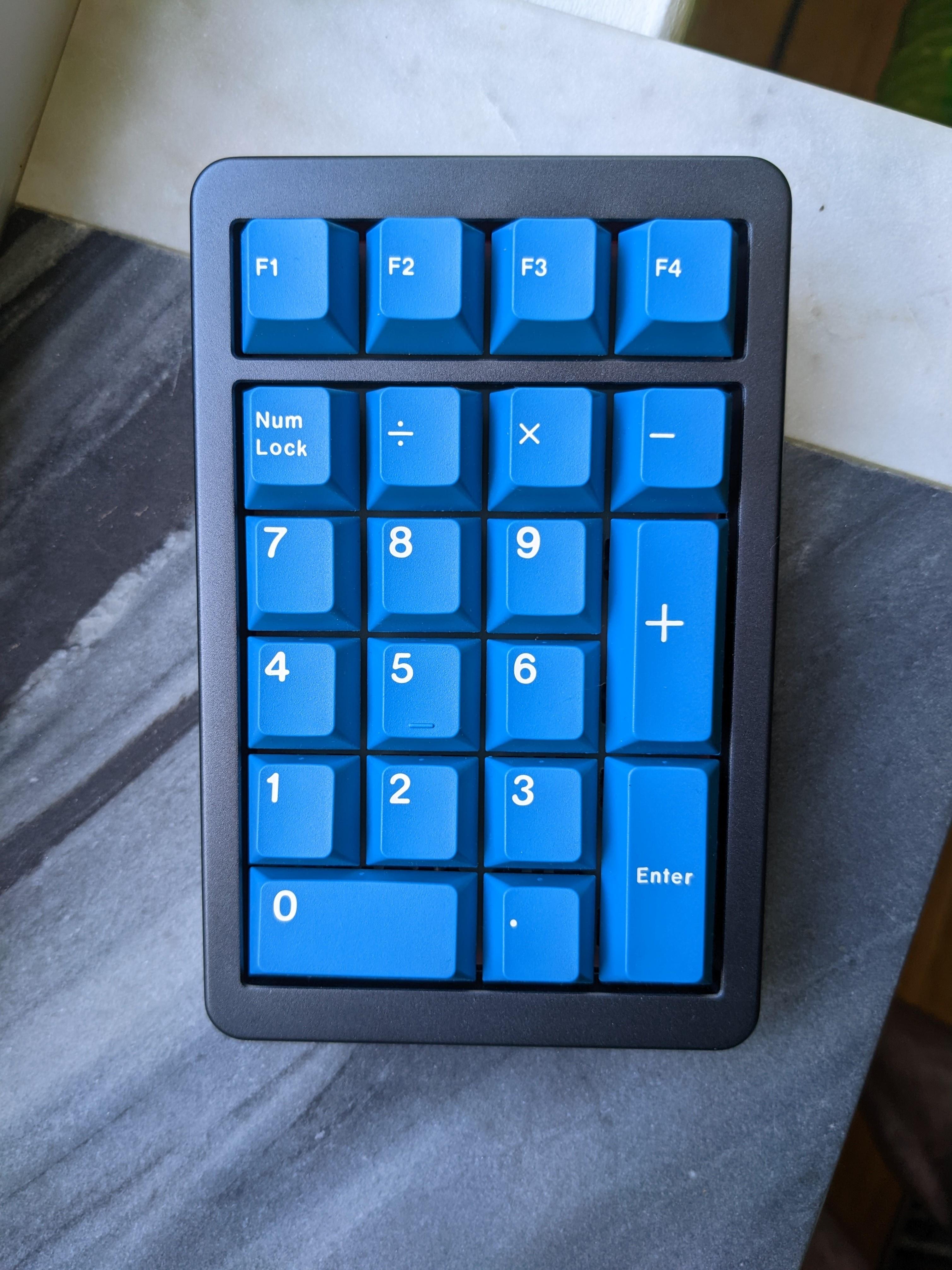

V2 and V2.5 prototype photos:
—----------------------------------------------------
[ The Group Buy information ]Vendor: https://thockeys.com
Price: $250 for the kit
Sale format: Raffle
Raffle entry period: now closed
Fulfillment estimation: 4-6 months from GB wrap up (very generous, but I just want to be safe)Extras:$12 - MX PP Plate - Cut by the wonderful Jake at the
https://p3dstore.com$18 - Alu Alps Plate - "jack" anodization color
$30 - PCB
$5 - O-ring 50A
—-----------------------------------------------------

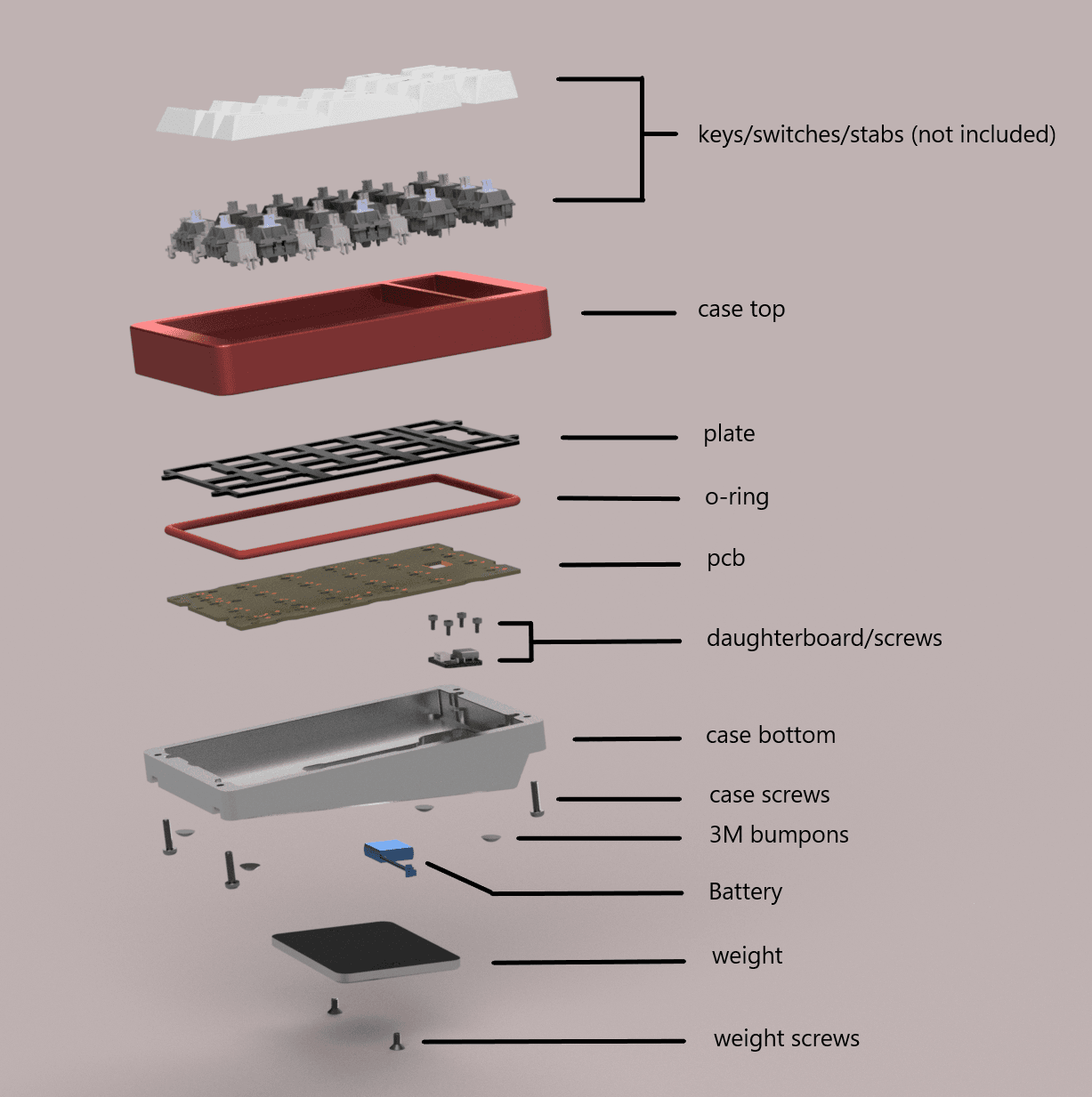

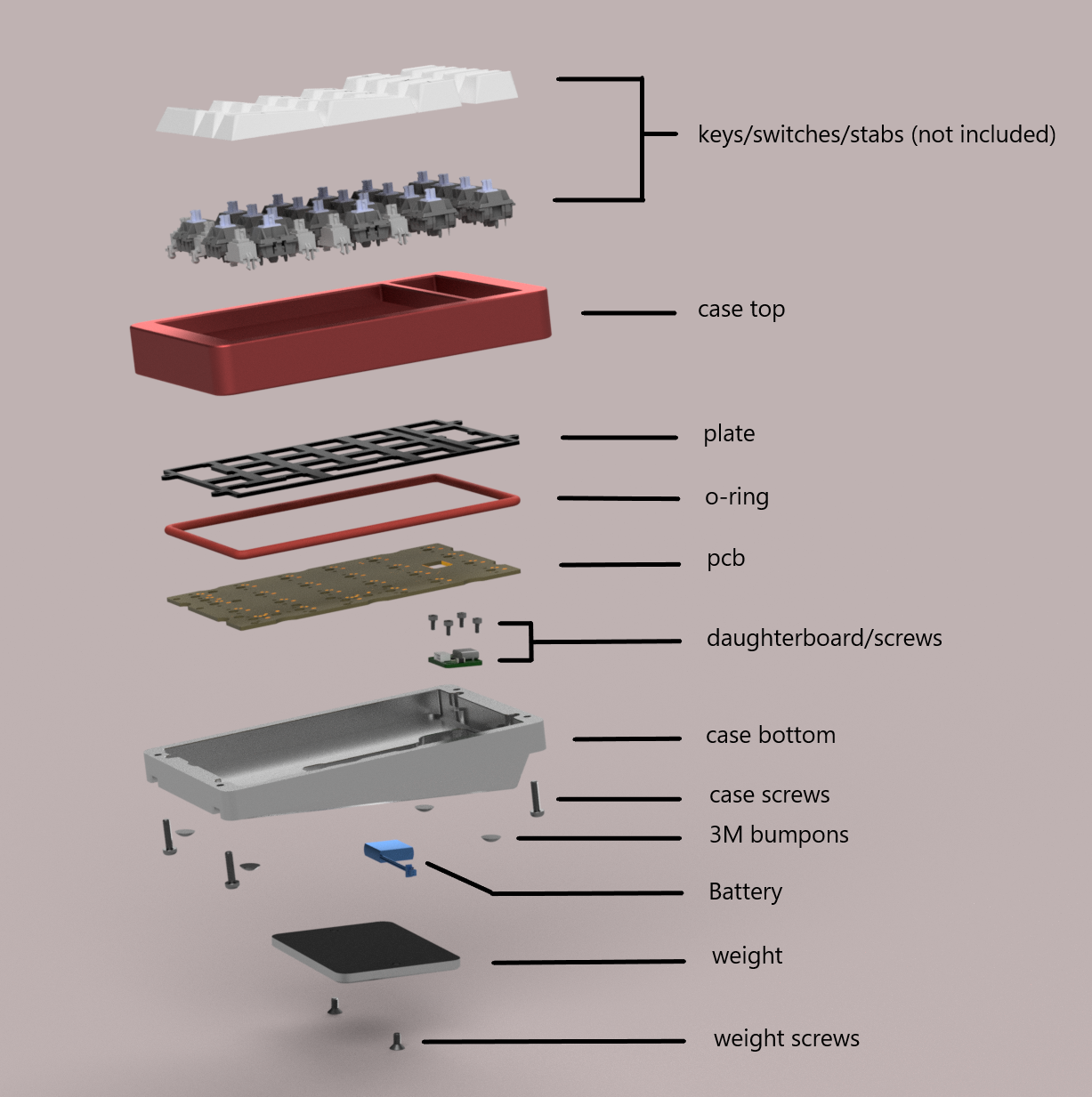

[ The Kit ]- NUM1 case top (color choices below)
- NUM1 case bottom Silver Anodization
- Sandblasted brass weight
- Mx 5052 Aluminum Plate ("Jack" anodization color)
- 1.6mm PCB (designed by TrifeLife)
- Daughter board (Unified C3 design)
- 1x JST cable
- 1x 50a O-ring
- Hardware
- 3M bumpons
—-----------------------------------------------------

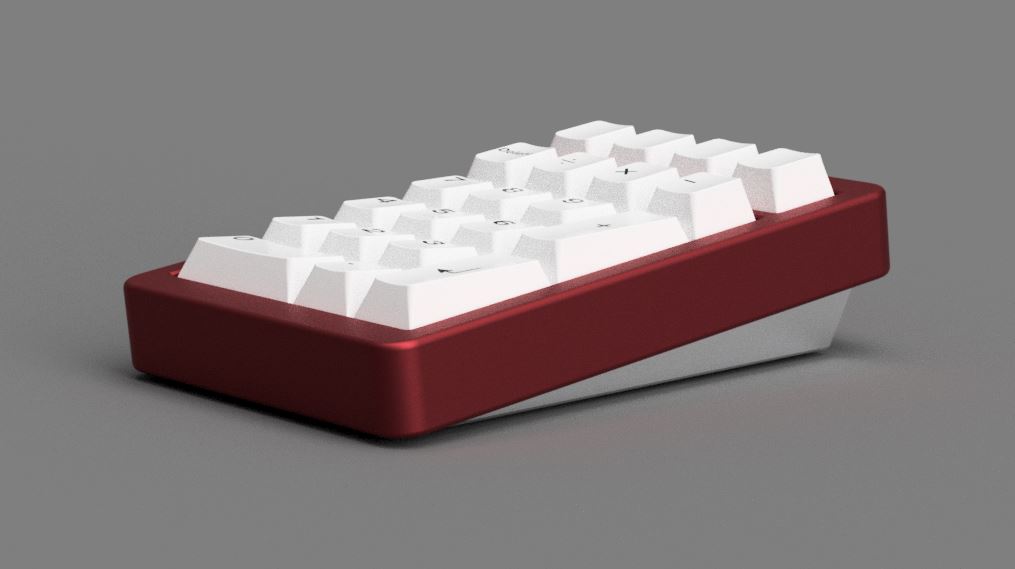

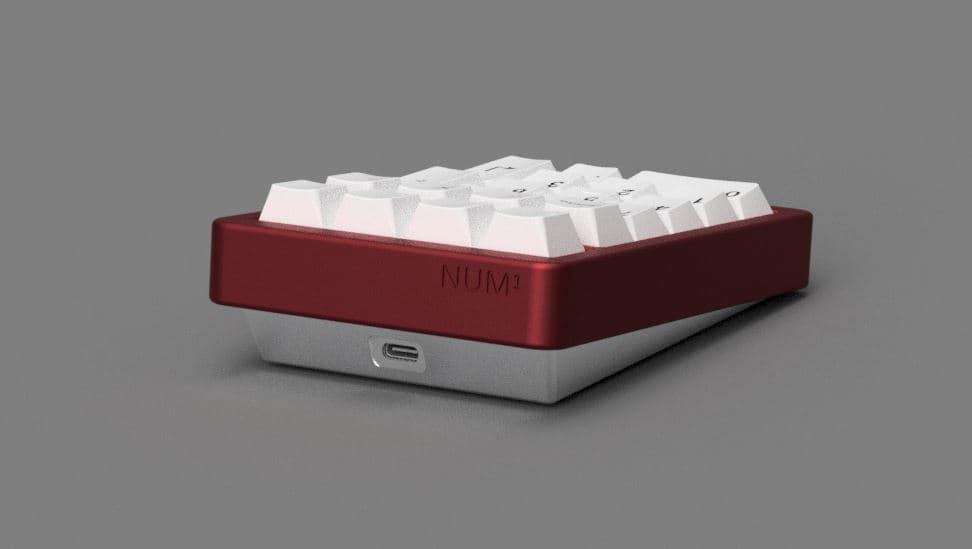

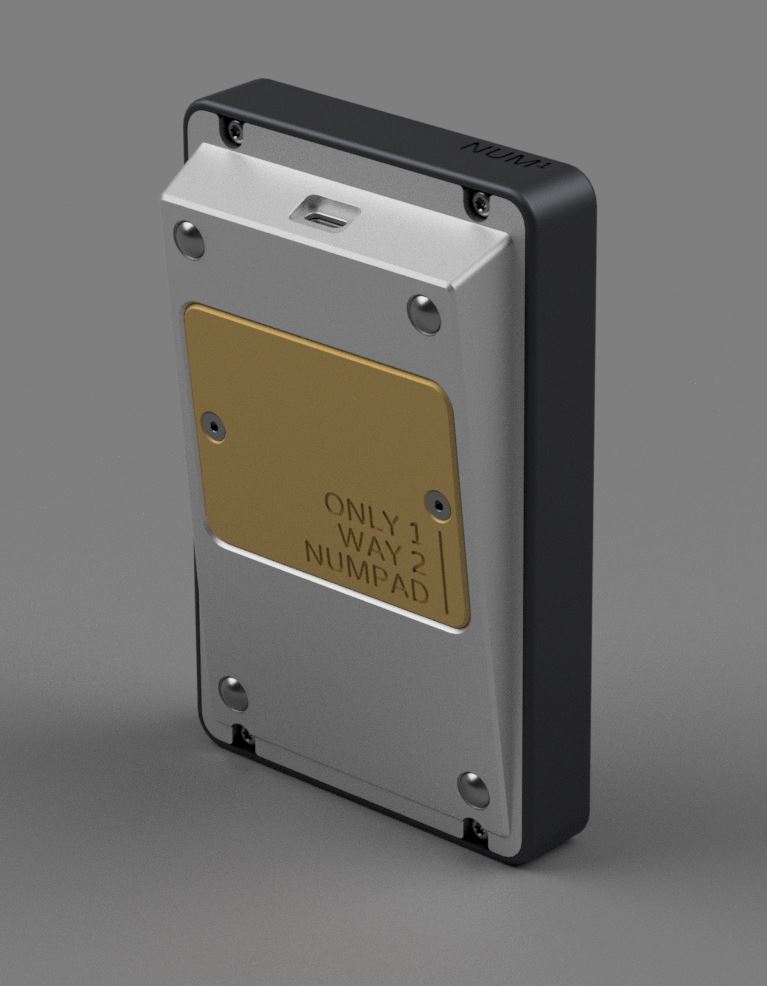

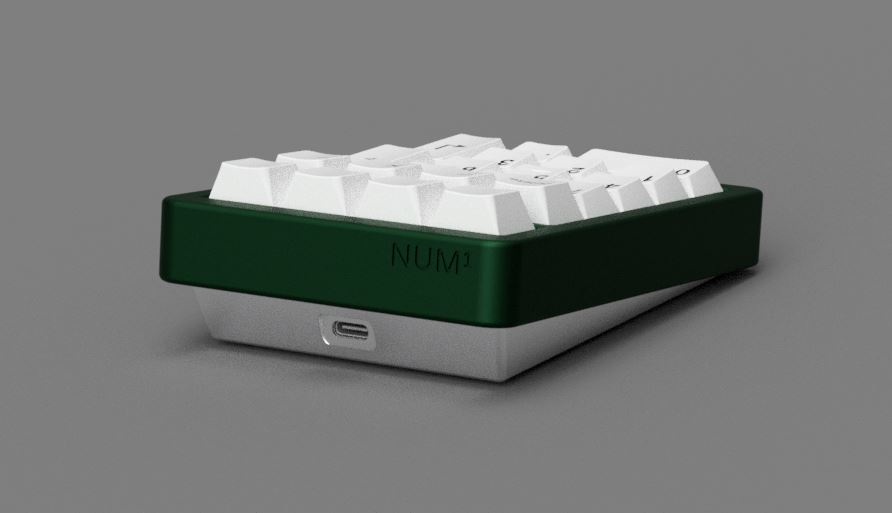

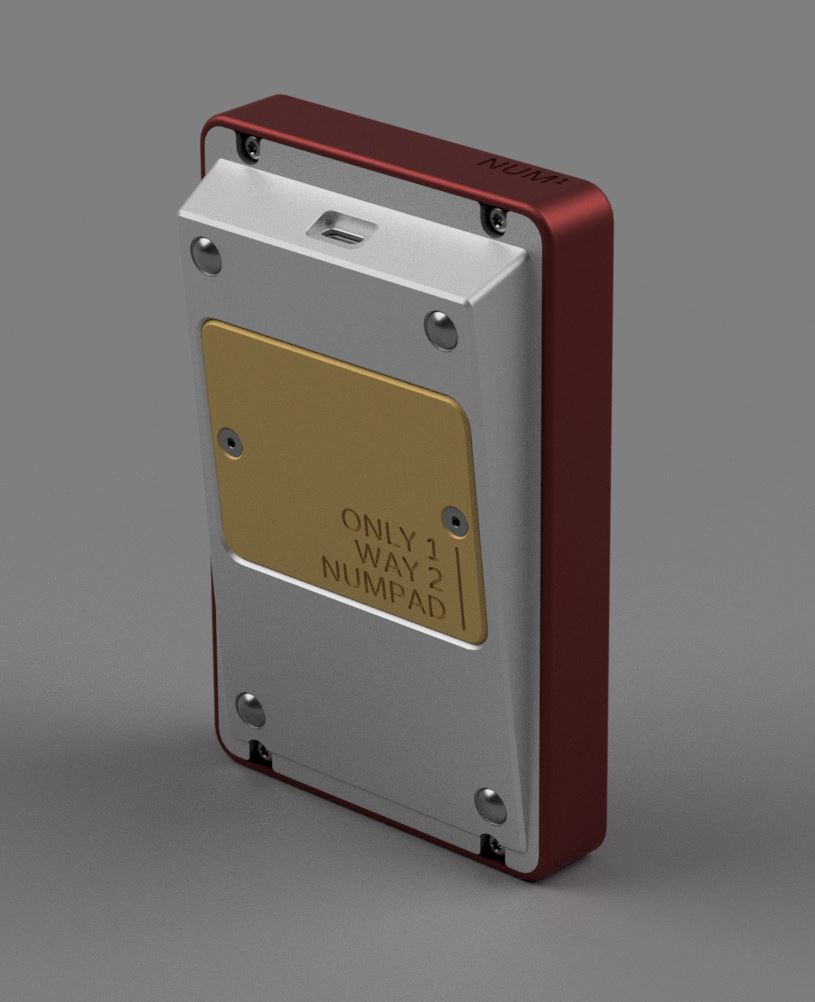

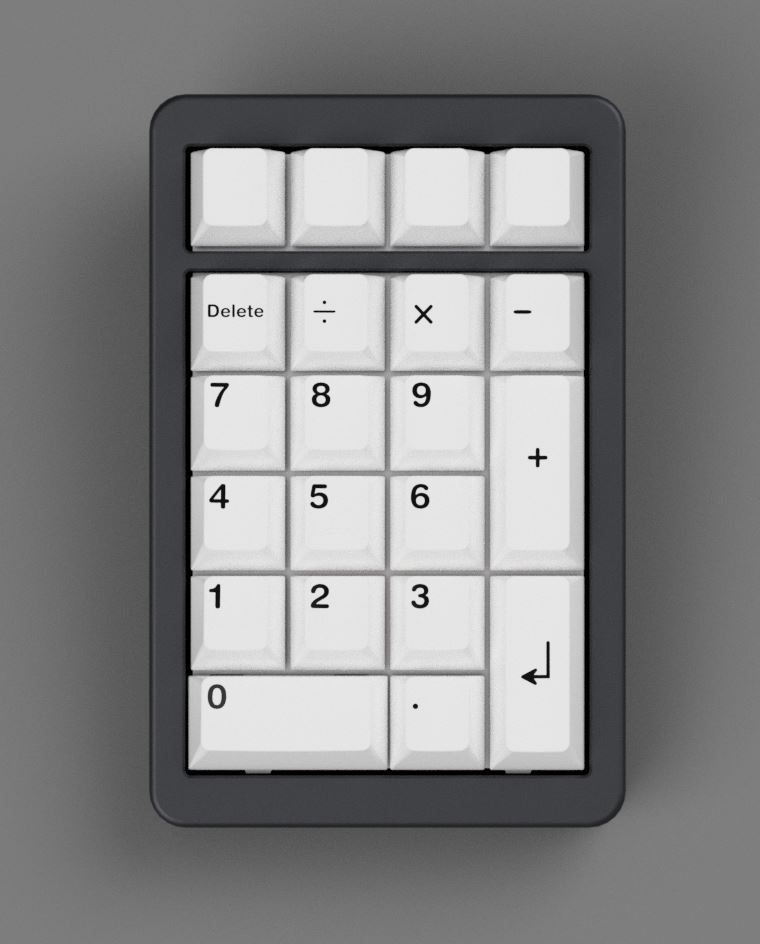

[ The Colors ]PROTOTYPE PHOTOS NOT THE FINAL GB COLORS. PLEASE CLICK MORE FOR THE MANU COLOR CHIP"Ron"

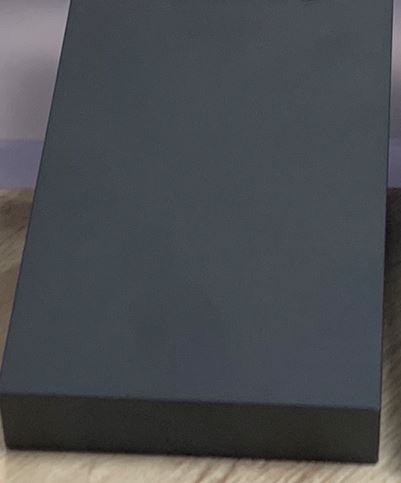

more views and Manu color chip:
More

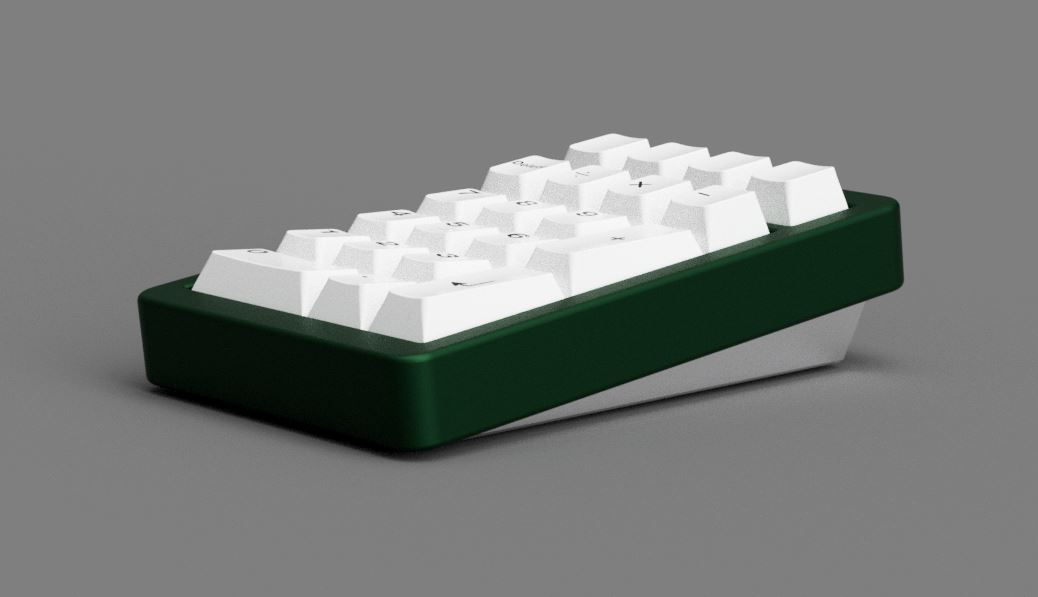

"Gump"

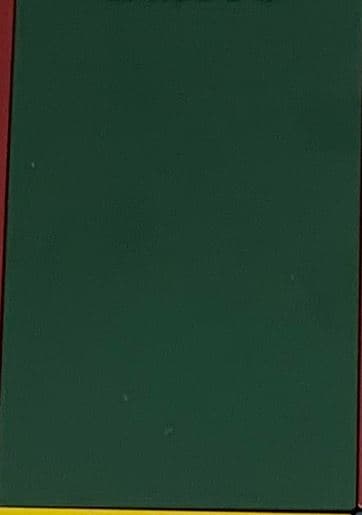

more views and Manu color chip:
More

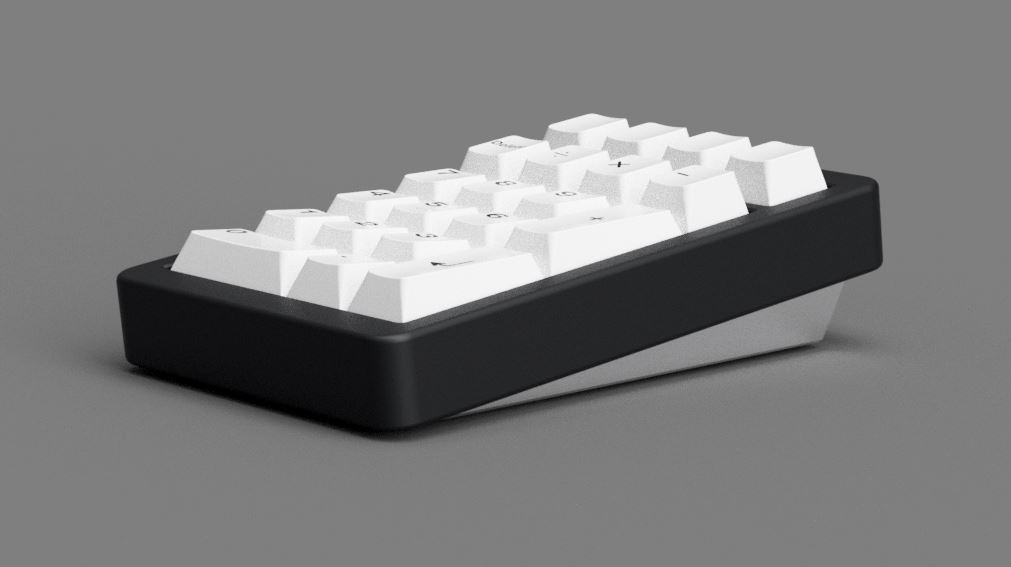

"Jack"
more views and Manu color chip:
More
—-----------------------------------------------------

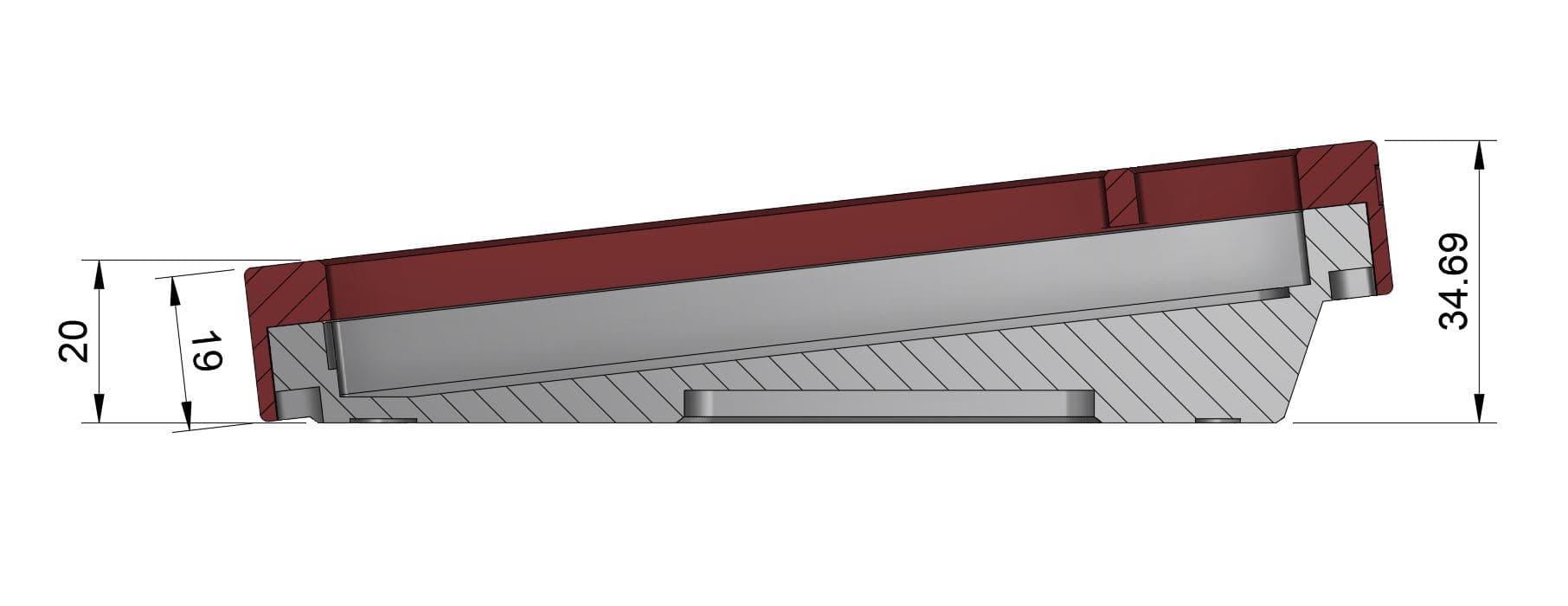

[ The Specs ]Angle: 6.5 degrees
MX plate material:
semi-transparent polypropylene OR
anodized "Jack" 5052 aluminumAlps Plate material: Anodized "jack" 5052 aluminum
Firmware: ZMK
Battery life: ZMK estimates 2-4 weeks
Built weight: ~1.3 Lbs
The LiPo battery sized for this cavity is identified with the criteria below:capacity: 150 mAh
Voltage: 3.7 V
size: 502020
connector: Micro JST SH 1.0mm
—-----------------------------------------------------
[ The Sound tests ]Proto 2 sound tests:
Cherry on Alu
https://clips.twitch.tv/AffluentSaltyKangarooPRChase-hpdV_1uDCvYN2_FaCherry on PP
https://clips.twitch.tv/HilariousAbnegateWerewolfDxAbomb-Rr_5XkRev7v9-Uz-—-----------------------------------------------------
[ The Special thanks ]TrifeLife
Maly
Yataomi
Choobies
The MLI homies
This lil guy:
https://i.imgur.com/5znfuGO.jpgThank you all for being my friends
Sincerely yours, your friend,
- Friendship
—-----------------------------------------------------
[ The Discord ]https://discord.gg/NW8txQcnA8—-----------------------------------------------------
Old IC stuff:
More
[ The Inspiration ]This was born from being disappointed in the lack of premium numpad options available at the time of initial design as well as age old instigating questions like "what if we slapped an o-ring into it?" and "what if we slapped bluetooth into it".
More ramblings of context:
I was also influenced by one of my favorite kustoms the GHv2 by LZ.
The engraving and name was born from some cheeky wordplay of songs by one of my favorite artists Machinedrum. I binged his music throughout this design process and felt inclined to immortalize it within the design. His use of numbers in his song names also integrated well into the theme of the numpad.
NUM1: a play on 'Come1' off the album “Room(s)”

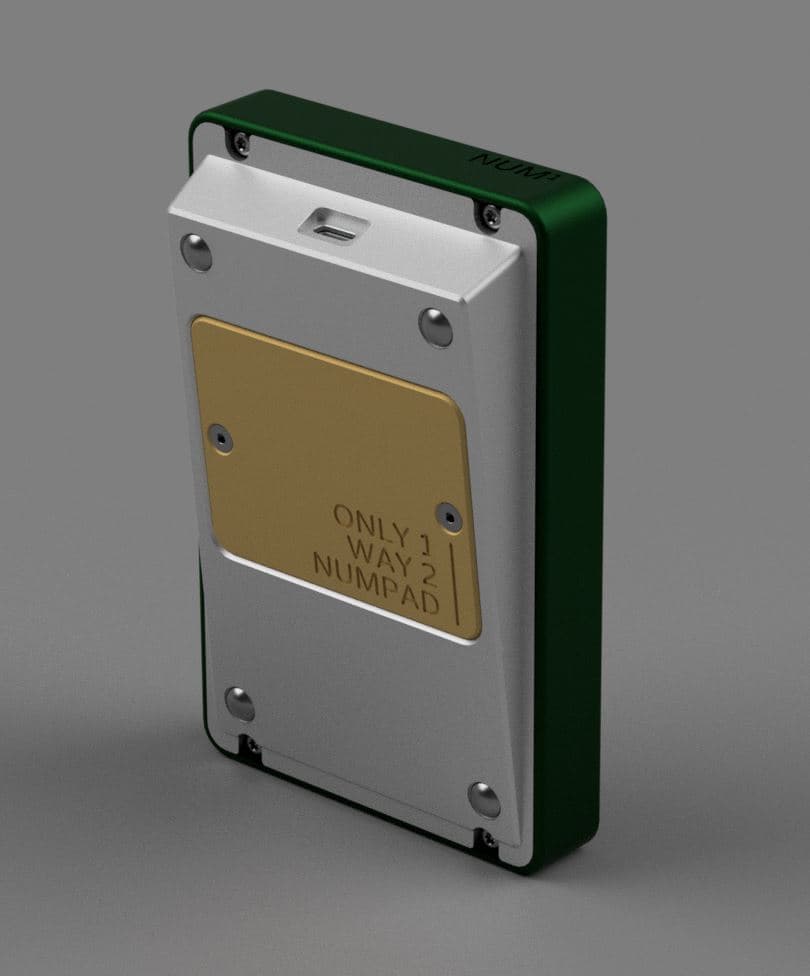

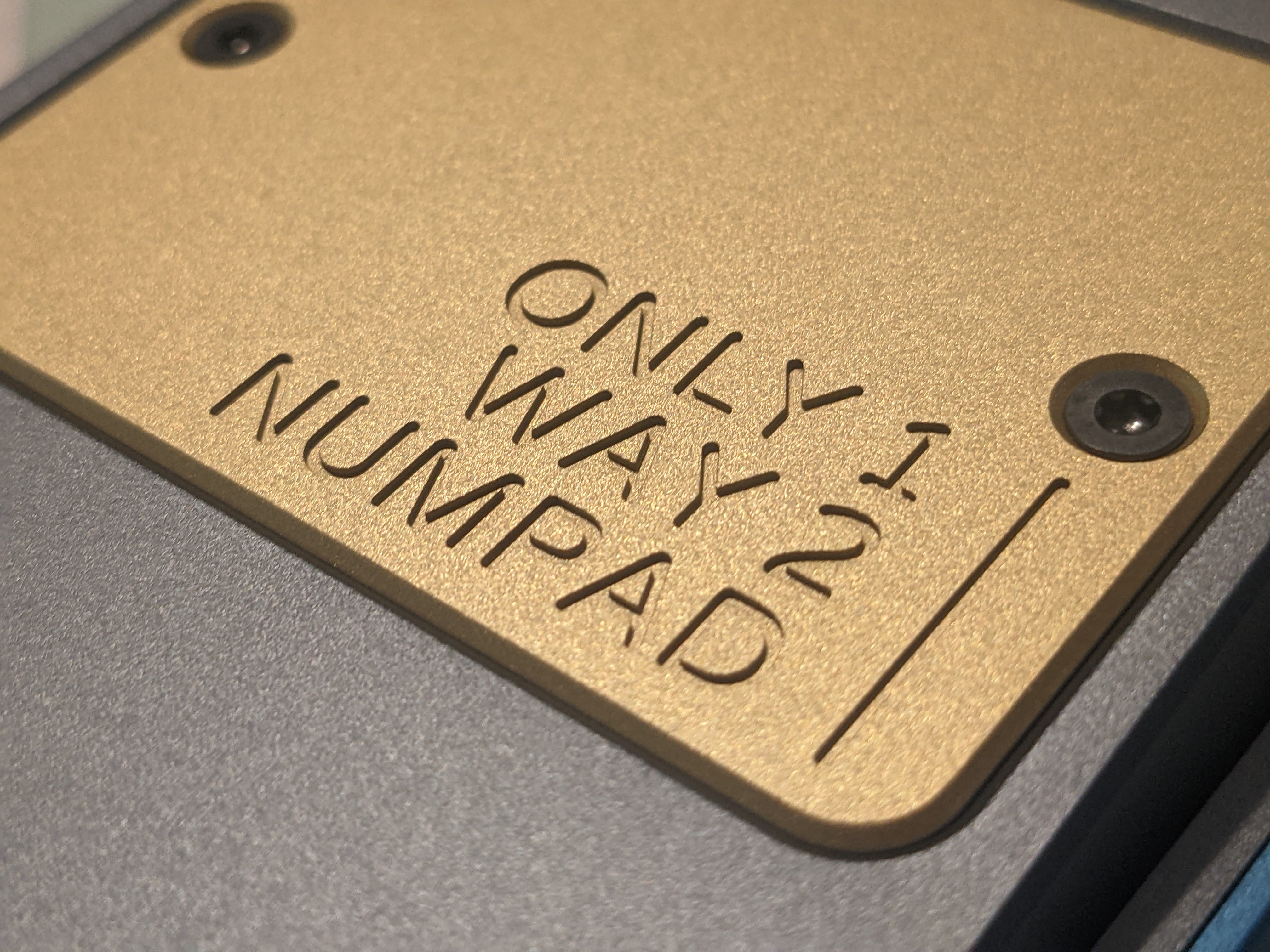

Only 1 Way 2 Numpad: a play on 'Only 1 Way 2 Know' off the album “Vapor City Archives”
I was made aware only somewhat recently that a fellow member of this community HineyBush designed the TKL ONE and the NUM ONE (I knew the TKL ONE but didnt know it had a numpad!). Given the name is nearly identical, I reached out to Hiney for permission to continue use of the NUM1 name for this project, He approved!
Thanks Mr. Hiney!
