"The Wolf King"
Prototype V1
Update logs:- To do:
(Add more renders after IC form feedback)
(Prototype V2)
- 09/06/2023:
IC Form- 09/07/2023: Updated the colors in the IC Form.
- 11/16/2023: Uploaded new color renders.
- 06/05/2025: A major changes to the keyboard Front Height, Top and bottom fillet, Angle and External weight design.
Introduction
Hello everyone, I am Thebloodyezkb your alleyway keyboard designer and I am presenting to you... yes another 65% keyboard "The Wolf King". But this time it is plateless & uses a lot of rubber feet.
Please find the details below friends
:
Specifications
8 degree 65%.
Front H: 18.63 mm (EFH ~22.17 mm).
Rubber feet (Burger) mount.
Internal brass weight.

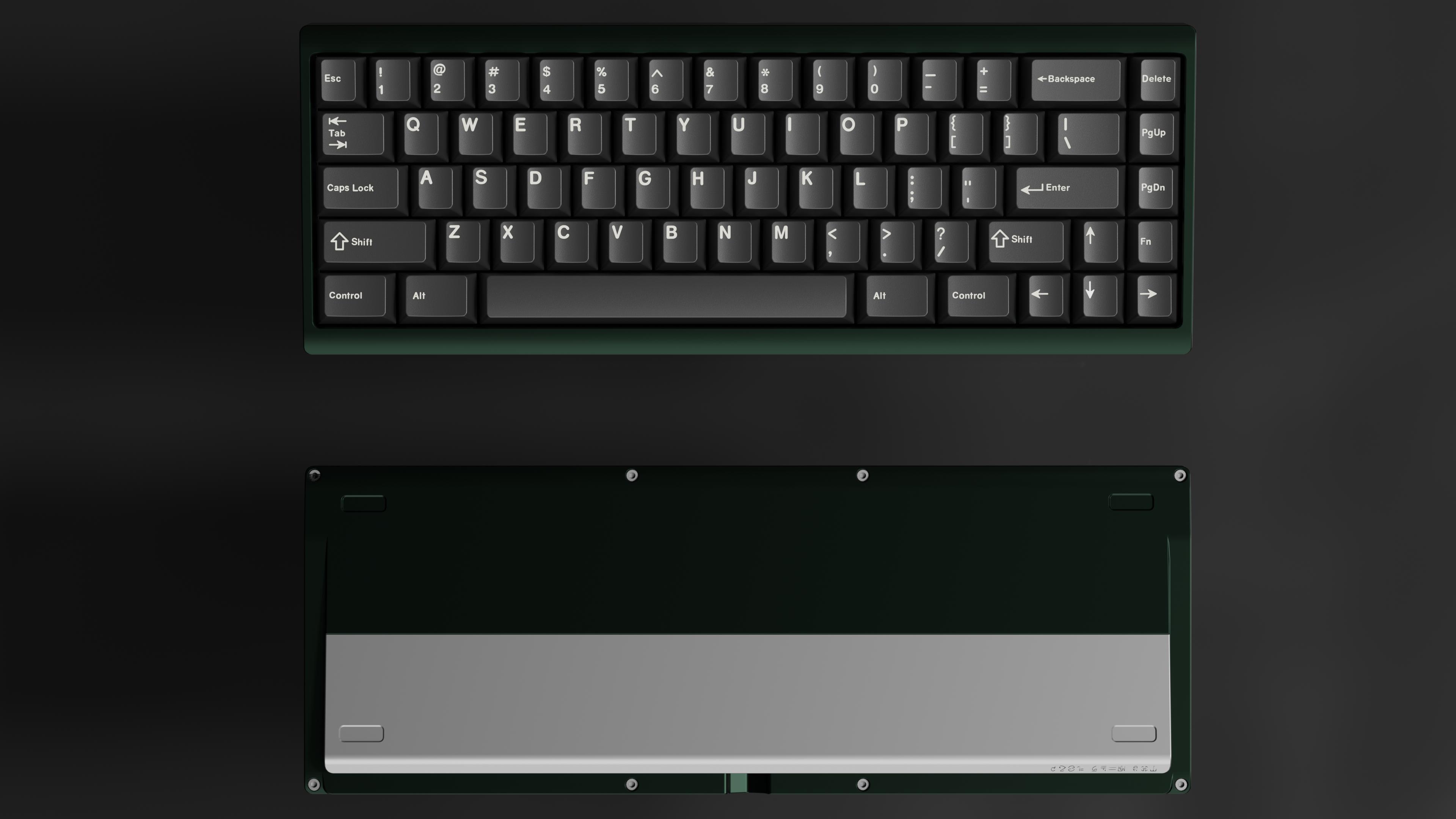

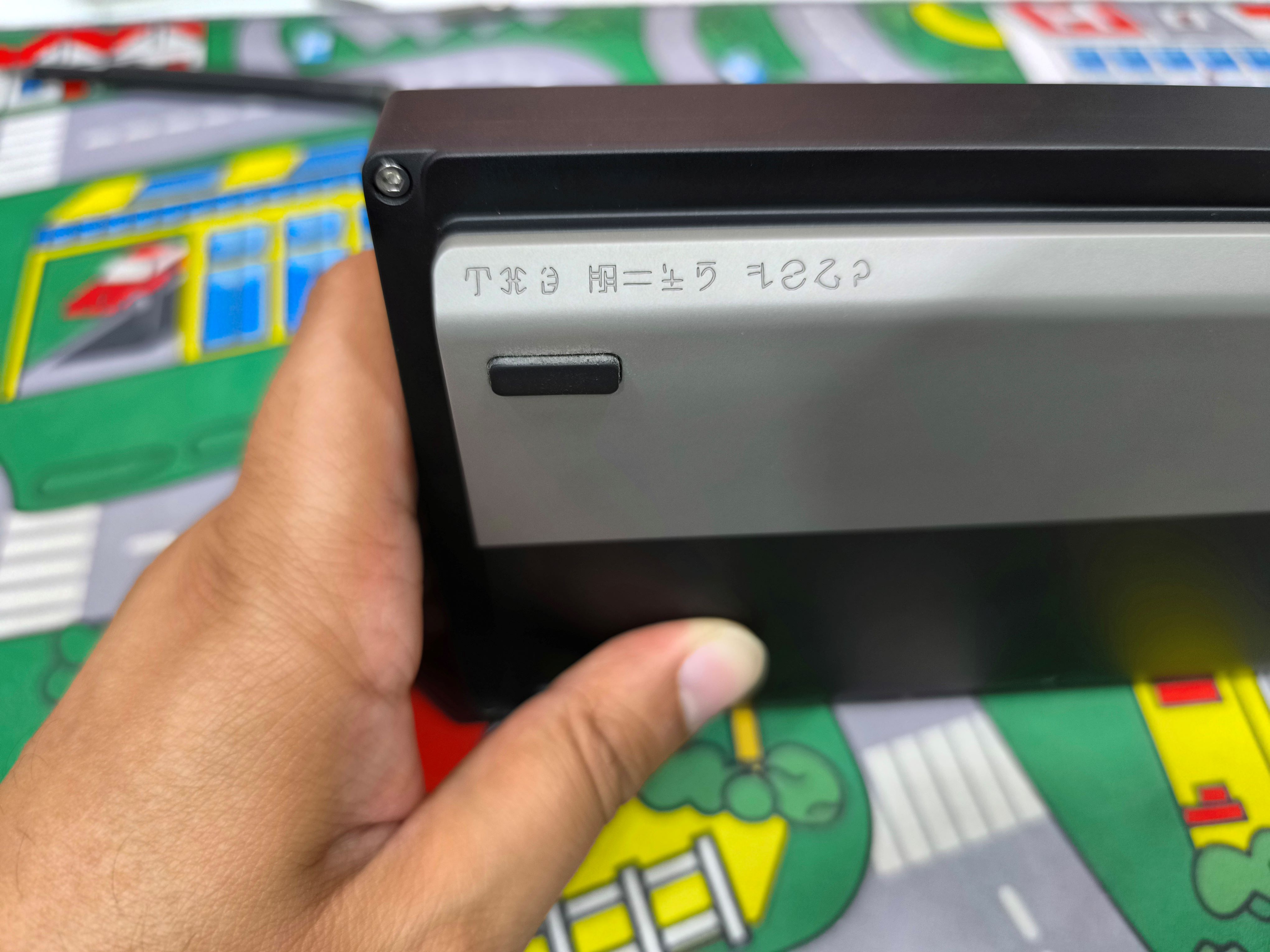

External stainless steel back weight.
PCB to top case: 12.8 mm.
The Wolf King Solder PCB.
PCB layout support: Split backspace, ISO enter, 1.25U left shift, Step caps lock, 7U & 6U bottom.
Firmware: QMK & Vial.
PCB support: MX Hybrid.
Weight unbuilt V2: ~1.49 KG.
Additional information:
More
Case W: 313.75 mm * L: 116.20 mm.
Case Back H: H: 35 mm.
PCB MCU: atmega32u4.
PCB designed by Thebloodyezkb.

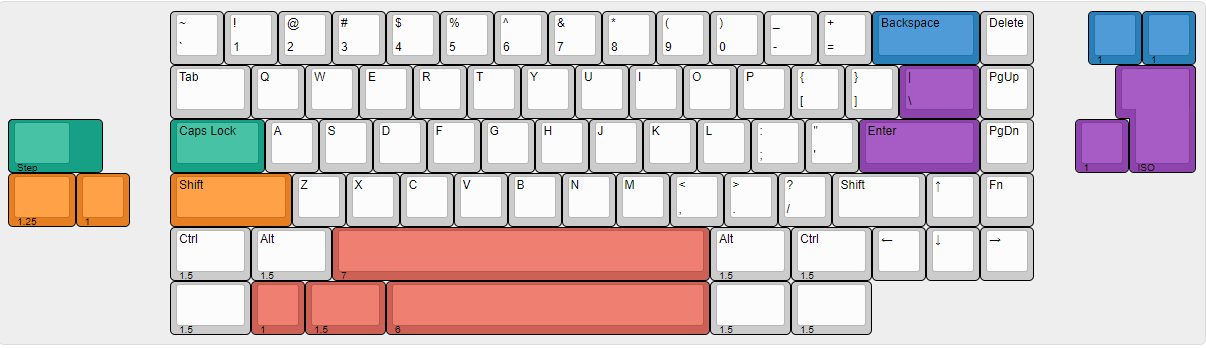

PCB Layout
More

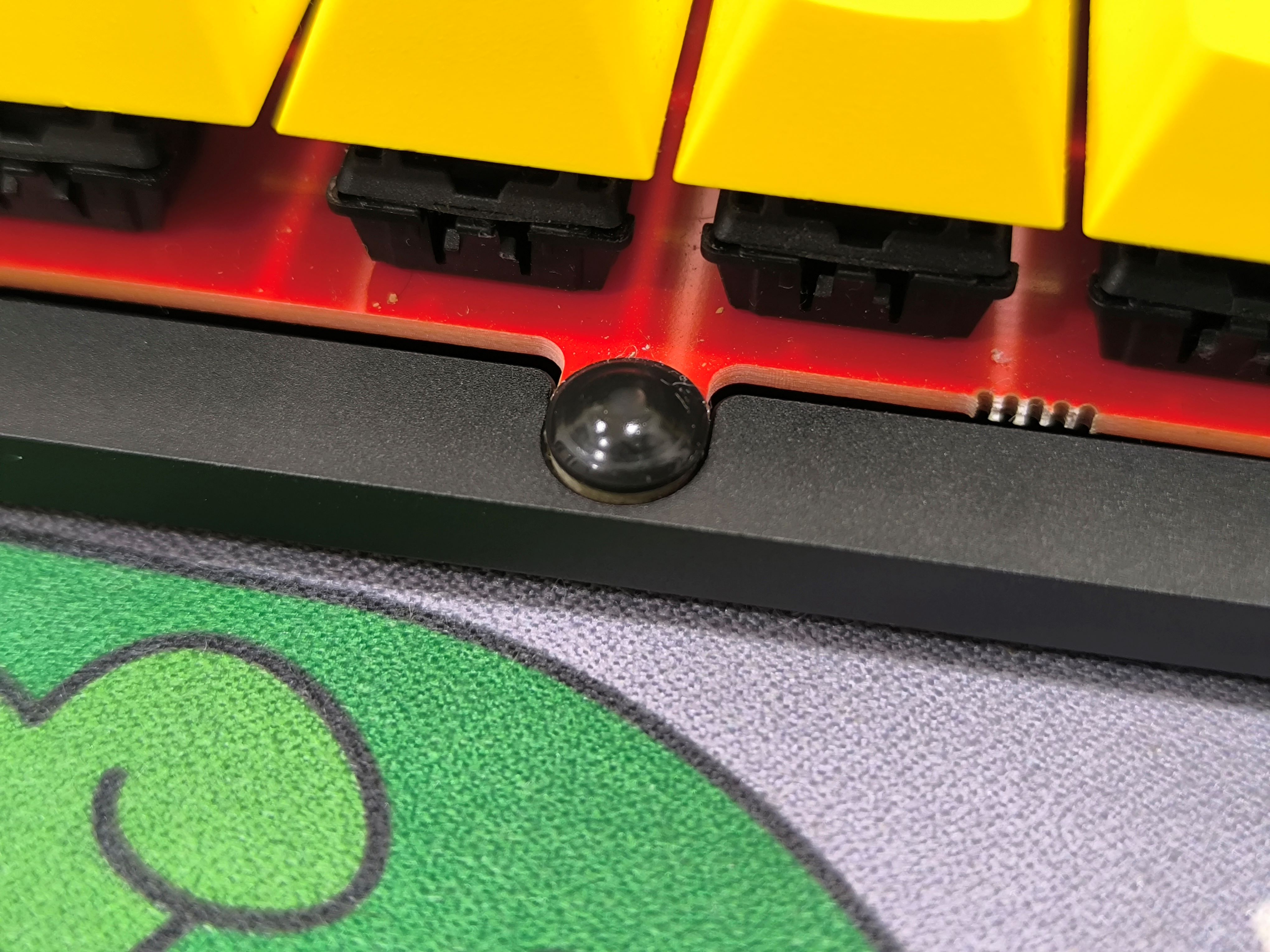

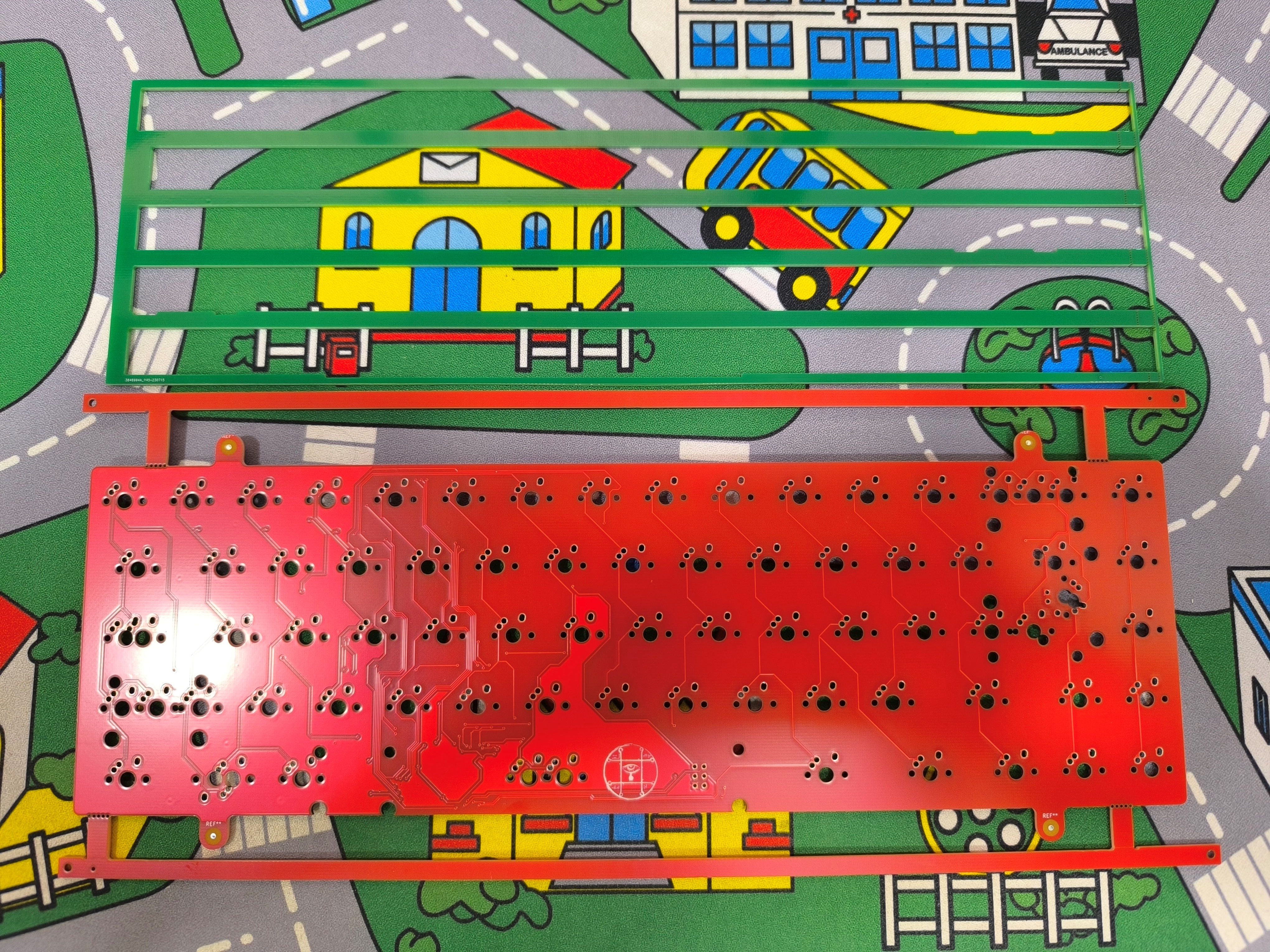

Rubber feet (Burger) mount
The idea was to design a keyboard where you could find gaskets easily at shops similarly to O-ring mount gaskets.
"The house" is back

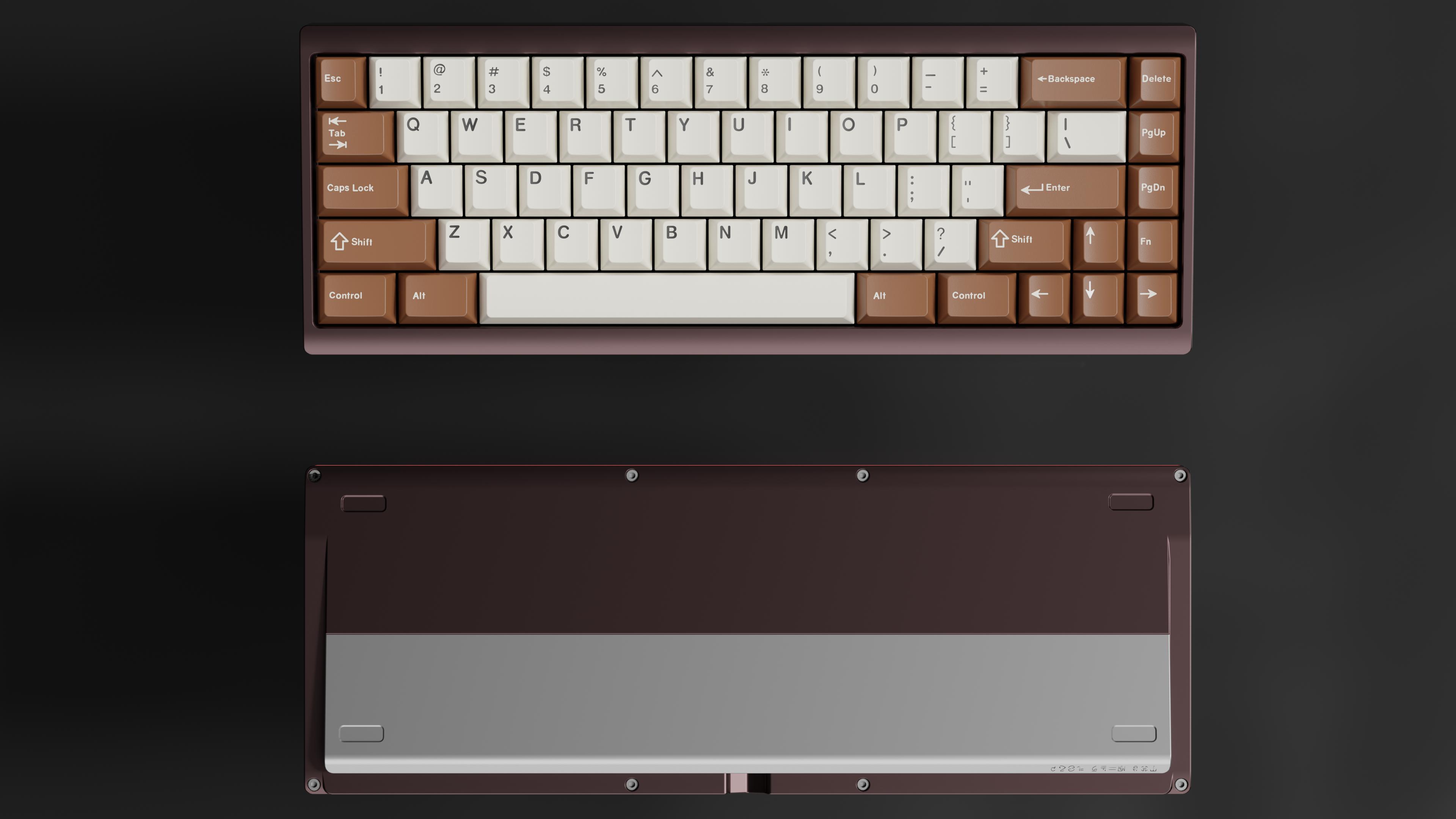

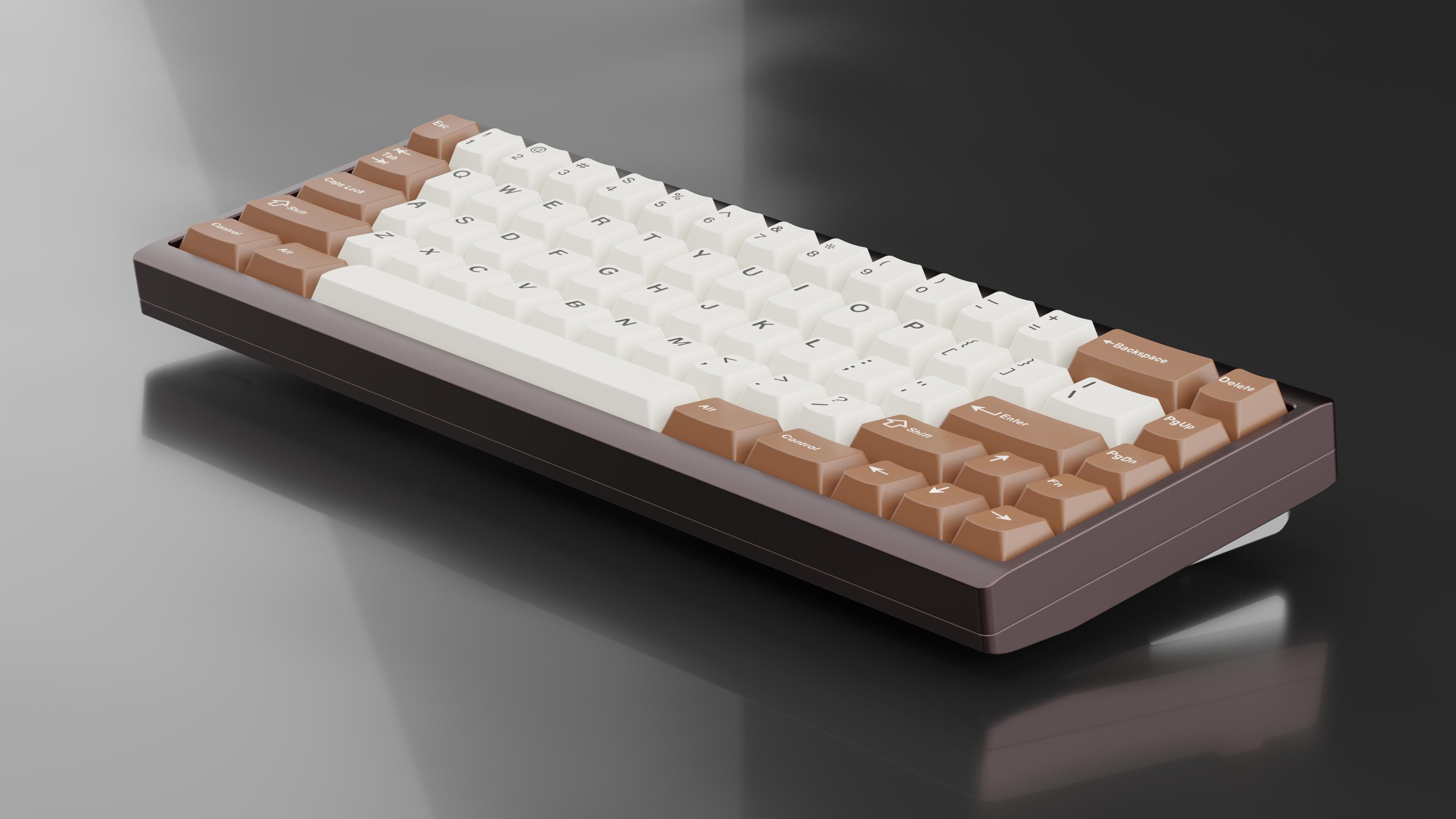

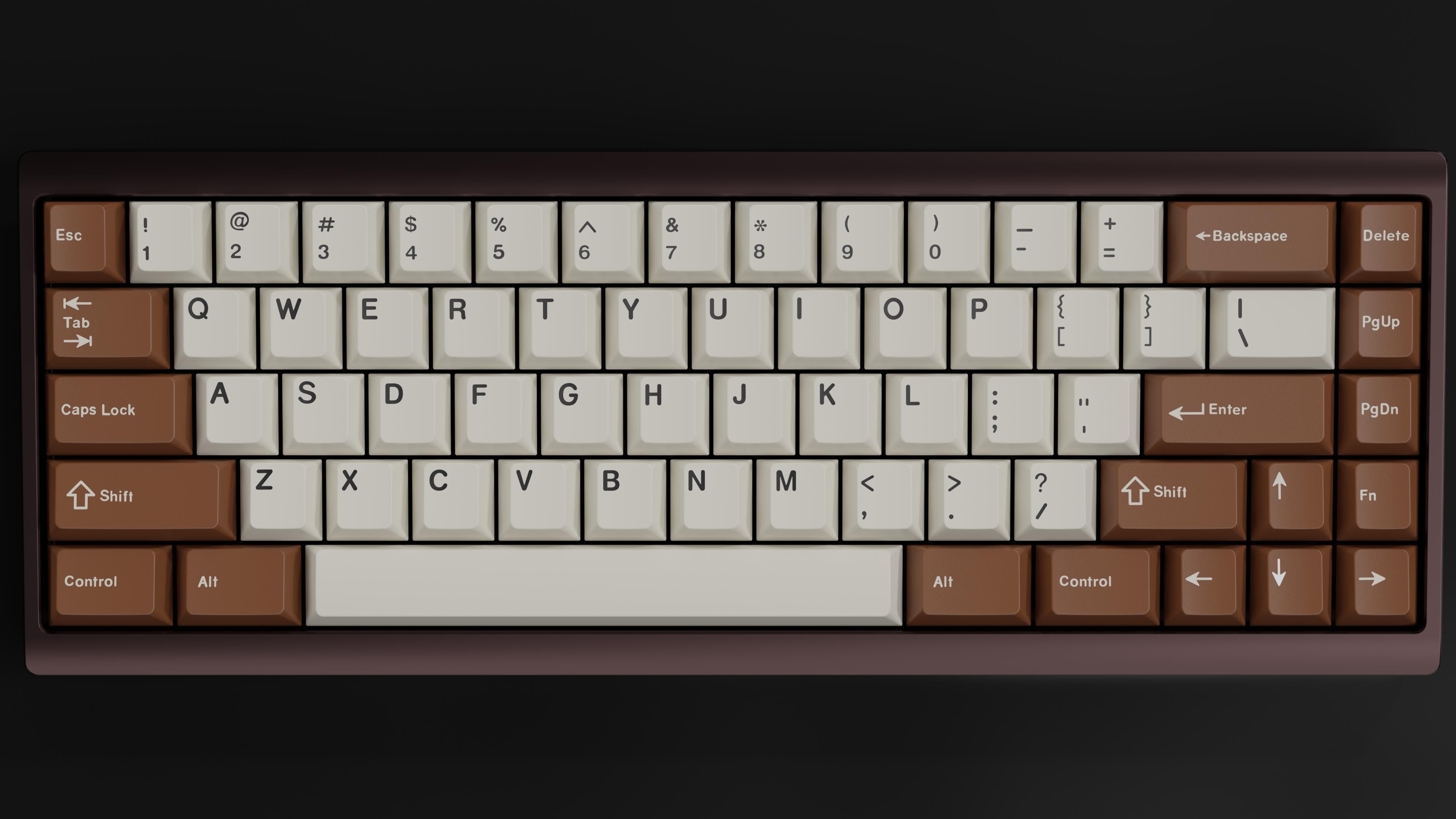

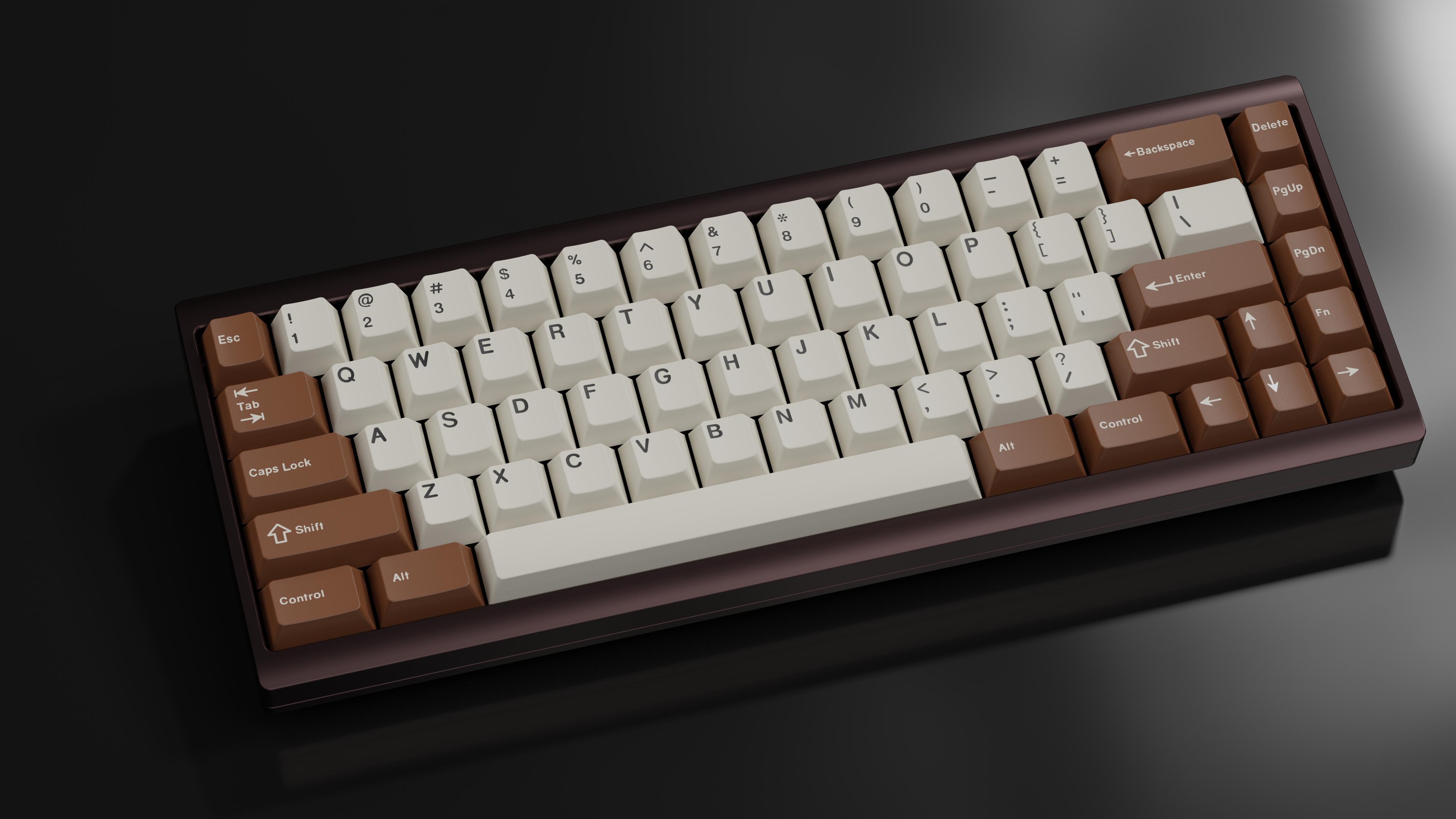

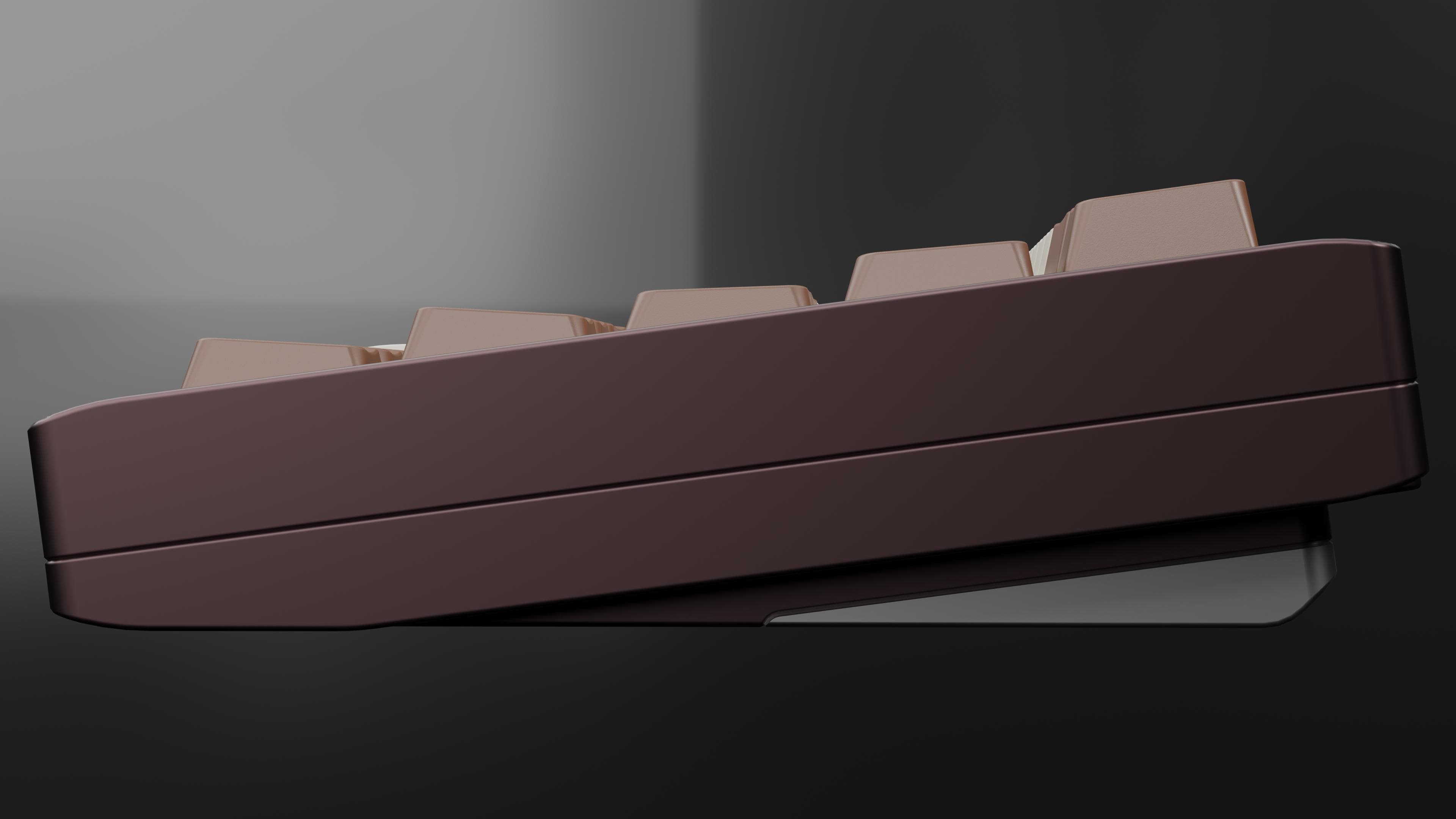

Brown

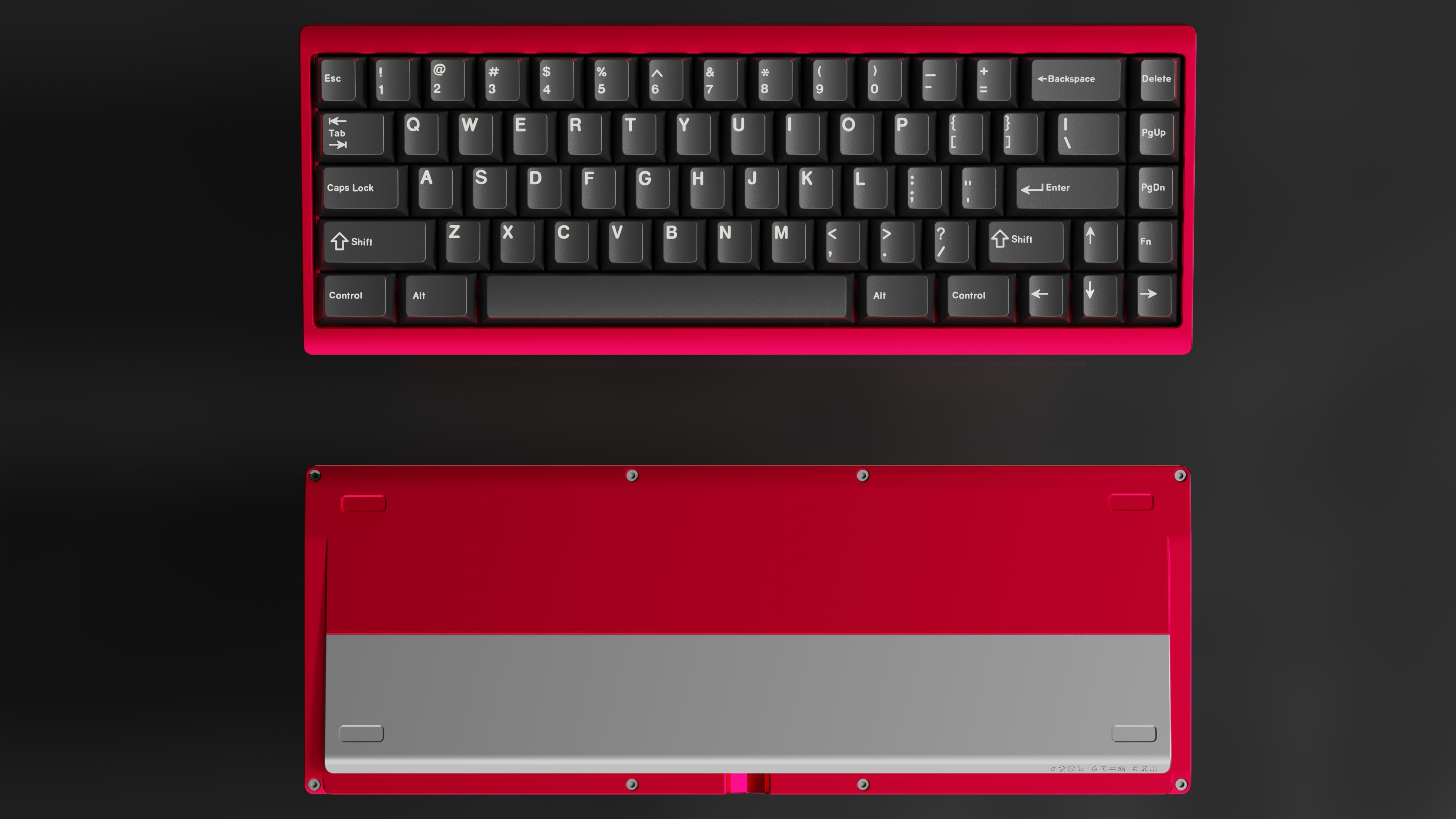

Red
Purple

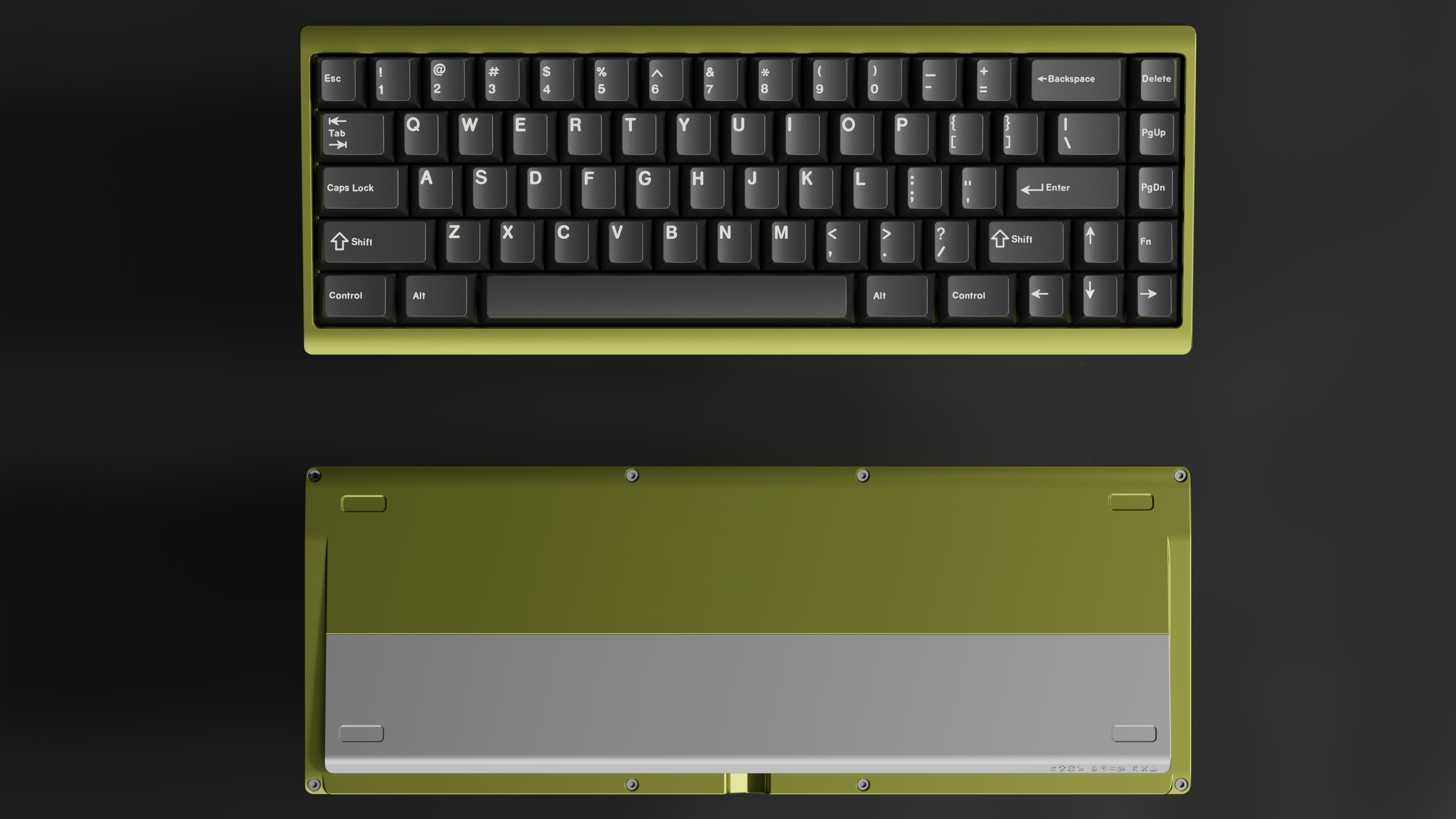

Neon Green

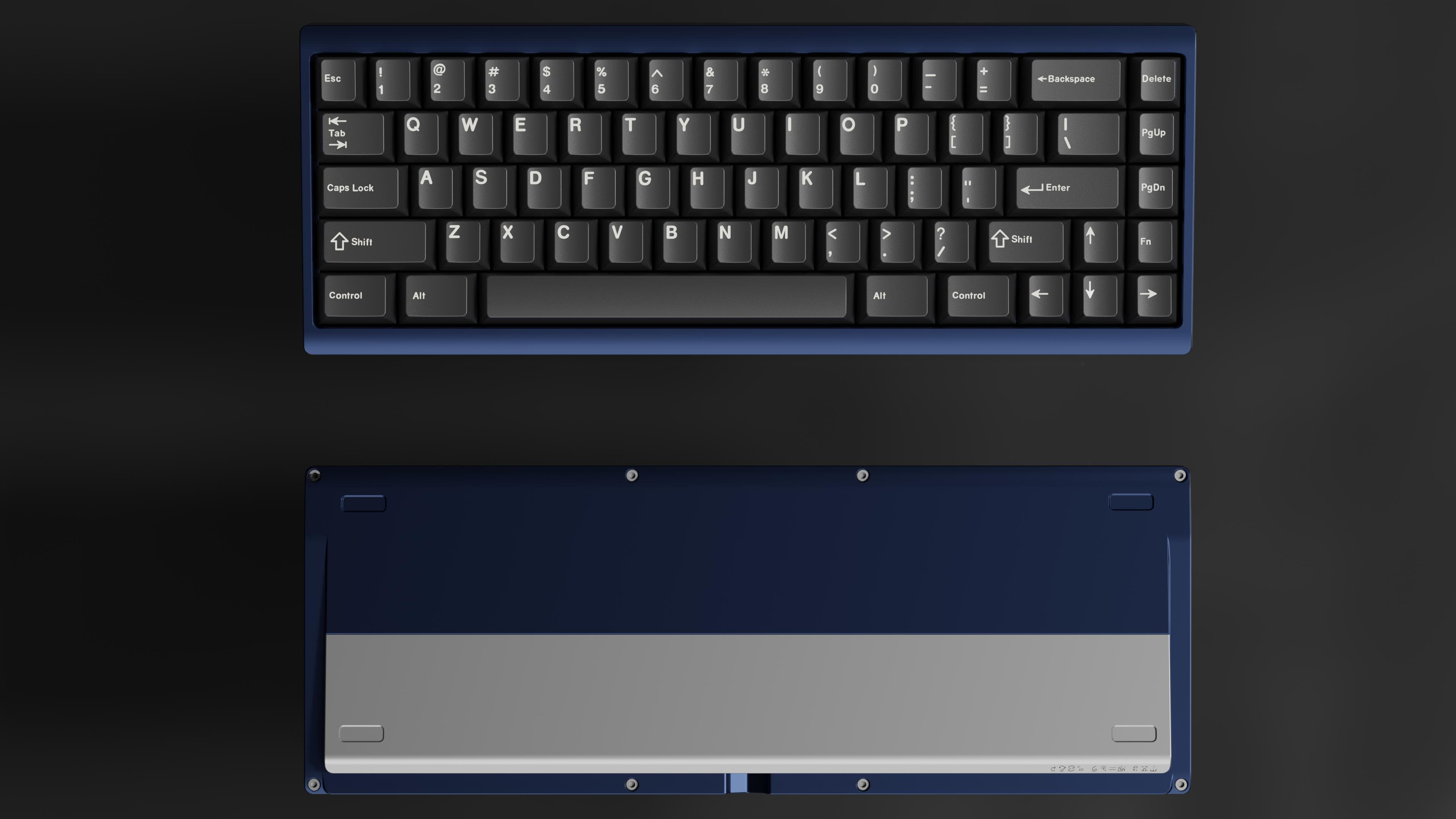

Navy
Green

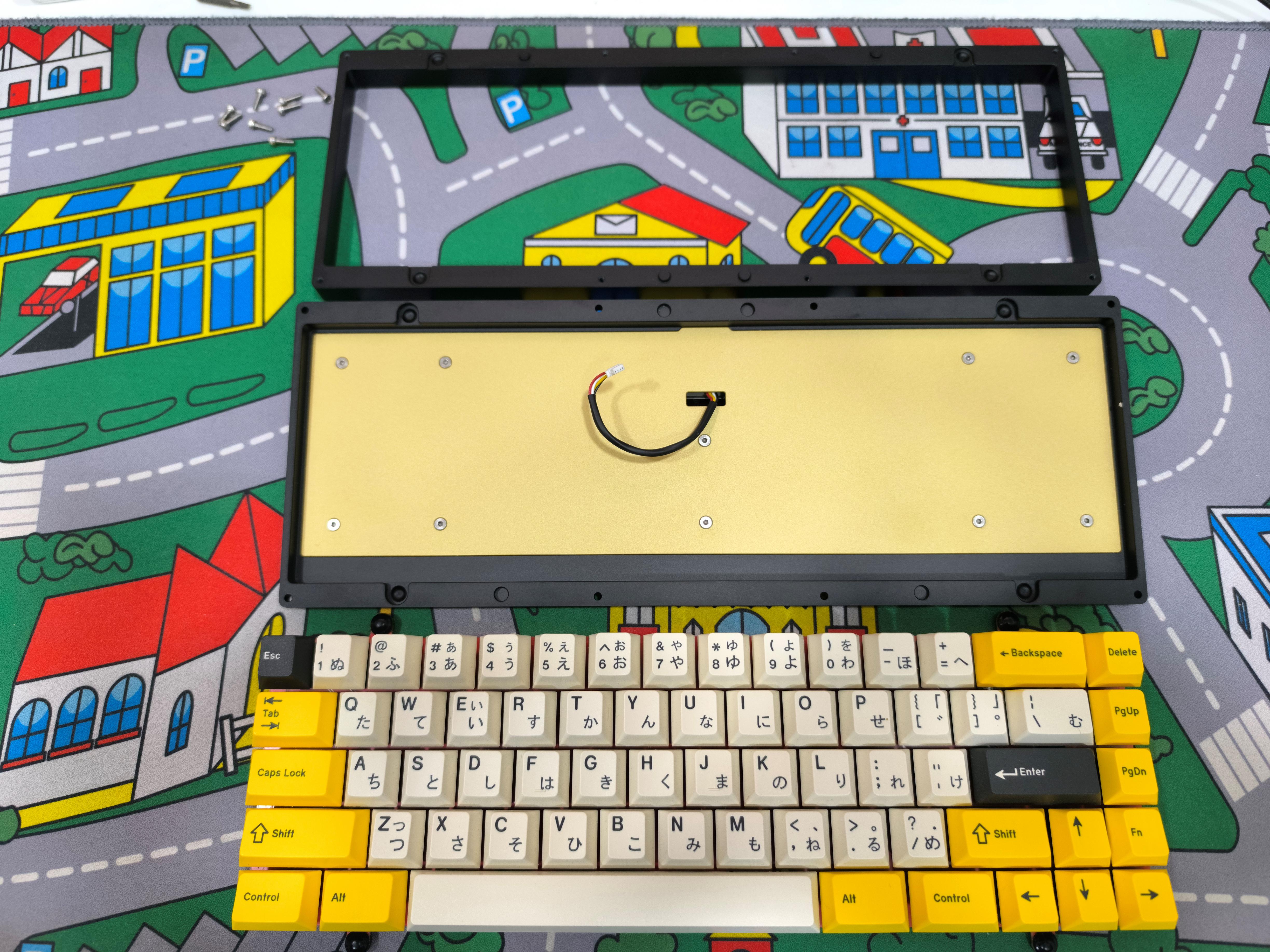

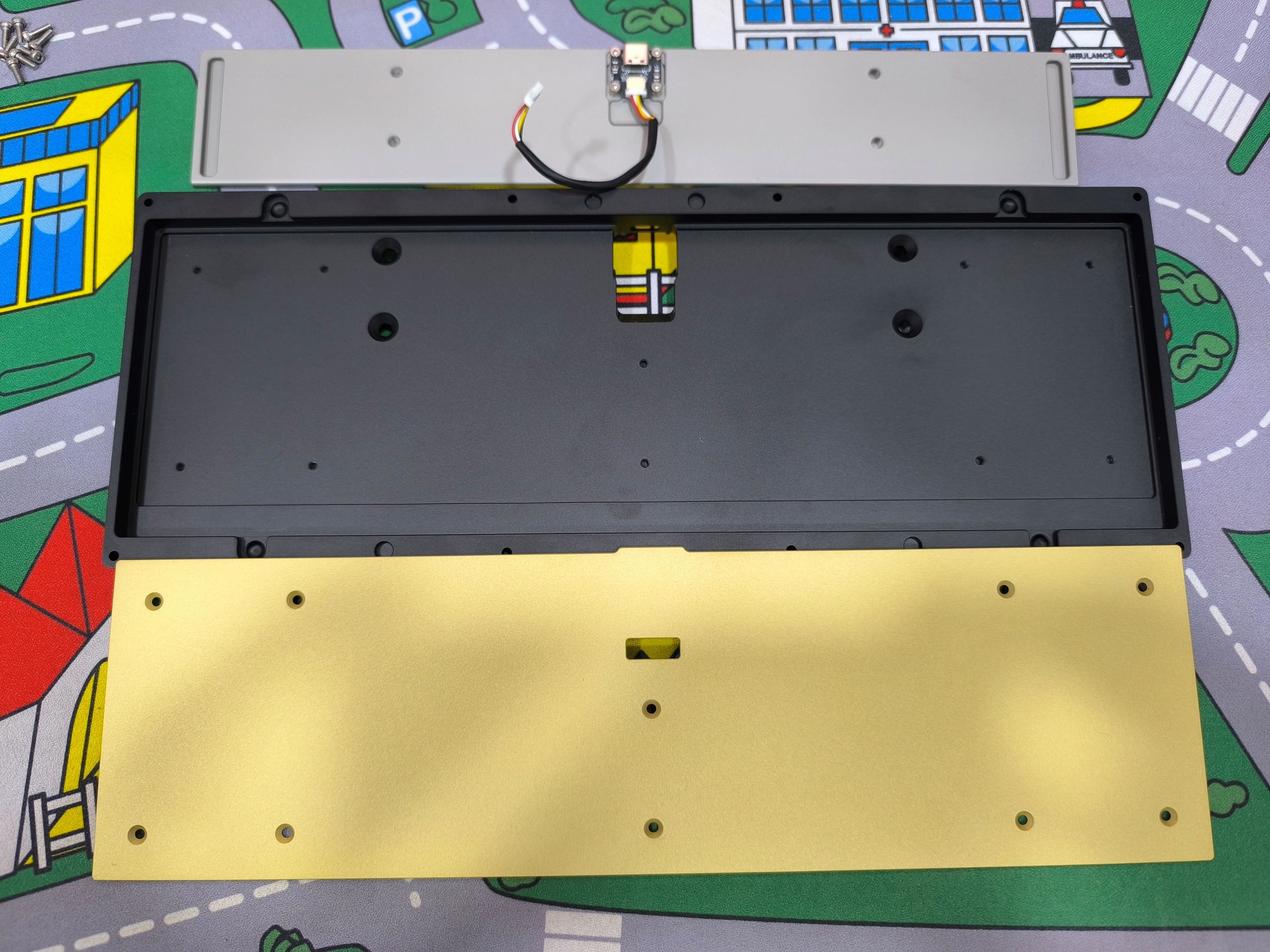

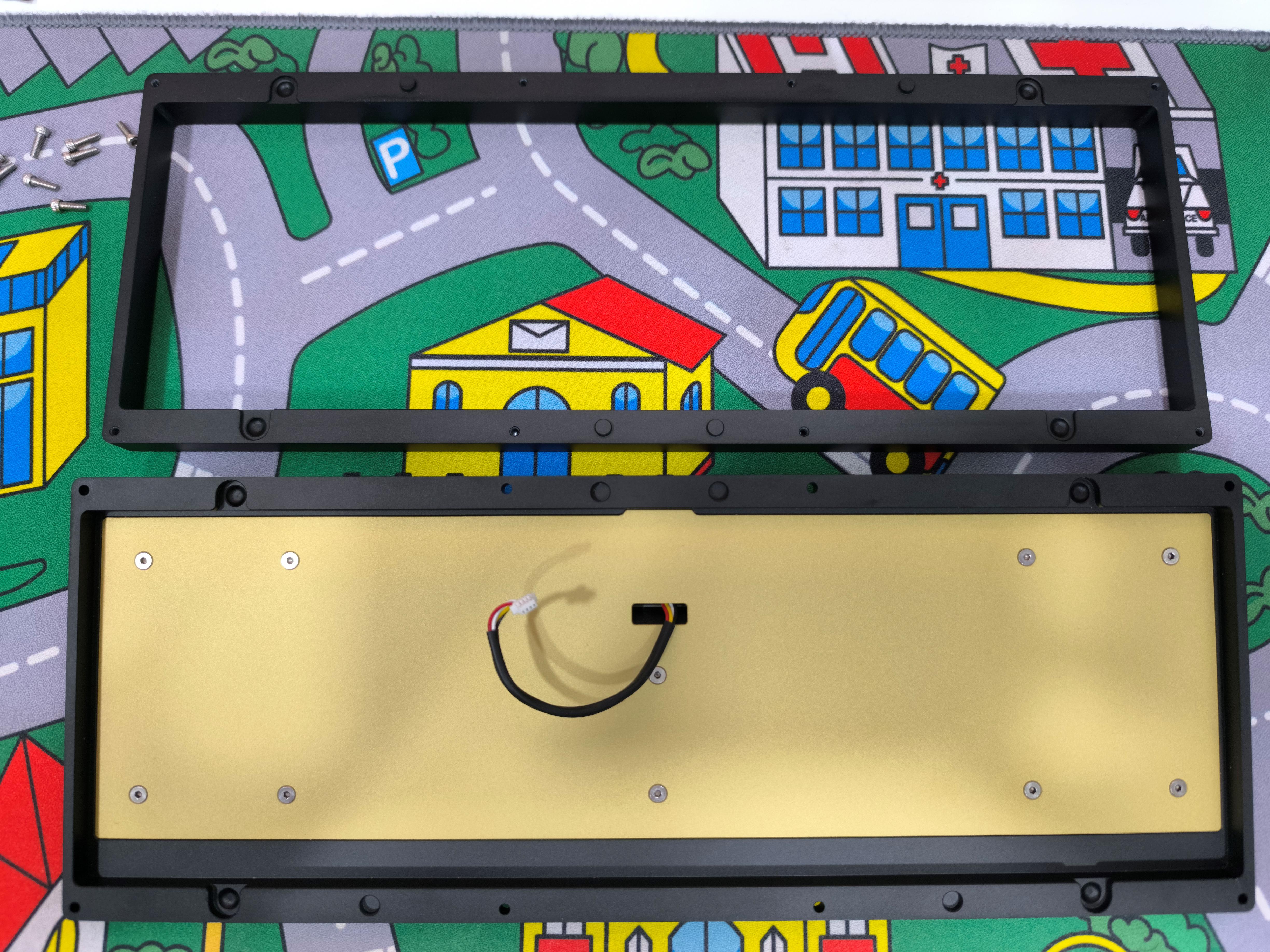

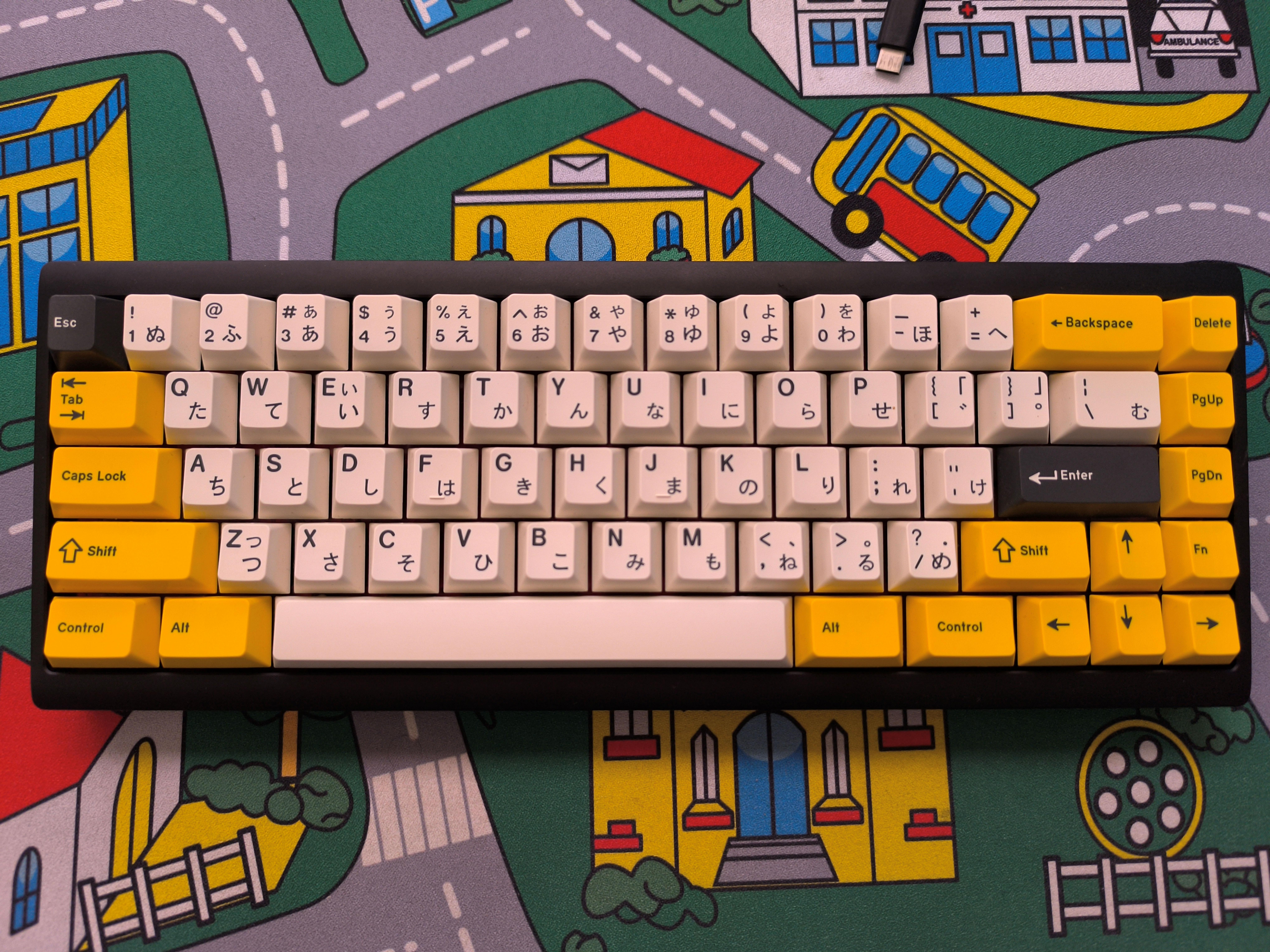

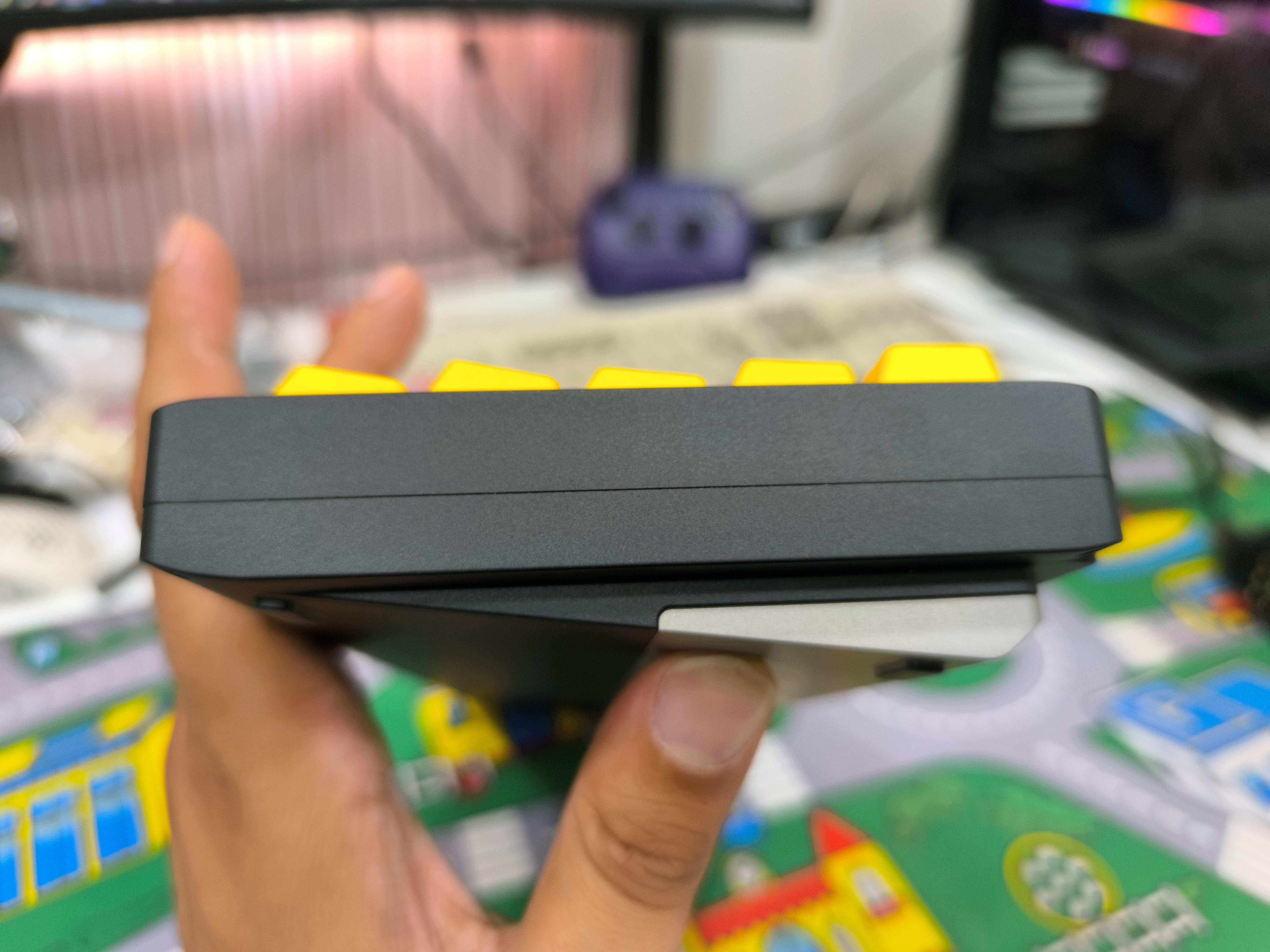

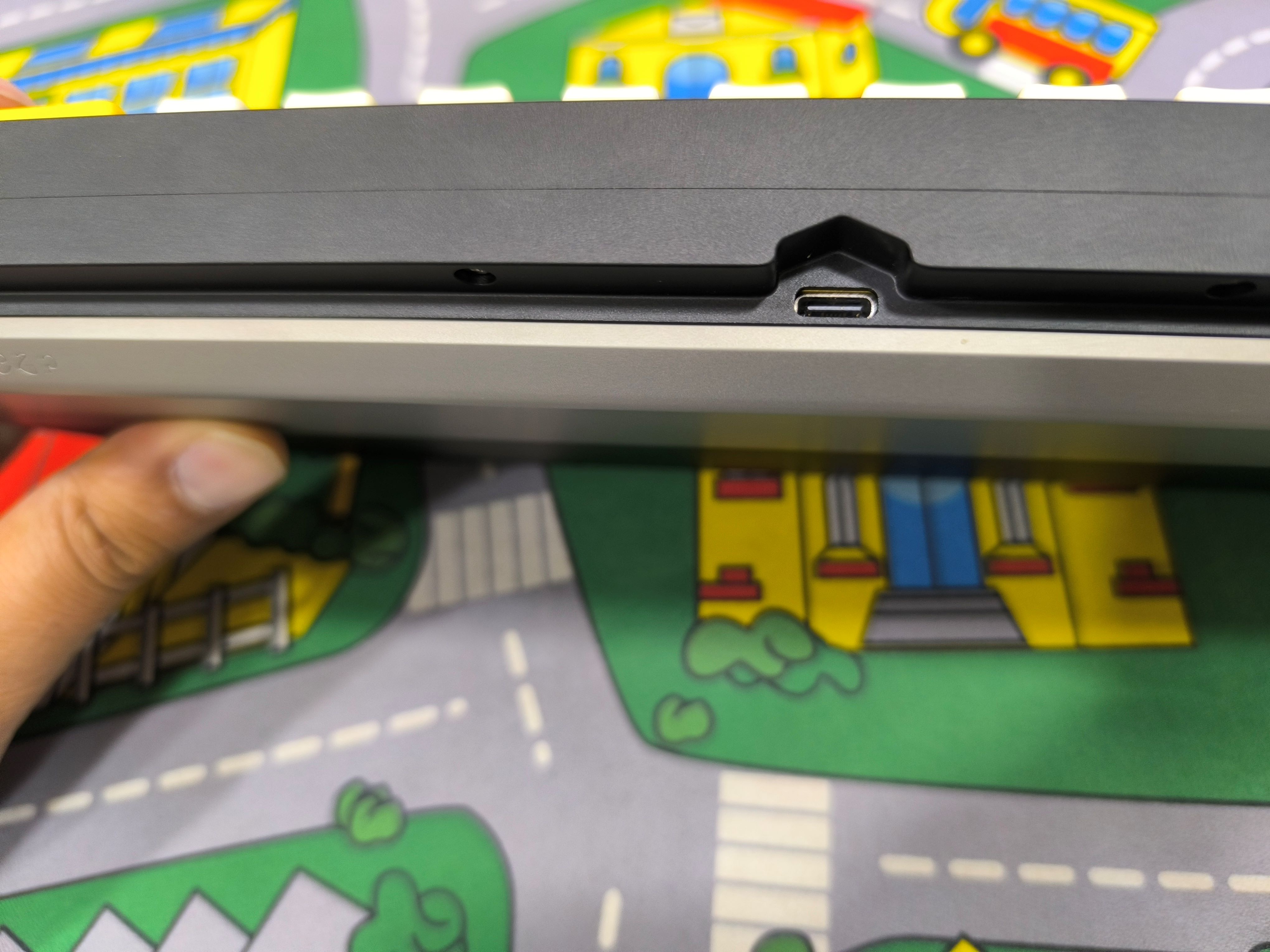

Prototype V1:
"The House" lives on

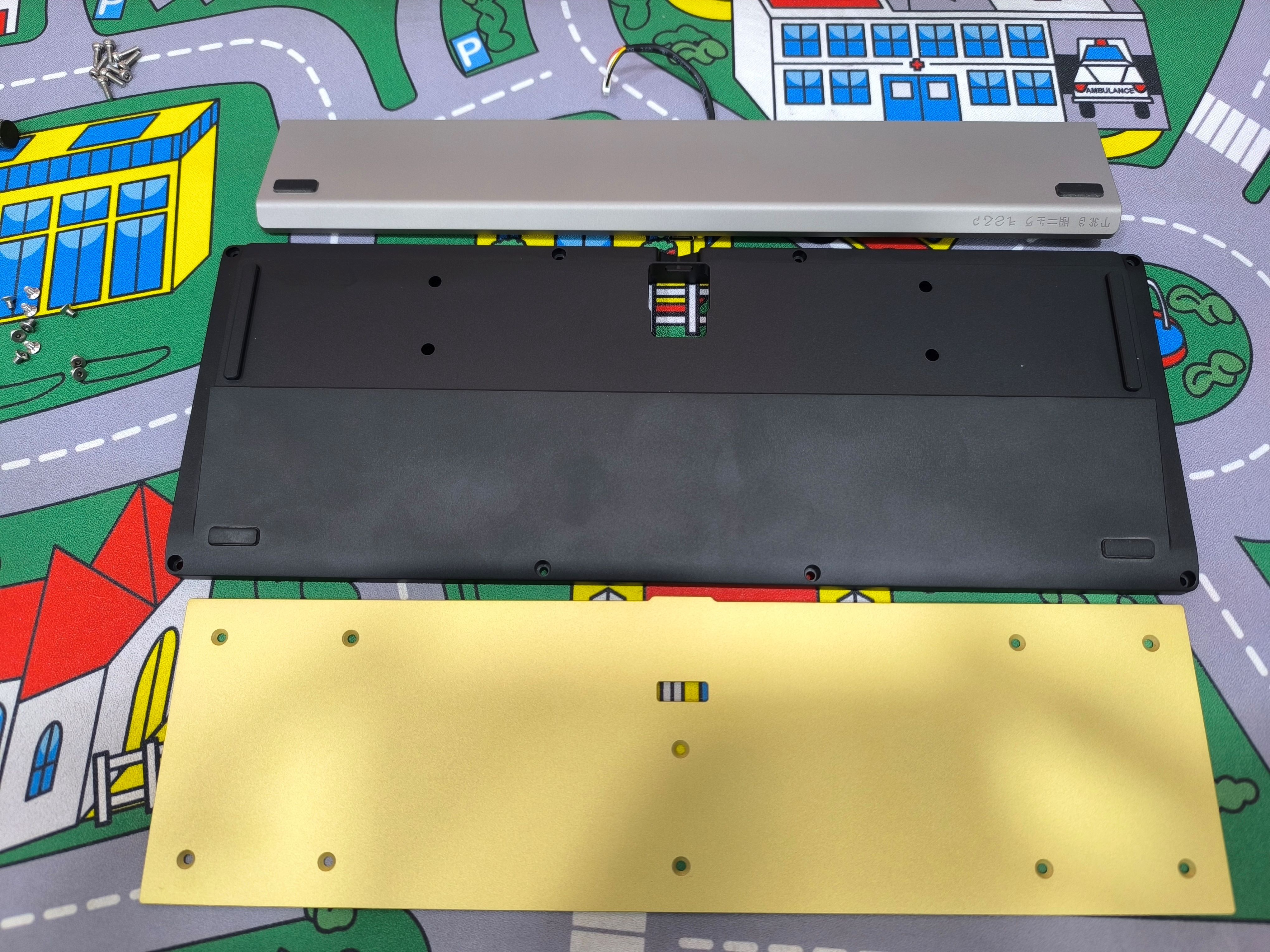

What's included:Aluminum top & bottom case.

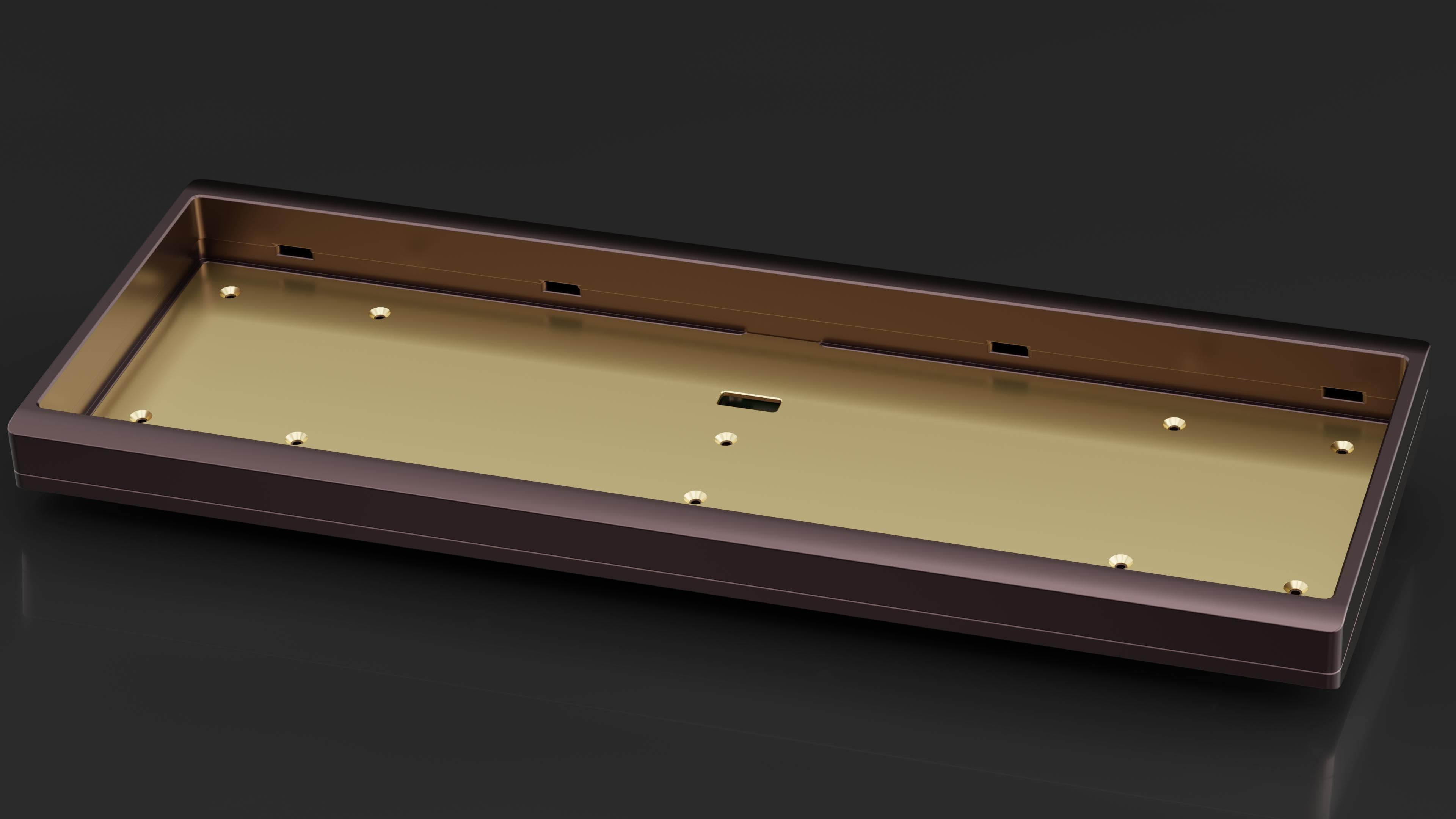

Internal brass weight.
External stainless steel back weight.
Soldered PCB.
UDB (unified daughter board) + JST cable.
Screws (extra included).
A lot of rubber feet.
Hard carrying case.
Sound test by my friend Nohki:

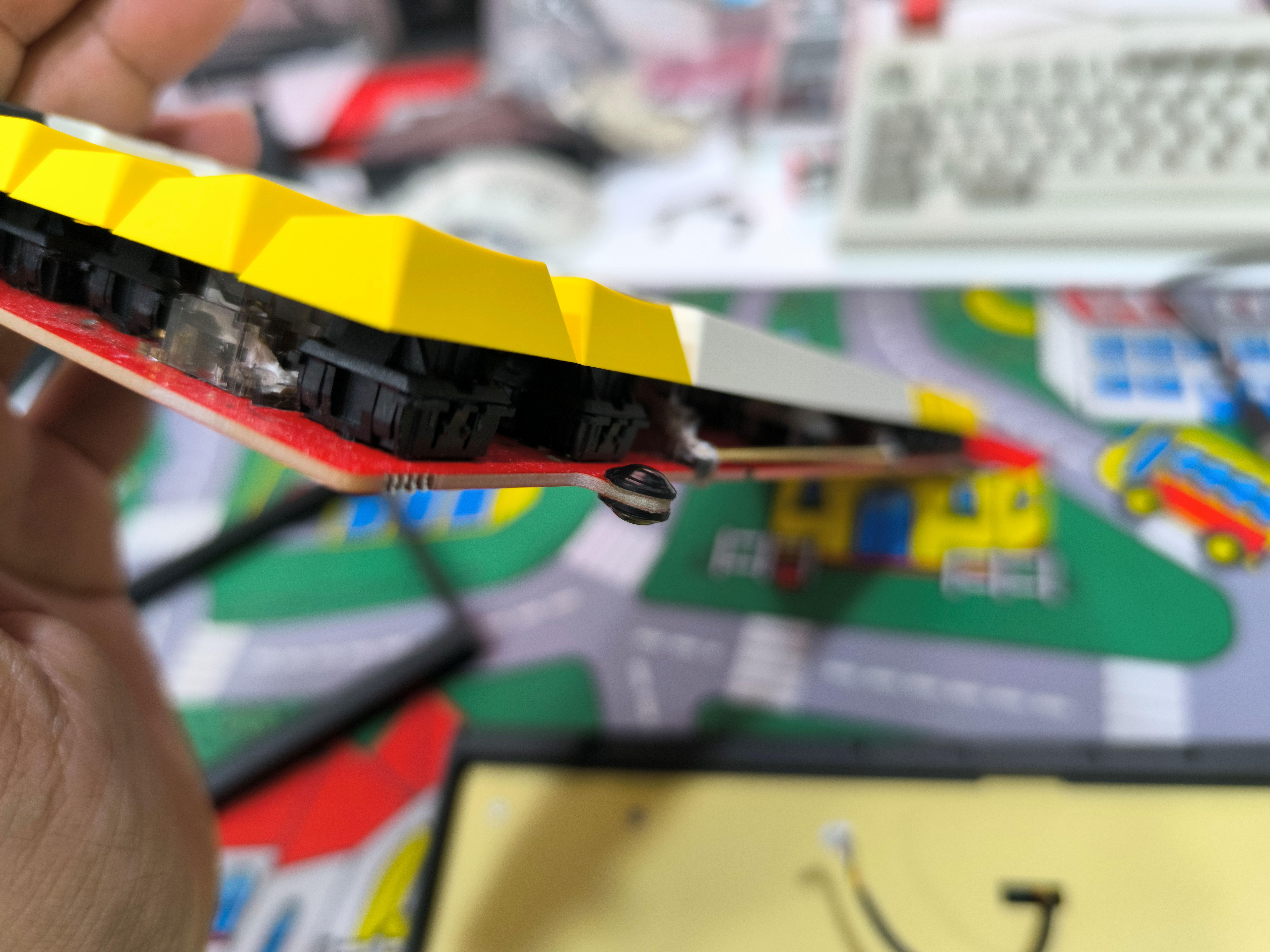

Notes: I some comments about V1 like the front height is a bit higher, The PCB mounts are too flexible in the middle. V2 will have a lower front height also more mounting points but relief cuts on the PCB mounting arms.
Price:~400 USD @50 MOQ (Manu DDS).
Notes: I am looking for another options and the price is not final.Vendors:TBD
Case Colors(Brown, Red, Navy, Purple, Green, Neon Green)
