Hello everyone, I'm EagleV from EagleV Studio, which consists of a whopping number of one person.
Today I want to introduce to you my our first Interest Check:

TKL Staggered "Split" (final name TBD)

Tad Pole mount
Ball catch
Current design price: $420 for MOQ 100 boards, ~$460 for MOQ 50 boards.
I'm trying to update the design so the material/machining cost can be lower!

Sound test and assemble, with 2 builds: BCP with PC Plate and MX2A Black with Alu Plate:

IC Form: https://forms.gle/iRJLkhawUtfVt2JN9
Discord: https://discord.gg/nNaW4EvKTu (just created lol)

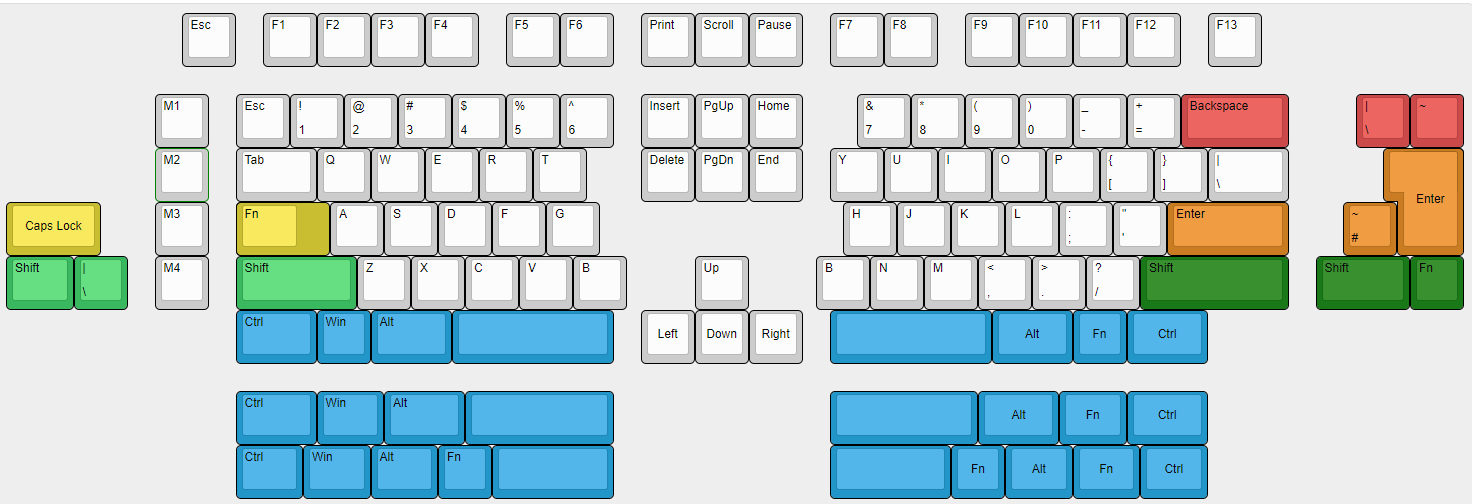

Supported layout (The PCB is done, with QMK/VIA):

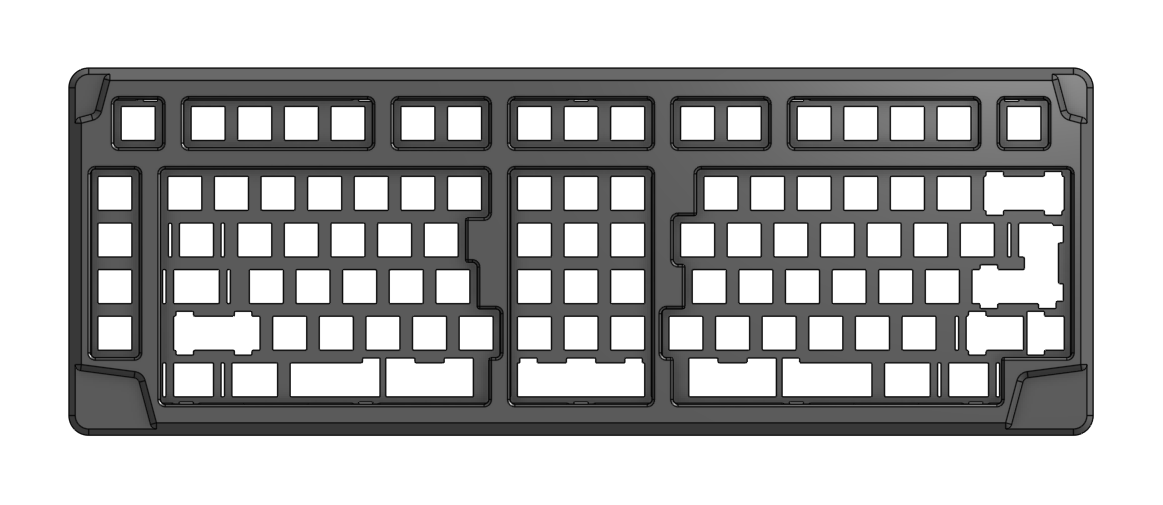

Update 1: Added WKL top option

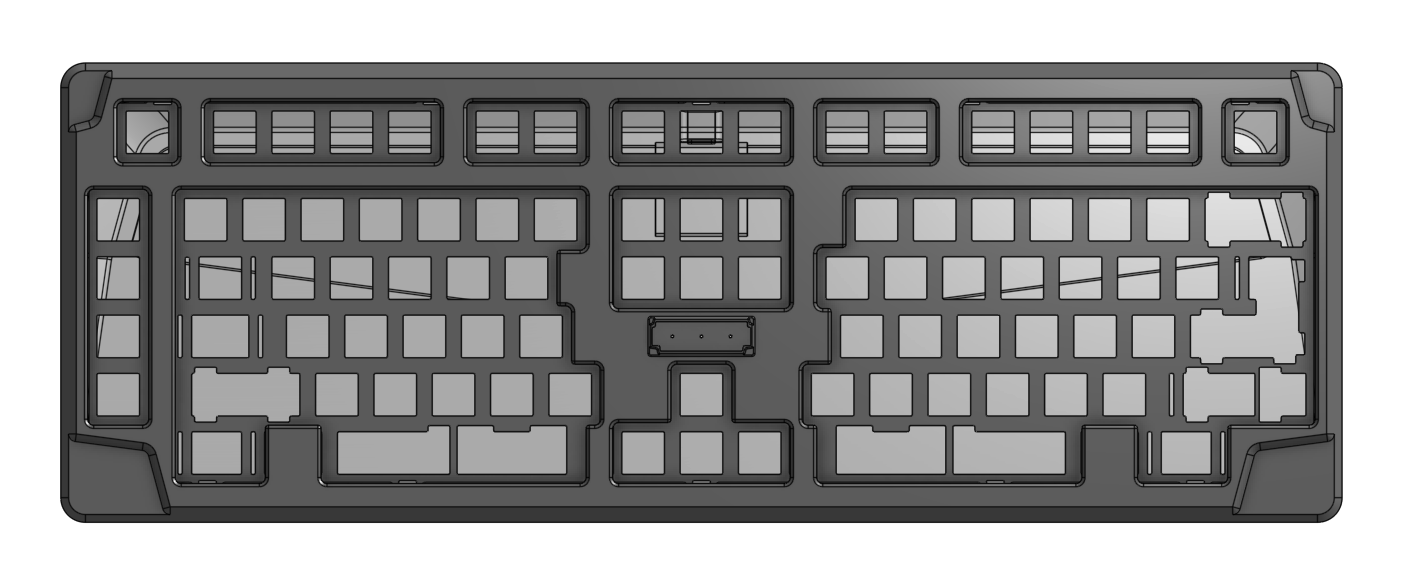

Update 2: Added 8K top option. I've decided to remove the LED indicators & will update the design in that area

Specs:

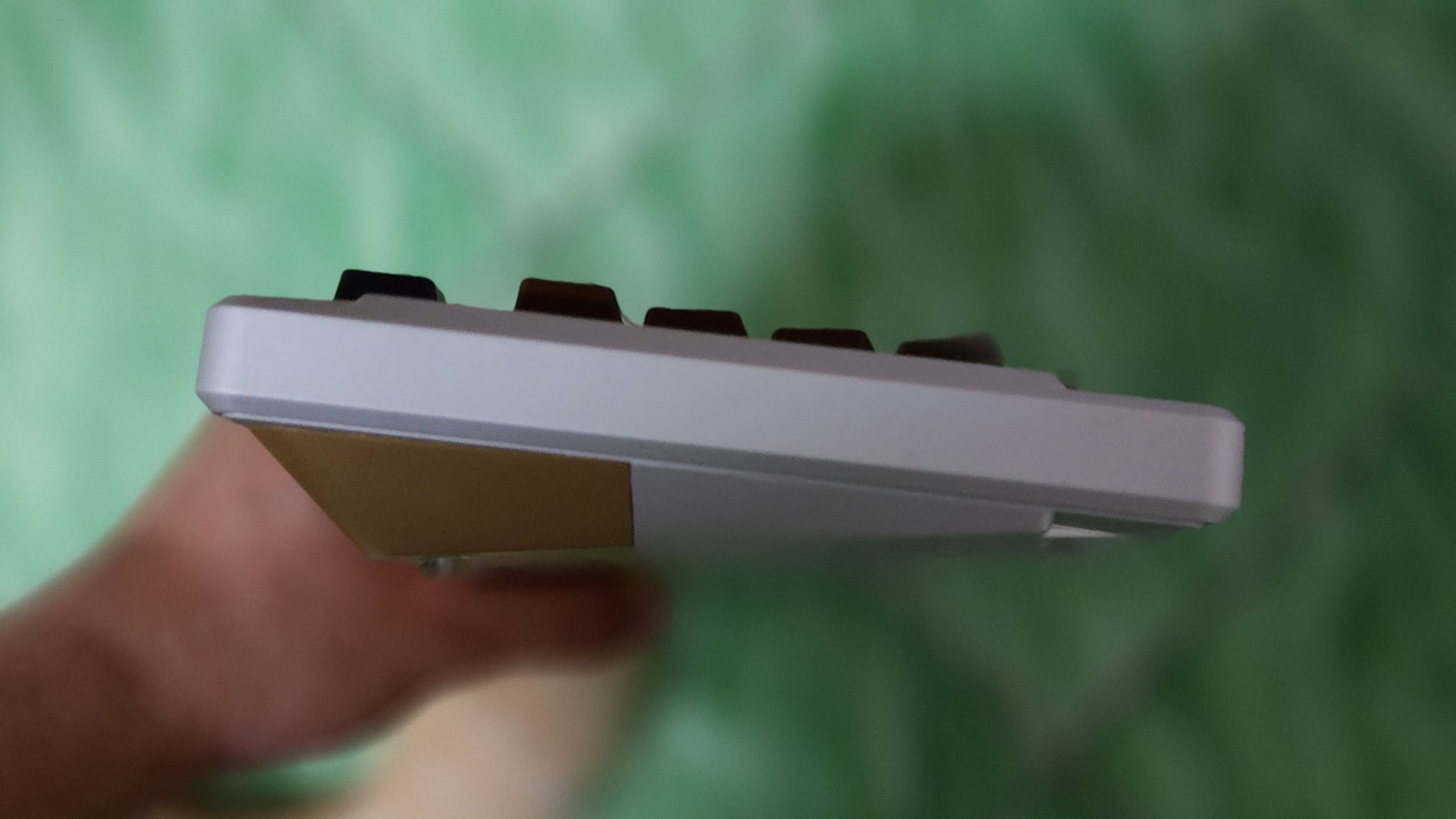

Front height: 19.2mm (without lip), 14.2mm (with lip)
EKH: 26.306mm
Weight: 4.2kg unbuilt (this will change due to the updated design, might drop to 3-ish kg)
PCB: Currently solder only to achieve the multi layout. Supports LED indicators.
Plate: Aluminum, PC, CF, PP is supported from the manufacturer, but I can outsource this part
Color: Current manufacturer offers Silver, Black, Bright Red, Navy, Dark Green, Space Grey, Orange, Brown, Dark Purple

A kit will contains:

- Top & Bottom Case, Ball Catches pre-assembled
- Weight (mostly will be Brass), daughterboard pre-assembled
- PCB, LED indicators pre-assembled
- Plate
- Tad Poles
- Extra screws
- Extra Plates & PCBs
- Carrying bag

Inspiration:
- BlindAssassin's SP-111 for the multi-layout split
- GrayStudio's HB-85 for the "elevated" HHKB looks
- Baionlenja's Bias TKL for the drafted bottom
- And of course TKD's Cycle7 for the ball catch.

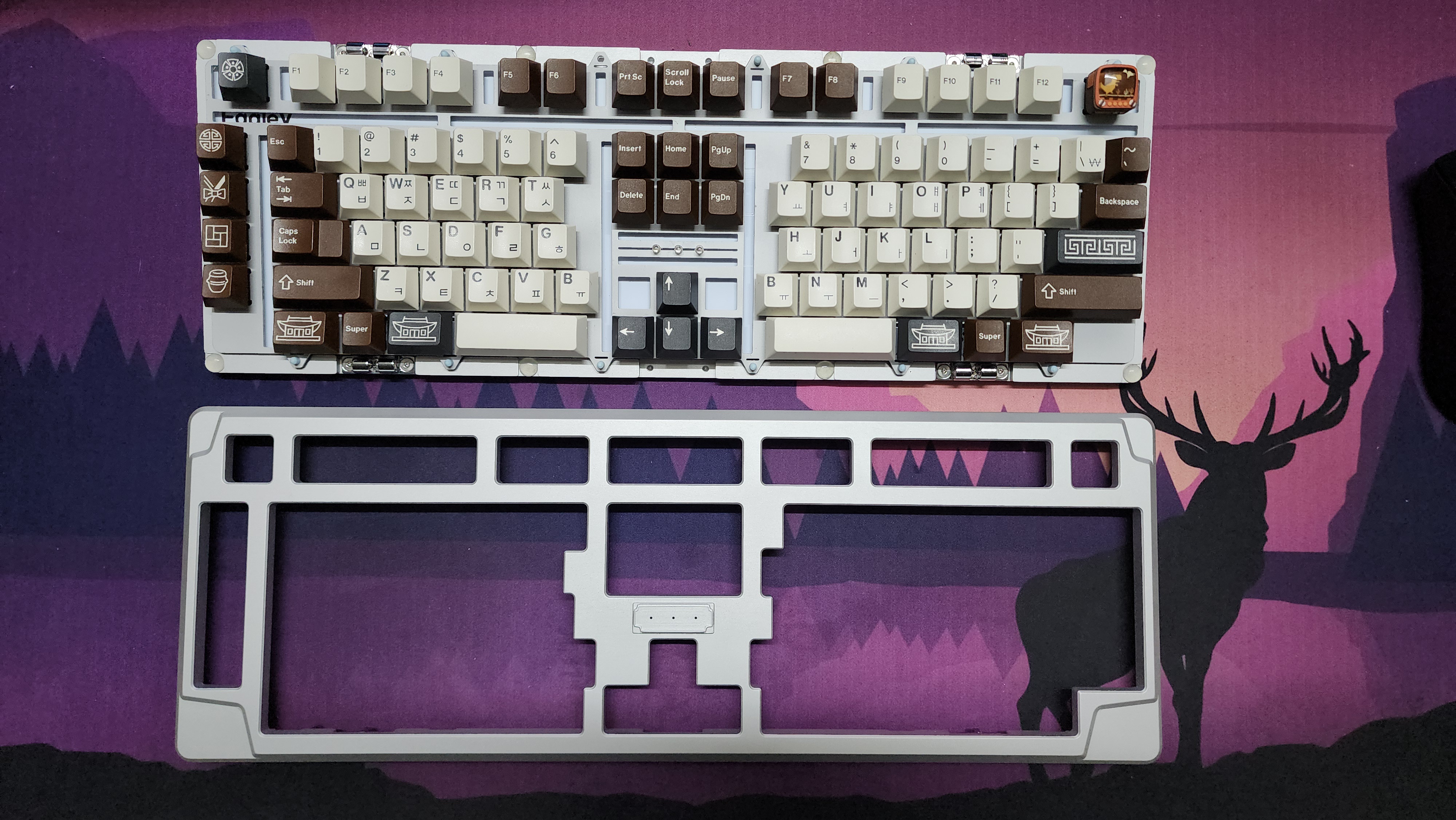

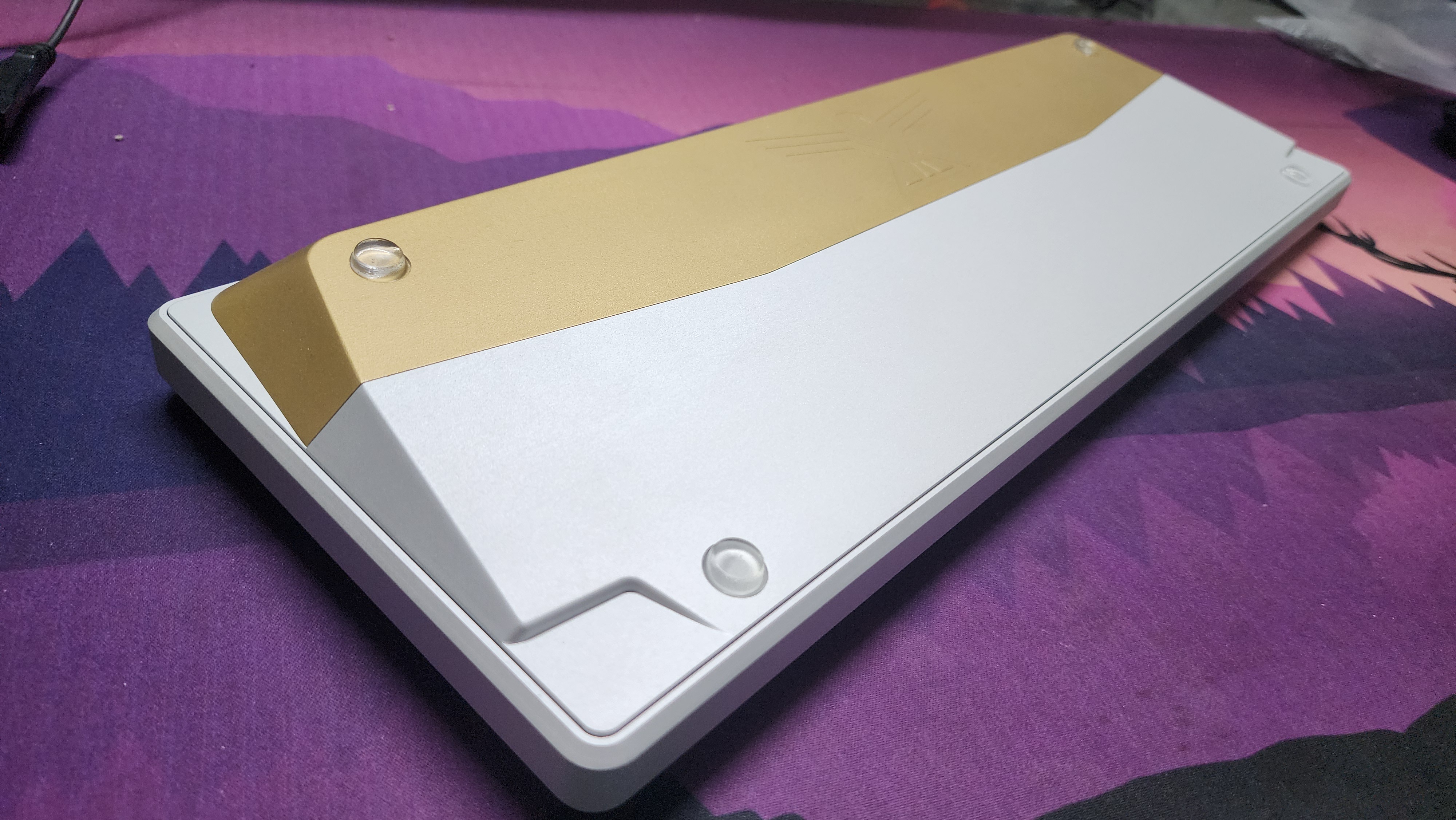

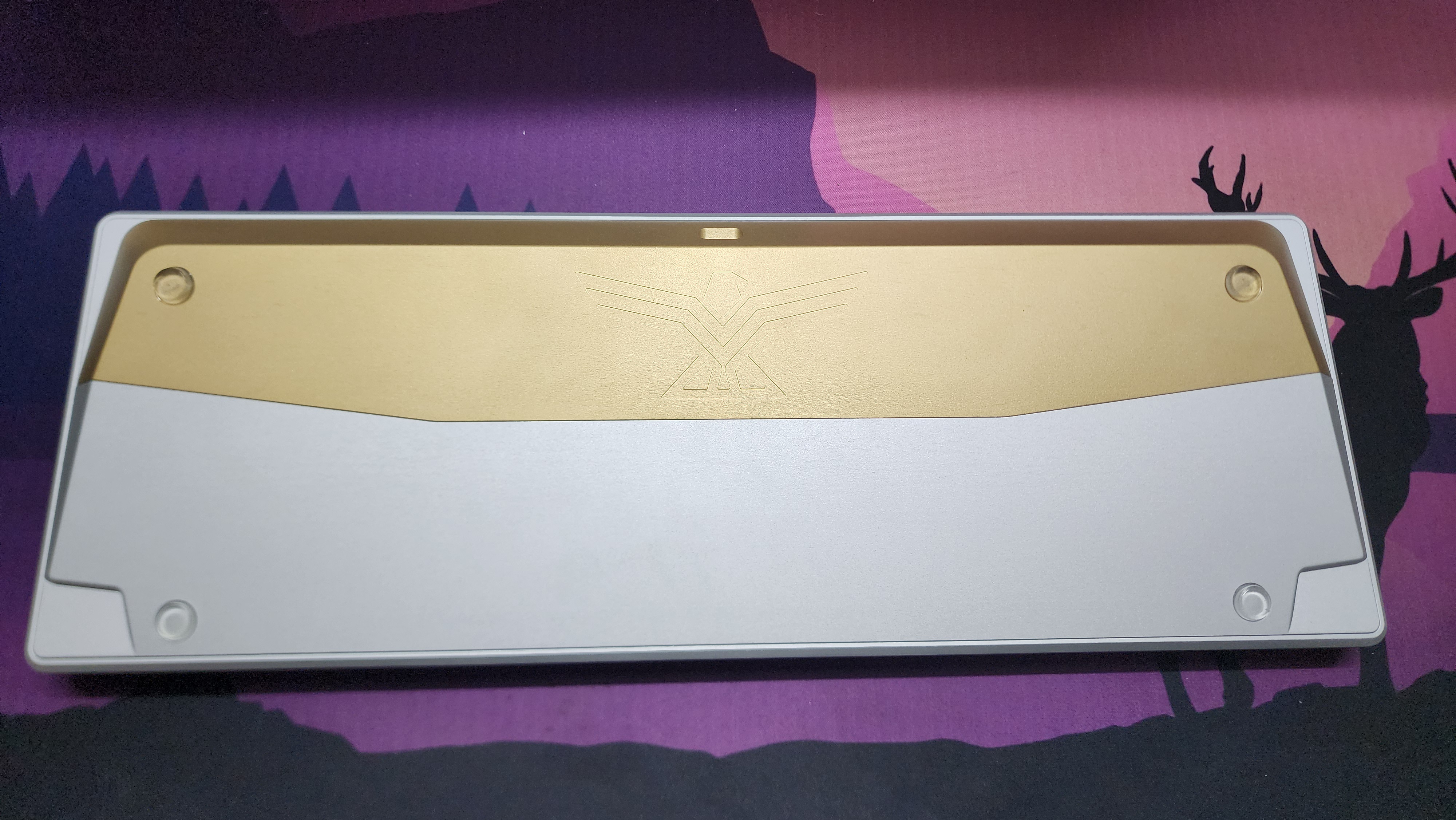

Some more pictures, sorry I haven't learnt render yet:

How this project was born:

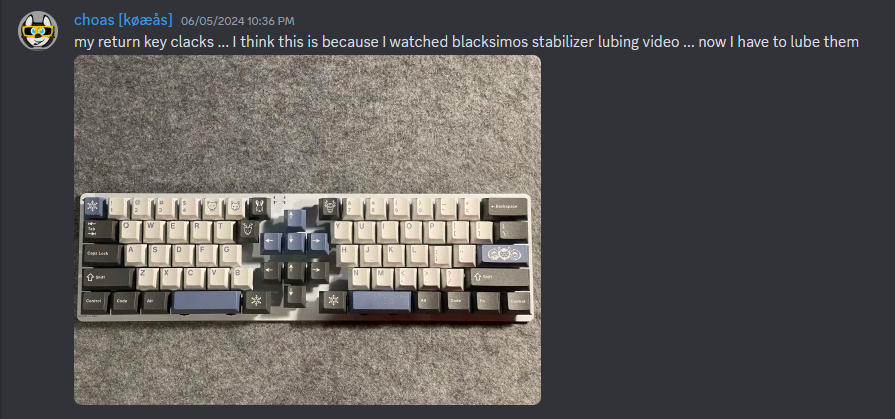

The idea was born in BlackSimon's discord, from this message of @cho_as:

It was so cursed (for me) that I physically had to go and "fix" it in KLE, and then when I got the layout of basically a TKL chopped in half, I was thinking "huh, this might work", and then went ahead and made the PCB & designed a 3D printed case.

After I built and used it for two weeks, I really liked this layout so I updated the 3D printed case to a CNC version and had it manufactured by a local manufacturer, from which many of my designs had been made.

I've got the prototype 3 days ago, built a second config for it, and here I am posting my first IC ever on GeekHack

Sorry for the scuffed IC. This is my first time posting, but I promise you this is a product I want to produce and put in on the market. I'll try to edit the IC to make it more reader friendly.

Vendors

Vendor	Region	End Date	Store
Drop	—	—	—

Timeline

Interest Check

Aug 26, 2024

Gallery

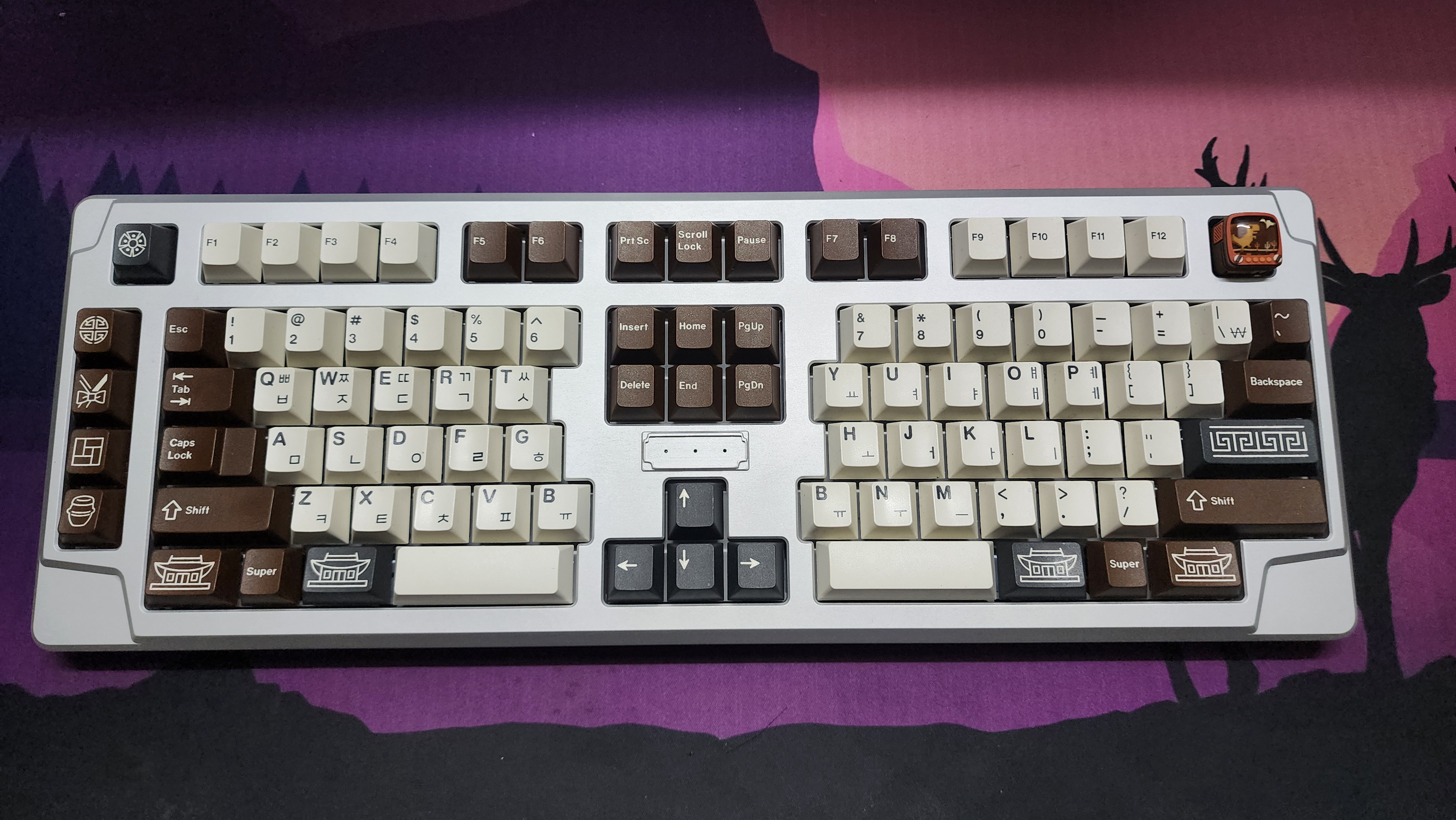

- TKL Staggered "Split" with a middle arrow cluster image 1
