TR60 integrated plate case & BLE PCB

Update 2:
User manual
BLE User manual
https://github.com/TriangleLab/TR60/blob/master/TR%2060%20%E5%BC%80%E7%AE%B1%E9%A1%BB%E7%9F%A5%20TR60%20Instruction.md
TR60 Github
https://github.com/TriangleLab/TR60

Update:
Wired PCB order & Case Only Order packages had gave to Post company.
I will send track code tomorrow through email for everyone.






Hi geekhackers, this is a group buy we've prepared for a quite long time but has been delayed a lot because of the infamous AL1 GB we run for Alsoran. We hope we can prove our abilities in this group buy that directly run by Triangle Lab. The manufacturer and suppliers, different from Alsoran's sources, are very reliable. Most importantly, we will do the QC by ourselves to make sure everything goes well.

Three of our creations are included in this GB:

• TR60 - 60% keyboard case with integrated plate
• MickeyBoard 1.0 Plus - 60% Bluetooth only PCB
• TR60w 1.0 - 60% hot swappable wired(USB) PCB

Each one can be bought individually.

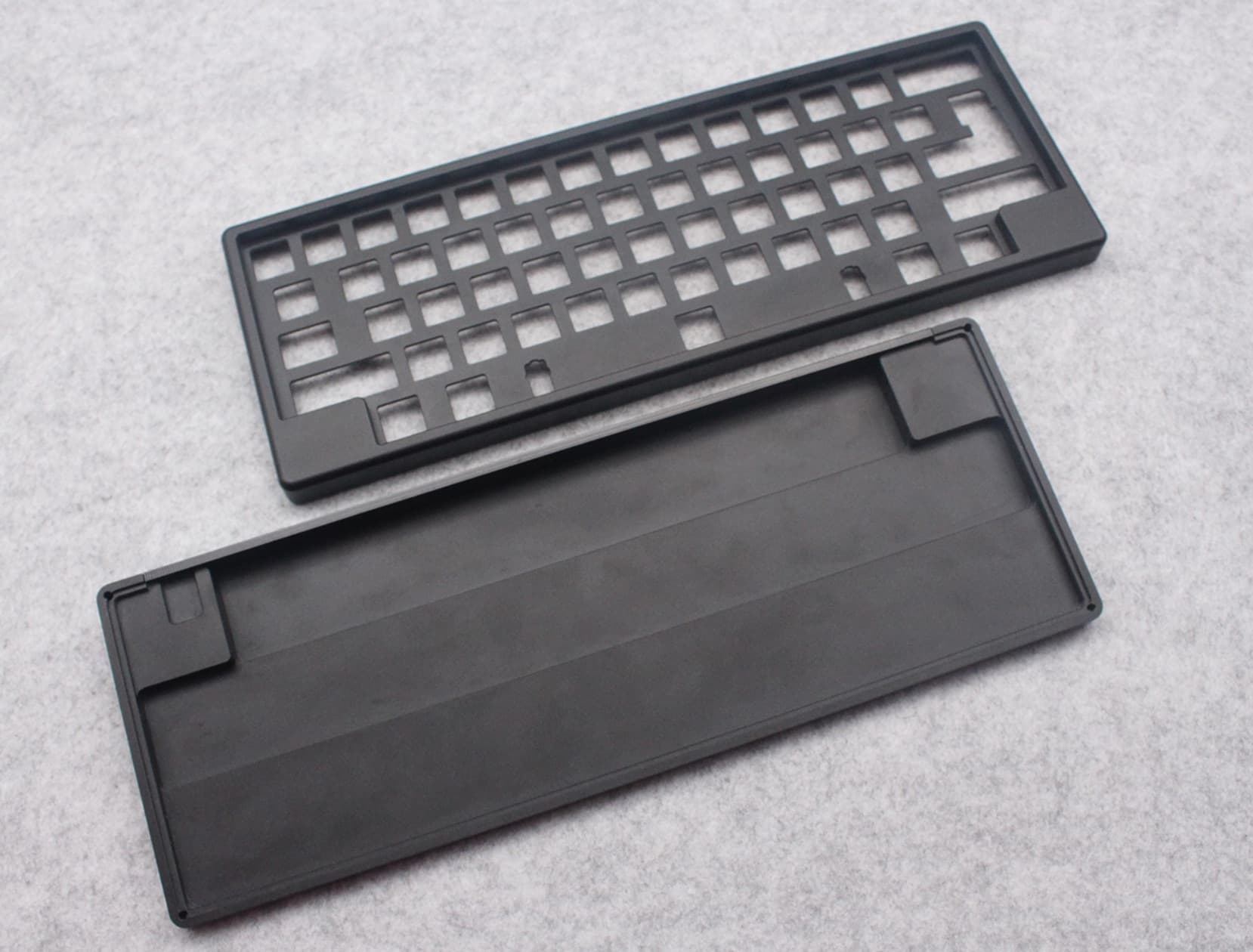

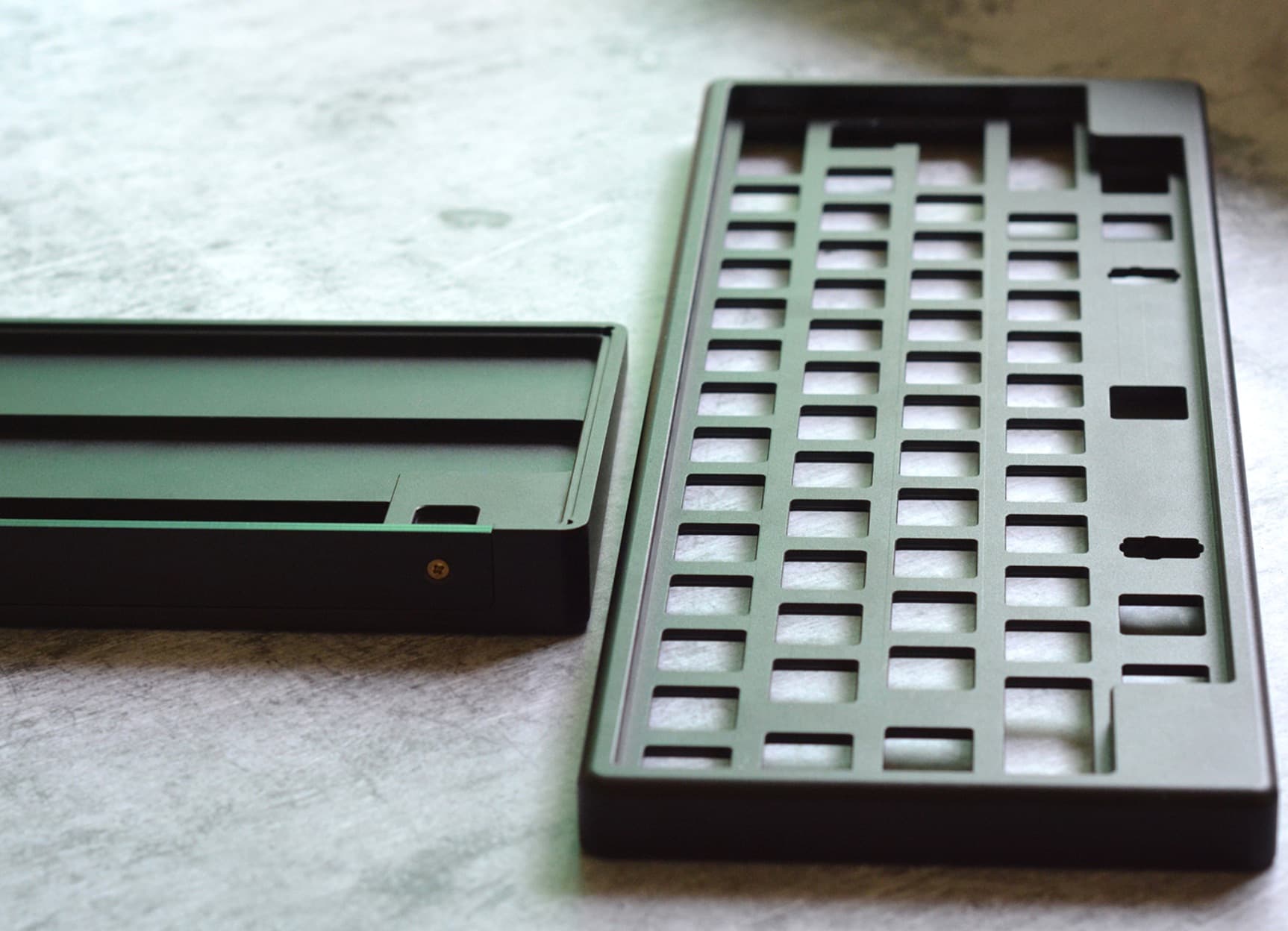

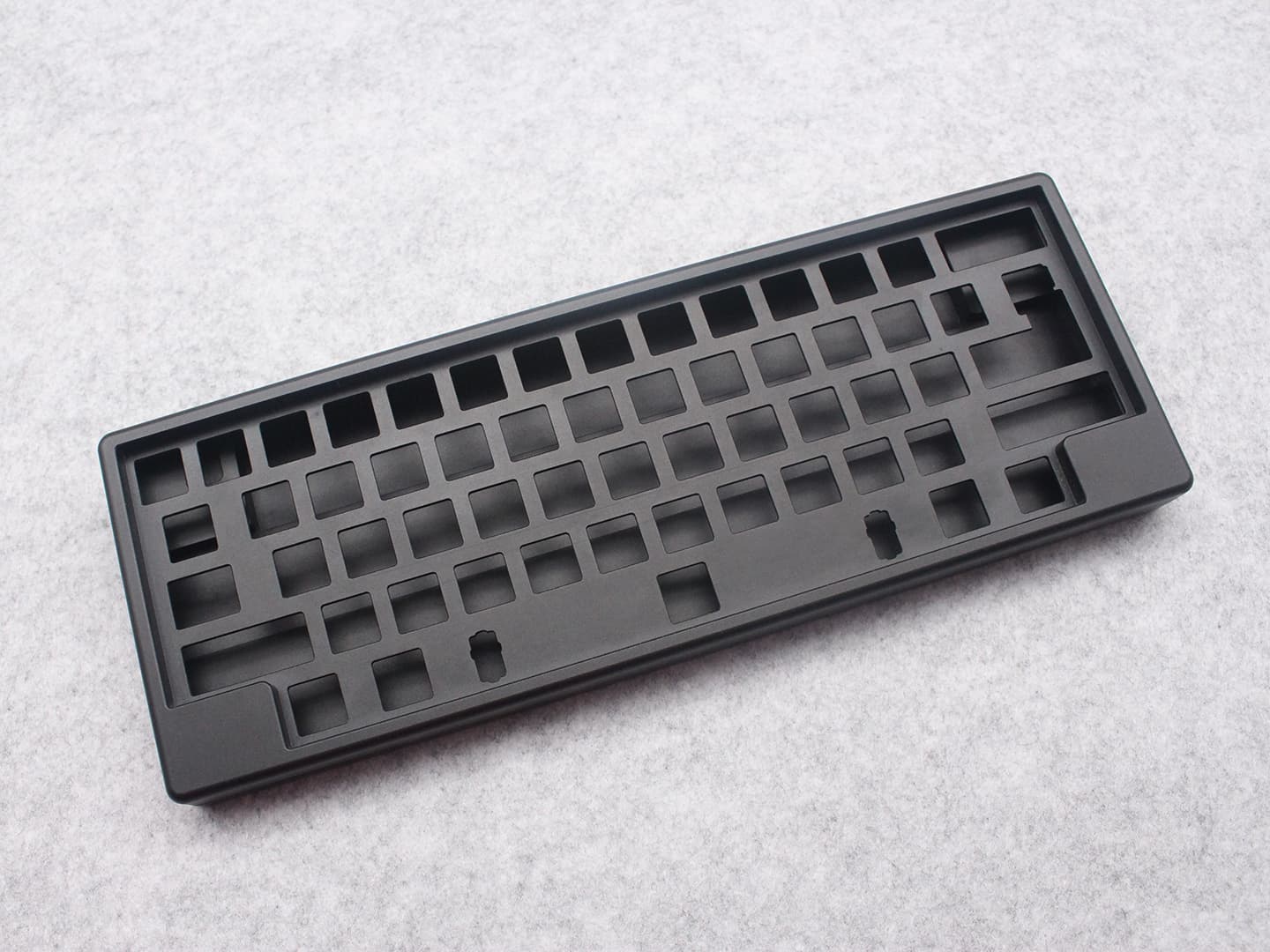

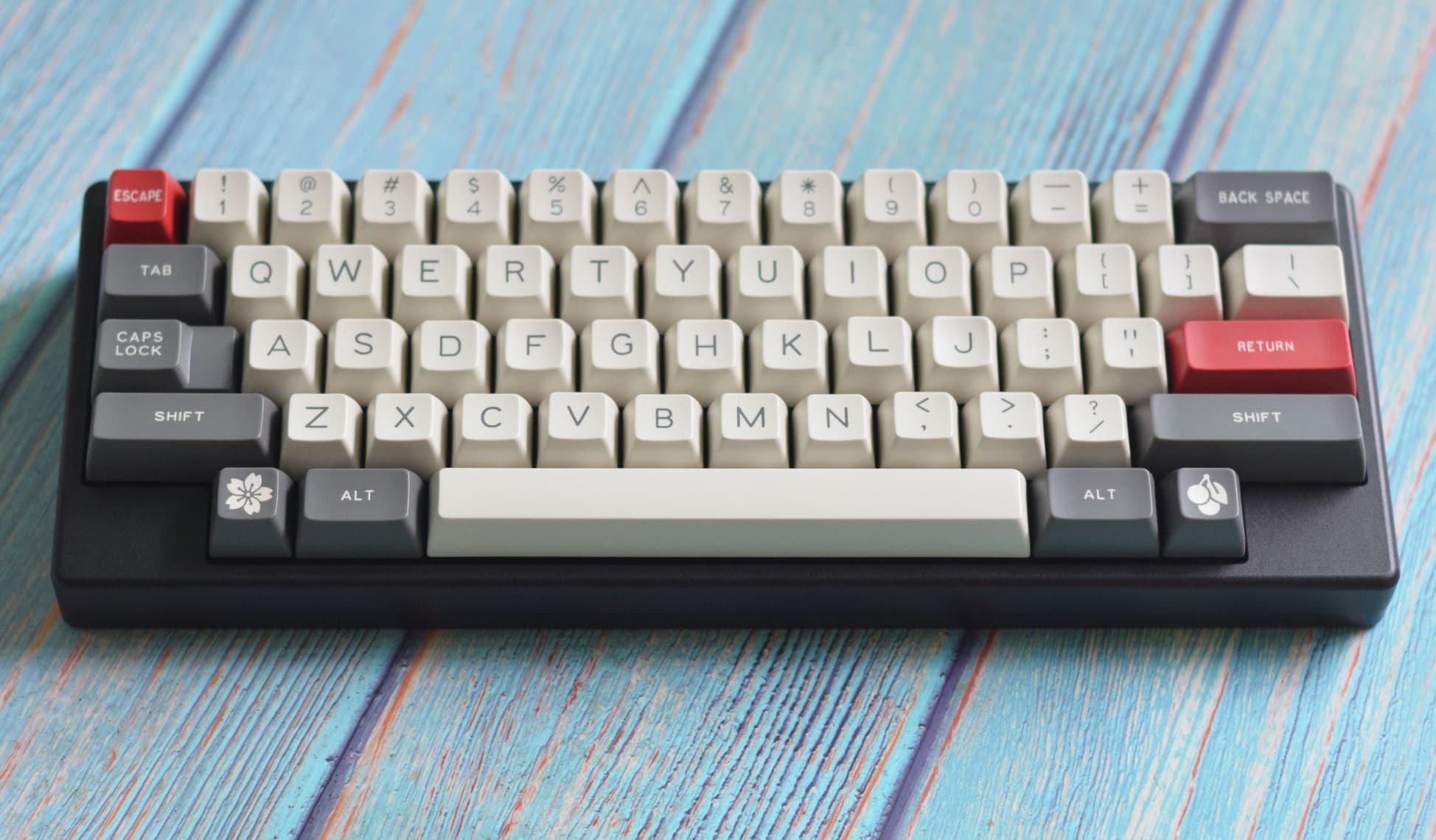

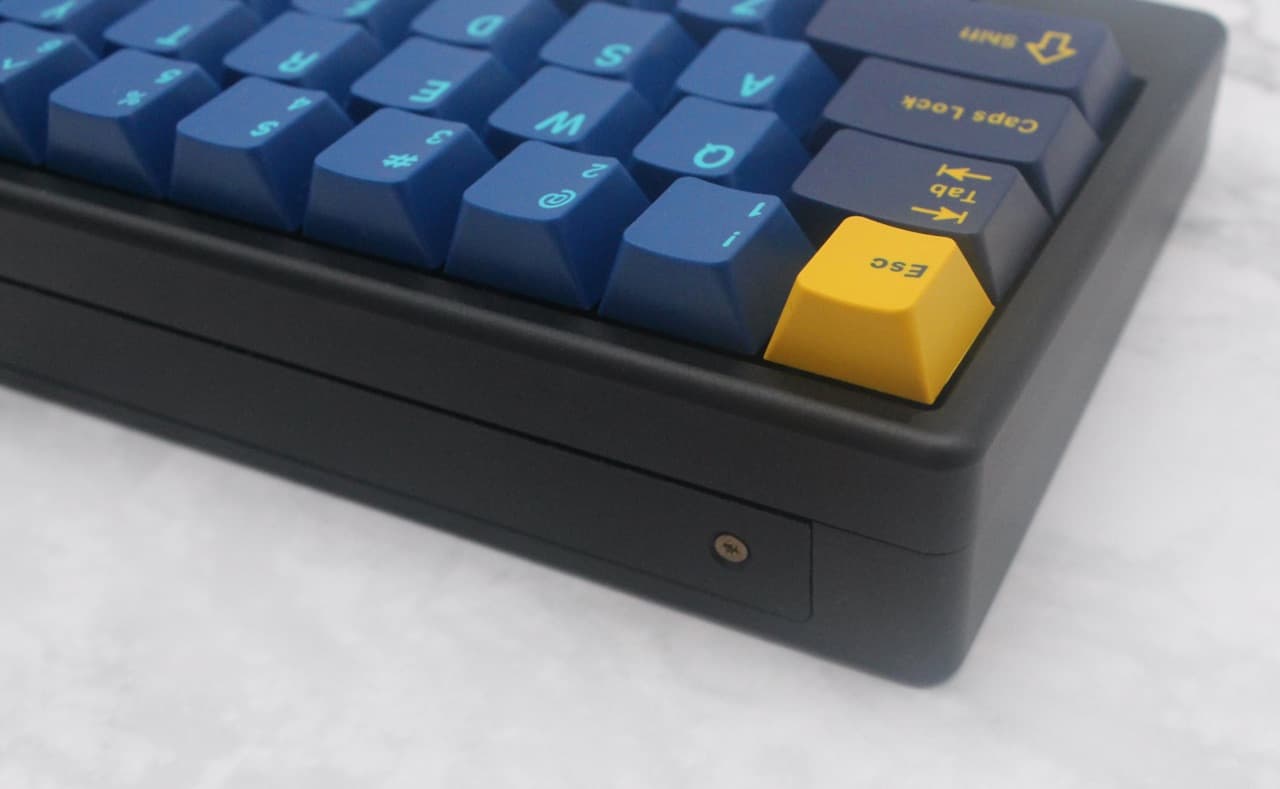

1. TR60 keyboard case with integrated plate

• Integrated plate
• 6061 aluminum top and bottom cases
• Acrylic, aluminum, or brass back plate. The Bluetooth PCB can only work with acrylic back plate.

• Two types of top case: standard or HHKB style
• Compatible with most 60% PCBs
• Price: $120

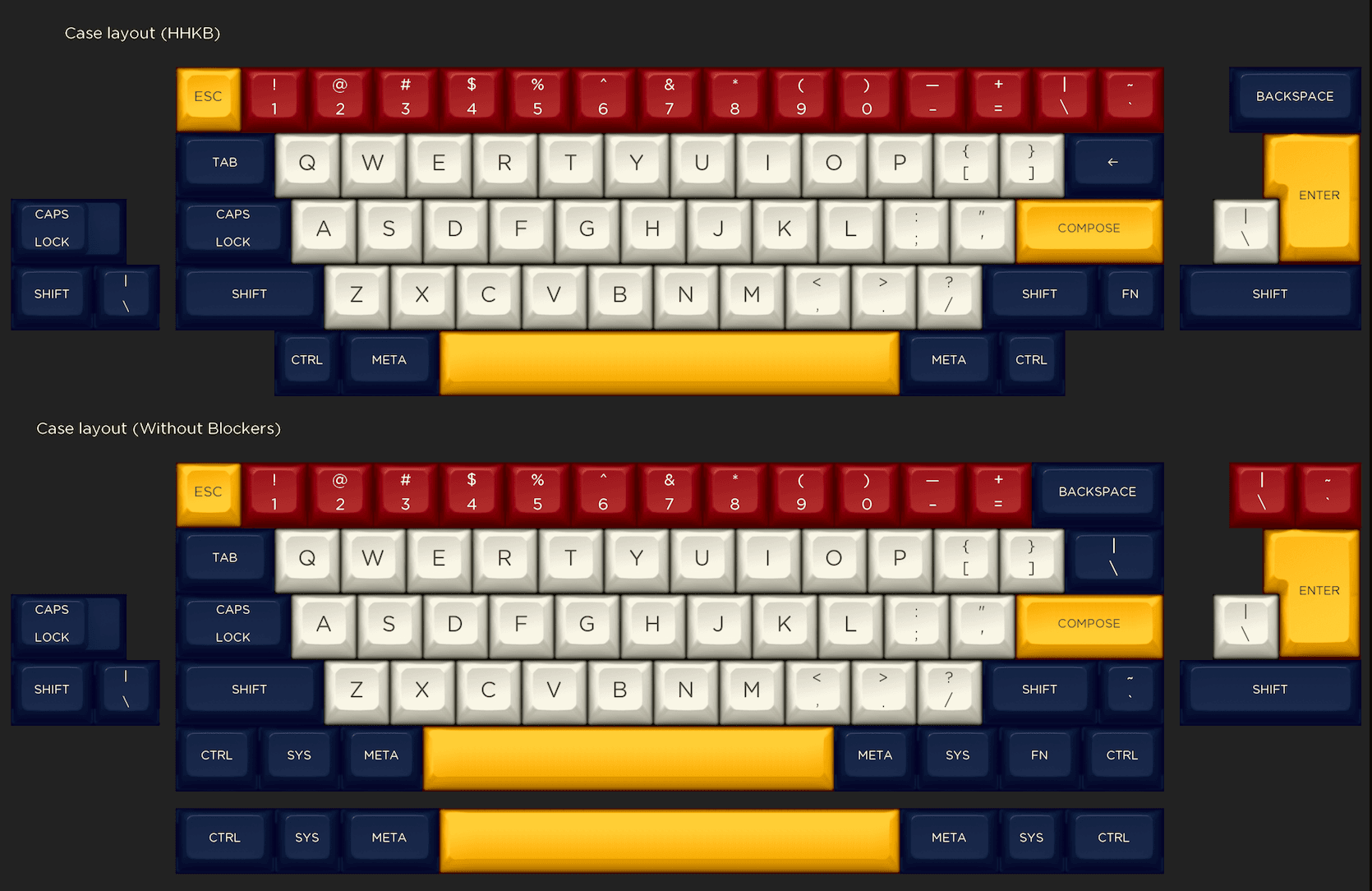

• Layout:

• Colors:

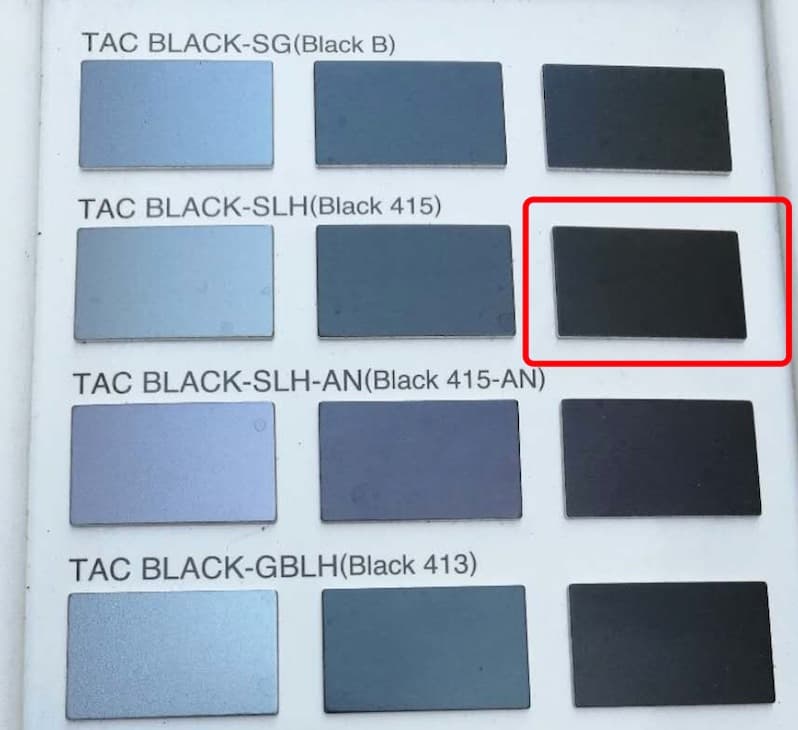

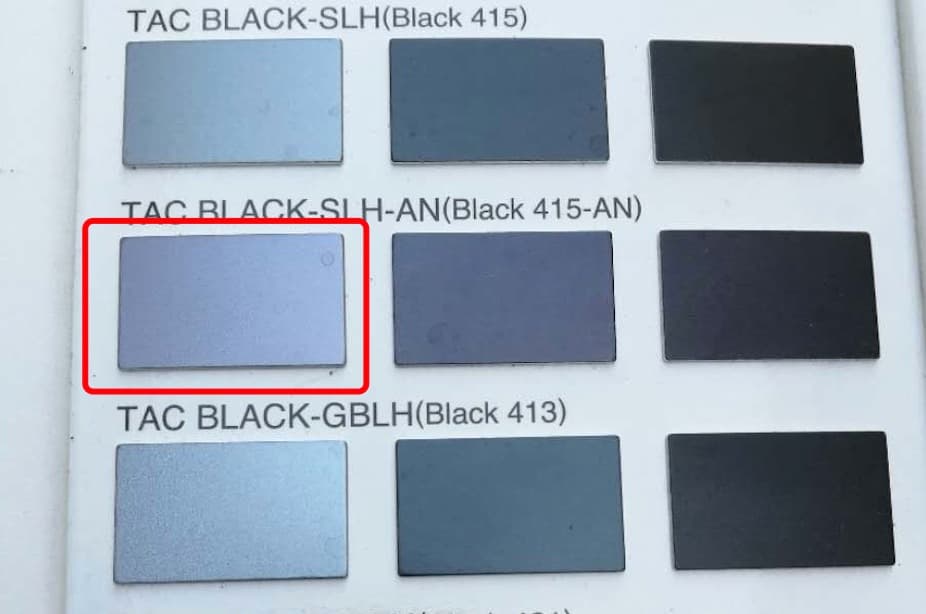

Check color samples above

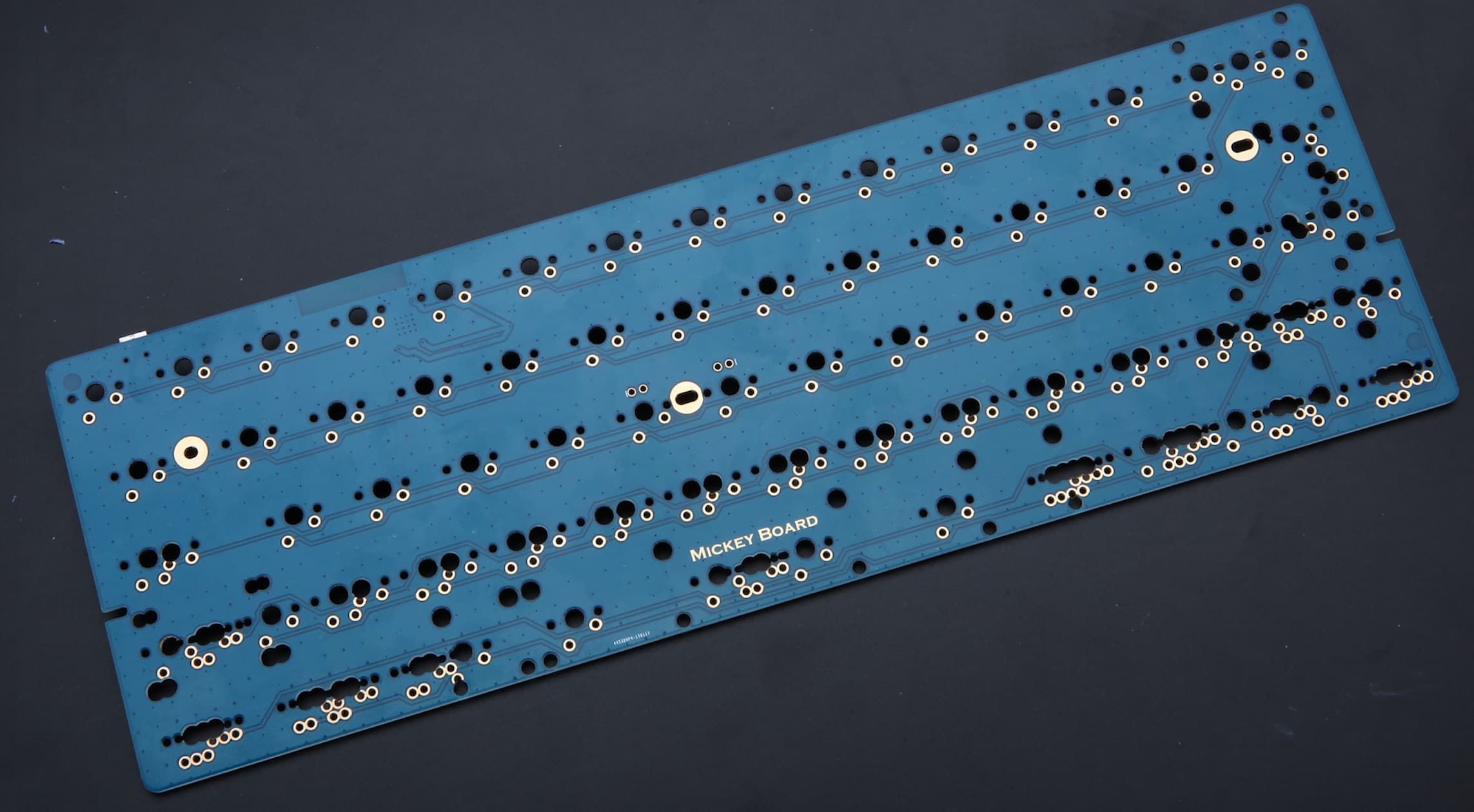

2. 60% Bluetooth only PCB

• Bluetooth 4.0 provided by Nordic nRF51822
• Battery life: more than 6 months
• Powered by 3 AAA alkaline batteries
• Fully programmable with an online configurator
• Price: $40

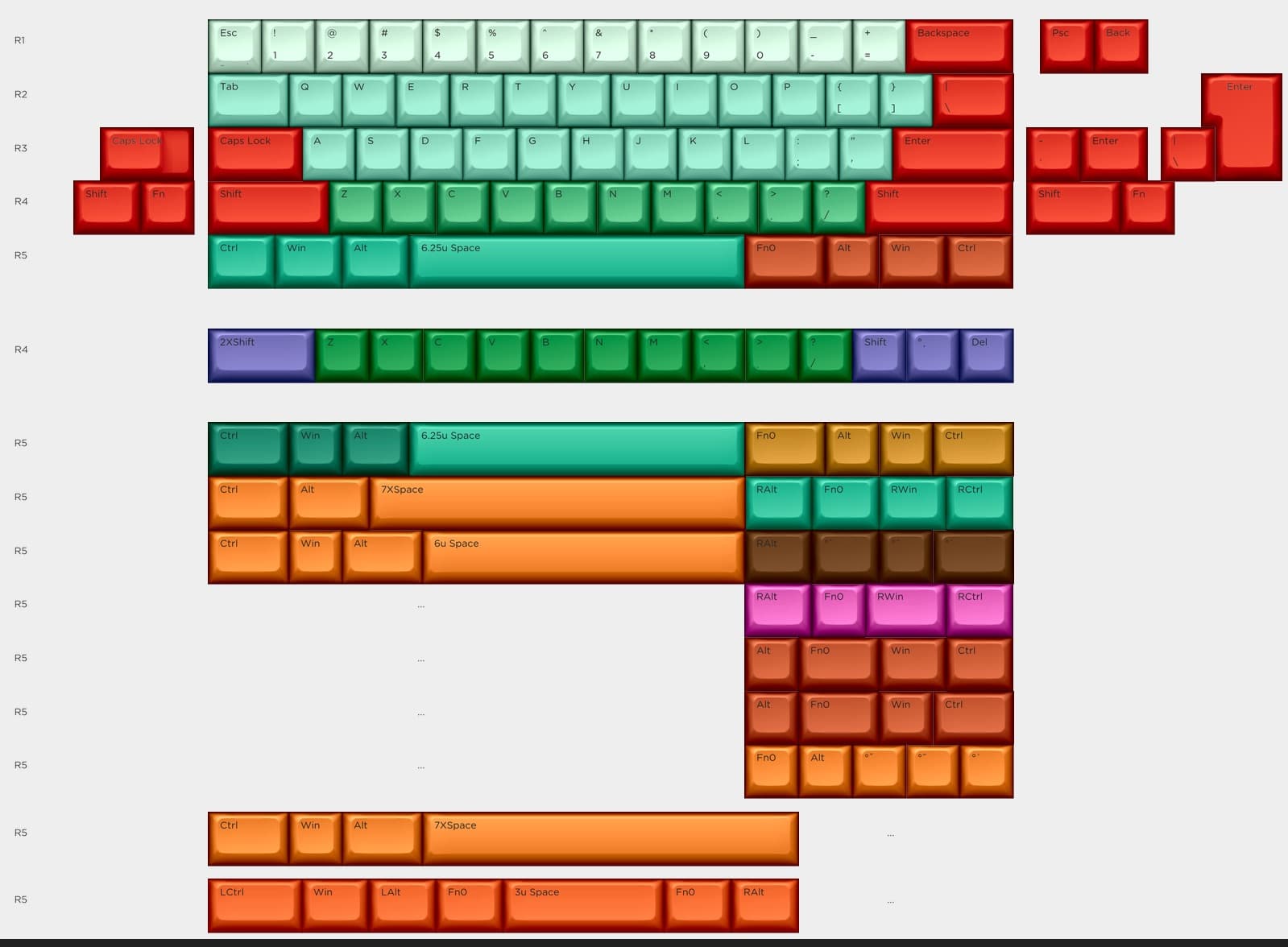

• Layout:

Optional Bluetooth dongle: The dongle can be used with MickeyBoard PCB only. Your PC will recognize the dongle as a wired keyboard instead of a Bluetooth keyboard if you use this dongle. The price is $15.

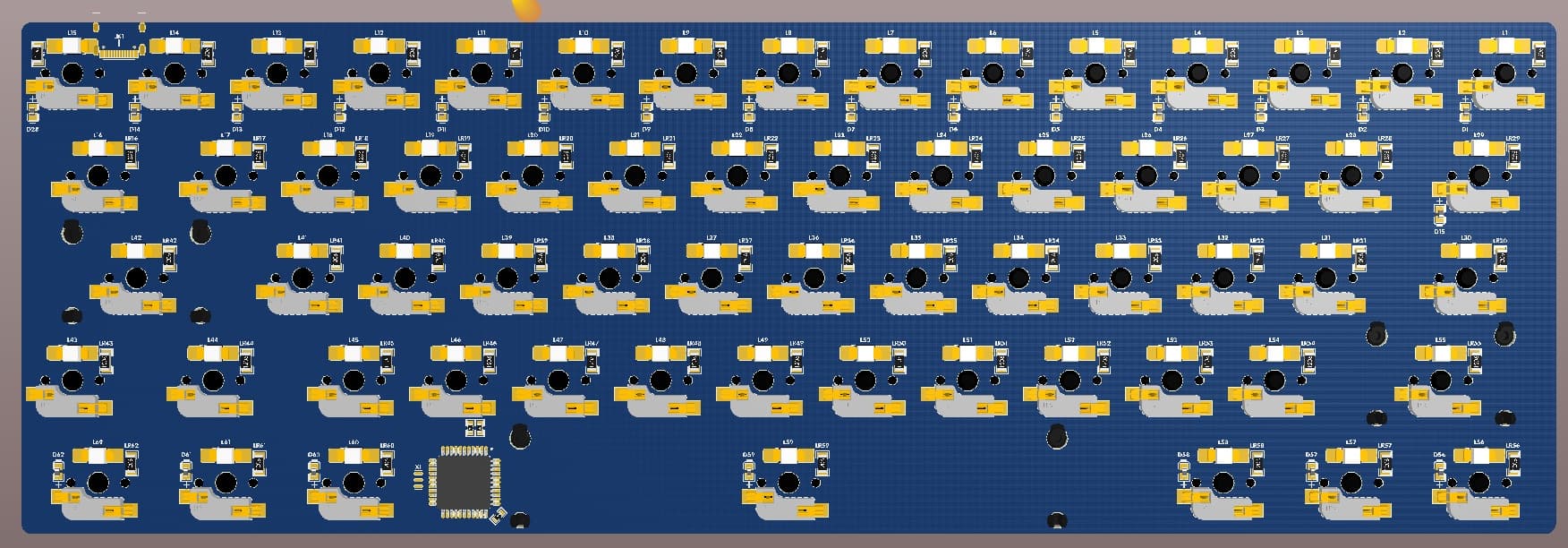

3. 60% hot swappable wired(USB) PCB

• Kailh hot swappable sockets
• QMK support
• Price: $40
• Layout:

Timeline

GB ends on July 10th

Lead time: 75 days

The shipping cost will be invoiced separately before shipping.


Find detailed options and place your order here: https://docs.google.com/forms/d/1ITN0pfnzeQURmQk2G9QEU5oqXRdaGWL_oXVESEKxPrA


Edit:

1. The case is 800g(1.76lbs) with default acrylic back plate.

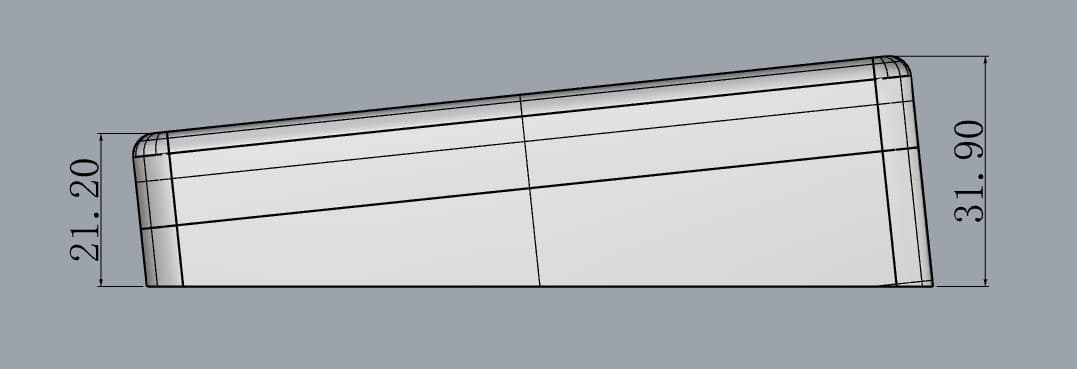

2. height of front and rear

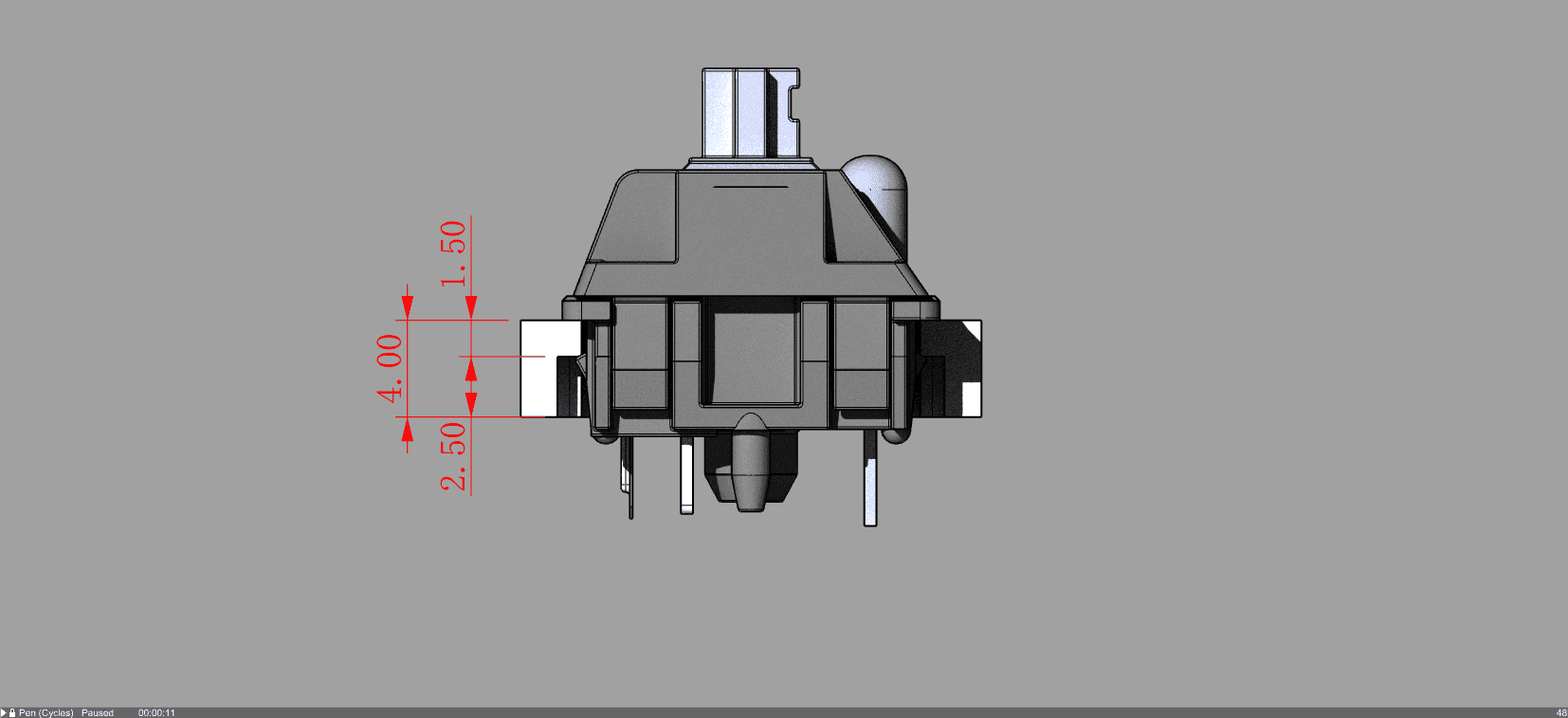

3. Thickness of plate

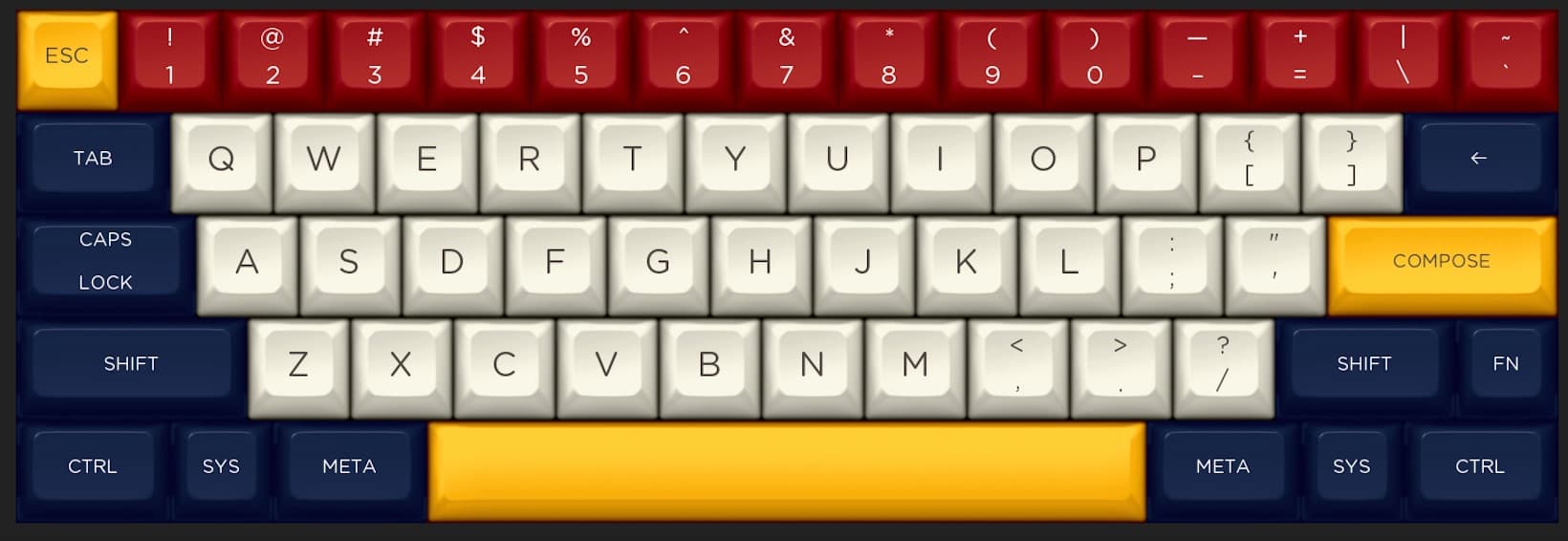

4. The layout figure is updated
