Trigon GB Ends in 24 Hours

January 24th Updated:

Trigon Collection





January 18th Updated:

Trigon Group Buy will be coming soon!


December 11th Updated;

Hi Everyone,

We have finally finished all prototypes so will now send samples to influencers!

Please see the details we updated below:

• Proto Picture
• Case color, weight, and color chips confirmed
• Default PCB & Layout
• Group Buy Price updated
• Influencer List

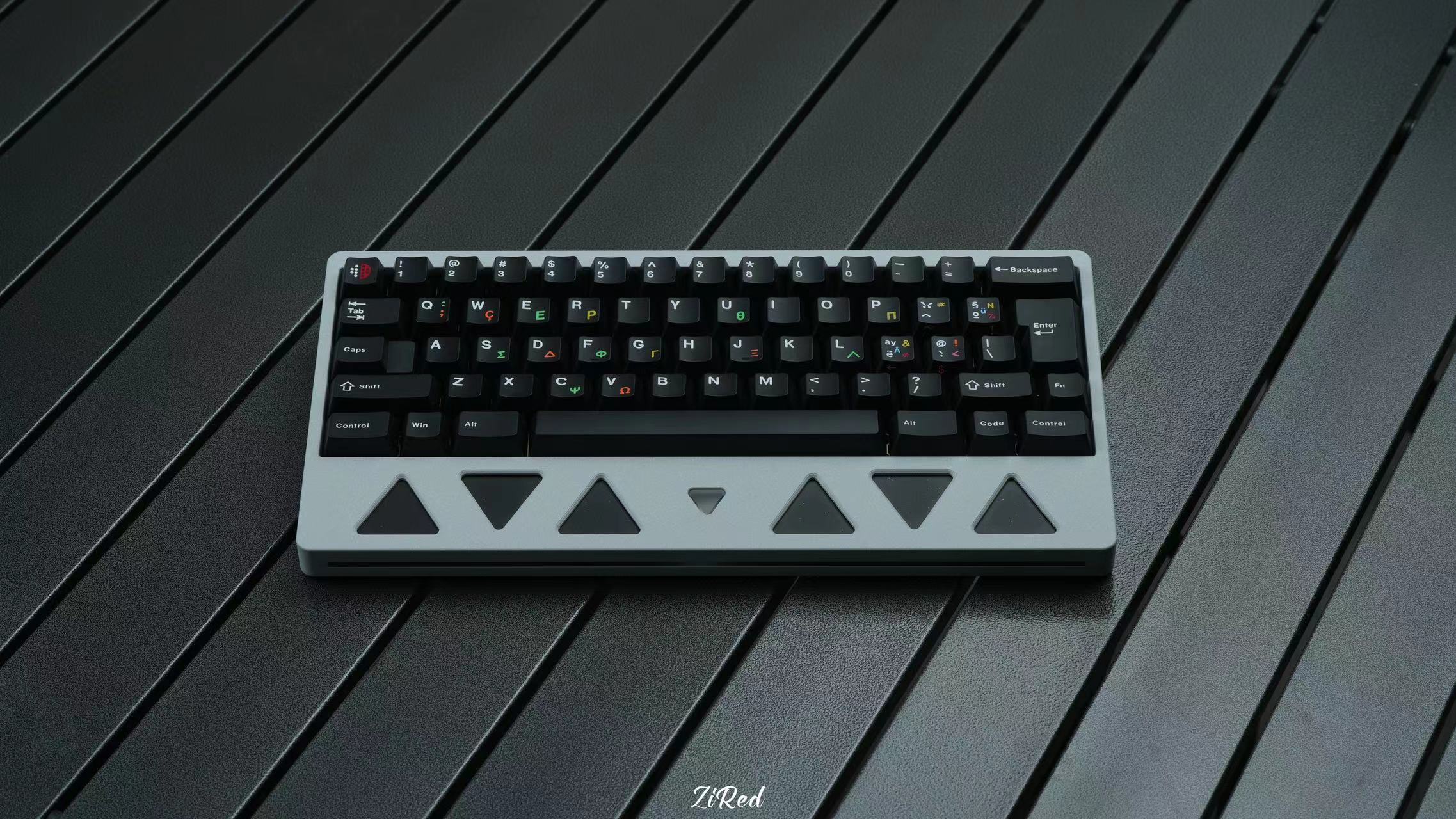

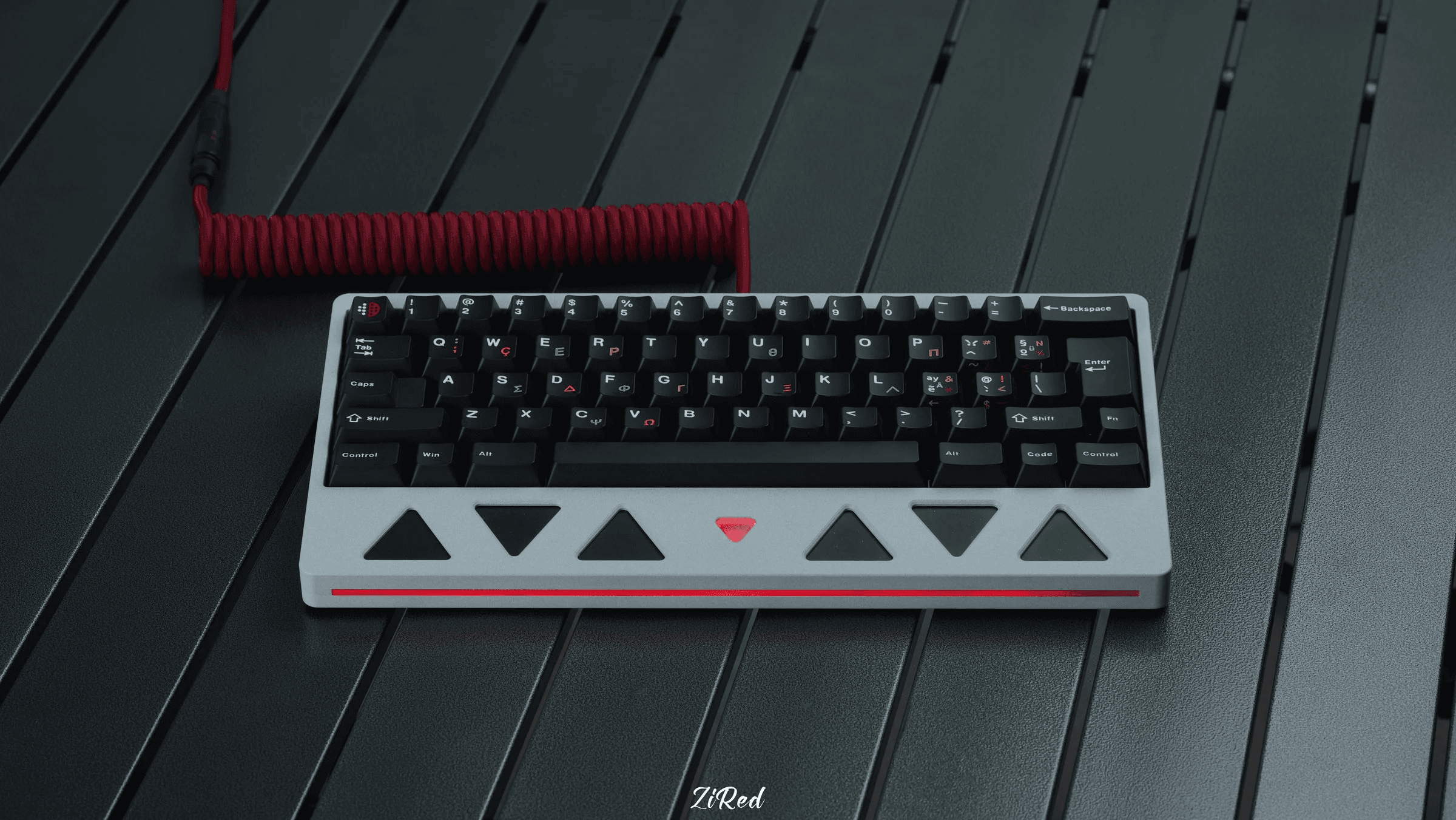

Prototype Picture

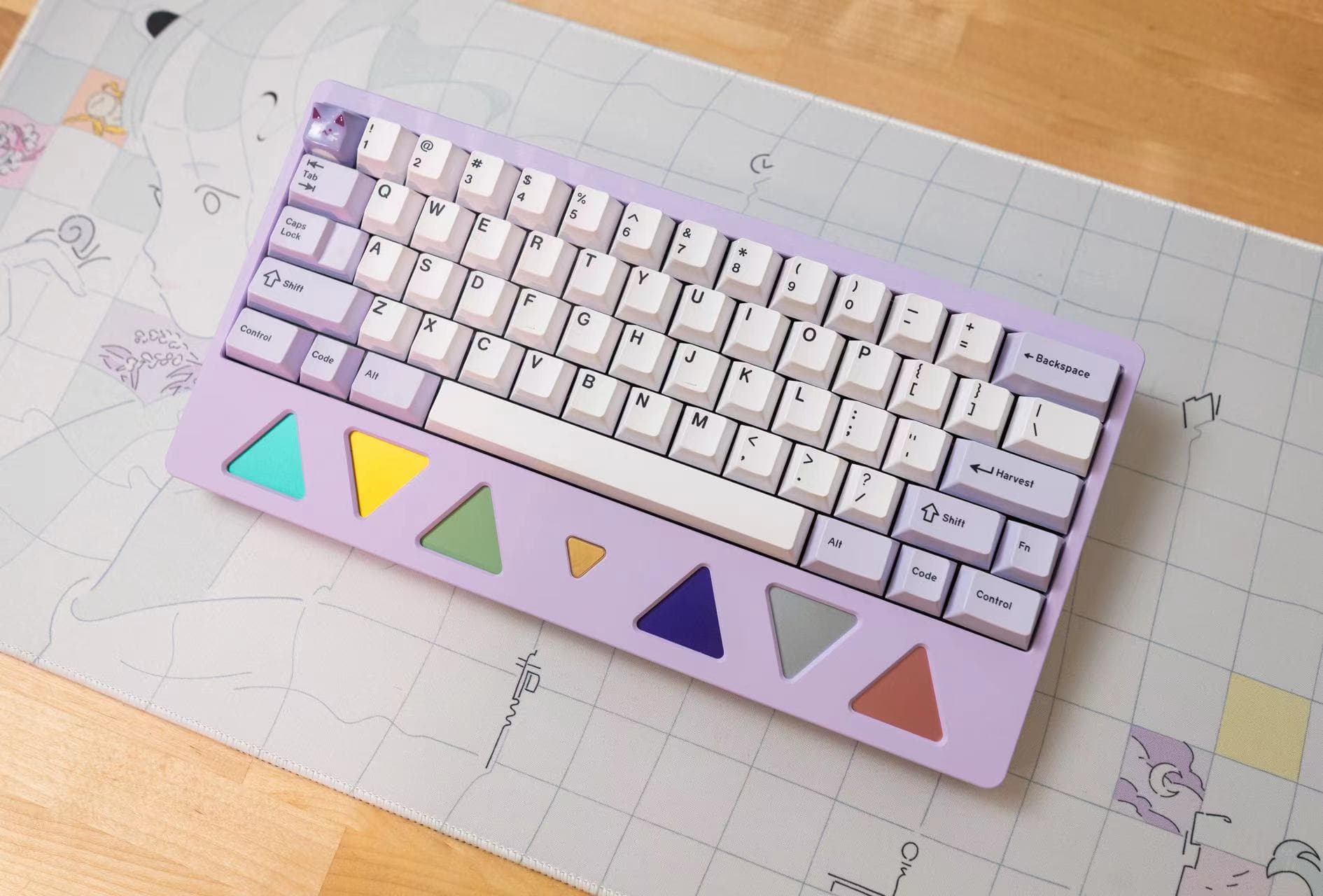

Case color, weight, and color chips confirmed


Case Color:
Anodized Color: Black, Silver, Gunmetal Gray, Cedar Green. Burgundy
Coated Color: Cream, White. Lavender, Pink, Rhino Grey

Weight Color
Anodized case color with default alu wight(Brass color)
Coated case with optional coated case color weight

Triangle Color Chips
Anodized/Coated will come with 6 color chips to match the case color. EXAMPLE: For the black case, we would choose 6 gold color chips.

PCB & Layout

We will provide a default hot-swap PCB. The hot-swap version will sacrifice some key splits, in exchange for ease of use.

* WK or HHKB
* ANSI and ISO Support
* Split Right Shift Support
* Split Backspace Support
* Stepped Caps Support
* 6.25u & 7u bottom row options

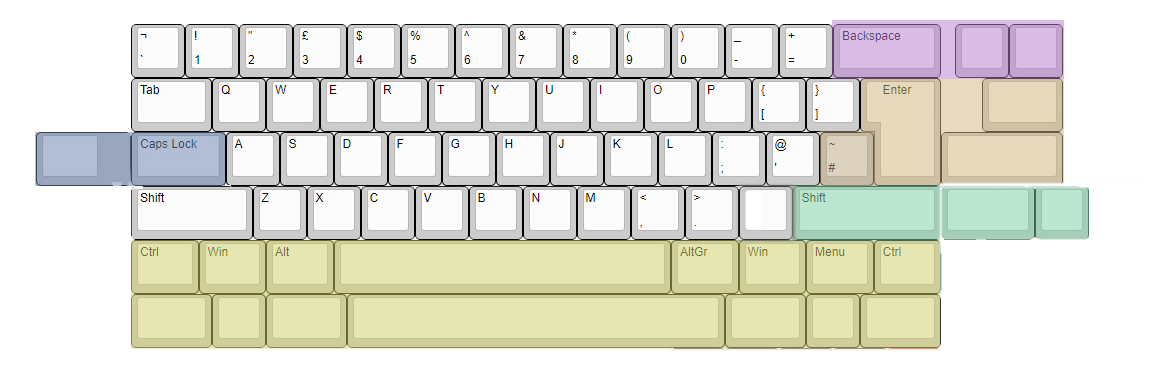

Hotswap PCB Layout Support



Plates

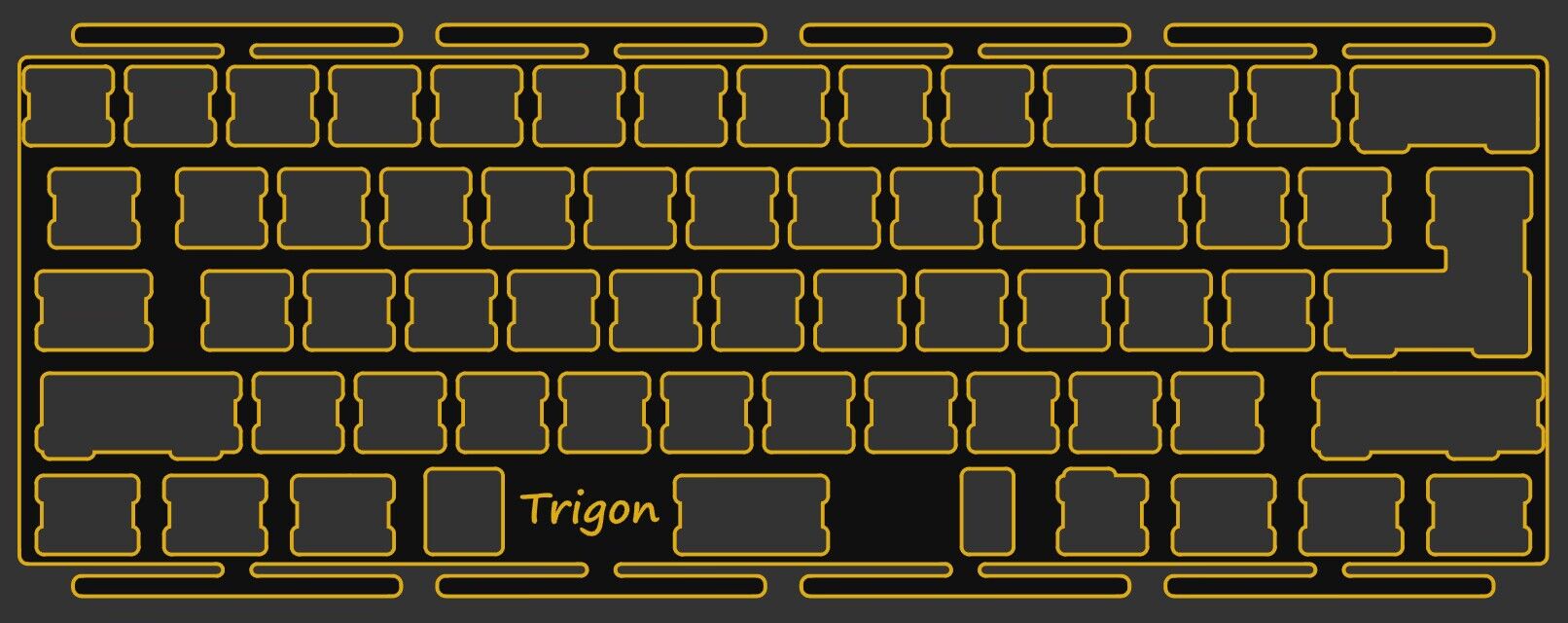

Hotswap Plate



Specifications:

* Typing angle: 8 degrees
* 16mm front height
* Aluminium external weight
* Gasket mount
* Aluminum case
* PCB: Hotswap
* Plate materials: PC
* Size: 296×150×(16-36) mm
* Kit Weight: Built 2 kg

Group Buy Info:

GB Time: January 24th or February 15th

GB Price：$229-$239

Shipping Time: June

Influencer Lists

Xinxinwong
zekedgtl
리뷰녀
To be Updated

For more details please join our Discord server

Thanks for your support! I hope you love this board as much as we do!
