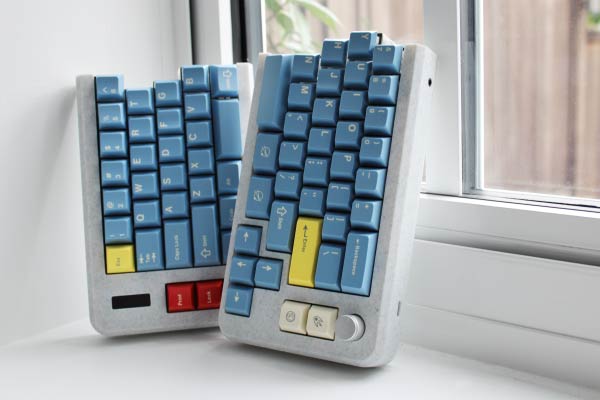

UM-70 is a 70 keys split keyboard in 65% layout with RGB, macro keys, OLED screen and encoder housed in PLA 3D printed cases. It also supports audio for the beeps and the bops. Perfect for those who want to try out various functionalities QMK offers with a single board.
FEATURESIN-SWITCH RGB WITH TRANSLUCENT PANELS
OLED SCREEN
ENCODER
AUDIO (BUZZER)
COLOURS (See photos in gb page)- Galaxy Purple
- Galaxy Black
- Vertigo Grey
- Vertigo Jade
- Orange
- Baby Blue
- Mint
- White
- Marble Effect
SPECS- 70 Keys QWERTY split in 65% layout
- OLED Screen
- Encoder (15mm rotary knob)
- In switch and side penal RGB
- Top Mounted
- RF4 Plates
- 3 Degree typing angle
- USB-C
- Hot-swap
- QMK, VIA Compatible
- PLA FDM 3D Printed Housing
- Left 170 x 120 x 25mm
- Right 205 x 120 x 25mm
PCB Layout
SOLDERING IS REQUIREDPCB is partly assembled only. Hot-swap sockets, RGB LEDs, TRRS jack and OLED screen require soldering. Assembly guide will be provided.
PRICE£135 per kit plus shipping
Group buy ships worldwide
JOIN GROUP BUY HEREGroup buy starts 7th April and ends on 7th May 2021. The estimated shipping date is September 2021. Updates will be posted on here, Merge product page and Discord server.
Group buy is ended, all orders are shipped.
