Update on the DR-70F Keyboard

Hello everyone, this is DaringRun!
Long time no see. This time, we want to show you an update on the DR-70F.
Previous IC post:https://geekhack.org/index.php?topic=121073.msg3168859#msg3168859
The following is the updated content:

一．Specification
Size:401.9X116.2X32.4mm
Typing angle: 7°
Material: 6063alu
Price:Wired$139,Bluetooth $159
Split main area,arrow area,function area
Layout:70%+5%, arrow area and function area can be rotated and switched,one keyboard two layouts
Structure:PCB gasket mount,Sandwich mount

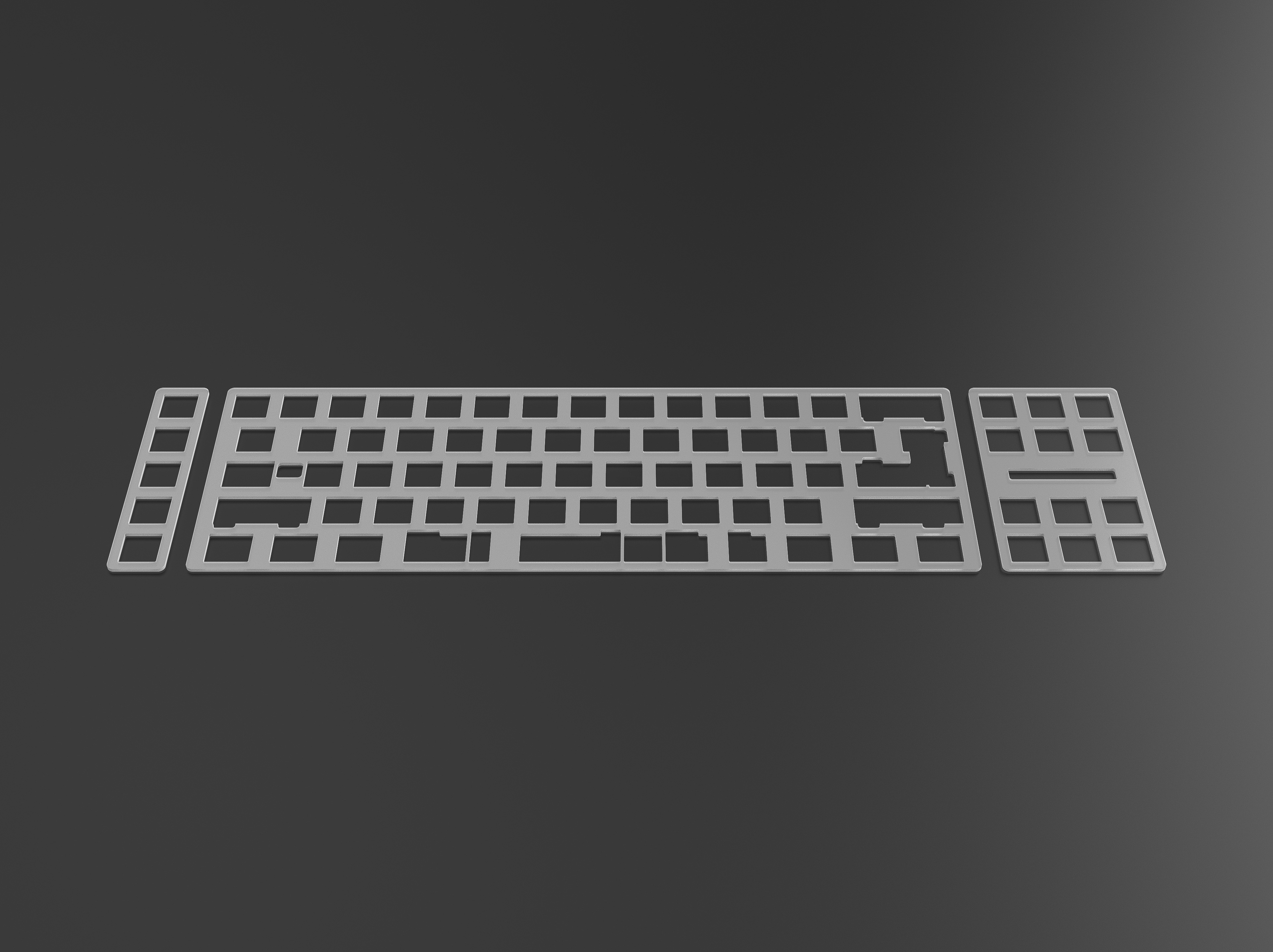

Gasket mount plate: 1.5mm,PC,three split parts.

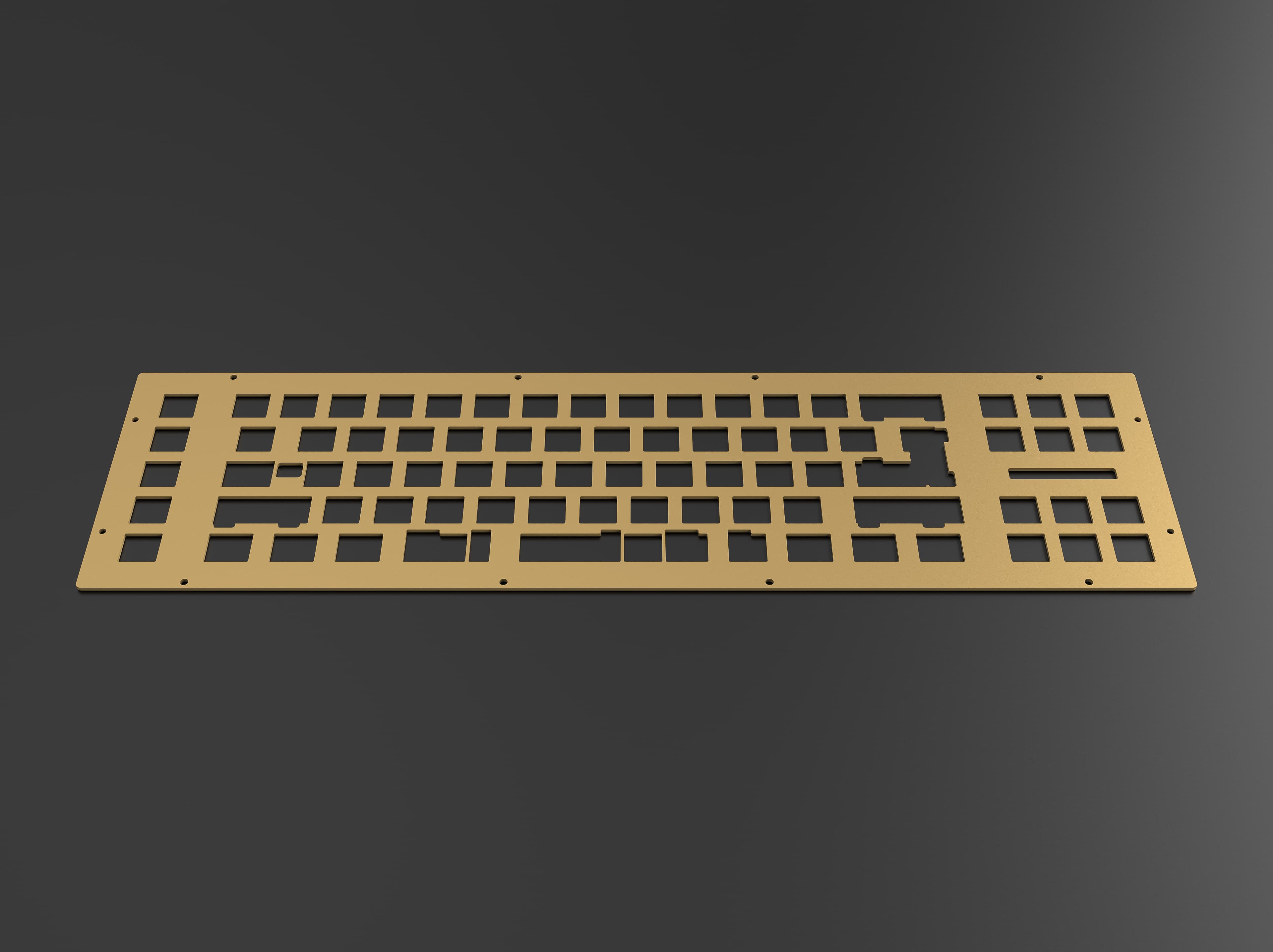

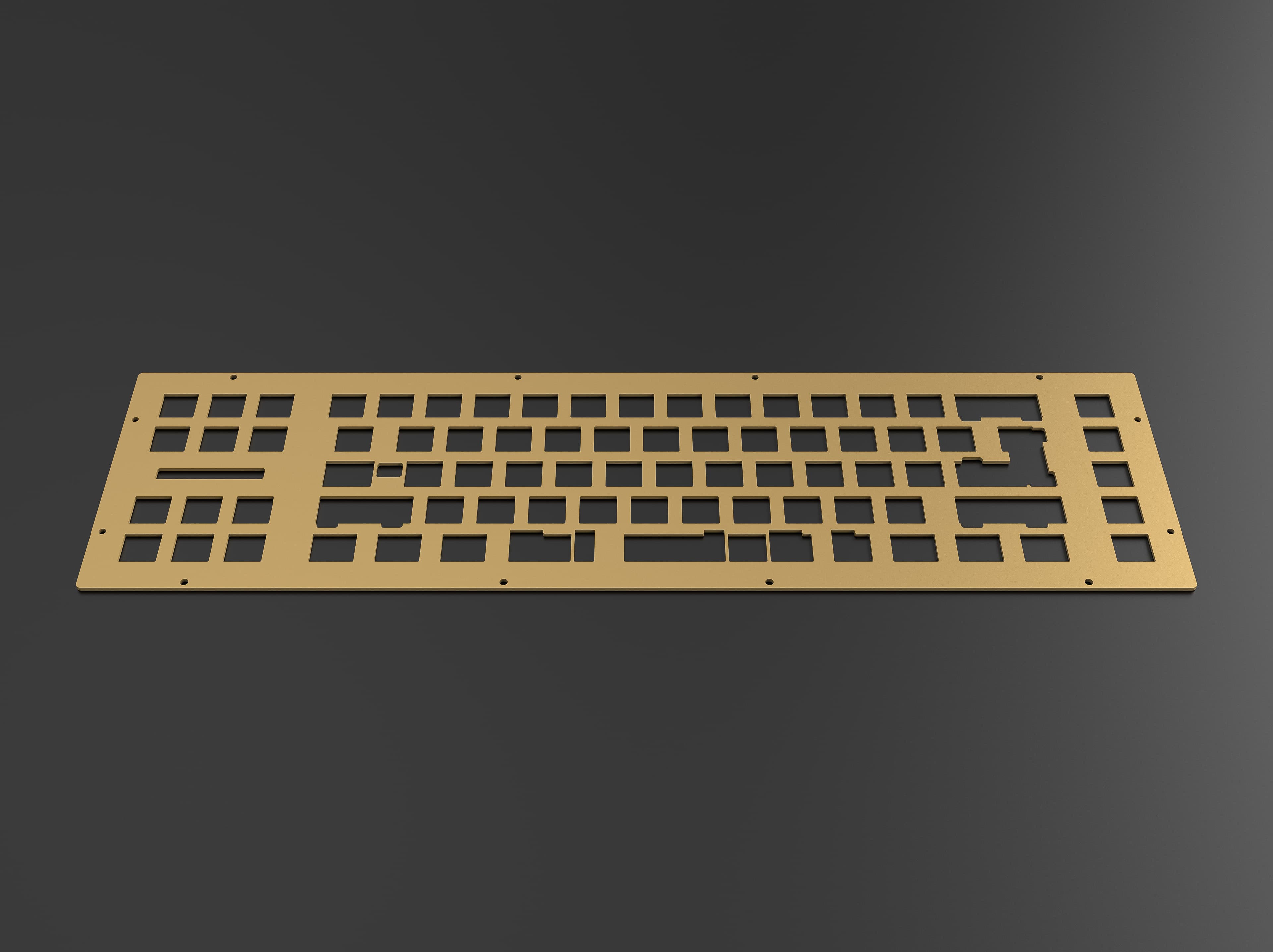

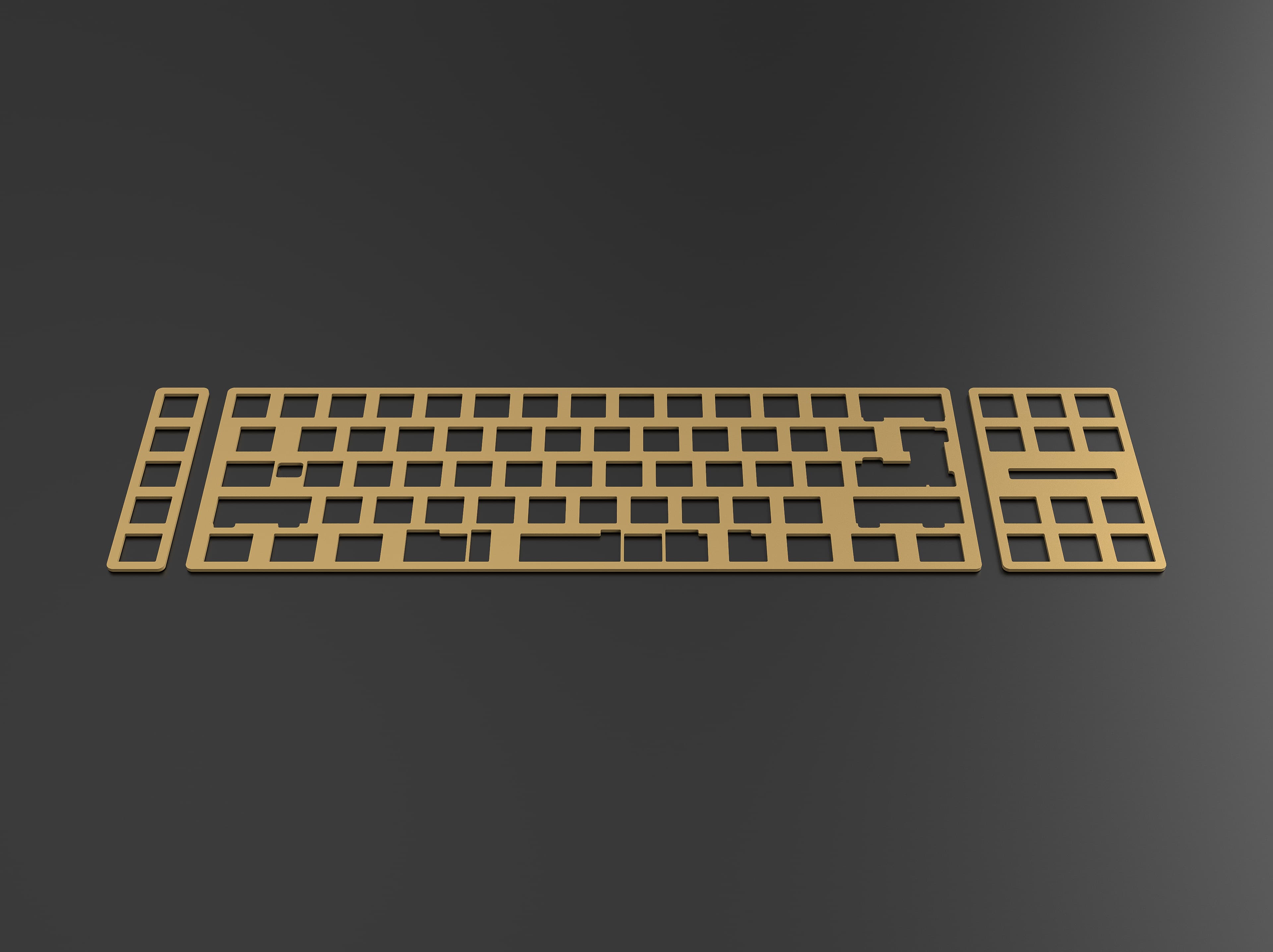

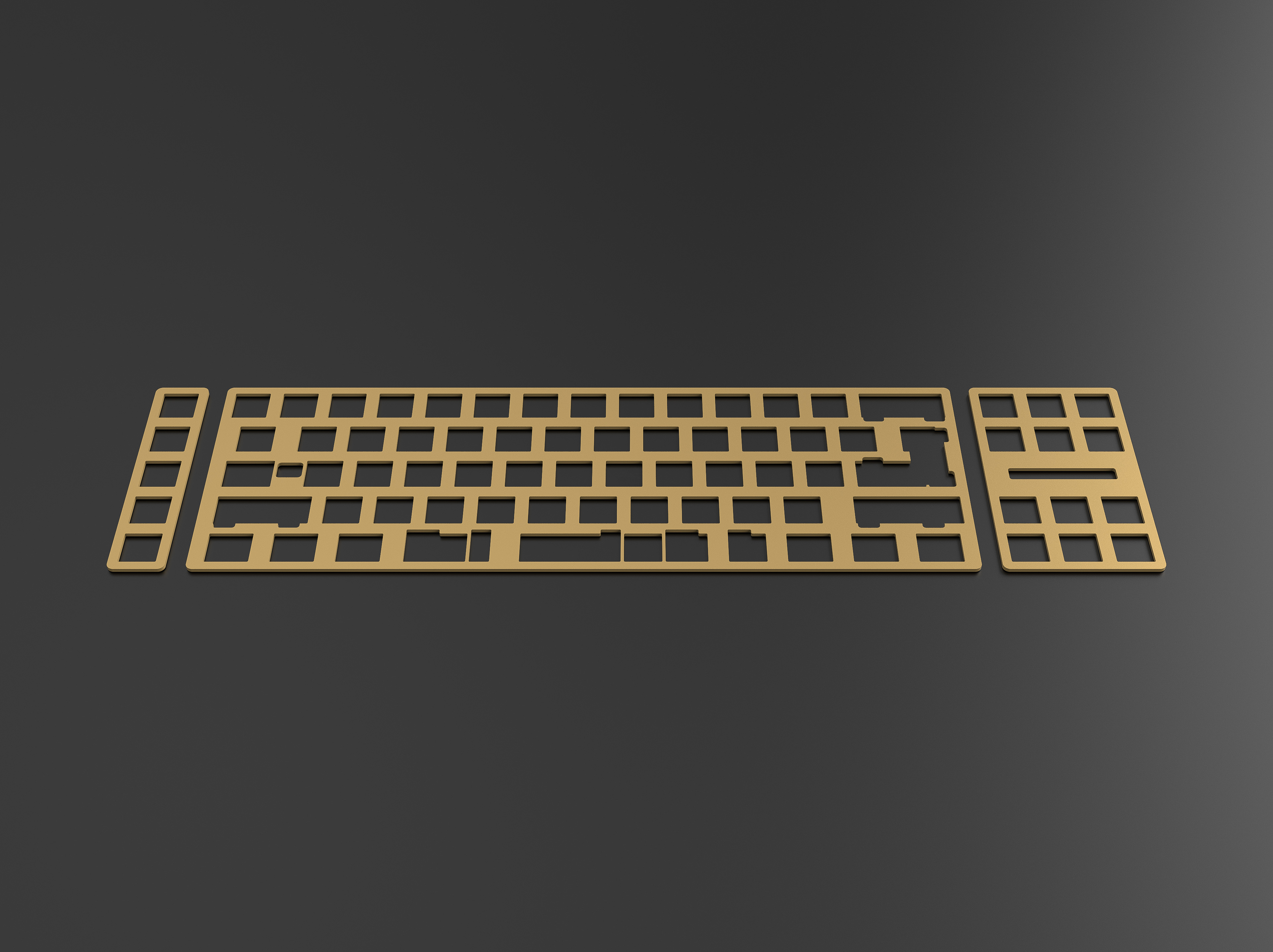

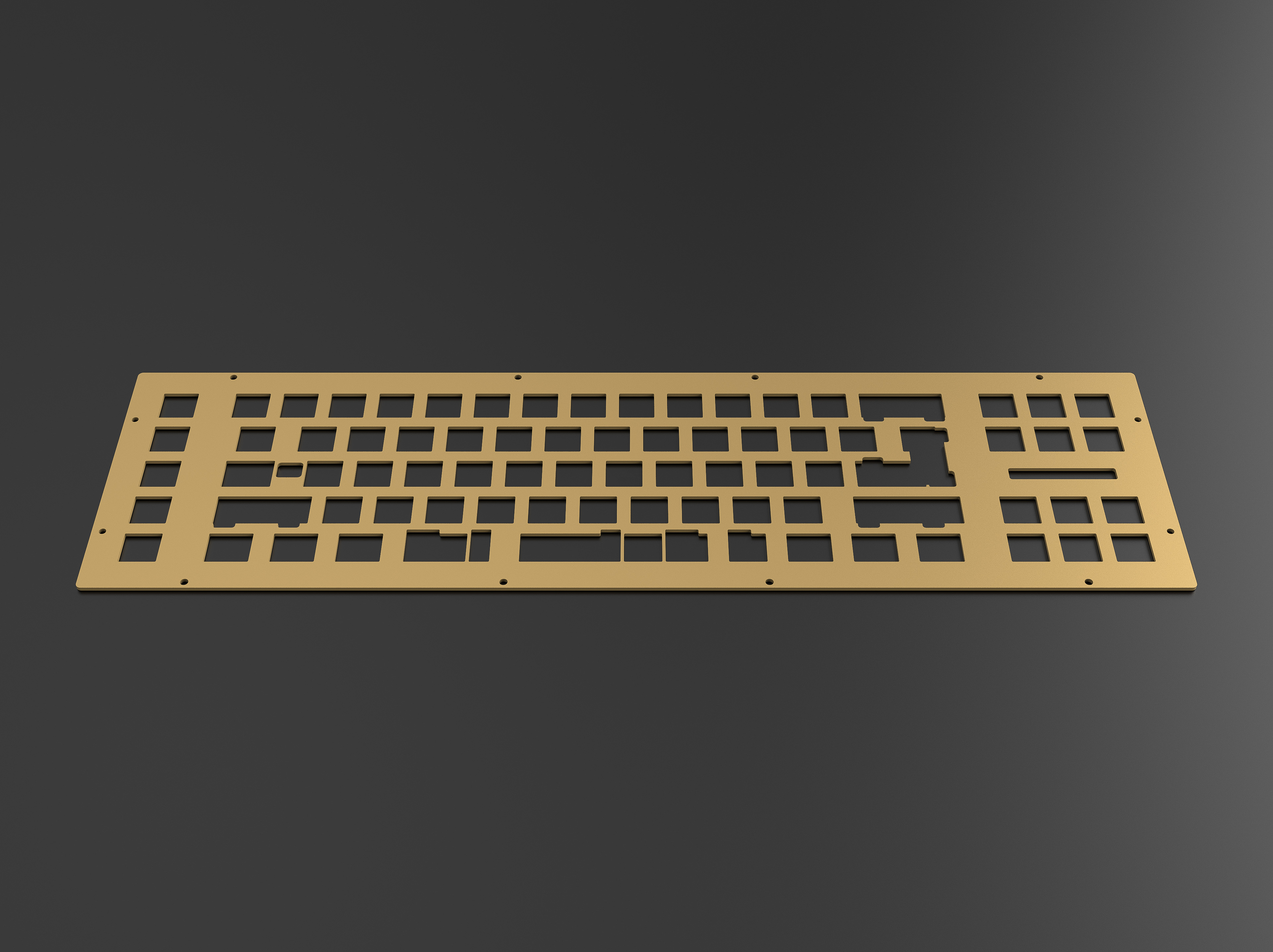

Sandwich mount plate:1.5mm Alu,anodised gold
PCB: 1.6mm, bluetooth pcb include 6400mah battery.
Polling rate:1000hz in wired mode，800hz in bluetooth mode.
Bluetooth PCB Latency Rate：1.25ms
Instock date: Quantity limited, Estimate on Jan 2024. No quantity limited at Group buy sale

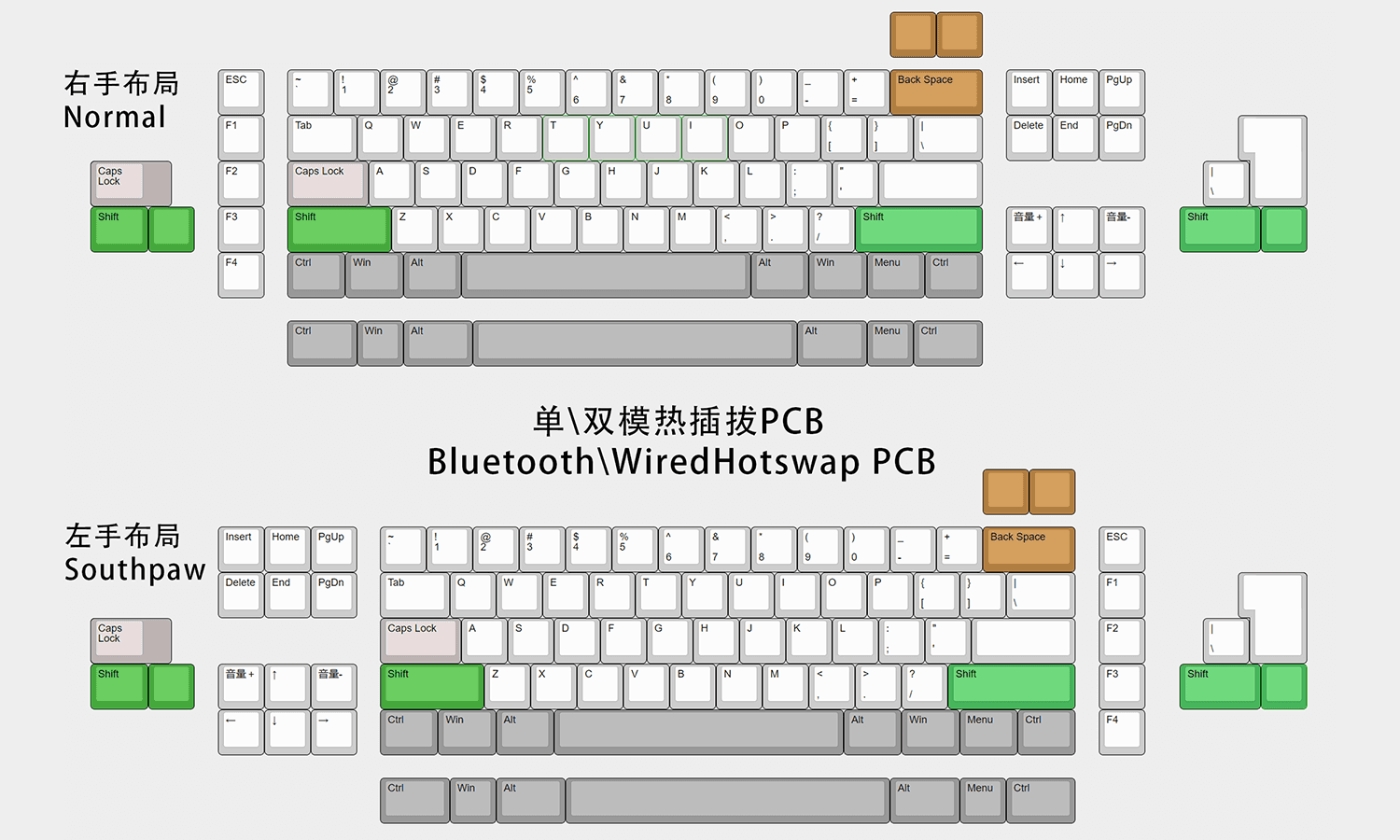

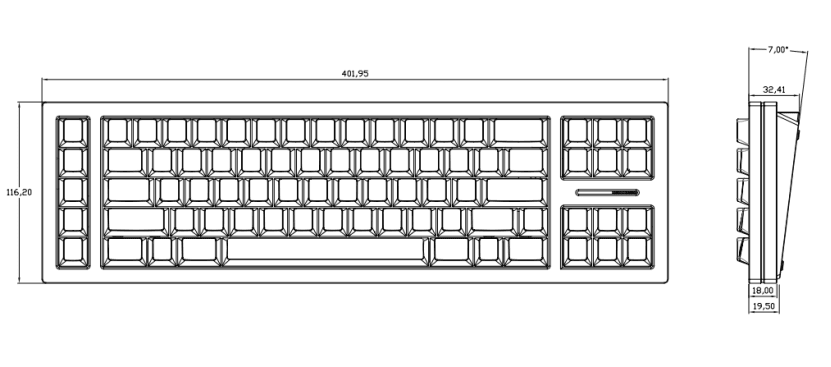

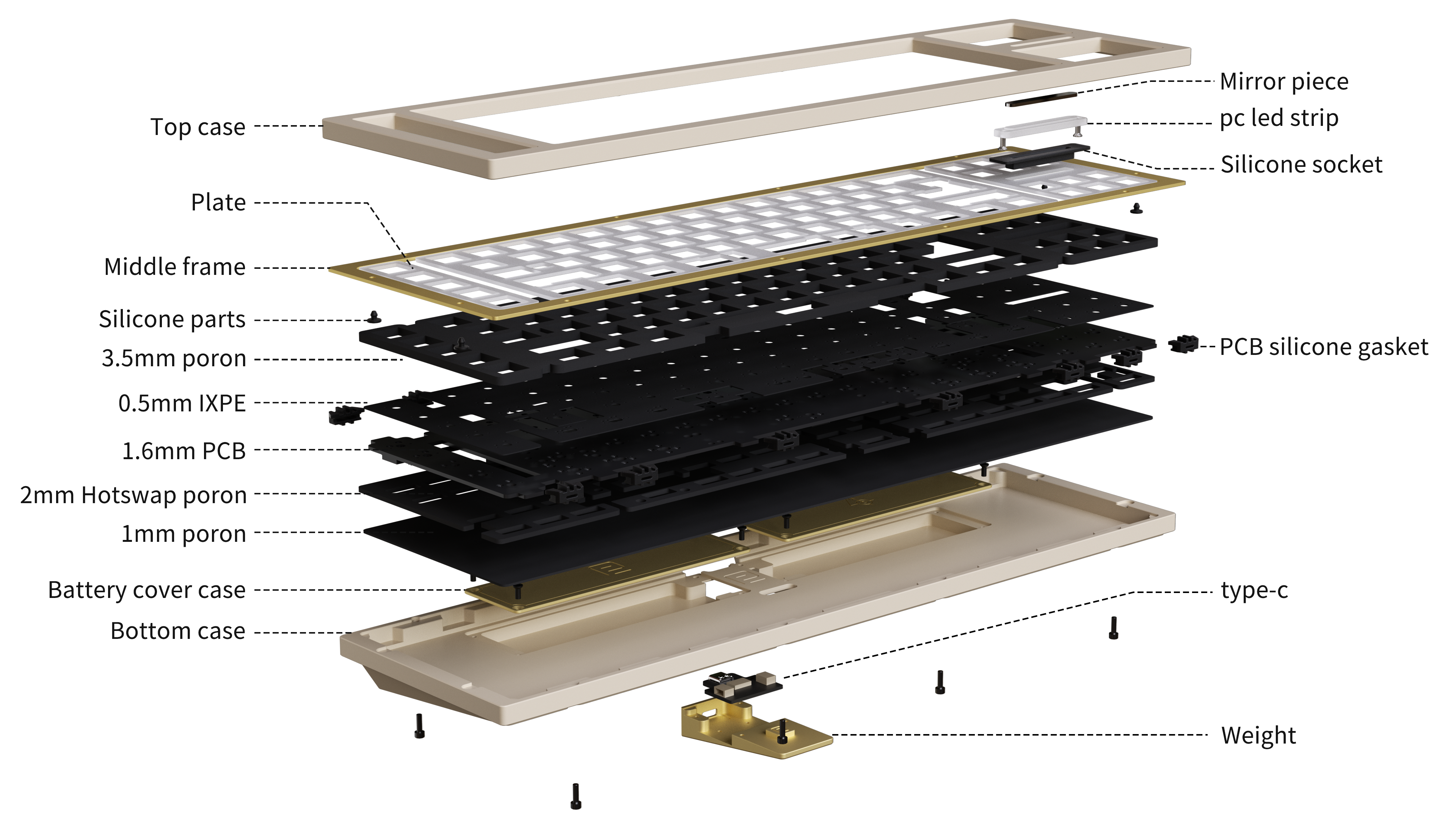

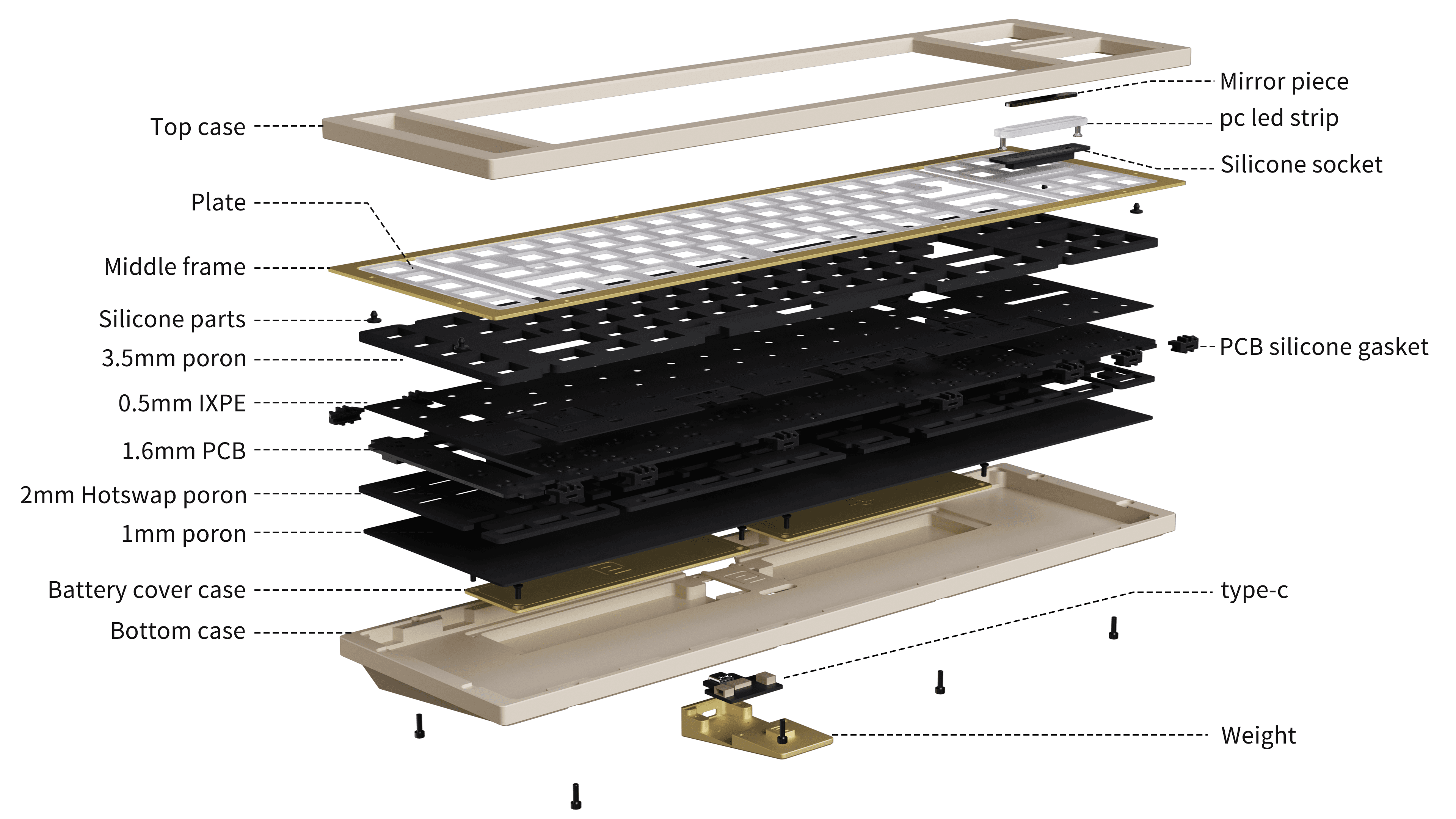

二.Size/Layout/Exploded-view drawing


Programming Support: Wired in VIAL, Bluetooth pcb in LDN.


PCB Gasket mount plate&Sandwich mount plate







三.Package include
1*Top case

1*Bottom case

1*Middle frame

1*Weight

1*Pc led strip

1*Mirror piece

1*PCB

2*Type-c daughterboard

1* Pc plate for gasket mount

1*Foam kit

1*Accessories bag

1*User guide

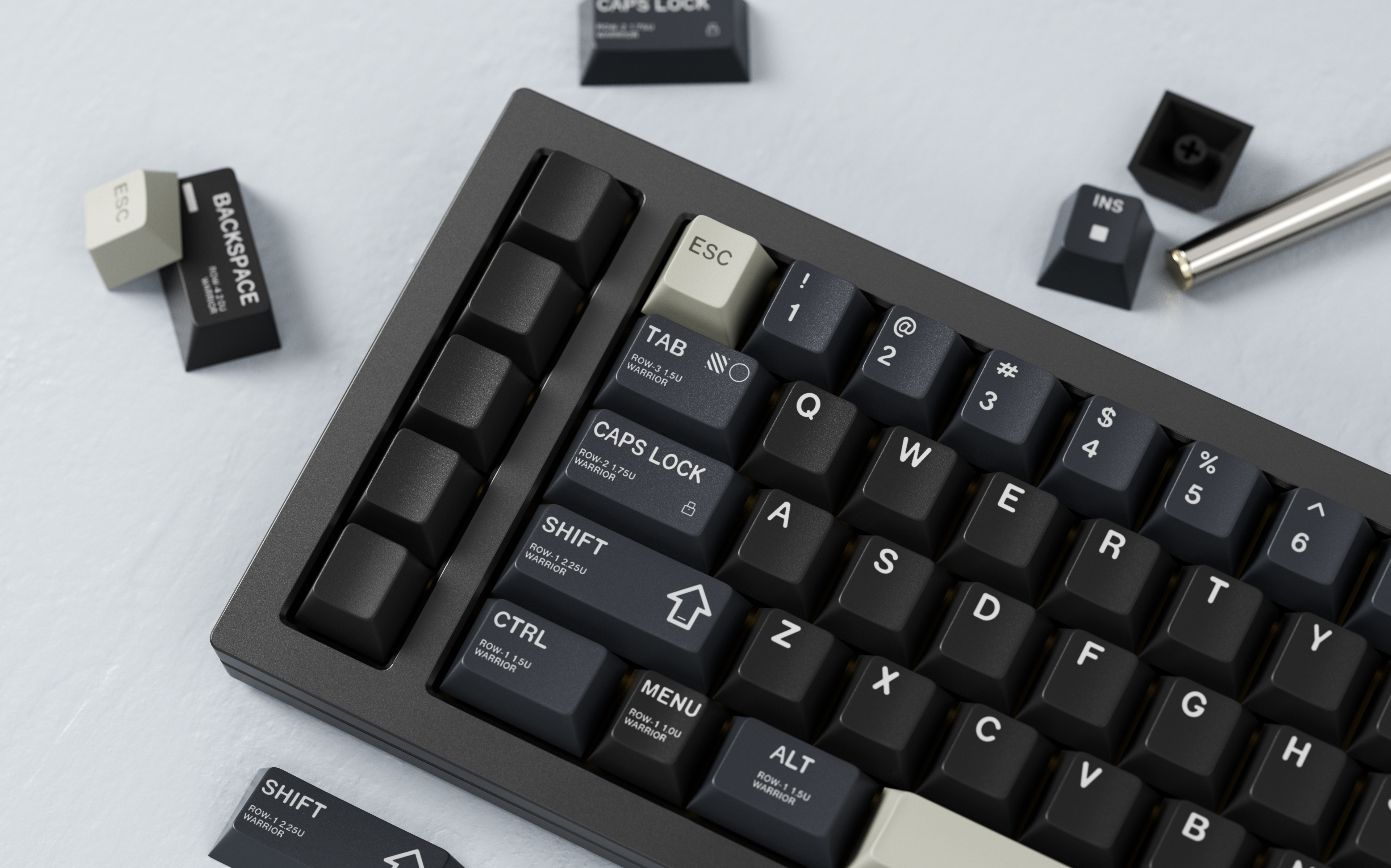

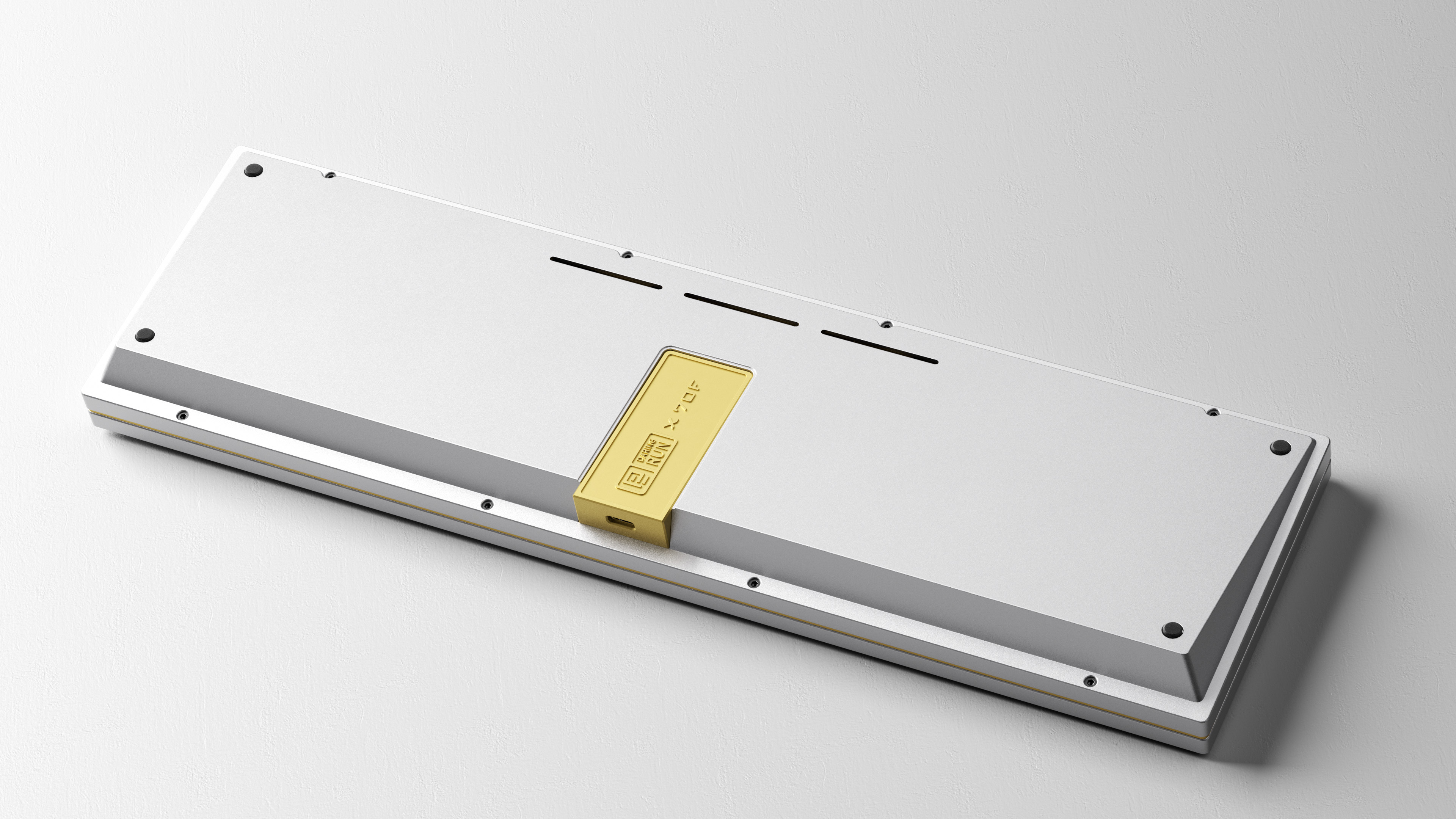

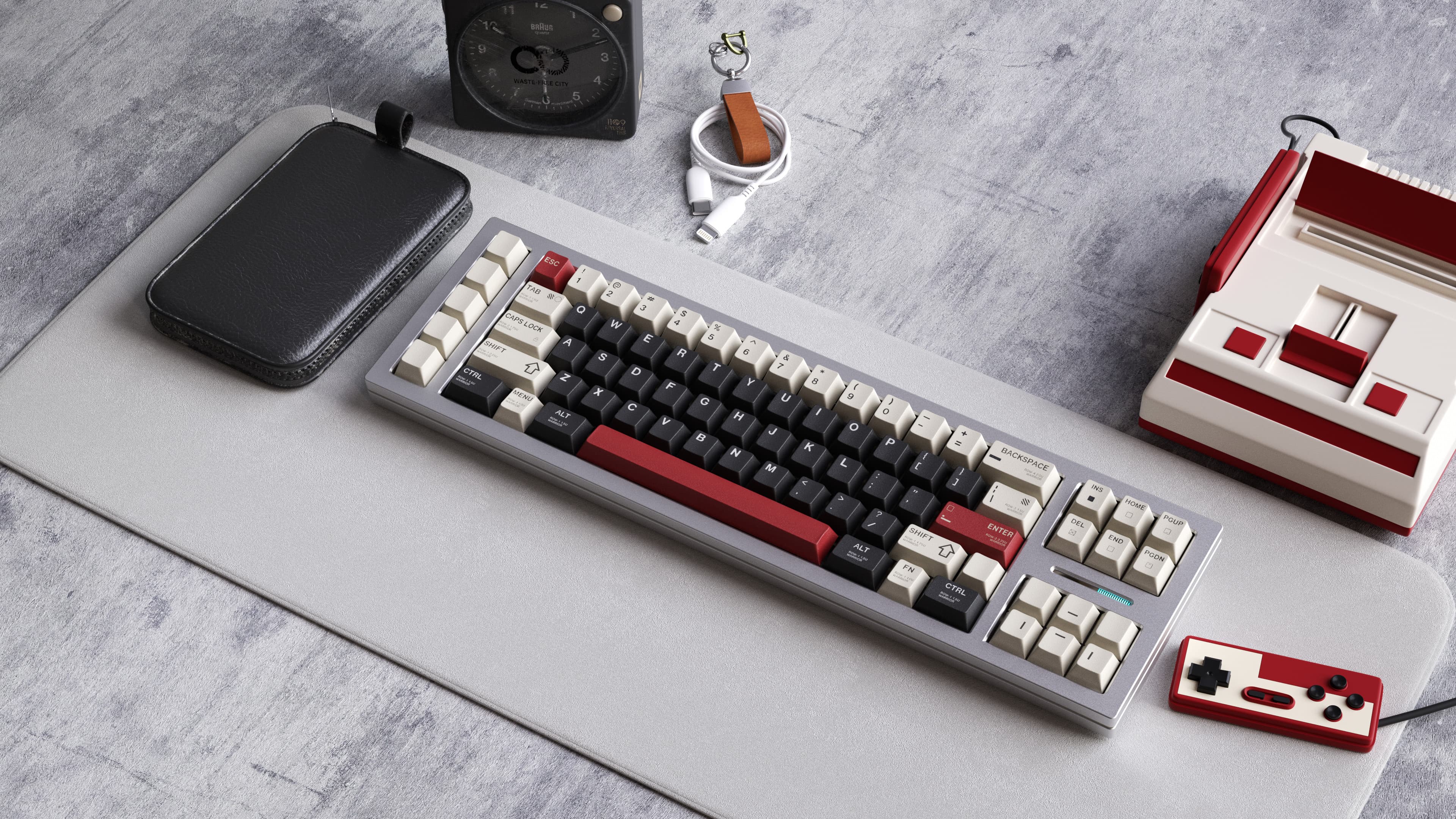

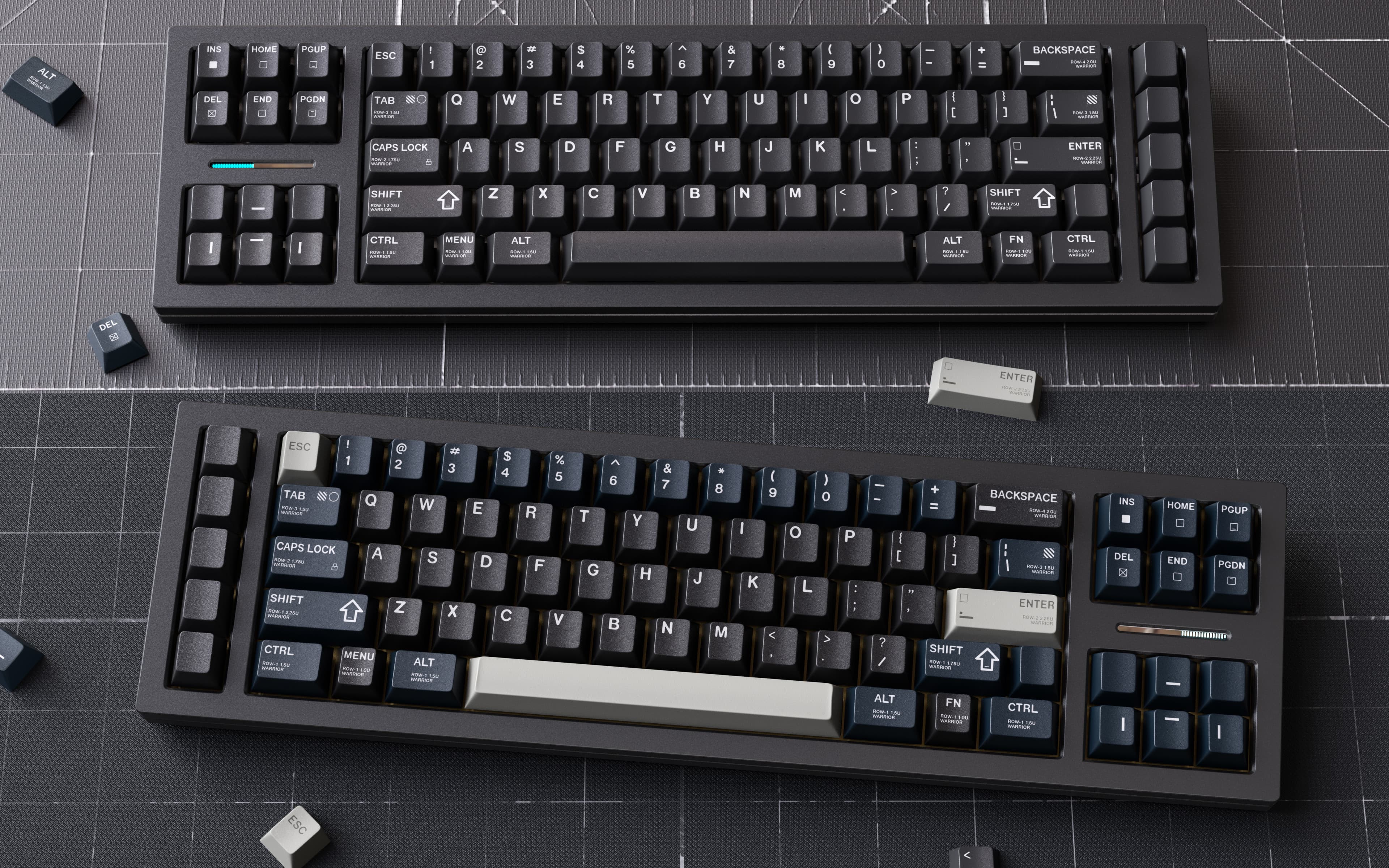

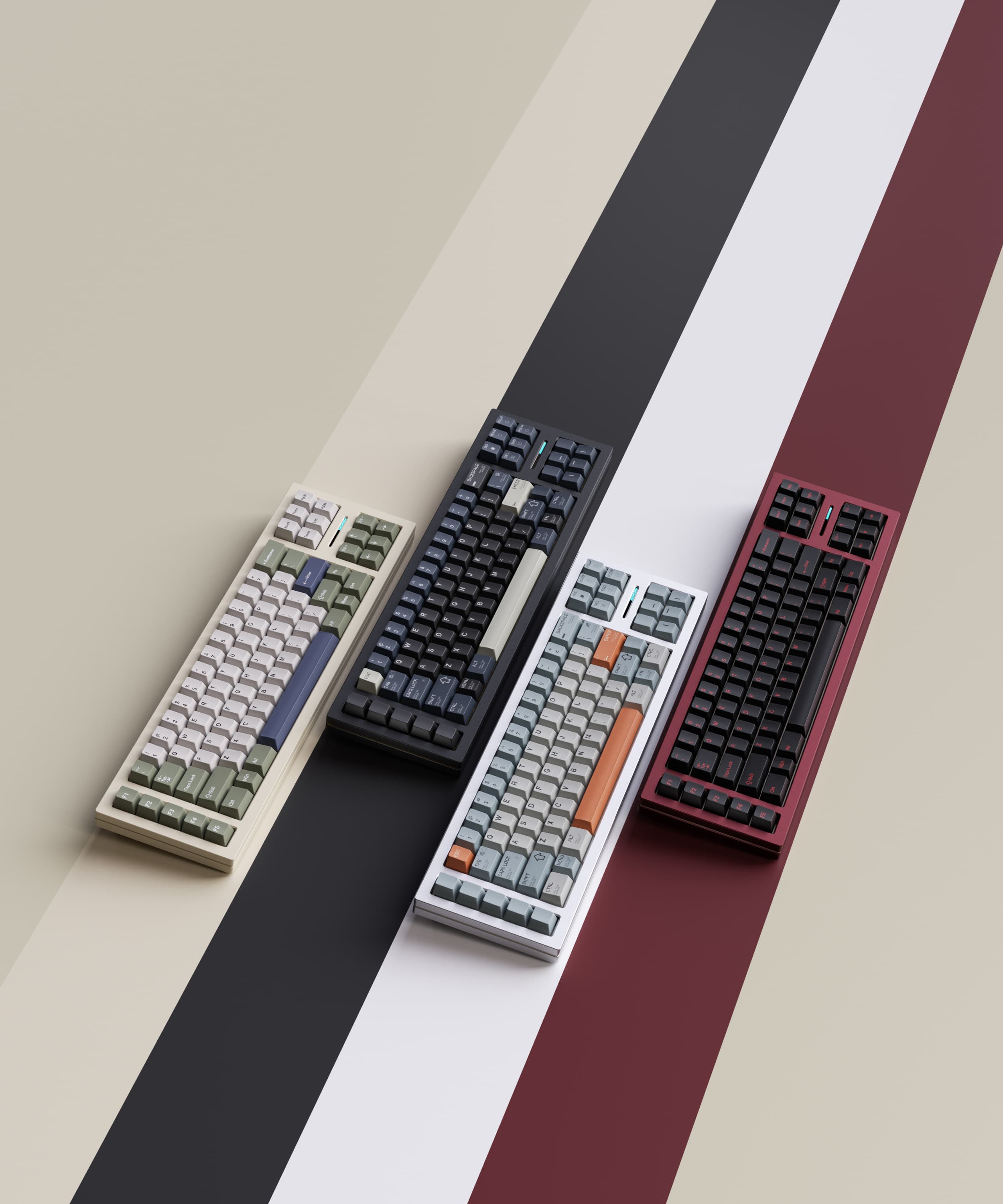

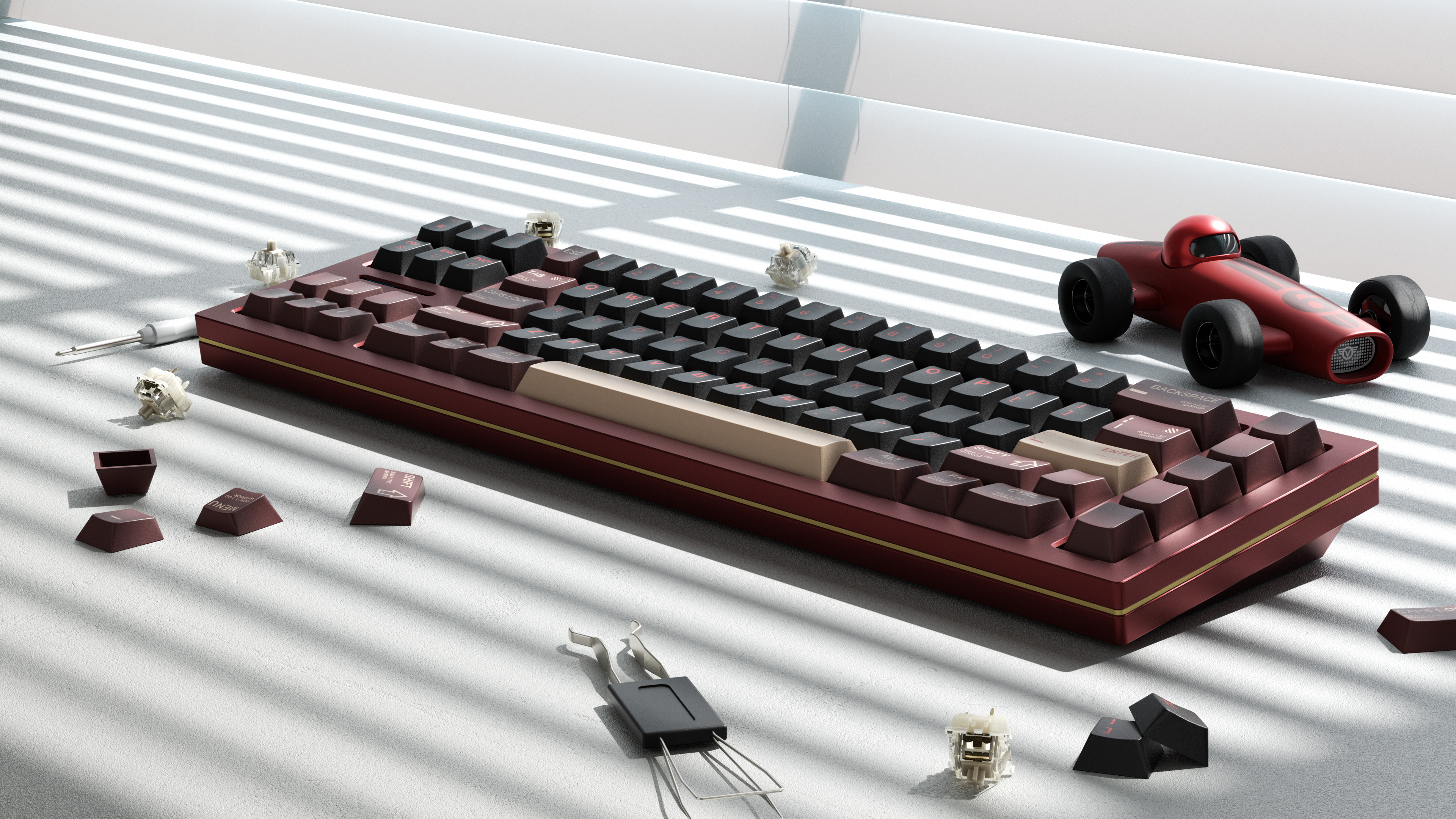

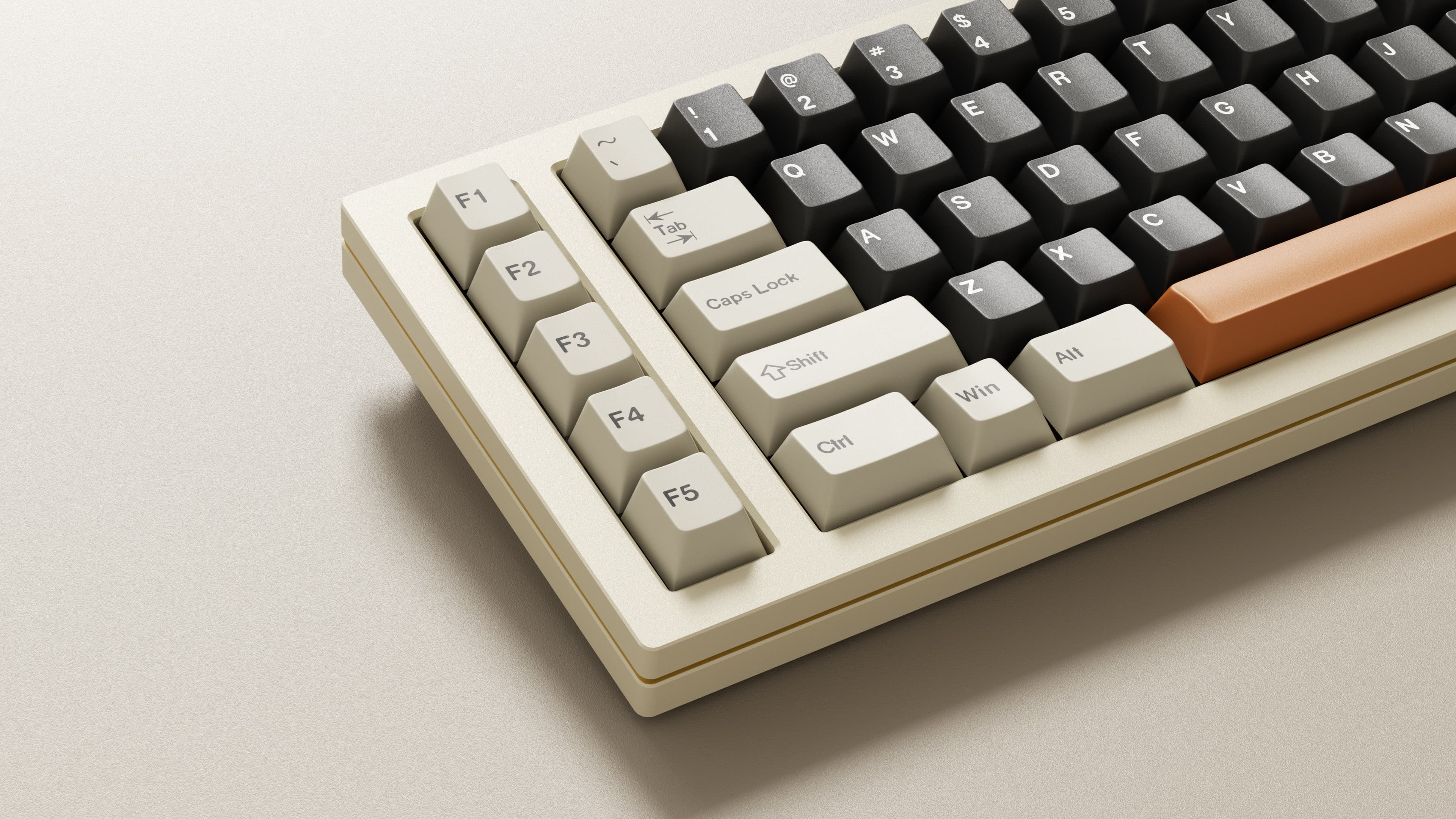

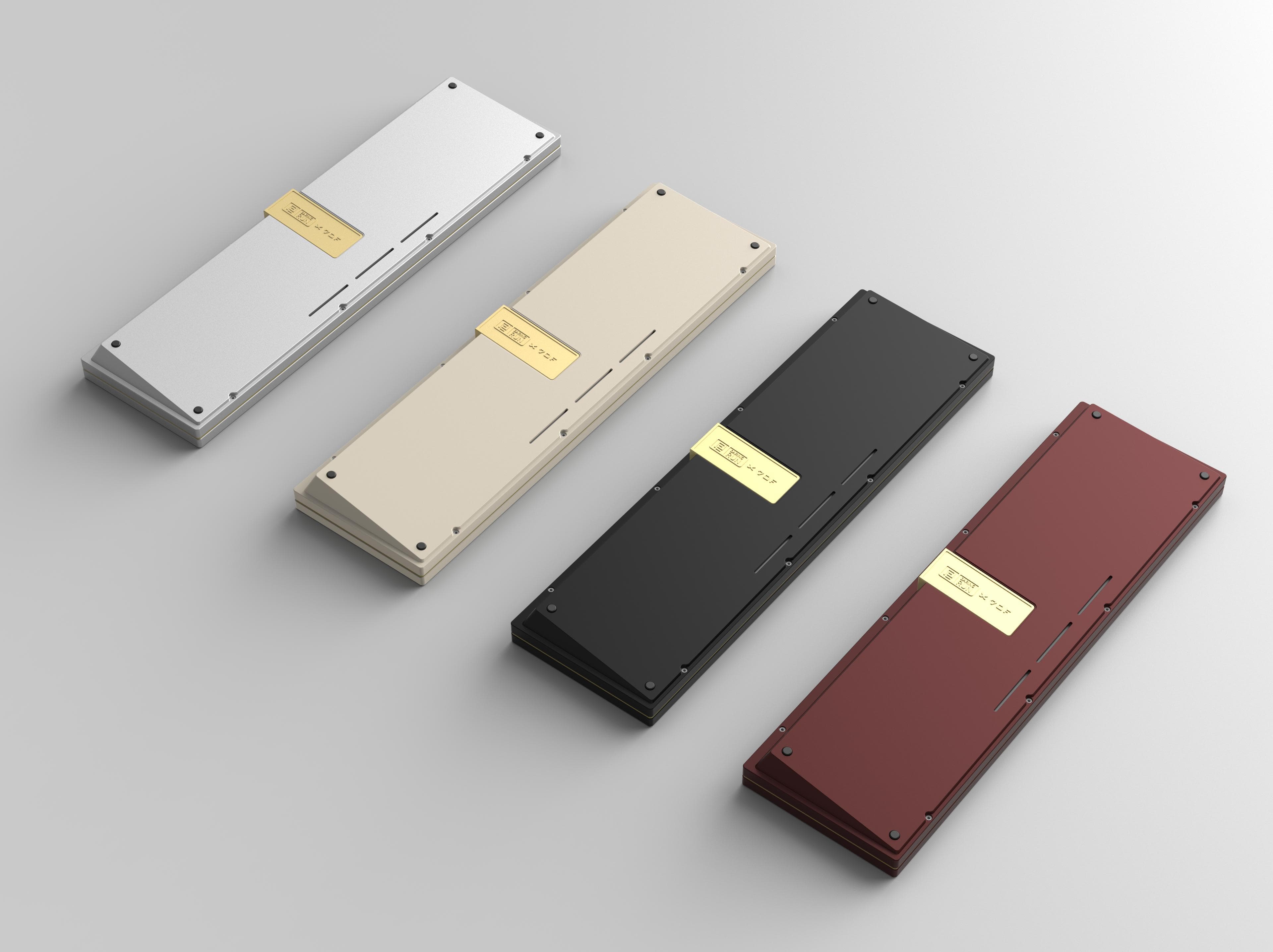

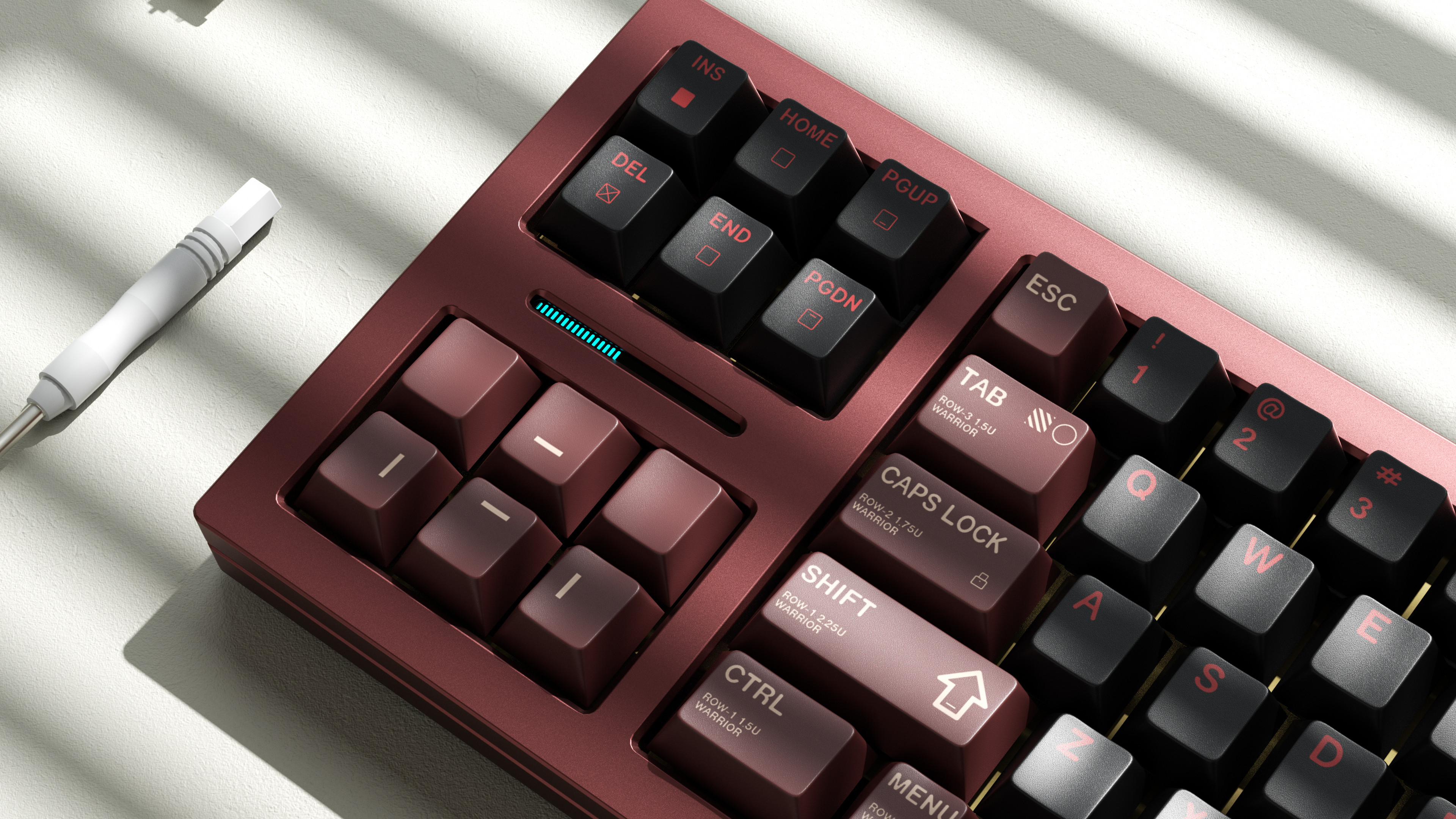

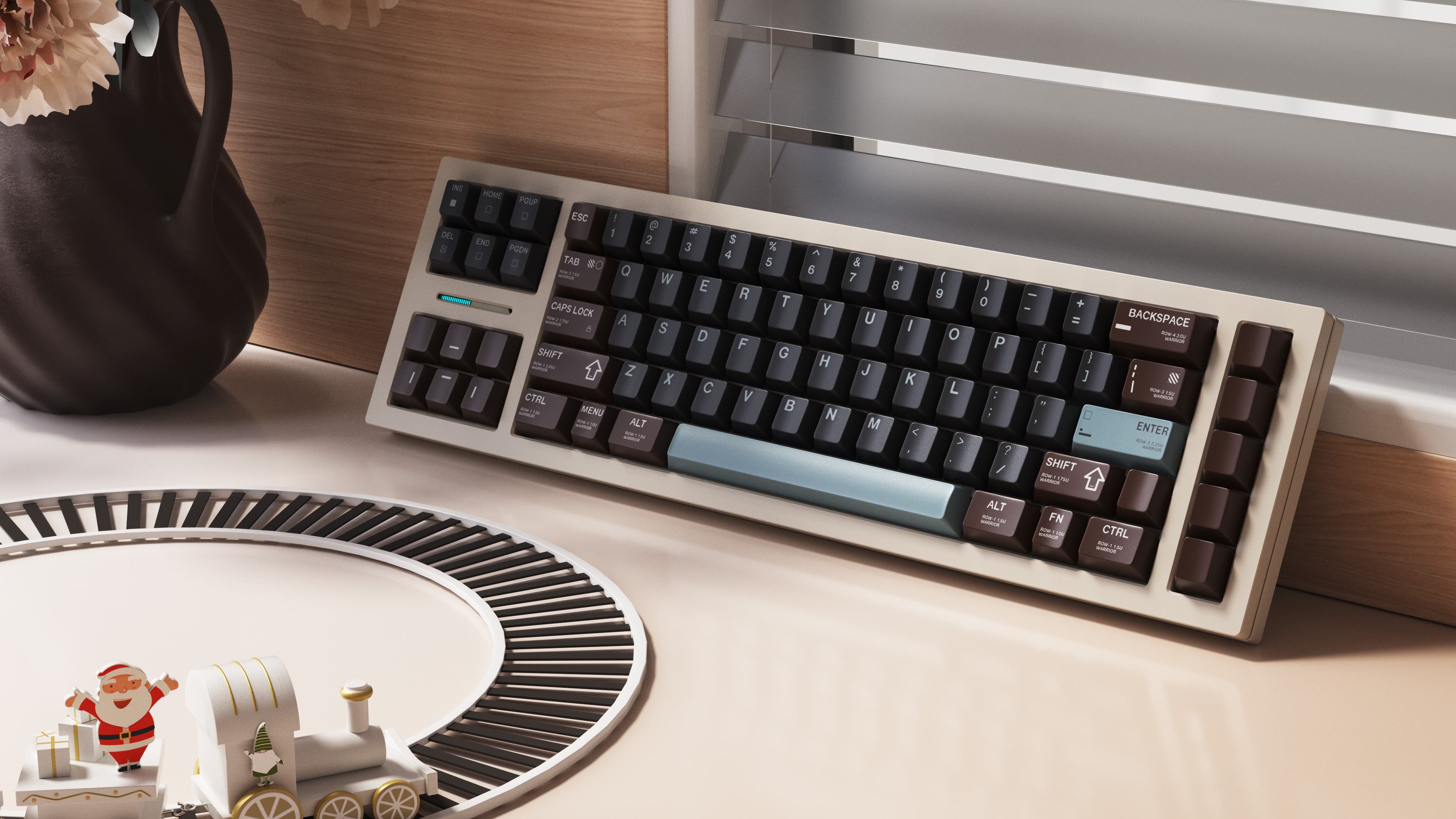

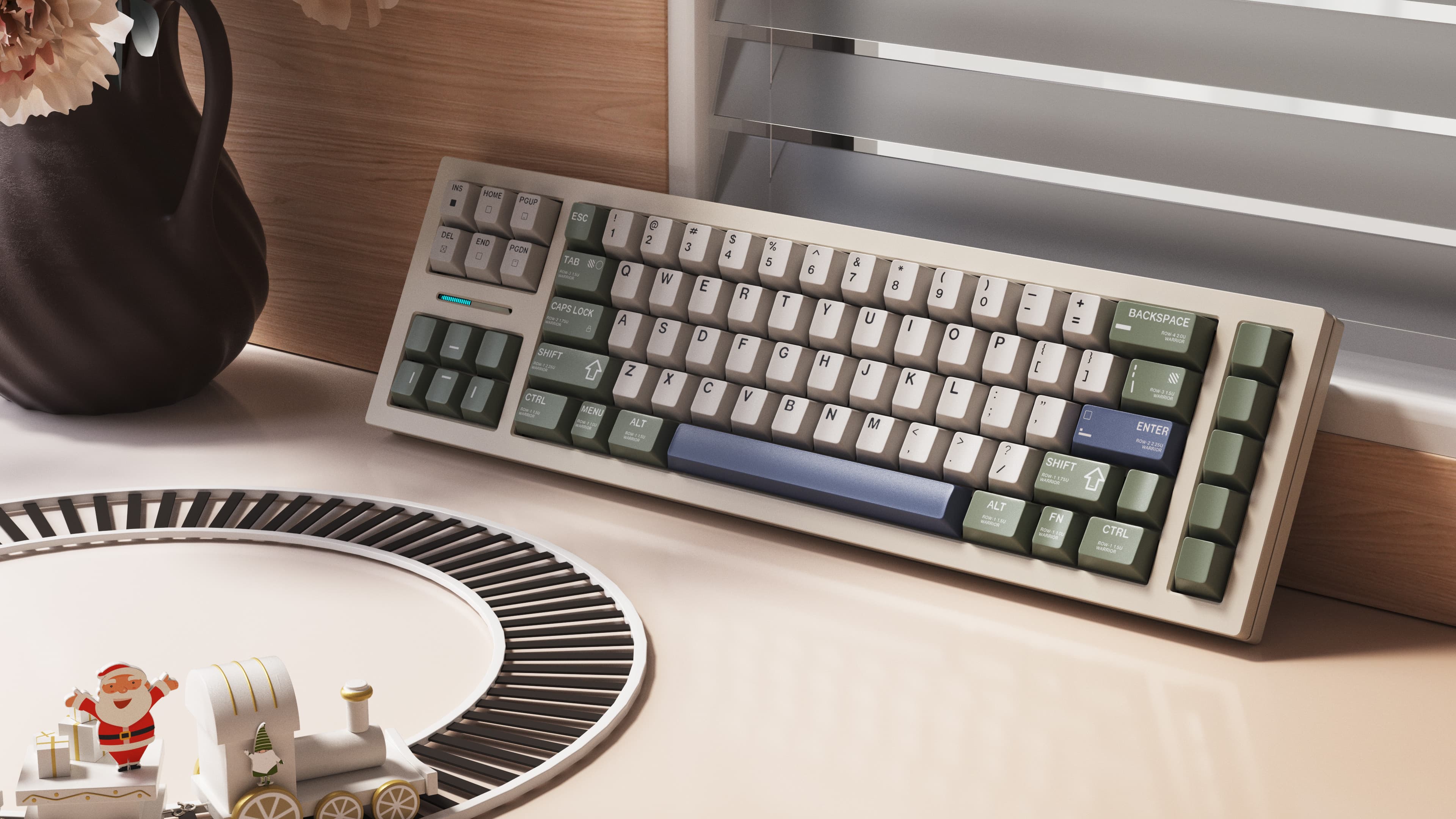

四.Picture showing













There will be more real-life pictures and review videos next month, so stay tuned!
