Valkyrie1800 - An 1800 Keyboard

Specifications

Case:
Layout - 1800
Mounting - leaf spring o ring gasket
Material - Anodized 6063 Case top & bottom, Brass mid-piece
Weight ~3kg/6.6lbs unbuilt
Typing angle - 7 degrees
Front height - 18mm
Standard plate - 5052 Aluminum full plate & half plate, anodized black
PCB - Designed by Gondo

PCB Layout support

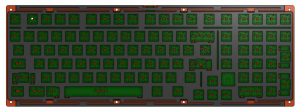

Plate Design

Design & Mounting
(Why 1800?)

The Valkyrie was designed first and foremost with my preferences in mind, and the 1800 layout is my personal favorite layout option - it strikes a balance between full functionality, while also not taking much more space on the desk compared to a TKL. I have received a lot of feedback that choosing a TKL layout or smaller would likely perform better and receive much higher sales. While this may be true, not only have I put my personal preference above that, but I do believe that the larger keyboard layout space has not yet been quite as saturated with countless amazing options as has the TKL and 65 spaces.

I decided to employ my personal favorite mounting system; leaf spring o ring gasket. The sound and feel produced by this mounting system is, in my opinion, unmatched.

Depicted on the underside of the keyboard is the well known mythological valkyrie from Norse mythology, crowned in her winged helmet, ready to guide slain heroes to the afterlife. After making so many trips to the afterlife, it seems that she, too, has been touched by the rot and plague and death of the afterlife herself, hence the use of patina in the weight and the intermingling of materials. The side profile aims to depict that very inner rot being visible through the grated helmet that is the top case. On the top side, there is a PC badge of a flower bursting with the infectious rot she has stored within her (any similarity to a recognizable video game character is purely coincidental).

Rendered Colorways
