Introduction*Vam05 is a 40% keyboard with adjustable-hardness gasket mounting, featuring number keys 1–6 and arrow keys, balancing portability and functionality.
It runs on ZMK firmware, supporting both wired and BLE wireless modes, with real-time key remapping available via ZMK Studio (desktop or web).
The PCB is built around an nRF52840 chip, with MX hot-swap sockets and RGB under-glow. It also includes three multifunction indicator LEDs: layer switching, Caps Lock status, battery charging and level broadcast, and Bluetooth connection status.
PCB Specifications:
https://github.com/Gasiro/vam05_PCB/tree/main?tab=readme-ov-fileBuild instructions:
https://www.youtube.com/watch?v=LCDWu6bFoLsThe Interest Check for Vam05 has already been conducted in the 40% Keyboards Discord (vam05 channel).The case integrates a battery power toggle switch, allowing complete power-off when a battery is installed.
⚠️ Due to international shipping restrictions, batteries are not included. Vam05 is designed for the HAC-006 (Nintendo Switch Joy-Con battery, 3.7V 525mAh), which is inexpensive and widely available on Amazon and AliExpress.
Design Concept*• Inspiration: The Vam05 layout is derived from Trashman’s v4n4g0n, a 40% keyboard featuring number keys 1–6 and arrow keys, which has been very popular in the 40% community.
• Design Goal: To deliver a modern wireless experience based on the classic v4n layout.
Note:
Due to routing for RGB and the physical size of the nRF52840 chip, the MCU can only be placed in the spacebar position. As a result, the wireless PCB does not support split spacebars. However, the case is compatible with the Monorail and Memoria PCB, which does support split spacebars.• What Sets It Apart: Compact yet fully functional; includes arrow keys and number keys; modern aesthetics with practical indicator LEDs.
• Structural Design: Default typing angle is 4°. The back retains screw holes for optional PC feet, which increase the angle to 7.5° (this GB offers 7.5° PC feet as an optional add-on).
Specifications*• Dimensions: 115.95 × 270.25 × 34.6 mm
• Typing Angle: 4° / 7.5° (with optional PC feet)
• Front Height: 18 mm
• Mounting System: Gasket mount with three hardness levels of silicone inserts included
• Case Material: Aluminium top case + PC bottom case
• Plate Material: FR4
• PCB: MX hot-swap, ZMK firmware support, wired + wireless dual mode
Options• Layout: v4n-JetVan layout (40% layout with number keys 1–6 and arrow keys)

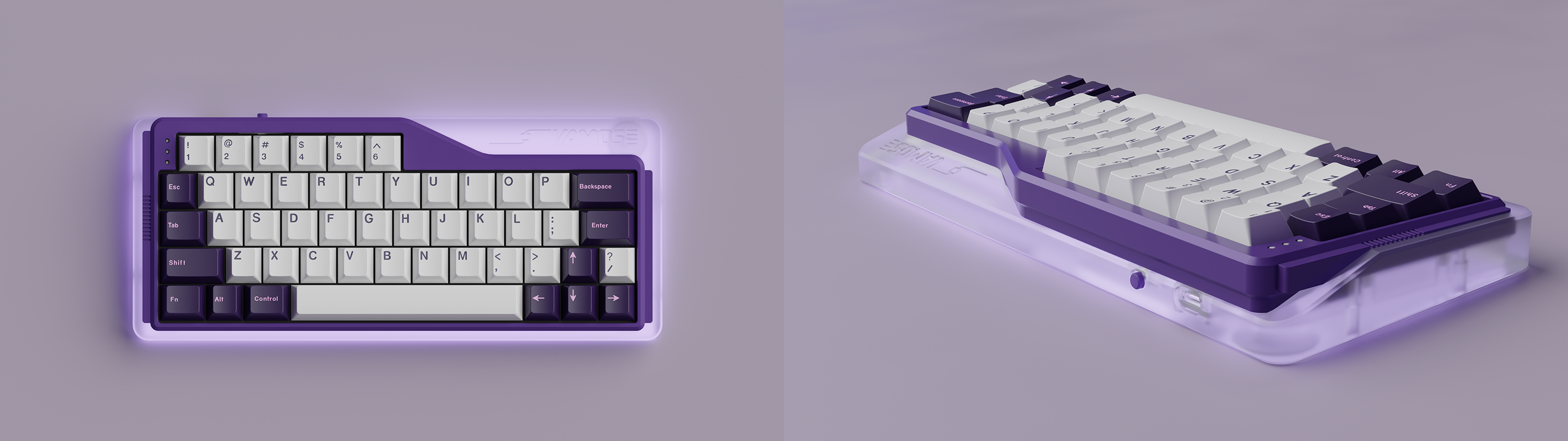

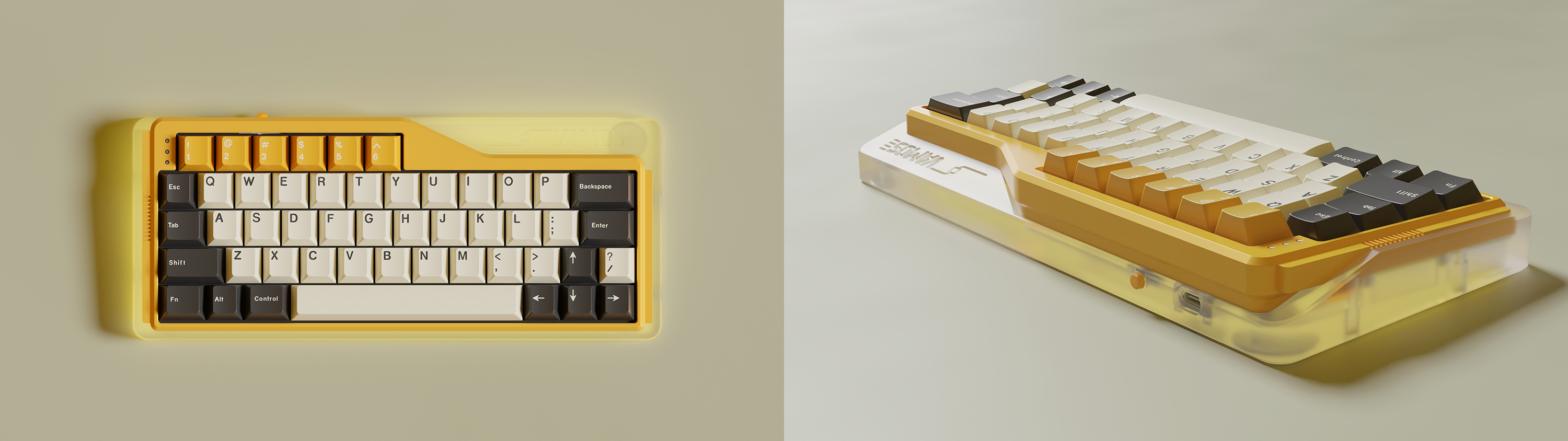

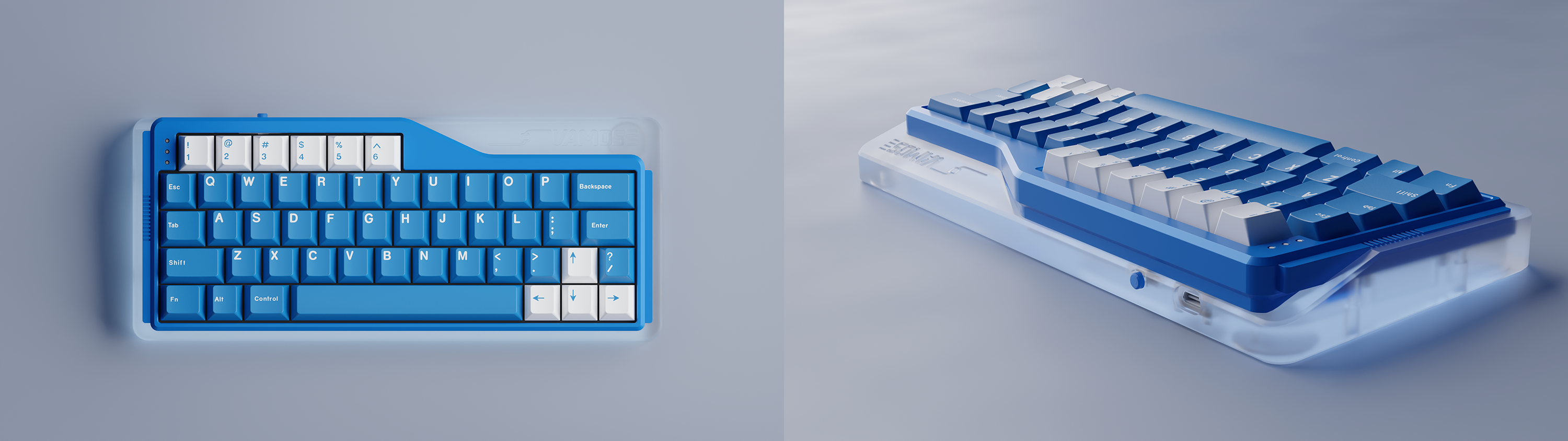

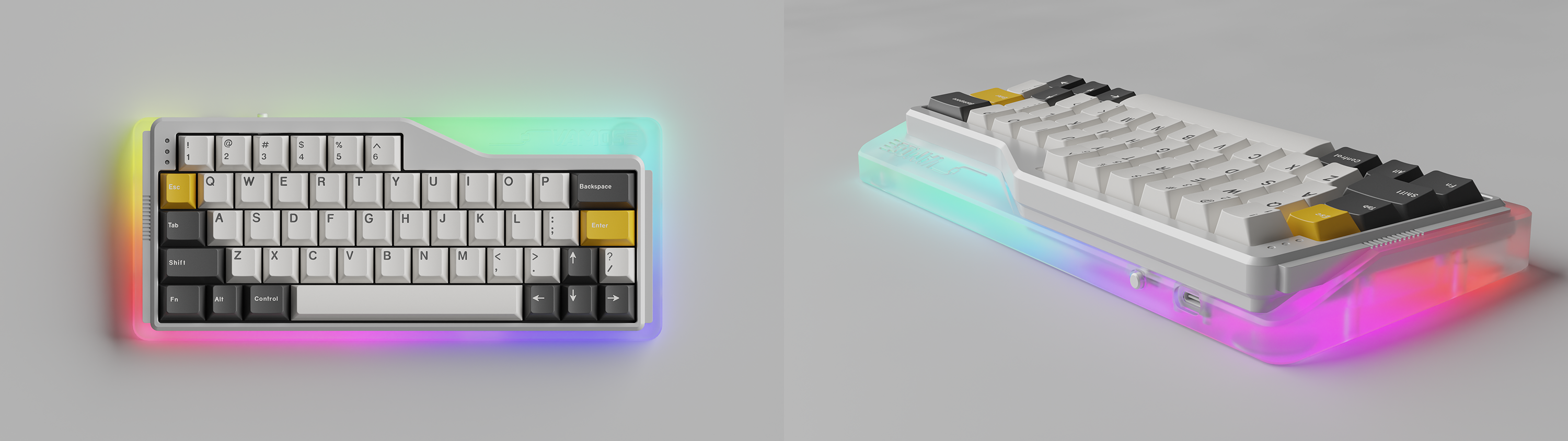

• Top Case Colours: Silver / Sky Blue / Dark Violet / Lemon
• Bottom Case: Transparent PC
• Feet: Optional PC feet (typing angle 7.5°)
Kit Contents*• Case (top case / bottom case / integrated power toggle switch) ×1 set
• FR4 Plate ×1
• Vam05 PCB ×1
• Unified Daughterboard-C5 ×1
• Foam set (mid-layer foam + switch pads)
• Gasket mounting system ×1 set
• Accessories: feet and screw set
Vendor*• Global: Kezewa
https://kezewa.store/products/group-buy-vam05-keyboard-kitDiscord• 40% Keyboards
https://discord.gg/jWwKSEWB• - vam05 channel
https://discord.com/channels/527180441950617611/1398993817776029777Disclaimers• Images are renders; final colours may vary slightly.
• Kit does not include switches or keycaps.
Price*: $289 (Silver)/ $308(Sky Blue / Dark Violet / Lemon)
GB Start and end date*: September 1st - October 1st, 2025
Estimated fulfillment date Time*: December 2025 – January 2026
