Hello,Glad to see you again!Createkeebs bring Venice Rialto GB to you today.

The proto 1.0 Interest check for it: https://geekhack.org/index.php?topic=118759.0
The proto 2.0 finished now.Let’s straight to the point and talk about what updates we did the for proto 2.0 of Venice Rialto.

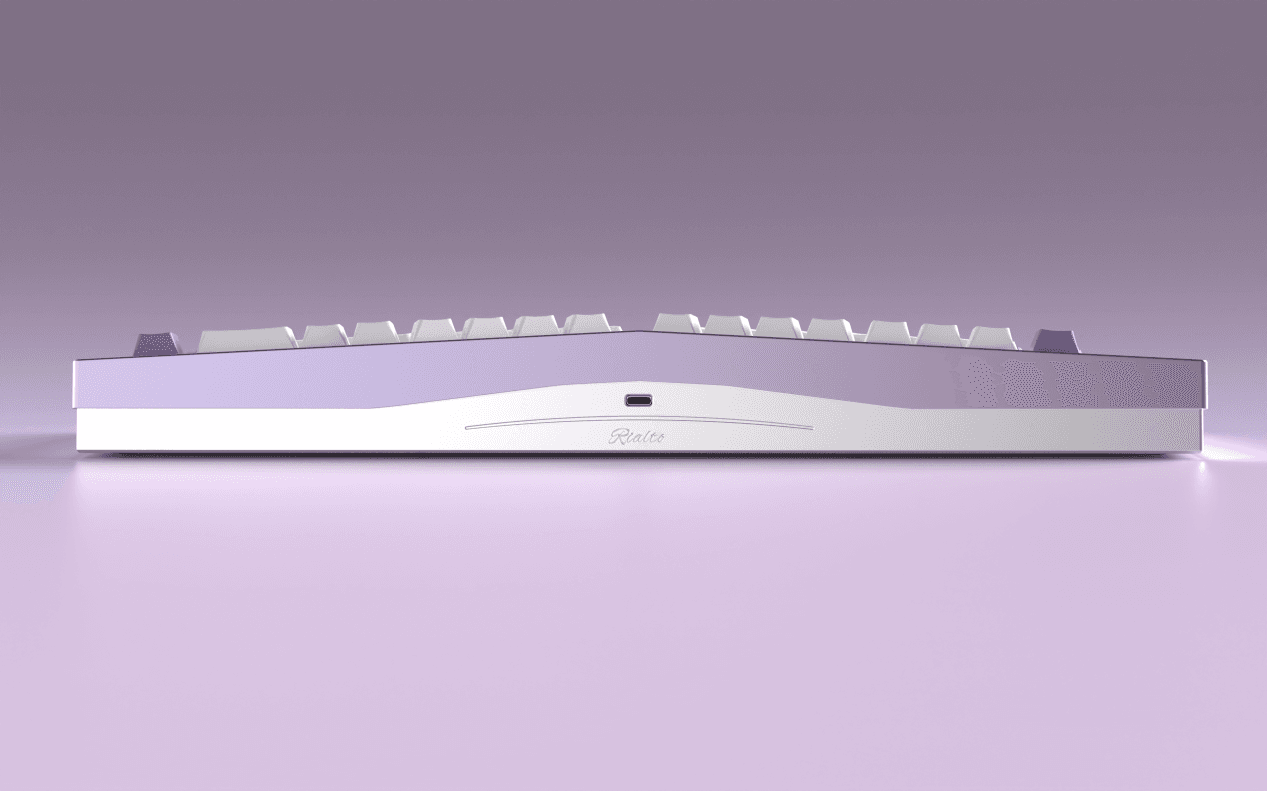

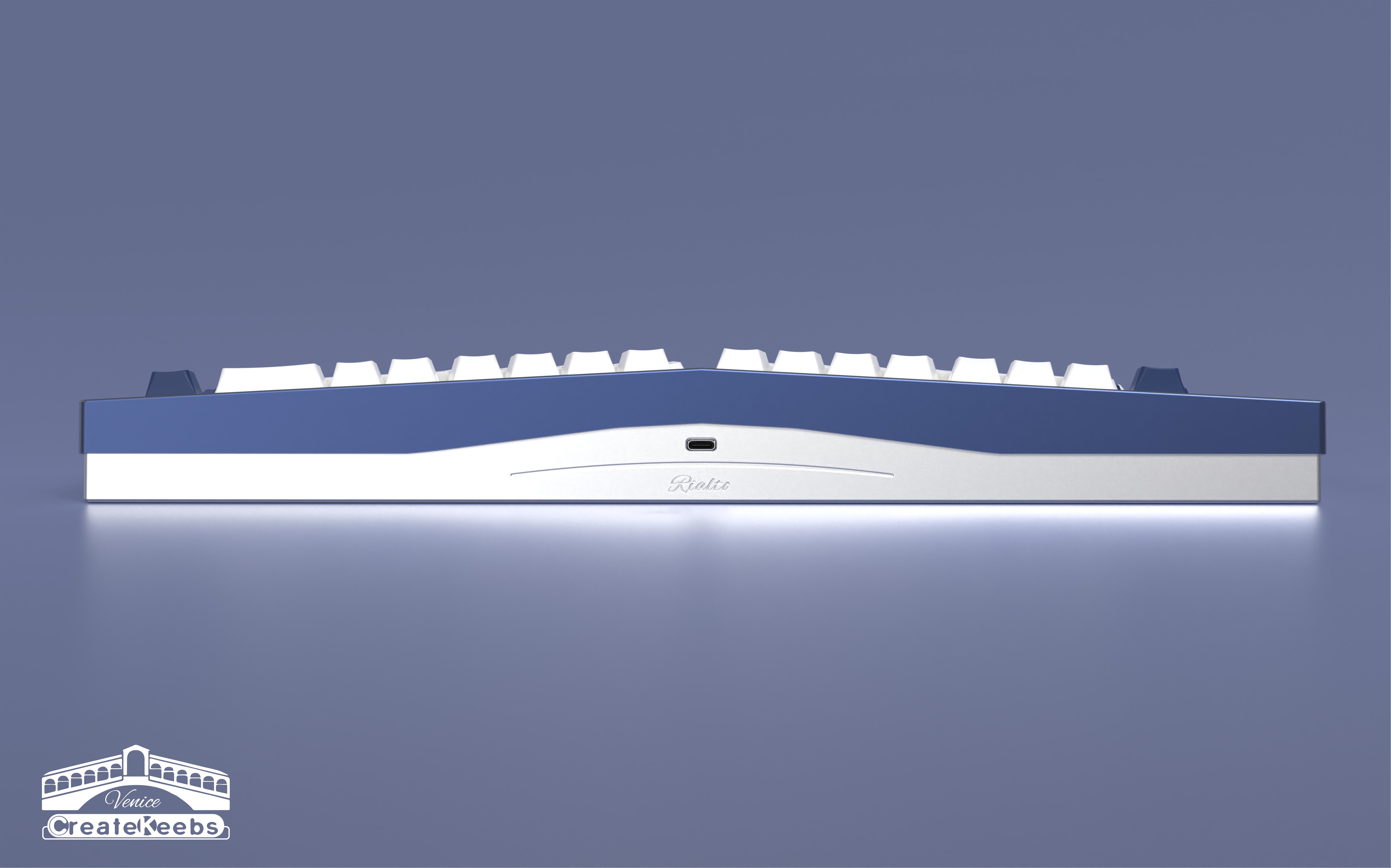

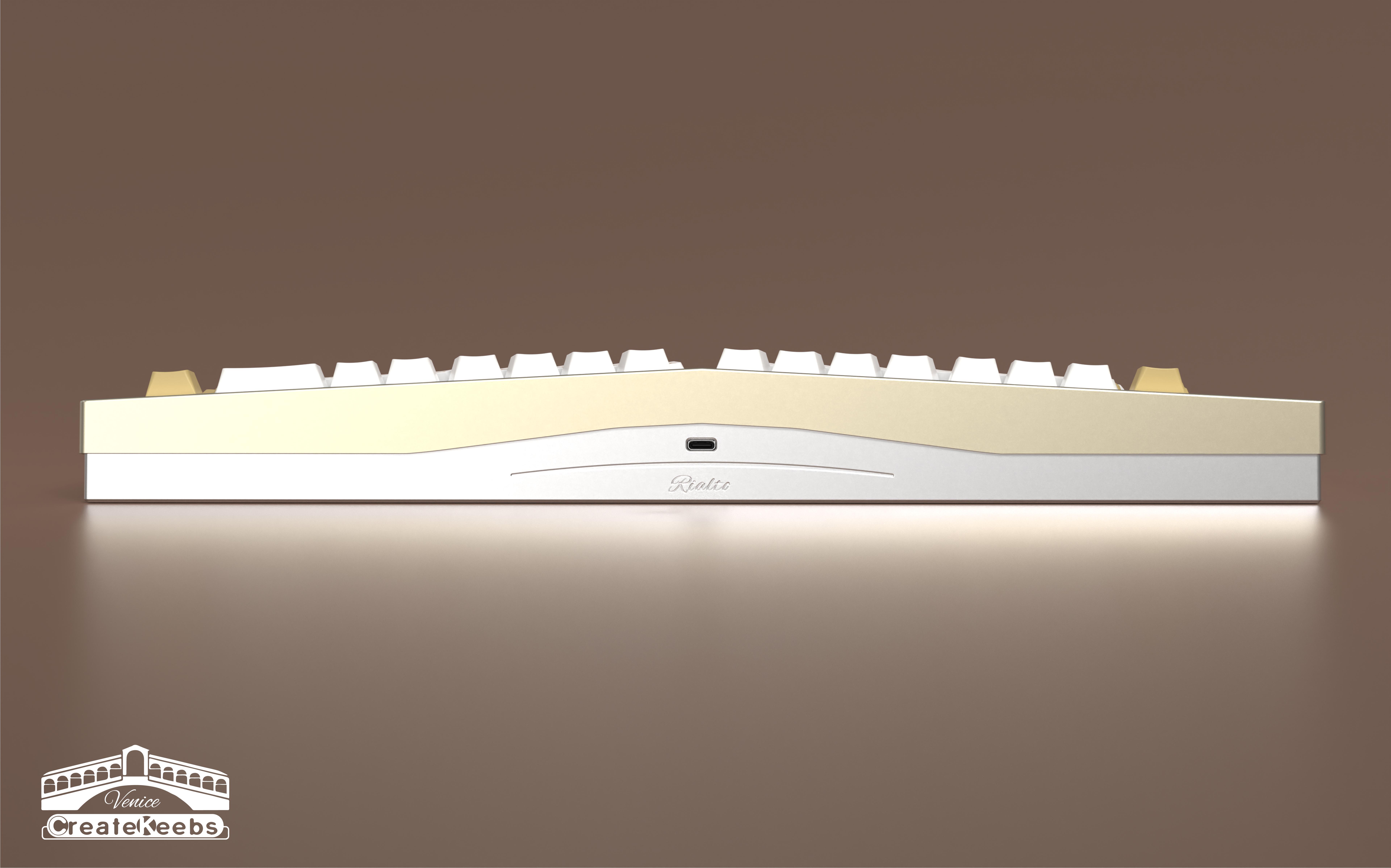

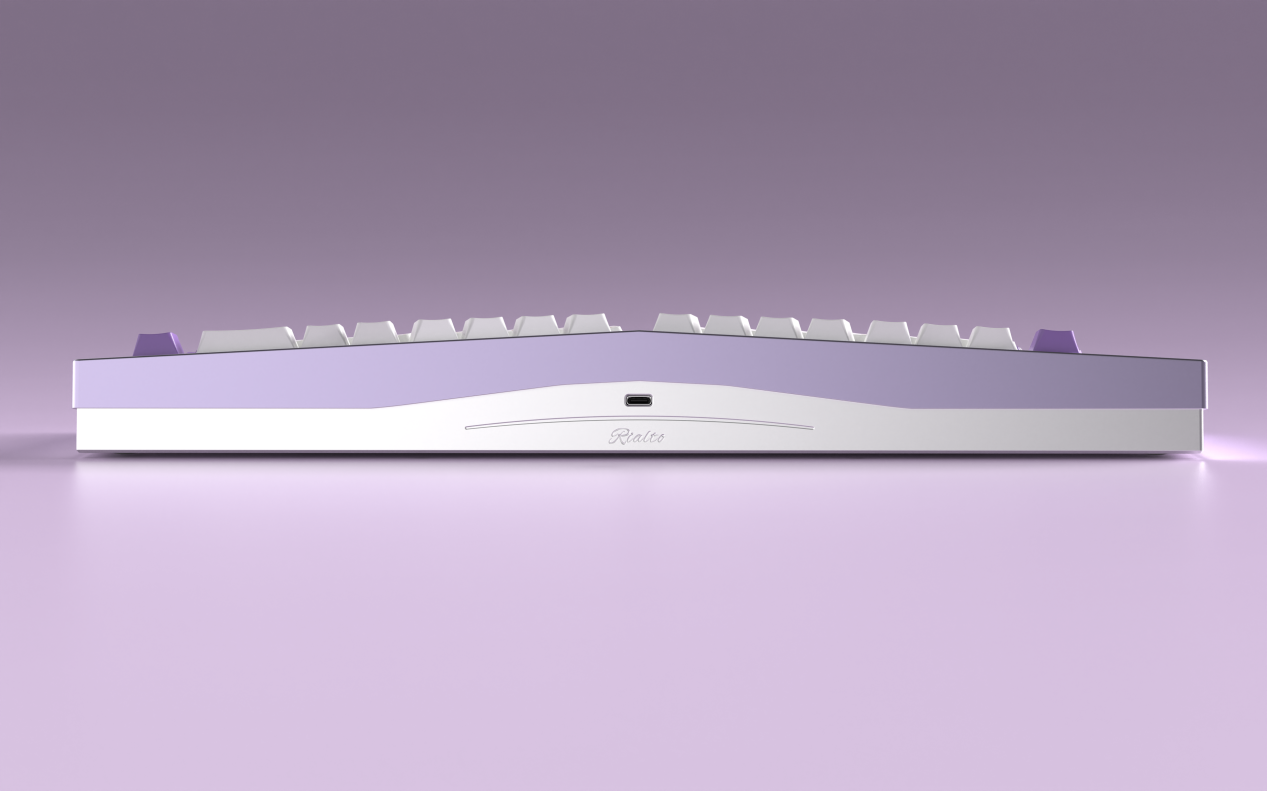

1.Add the words "Rialto" carved by CNC in the position of type-c outlet, and the appearance of the top arch is no longer monotonous.

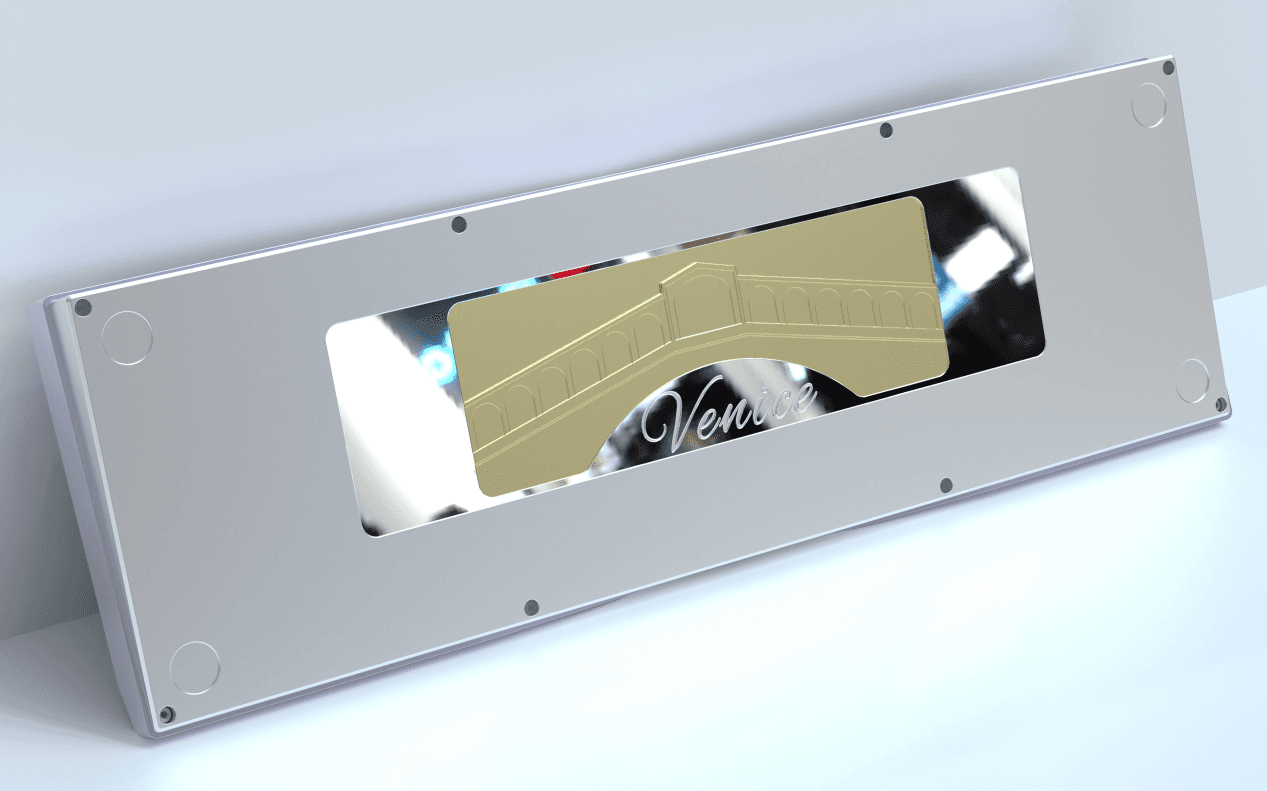

2. The word "Venice" on the weight changes the previous handwritten Venice into a neat font, which looks more comfortable and more in line with the overall literary style of the keyboard.

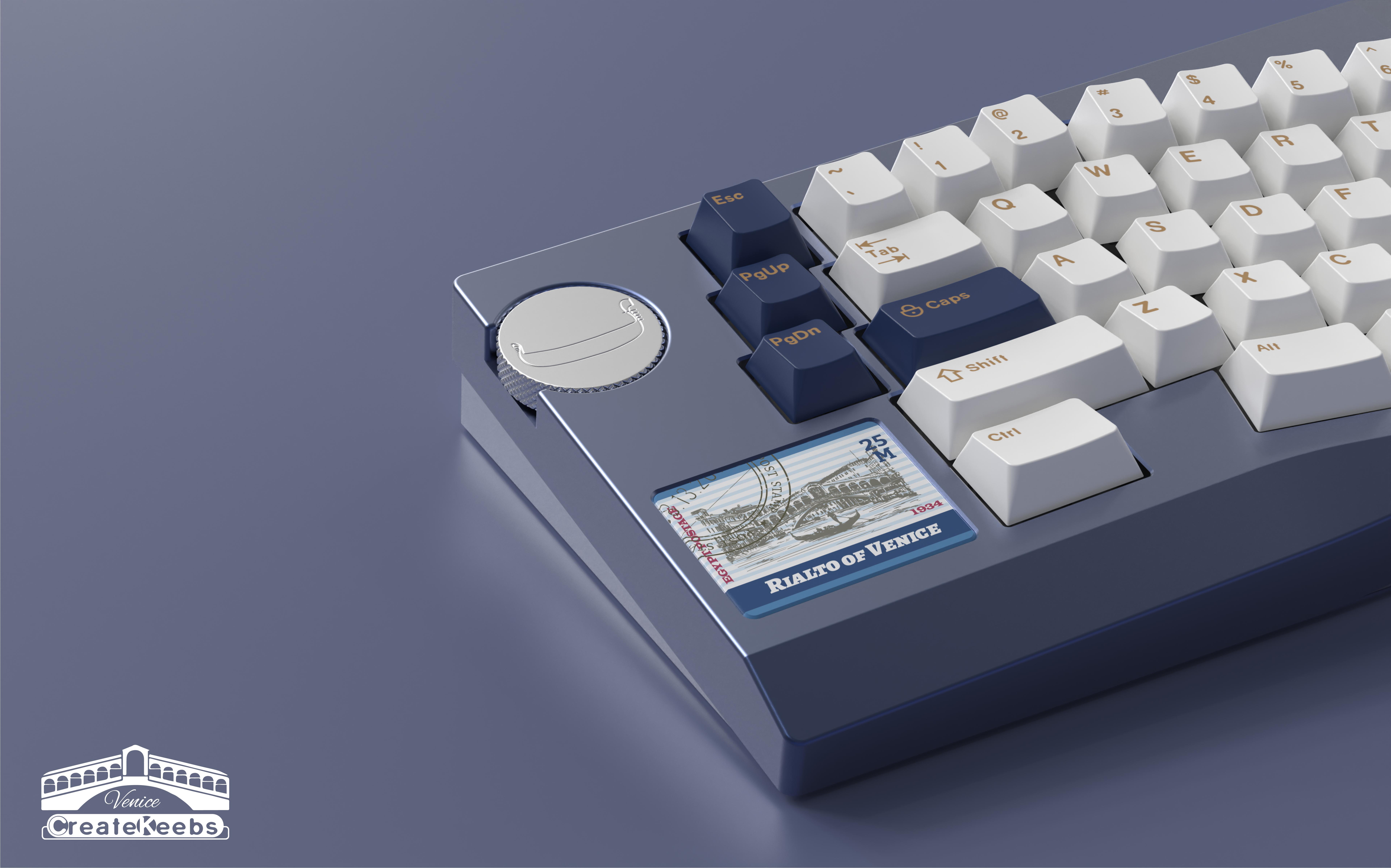

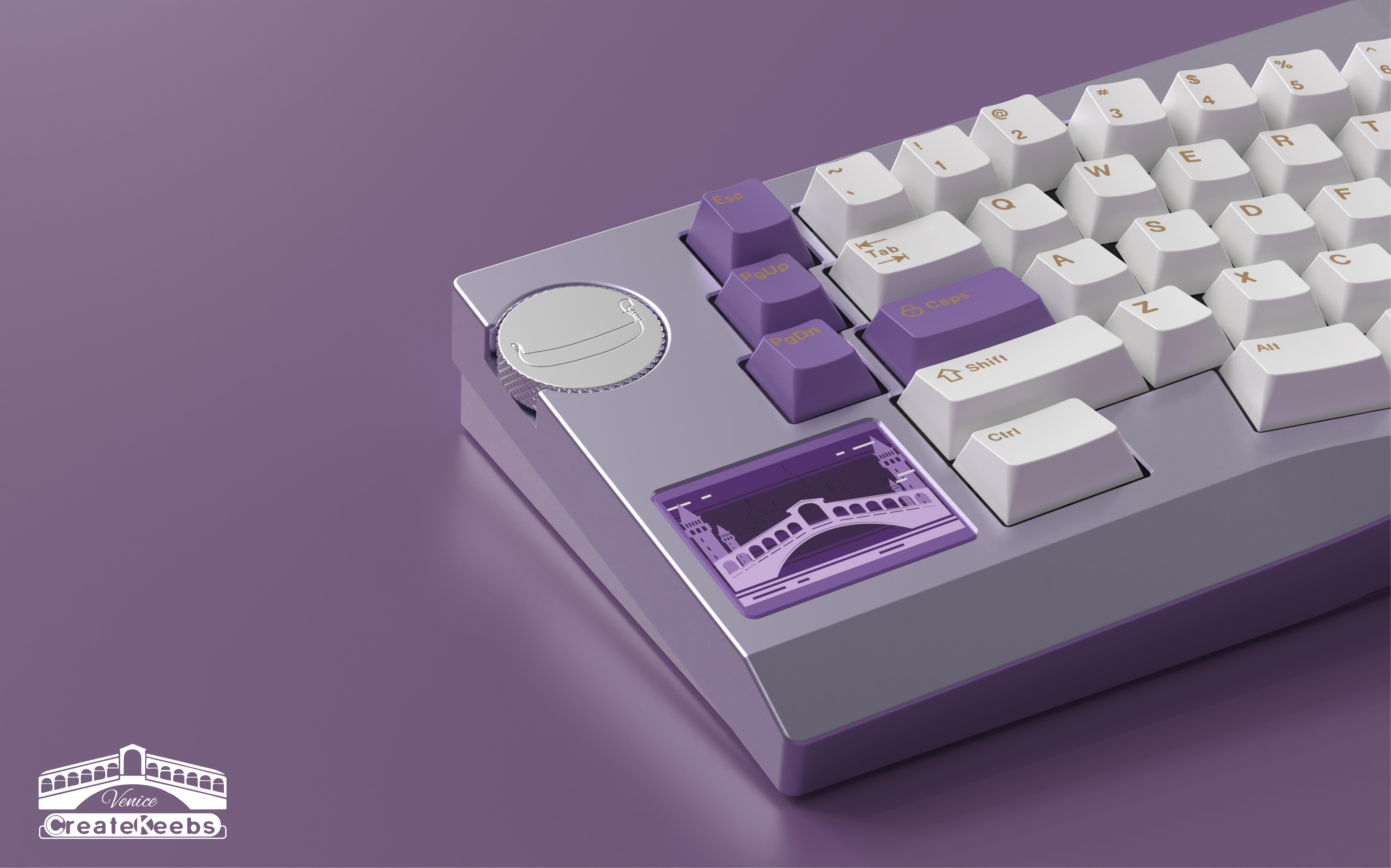

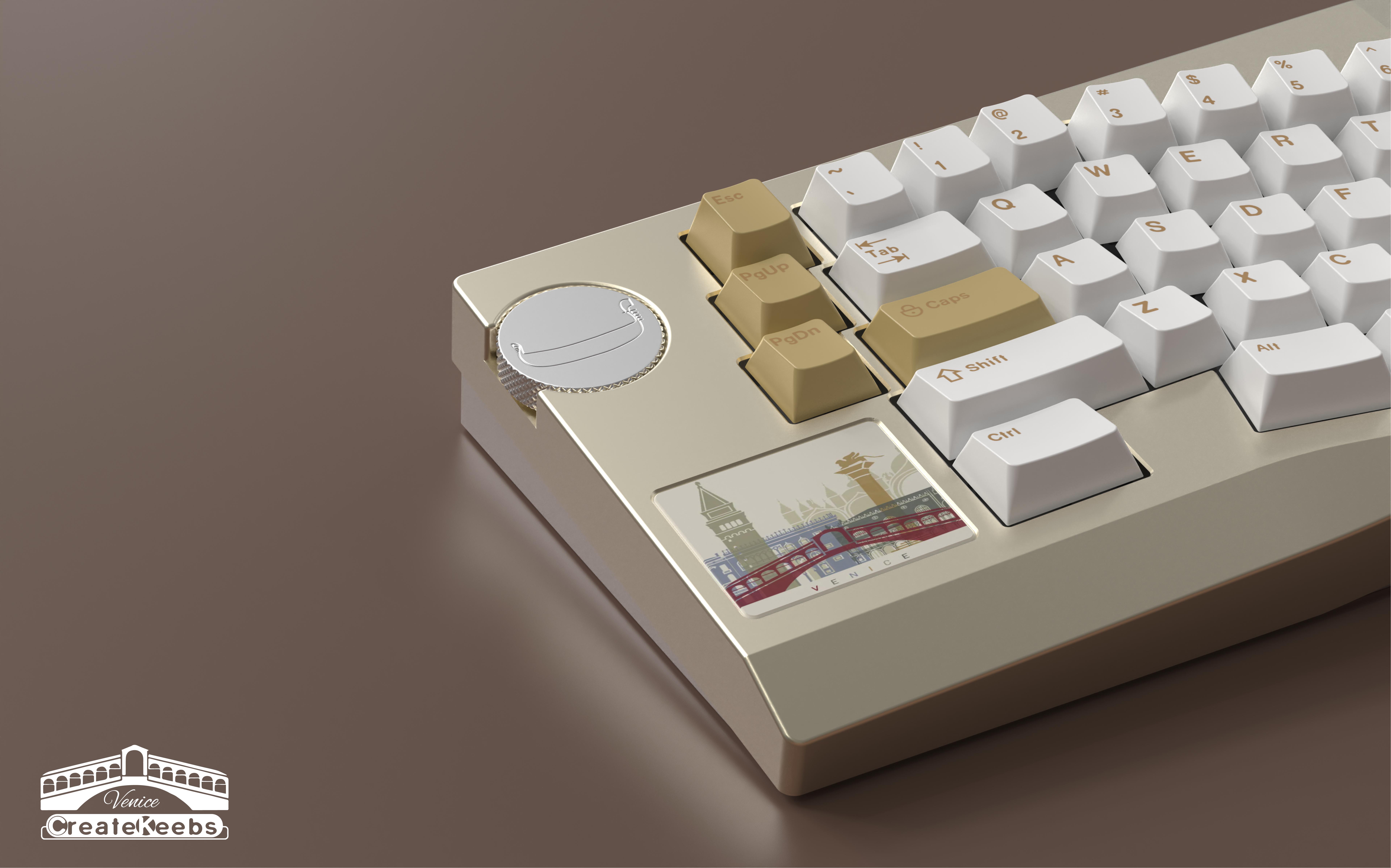

3. Badge design changes. three colors respectively correspond to three different badge, diversified styles, the overall tone is more harmonious.

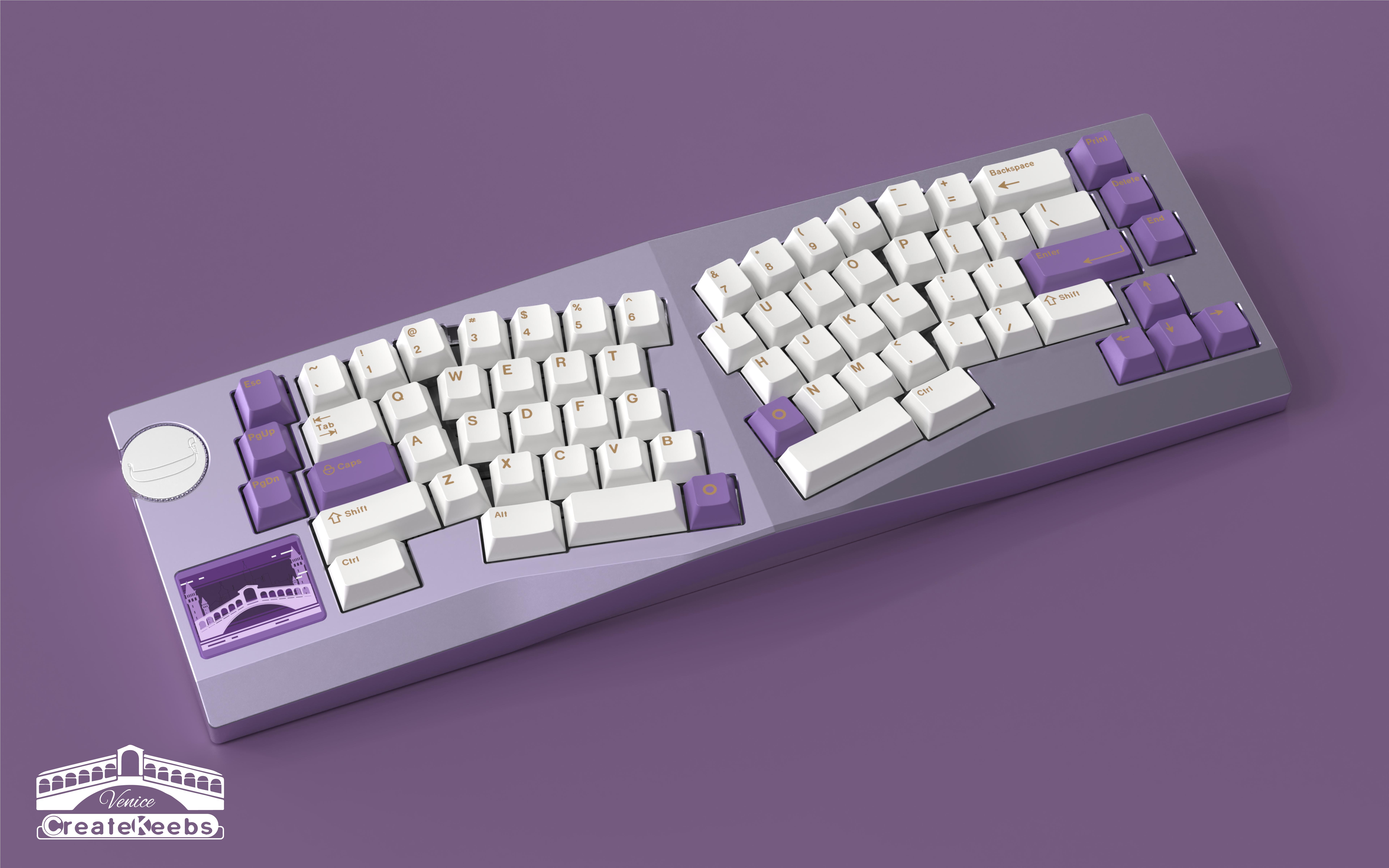

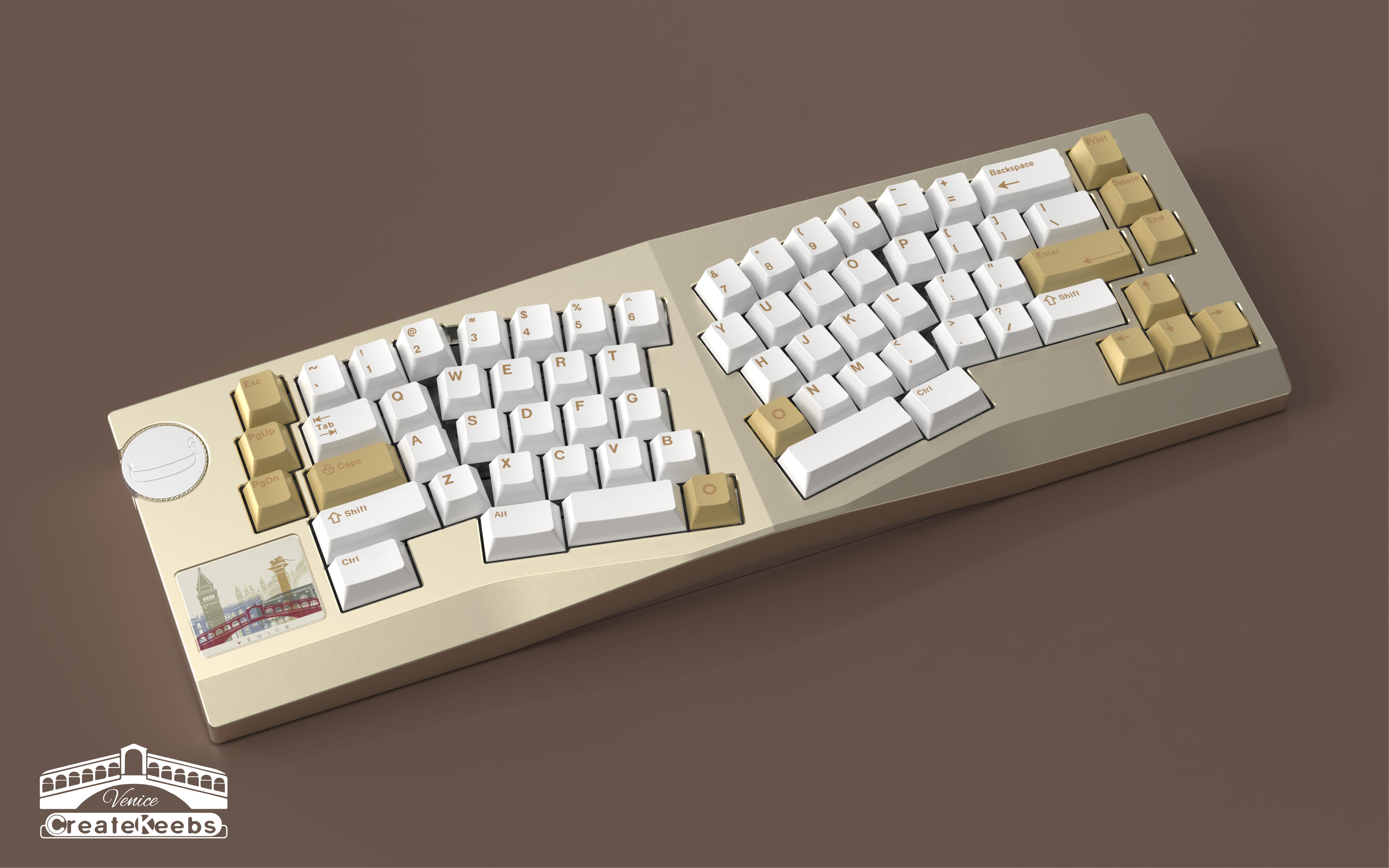

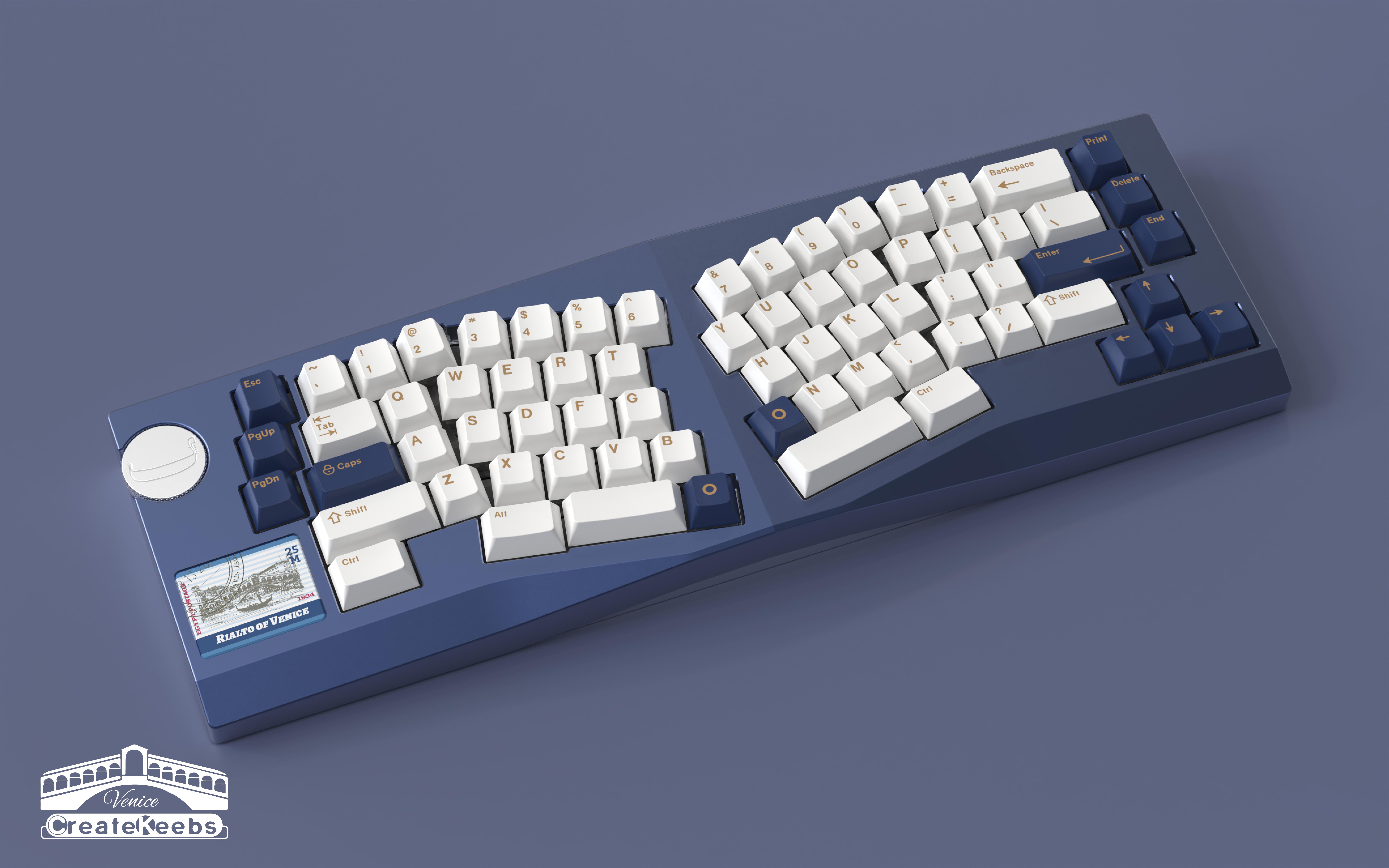

Let’s see more renders about the proto:

About the layout
Tented ergo.Simply speaking, the word “Tented” refers to the left and right sides of the keyboard like a tent, which is tilt down from the middle to the two sides, so as to achieve the purpose of more in line with the natural and comfortable placement of hands when typing.

1.6mm black core PCB, which is to ensure the fullness of the sound and strength of gasket mount pcb, and it is also more friendly to plateless options, so as not to cause the inner excessive soft to collapse. Separate flexcuts between rows can provide a certain deformation though.
Besides, we give up the Leaf-spring design, instead we decide to choose the traditional gasket way, to achieve the effect of soft and steadiness.

Pc and Alu material plate will be optional.

Summary:

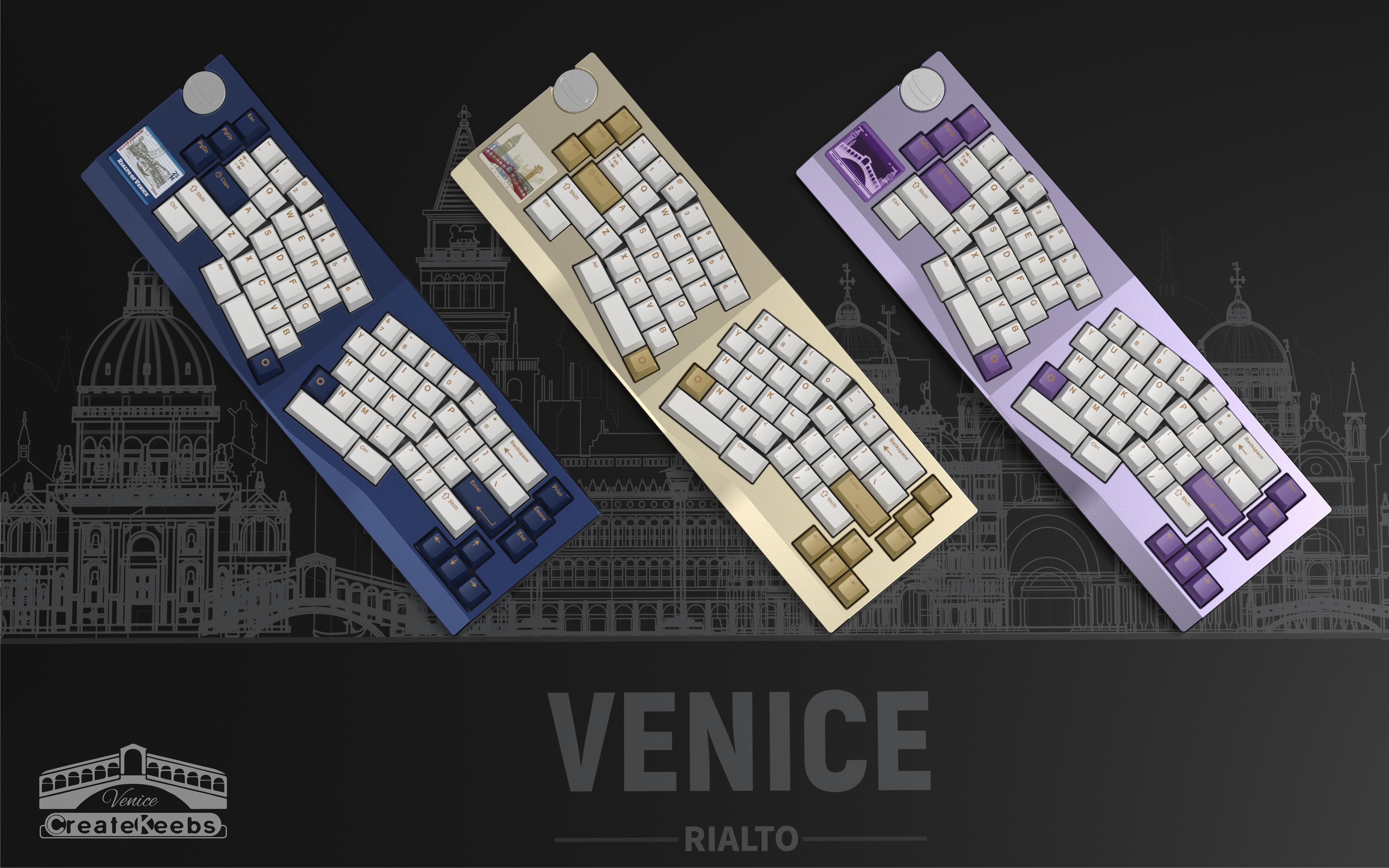

Keyboard Kit color: Navy, Champagne Gold, Purple

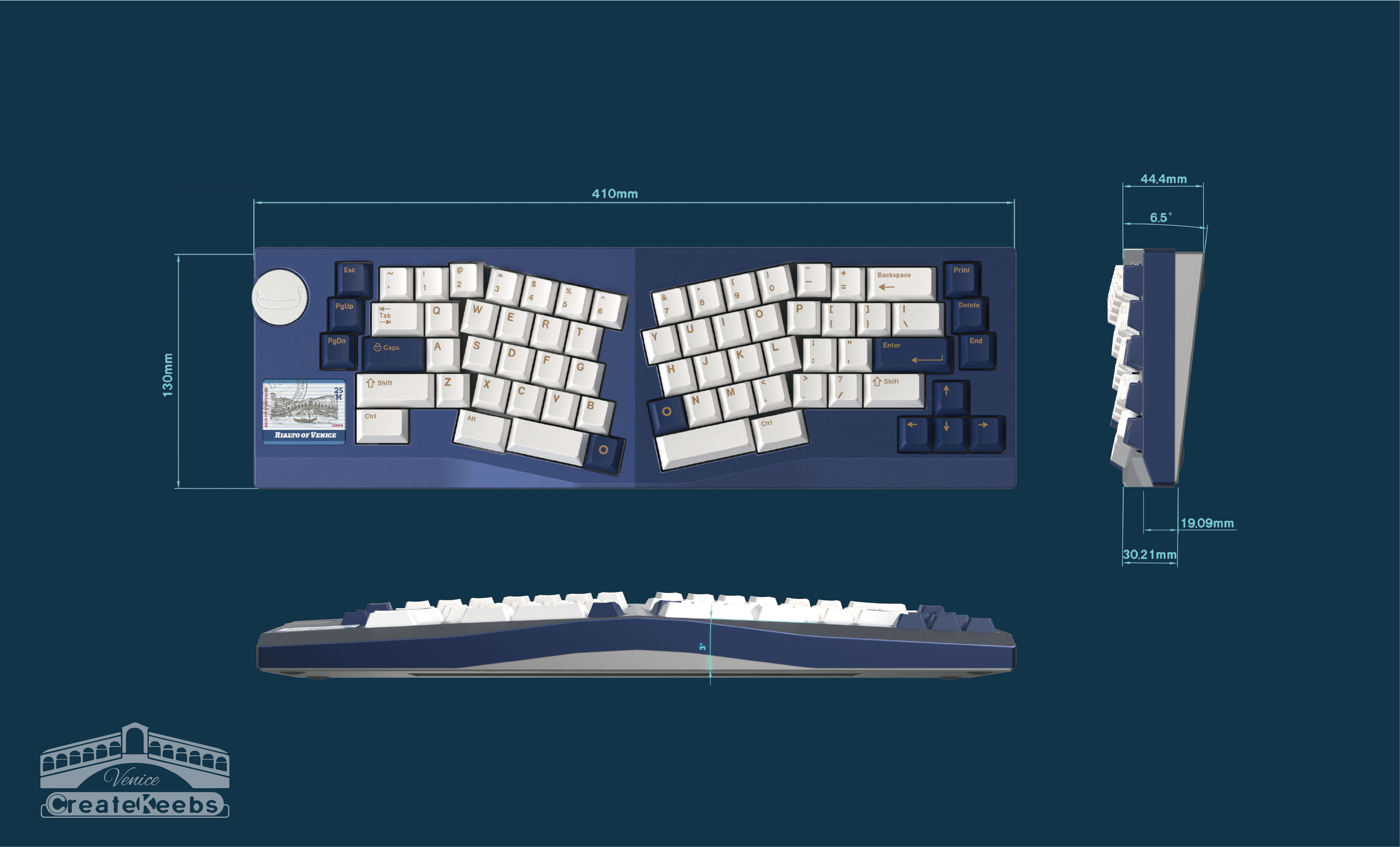

Size:410mm*130mm*(19-30mm).
Grade:6.5°
The horizontal grade:3°(Ergonomic design)
Case:6063 Alu
Weight: Stainless steel & brass
Badge: Silk screen printing badge
Knob:6063 Alu
PCB:1.6mm black core Soldered or Hotswap
Mounting: PCB Gasket Mount (Plateless supported)

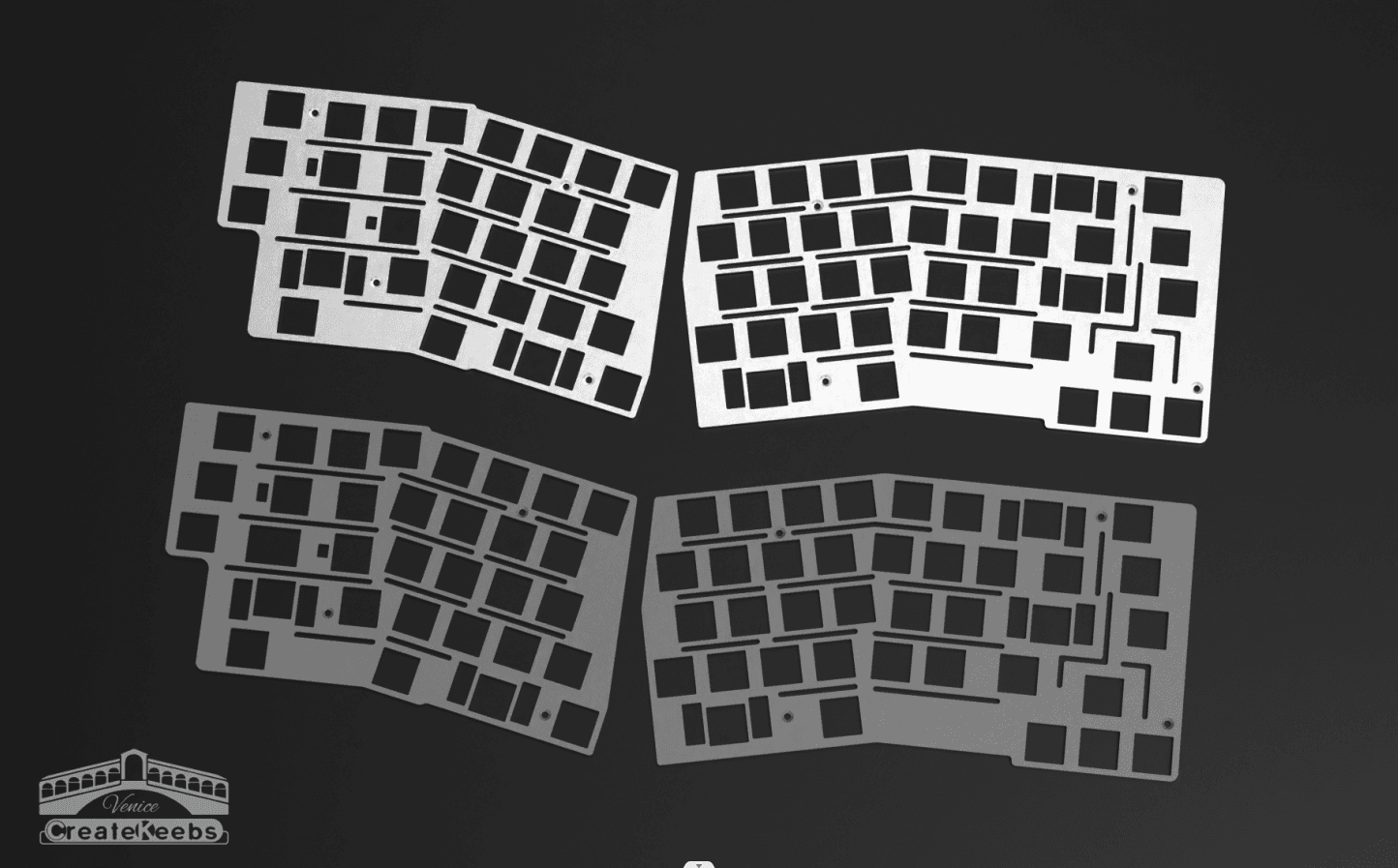

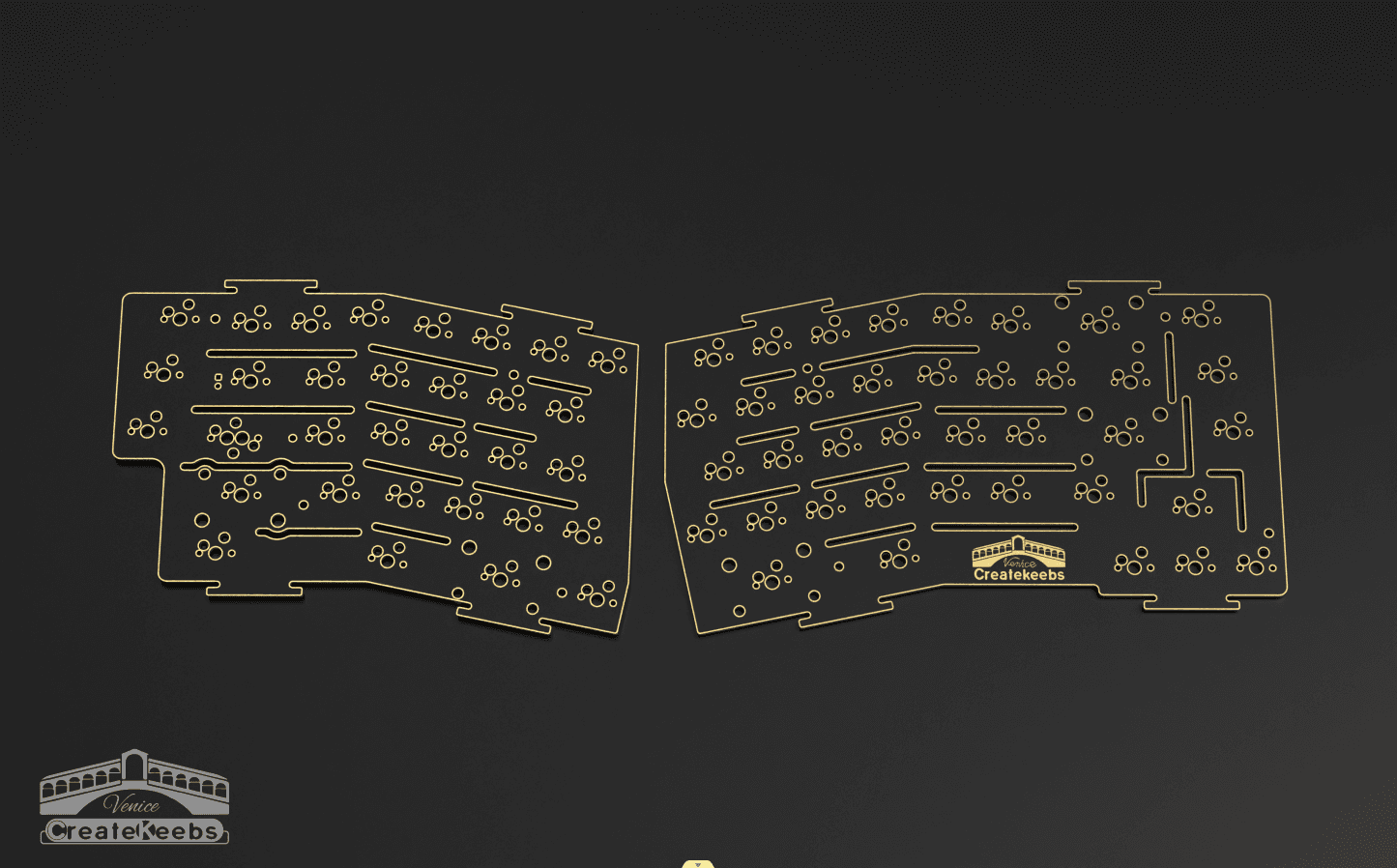

Plate material: 1.5mm pc/alu plate

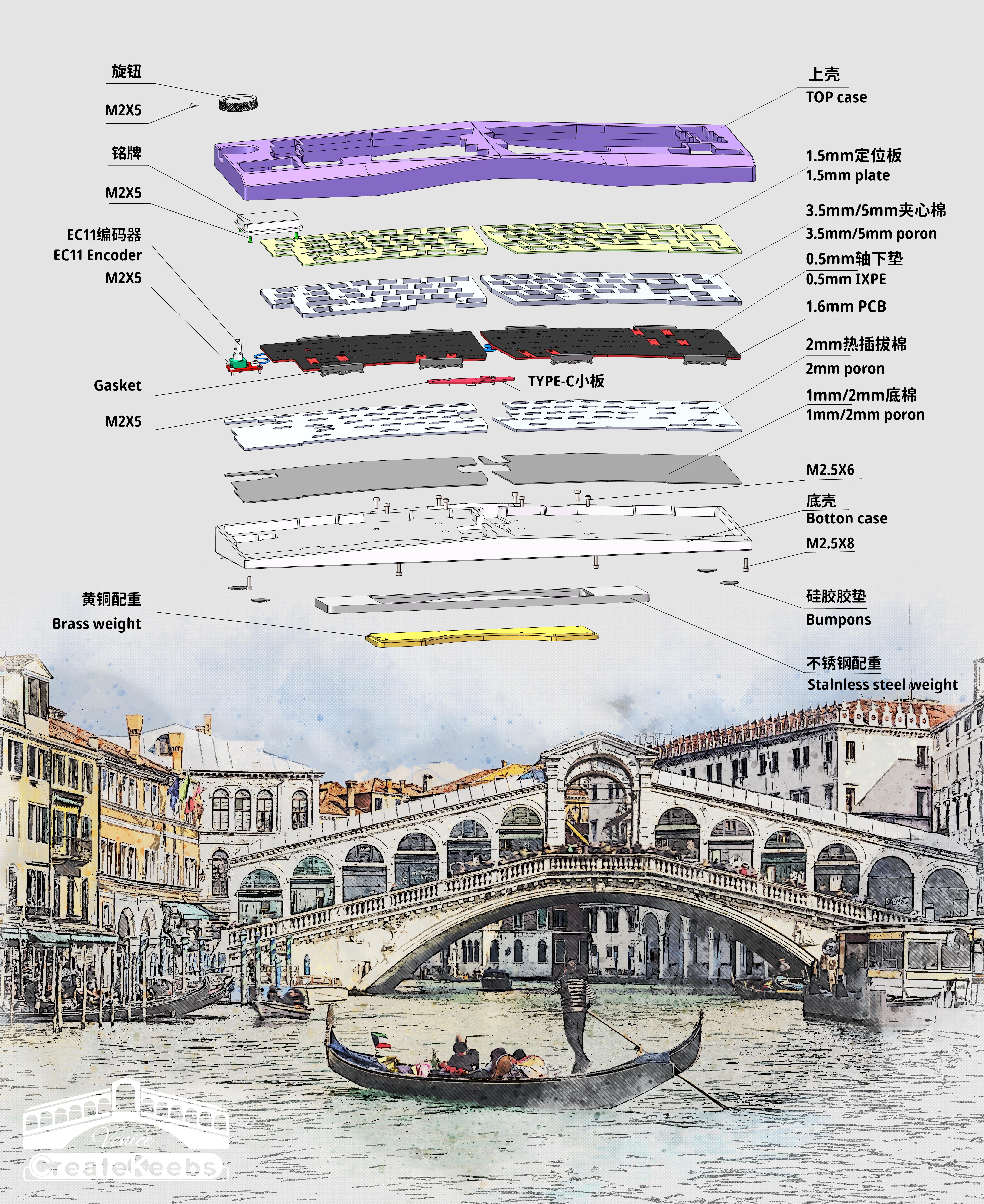

Venice Rialto Keyboard Kit Content:
1*top case;
1*bottom case;
1*brass inner weight;
1*stainless steel weight;
1*badge(bundled with the case color) ;
1*knob;
1*soldered/hot-swap pcb,2*type-c daughter board;
1*1.5mm pc/alu plate;
1* foam kit;
1 set of screws,gasket,and tools

Estimate time: Mid-February 2023
GB Limited: 150pcs
How to buy:https://keebsforall.com/products/venice-rialto-alice
Delivery time:4-6 month after GB ends

Price:
Venice Rialto Keyboard Kit:$500
Extra Soldered PCB:US$42
Extra Hot-swap PCB:US$42
Extra Badge:US$20
Extra Knob:US$20
Extra Plate:PC/Alu plate:US$30
Foam Kit:US$15
Tools&Others:US$5

FAQ
Any other vendors in different area?
No,KFA is Global vendor,no other vendor.
https://keebsforall.com/

Can we purchase extra PCB/plate/foam/badge separately?
Yes,extra PCB/plate/foam can be purchased seperatly, https://keebsforall.com/products/venice-rialto-add-ons?variant=43953921622235

Do you have a sound/typing test?
FOFO:

Do you have a discord server?
Yes,welcome to join createkeebs’ discord: https://discord.gg/G9R2YhEdM6
