WIND Xlice Update (alice+numpad,normal,southpaw)

by windlabs

$300.00

geekhackenriched

0 followers0 bookmarks0 comments

bywindlabs

Description

Hello everyone, this is Wind Studio. Thank you for your waiting.
It has been 7 months since the last IC(alice+pad), today we bring you a new update. During this time, we have been testing the internal structure and collecting more opinions.
Finally, we have confirmed the appearance design and decided to choose a simpler and more durable no-forehead design and provide southpaw option.
We called it " Xlice" now

The previous IC link： https://geekhack.org/index.php?topic=123946.0

I.Appearance

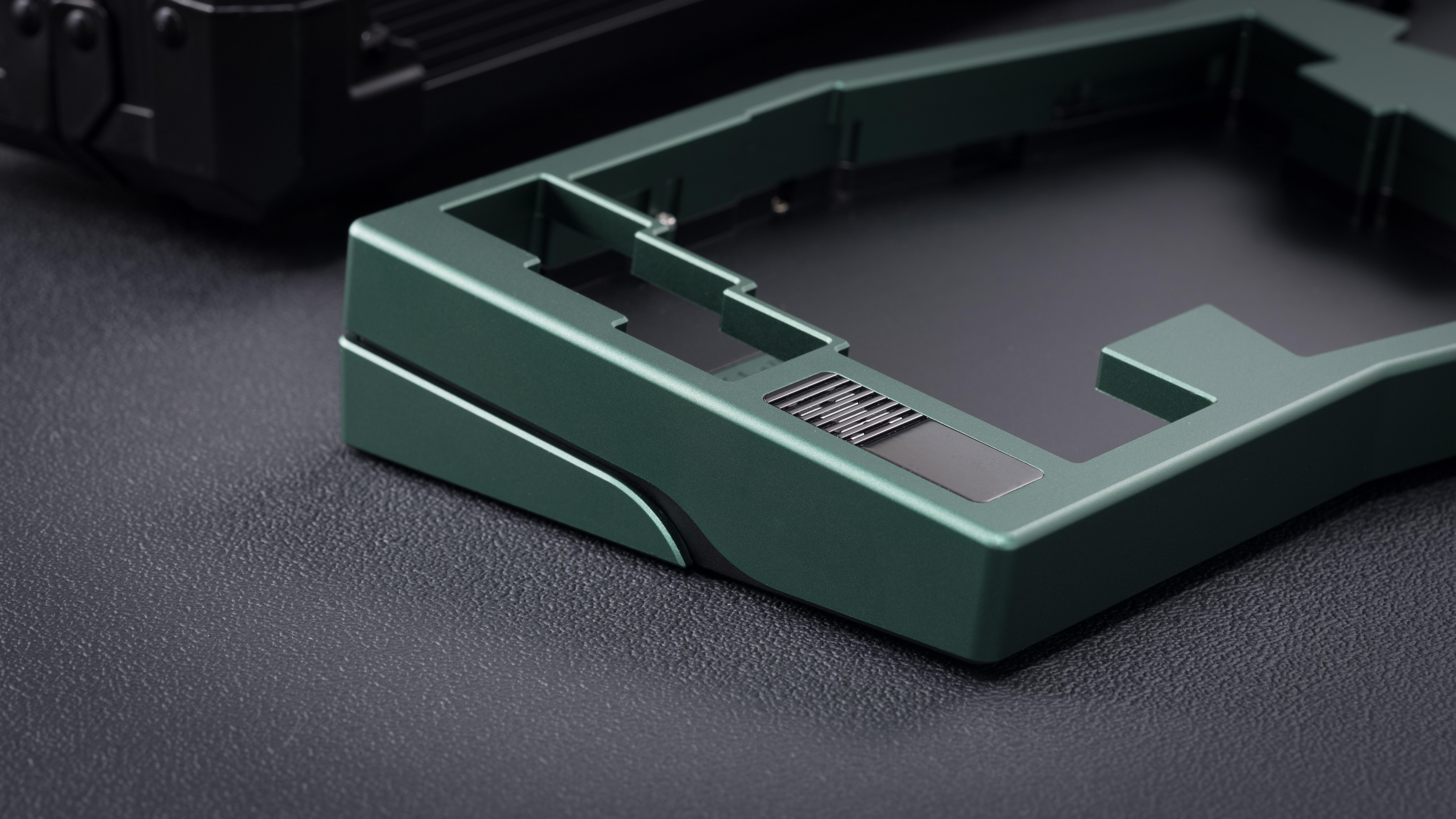

The front of the keyboard is decorated with the Xlice "X" logo badge at the bottom, combined with the grid badge as a nameplate for splicing design.
RGB lights are added to the gaps and caps indicator light with long strip badge are added near the numpad.
The grid badge/caps light badge material can be stainless steel mirrowed pvd or titanium material.

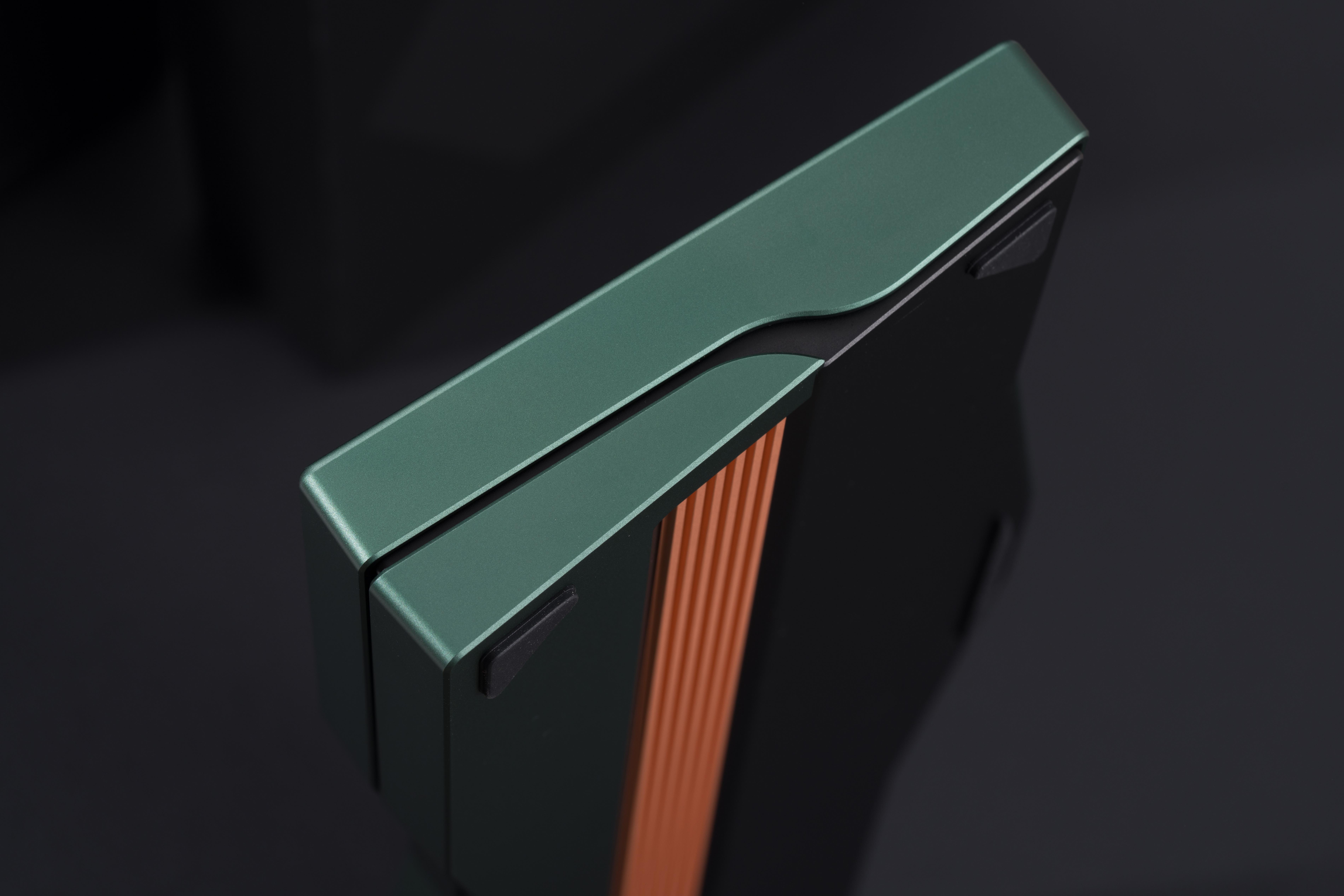

The side still uses the classic contrast color design

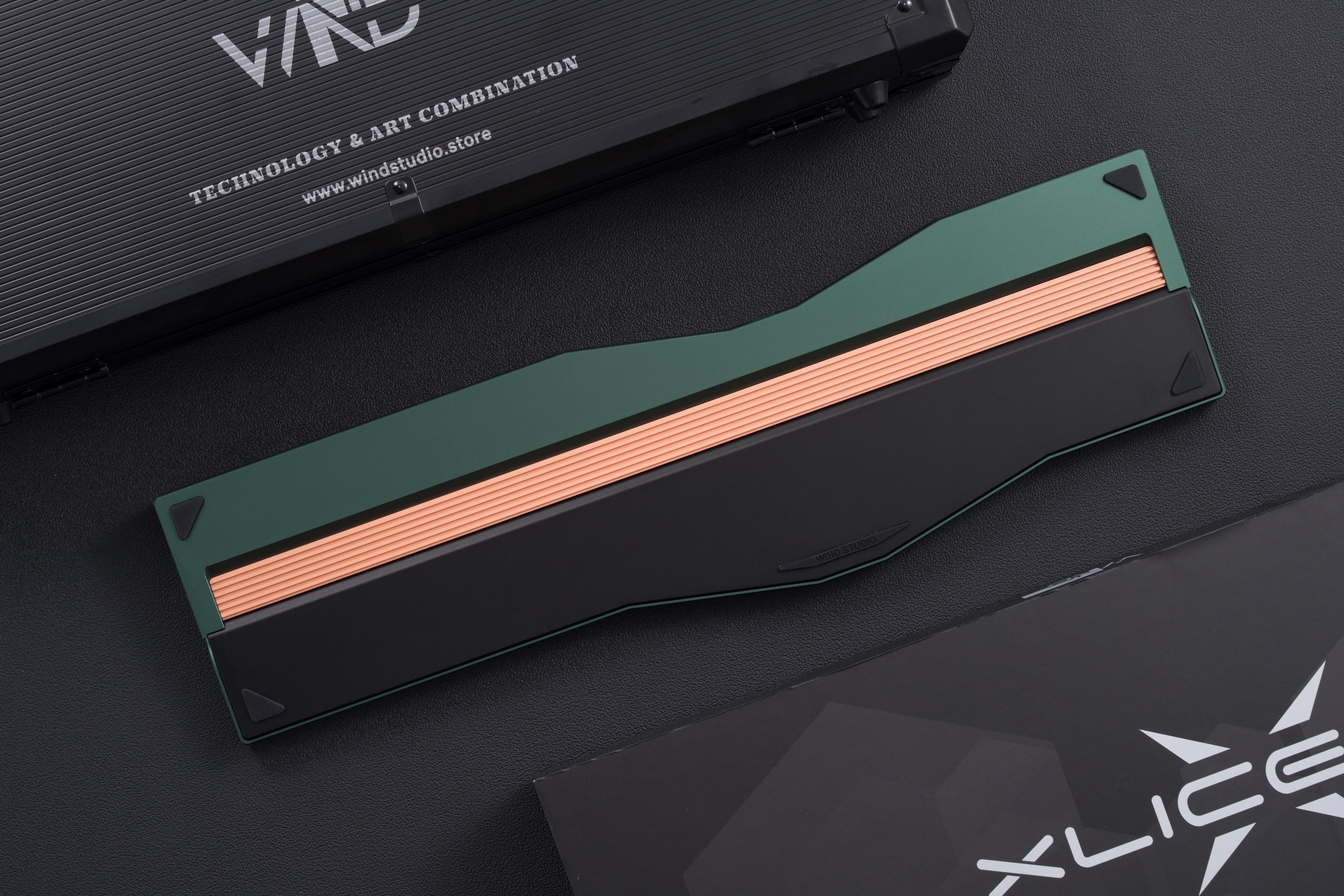

The back uses a grille-shaped weight bar, matches the different materials of the bottom case,create a more layered look.

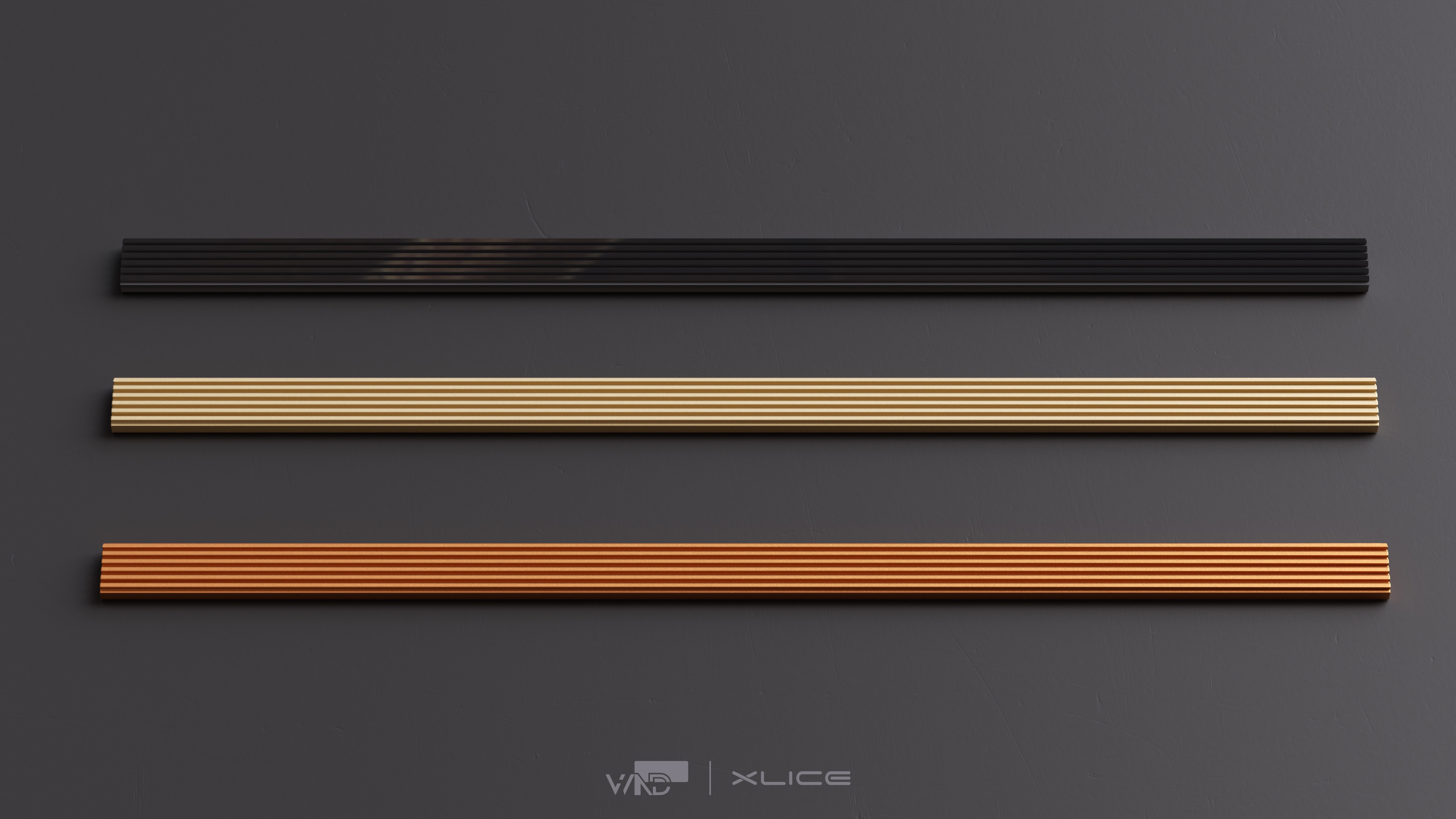

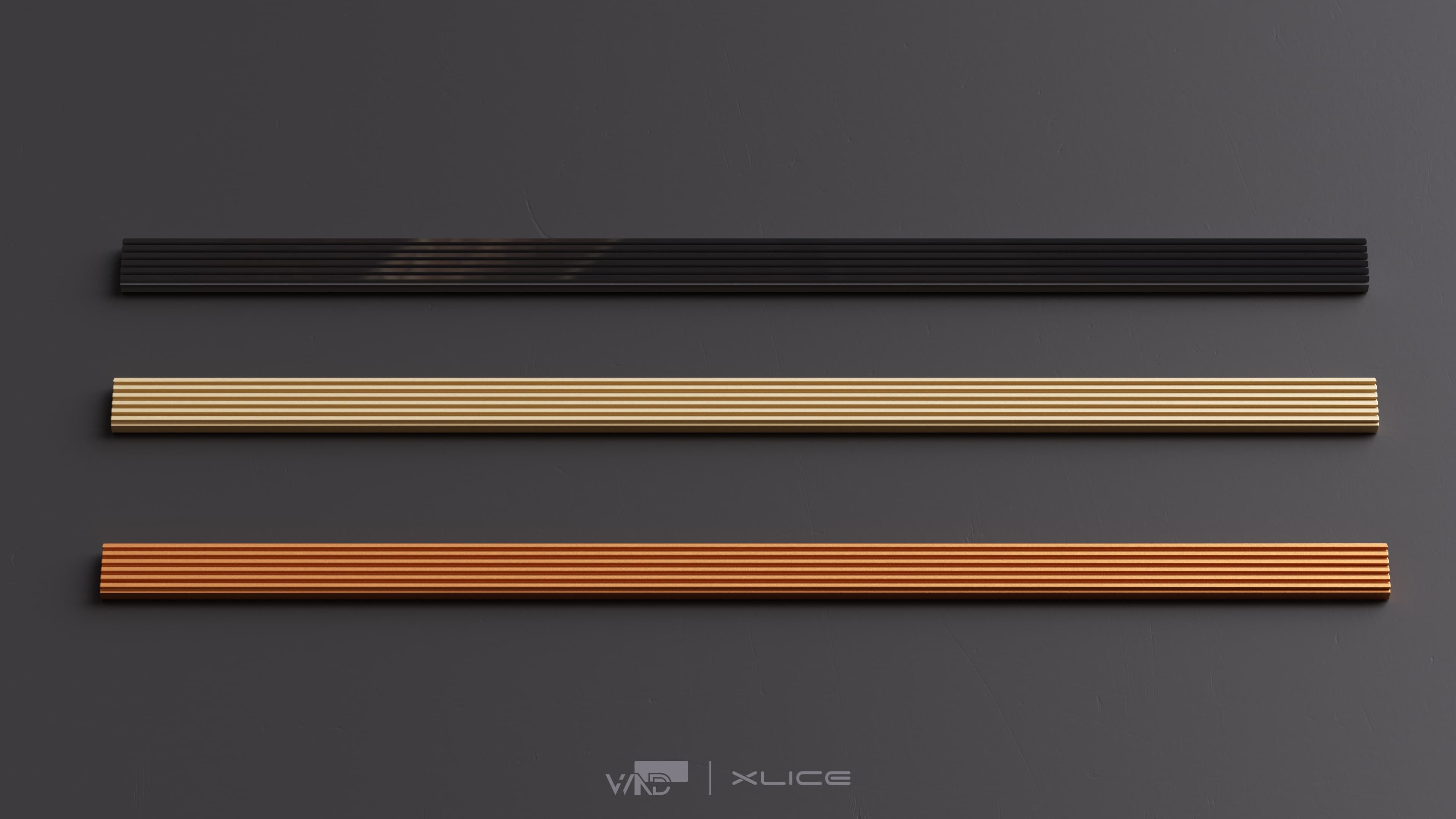

We provide three material weight bars: brass, copper, and brass spray-coated black.

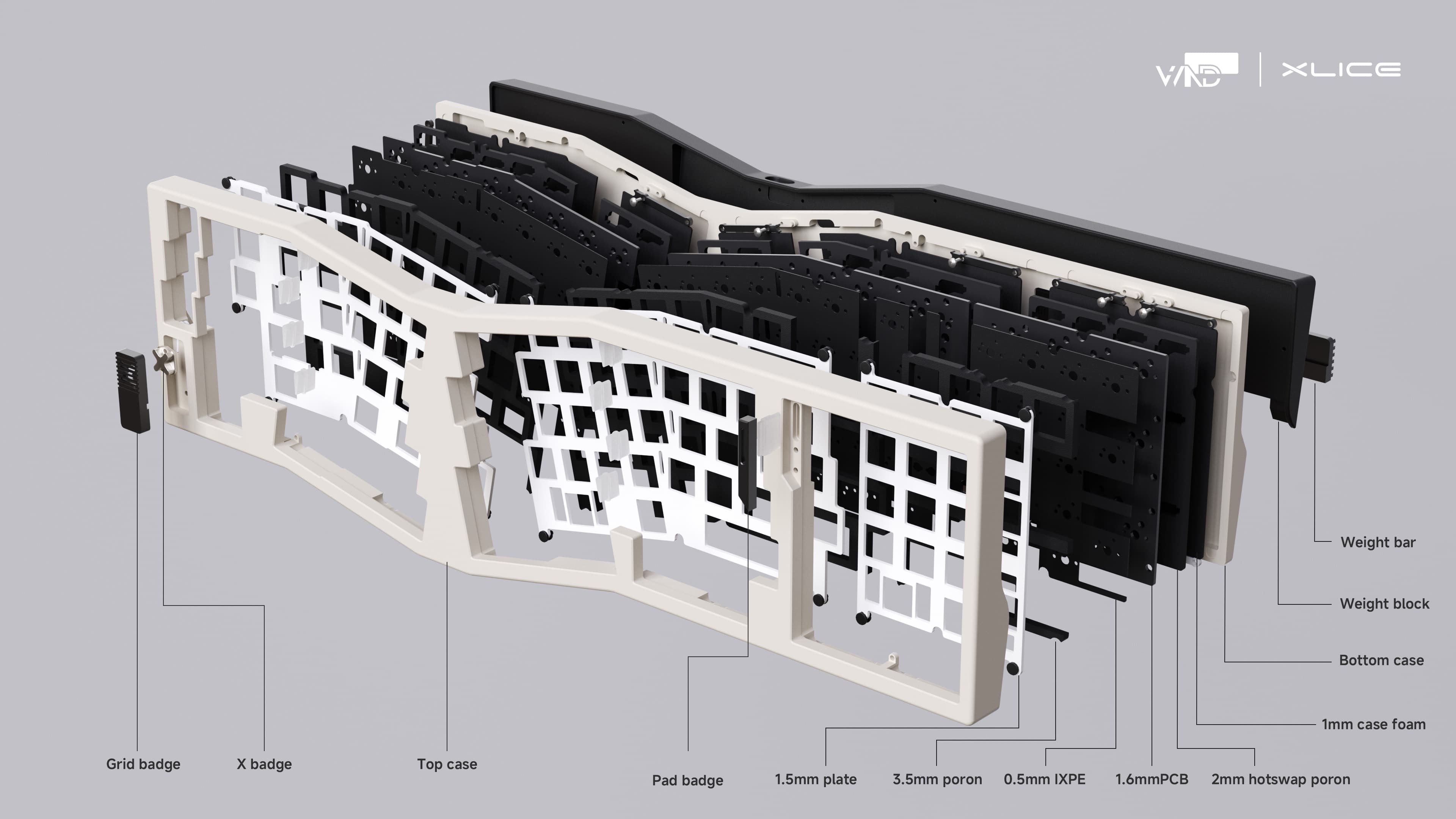

2.Structure

Adopt split pcb,support leaf-spring mount and top mount, the typing and feeling is stable and solid feel

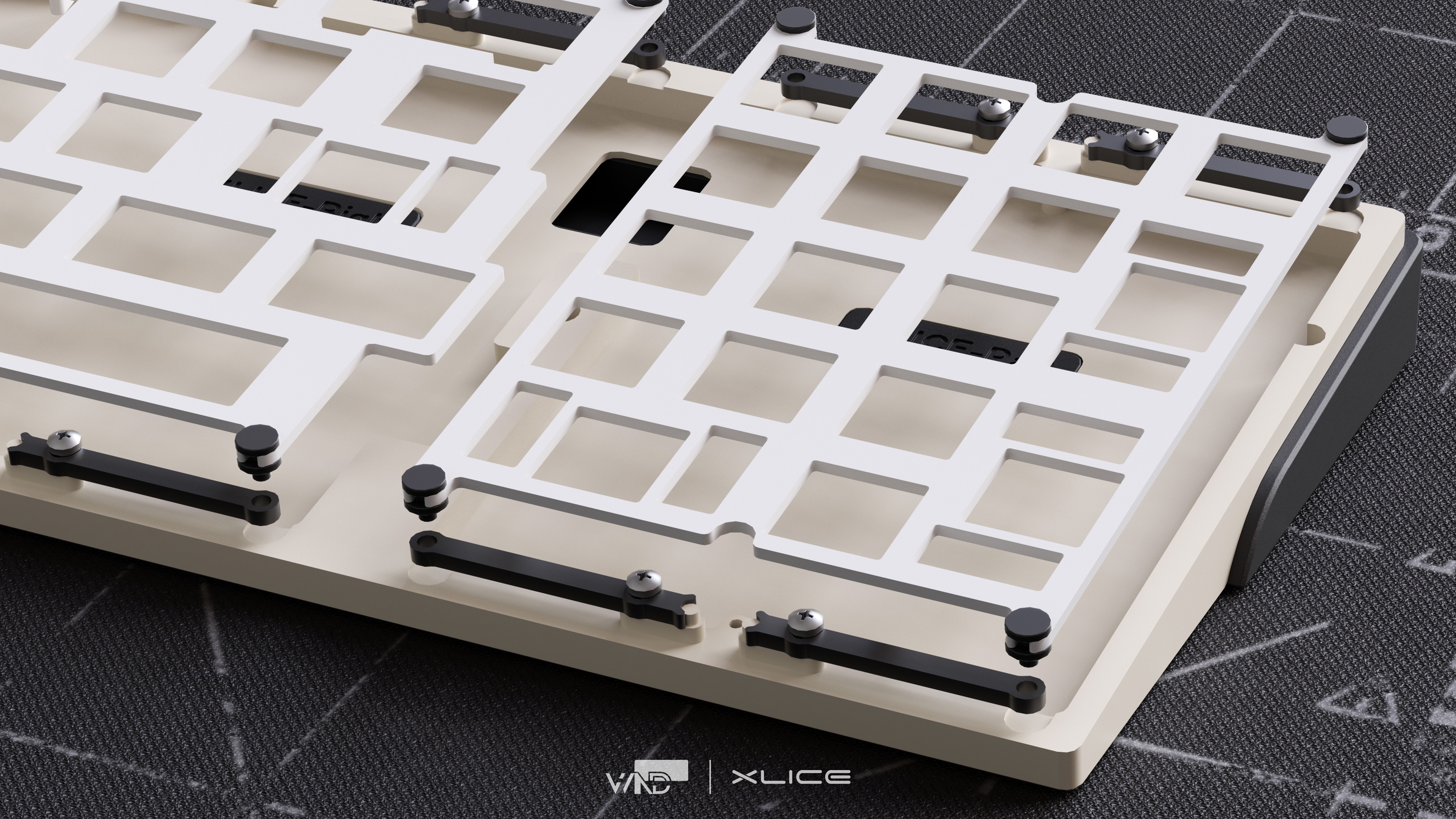

-leaf-spring mount
By adding silicone gasket nail buffer structure in the contact gap between the positioning plate and the leaf spring,
it can provide a softer input experience while absorbing the vibration of the leaf spring, thereby improving the overall sound performance of the keyboard.

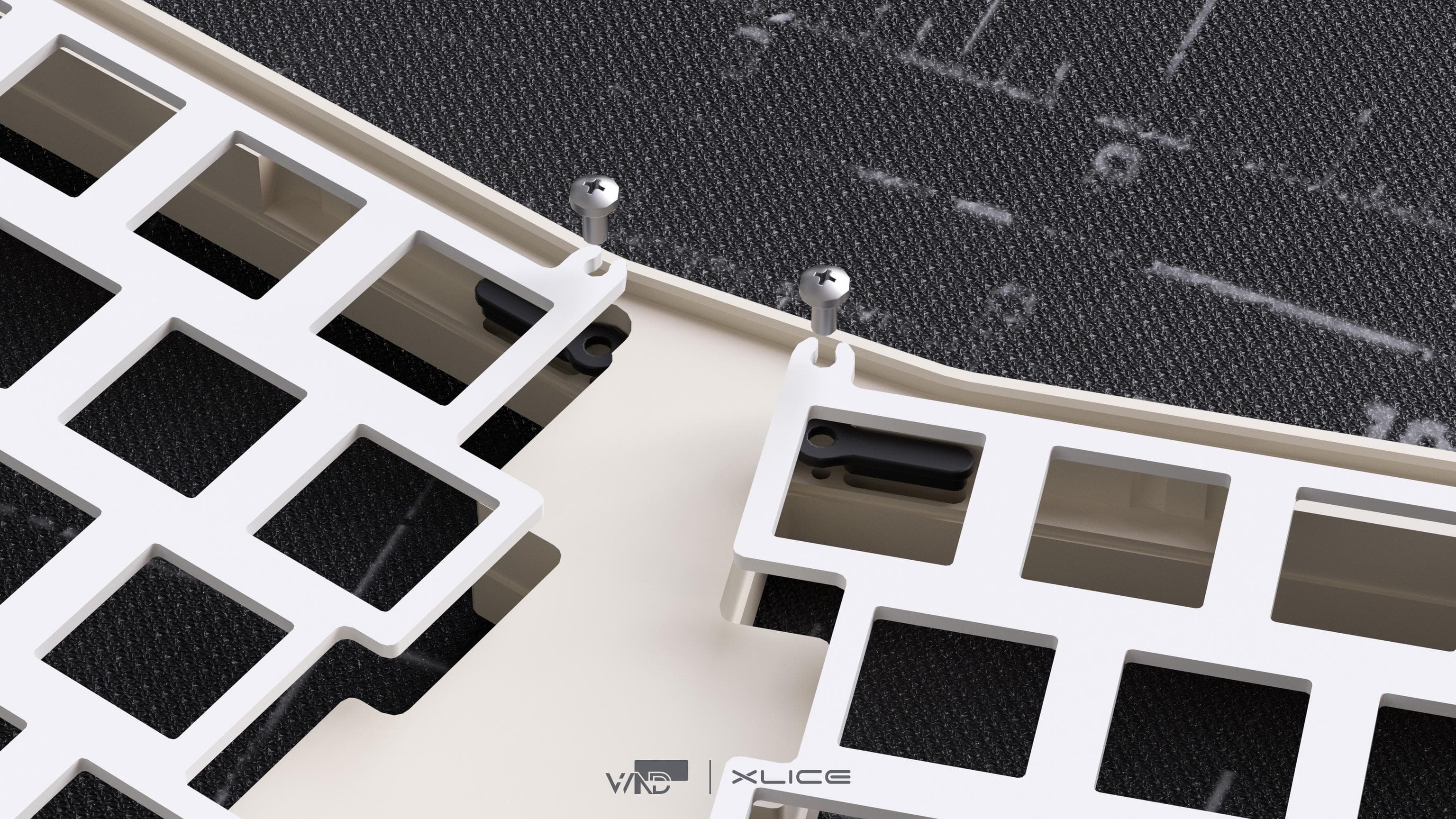

-Top mount

-layout
Provide 1.6mm wired hotswap pcb and 1.6mm wired soldered pcb.

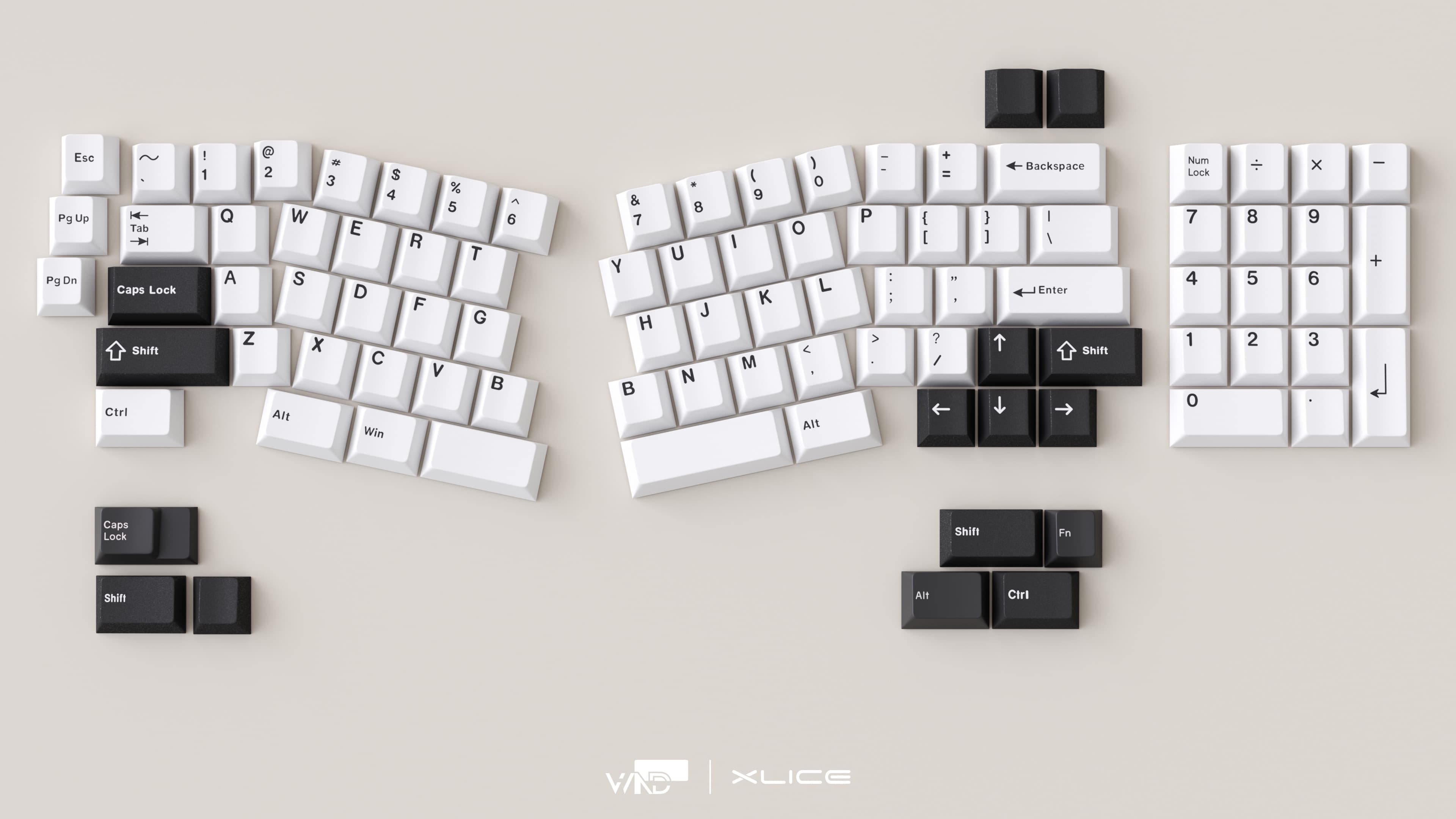

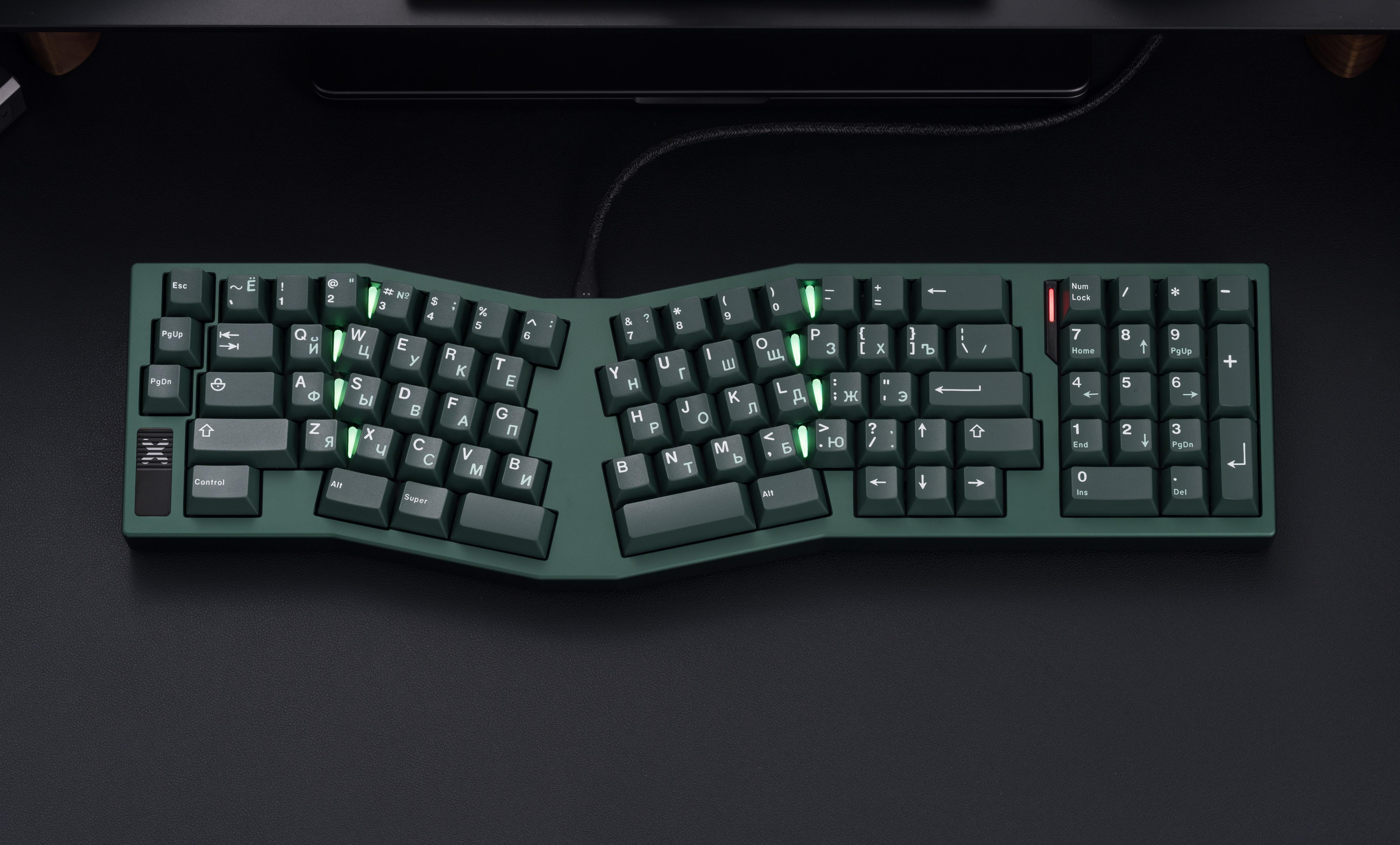

Normal:

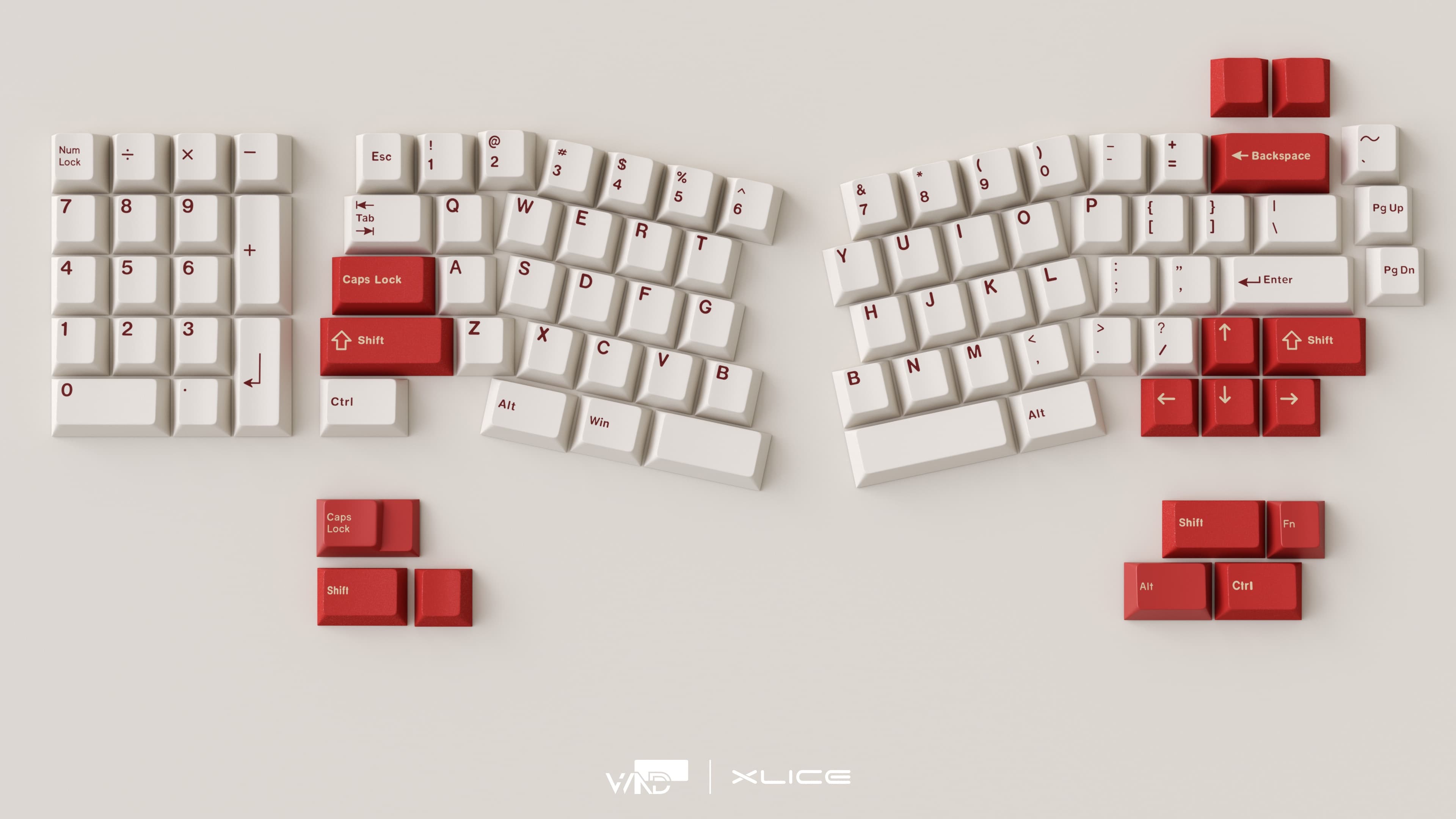

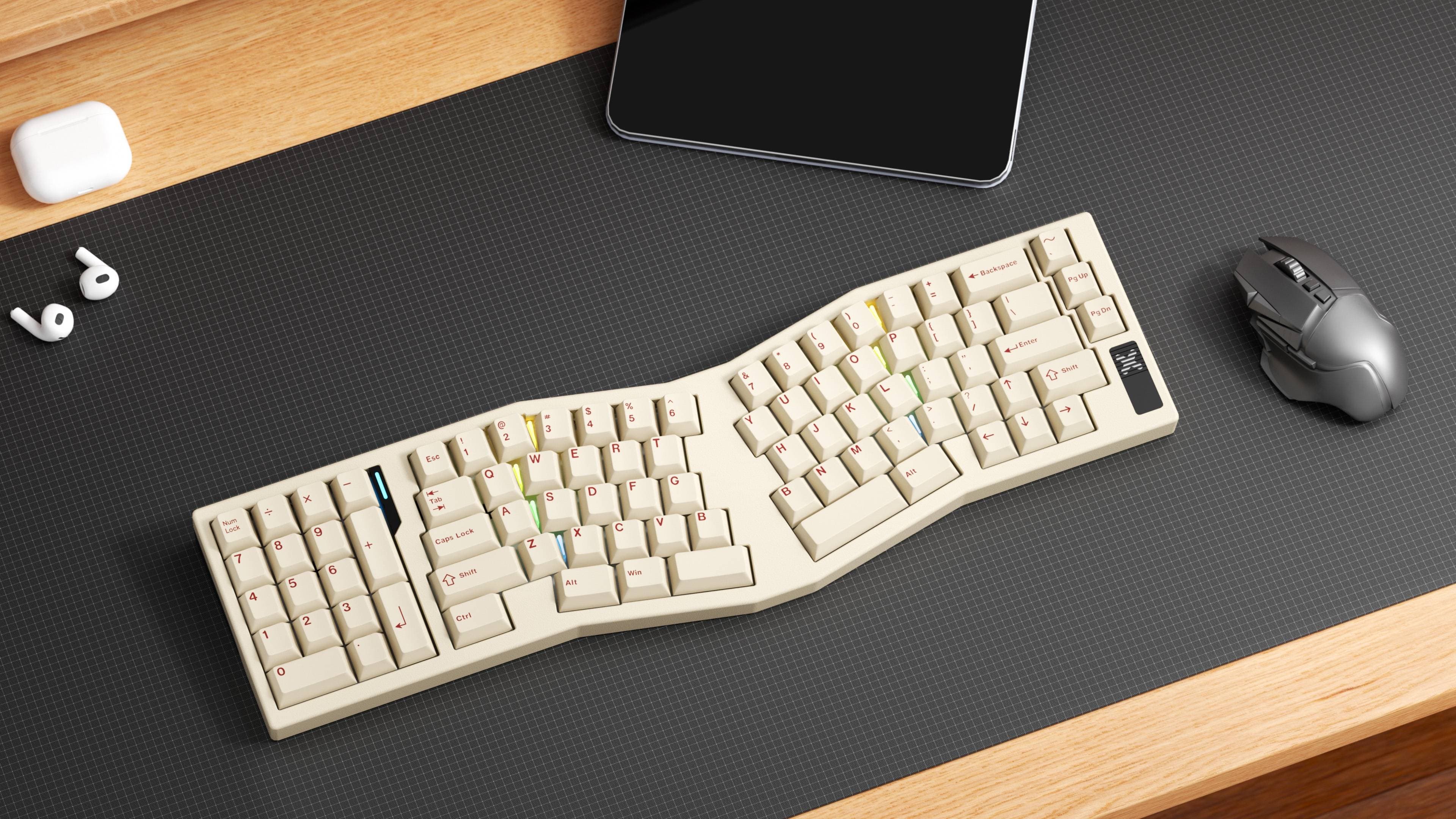

Southpaw:

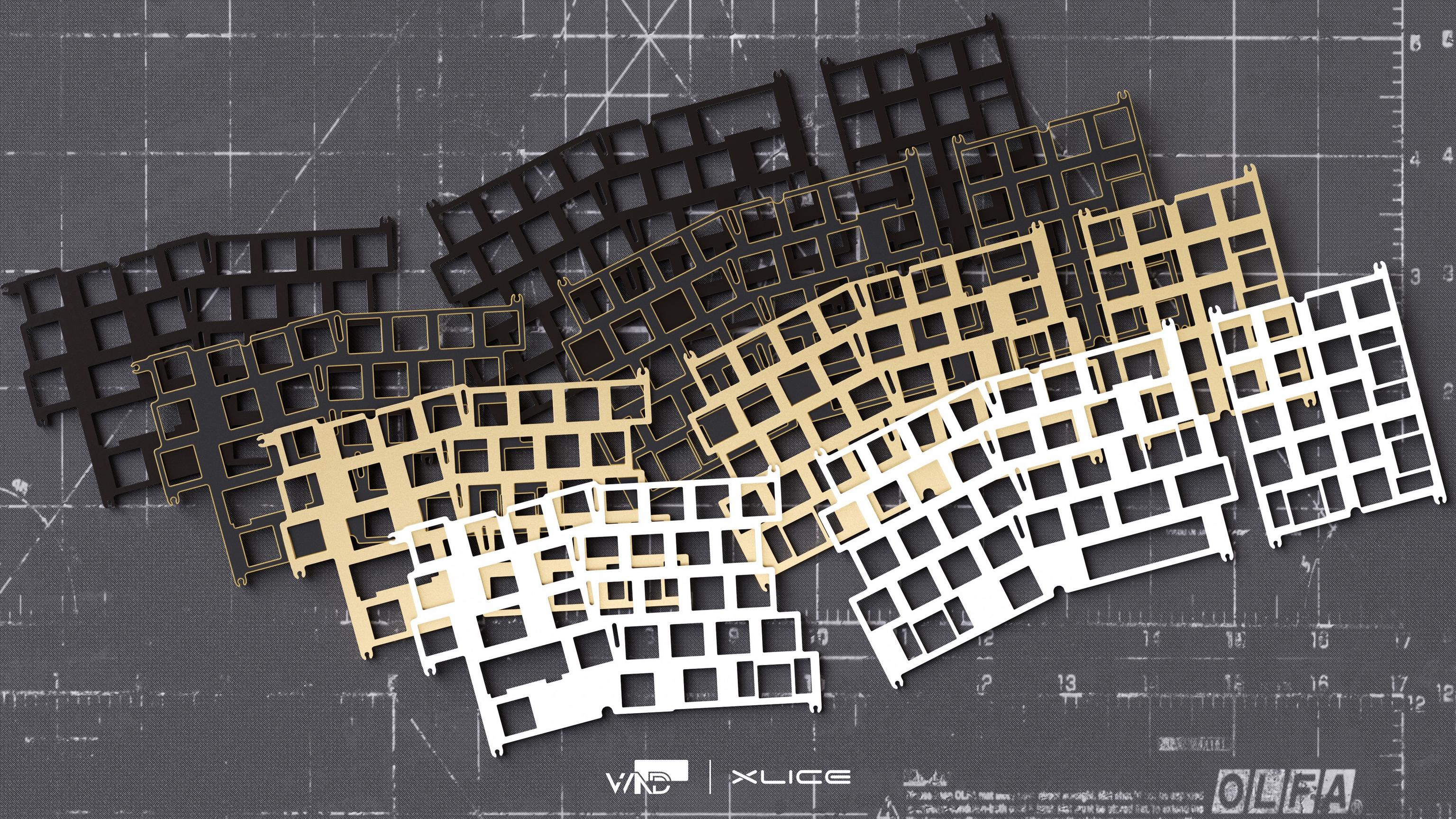

-plate
provide FR4,PP,alu,brass material

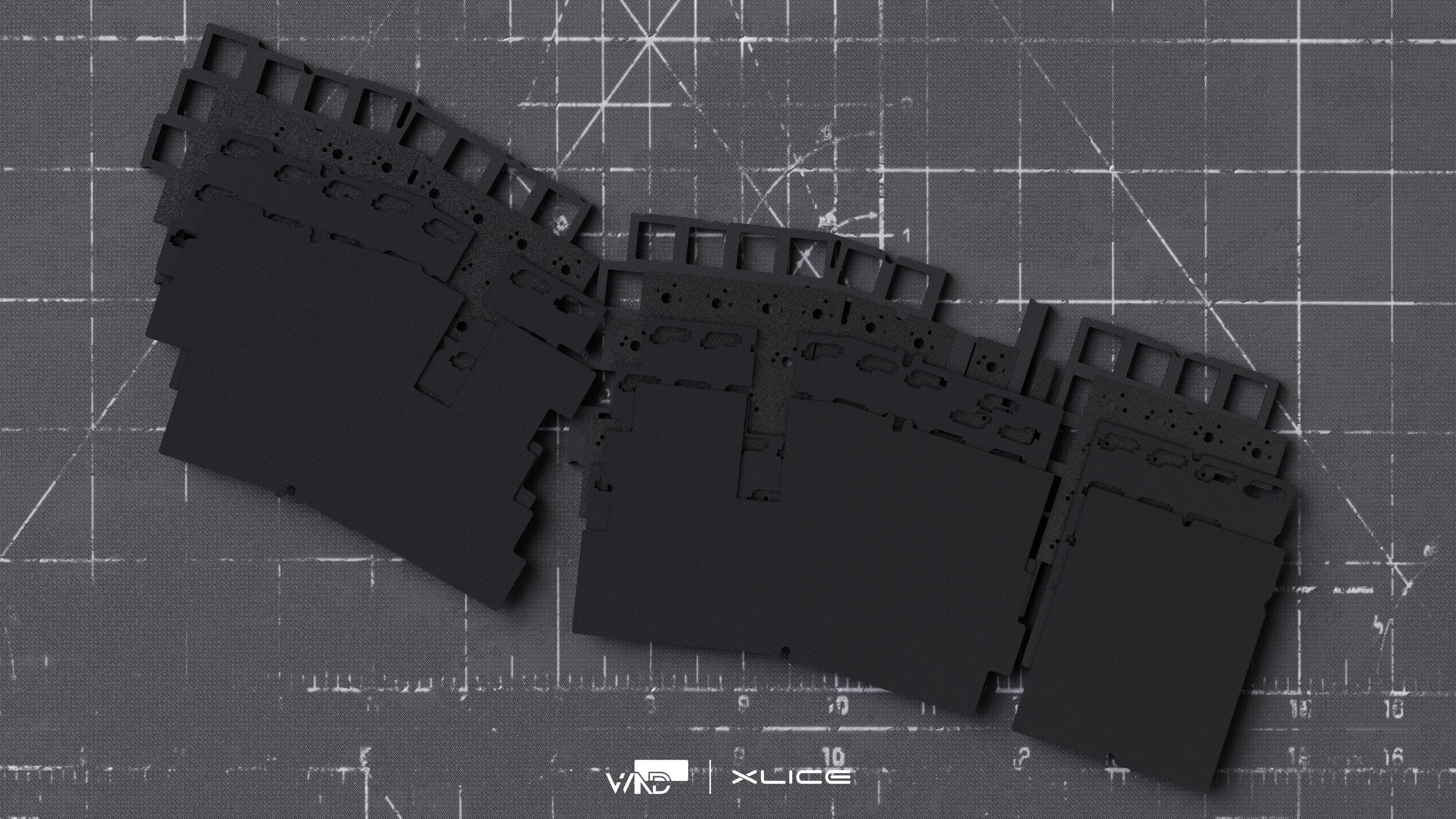

-foam kit

3.Specification
Size: 443.5*129.1*32.3mm
Typing angel:7°
Front height:16.9mm
Case Color:Ano red/Ano blue/Ano green/Ano Black/E-white/Spray-coated White
Case Material:6063alu
Weight Bar: brass/copper/black spray-coated black
PCB:1.6mm wired hotswap pcb or 1.6mm soldered pcb
Software:QMK-VIAL
Bottom Case: alu or copper or brass
Badge:mirrowed ss black pvd or titanium
Plate:1.5mm PP/FR4/brass/alu

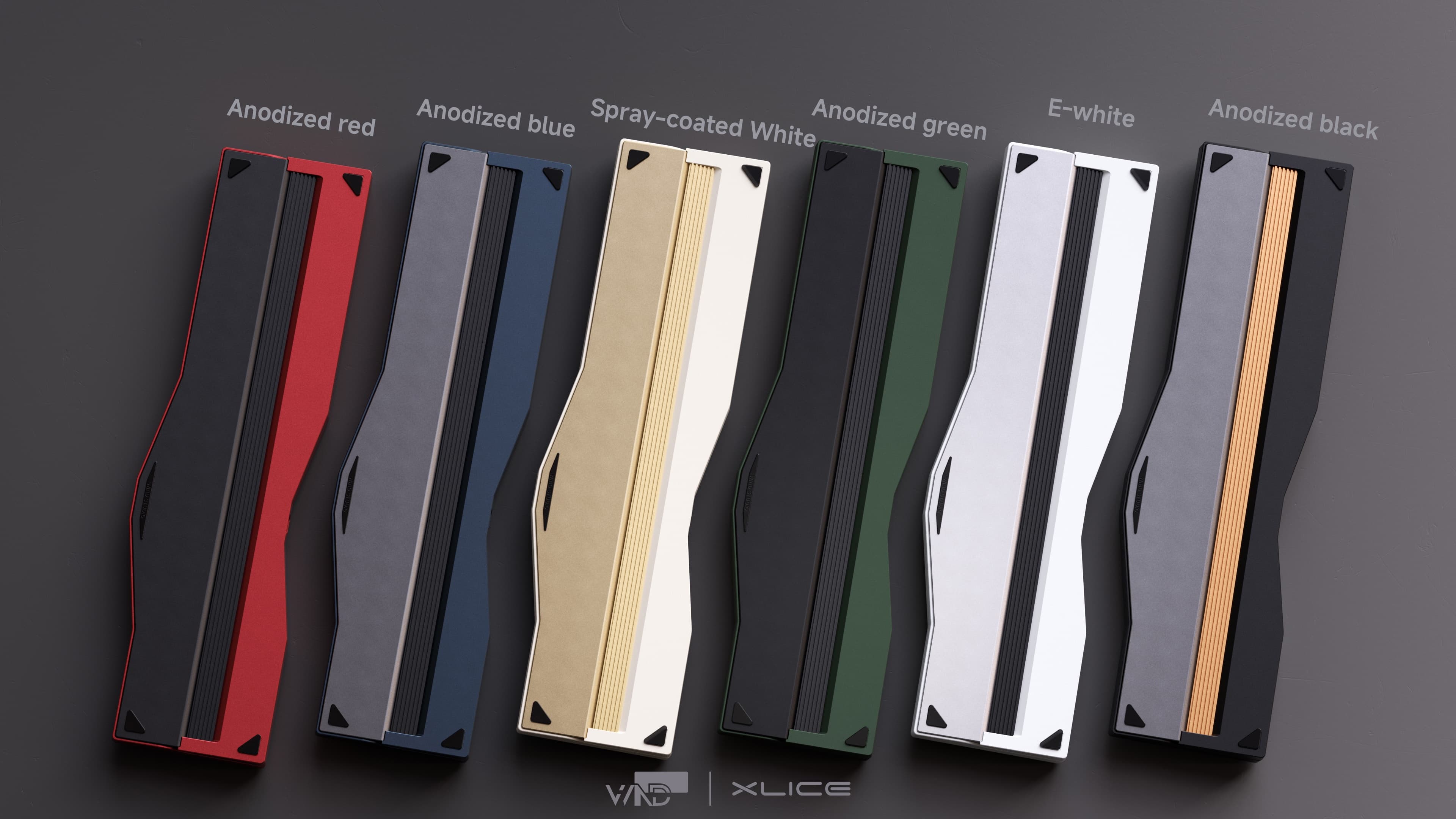

4.Case Color(default in alu bottom case)

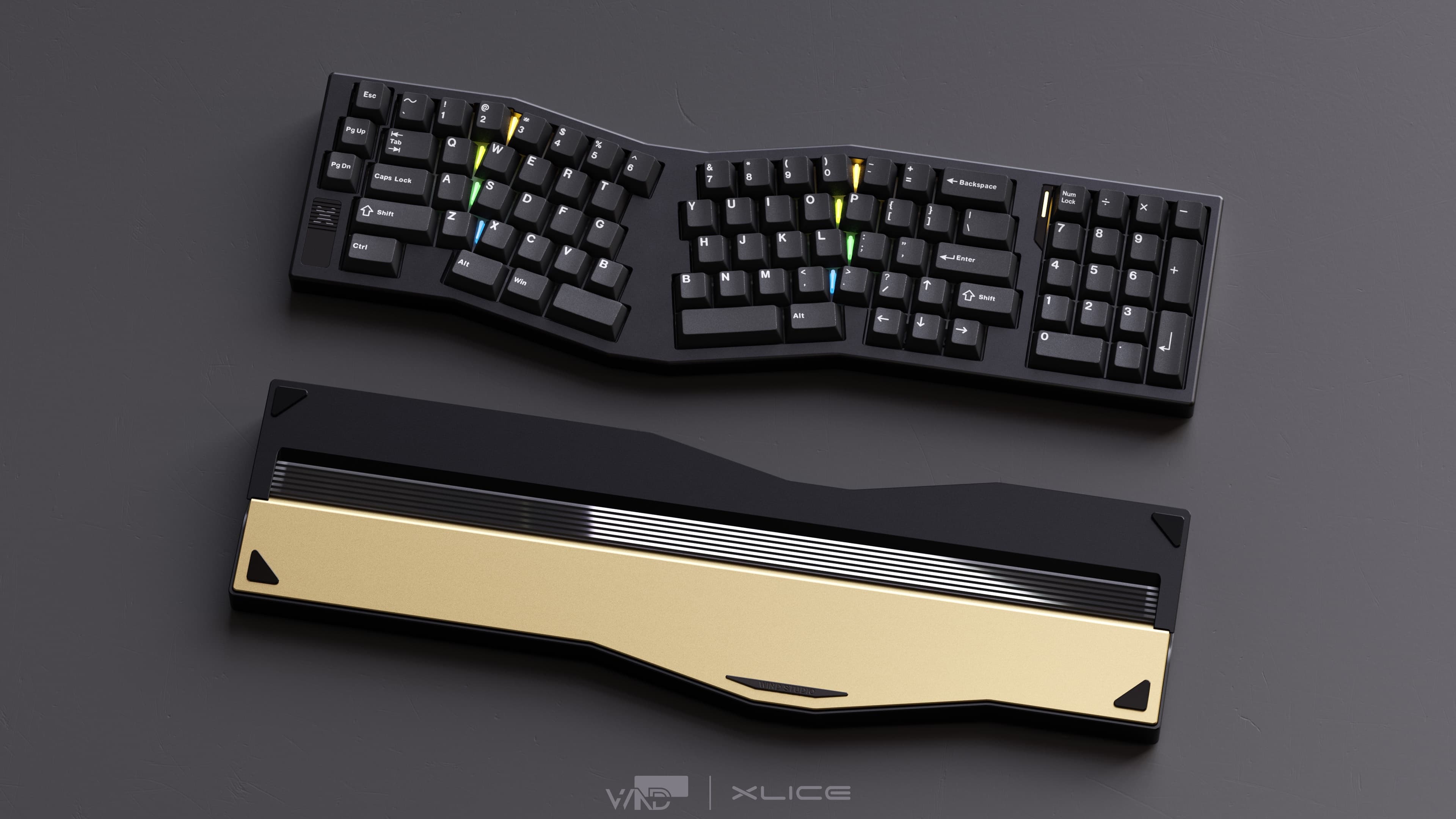

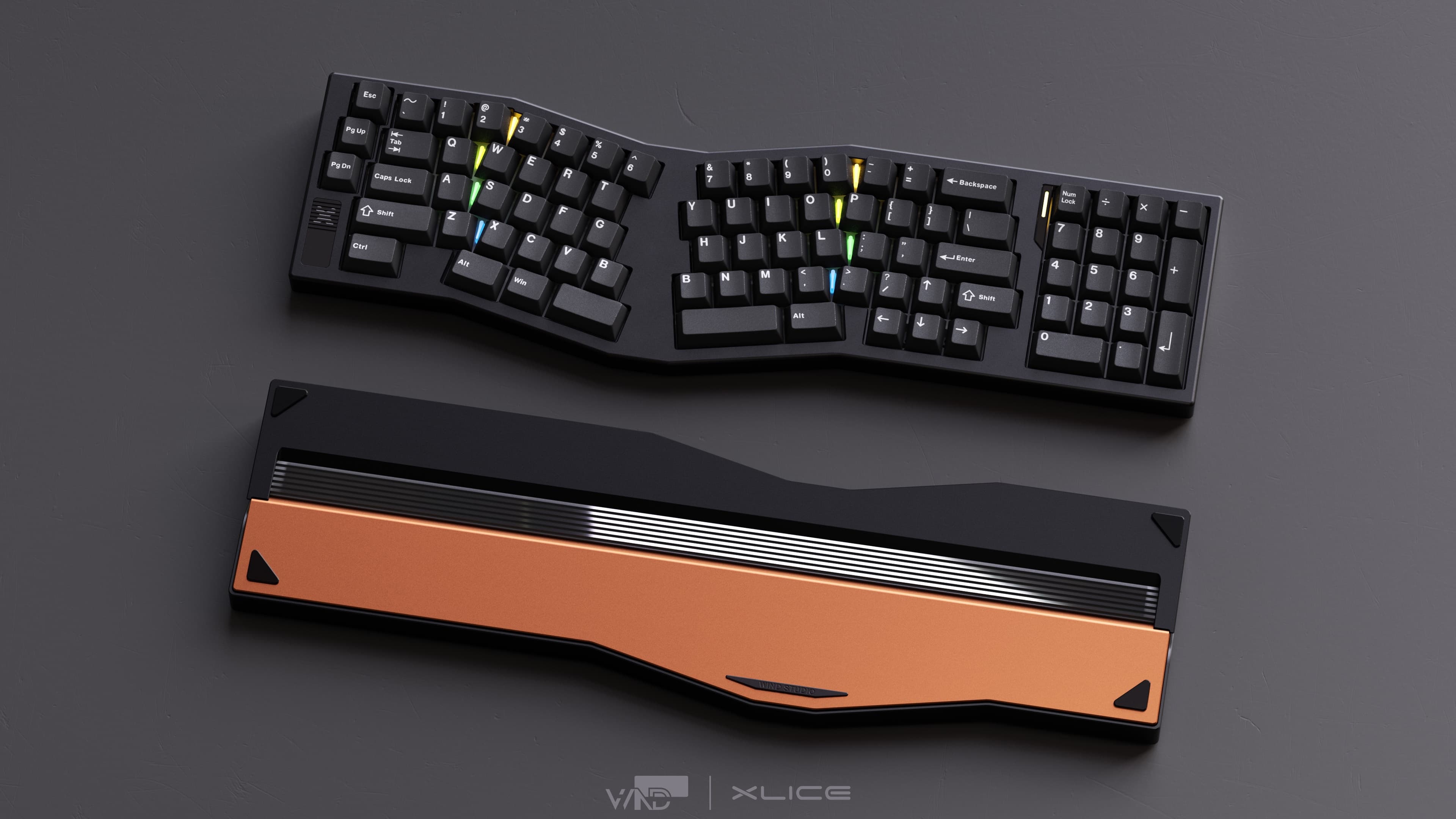

The bottom case can be upgraded to brass or copper.

weight bar:brass/copper/black spray-coated black

5.Group Buy information
Payment：on our vendor list,pls watch out our discord announcement
Price：around $300,determined on GB
GB date: estimate on July, determined on GB
Shipping time：about 4 months

The review video will be coming soon, welcome and join our discord!
