Wraith 60%

by kenny_25

$399.00

geekhackenriched

0 followers0 bookmarks0 comments

bykenny_25

Description

Hello, dear friends this is Kenny from GRIT，Today let me introduce a brand new design from our studio, A 60% HHKB layout keyboard - Wraith!

Last year, I had the idea to collaborate with Orangeko on designing a 7U HHKB Keyboard.
The design concept for the front visual of the Wraith 60% was inspired by the Tanto 60%.
My personal interpretation of the Tanto 60%'s lightbar was to optimize the visual proportion of the 7U HHKB layout on both sides by using components made from different materials.
So we brought this concept to the Wraith 60%.

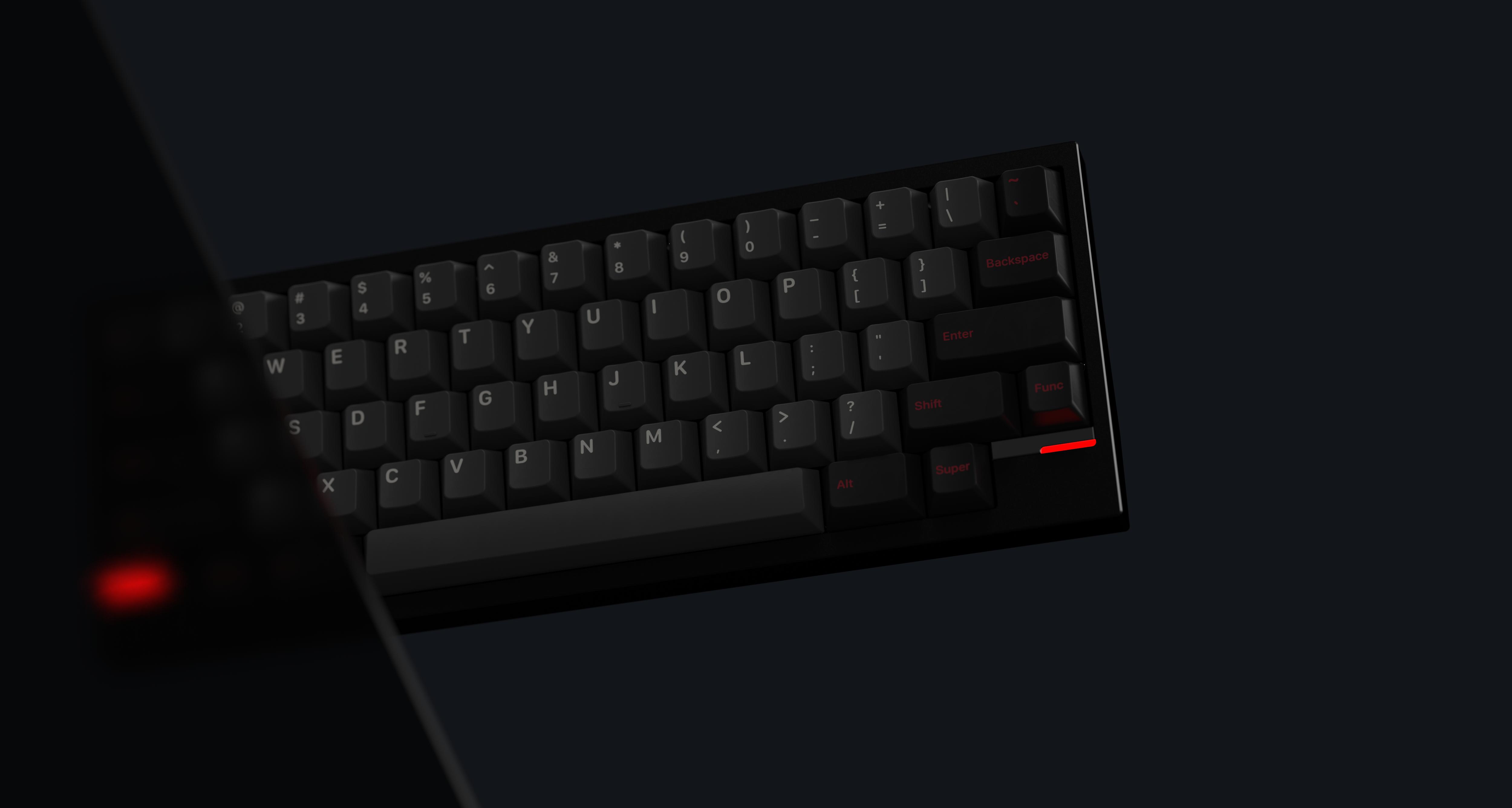

Initially, we wanted to accentuate the front visual with tritium tubes and stainless steel mirrored PVD parts.
However, due to the unique shape of the tritium tubes and other alternative glowing glass materials, it was difficult to achieve a refined effect within the limited space.

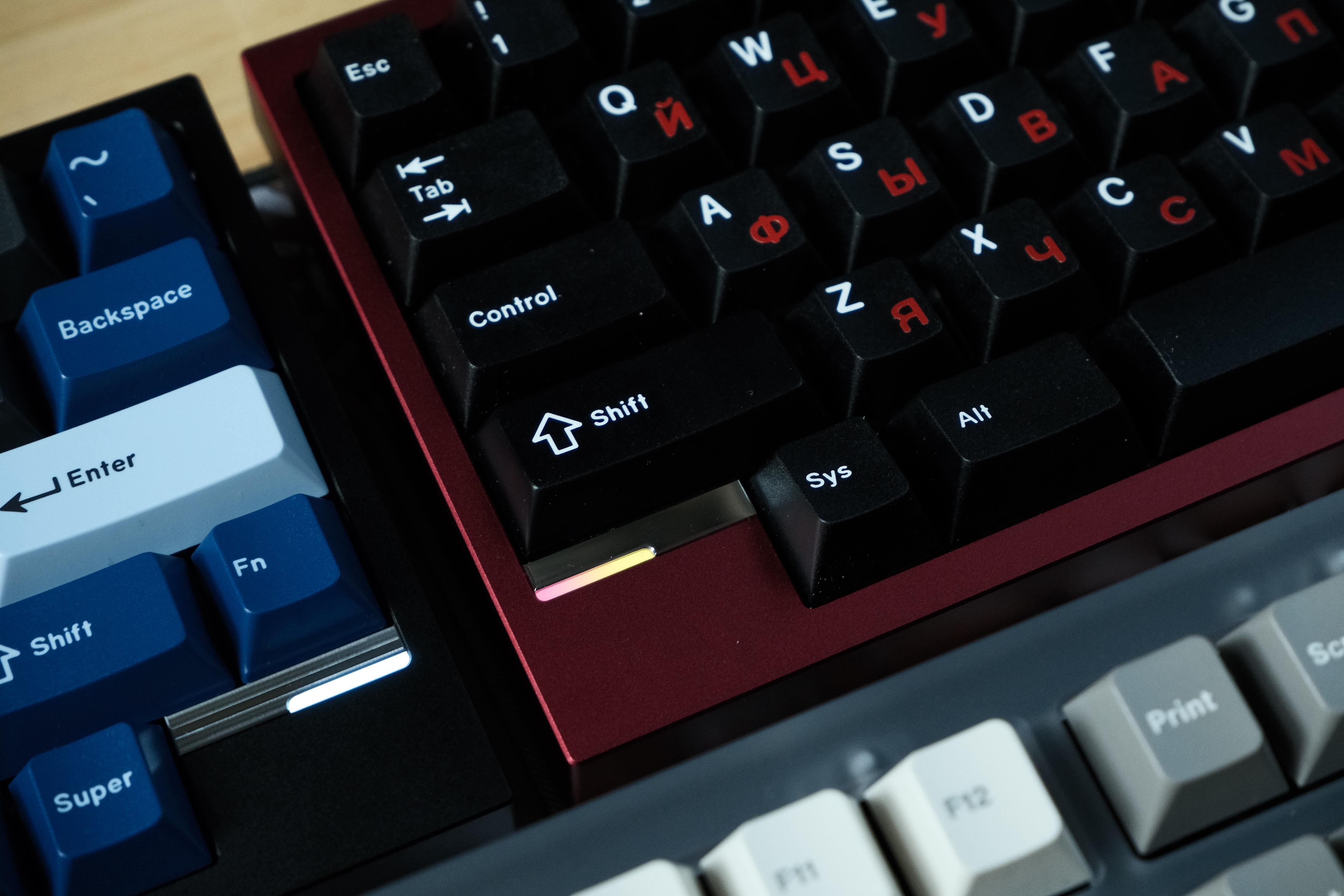

In the end, we decided to go with the more traditional silicone light bars, paired with the stainless steel mirrored PVD to create the visual highlight on the front.

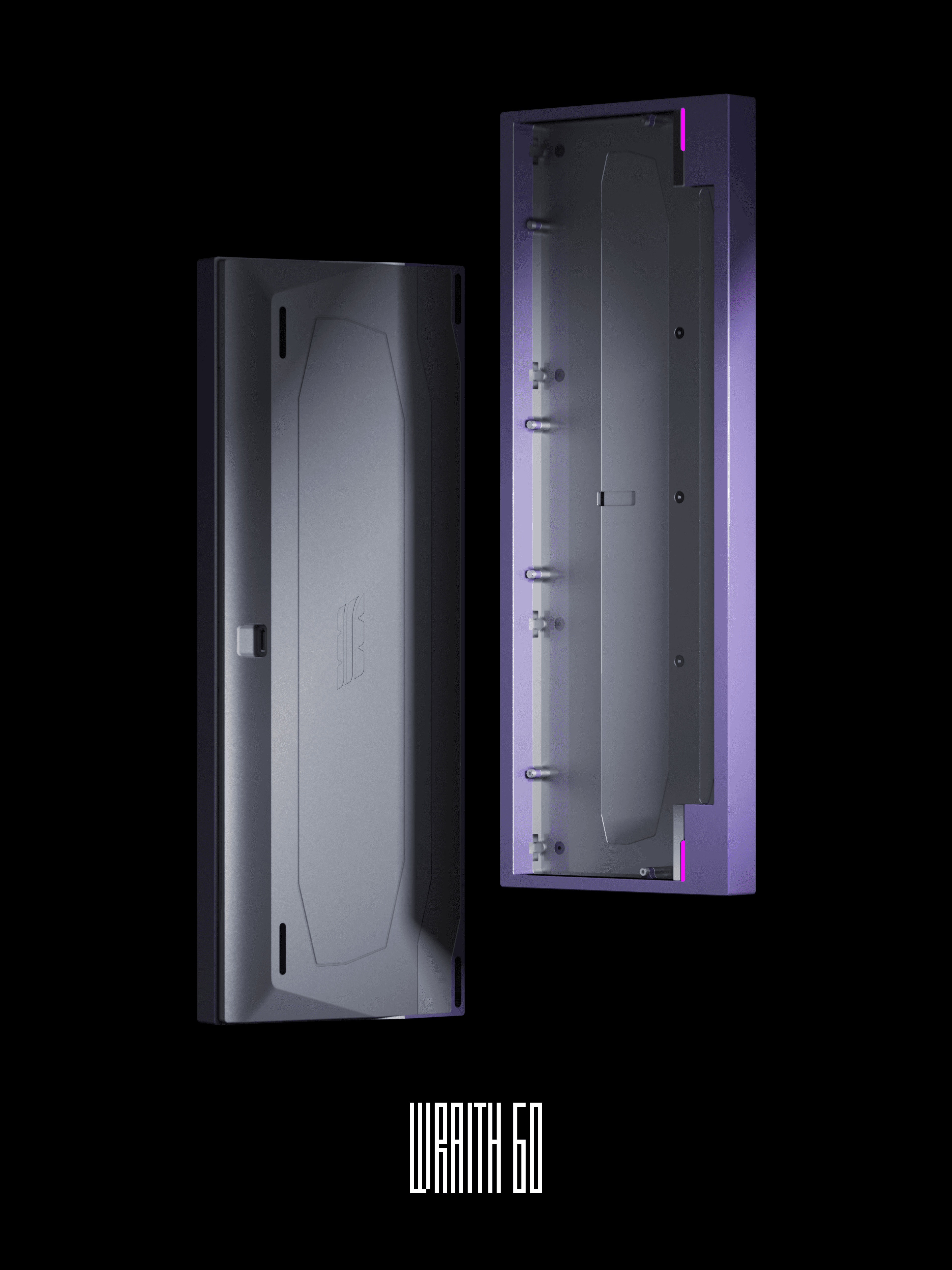

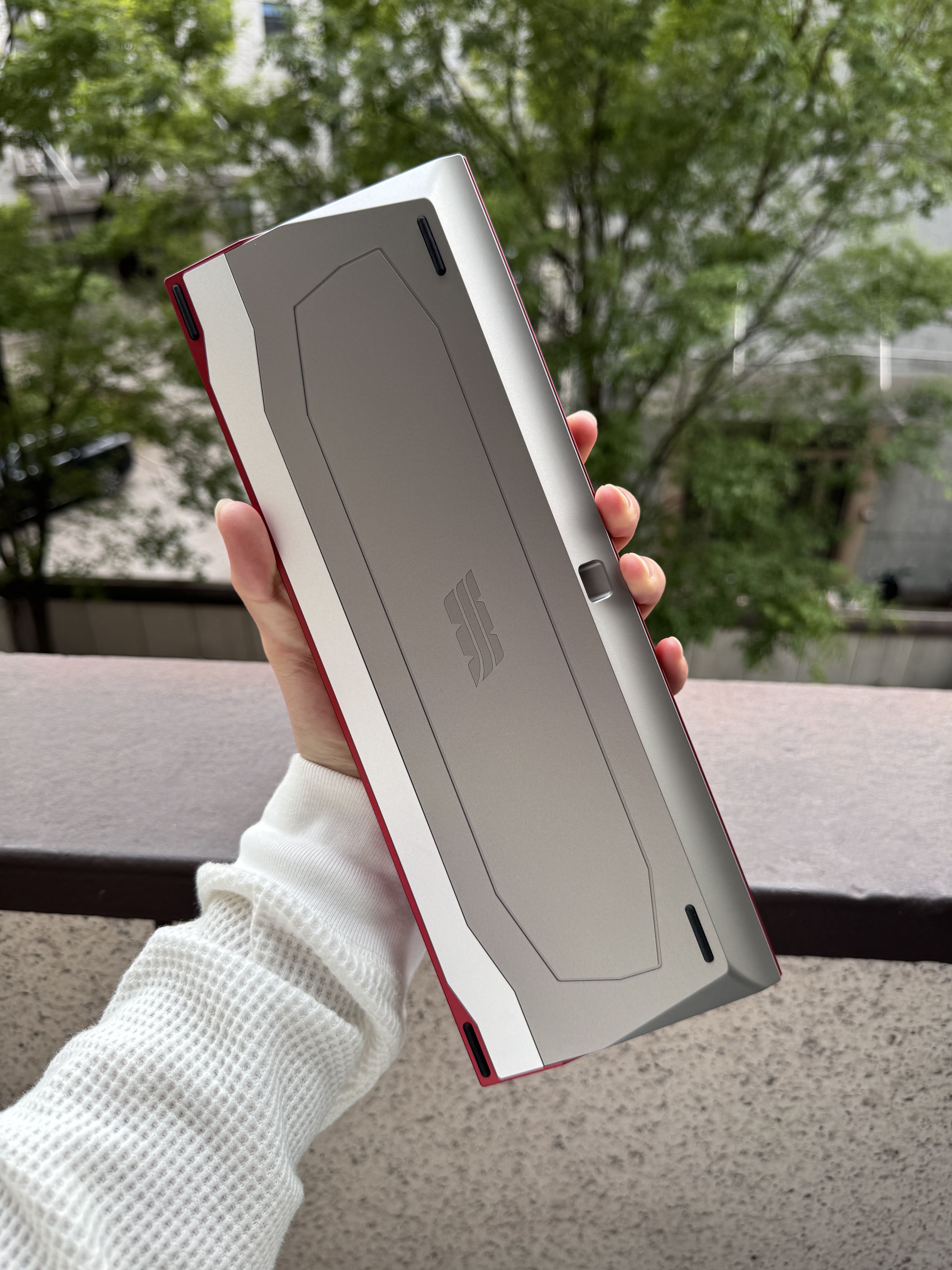

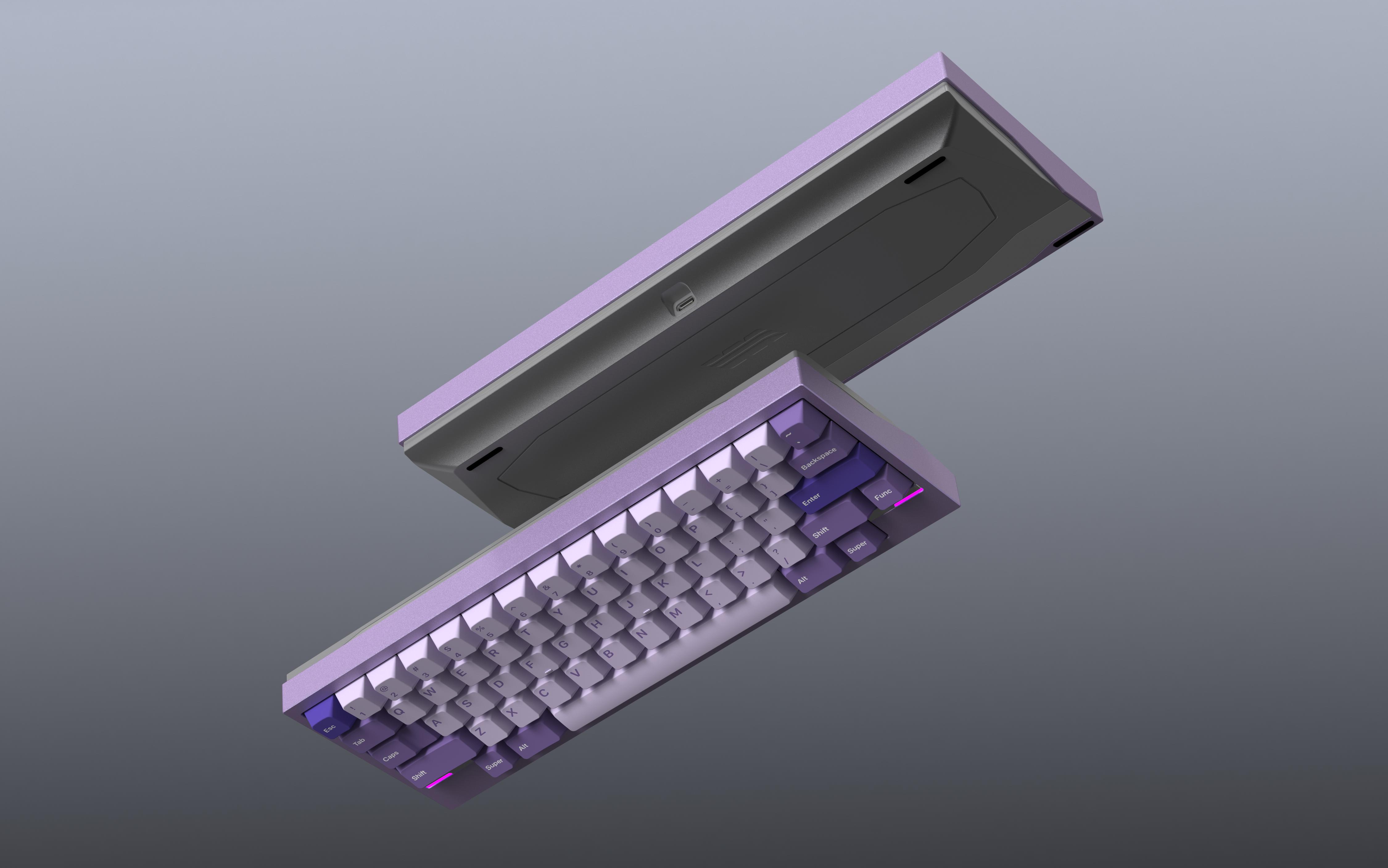

The logo on the back is the abbreviation for Wraith.
The overall design concept was inspired by mecha and race cars, so the outer lines are sharp and rigid, while the inner lines referenced the new Formula 1 logo, which using curves to express speed.
The original intention behind the design was to achieve a relatively light appearance through the use of angular lines and curved surfaces, while maintaining a solid and sturdy framework and material choice.

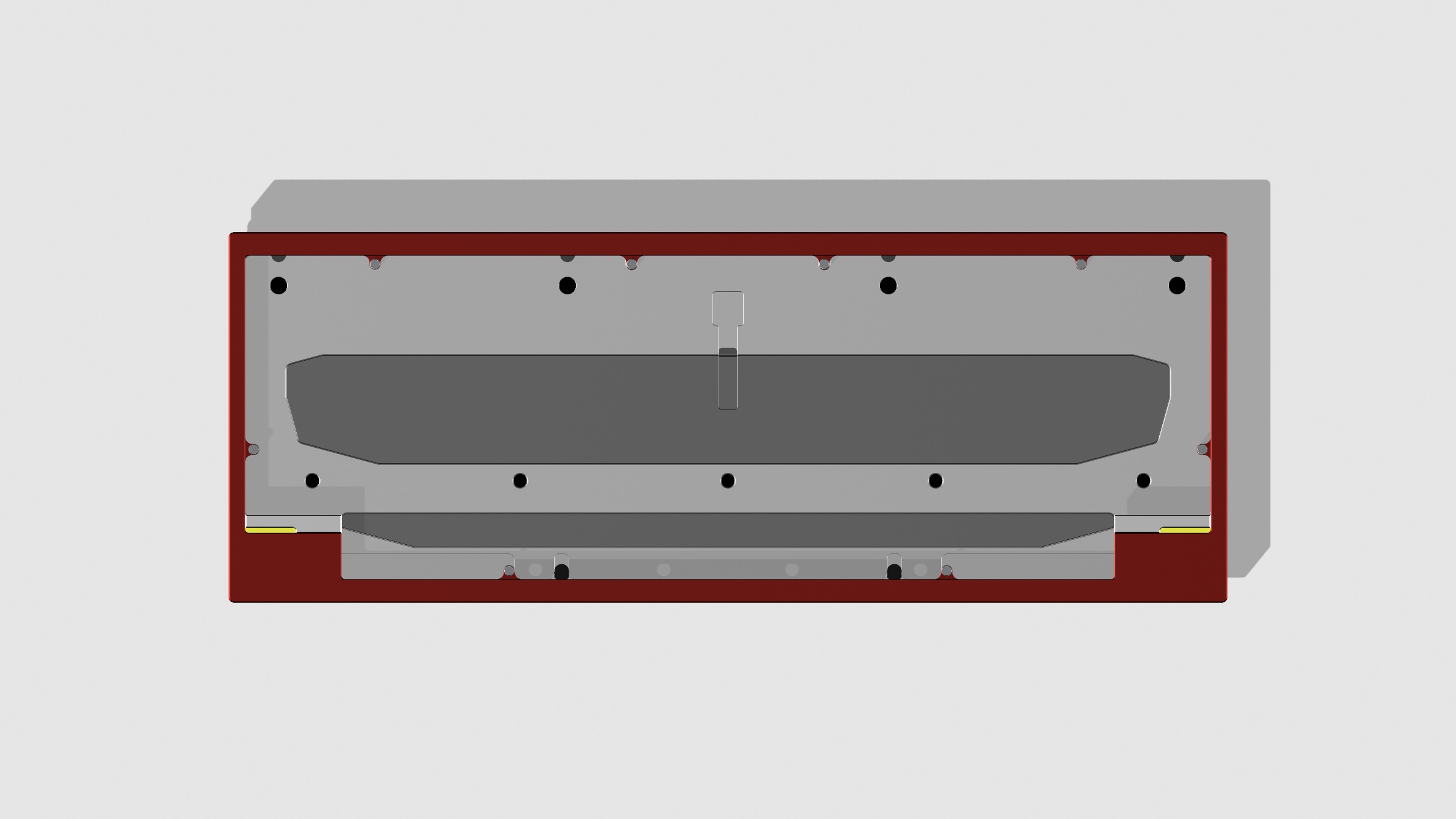

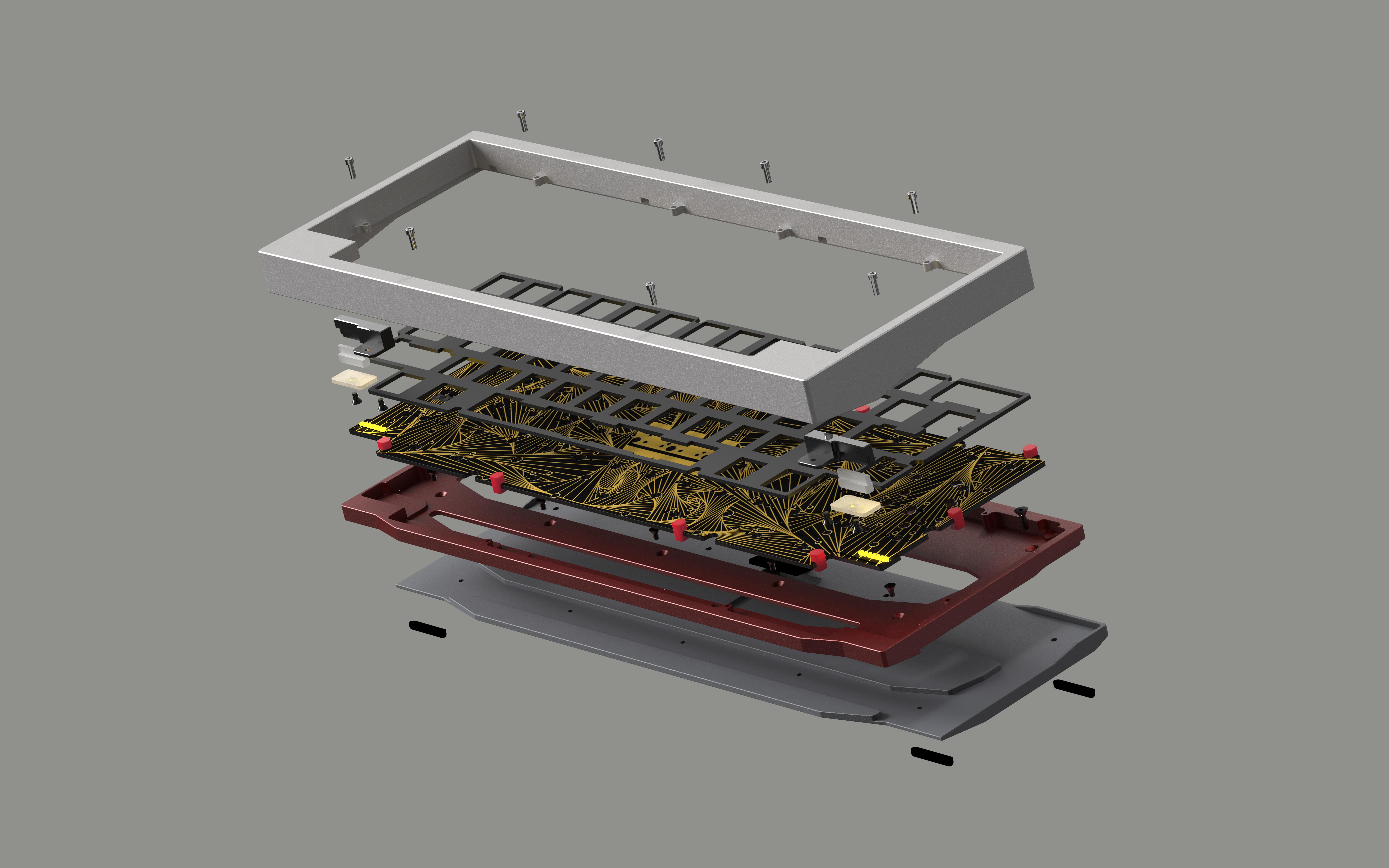

We used a whole piece of stainless steel as bottom case, which is embedded within the midframe to ensure both styling and structure feels more solid.

Basic Information

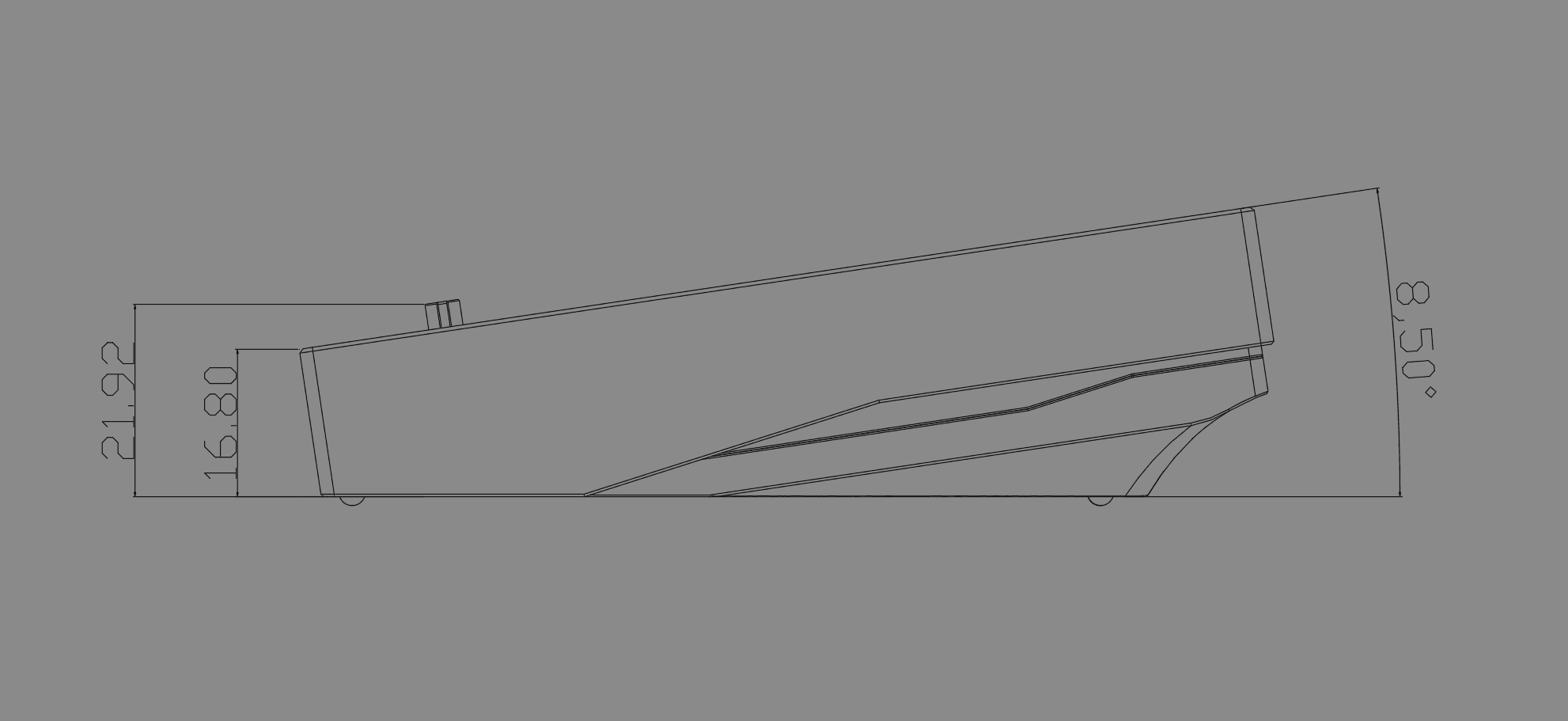

Angle: 8.5°
Front Height: 16.8mm
EKH: 21.73mm
Mounting: PCB Gasket Mount (plateless on solder only)
PCB: 1.6mm Black core Hotswap PCB *1 Solder PCB *1 (Yes 2 in total, 1 of each)
Manufacturing: DDS (Dadesin)
(The Keyboard kit only includes 1 plate. The plate files will be share after GB closed, Highly recommanded you build in Plateless with the gasket mount based on the solder PCB.)

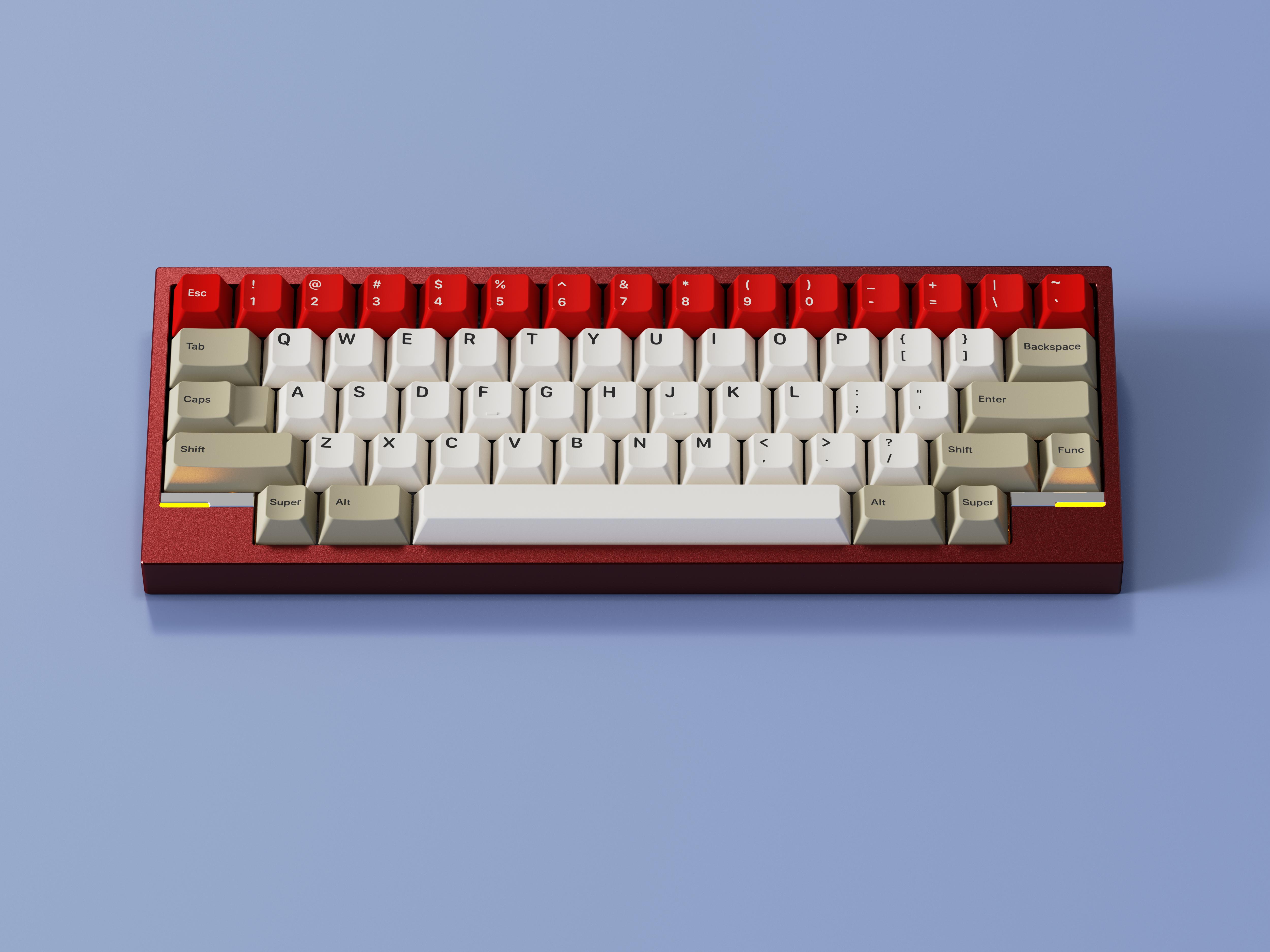

Colorways:
This time, we have 9 different color combinations, choose your favorite that best matches your keyset.

Anodized Deep Red Top Case, Anodized Silver Midframe

Anodized Blue Top Case, Anodized Silver Midframe

Anodized Lilac Top Case, Anodized Silver Midframe

Anodized Black Top Case, Anodized Deep Red Midframe

Anodized Black Top Case, Anodized Silver Midframe

Anodized Gunmetal Grey Top Case, Anodized Silver Midframe

Anodized Silver Top Case, Anodized Deep Red Midframe

Anodized Silver Top Case, Anodized Blue Midframe

Anodized Silver Top Case, Anodized Silver Midframe

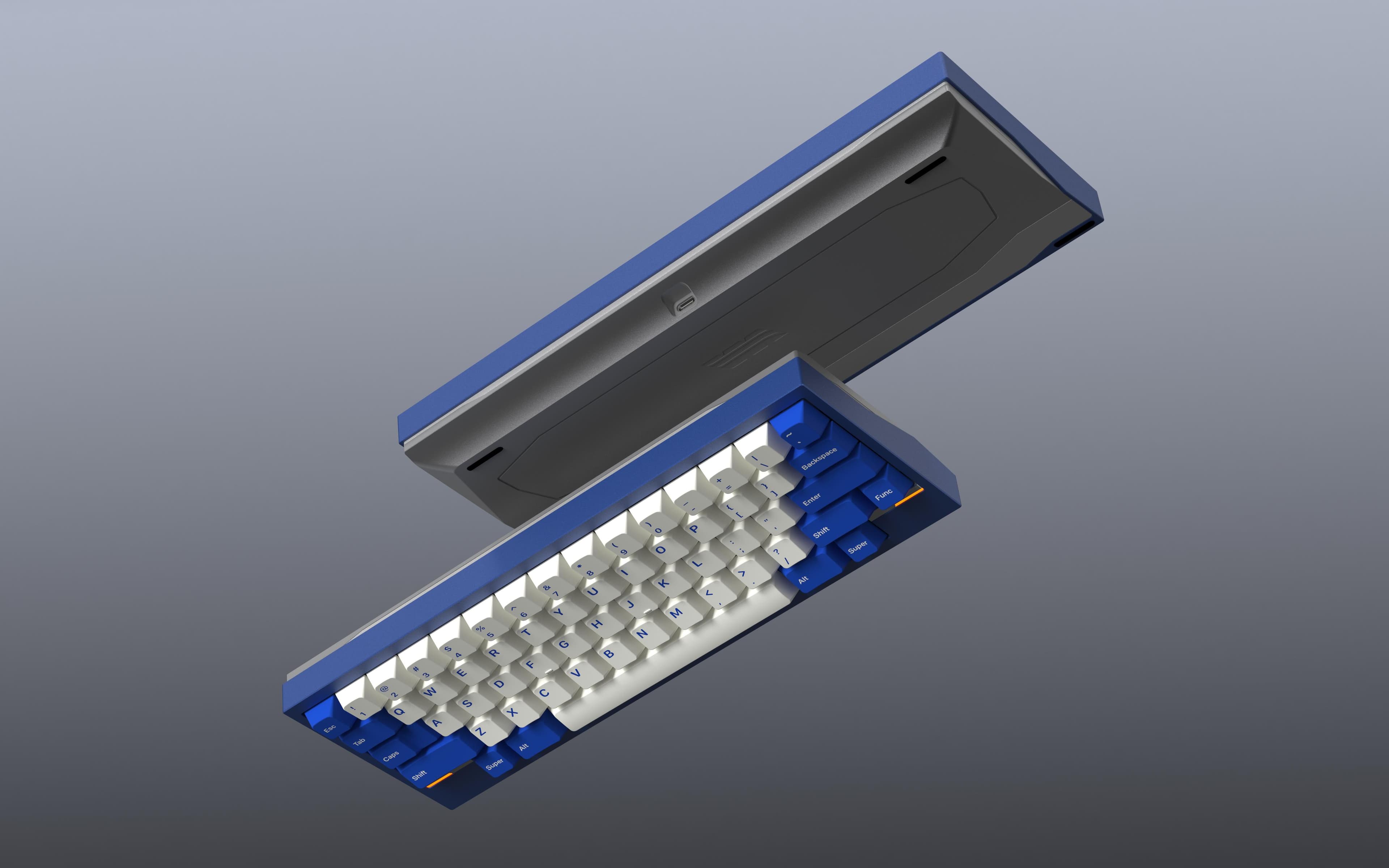

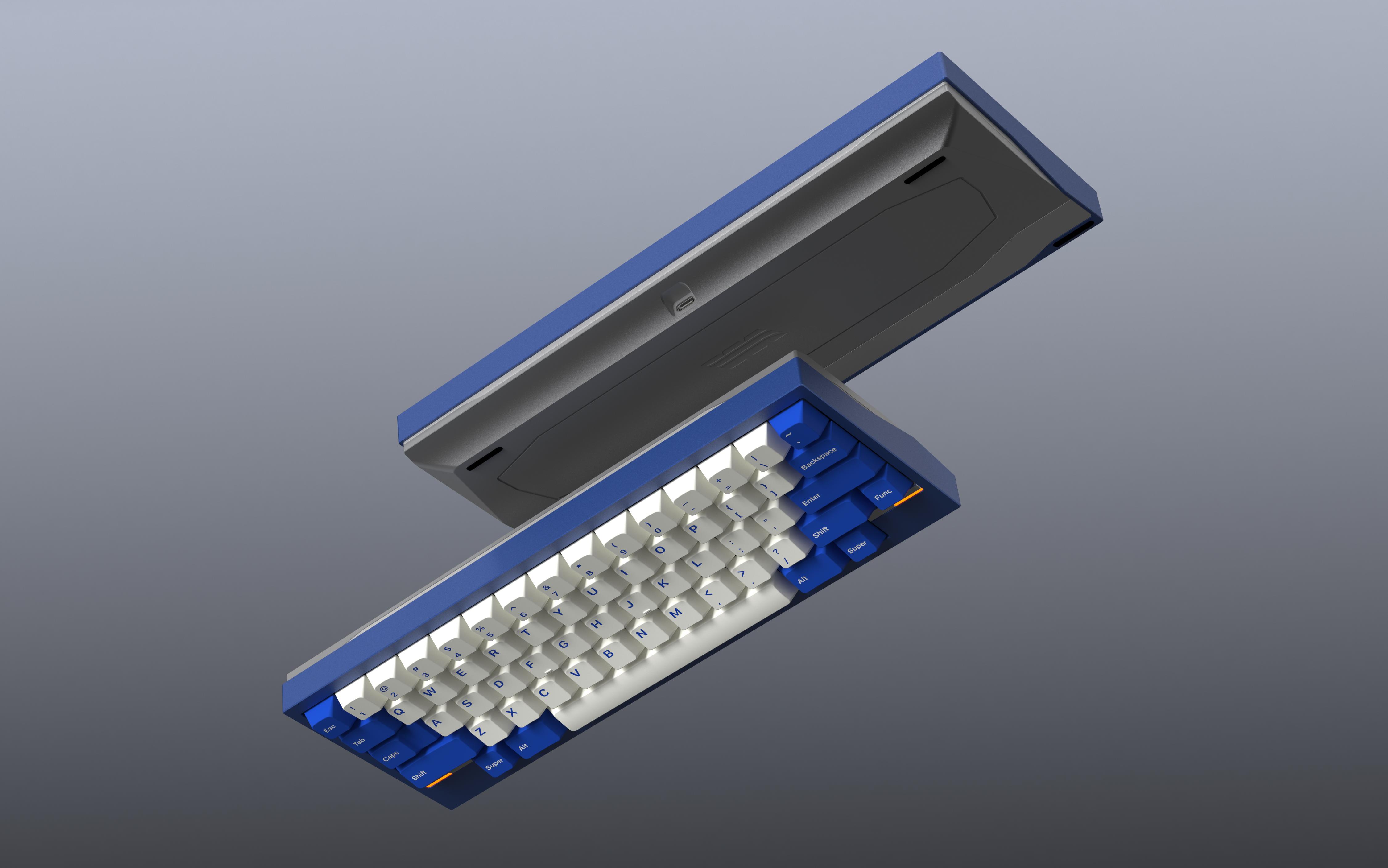

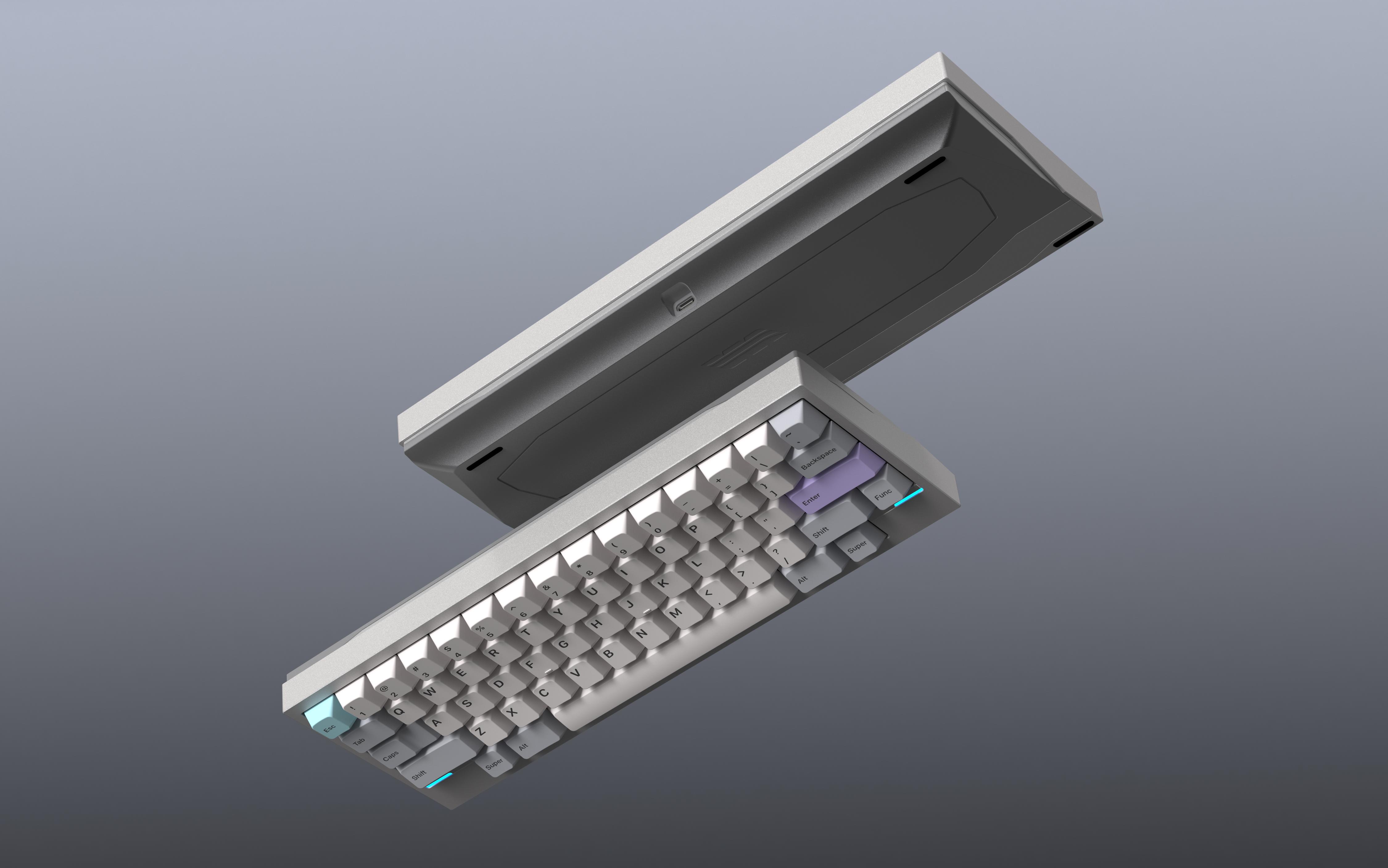

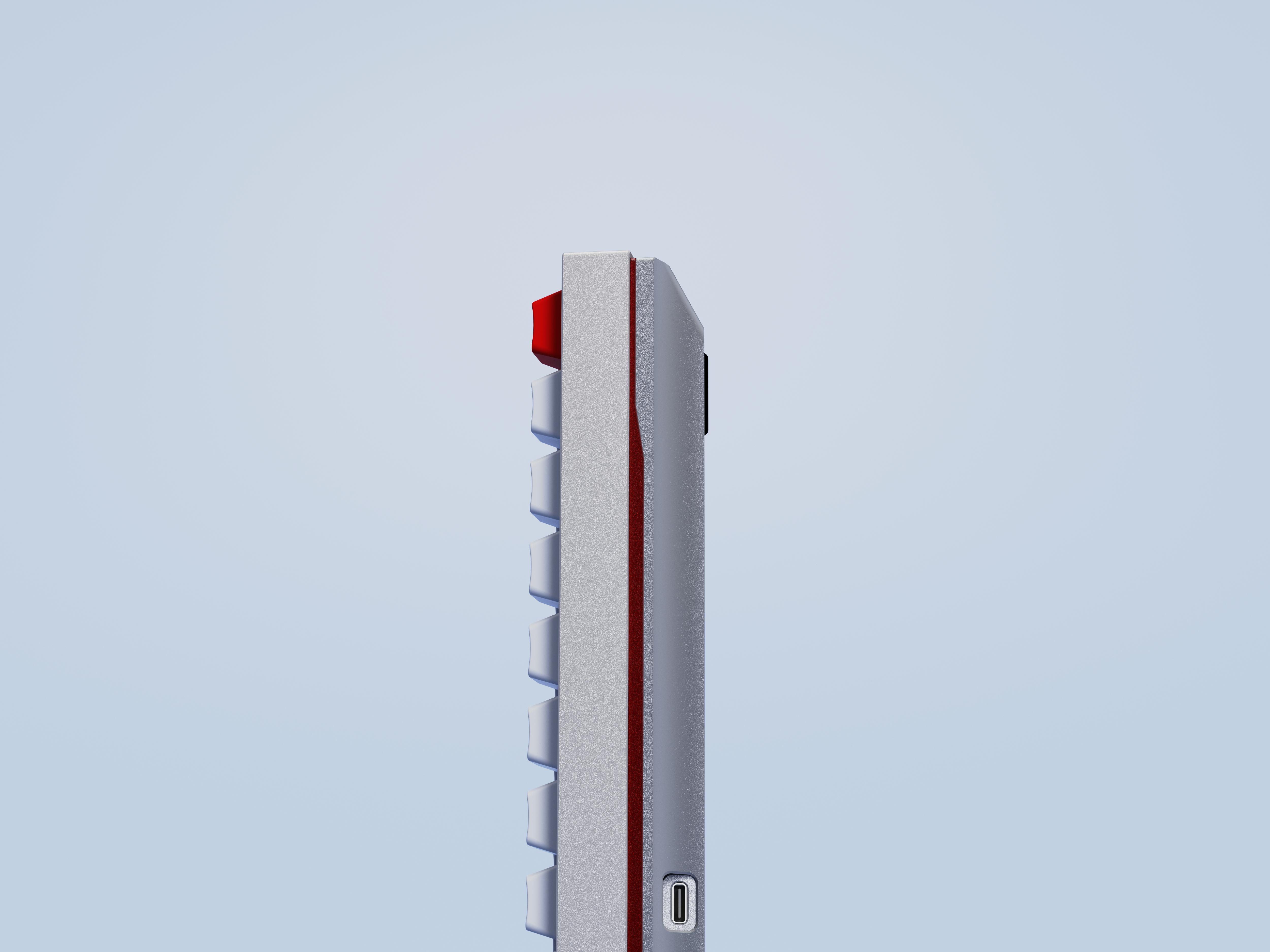

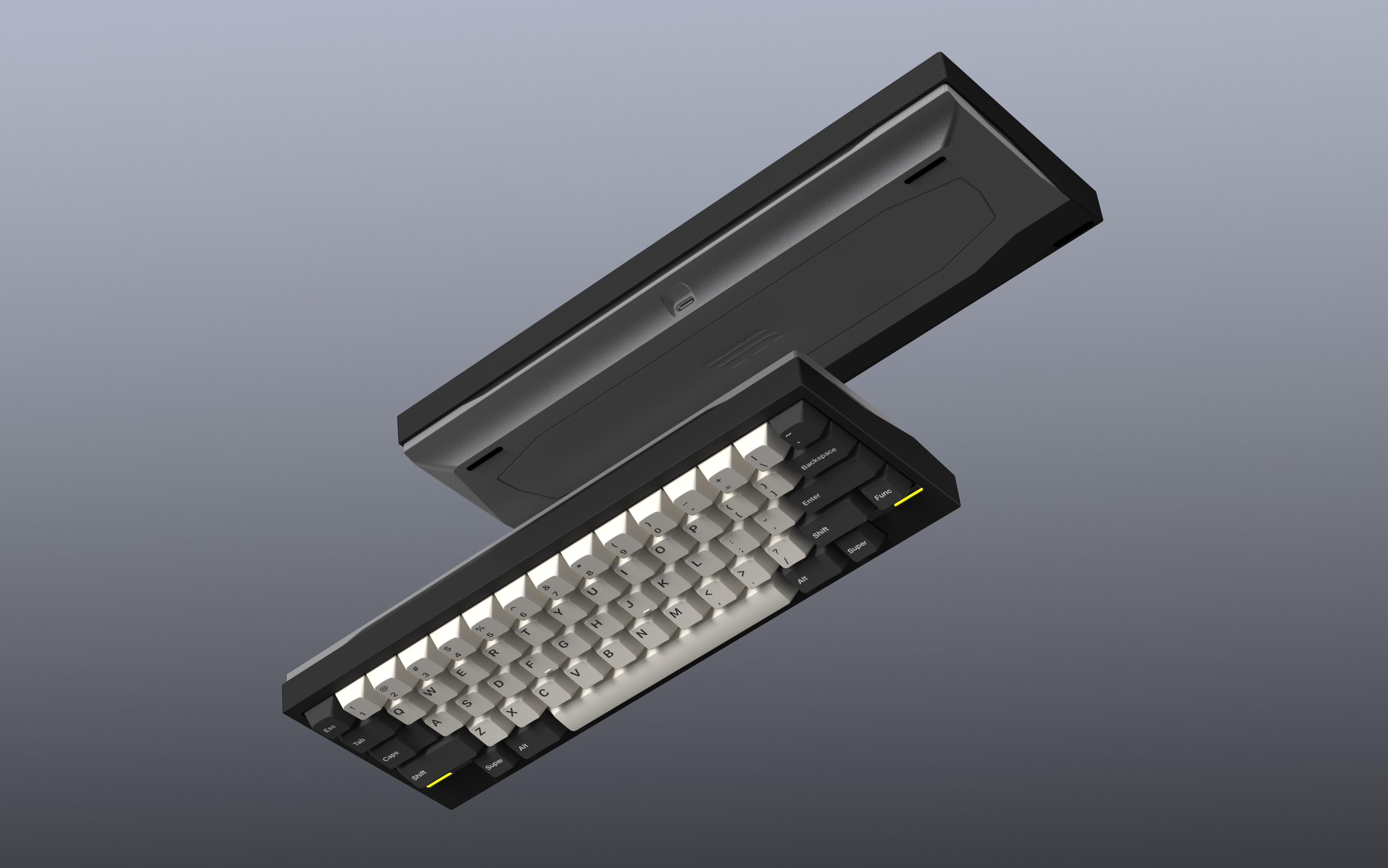

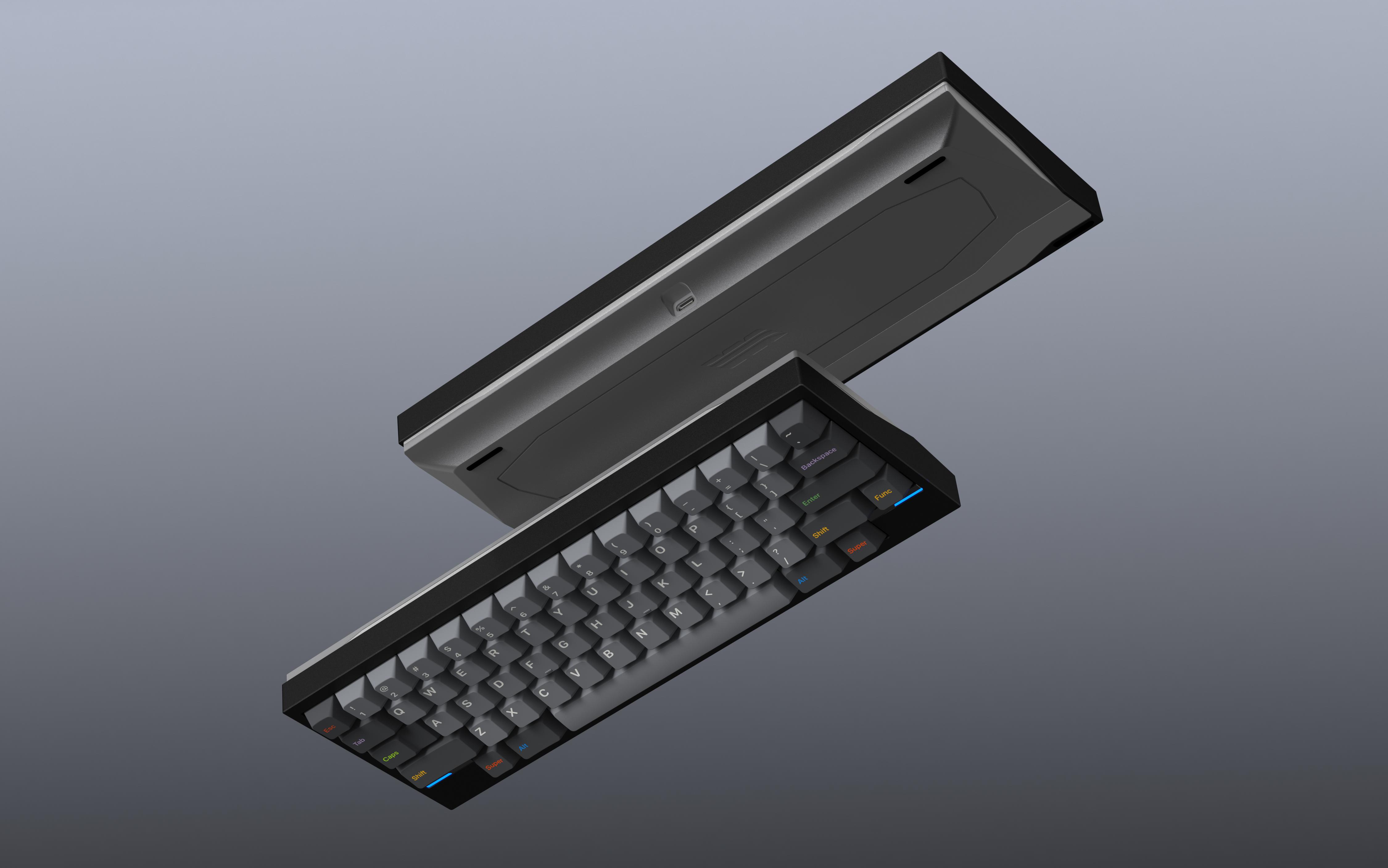

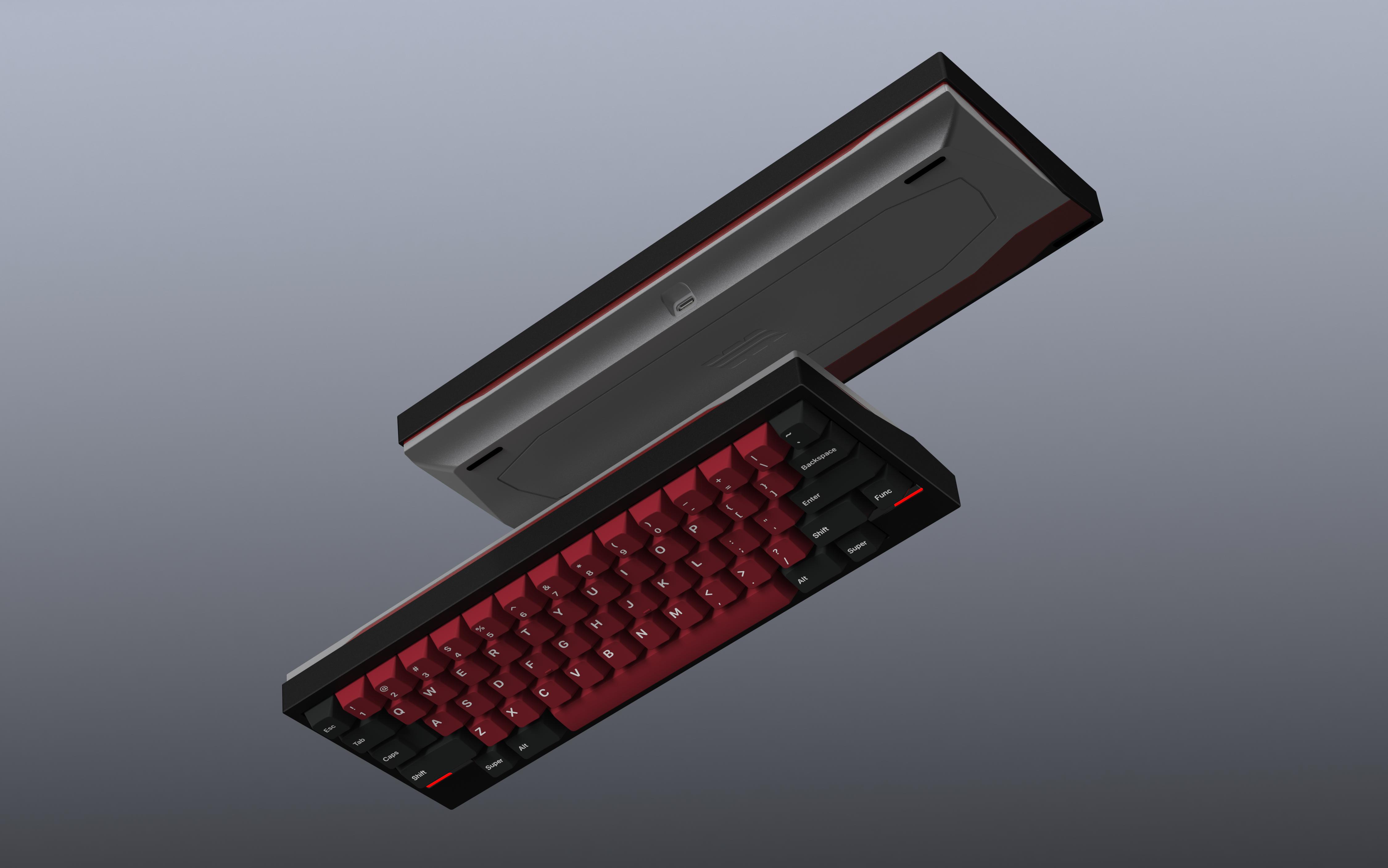

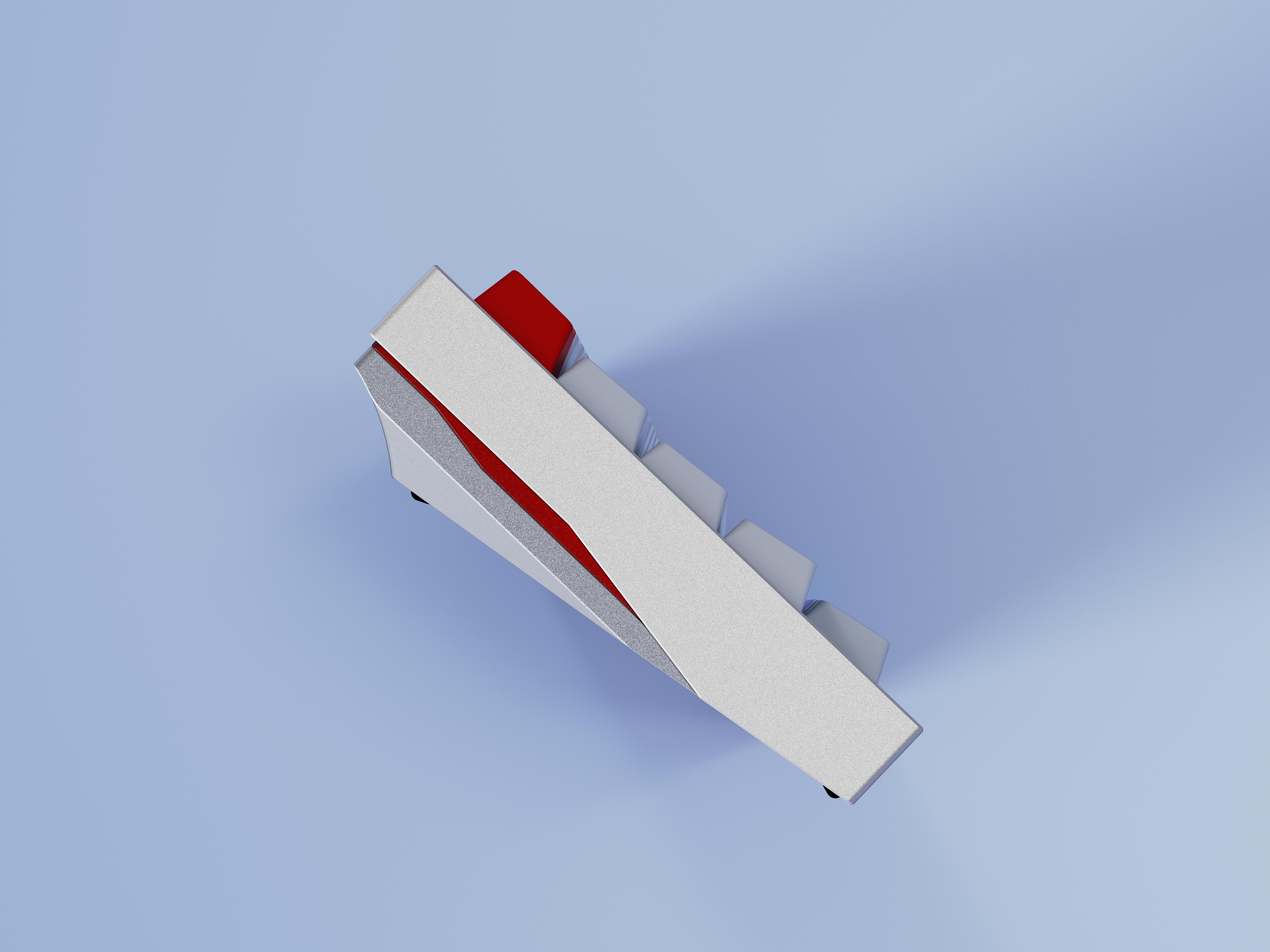

*All the images above are renders. The colors are for reference only, and the actual product may differ.

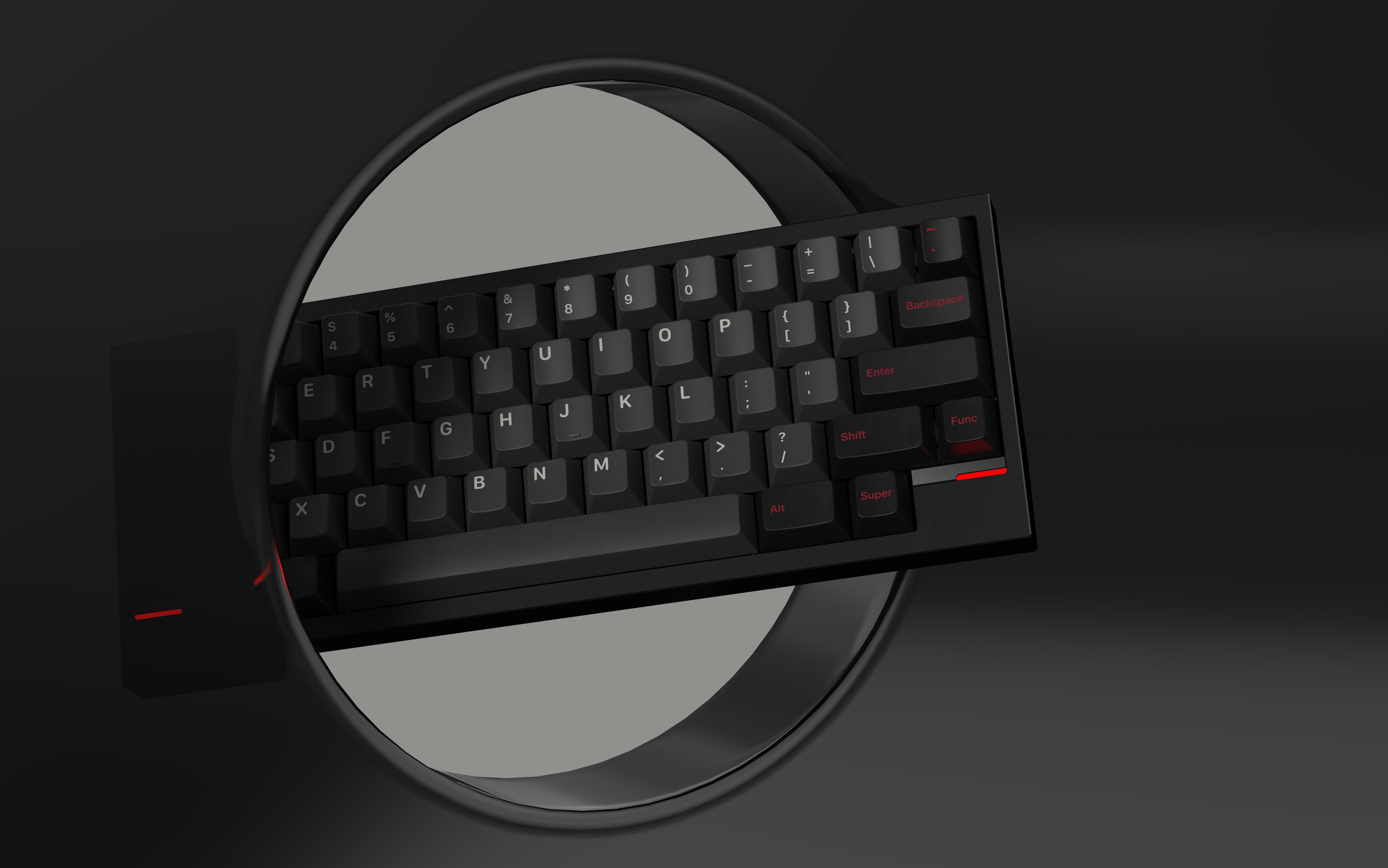

The anodized black and anodized gunmetal versions have a black mirrored PVD Stainless Steel accents on the front, while the rest feature a silver Mirrored PVD Stainless Steel.

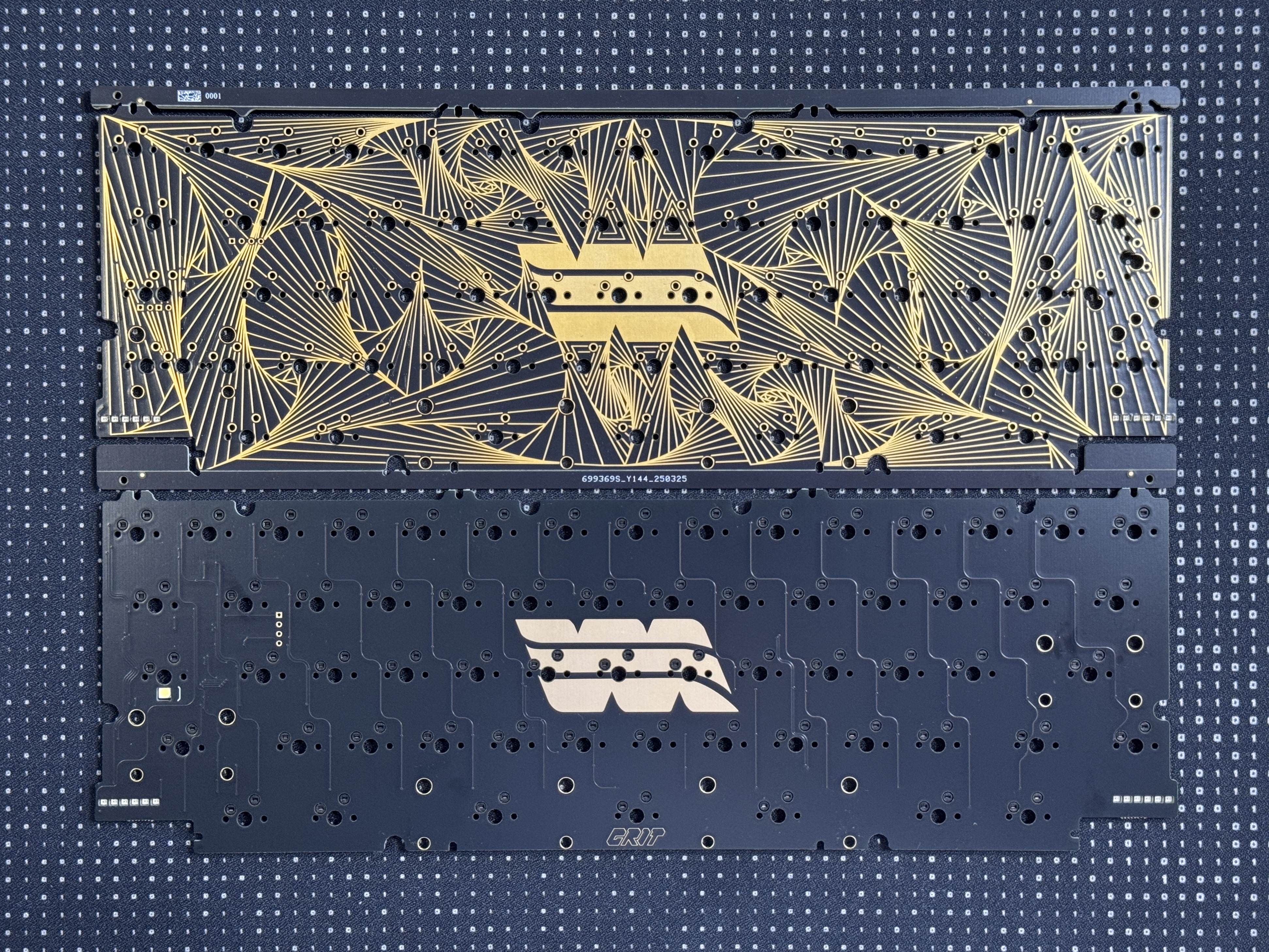

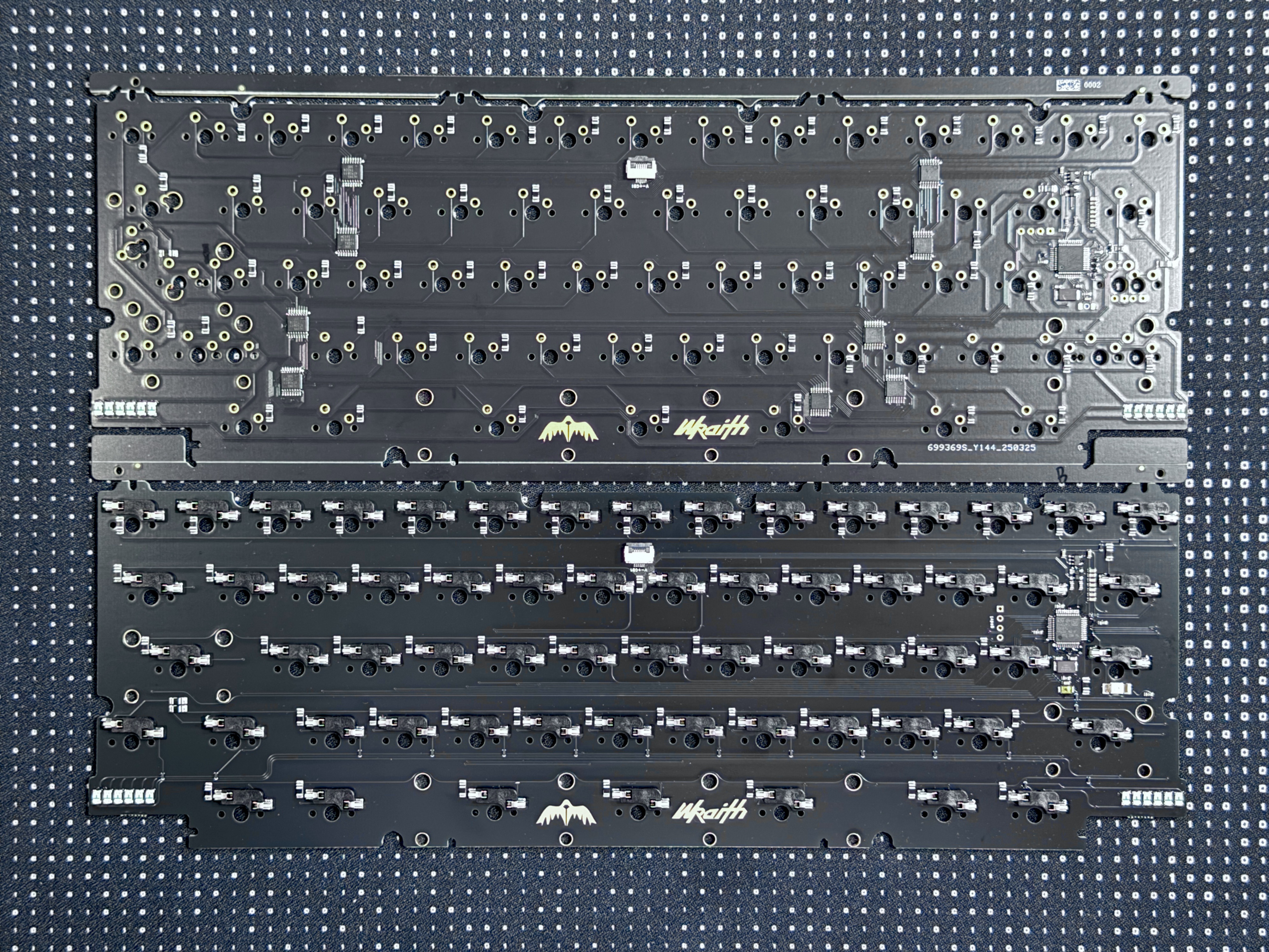

PCB Compatibility

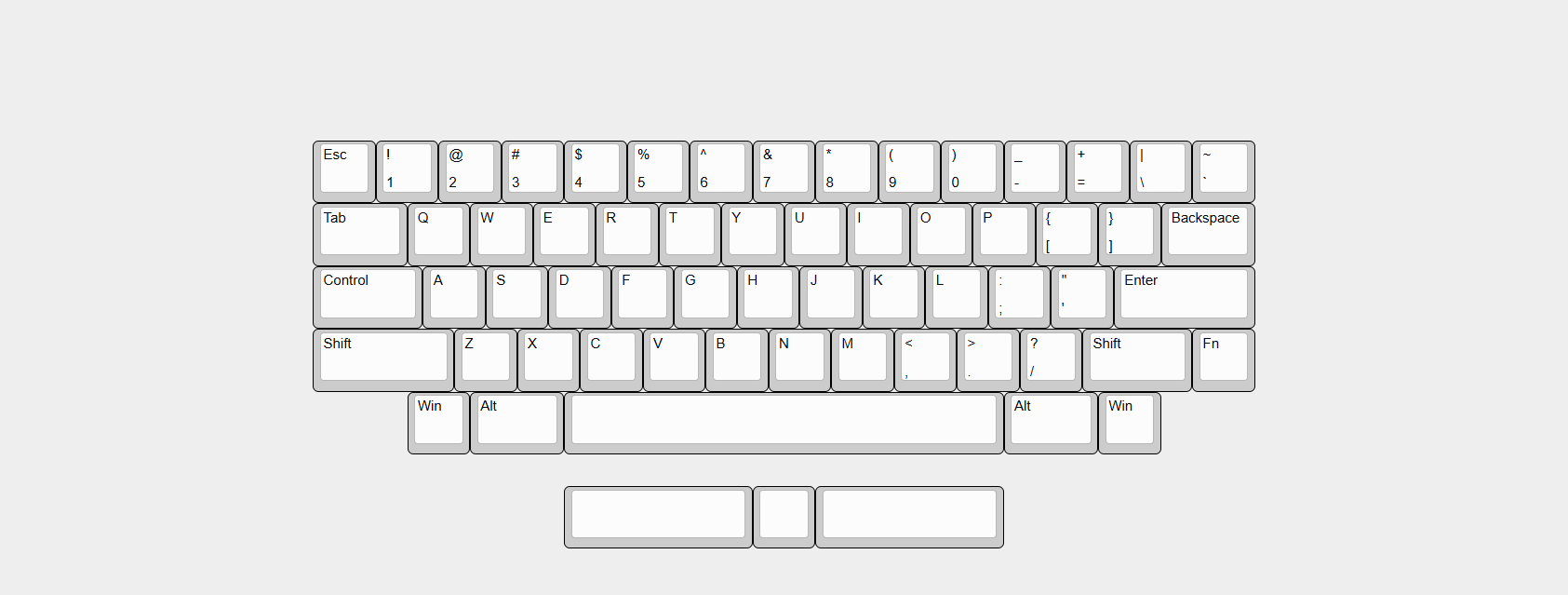

Solder:

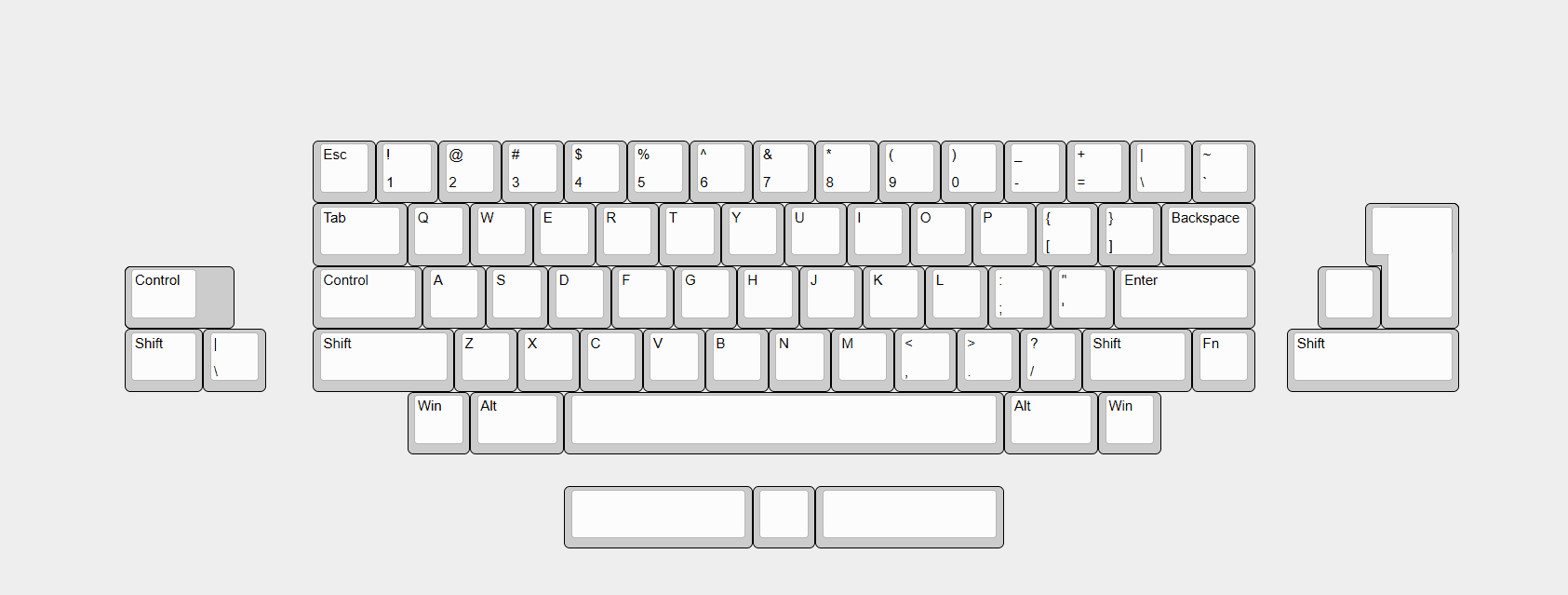

Hotswap :

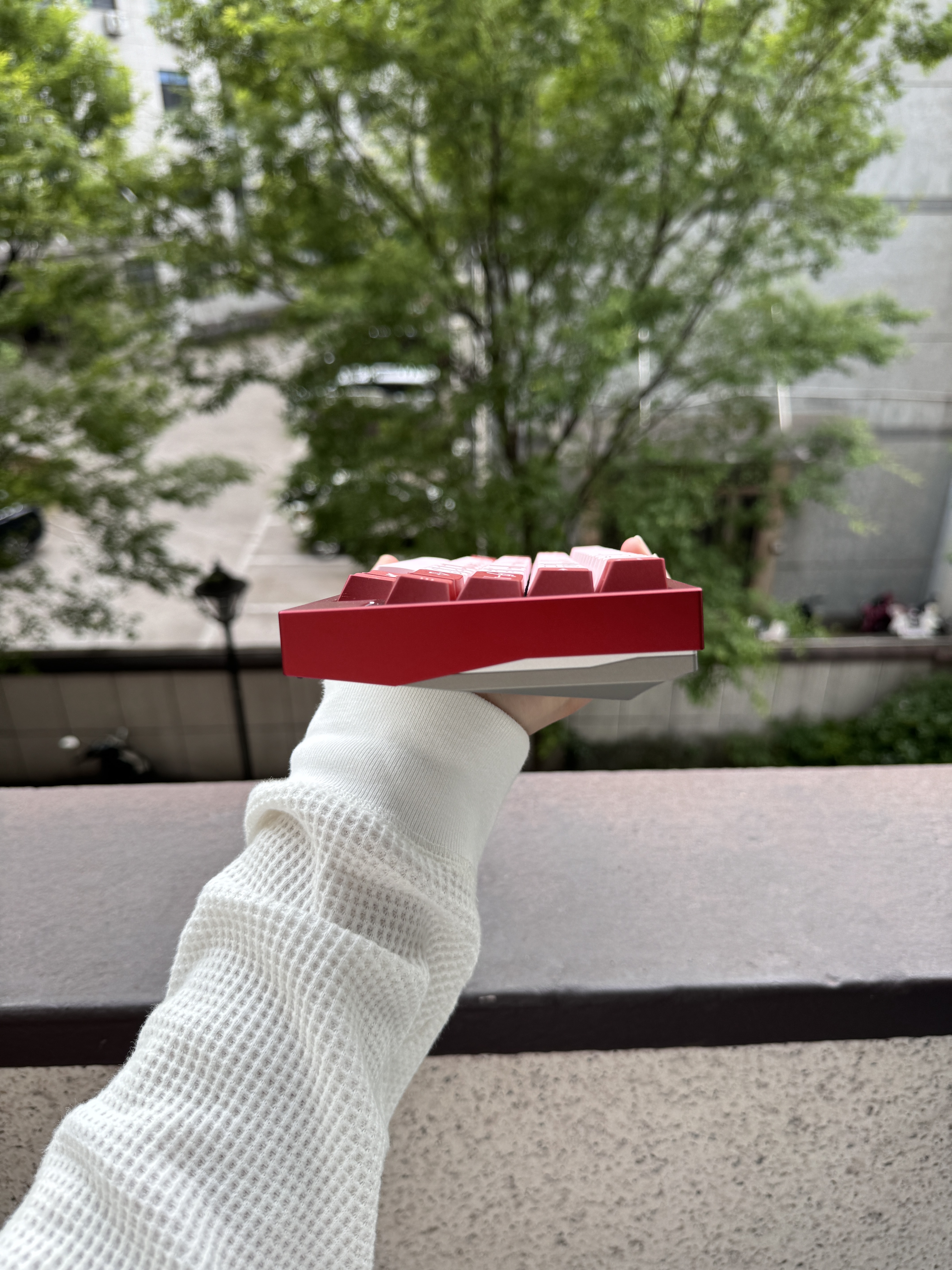

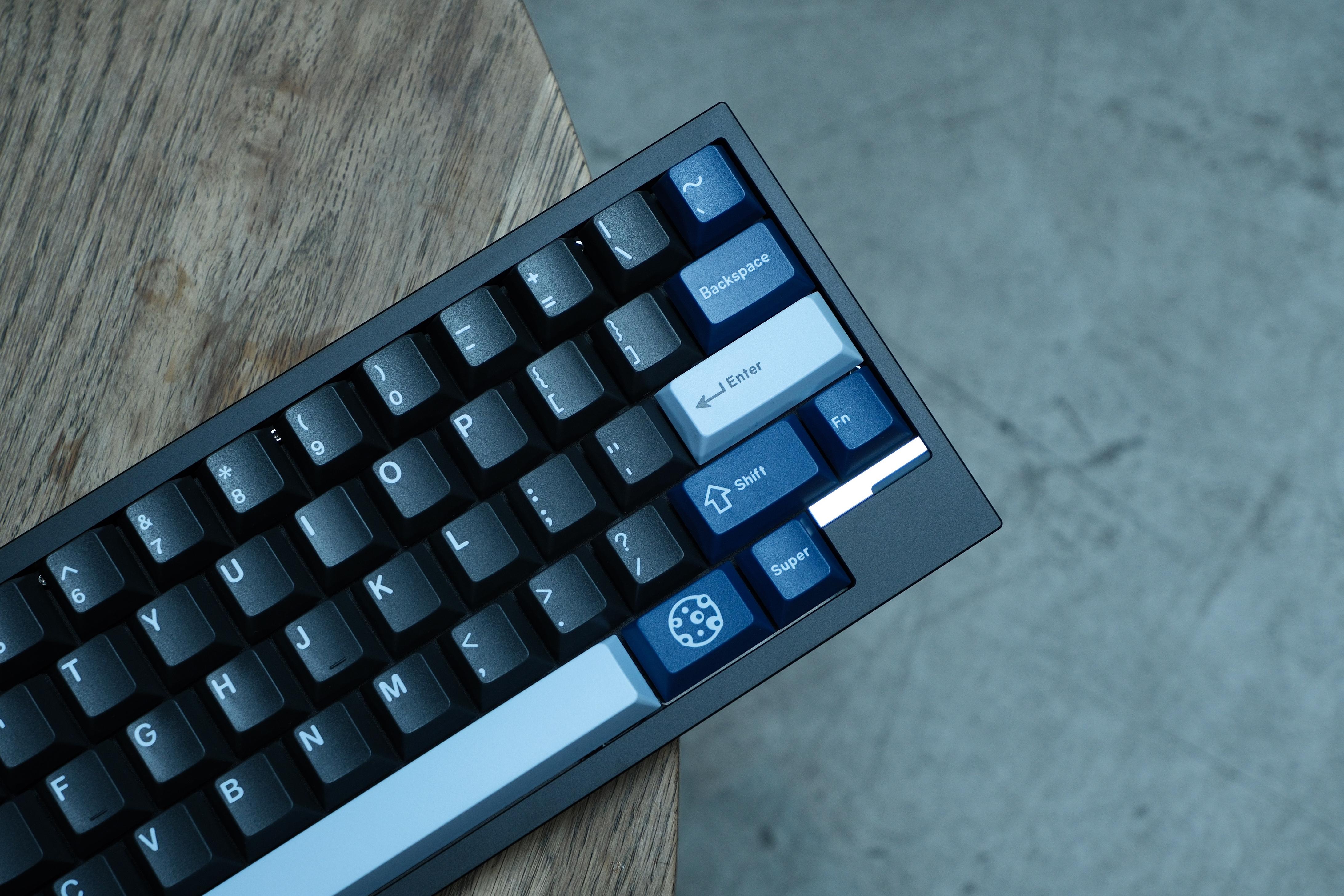

Actual looks

Purchase Information:
Instock Drop. Limited to 190 units regular units, 10 special edition units worldwide, with quantities at each vendor adjusted based on actual demand.
CN will be dropping first, the exact limit cap for each vendor will be announced later.
Vendor will receive your order. Once the purchasing period is over, vendor submit order to us, then we ship to vendor warehouse. Finally, vendors will ship to customers.
Actual delivering time will vary based on vendors. Please check with your local vendor how long it will take.
MSRP: $399 USD

Vendors:
Korea: GeonWorks
UK: ProtoTypist
Rest of the world: Keyspensory

Keyboard kit included:
Top Case (Anodized 6063 Aluminum) *1
Midframe (Anodized 6063 Aluminum) *1
Bottom Case (Sandblasted Stainless Steel with Clear Coating) *1
Front Accents ( Mirrored PVD Stainless Steel) *2
Silicone Light Bars *2
PC Light Diffuser Sheets *2
Hotswap PCB *1
Solder PCB *1
PP Plate *1
Aluminum Plate (Black) *1
Keyboard Case Bag
Miscellaneous Accessories

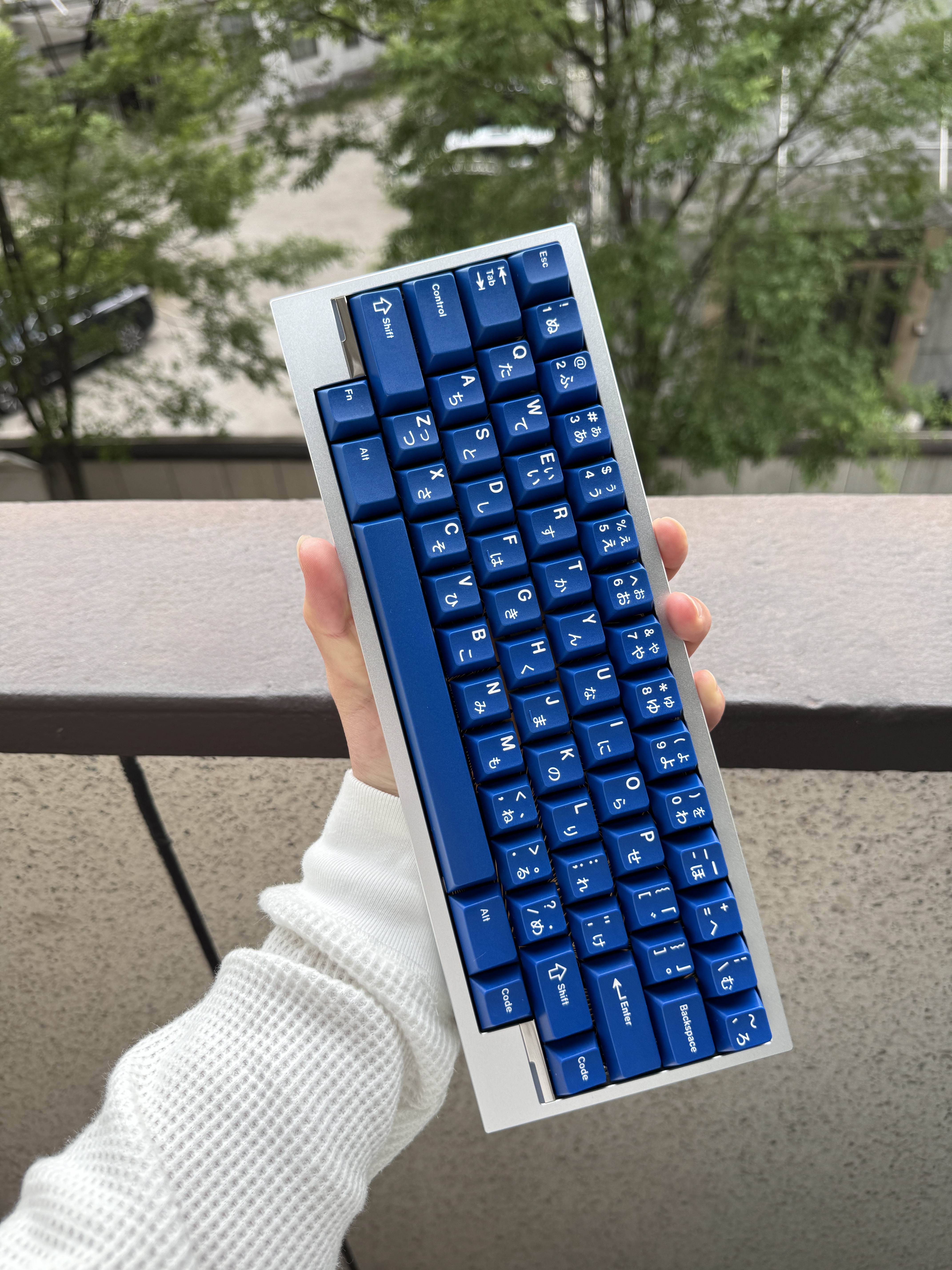

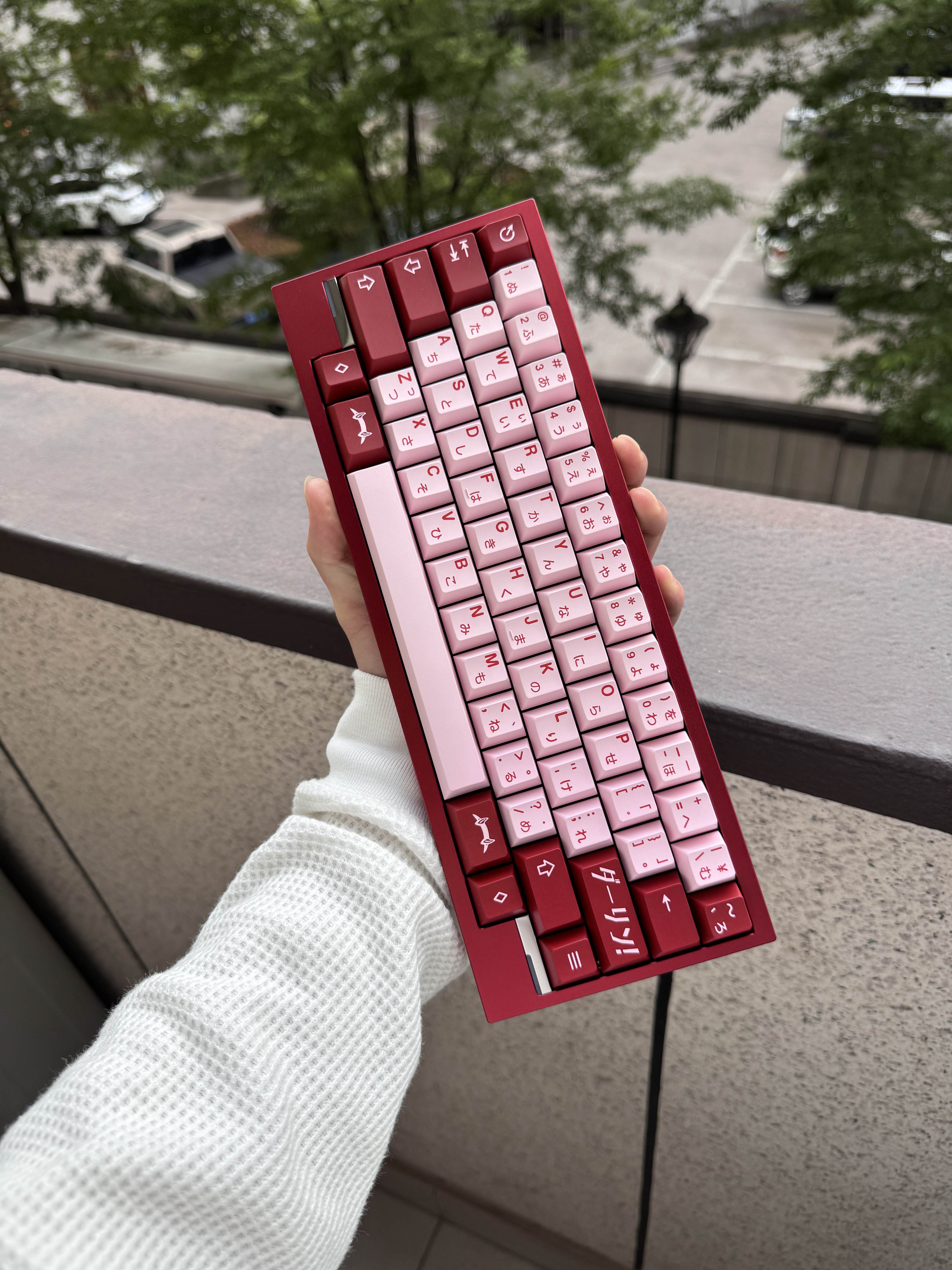

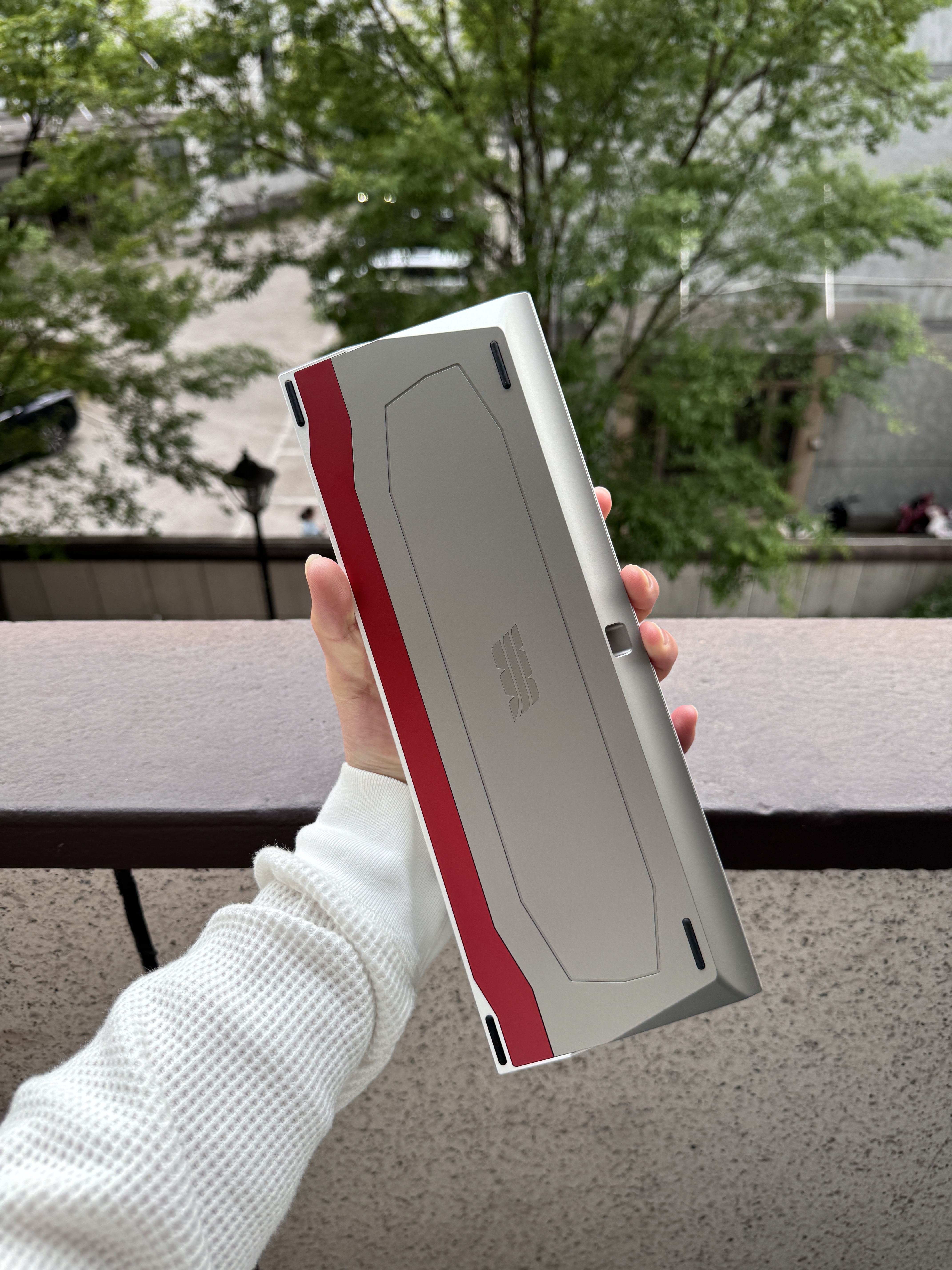

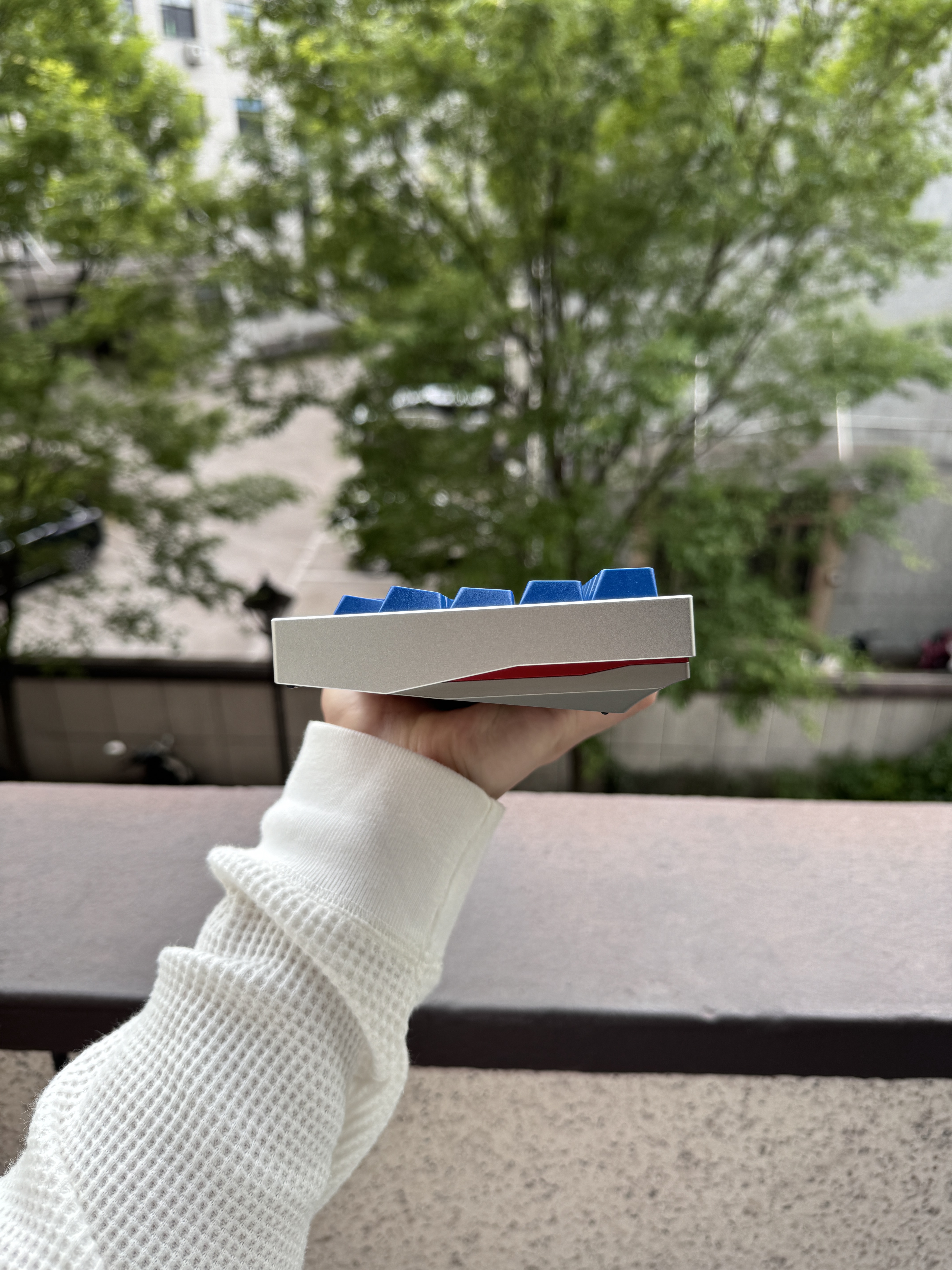

Some images of the actual prototypes.
