XOX70
GB Date: 31st Aug - 30th Sep
More

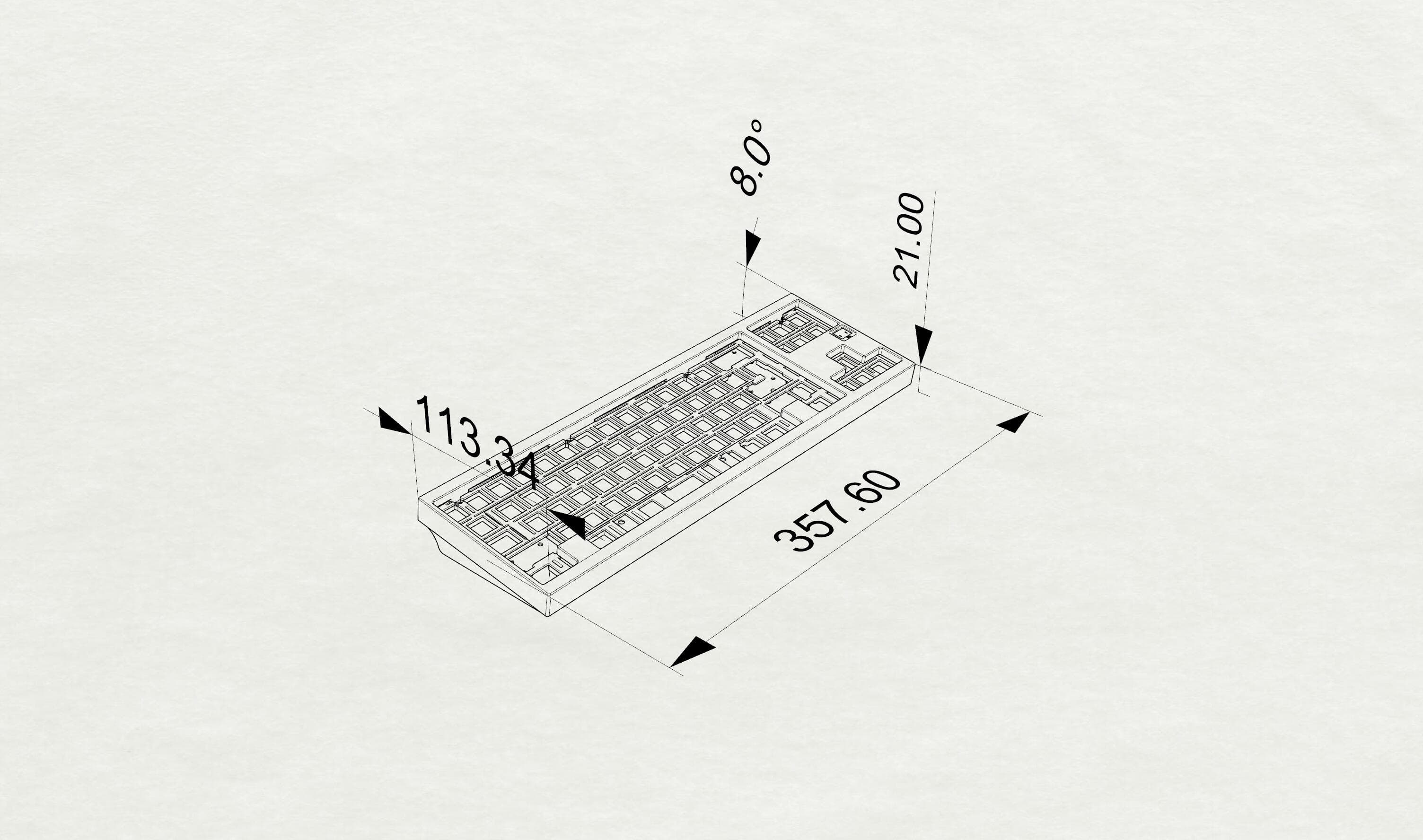

Spec Summary- 8-degree typing angle with 2 internal brass weights (E-Clear coat treated)
- Screwless exterior design (adjusted for switch & plate clearance and ease of assembly)
- Gasket Leaf Spring (full plate & half-plate, multiple materials)[/*]
- Solder and Hot-Swap PCB with flex cut (VIA ready) 1.6mm thick
- Carry case included
Standard Kit Contents- Top & Bottom case with Badge, LED diffuser & weights pre-installed
- PCB KIT (Solder / HS)
- Full Aluminium Plate
- JST cable cover
- Gasket poron foams (with extra)
- Rubber Feet
- Assembly Screws + Torx driver
- Badge light-blocking foam
- 3u stabilizer wire x 2
- Anti Static sheet, Poron case & plate foam
- Carry Case

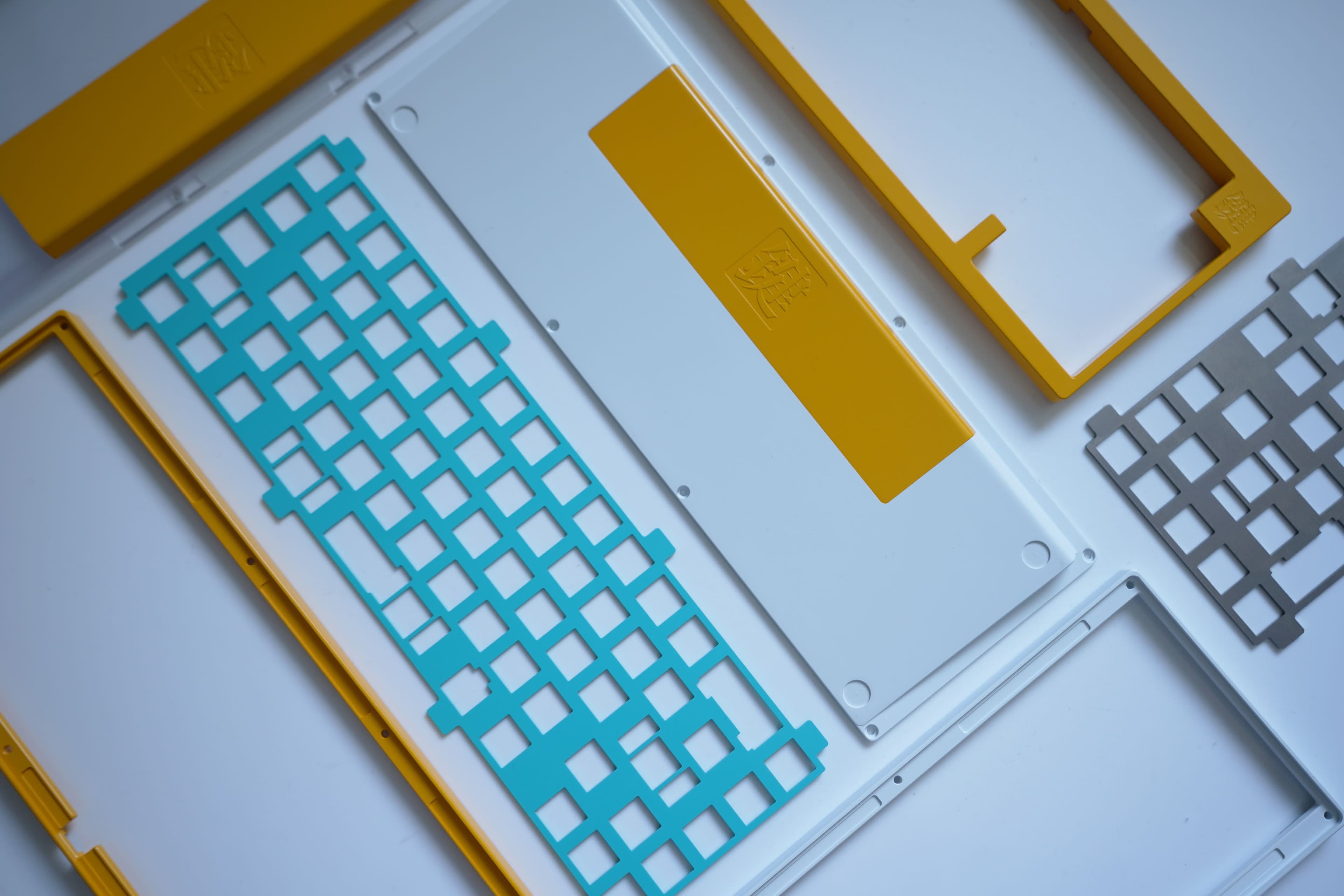

Extras- Full & Half plates in FR4, Aluminium, Full Plates in PC, POM
- Solder & Hot-swap PCB with Daughterboard and cable
- 3u stabilizer wire pack (2 wires per pack)
- Gaskets
- Foam Pack
- Additional Screws
- Feets
GB Date 31st Aug - 30 Sep (your local vendor timezone)
Availability - Unlimted (we will adjust production capacity to meet delivery time frame)
Delivery to Vendors - Q1 2023
Vendor
USA - Mechs & Co.
Canada - Shockport Keyboards
SEA - ilumkb
Europe - KeyGem
UK - Proto[Typist]
Vietnam - Uniqmeck
South Korea - Swagkeys
OCE - Thocc Supply[/center]

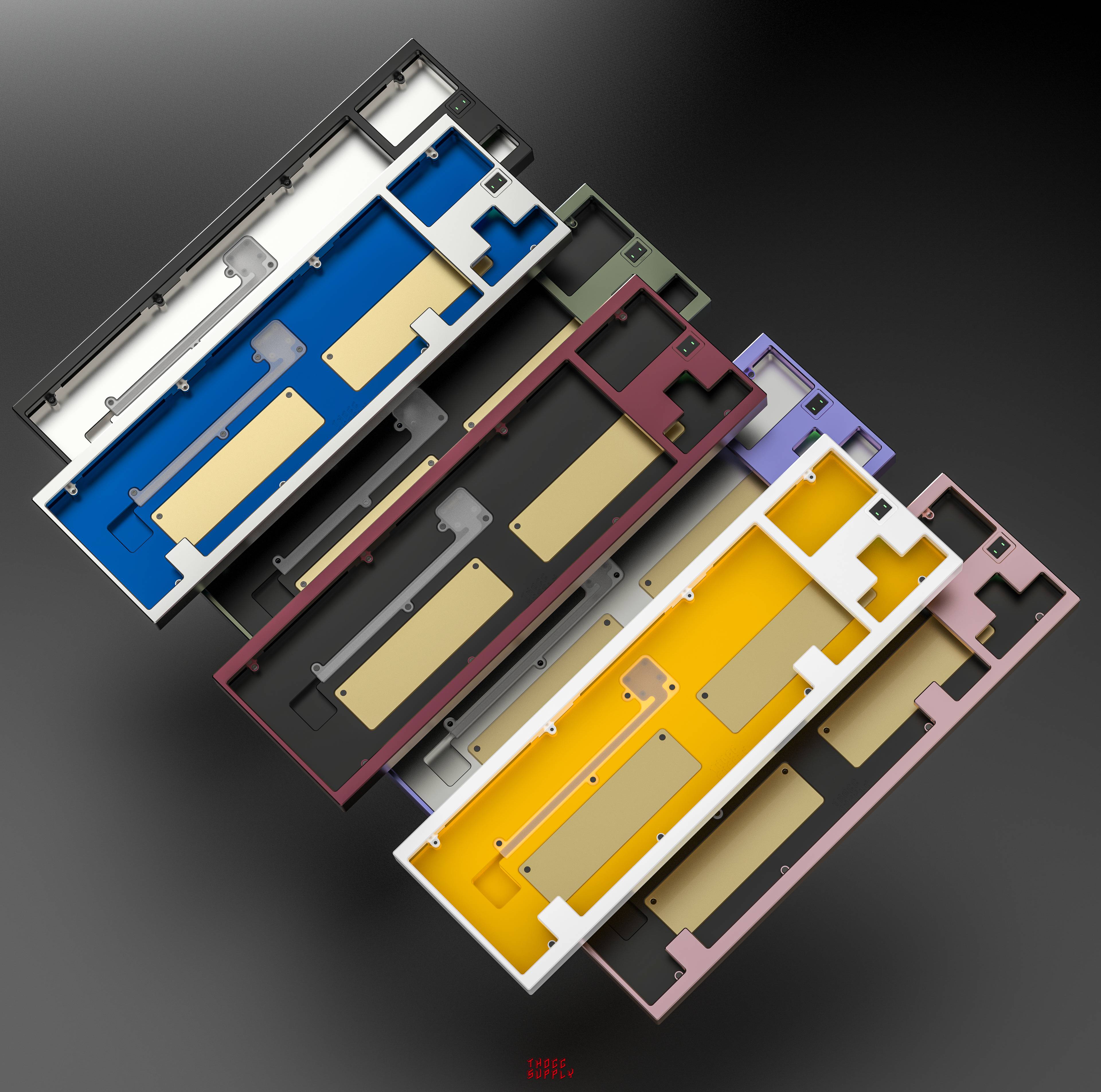

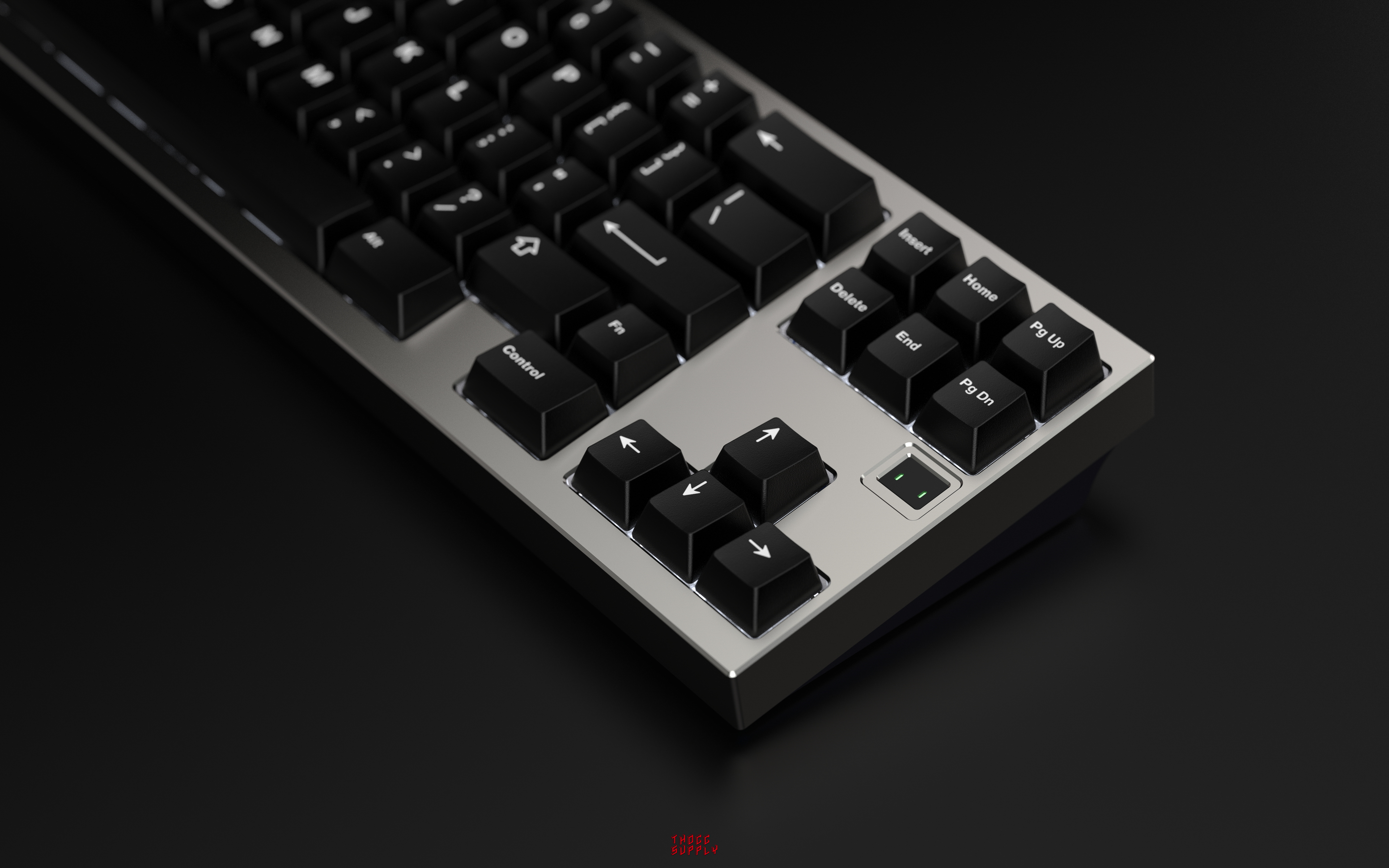

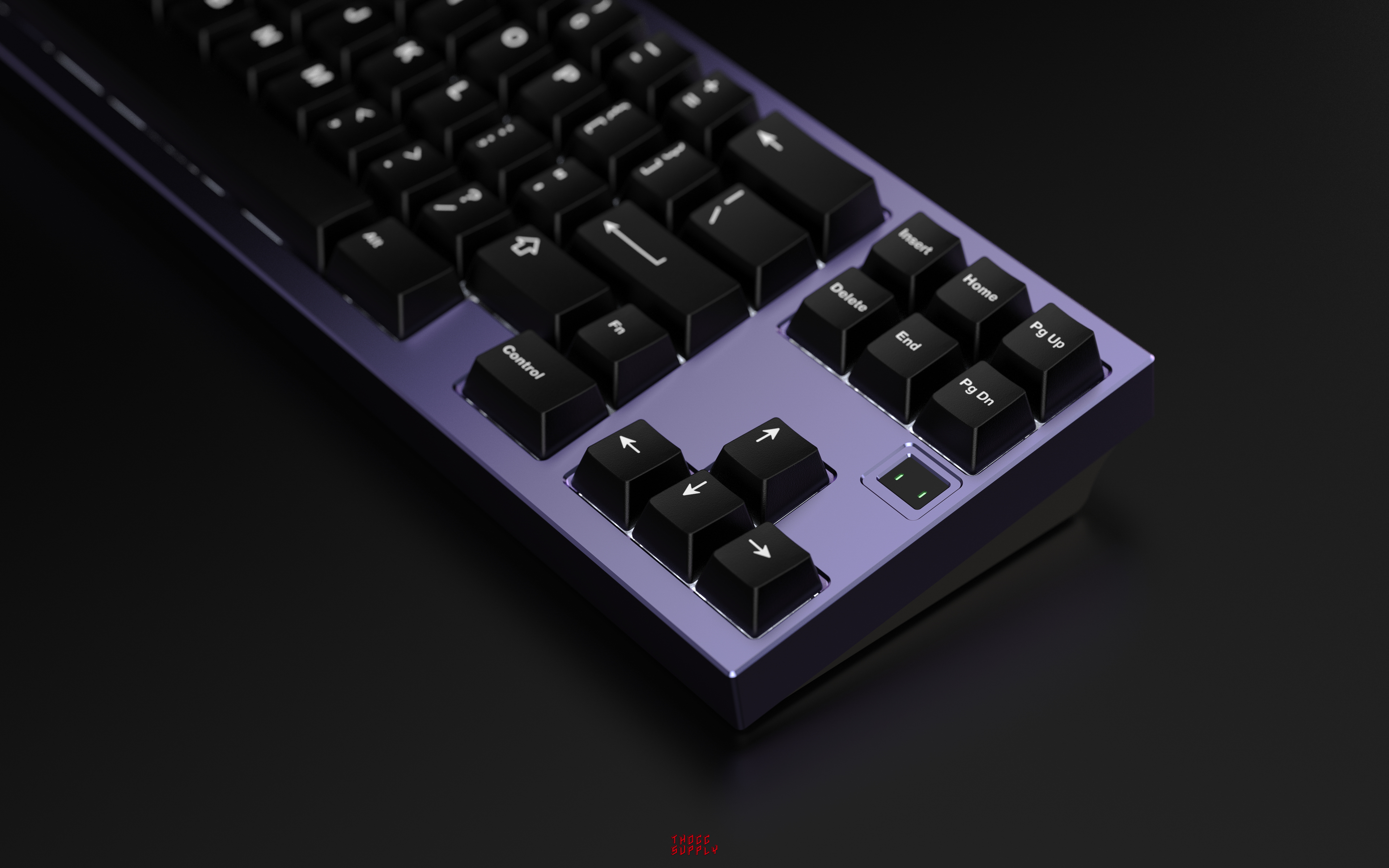

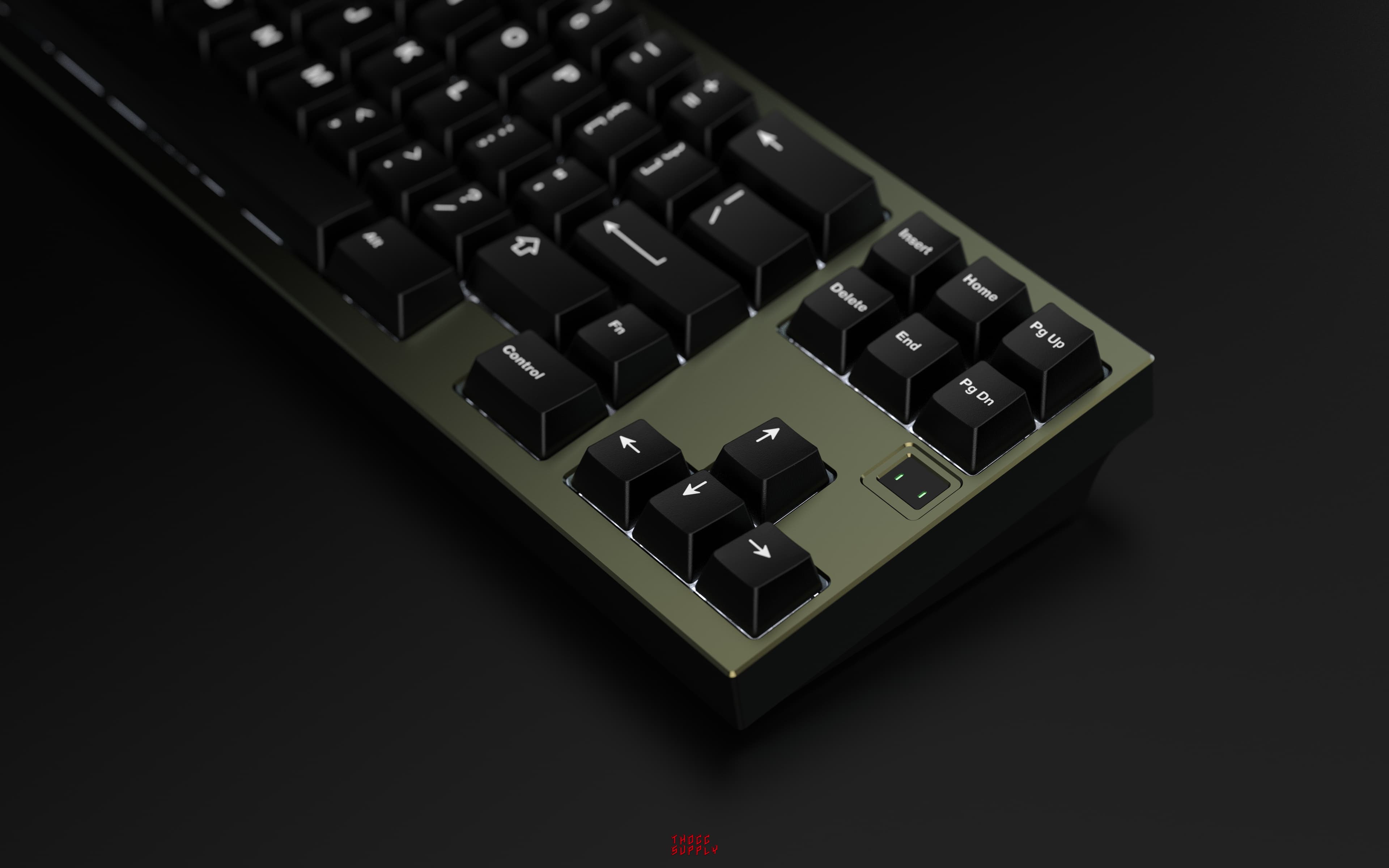

GB Colour offeringFrom top left to bottom right- Black & Silver
- Silver & Blue
- Moss & Black
- Plum & Black
- Lilac & Silver
- E-White & E-Yellow
- Dirty Pink & Black will not run

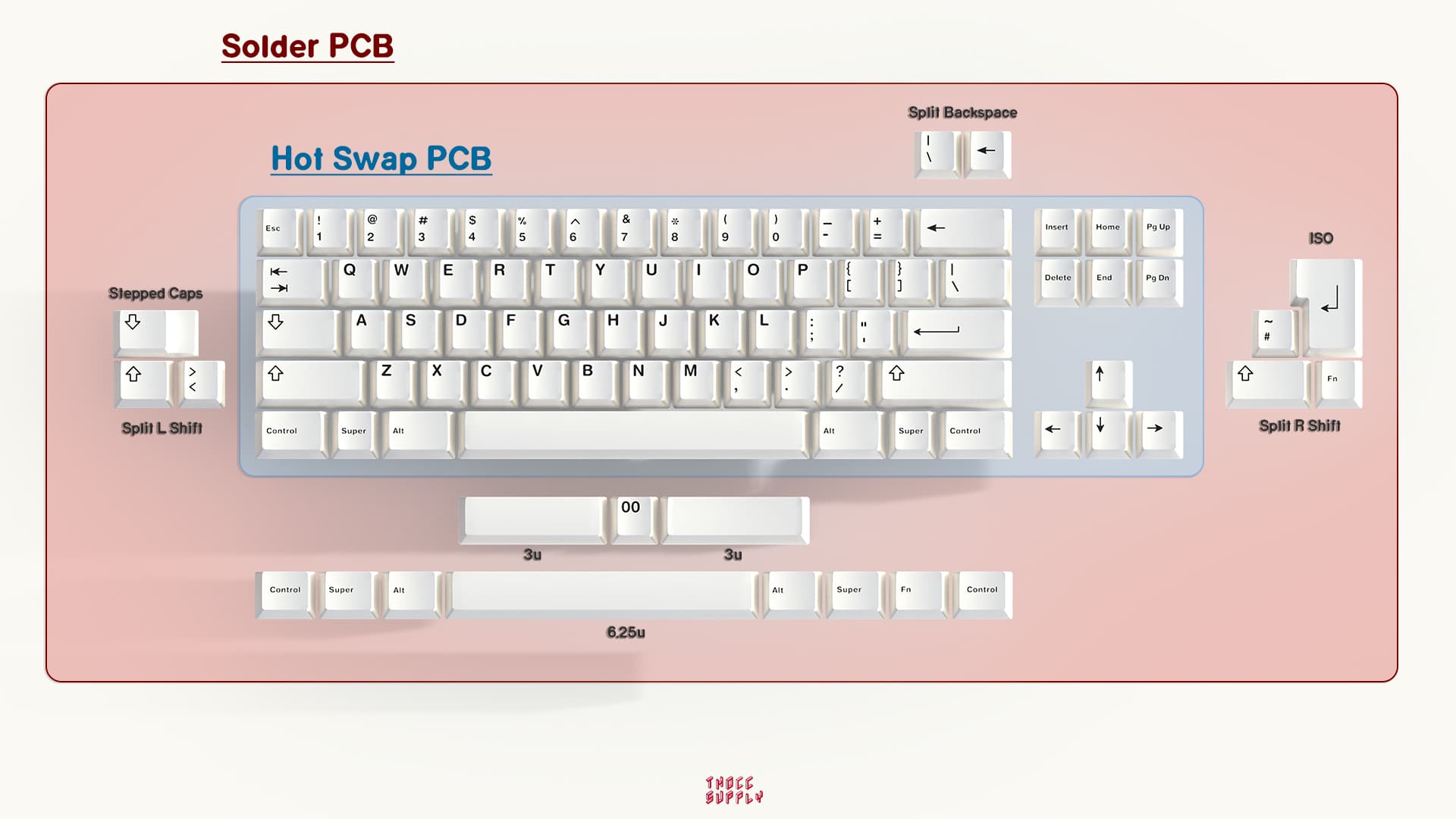

PCB LayoutDaughterboard - Aio3 Unified Daughterboard JST connector
The main PCB Solder version supports multi layouts, Hot-Swap is fixed ANSI with 7u spacebar

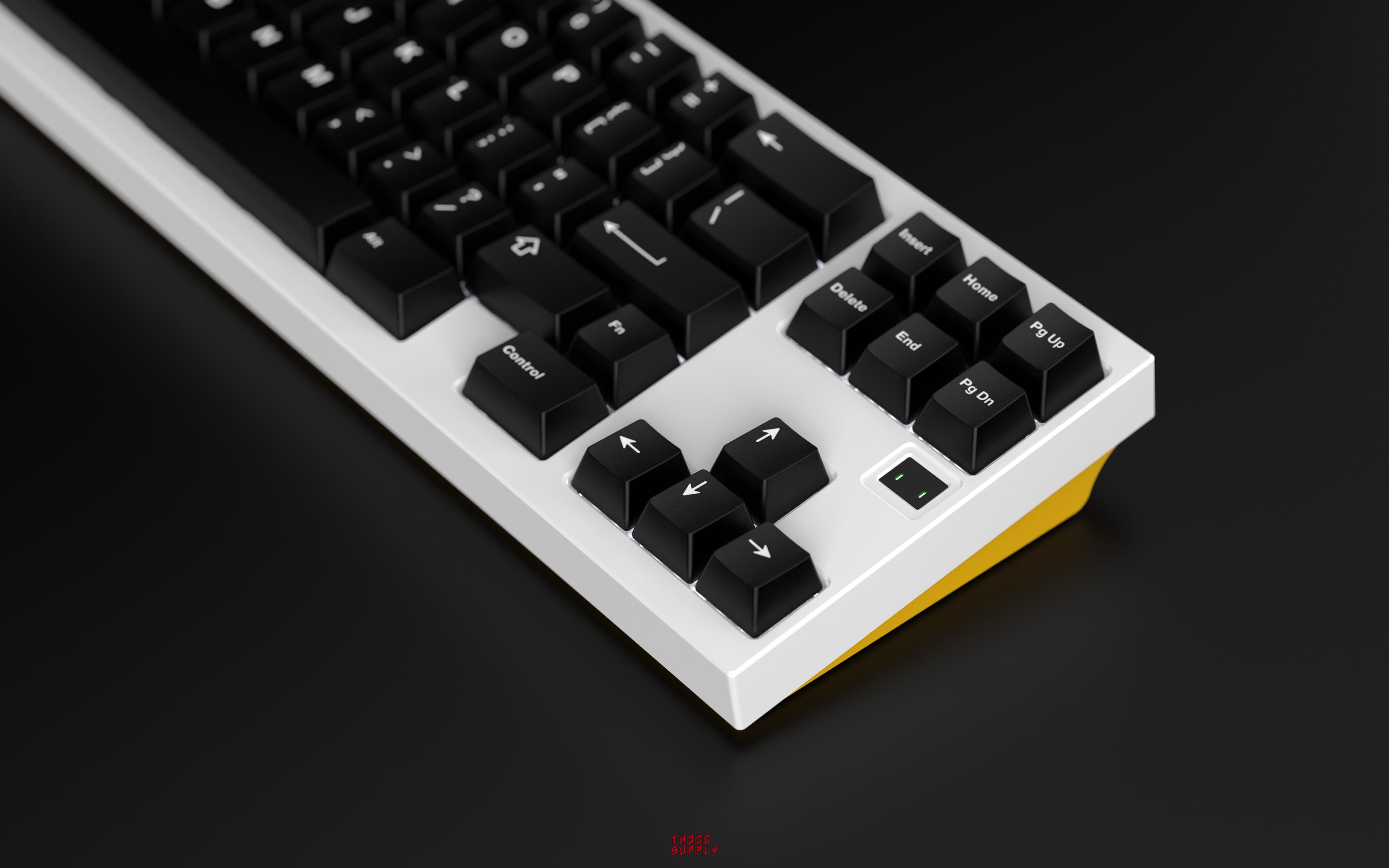

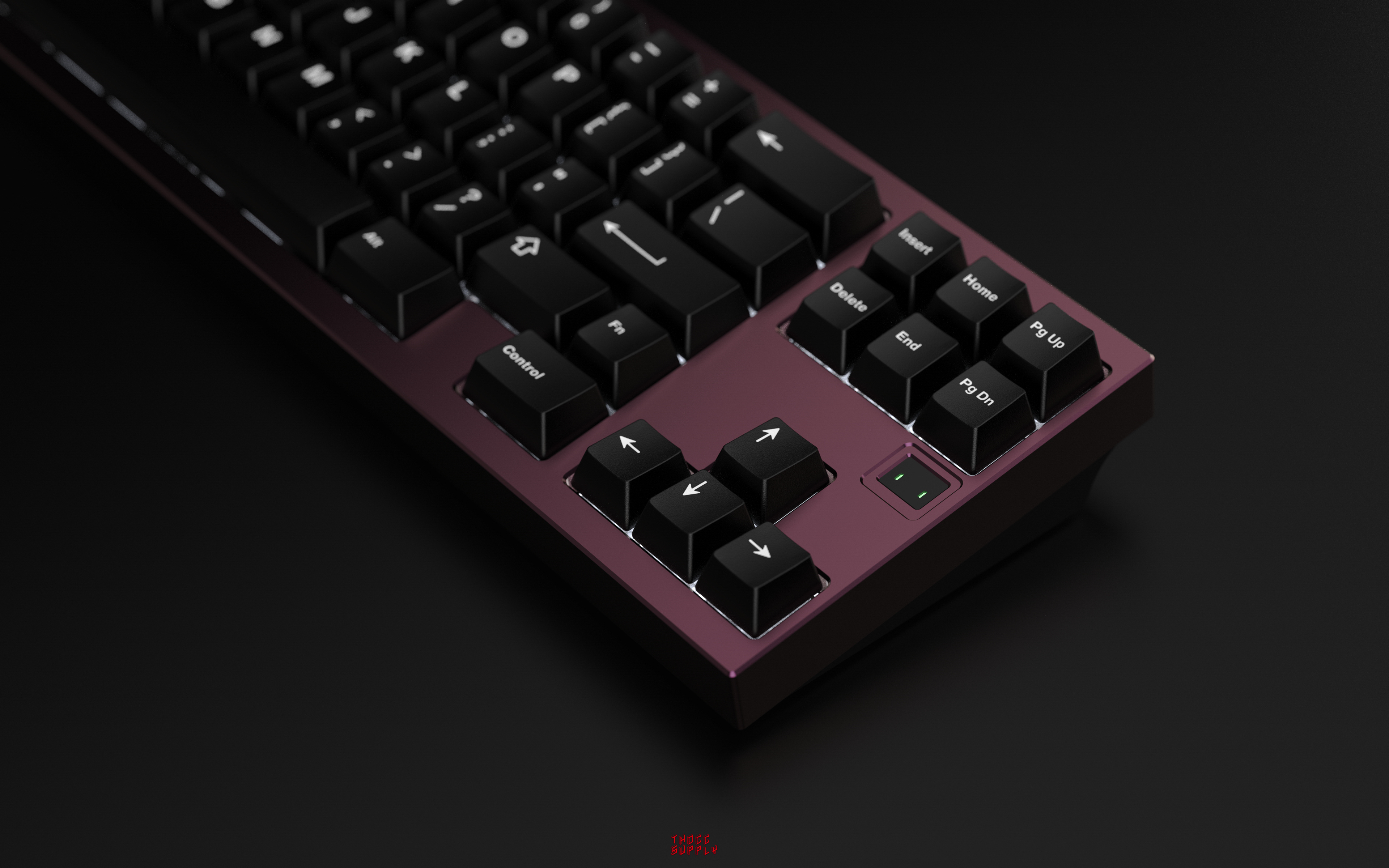

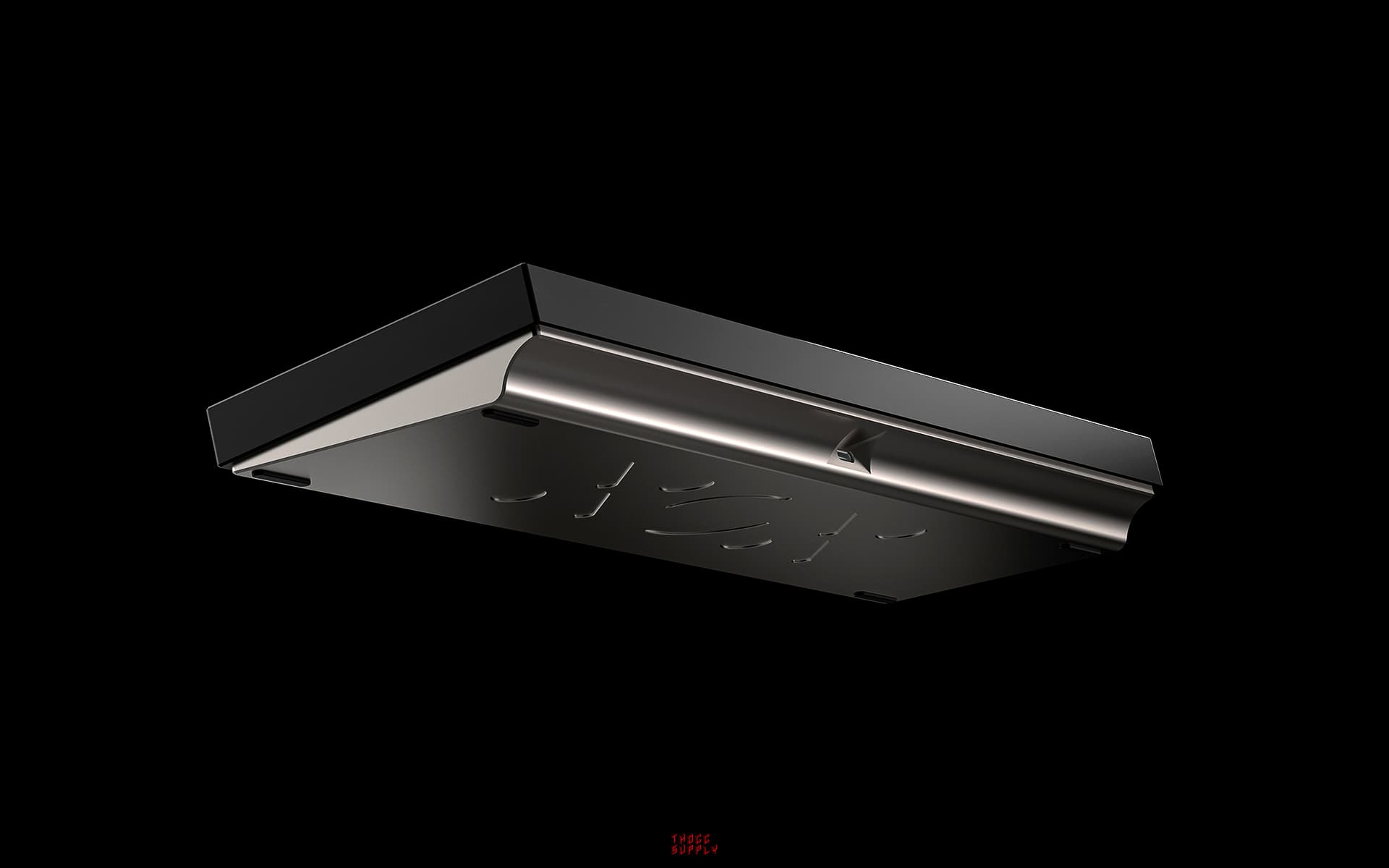

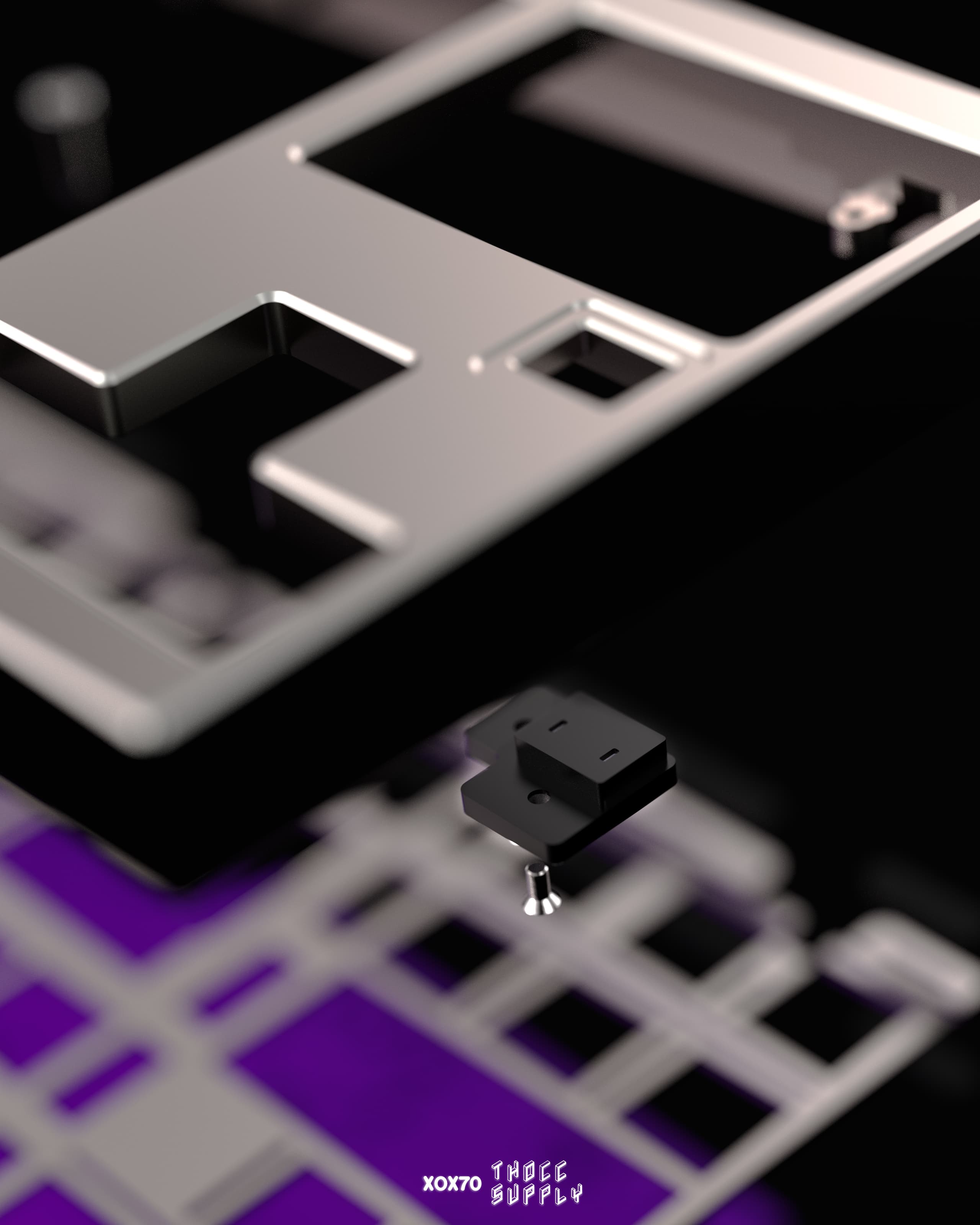

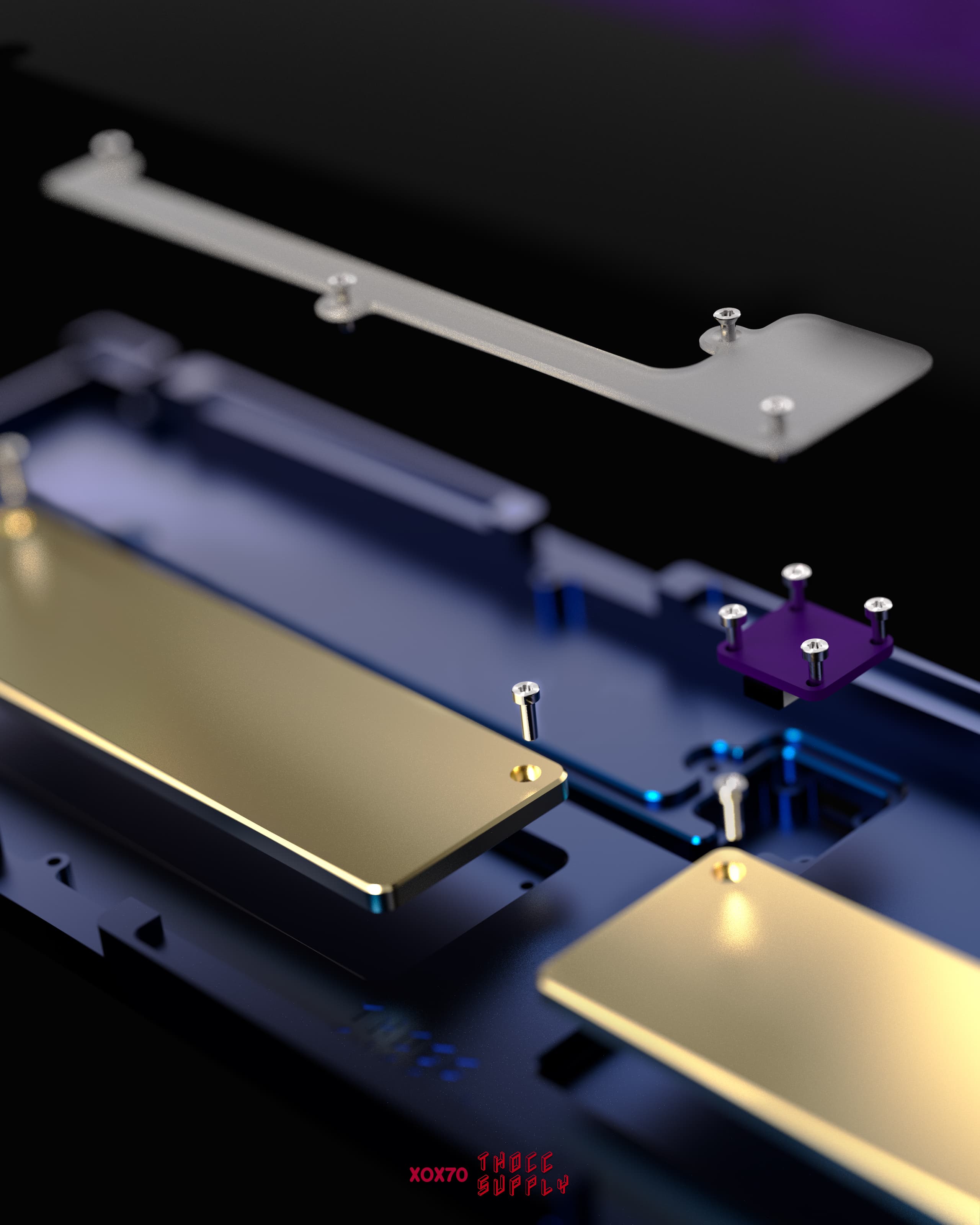

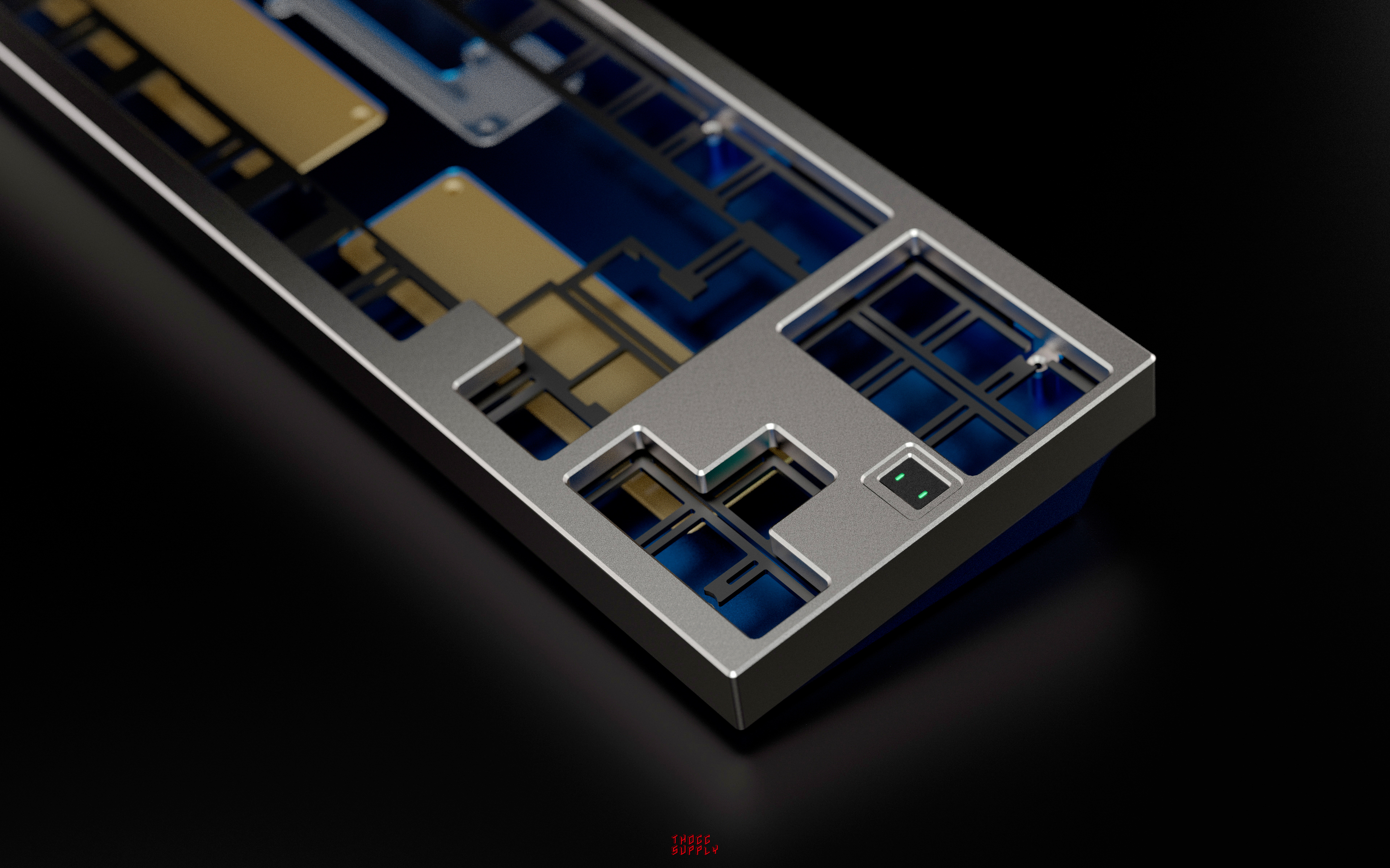

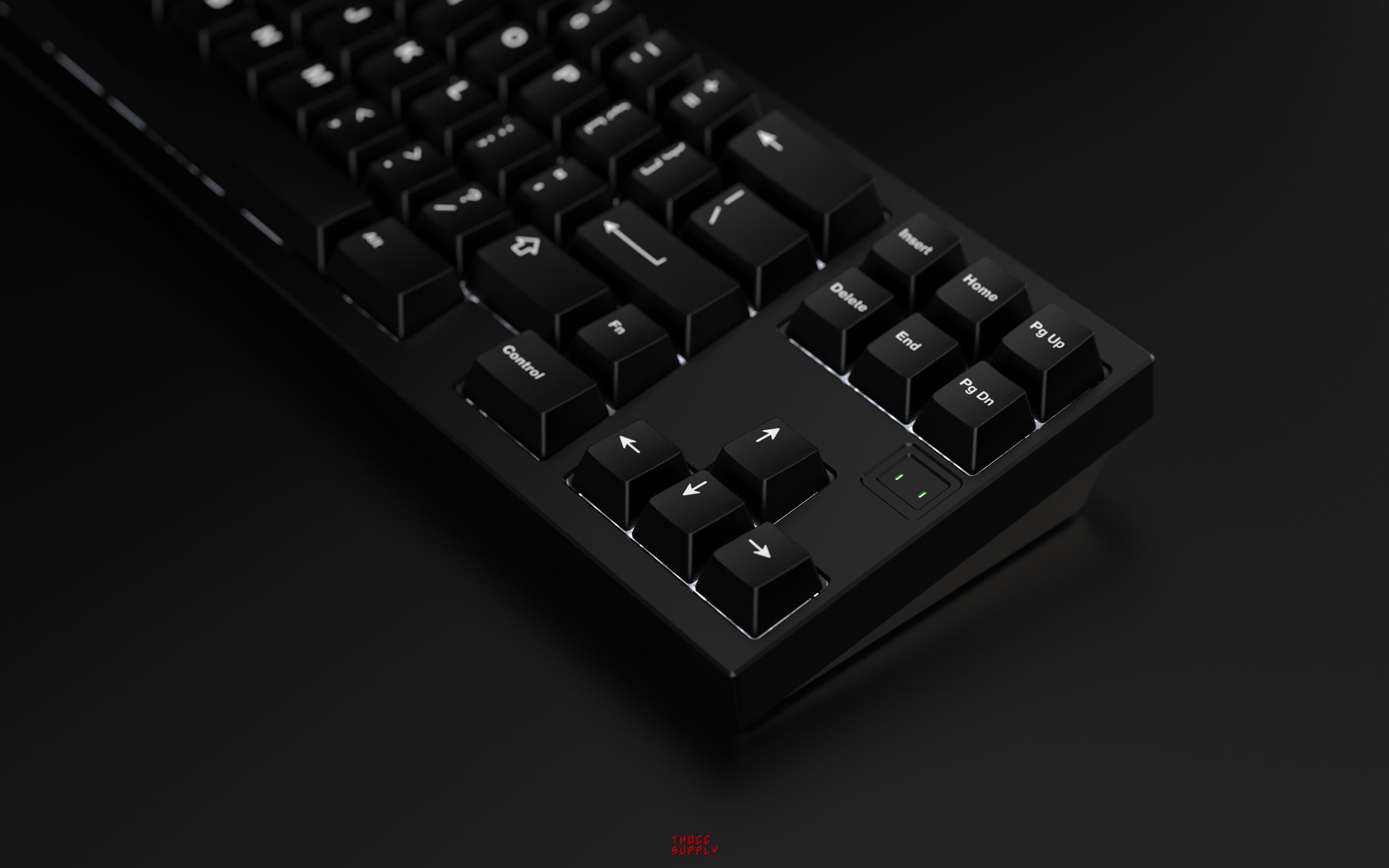

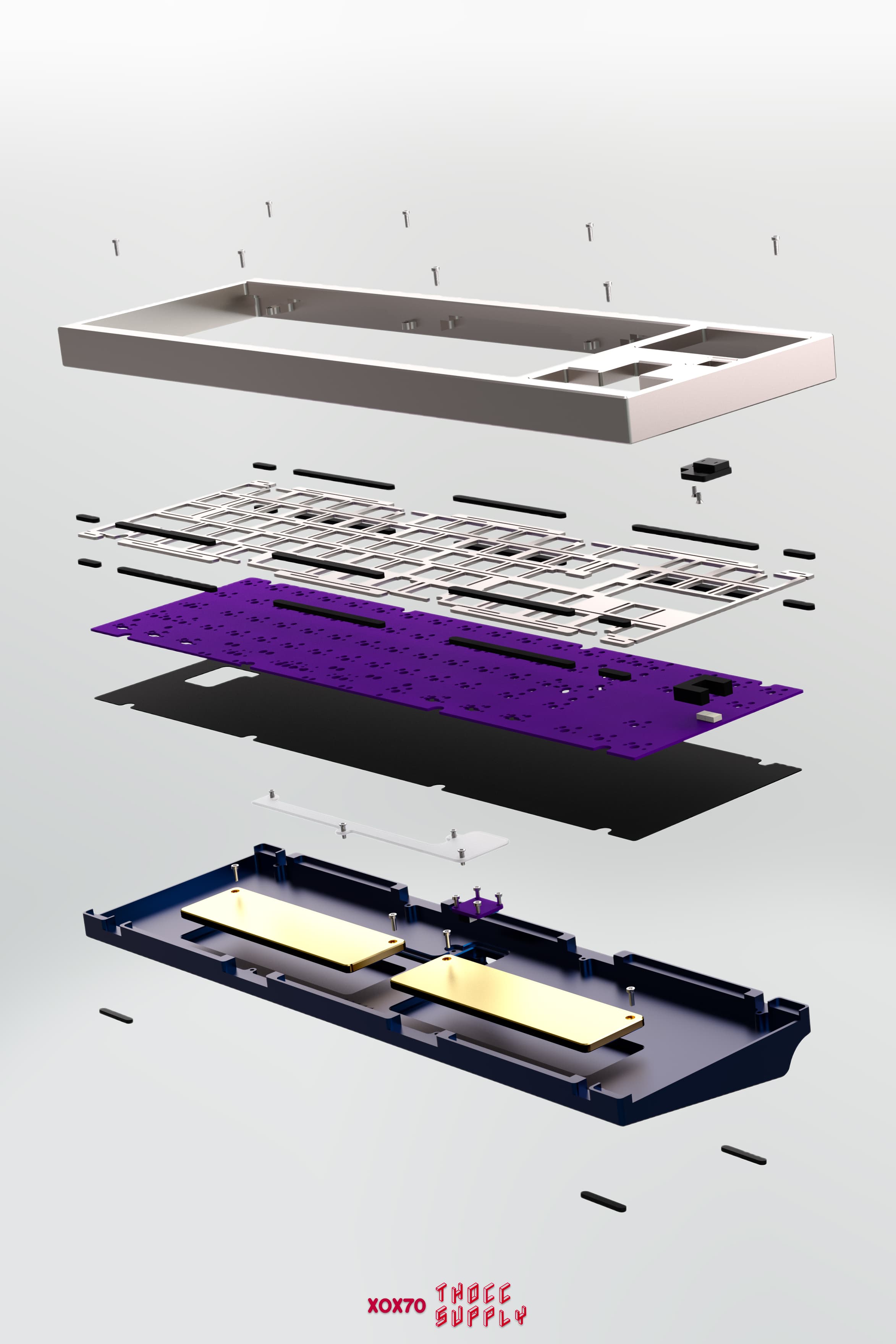

ExplodedRender Gallery - Full Render Album click HERE
More

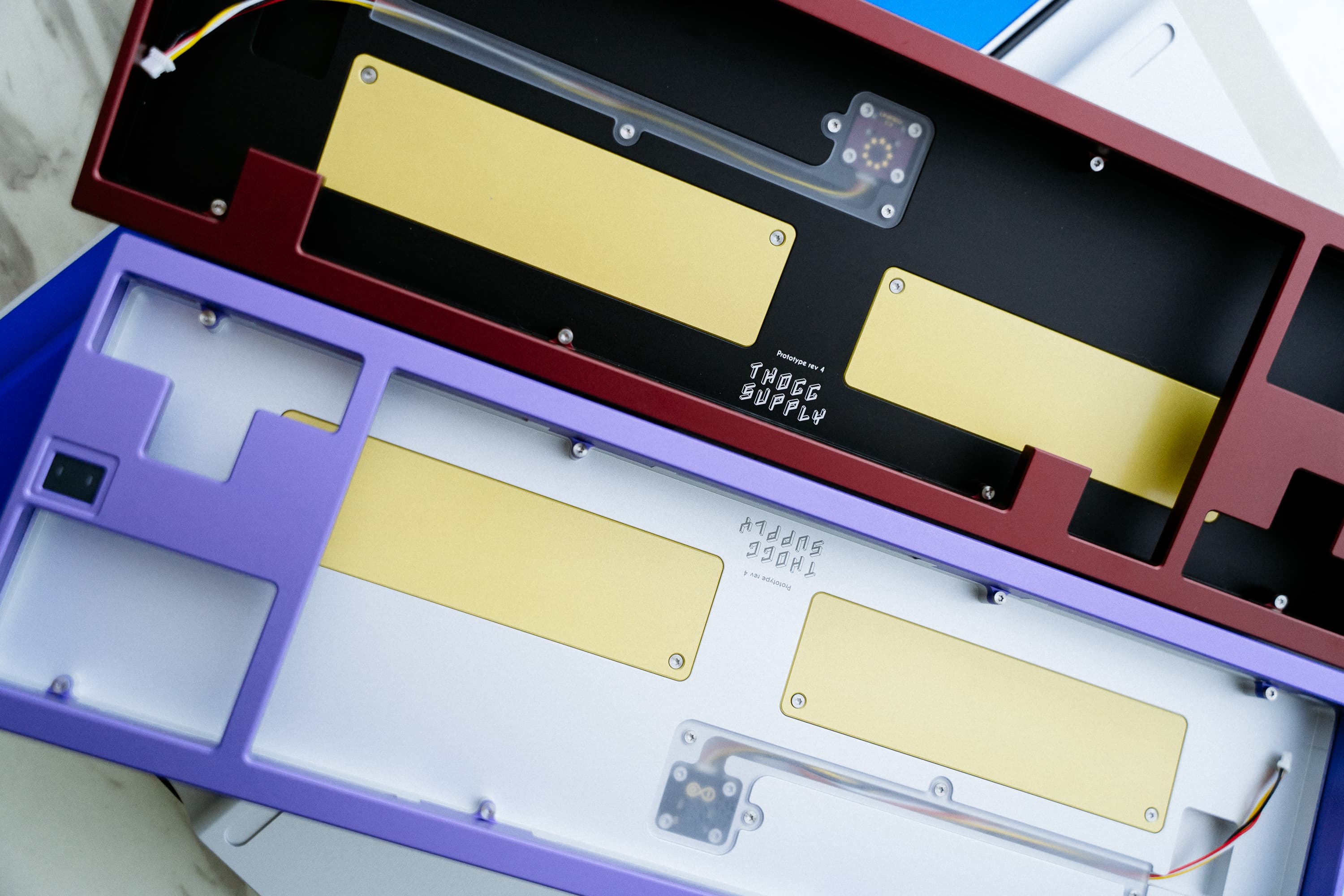

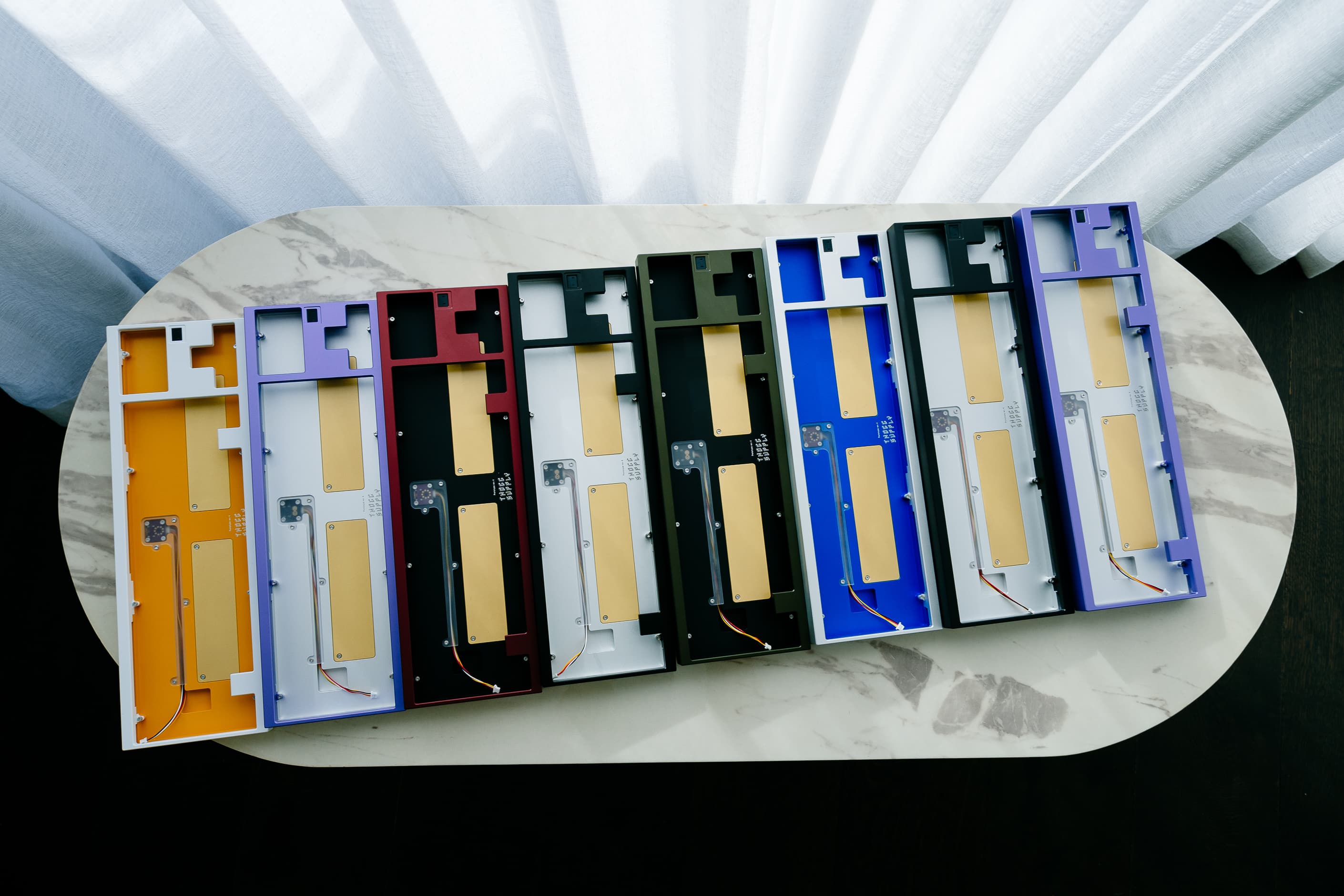

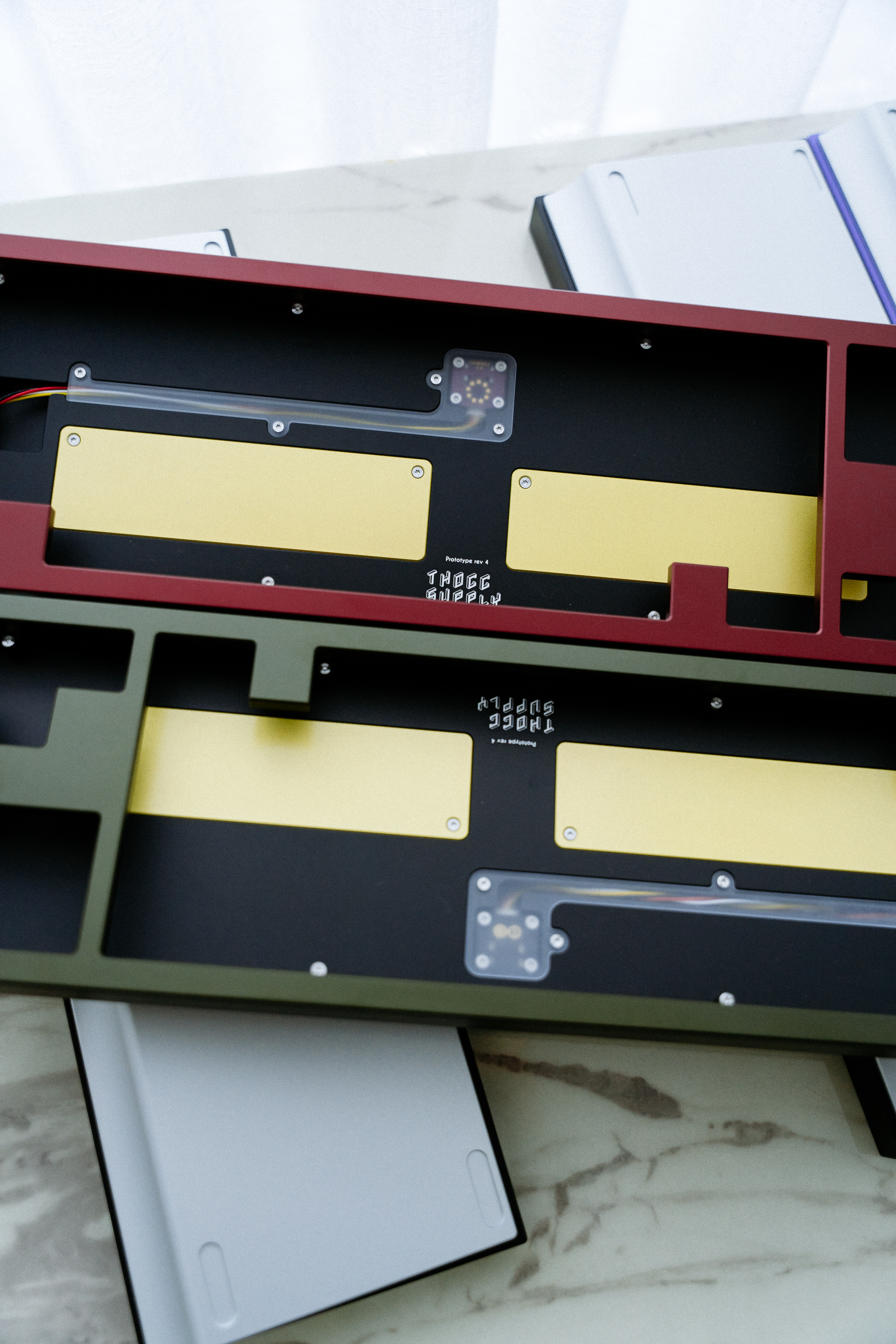

Final Prototype Photo - Full Album click HERE
More

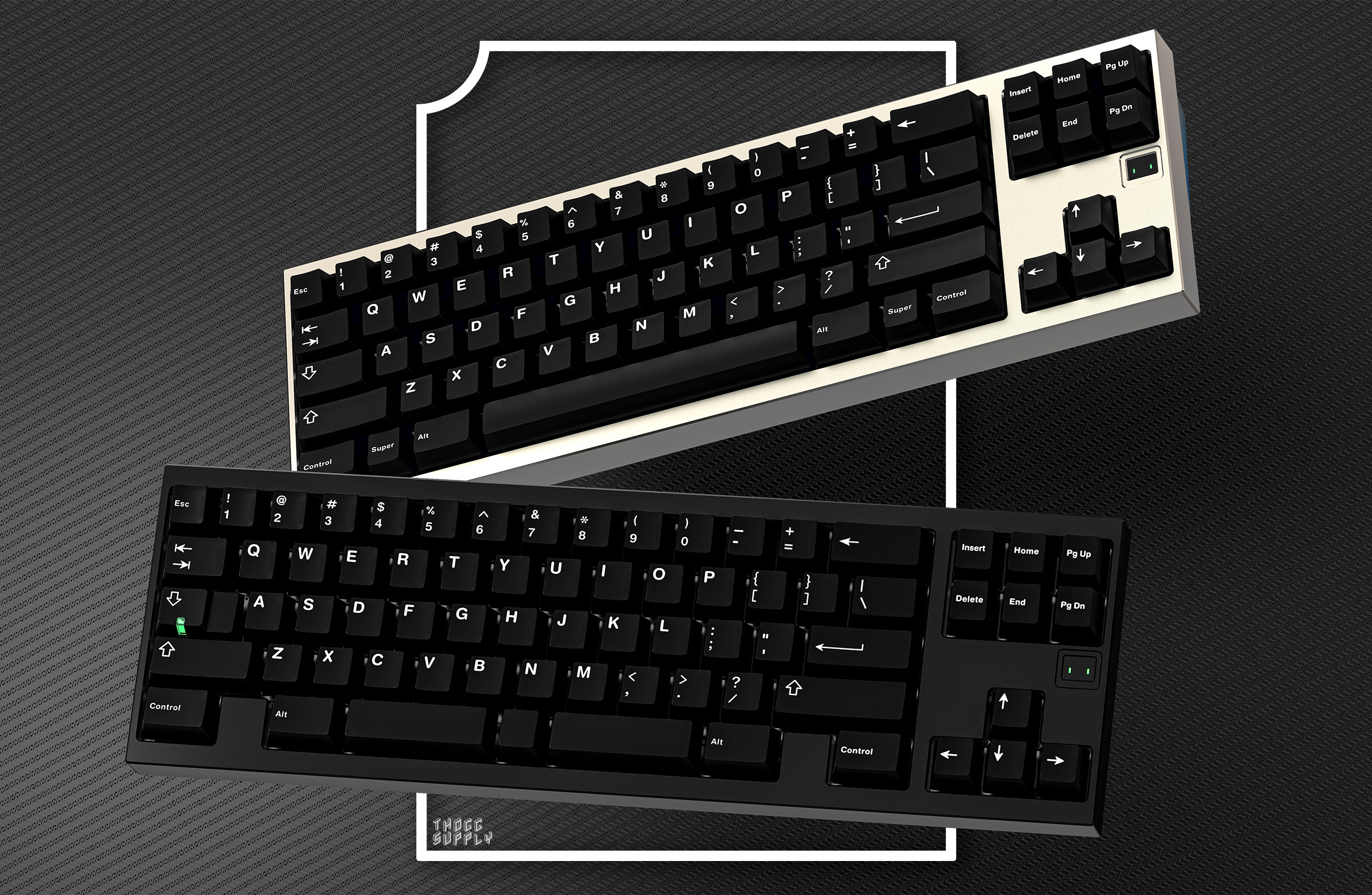

Banner[url=https://geekhack.org/index.php?topic=117730][img width=210 height=120]https://i.imgur.com/ffu8hrP.jpg][/img]

Change Log Since IC Post1. Increase GB colour from 4 to 6
2. Dirty Pink will not run this time
3. Open Solder and Hotswap PCB option for Standard Kit
4. Added POM to plate option
Link to previous IC post click hereGB Updates will be shared in the first comment in this post, passed on to vendors and on DiscordJoin Discord - Click HERE
