Xteeeeeeeeeeeeeeeeeeeeeeeee! Yea... It's A Real Project!

Prototype V1

Have you purchased a macro expansion kit or novelties out of "FOMO" with your base kit? But it's just laying around?
Are you looking forward to displaying your favorite artisans!?
Do you need a fast access to your function keys! but you only have a 65% or 60% keyboard? (Excluding XT unless u want an XT over you XT)
Do you keep mistakenly pressing F1 instead of Esc key in your XT keyboard and ask for "Help?"
Well, if you like some "Help?" we got you covered!

Introducing Xteeeeeeeeeeeeeeeeeeeeeeeee!

A modern solution to end my & your sufferings.

Inspiration
One day I asked myself hmmmm how about I will design a macro pad, and yeah... I ended up designing Xteeeeeeeeeeeeeeeeeeeeeeeee!.
At first the project was just for fun and giggles for me to adventure to new MCUs or other fun memes and stuff which might come in later the future.

I did not believe it will even reach a prototype phase... Anyway.


Design


I designed Xteeeeeeeeeeeeeeeeeeeeeeeee! to be as human friendly as possible, when I was looking at the project as a whole.
I went and added a tent on the top row for no reason or whatever.
I tested the aerodynamic by myself I did not! and while there are no meanings behind the test I made it, Also I just wanted to add extra text here.
I am thinking of new things for the PCB and UDB so stay tuned
PCB is designed by only me Thebloodyezkb so if you are interested, you must find the details below of the project or join my discord to be pinged more often.

7.5 degree typing angle.
7 degree on top tent (R1\R0).
Top mount.
Brass edition first then Aluminum later.
Xteeeeeeeeeeeeeeeeeeeeeeeee! Dual PCB.
A UDB for something that I am working on.
Firmware: QMK & Vial.
PCB support: Macro XT.
Weight: Brass Rebel Edition 1KG.

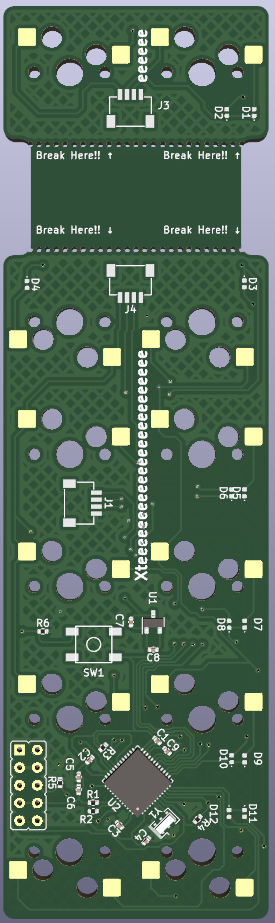

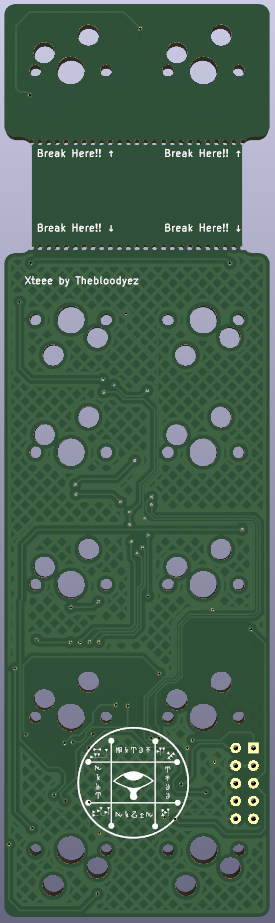

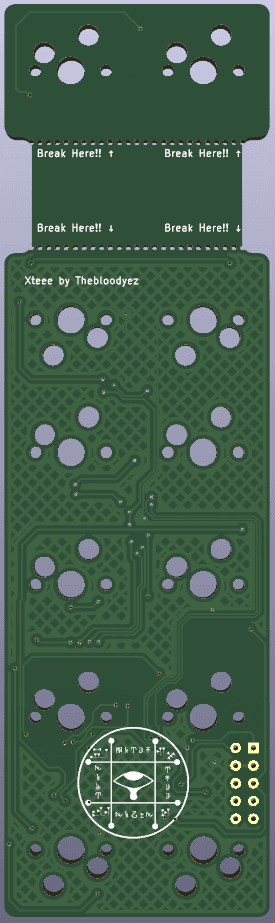

PCB

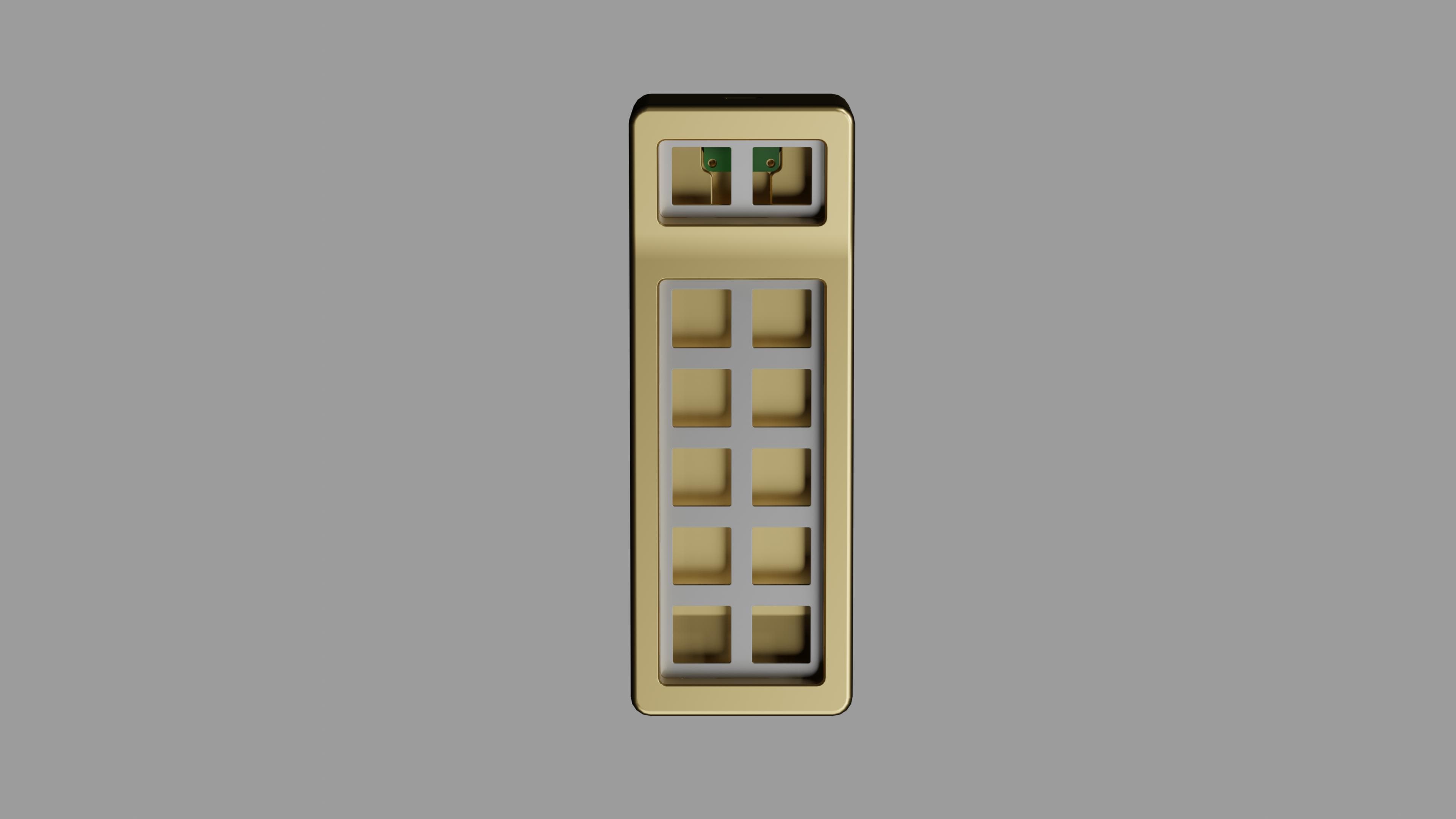

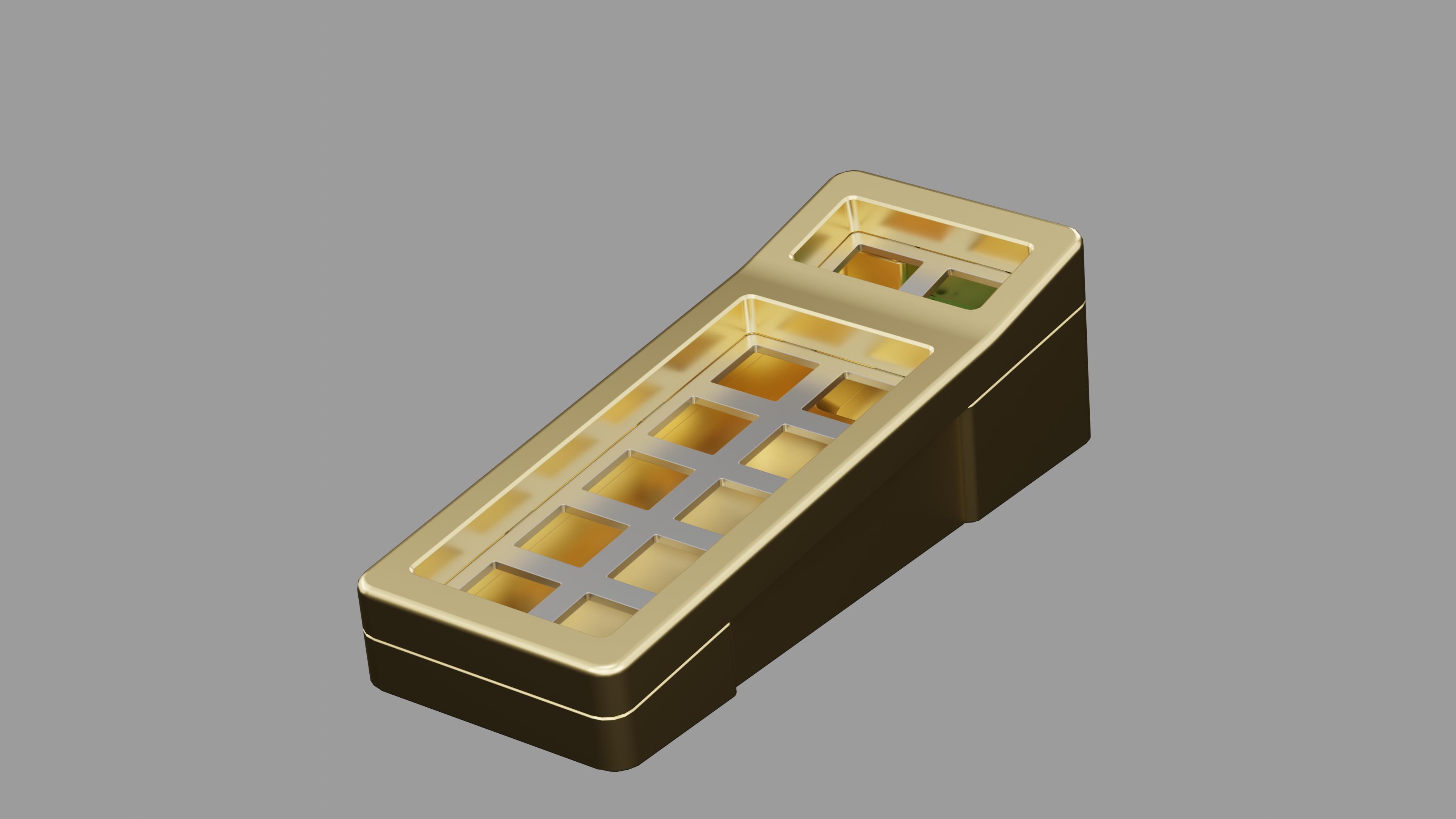

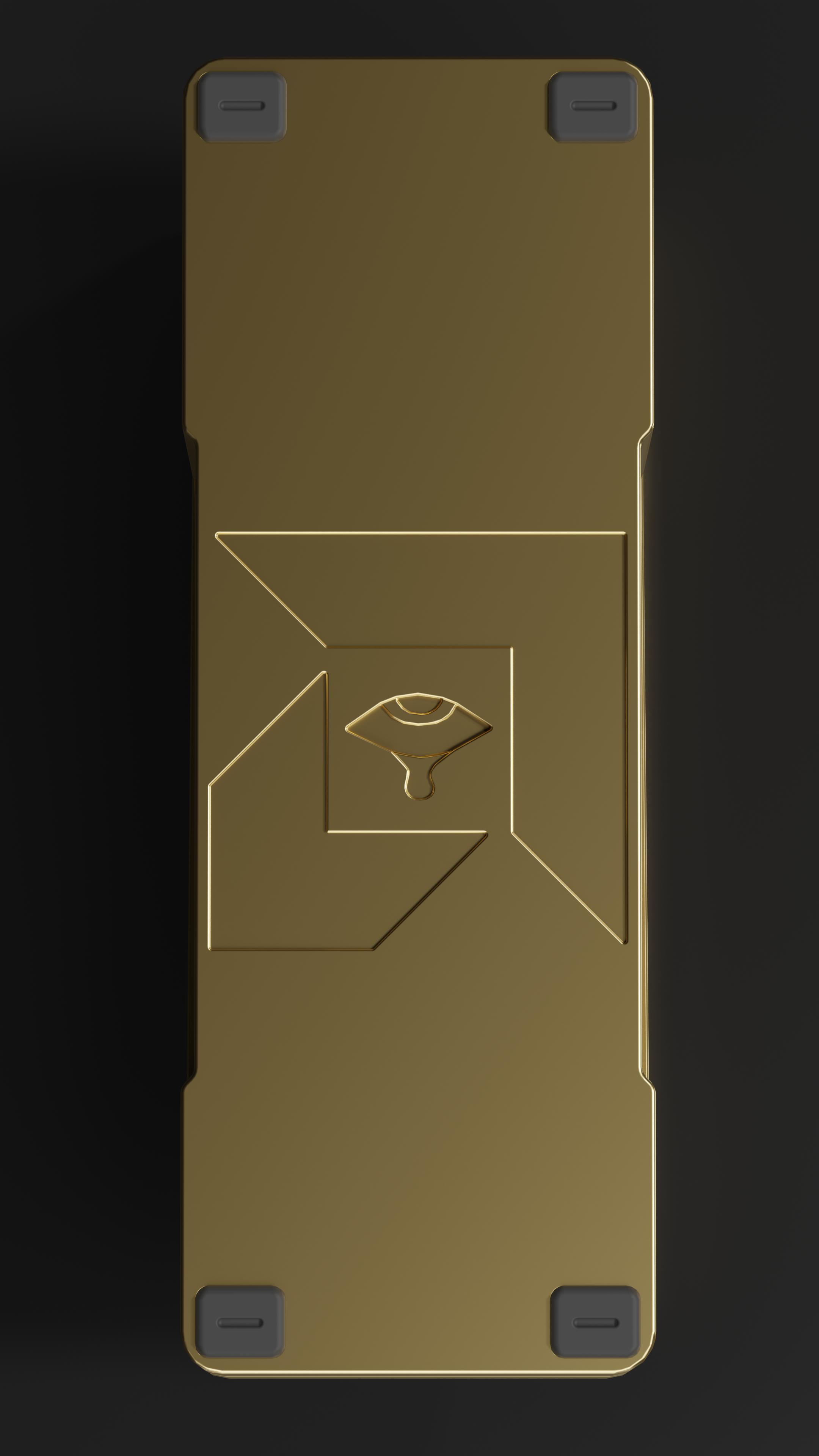

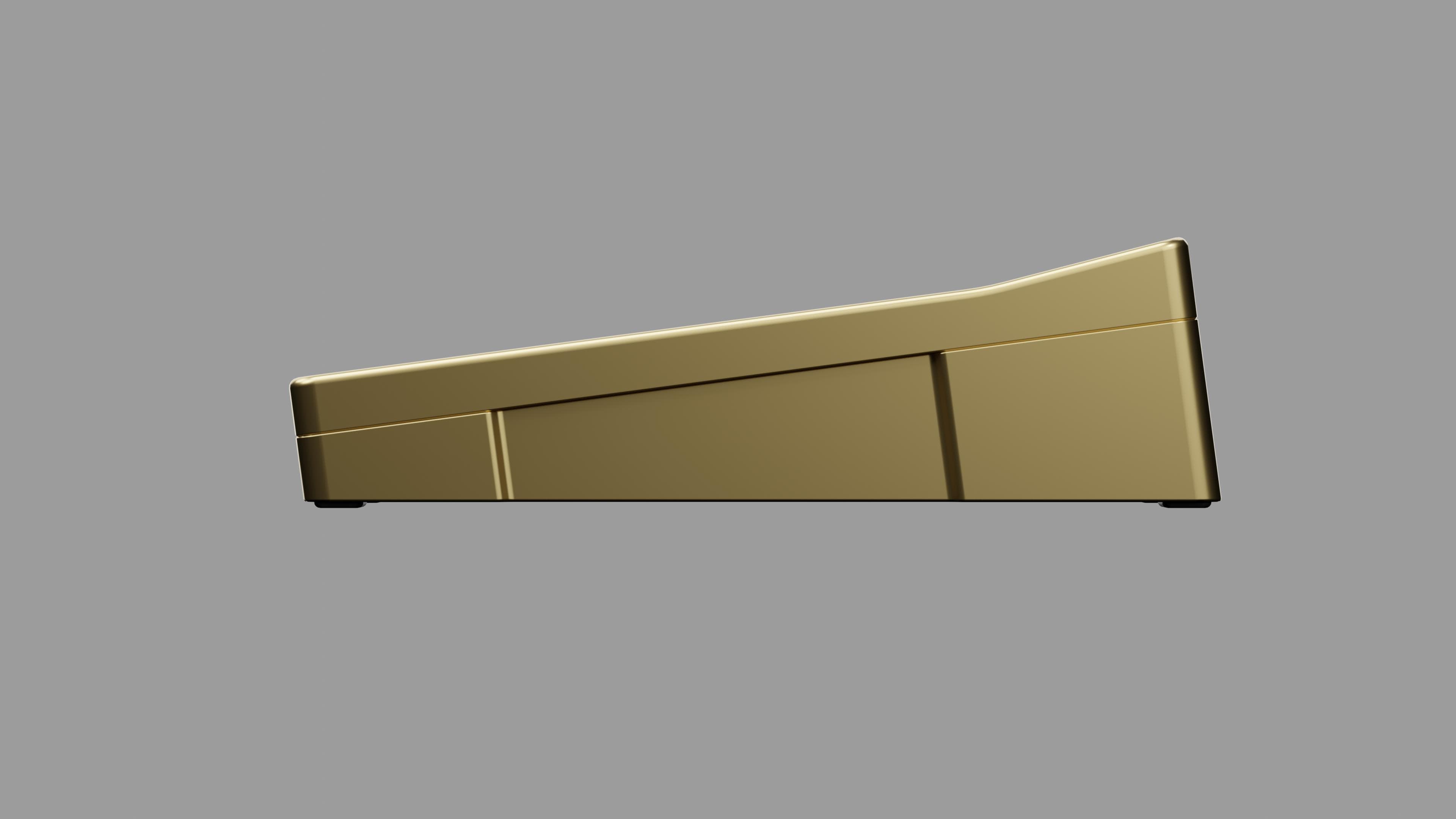

Renders Brass Edition:

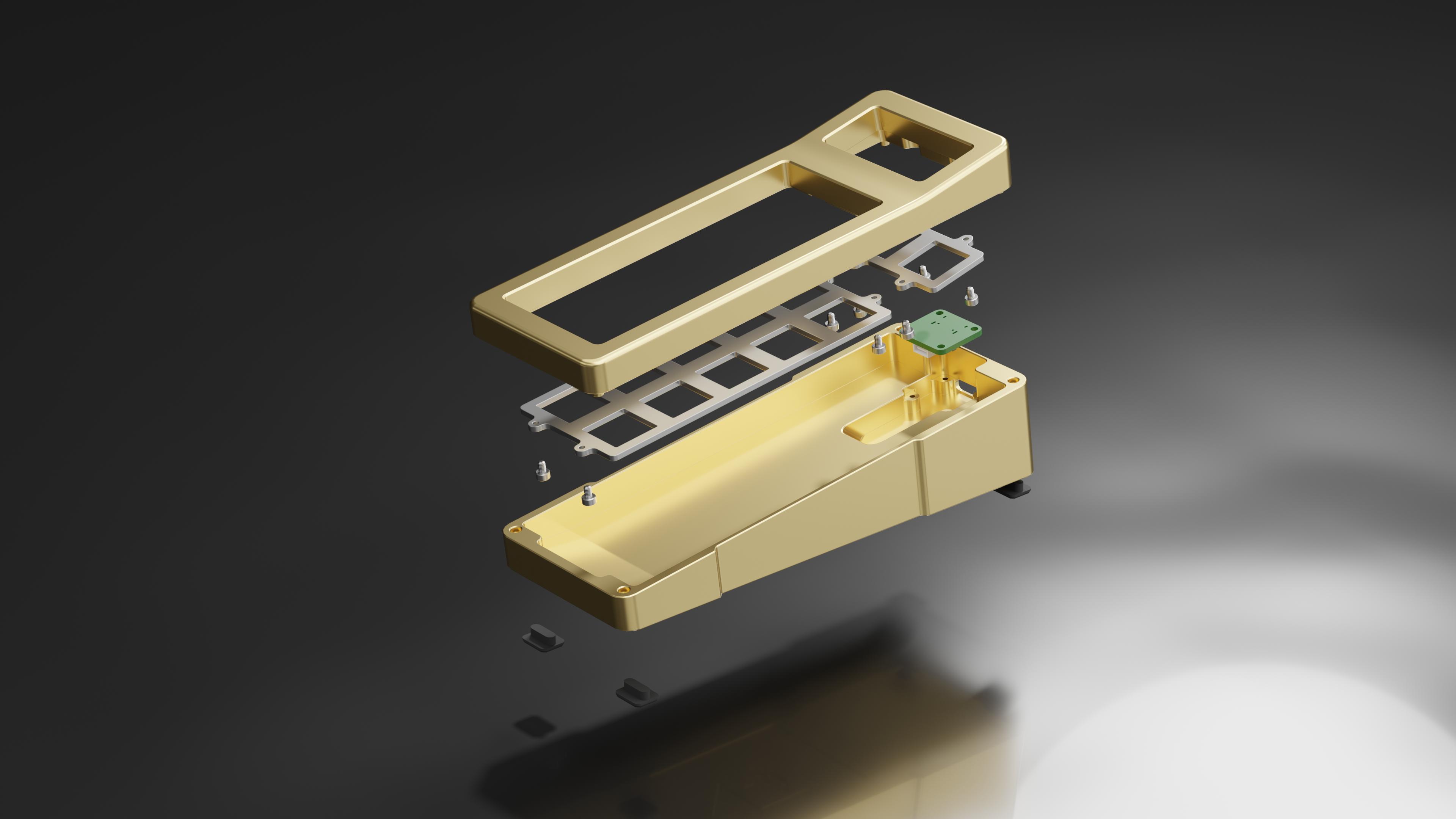

Explosion Diagram.



Rebel! Edition

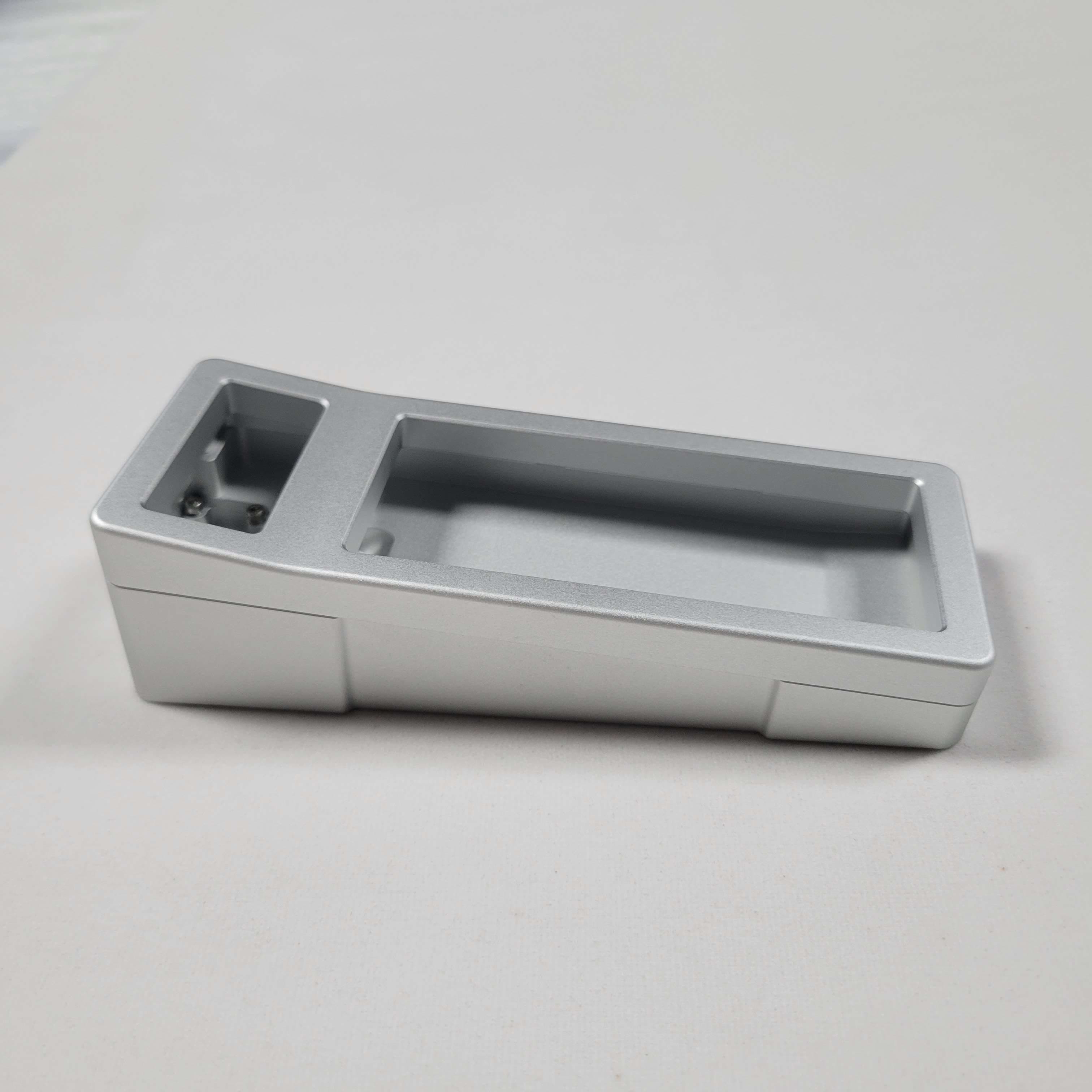

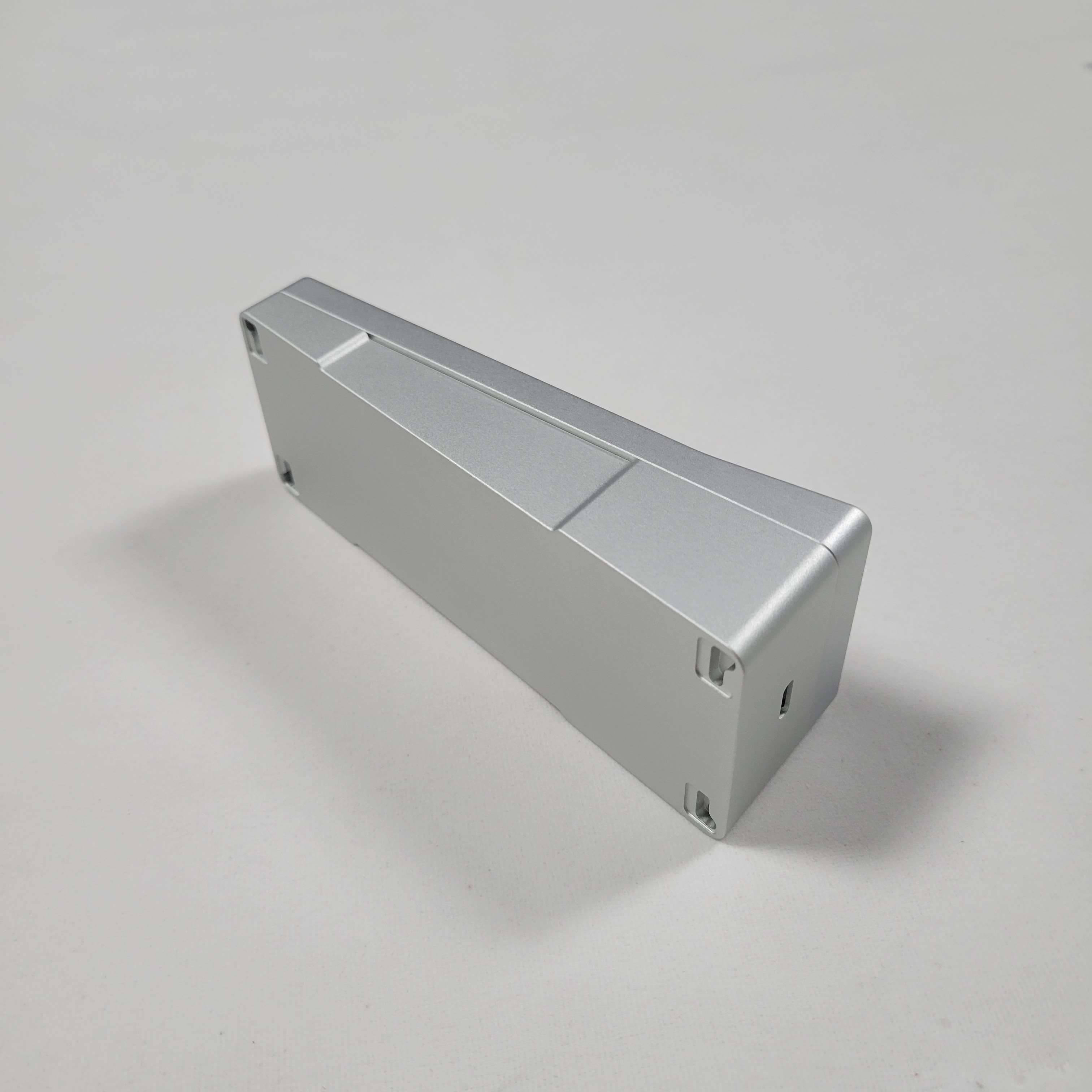

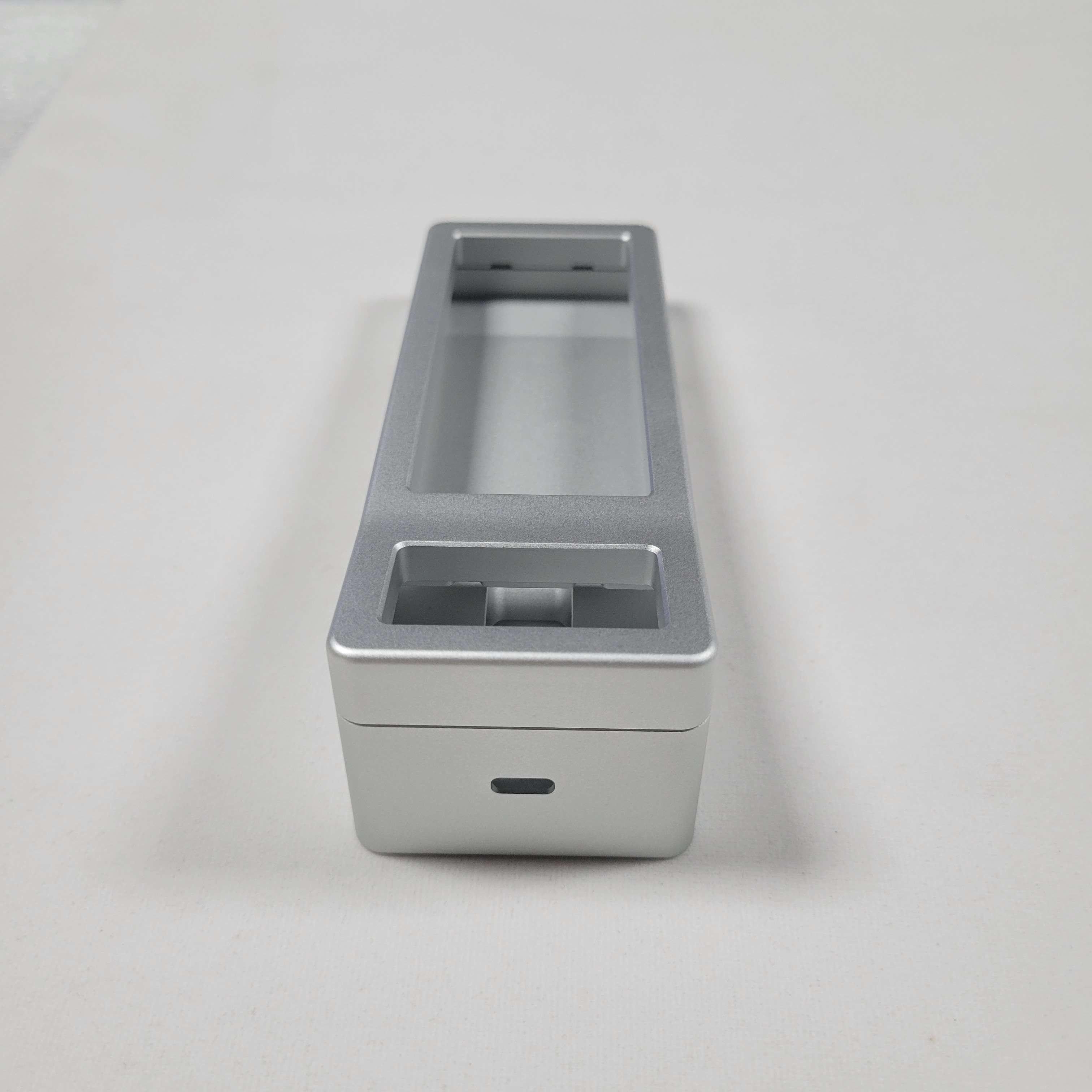

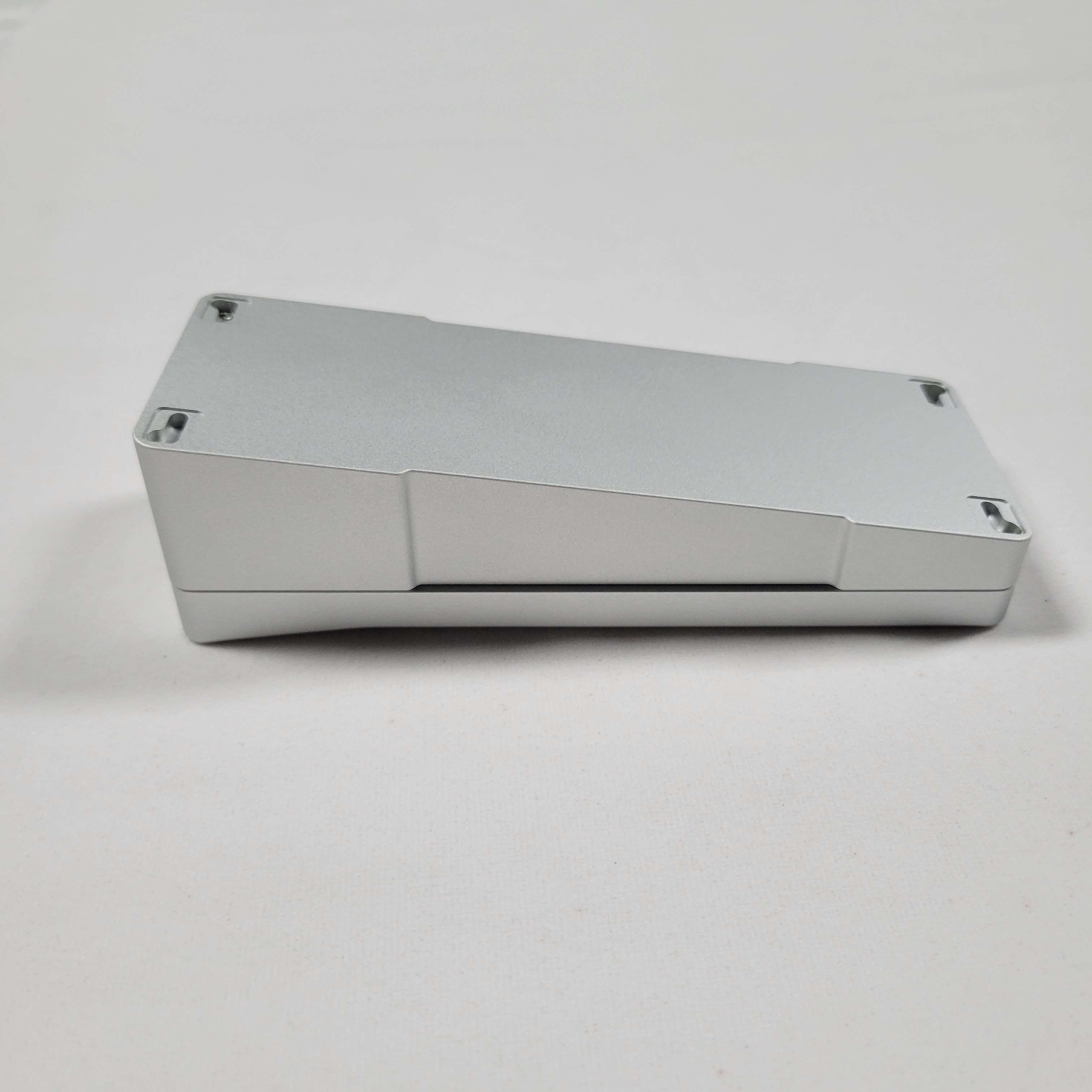

Prototype V1:




So what's included:
Aluminum\Brass top & bottom case.
Aluminum or FR4 Plate.
MX Hotswap PCB.
UDB (unified daughter board) + JST cable.
Screws (extra included).
Geon rubber feets.
Hard carrying case.







Price:
Your favorite overpriced manu and u know it
Price: Dont worry about it for now but the it will be based on MOQ.

Notes: The price will be based on MOQ and thinking of Softcap 75 MOQ.



Vendors:
Rebel Edition
blackdrop


Global
TBD


Special Thanks to!
A special thanks to my supporters, you are the best , and I really appreciate that! <3
