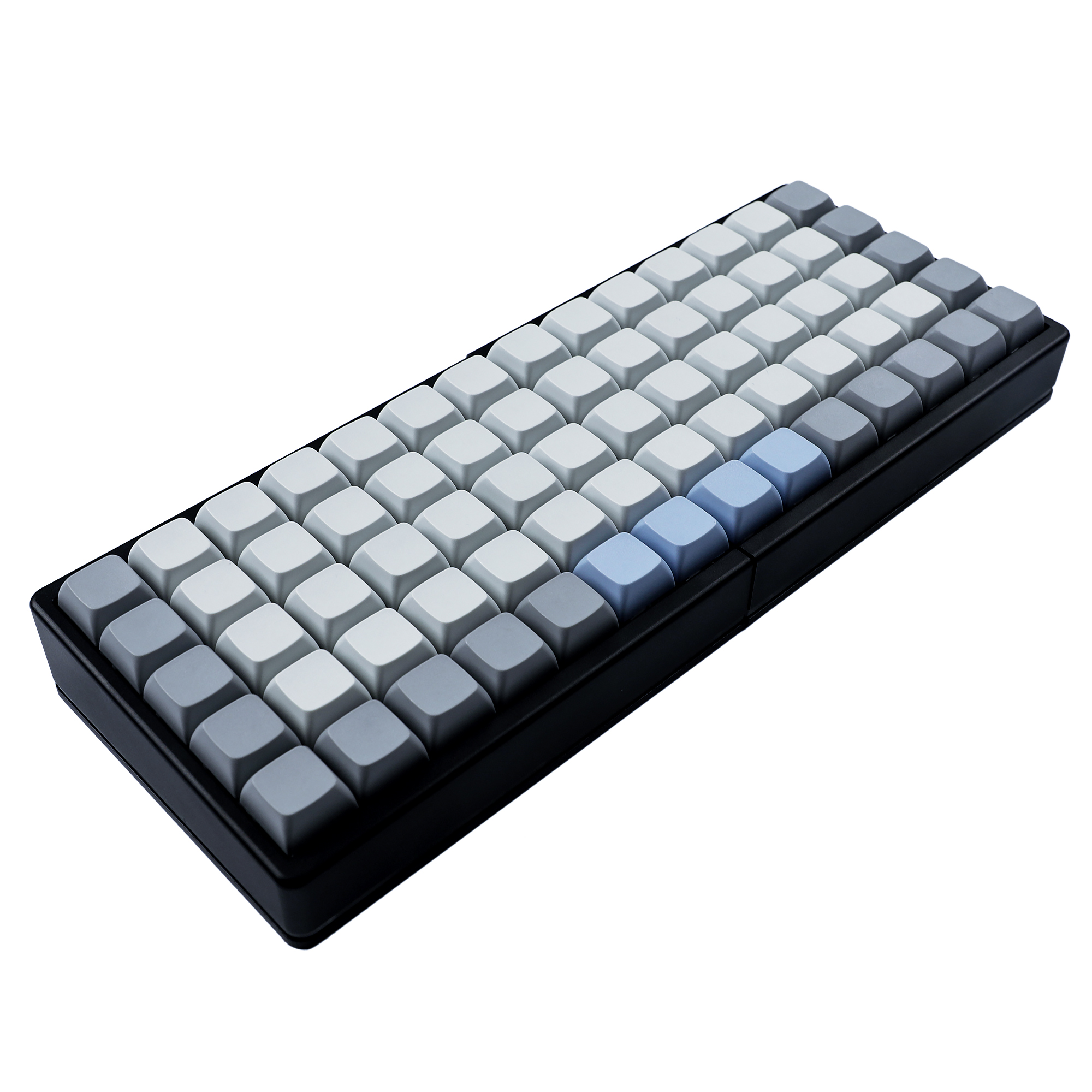

YMD-Split 70 Orthogonal Kit

Hi,everyone
We do the special split 70 orthogonal keyboard this times.And consider whether will do the keyboard now,launch the IC to find more informations.



The reason for the keyboard:

When we check the using of 24 numpad,find the orthogonal of factor in the keyboard.

And after consider the feel of using that is influenced by angle,key of quantity,place etc,create the split 70 orthogonal layout as the keyboard of layout.

Lastly,we do the standard aluminum case with acrylic layer to keep the keyboard of influence in underglow.

Case

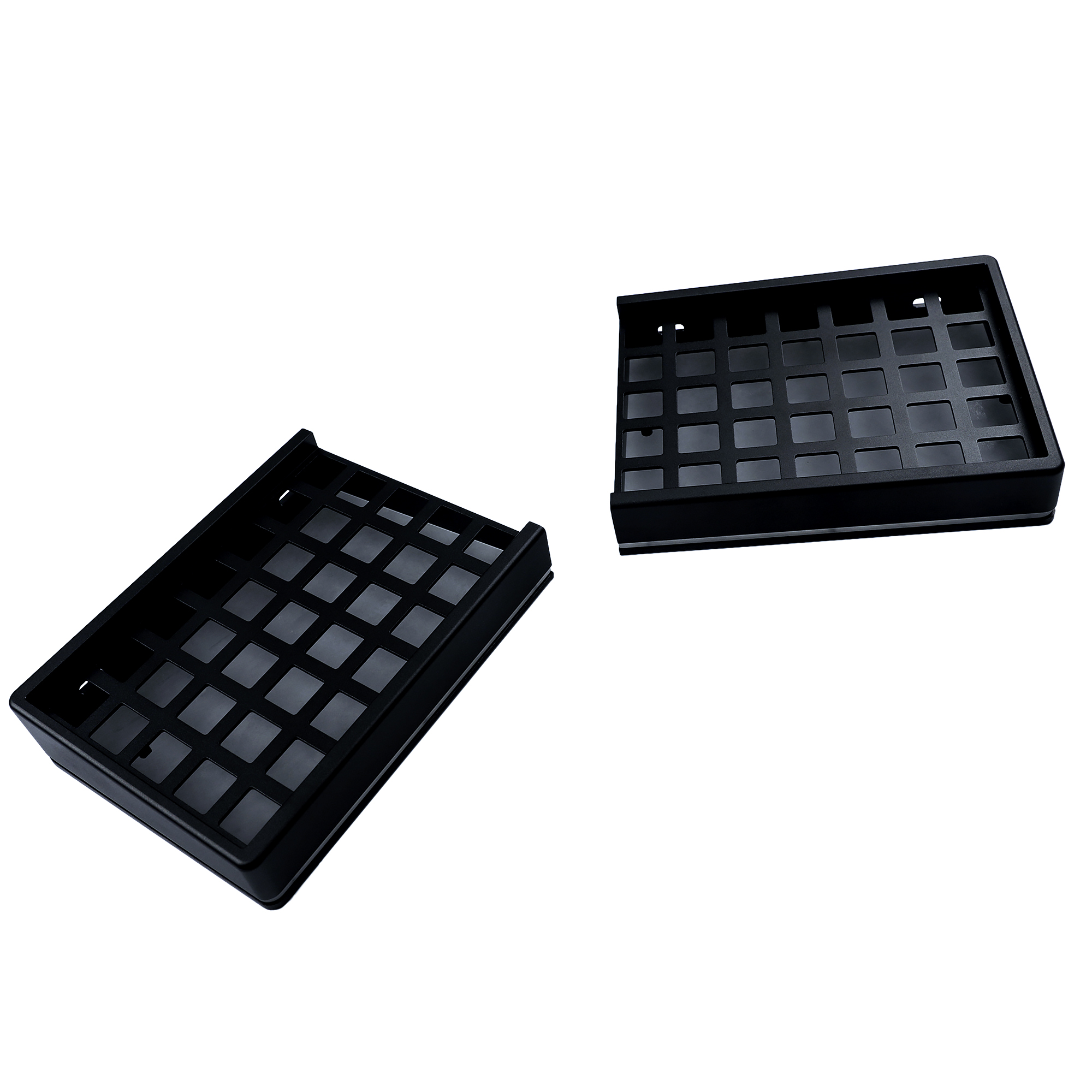

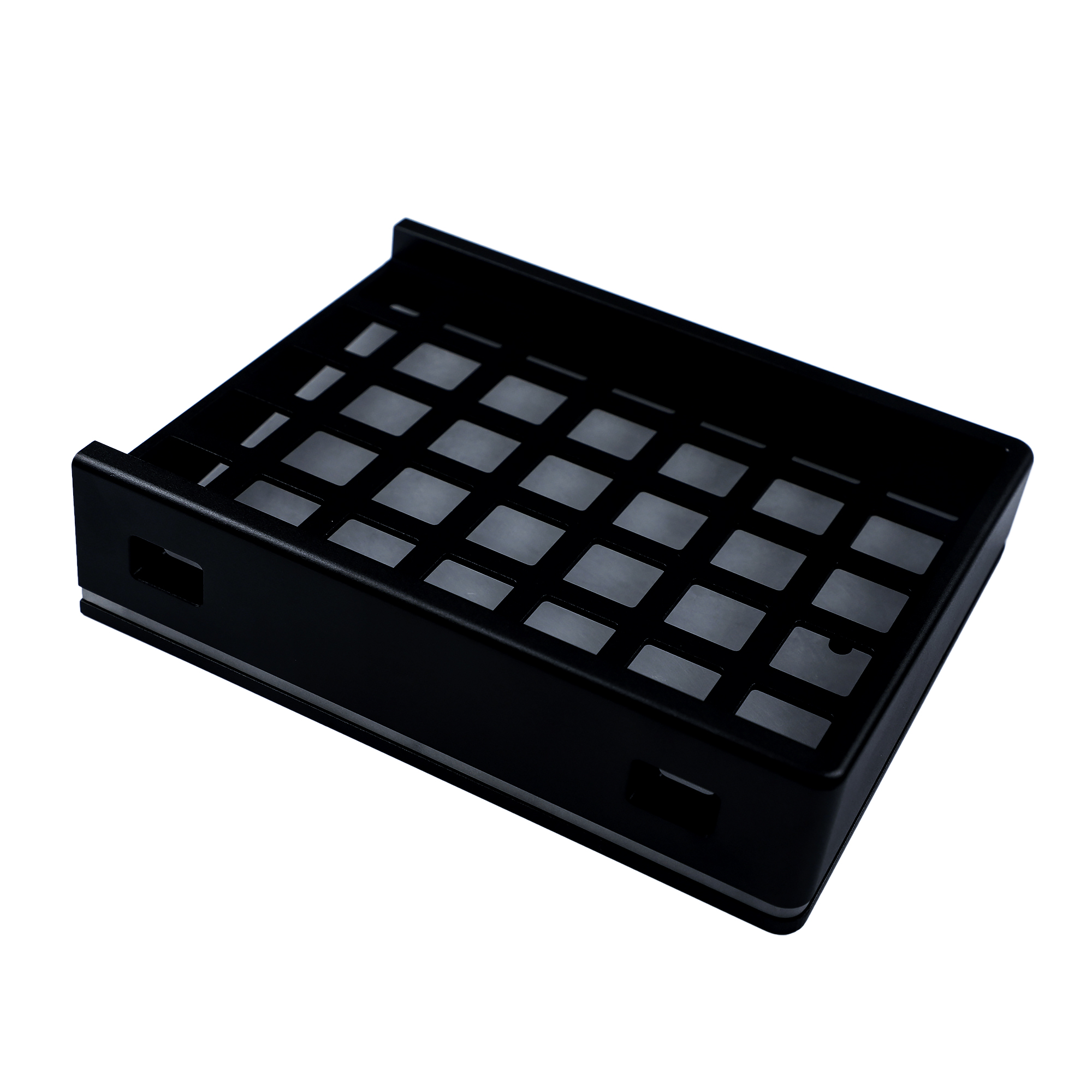

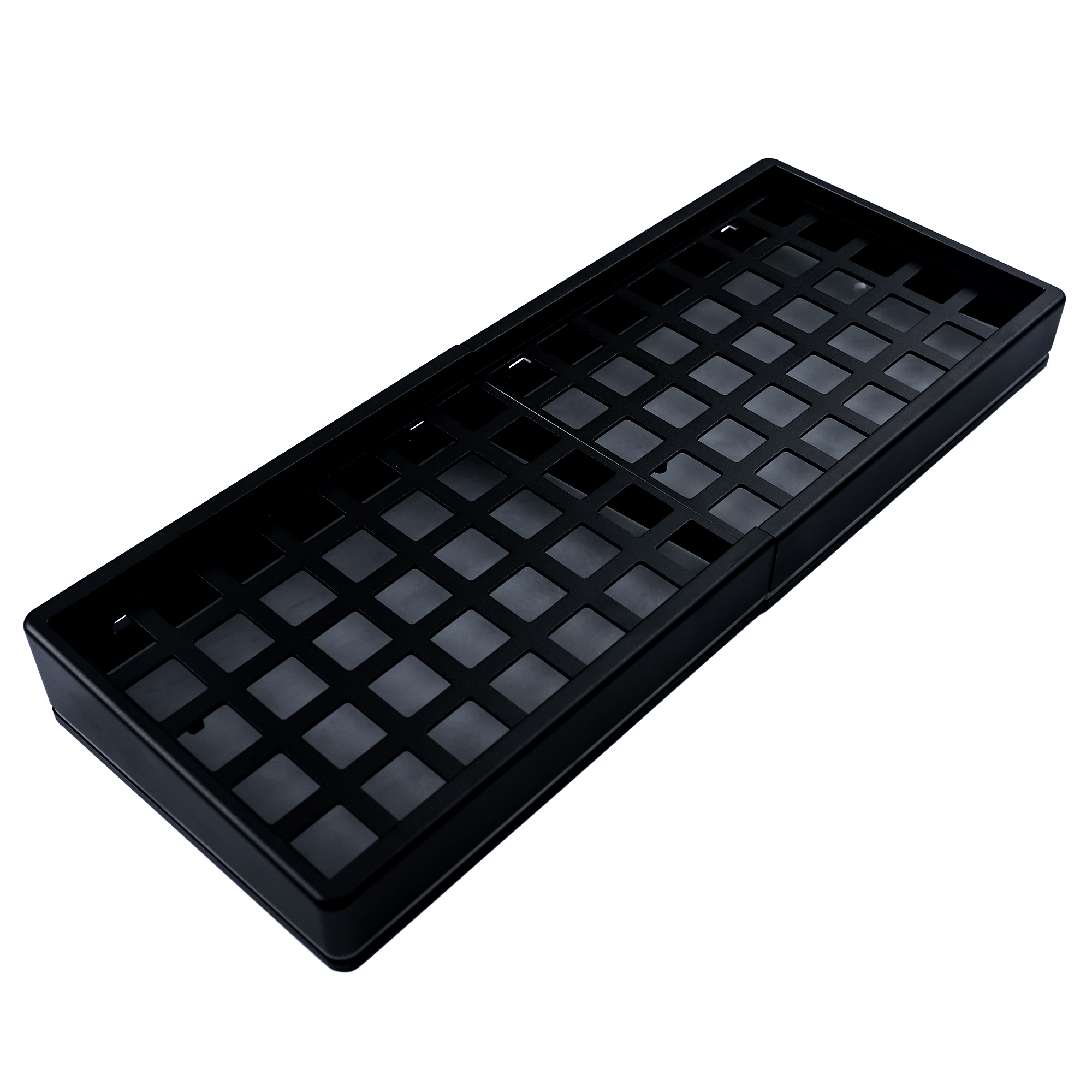

Standard arc inclination aluminum case with acrylic layer,anodized

Integrated Plate with top case.

One side of weight about 325.8 g,size about 136*107*23-33 mm,angel about 5°.

Aluminum screws and rubber feets



PCB

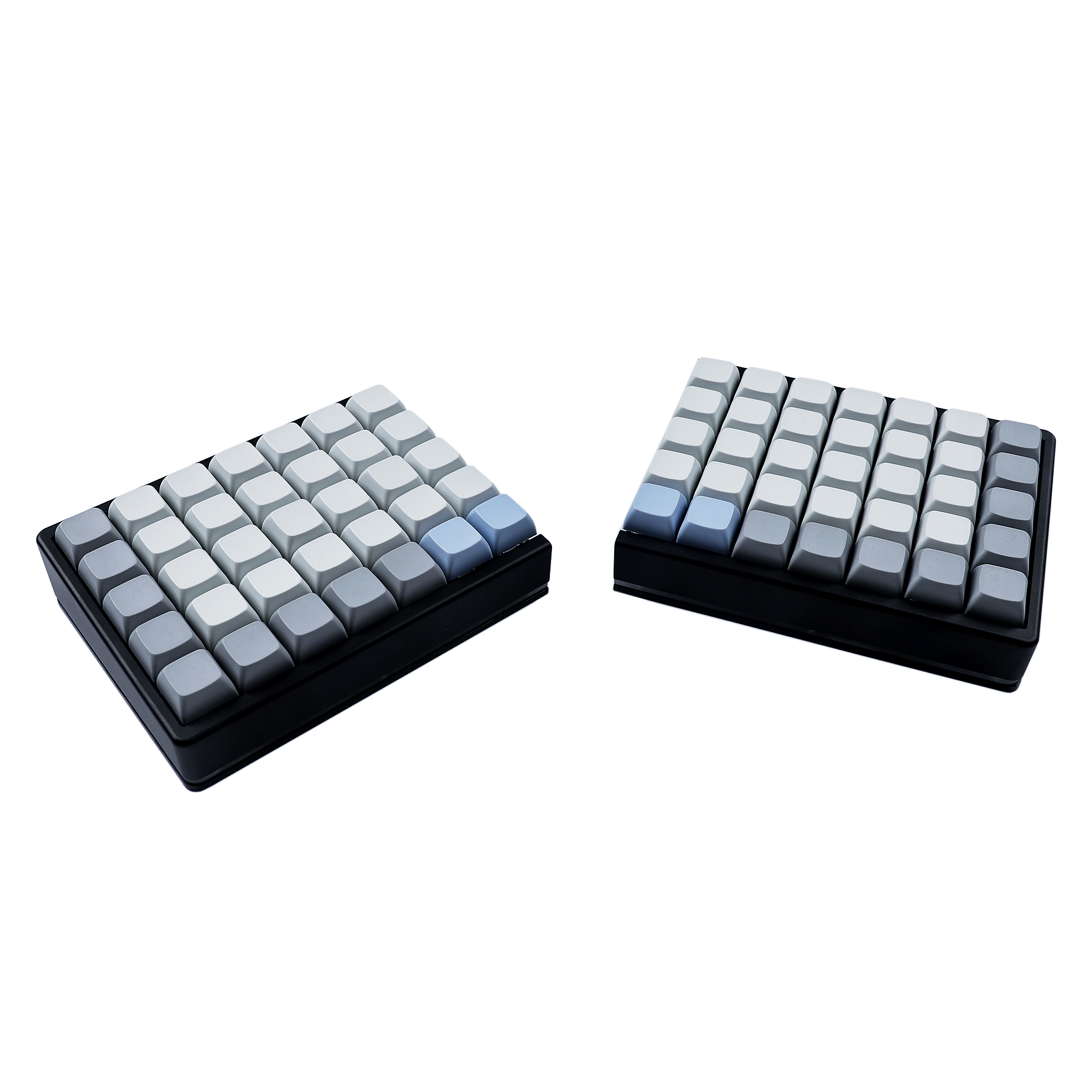

35 keys Hotswap RGB underglow PCB as one side,2 pieces totally

VIA supported,can flash it alone or together.

Sample is green color,production will use black color.

Non RGB backlight,wired only.

IC form

If you have the interests for the IC,click here.
