Zodiac by Nyhxis | A stylish 12 key angled macropad

Zodiac
by Nyhxis

Hello there.
I'd like to introduce to you the Zodiac macropad, a fully programmable 12 key angled macropad.




IC Form
Full Render Gallery
Initial Prototype Gallery

Discord



What is it?

The Zodiac is a macropad that you can use for macros (naturally), shortcuts, easy accessibility to specific keys, functional artisan display, you name it.

Features

• 2-piece construction made from 6063 aluminium
• Hotswap sockets for easy assembly
• QMK and VIA compatibility
• Custom feet
• USB-C port

Possible Color Variants

Blue



Red



Green



Silver



Black



Pink



Violet



Any other color you'd prefer? Fill out the IC form and share your thougths!



Price

Price are still undetermined, but aiming at a €100 upper limit. A more definitive price should be possible as we proceed with the IC and gather more information on quantity.

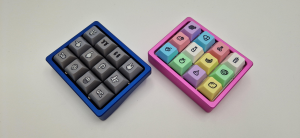

Initial Prototype






What's changed since the prototype?

Modified the overall design a little bit:

• Tightened the case slot, more aligned with the keycaps
• Centered the USB port
• Rounded the outer corners for a more pleasant look
• The overall "extrusion" of the case

What's next?

• Finish refinement of the design
• Consider review units to send out
• Consider possibilities of included keycaps
• Consider molded feet, rather than diecut
• Consider plate standoffs for easy reassembly, or an alternative
• Consider other case materials, such as brass, stainless steel, PC, etc.
• Consider final colors, and ano vs e-coating

Thank you for checking out this IC!



Do please consider adding this signature to your profile
