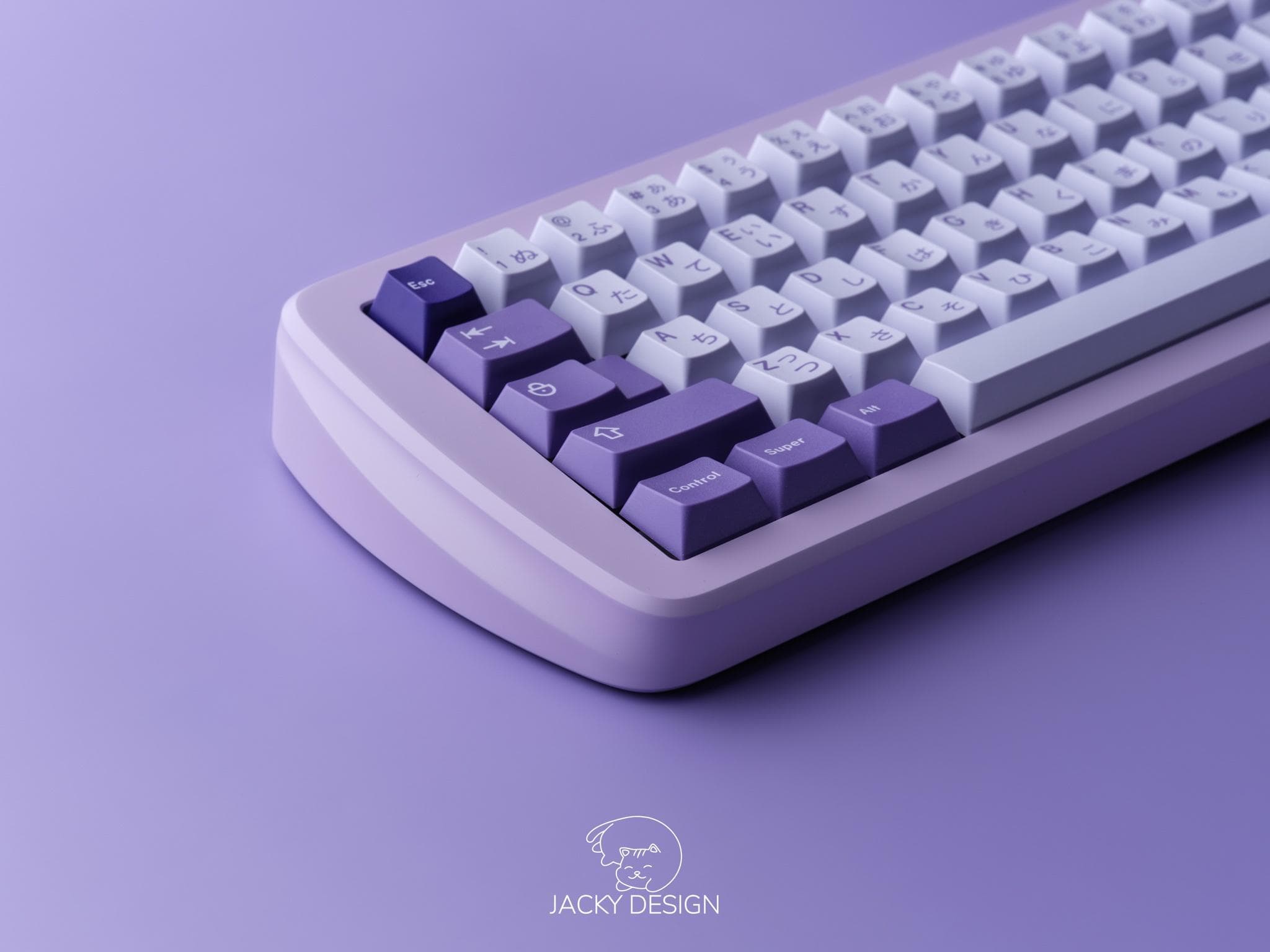

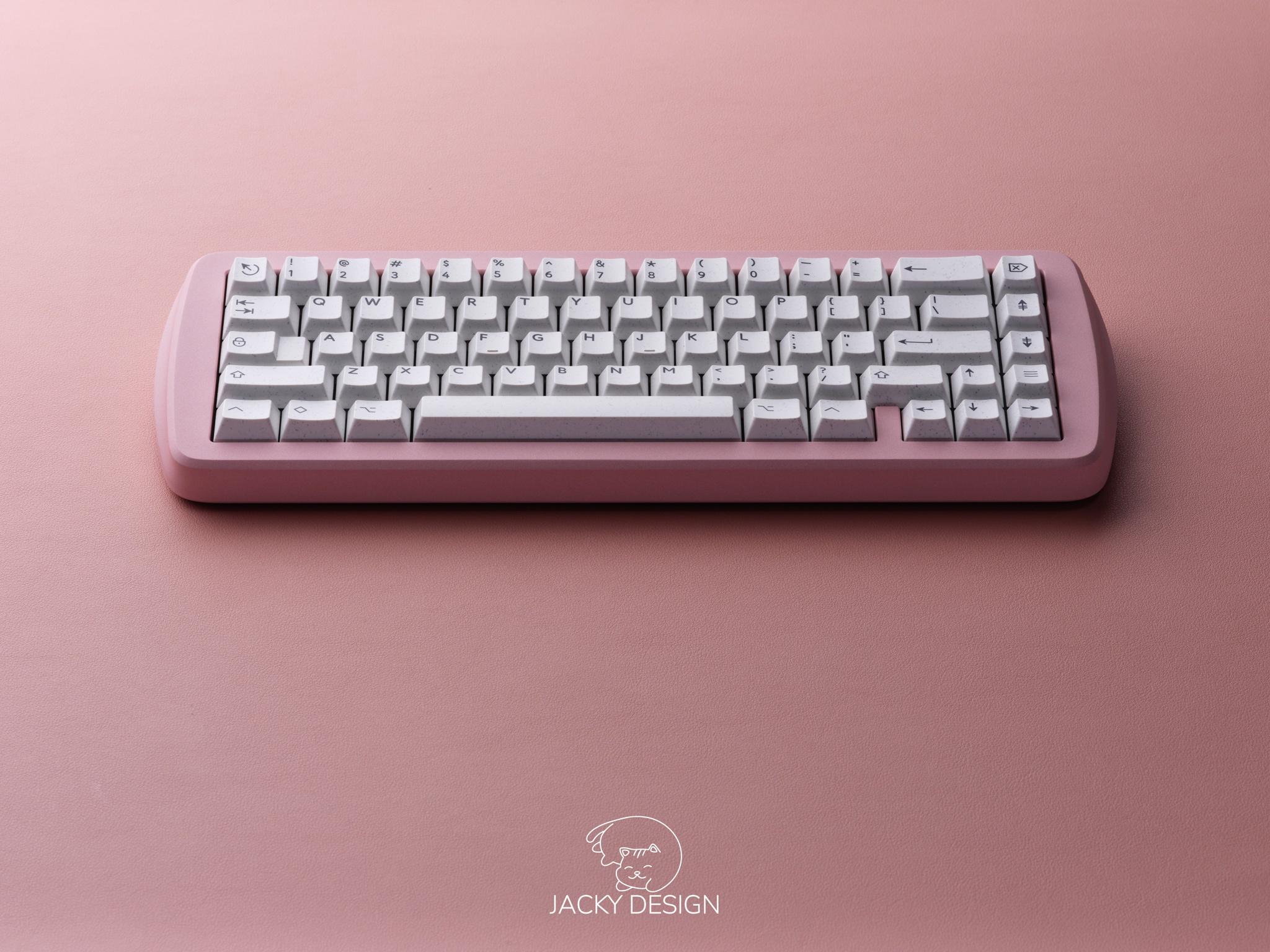

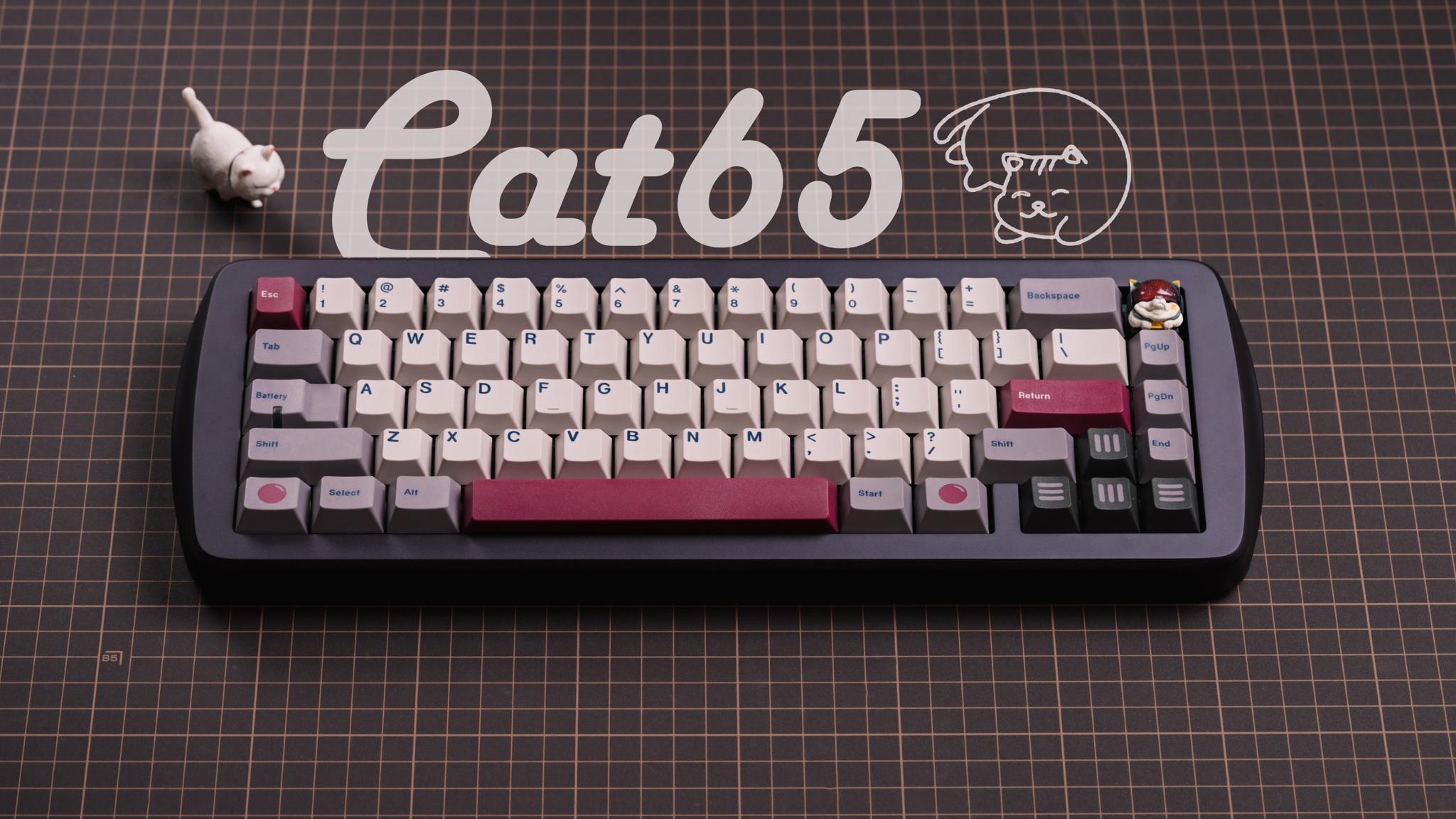

CAT 65🐈A cute keyboard with spring mount, collaborate with :3ildcatIC is here :

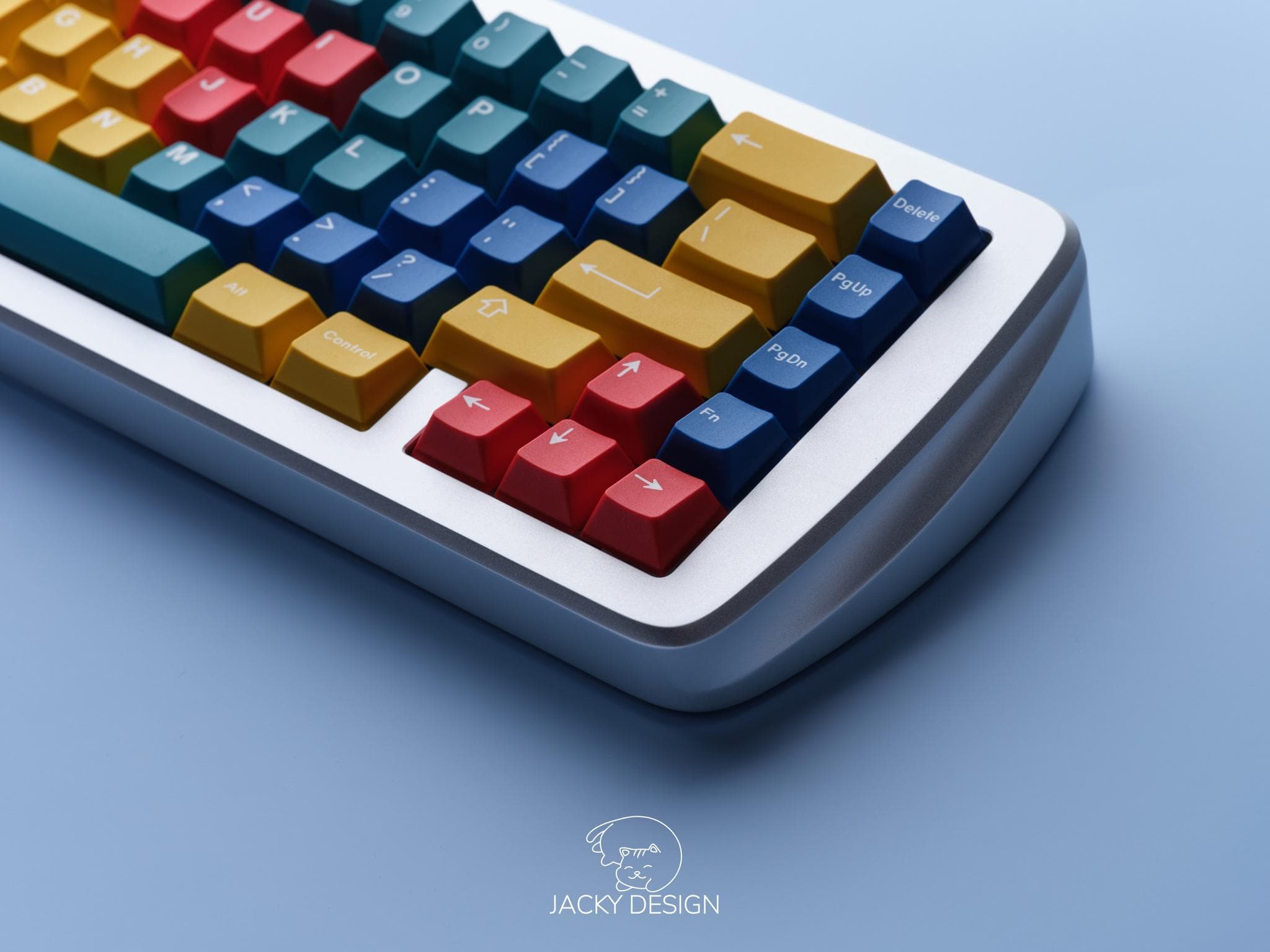

https://geekhack.org/index.php?topic=121166.msg3169814#topPrototypes in reality
More photos please check to markerchun:https://markerchun.com/cat65

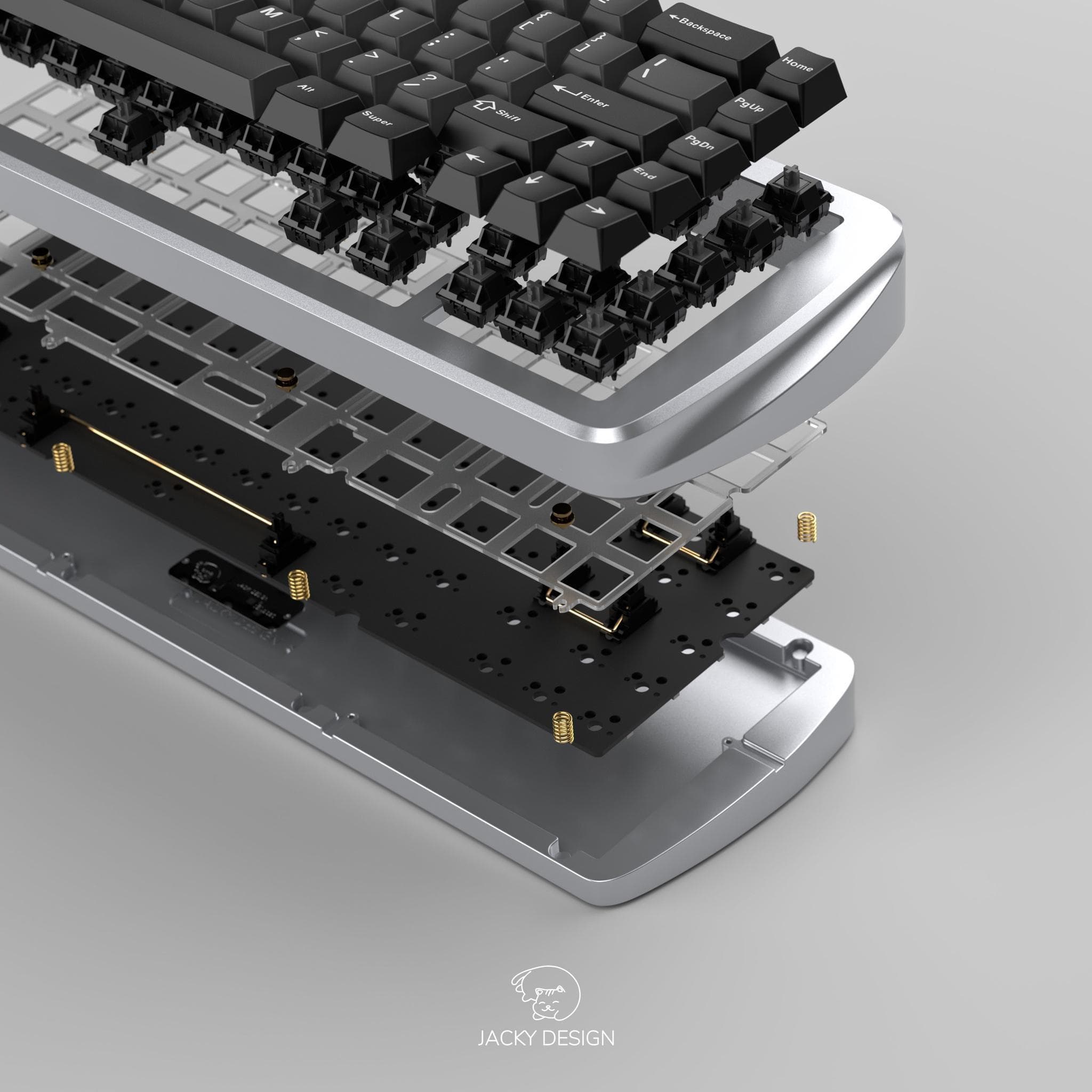

Google drive :https://drive.google.com/drive/folders/1ImGBuTZrrPYSm3dx-2Dj7td88Kh8JIR_?usp=drive_linkInner Structure
We have made some changes compared to IC
●Remove the bottom copper shell ,●Three custom srping change to two kind of spring
●Hotswap pcb not support 2x1U(Backspace),●Keyboard weight add aluminum weights

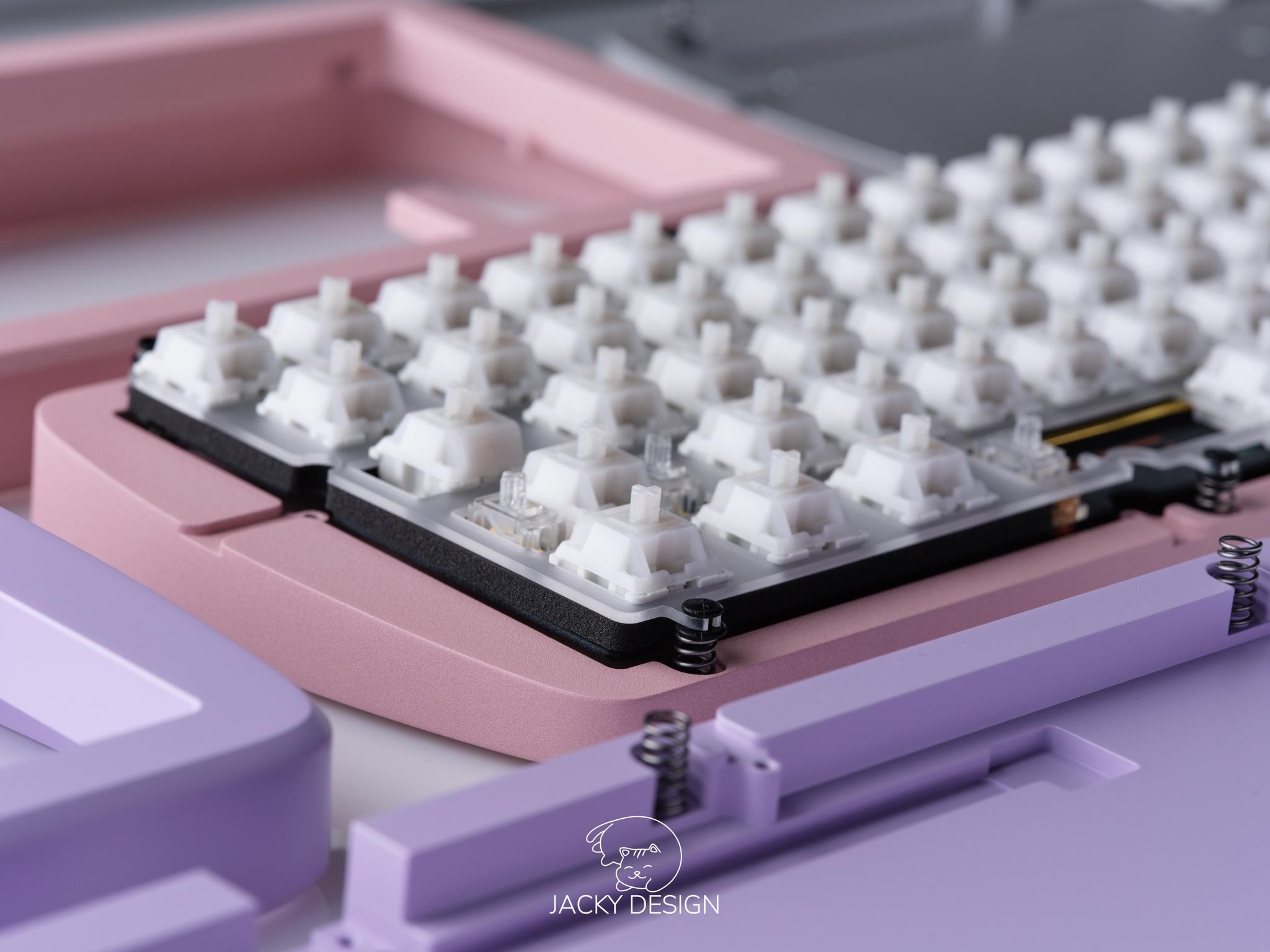

This time, we tried something new regarding the inner structure's fixation method. We've adopted a spring fixation structure:
●The bottom has springs that act as support points for the positioning plate.
●Between the spring and the positioning plate, we've fixed silicone particles to act as buffers(both the silicone and springs are custom-made).
●Horizontally, we've taken measures to prevent lateral movement. This doesn't mean your inner structure will be immobile;it will only move within a reasonable range without affecting the springs.
●Vertically, the downward pressure ensures the springs are held firmly in place. Compared to the gasket,it offers better fatigue resistance, consistent touch, and quicker rebound. The spring is twisted and fixed to the bottom pillar (repeated disassembly might cause some wear, which is normal).We will offer two custom spring strengths.
●You can choose between pvd black/ pvd silver/pvd rose gold/ aluminum black /aluminum E white

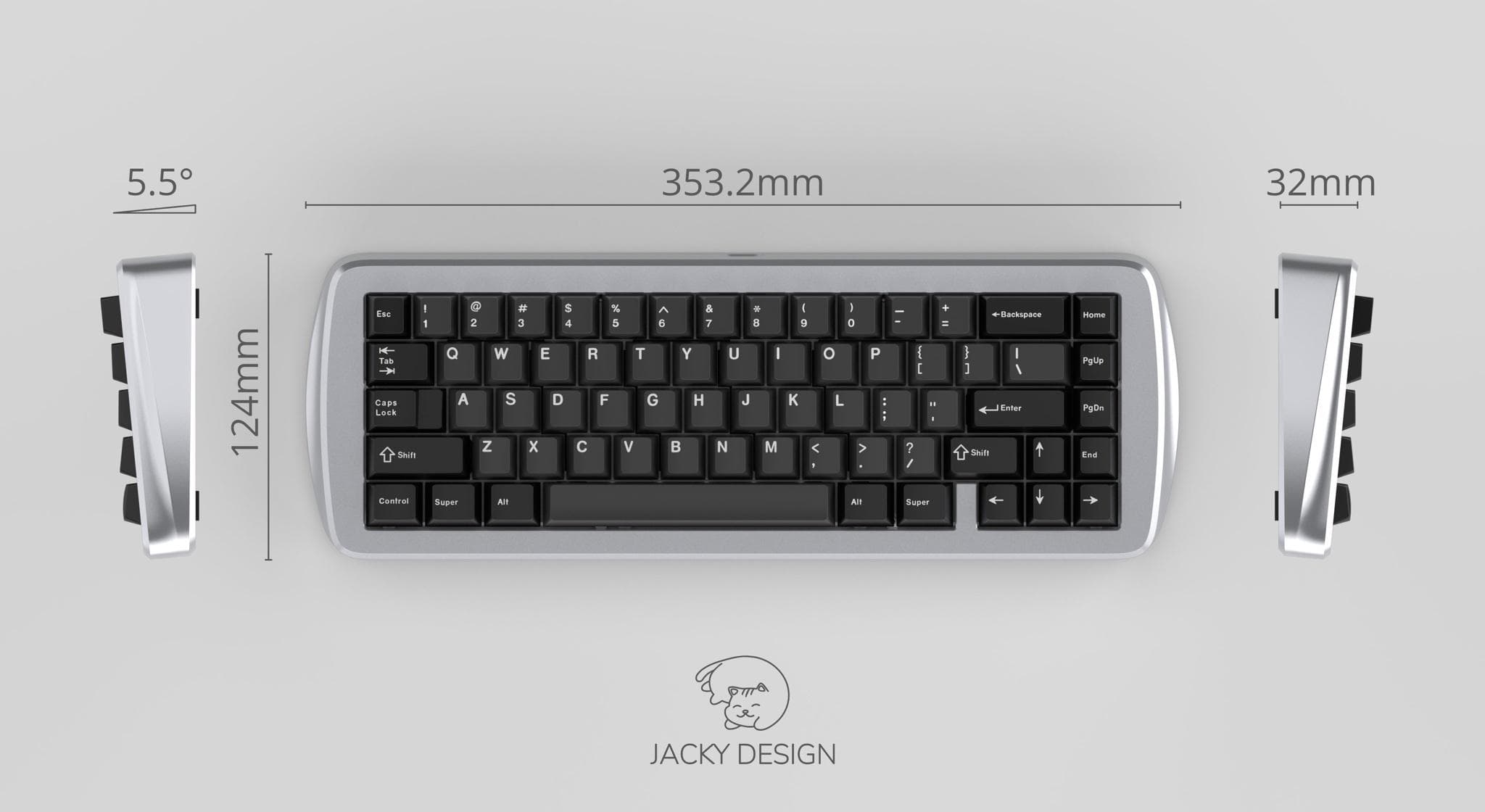

Dimension

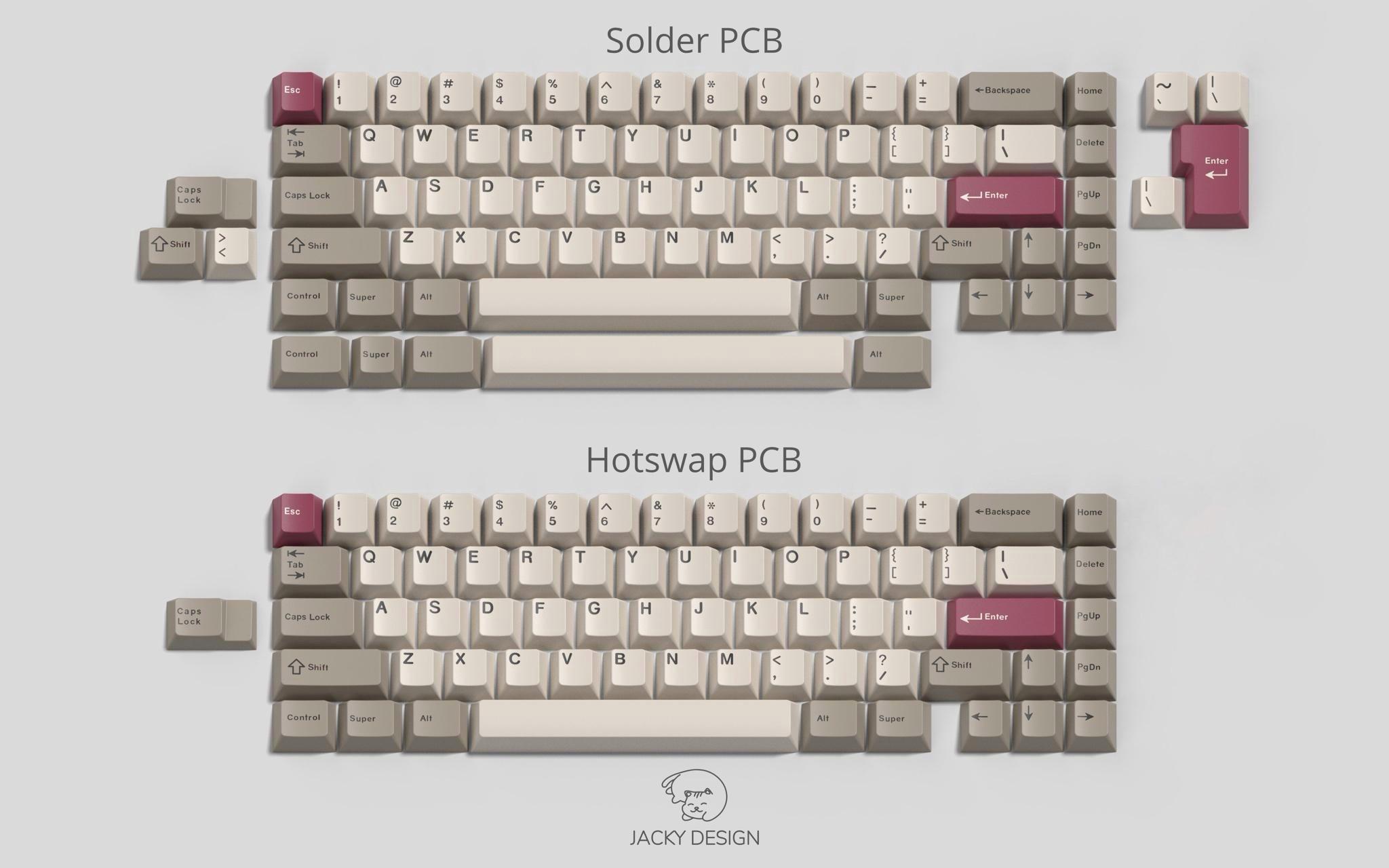

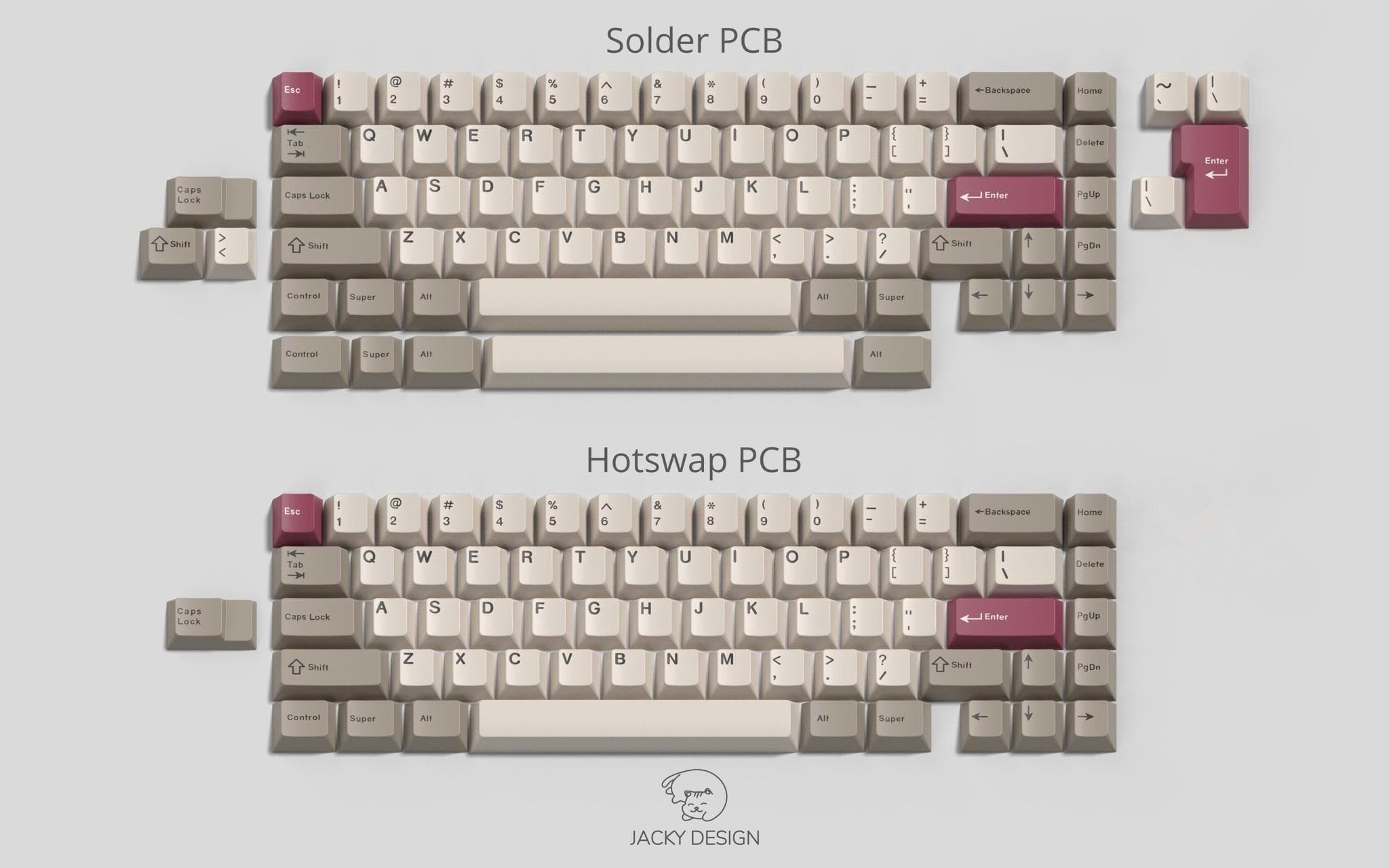

Pcb & Layout

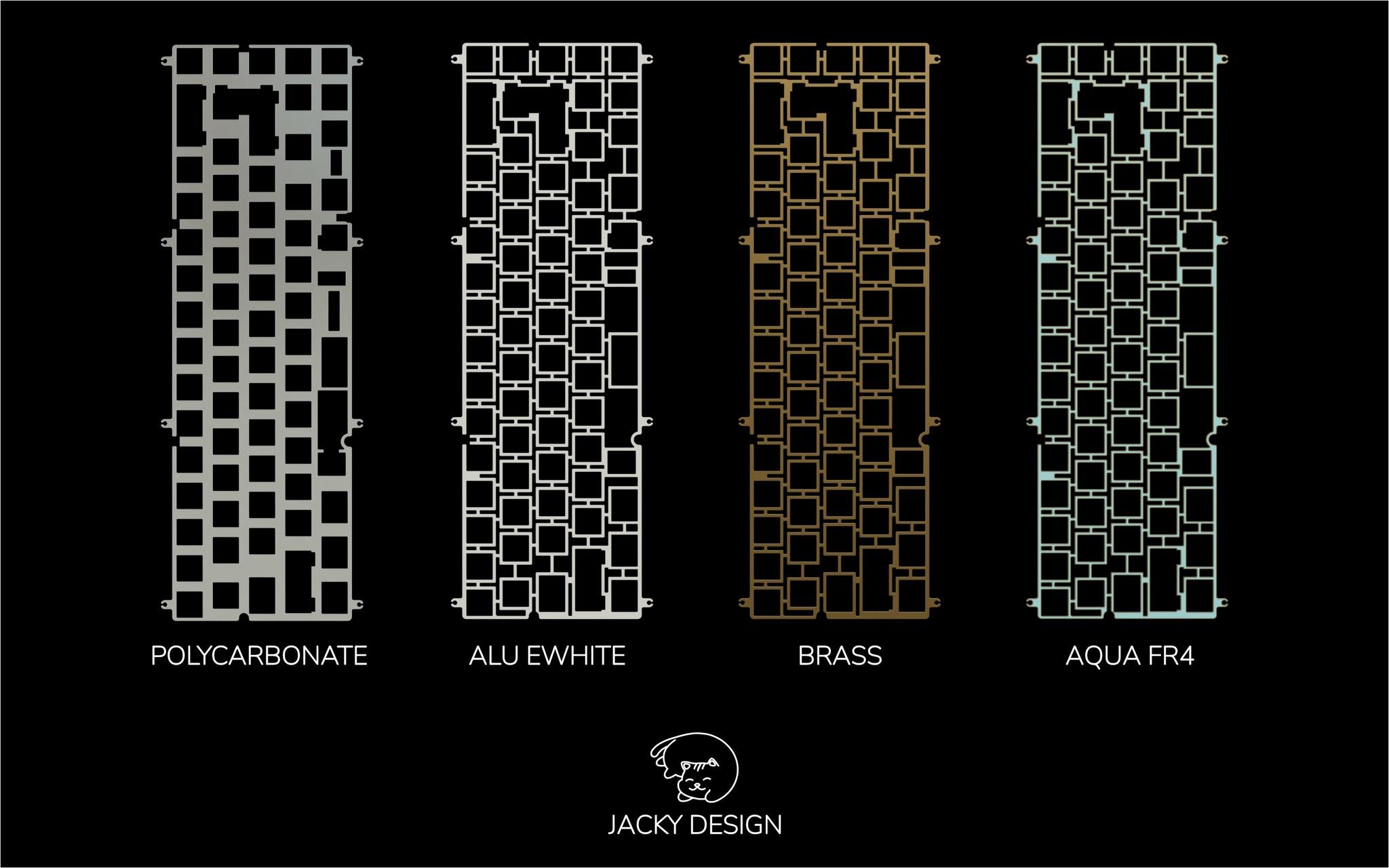

Plate & Weights
Group buy info

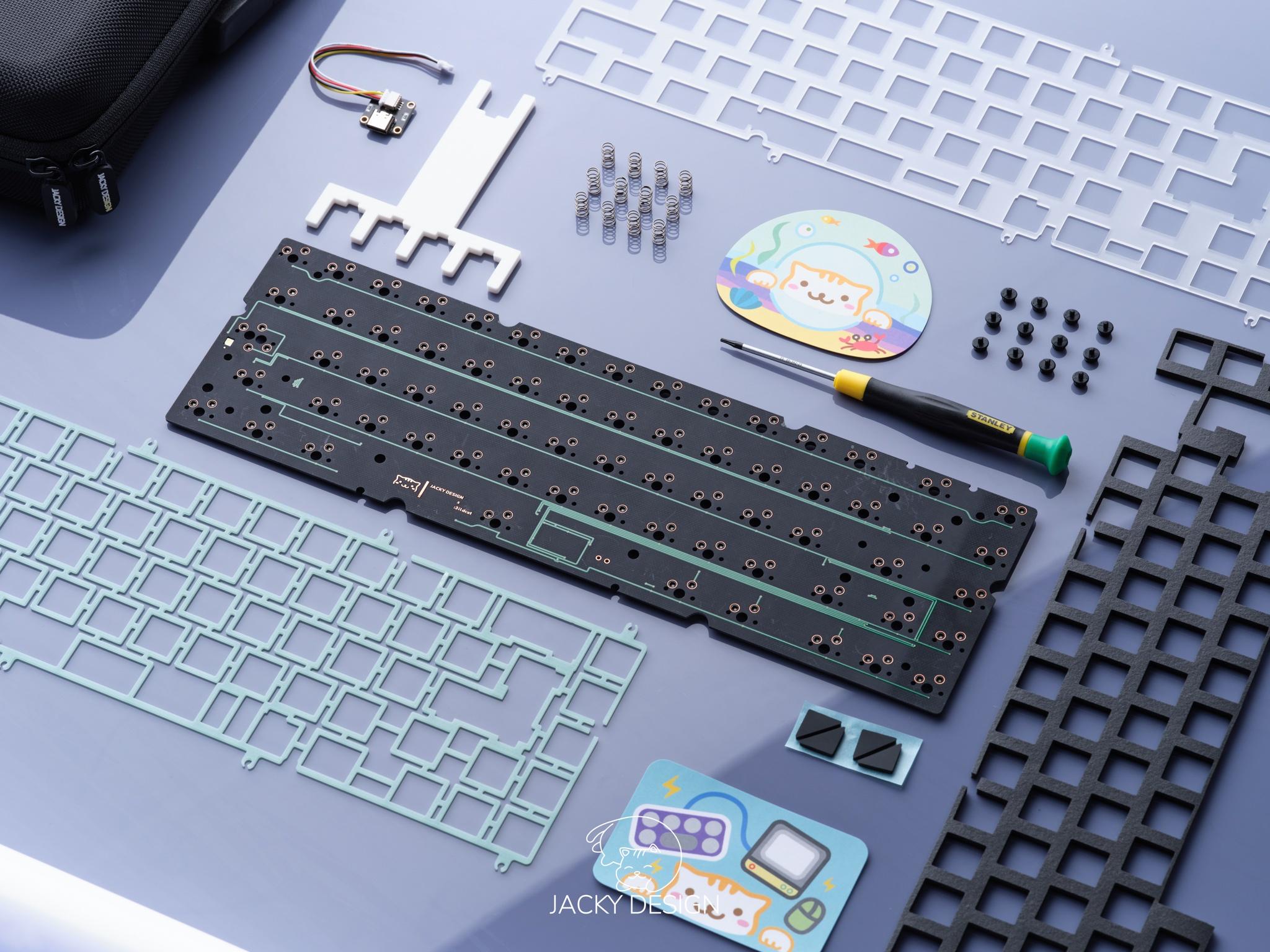

Includes:
Keybaord kit :(Aluminum top case,aluminum bottom case）x1
PVD or AluminumWeight X1
PCB (With Daughterboard and JST cable) X1
Plate X1

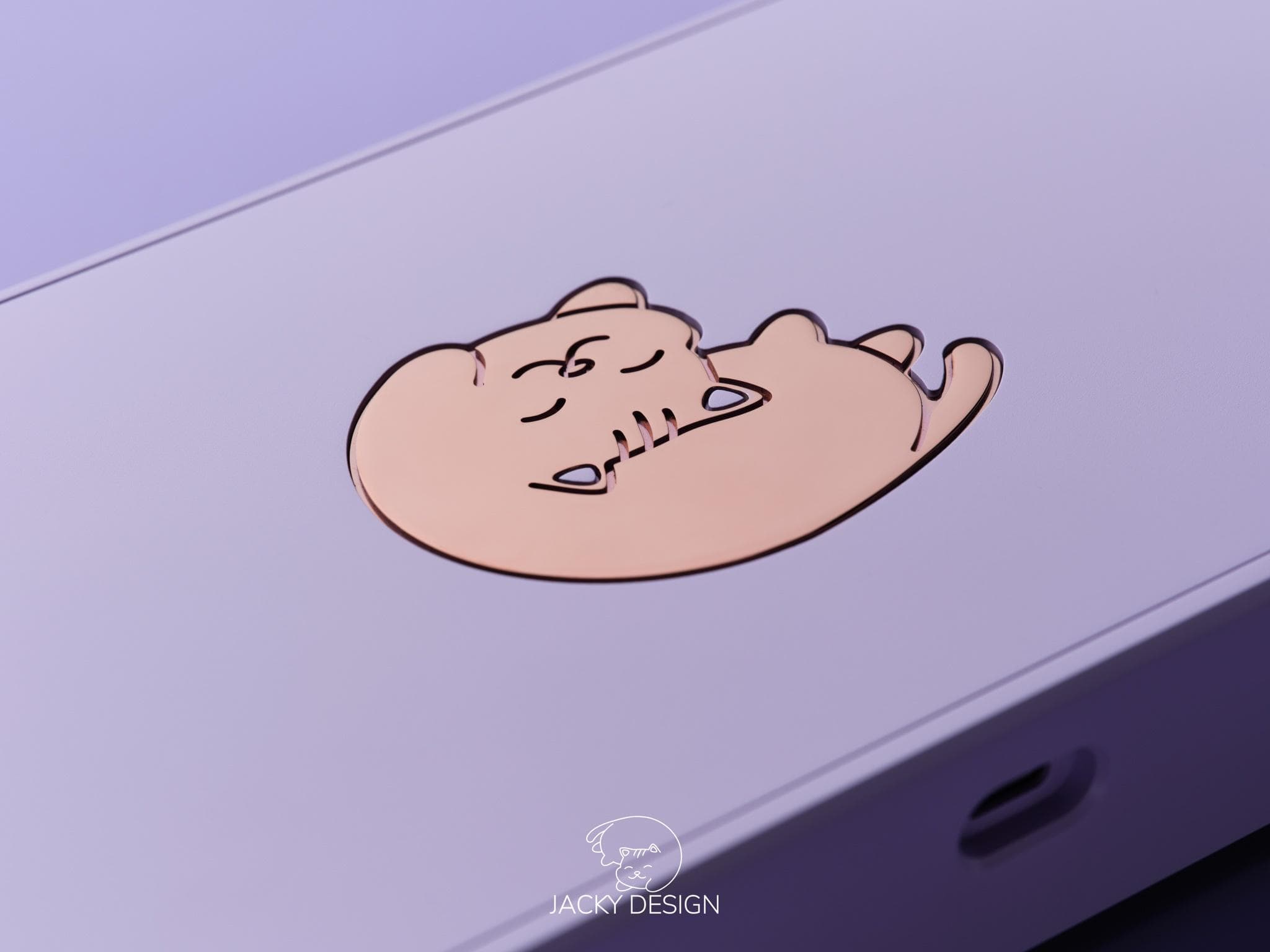

Nametag X1
Screws,spring,silicon ~ a kit
3.5mm plate foam X1
0.5mm case foam X1
Specifications：
Case Material: 6063 Aluminum
Typing Angle: 5.5° angle
Mounting Style: Spring mount
Weight: ~1.4KG
Purchase info:
Keyboard :$360
Base Kit Product Page Options:
Color: Cream, Lavender, Mist Pink, Gem Black,
Silver, Mint Green, Violet,Glacier white
Plate: Aluminum, PC, Aqua FR4, Brass+$35
PCB: Hotswap, Soldered

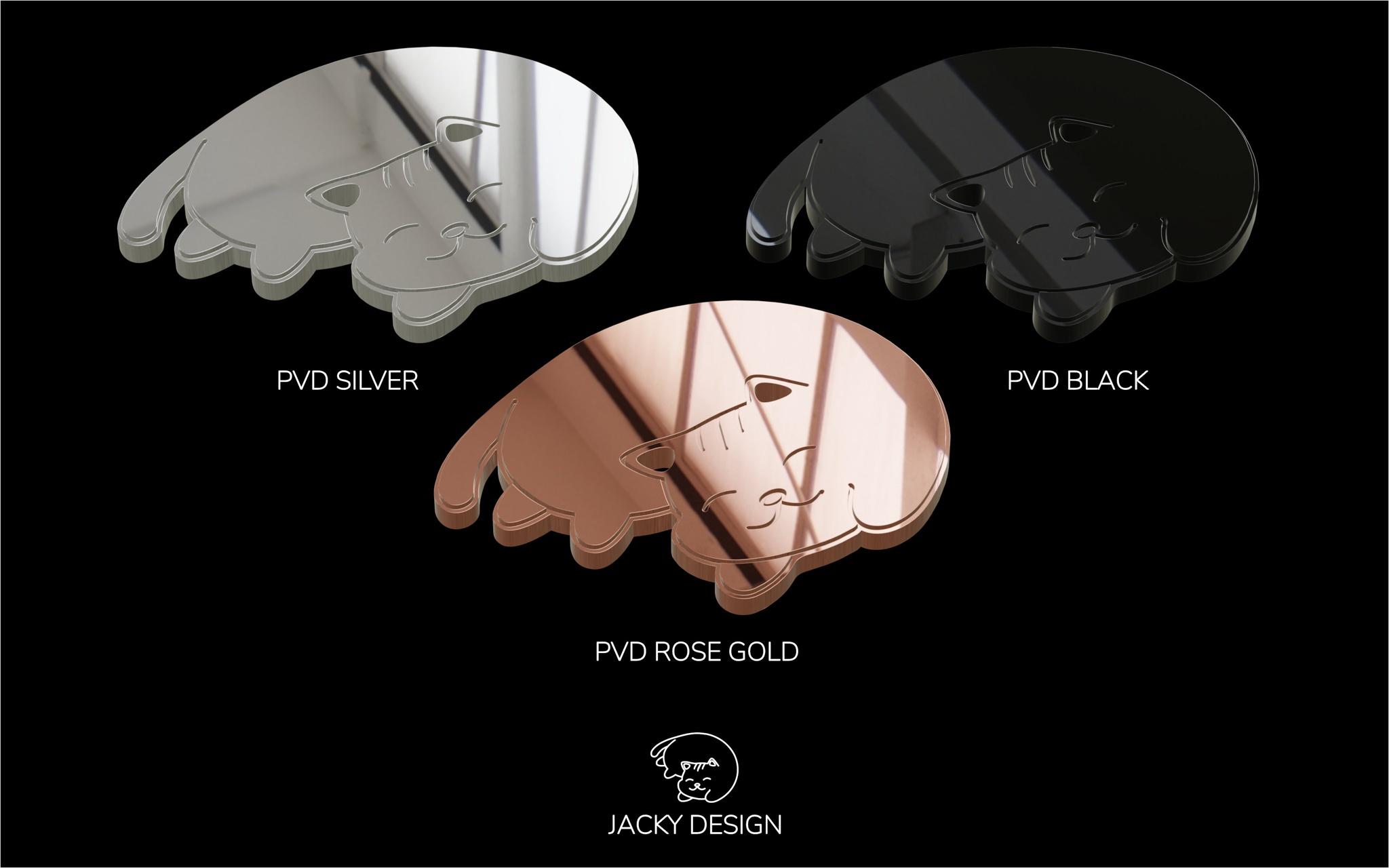

Weight options :PVD Weight Color: Black, Silver, Rose Gold

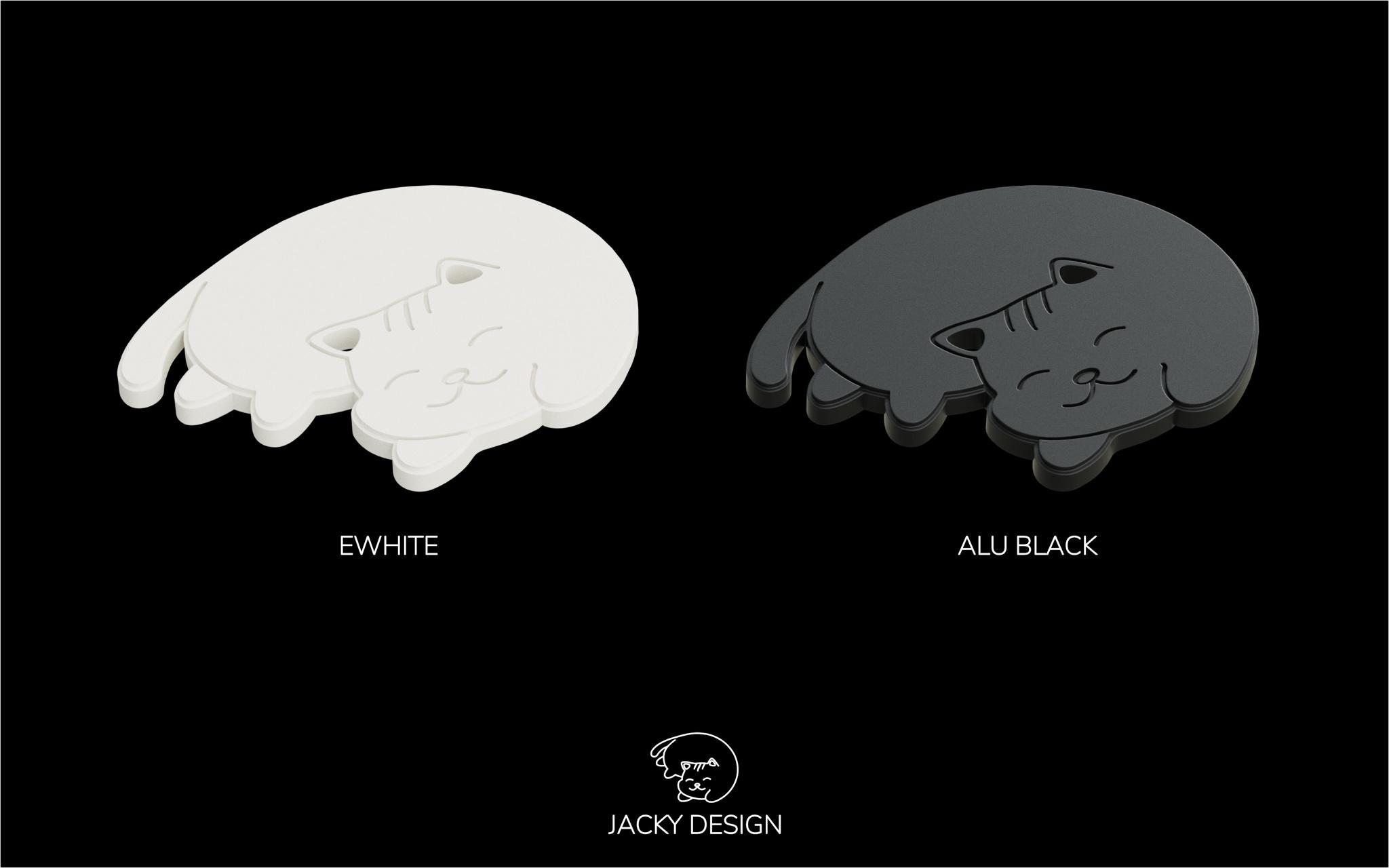

Aluminum weight : Ano black,E white
Addons Product Page Options:
PC Plate $35
Aqua FR4 Plate $35
Hotswap PCB $60
Solder PCB $60
Aluminum E-white Weight $25
Aluminum Black Weight $25
staniless PVD Weight Color: Black, Silver, Rose Gold $40
Feet :$10
🔥 Jackylab.com Exclusive - Founders Edition (FE) 🔥 • Price: $499 USD
• Limited to 20 Black Founders Edition Units
https://imgur.com/6gopIpI • Features: High-gloss chamfers and a personalized nameplate
• Customize Your Nameplate: Add a personal touch to your keyboard
🎉 Special Loyalty Discount 🎉
• Have you purchased any two products from JACKY DESIGN before?
• Get a $50 USD discount as our way of saying thank you for your continued support! (We will apply the discount on GB shipping rate)
Q/AQ：Why doesn't 3ildcat post anything?
A：He is serving in the military and cannot be contacted.
Q：Is collaboration design real?
A: Yes, we came to an agreement and got his approval
Q:Is the spring easy to replace?
A：The spring is rotated and stuck on the bottom. It is relatively simple to replace. We will provide a more convenient replacement method after the group purchase is completed, so don't worry.
Q：Will the spring lose its elasticity easily?
A：It will become weaker but it takes a long time. We will give a lot more springs. After the group purchase is completed, we will continue to sell additional springs.
Q：Which surface treatment is more durable?
A：Power coated > Anodied > E coated
Q:Will PCBs always be in stock?
A:Would be good to take extra pcb as backup ,sometimes it wont have much extra
