Hello，What we bring to you this time is the Sanglei switch jointly designed by xcjz and jkdk and manufactured by Keygeek.
XCJZ (Lucy Switch Designer) has a deep accumulation in switch design（He is also the most famous switch collector in the East）.
This time, he still collaborated with jkdk to design and bring everyone this Sanglei switch
The Sanglei switch is manufactured by the recently popular Keygeek

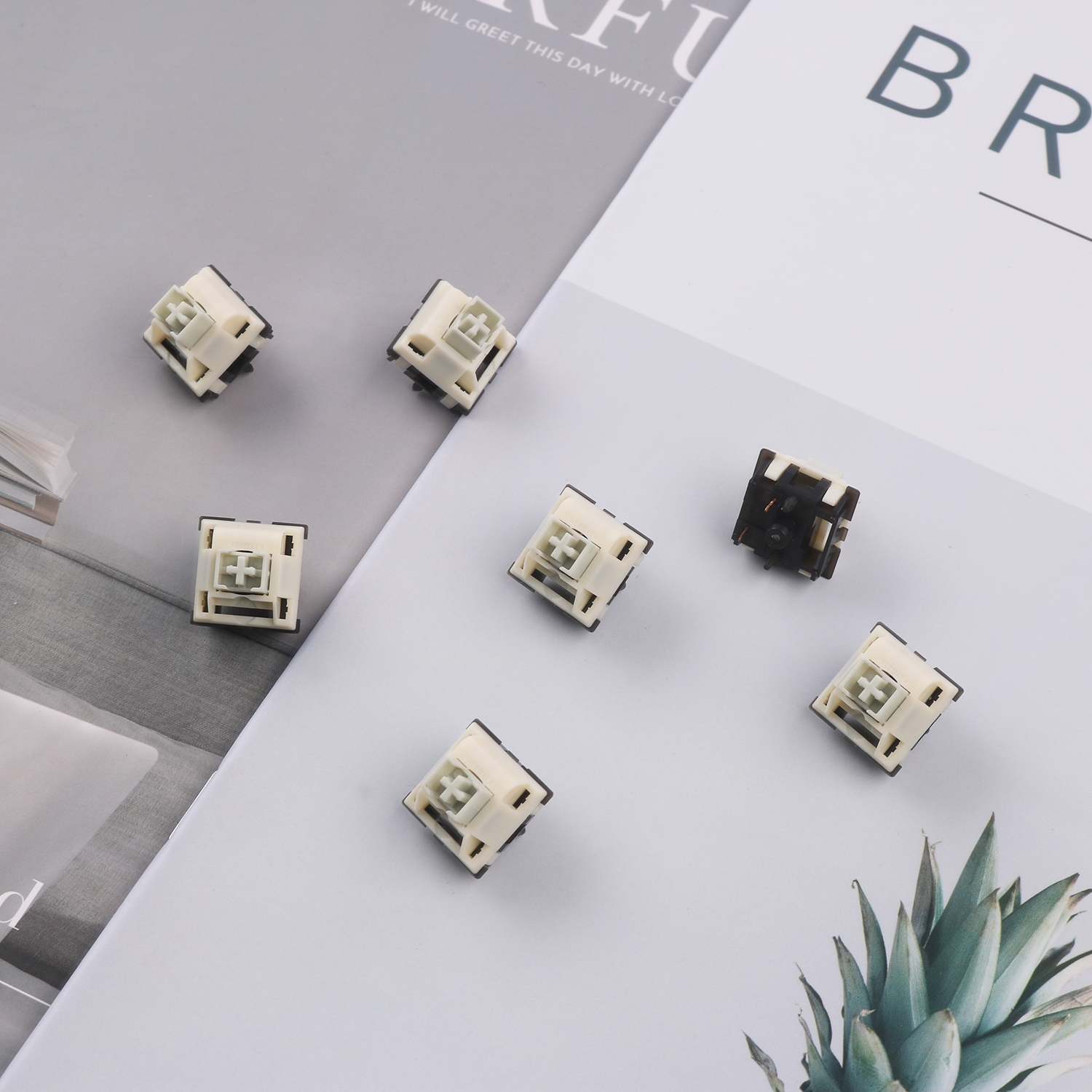

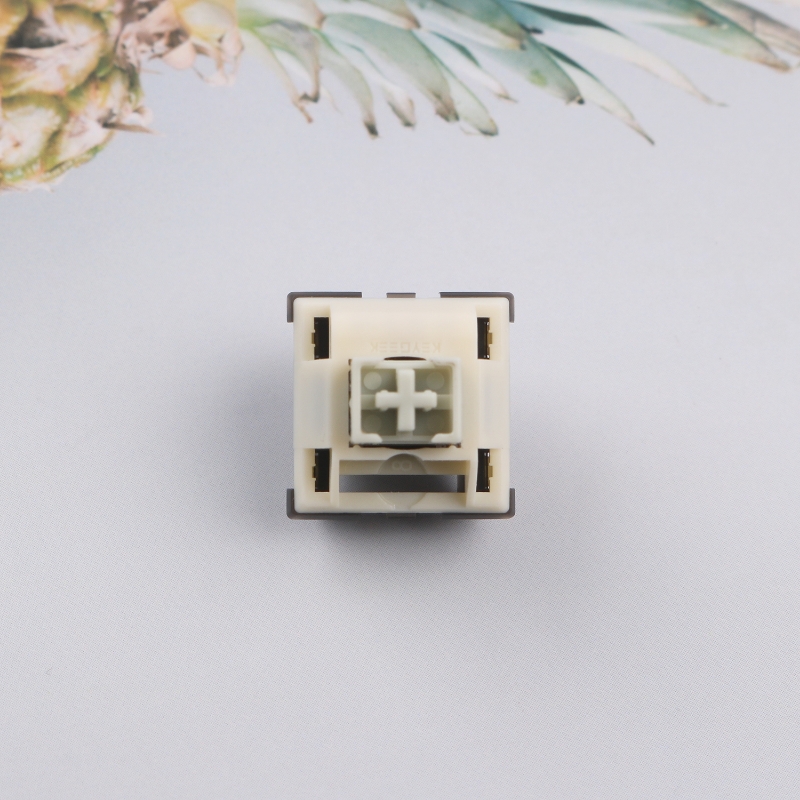

Sanglei switch Specification - Linear
- 45g spring（18mm）
- POM Lengthen stem
- UHMWPE top housing
- PA12 bottom housing
- 5 pin
- 3.85mm Travel
- Actuation force: 40±5gf
- Initial force: 28gf Min
- Pressure point force: 45gf Max
- Made by Keygeek
- lubrication
- Designed by XCJZ×JKDK
On the Sanglei switch, we have made certain optimizations and improvements to the mold. For the stem mold, we have made the top of the stem sidewall smoother (red circle part) to achieve less top collision sound. At the bottom of the stem, we have used a spherical protrusion (yellow circle part) to achieve more concentrated sound.In terms of materials, we used POM material to enhance the smoothness effect.
At the bottom, we use PA12 material, so you can see its semi transparent effect, which also means you can directly observe the parts inside the switch. This feeling is really great! Moreover, the collision between PA12 material and POM material can also produce concentrated and pleasant sound.
To ensure the broadest reach for the switches, I will be collaborating with many vendors worldwide. This ensures that as many people can purchase this switch at the lowest possible shipping.
In order to enable more people to quickly obtain the switch without waiting for a long time, we will use inventory sales. As long as we confirm the vendor list, we can transport it to the local area.
Sales method: Inventory sales
