MKC65 PCB Gasket Mount Customize Keyboard - Pre-order is now live!
by Mykeyclub
geekhackpomenriched
0 followers0 bookmarks0 comments
Description
Hello everyone,
I am so excited to announce that MKC’s second series-MKC65 is now live! If you are looking for a truly entry-level customized keyboard, I believe it will not disappoint you. Without further ado, read on for more details about the MKC65 pre-order.
Pre-order Time:
From January 15th to February 15th
Estimated Delivery:
The delivery is expected to be around two months after the pre-order ends. Due to the influence of the Spring Festival holiday and potential adjustments in the order quantity, there might be a slight variation in the delivery time.[/color]
○ Compact 65% layout. ○ 6.5° typing angle for a more comfortable typing experience. ○ 100% CNC-machined with 6063 aluminum case. ○ Alu Internal Weight, adding to the overall weight and stability. ○ Simultaneously support two functional modules (Rotary Knob & Light Sign), also compatible with ○ JRIS80 Rotary Knob/LED Light Sign. ○ Three-in-one design with Top Mount, Plate Gasket Mount, and PCB Gasket Mount for an enhanced keyboard experience. ○ Supports tri-mode PCB (Wired, Bluetooth and 2.4ghz). ○ Supports Plate and Plateless Build. ○ Supports Caps Lock Indicator Light. ○ 2 x 2200mha large battery capacity.
MKC65 Specifications

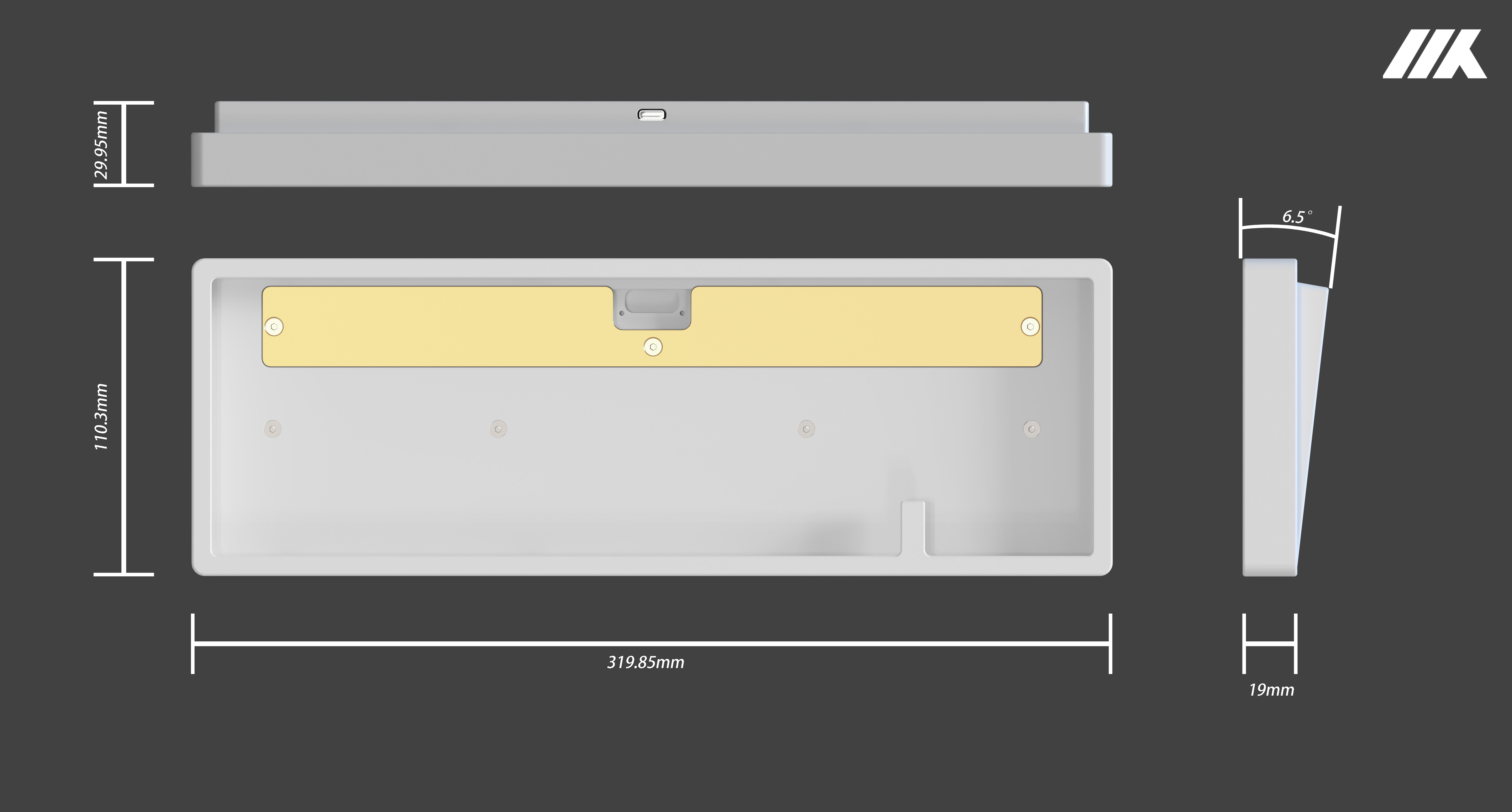

○ Typing angle: 6.5° ○ Front height: 9 mm ○ Material: Full CNC 6063 aluminum ○ Dimension: 319.85*110.3*29.95mm ○ Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount ○ QMK/VIA Supported（wired） ○ Support PCB stabilizers ○ Unbuilt Weight With PVD WEIGHT: 1.23kg With Alu WEIGHT: 1kg ○ Built Weight With PVD WEIGHT: 1.45kg With Alu WEIGHT: 1.22kg
Three-in-one Structure
Three-in-one structure (Top Mount, Plate Gasket Mount, and PCB Gasket Mount) is a versatile keyboard mounting system that combines the distinctive features of these three structures for comprehensive performance. Users can customize based on personal preferences and usage scenarios.
○ TOP Mount
○ Plate Gasket Mount

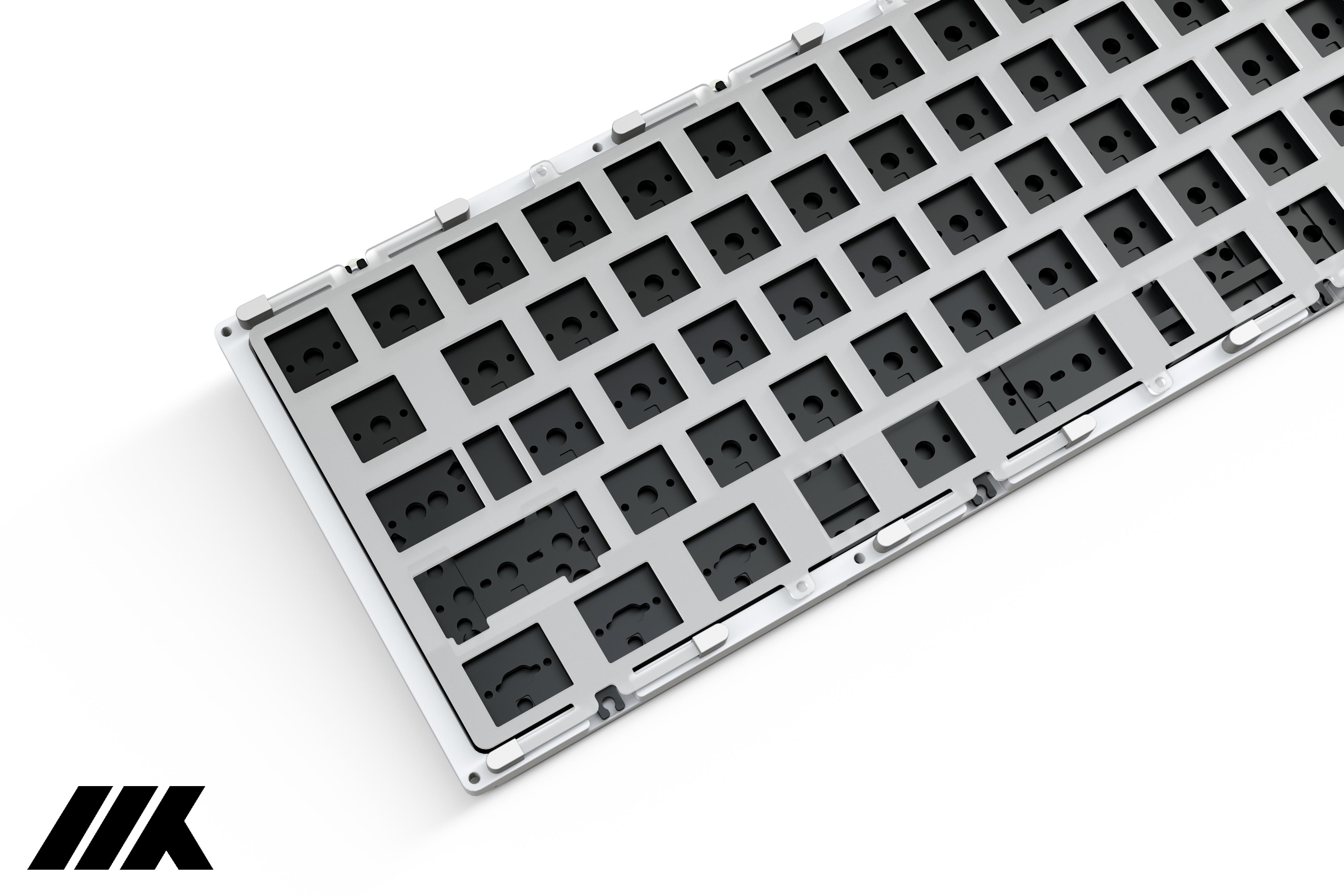

○ PCB Gasket Mount

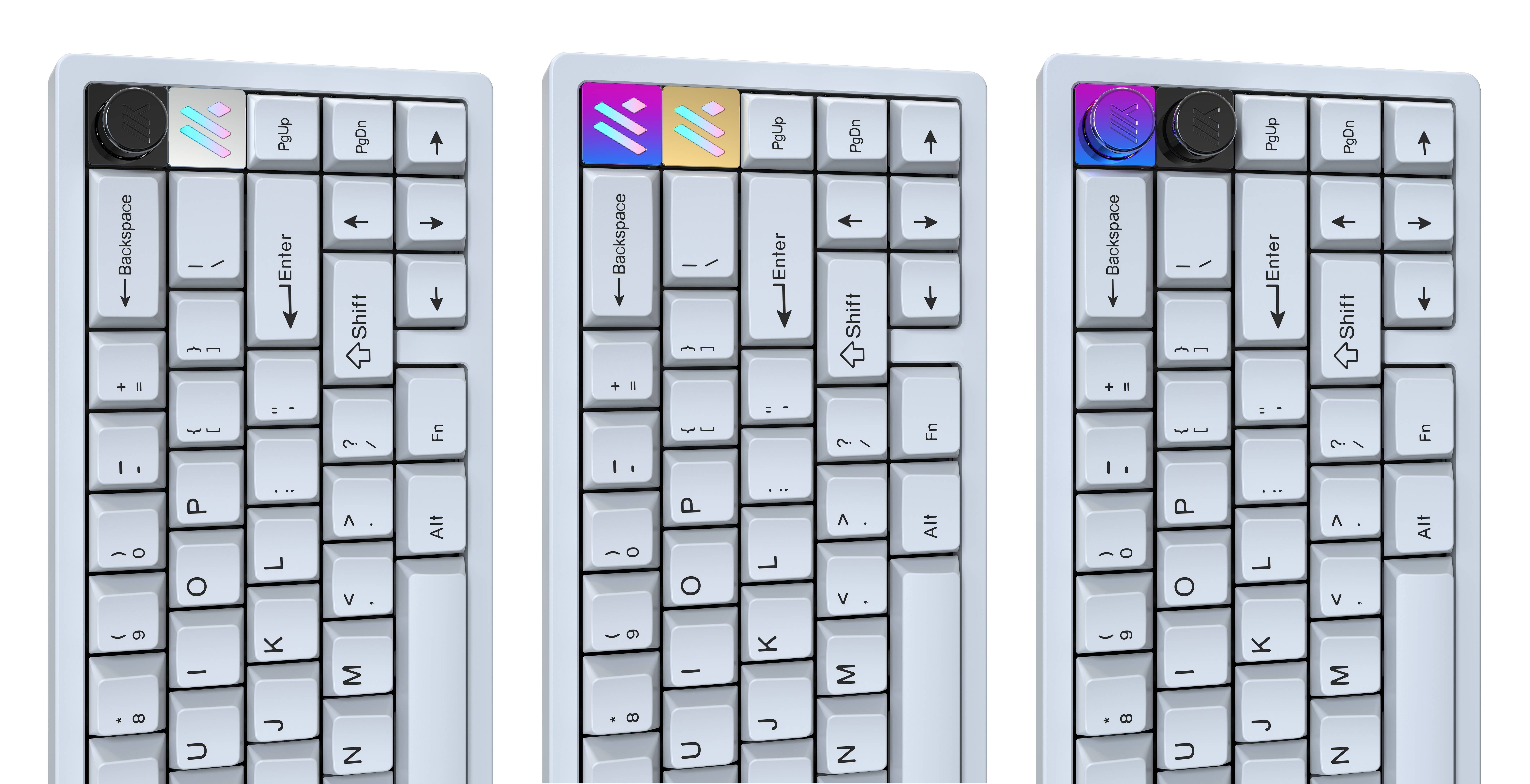

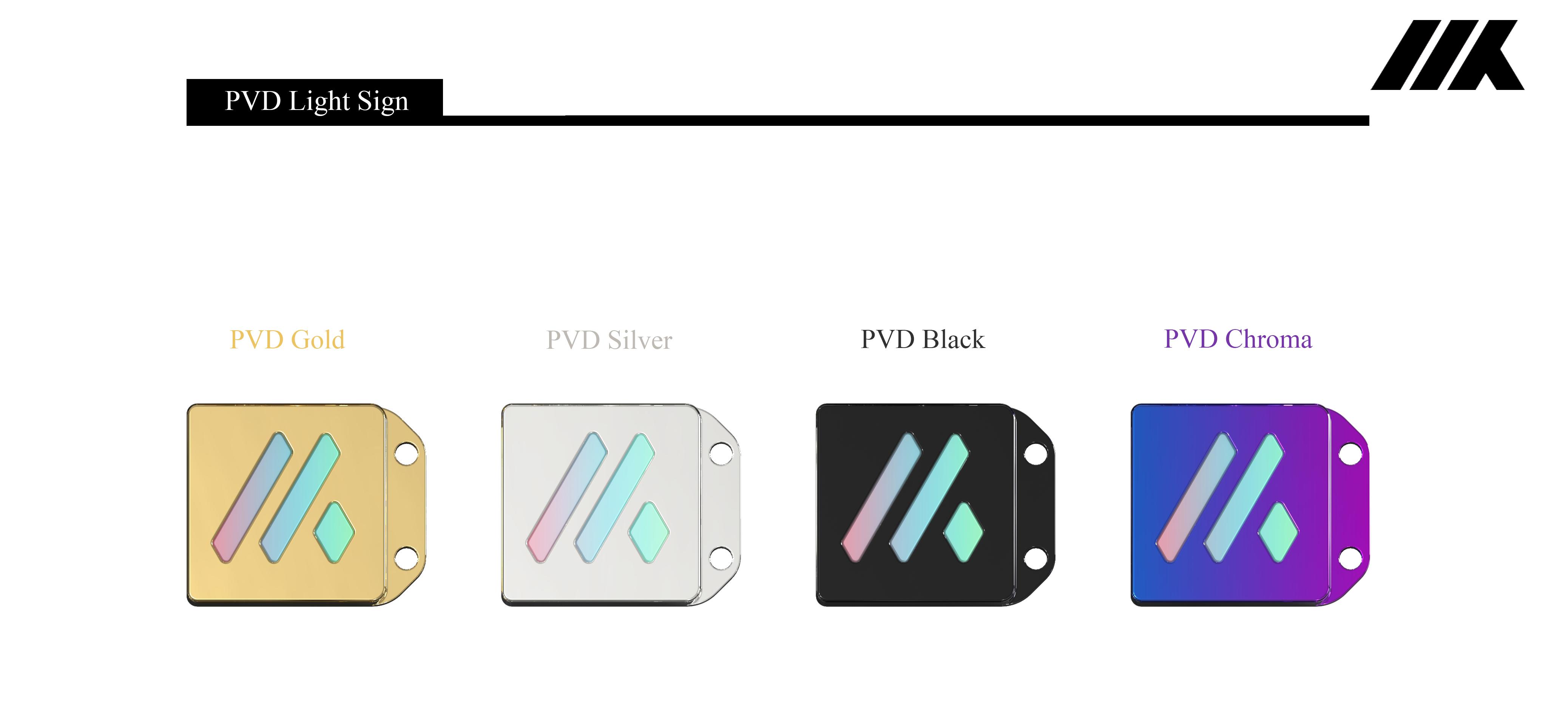

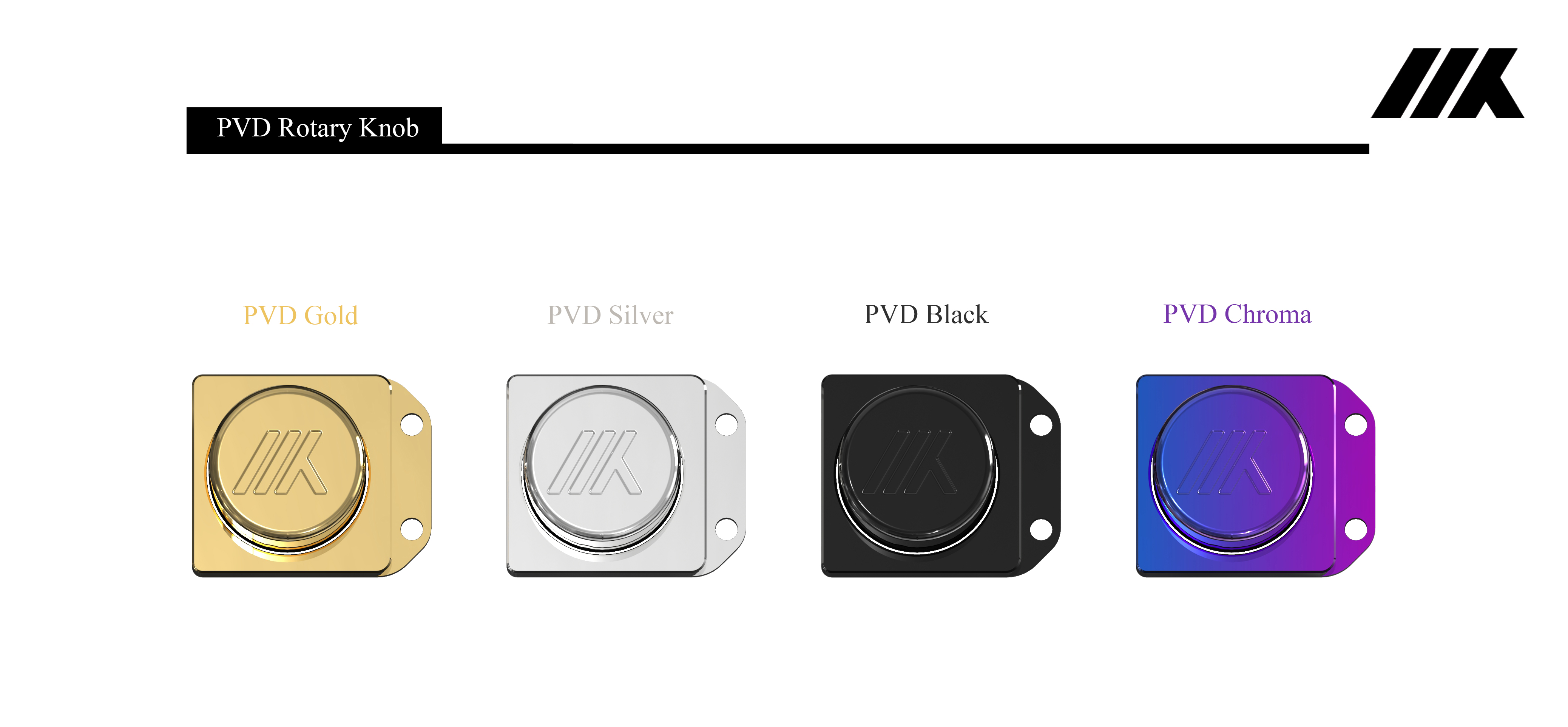

Support Rotary Knob & LED Light Sign at the same time
The four keys located on the rightmost row of the MKC65 keyboard (Insert, Delete, PgUp, and PgDn keys) can function as a customizable module, providing the flexibility to arrange and combine a Rotary Knob and Light Sign.
It supports a maximum of two functional modules simultaneously. For example, 2 * Rotary Knob, 2 * Light Sign, or 1 * Rotary Knob + 1 * Light Sign.
What can you customize for MKC65?

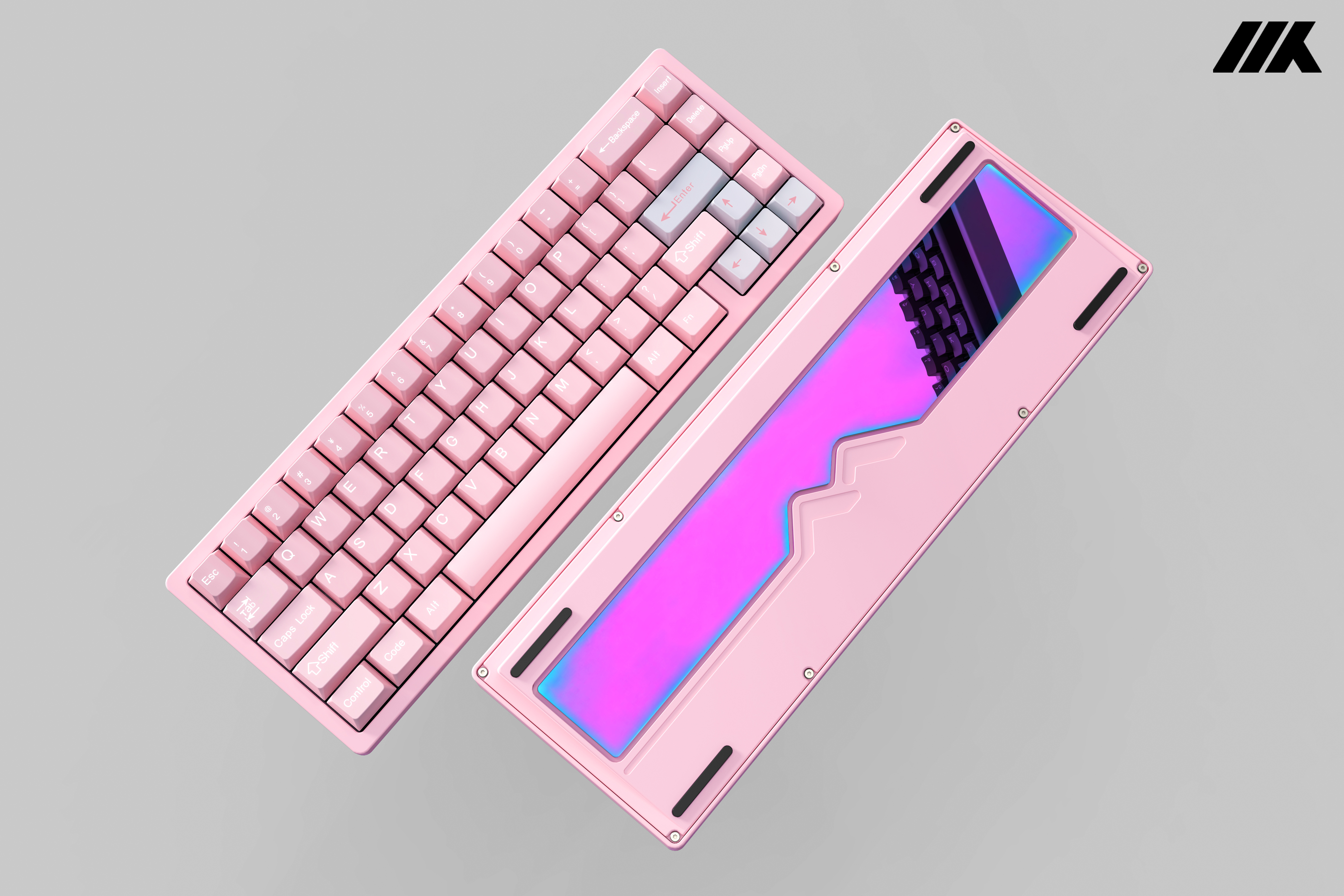

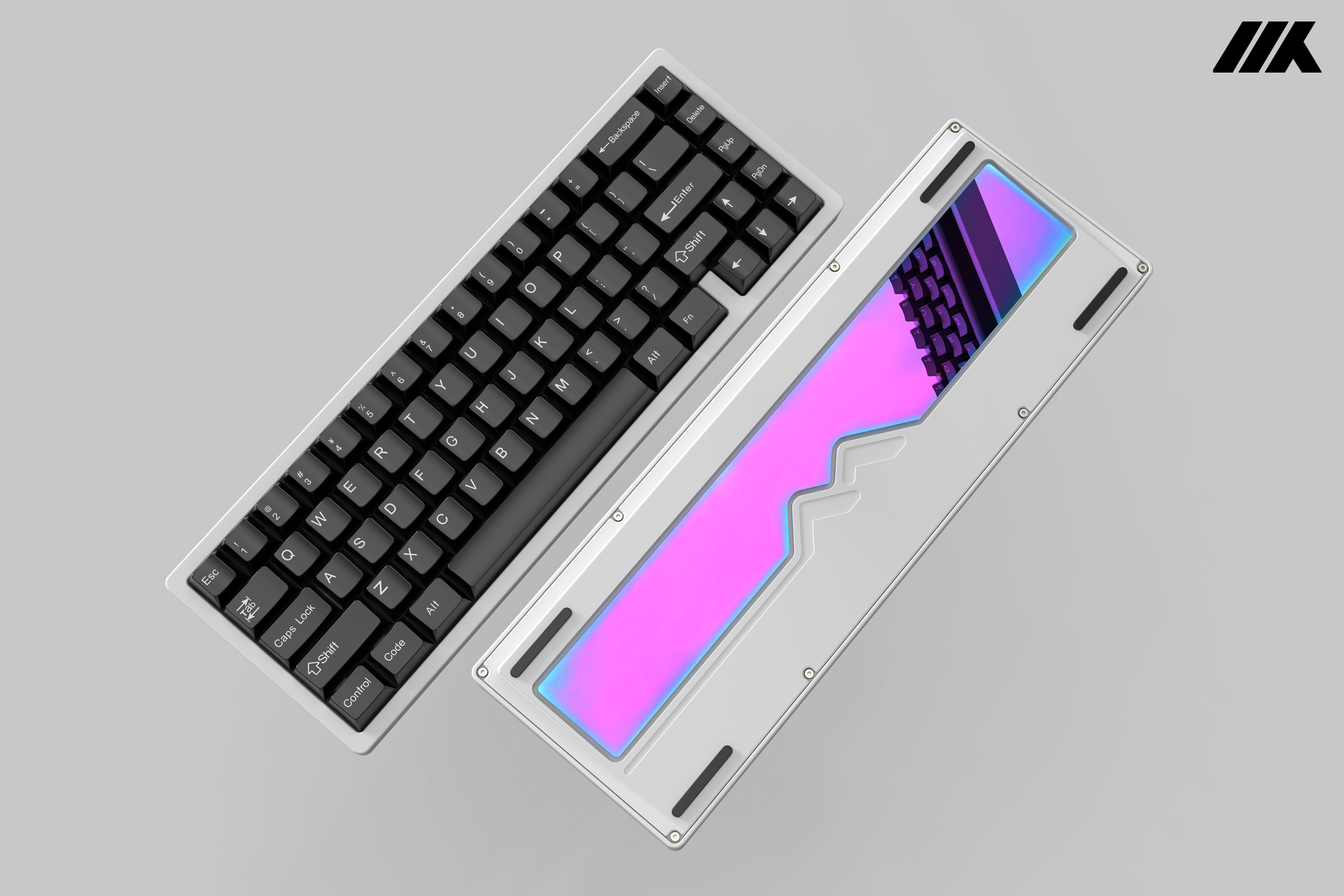

8 Case Options:

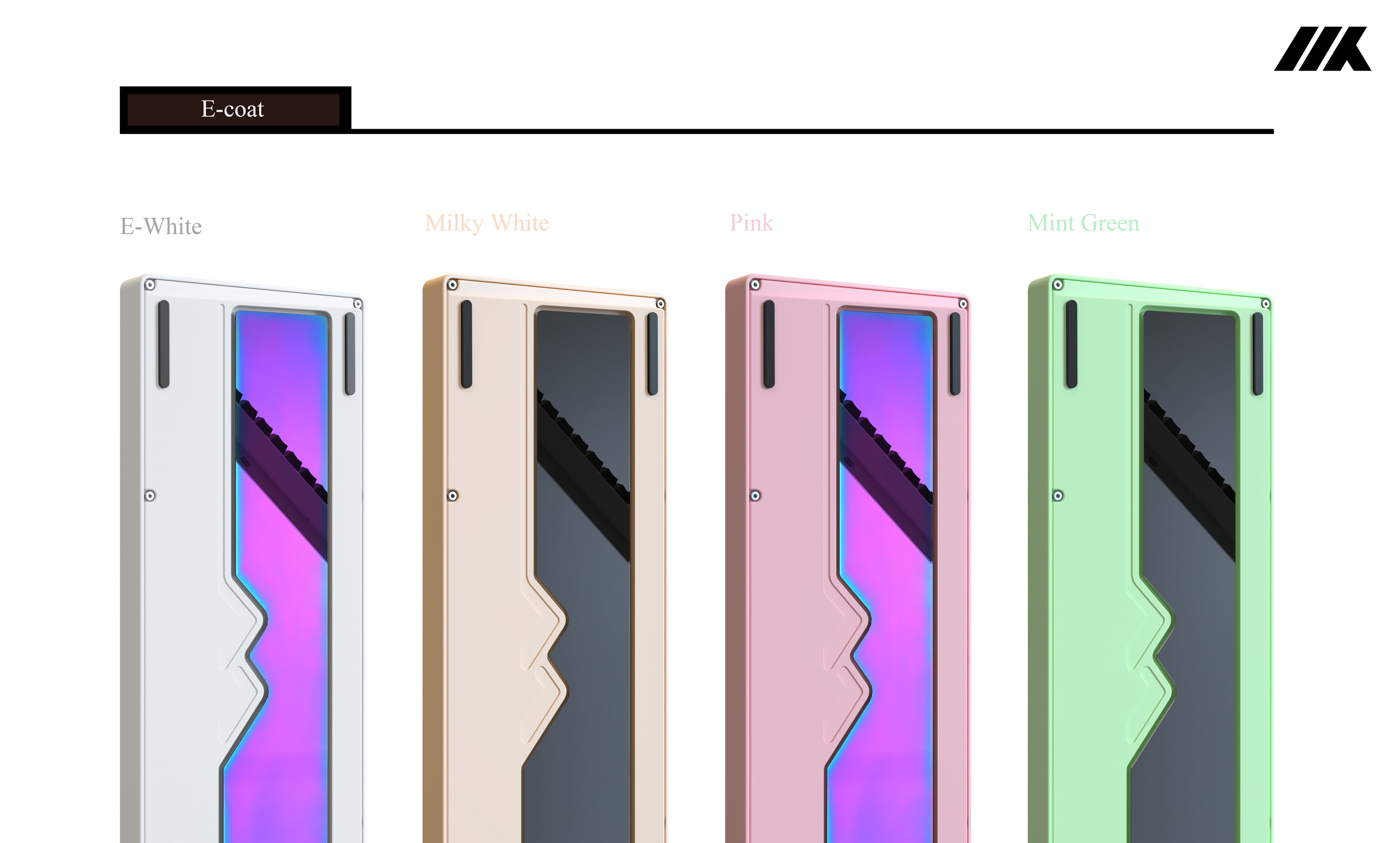

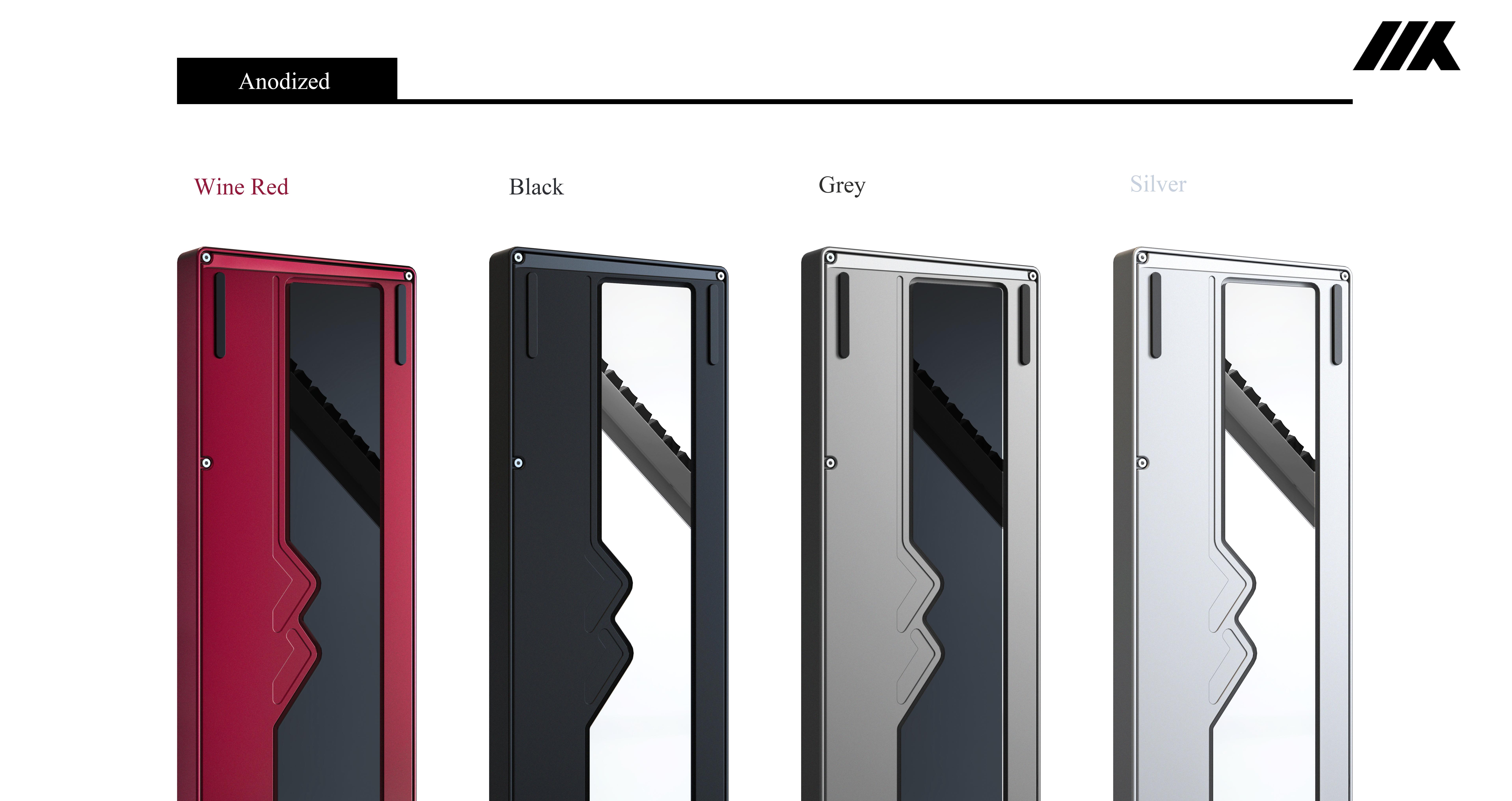

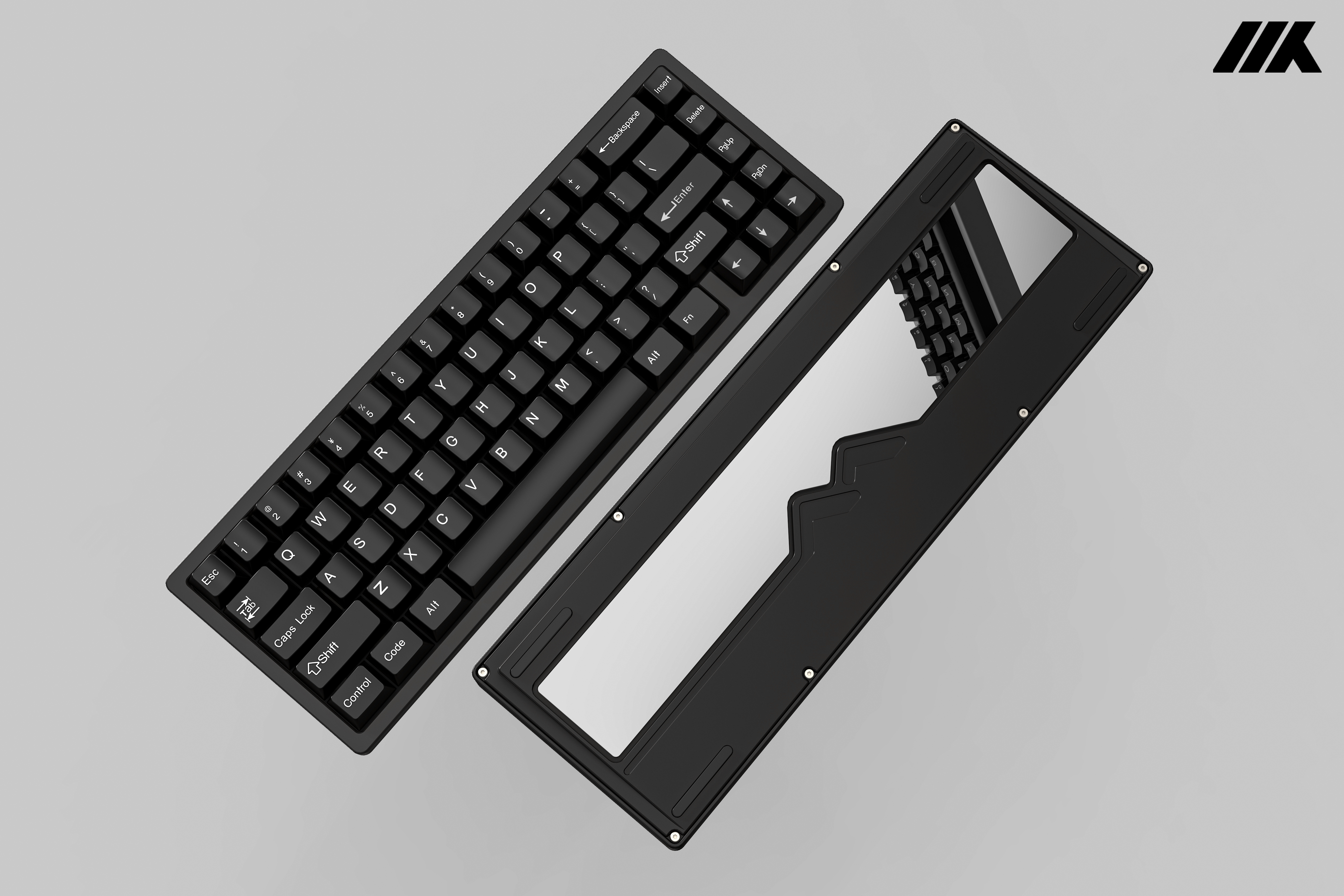

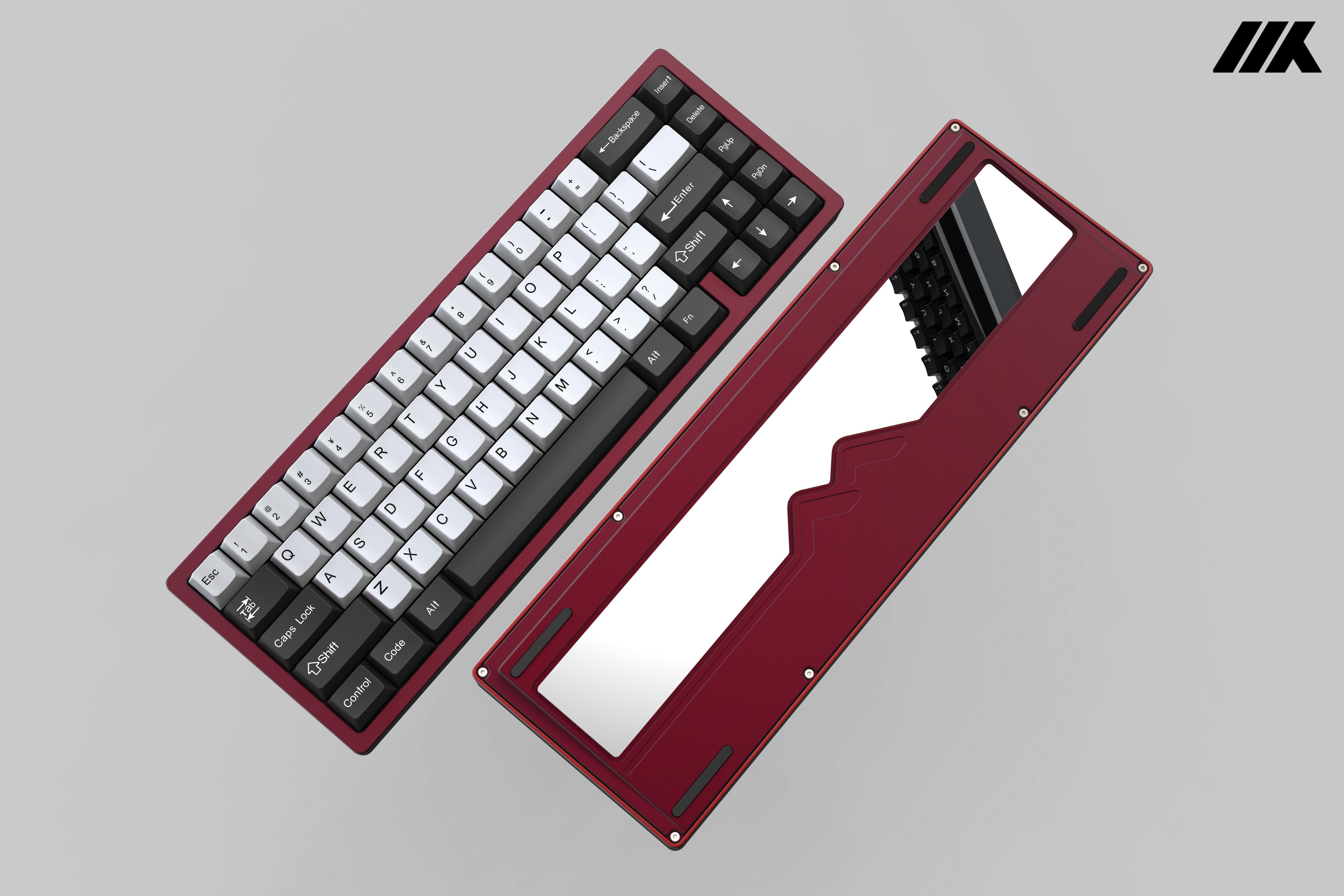

○ 4 E-coat case：E-white, Milky White, Pink, Mint Green ○ 4 Anodized Case: Wine Red, Black, Grey, Silver
8 Weight Options:

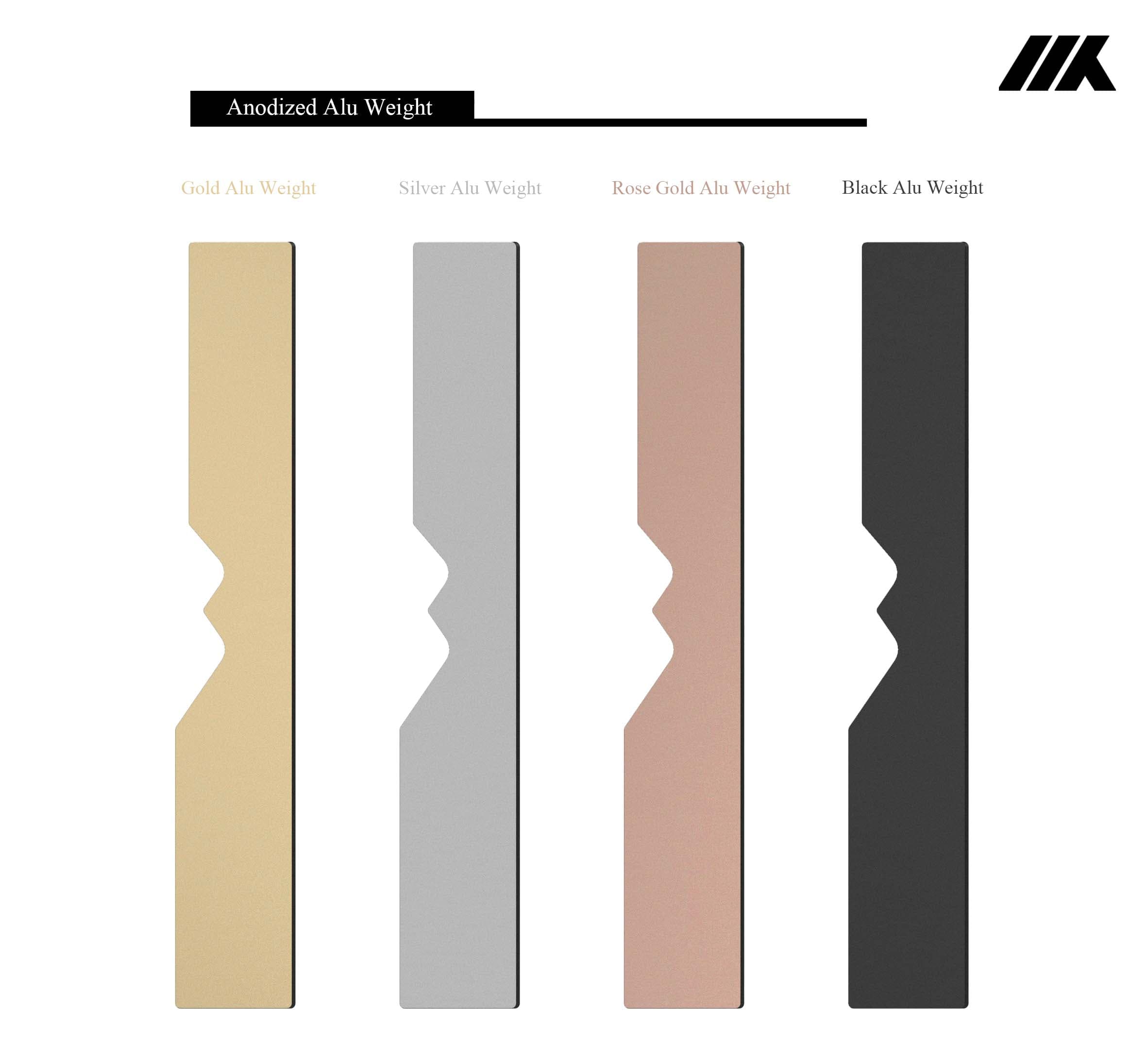

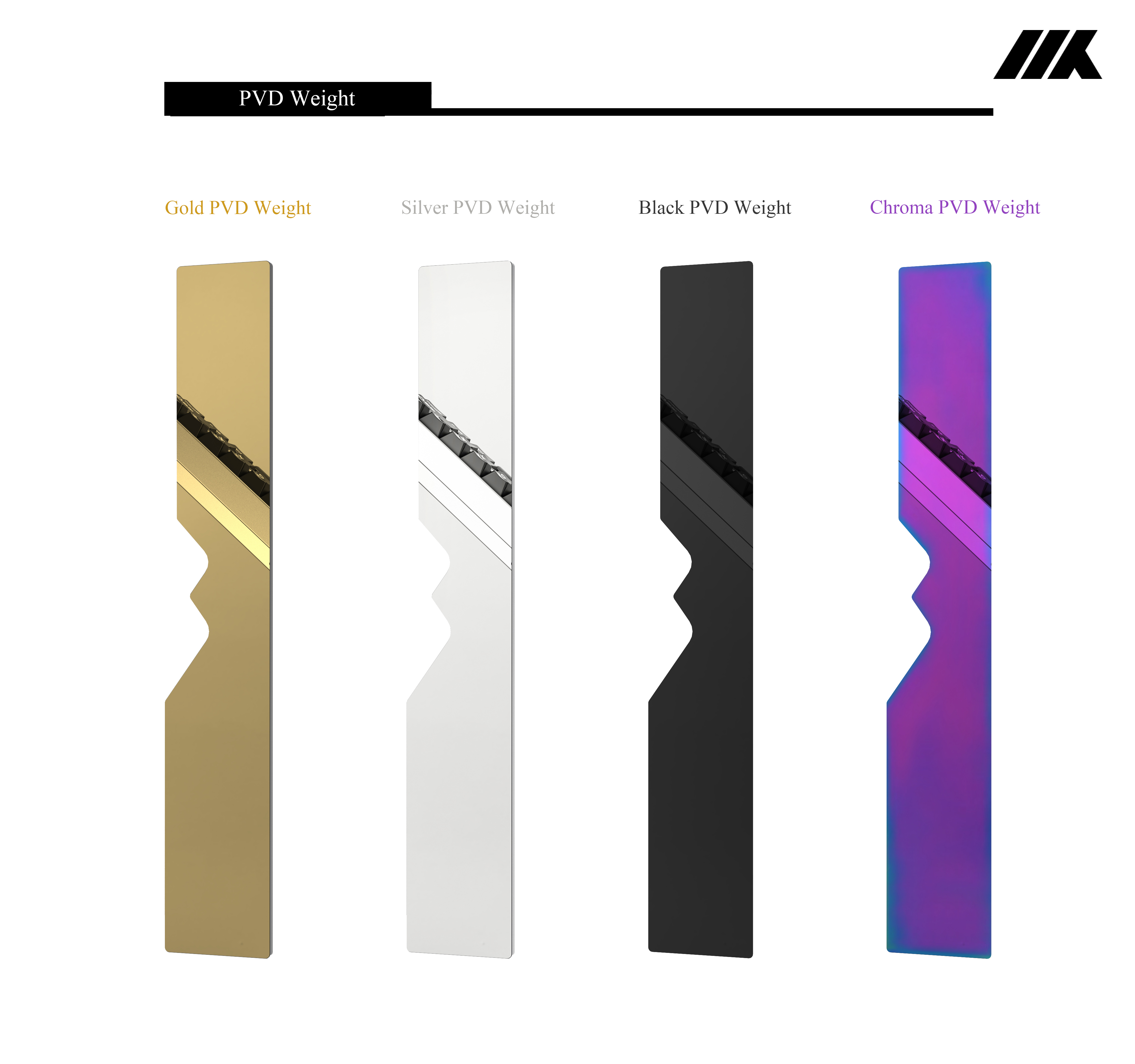

○ 4 Alu Weight: Gold/ Silver/ Rose Gold/ Black ○ 4 PVD Mirror SS Weight: Gold/ Silver/ Black/ Chroma
5 PCB Options:
○ Wired Flex Cut Hotswap PCB ( 1.2mm, Multi Layout , 7u split spacebar, No Per-key RGB, support QMK and VIA )
○ Wired Non-Flex Cut Hotswap PCB (1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
○ Wired Solder PCB (1.6mm, Non-Flex Cut, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
○ Wired Per-Key RGB Hotswap PCB (Add-on only, 1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA )
○ Tri-mode Hotswap PCB (1.2mm, Non-Flex Cut, ANSI Layout, No Per-key RGB, support Mykeyclub Software）
Noted: The Tri-mode technical support is provided by IRISLab.

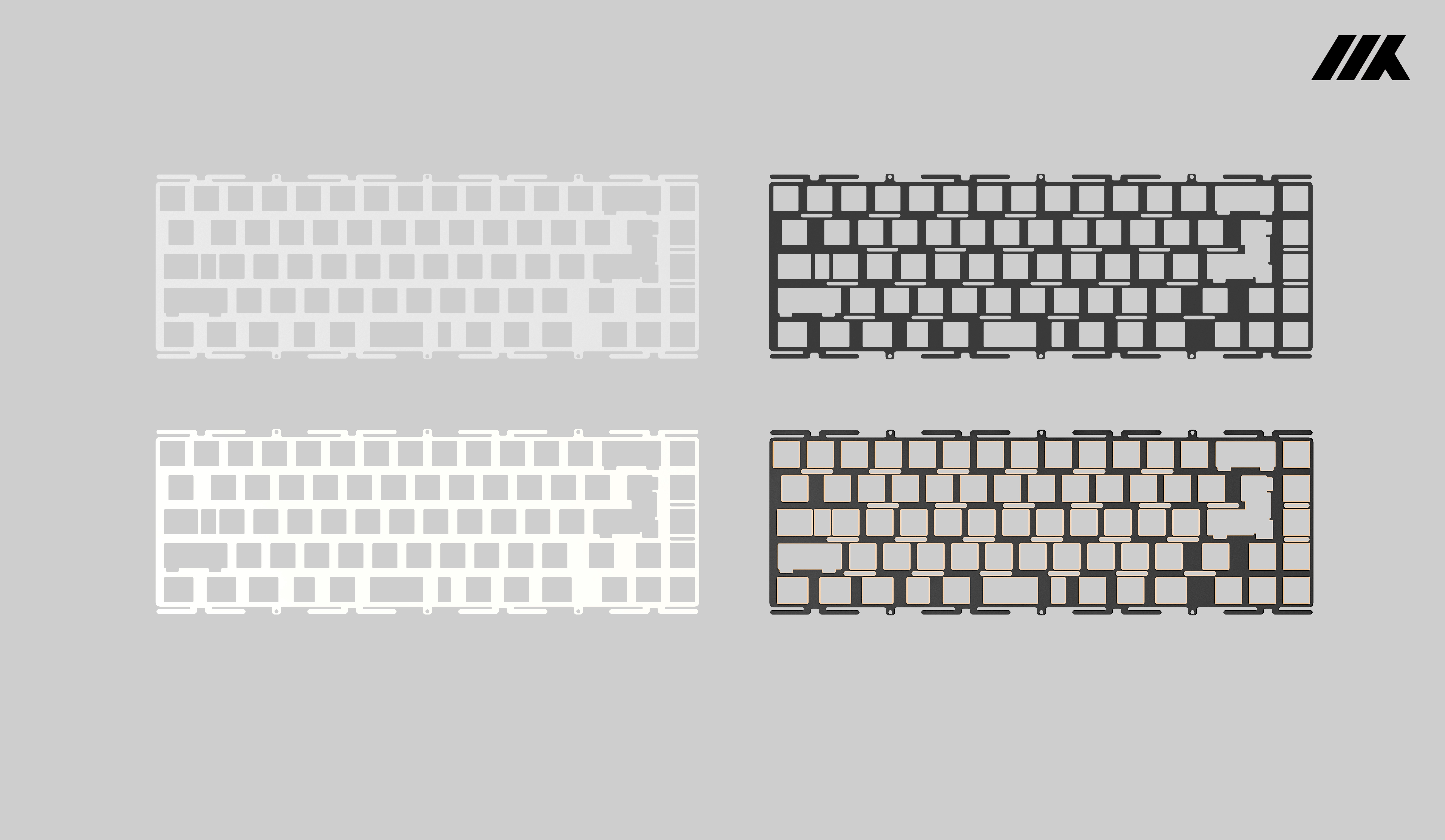

Noted: We highly recommend using a PC/ POM/FR4 plate for Tri-mode PCB because the Brass and ALU plate will have a little affection for connectivity.
What's Included in MKC65?
Full CNC Aluminum Top case *1 Full CNC Aluminum Bottom case *1 Weight (Anodized Alu Weight or Stainless steel PVD Weight) *1 Internal Alu Weight *1 PCB *1 Plateless or Plate *1 IXPE Foam *1 Poron Case Foam *1 Poron Plate Foam *1 Type-C Daughterboard with JST Cable *1 PCB GAS Silicone Column *12 Plate GAS Silicone Sock *18 Top mount screw and spacer *12 PCB stabilizers o-ring *12 Footpad *6 Poron case strip *6 1.5mm hex key *1
Gift(will not send make-up or replacements)
1 MKC Stabilizer Set 1 Type-C Cable 1 Pack of Extra Screw M2x3mm cylindrical head screw *2 M2x8mm cylindrical head screw *2 M3x5mm countersunk screw *2 1000mha battery (Only for the Tri-mode Version Case) *2 Silicone pad of battery compartment *2
Review links (Stay Tuned for More)
Rx003
바룬 Baroon
Merkeebs
MechTech Keyboards
kittykat mechkey
MCZ Studio
Lattech 라떼크
WhitKeebs
Nicola Sagliano
strawberryjam1986
Zeke DGTL
Simulator Tech
Mykeyclub Team
We are a platform that integrates creativity and innovative design and brings you more fun and cool products. Please participate in our MKC family for more discussions and future updates.
