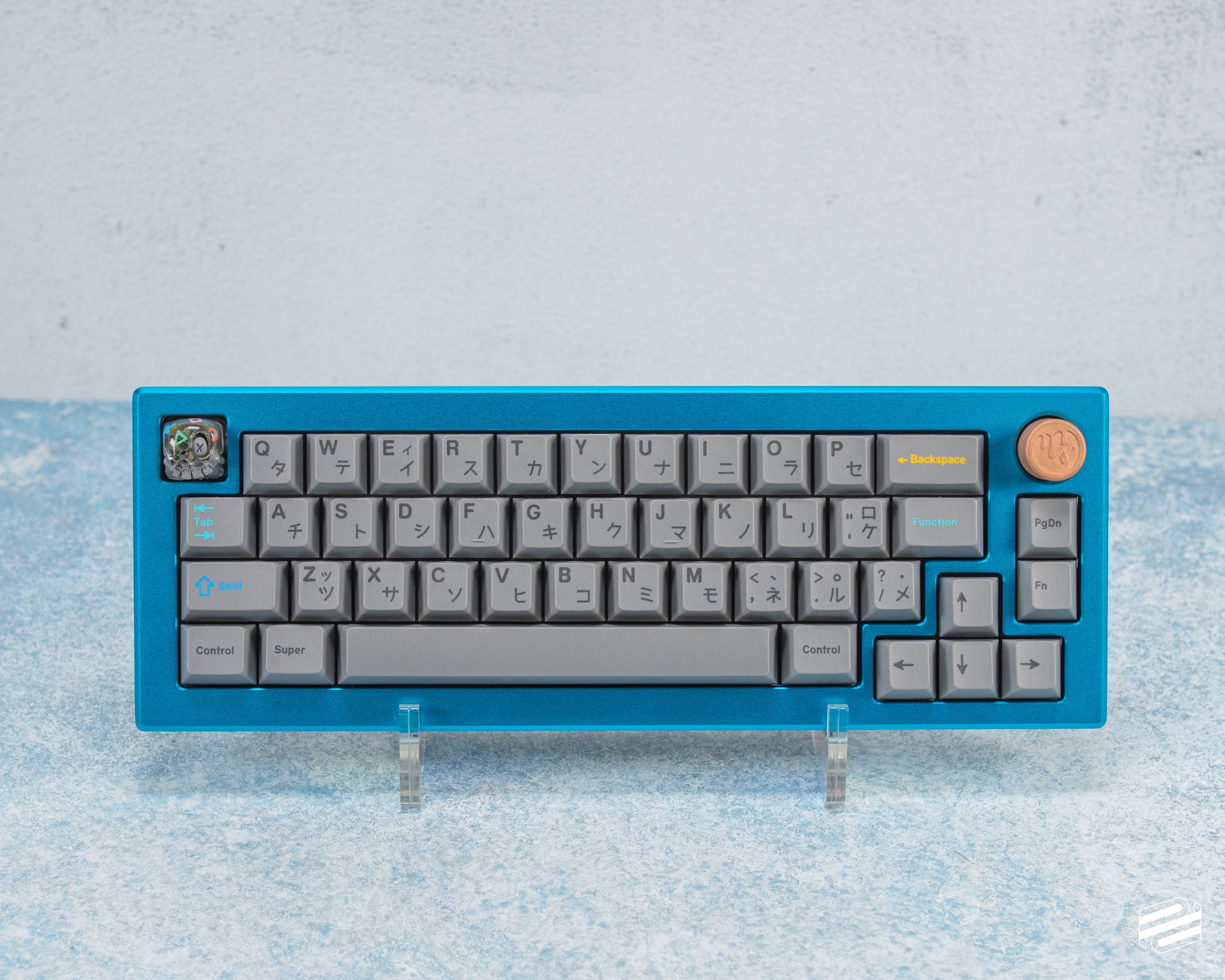

A 45% keyboard with exploded escape, arrows, rotary encoder/knob, and 'nav cluster.' Featuring a gasket mounted plate, copper through weight and more!
Introduction
Inspired by the layouts of Abec13's 45-ATS and WalletBurner's Cajal, the idea for Paintbrush was born. After several changes and prototypes, the case was redesigned from the ground up with a focus on retaining the signature look and feel of earlier revisions while implementing more modern design elements.

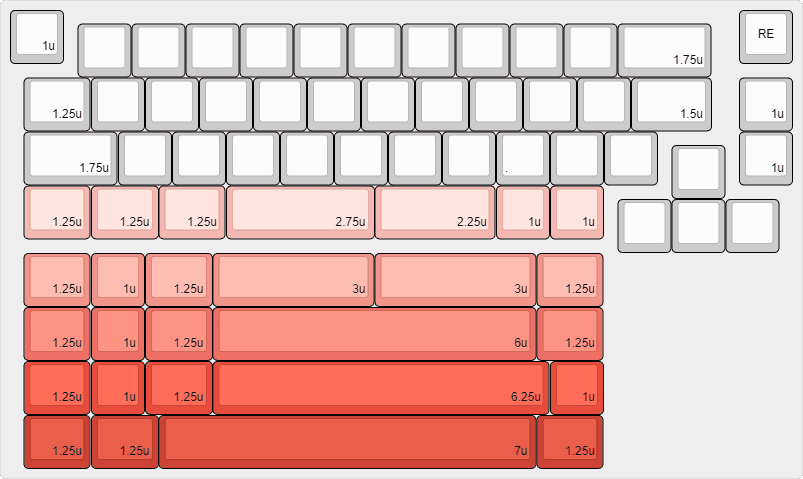

The solder PCB supports the following options for the bottom row:

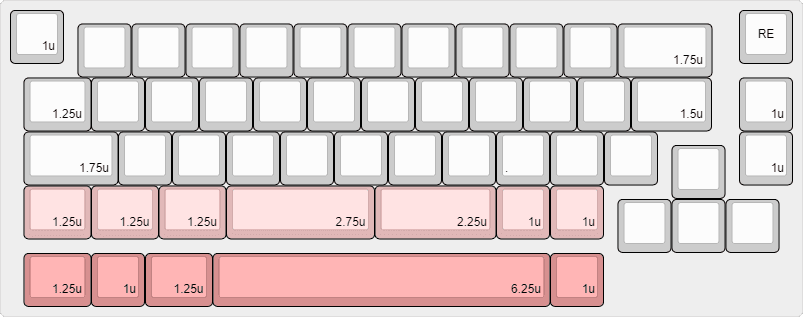

The hotswap PCB supports the following options for the bottom row: *Hotswap PCB will have NOT have flex cuts *
Specifications

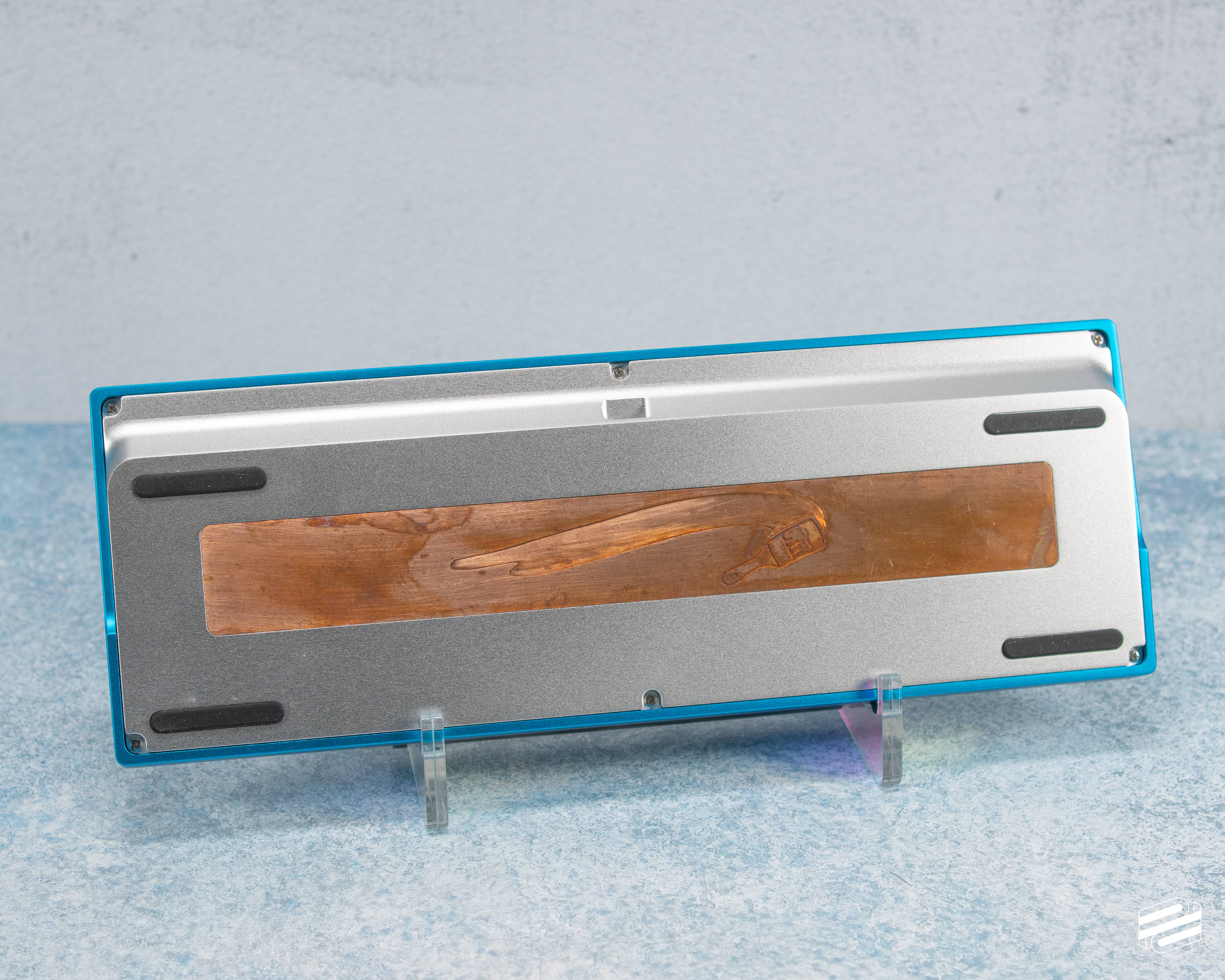

- Typing Angle: 7° - Front Height: 18.1mm (23.1mm EKH) - Case weight: 1.3kg (2 lbs 14oz) built - Case Material: 6063 Aluminum for top and bottom | Copper for weight and knob - Mount: Gasket Mount | 4 mounting points with 1/8" gaskets above and below the plate - PCB: RP2040 with QMK/VIAL support and S1 UDB
Group Buy Details
- Case Colors: Blue, Grey, Green, Black, and Dark Red - PCBs: Solder, Hotswap - Plate Materials: FR-4 and POM (one of each) - Cost: $350 - GB Date: March 4th - April 23rd - Estimated Delivery: Q3 2024 - Vendor: CBKBD (Worldwide)
