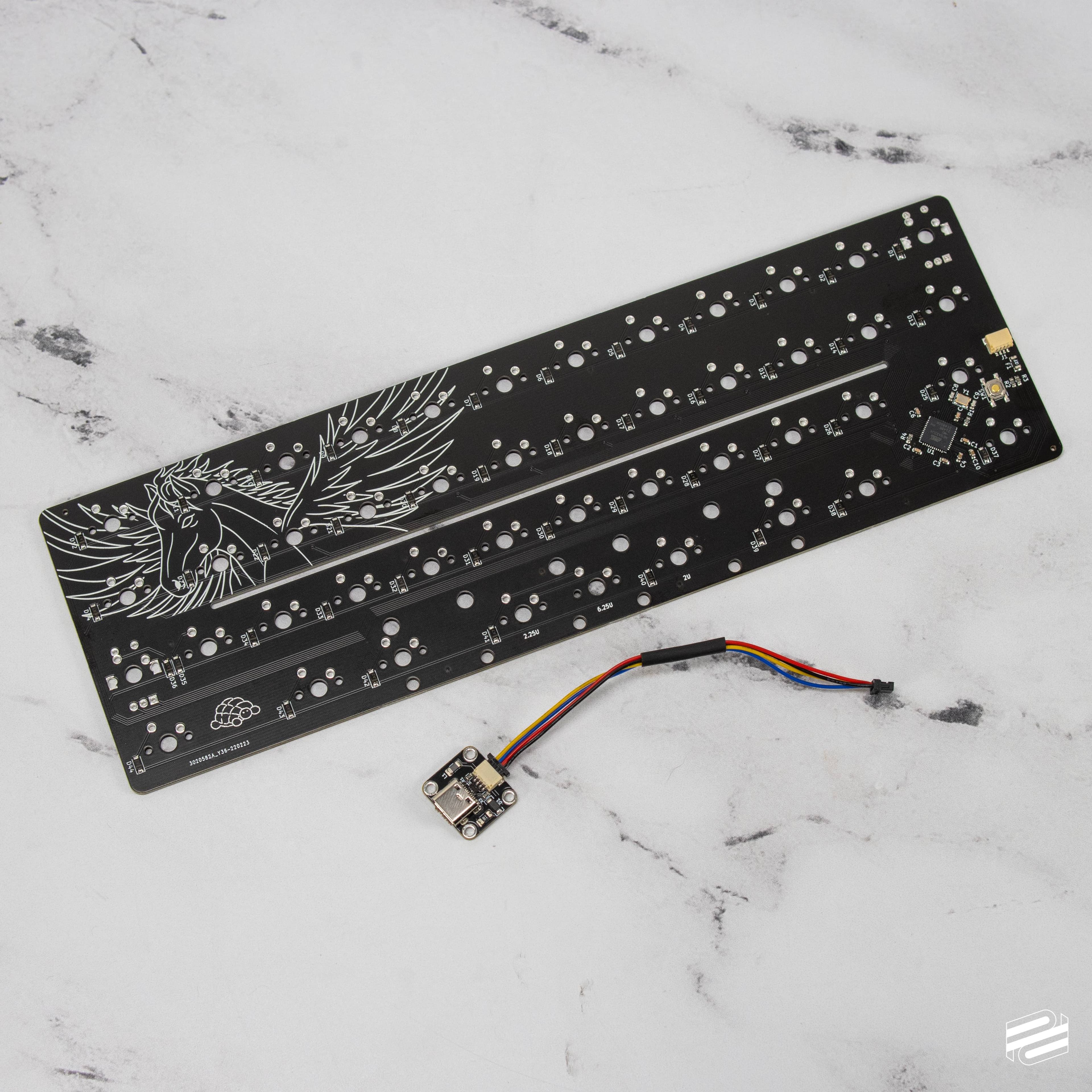

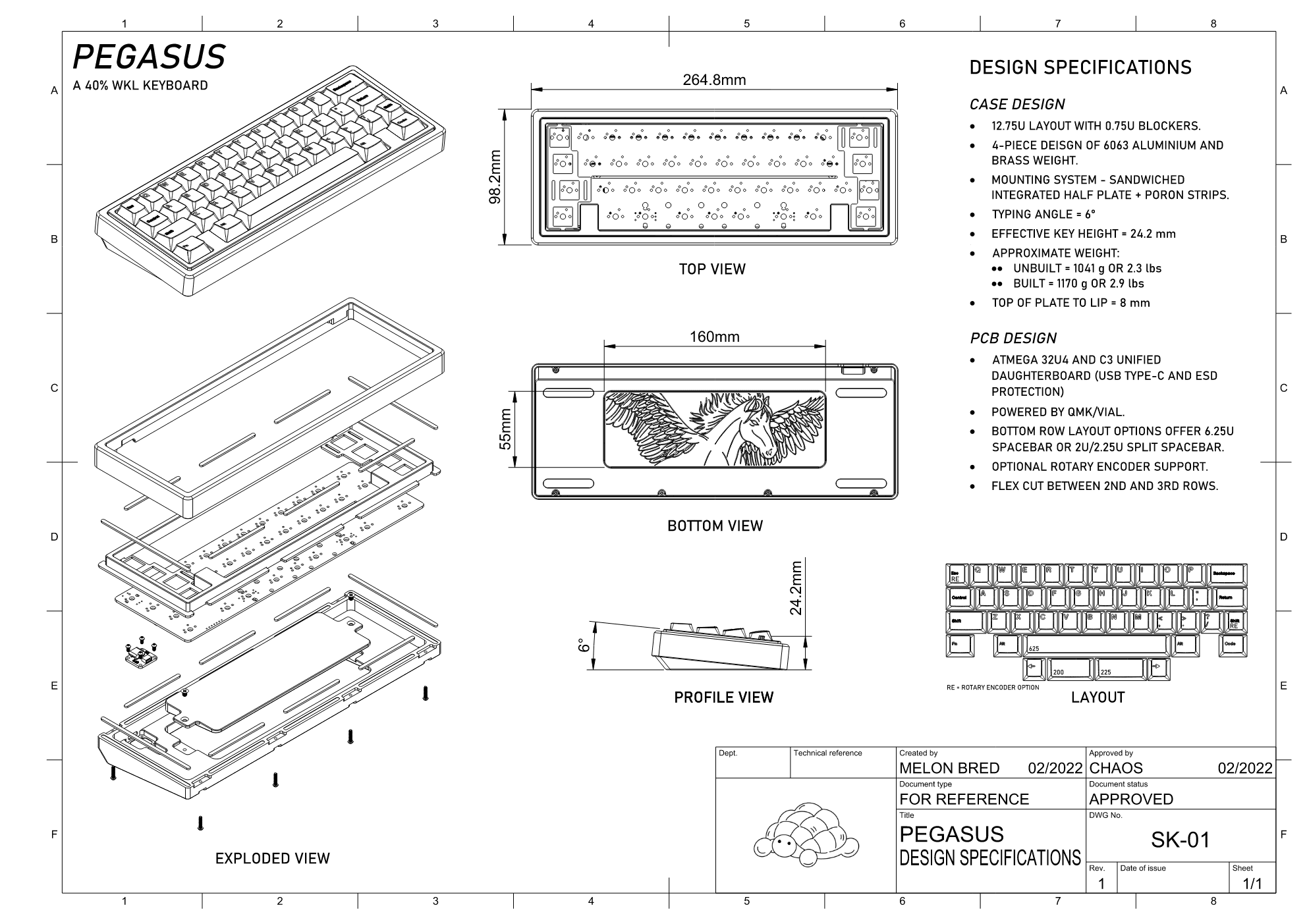

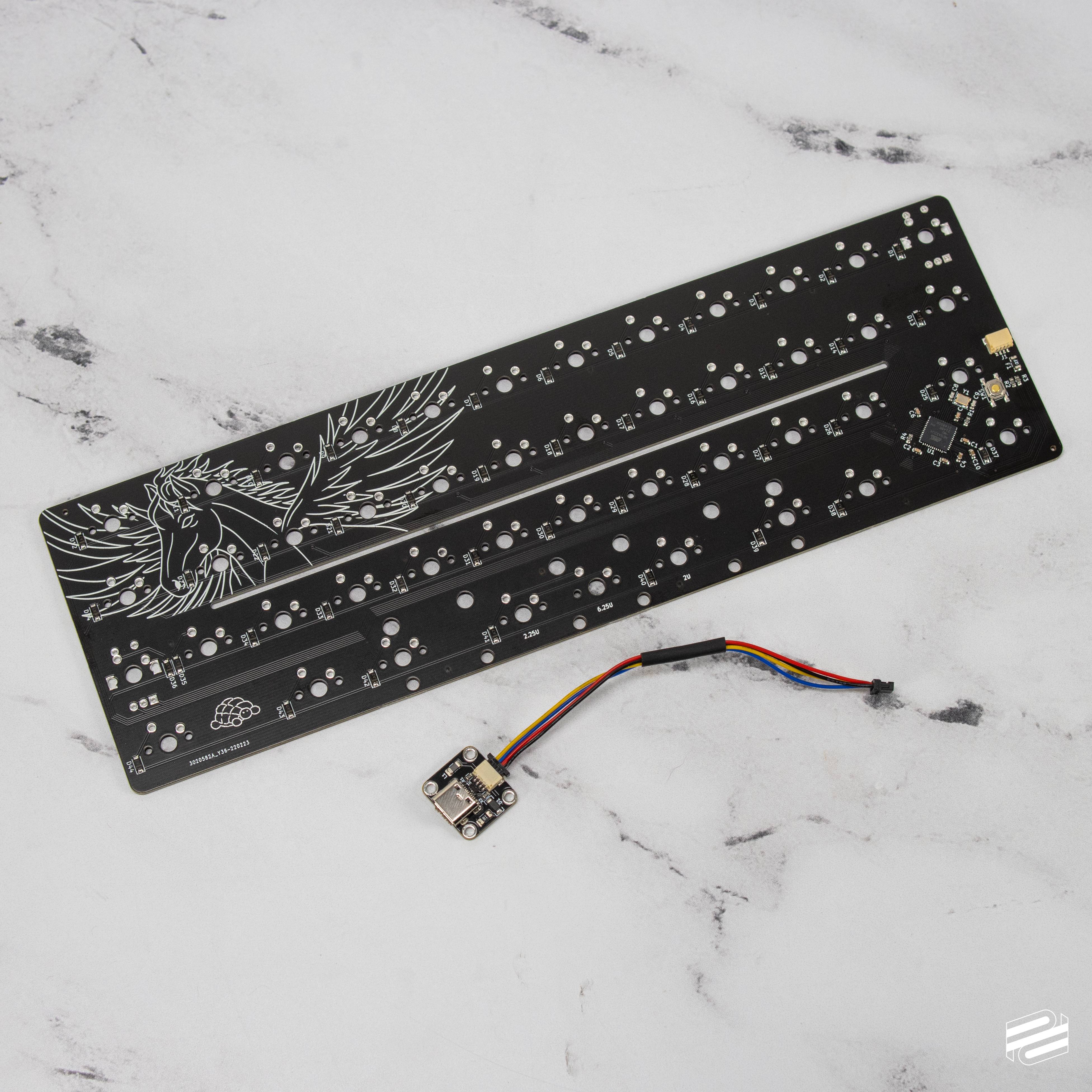

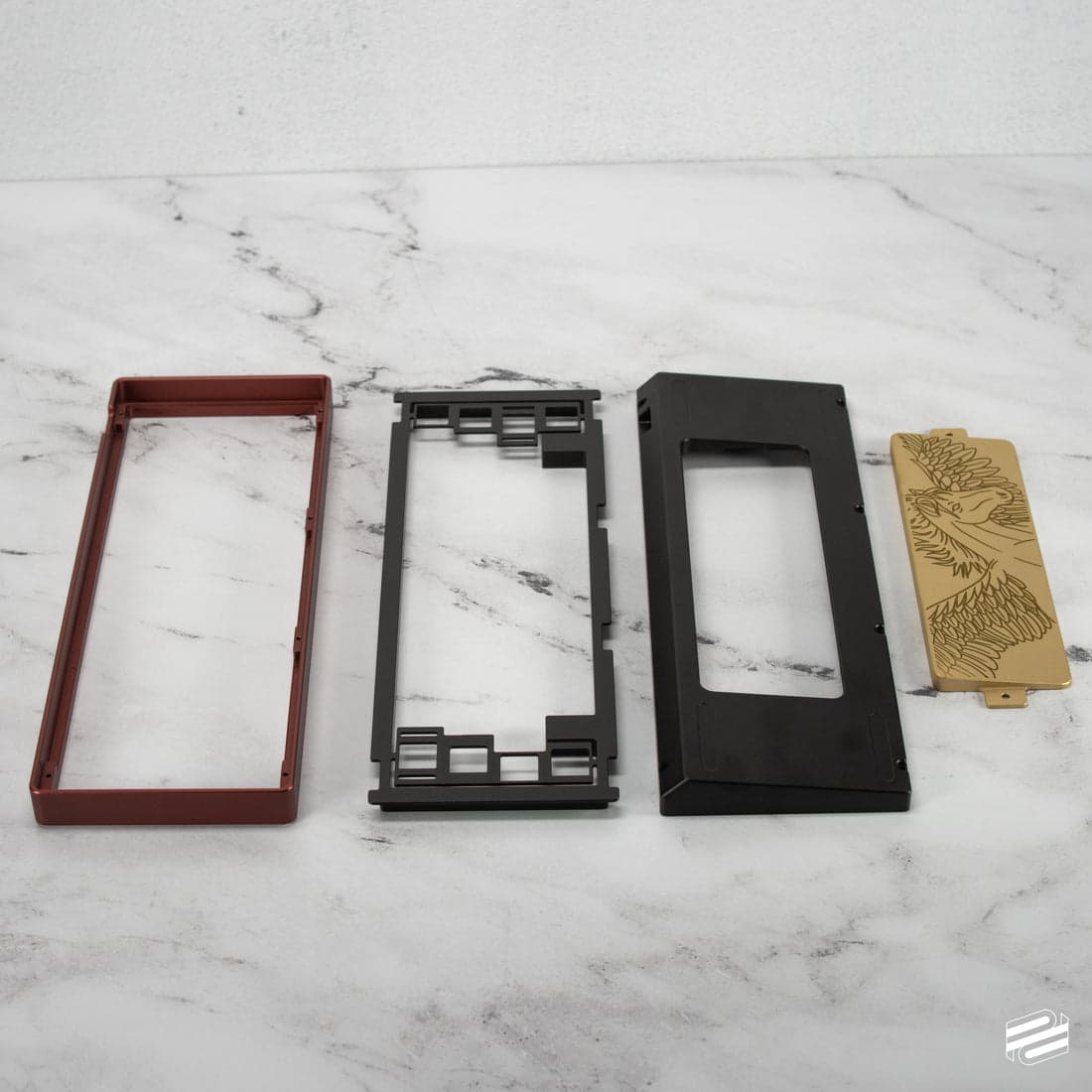

Technical Specifications - 12.75u Layout with 0.75u "WKL" Blockers - 4-piece case | 6063 aluminum case, polished stainless steel or raw brass weight - Mounting Method | sandwiched integrated half plate + poron foam strips. - Typing Angle = 6 - Effective Key Height = 24.2 mm - Soldered PCB powered by Atmega 32u4 and C3 unified daughterboard - Support for 6.25u spacebar and 2u/2.25u split spacebar - Optional rotary encoder support - Flex cut on the PCB between 2nd and 3rd rows - QMK / Vial support (Vial will be preflashed on the PCB)

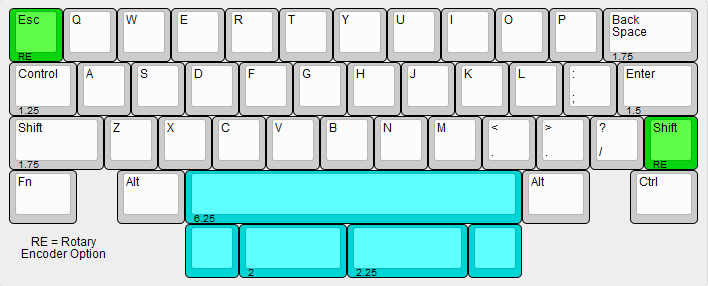

Supported Layouts

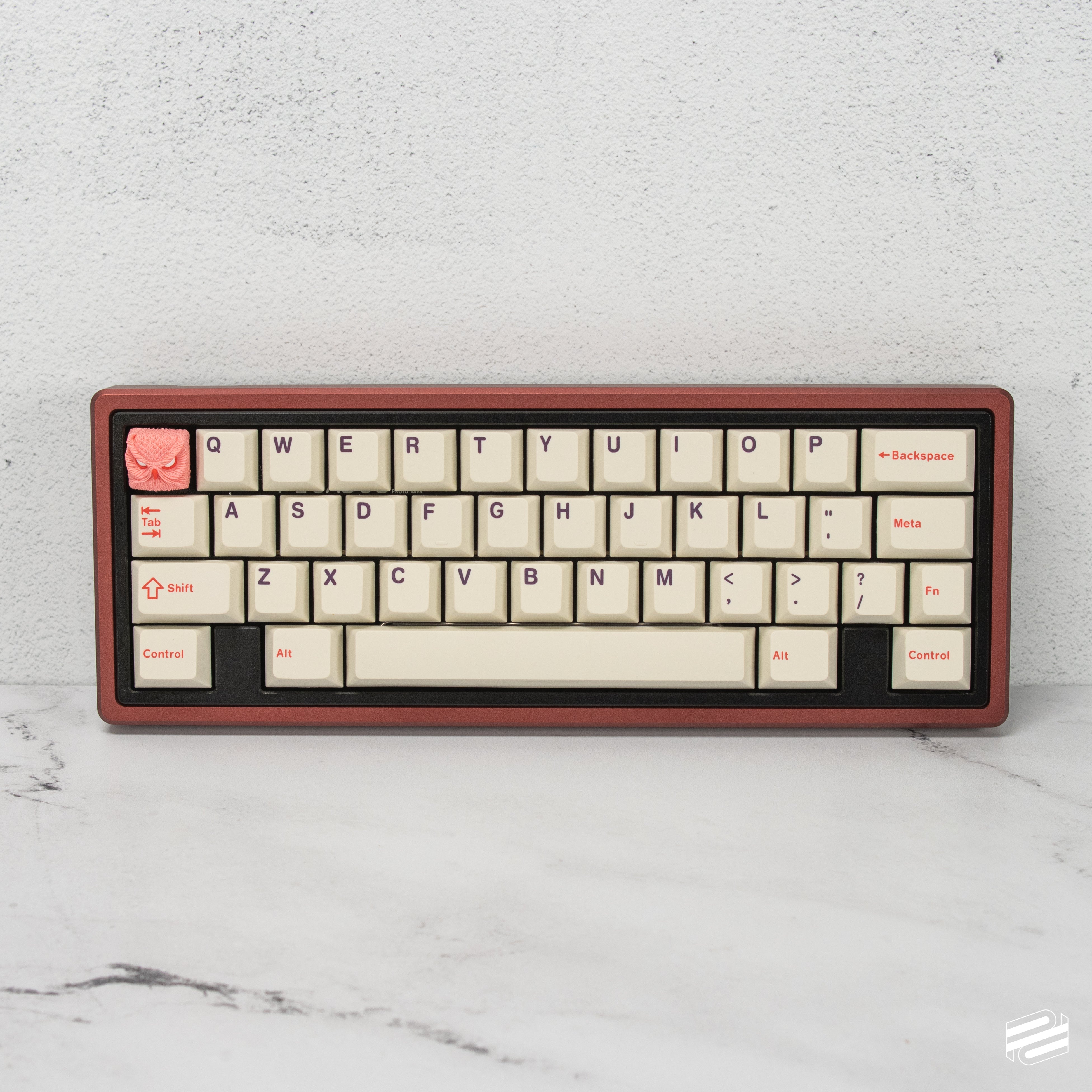

Release Information Vendor | P3D Store (Product Page) Unlimited Group Buy Dates | May 21st - July 1st Expected Delivery | Q4 2022 Colour Options:
Top - Black, E-White, Red, Indian Teal, Grape
Please note, final color samples of Indian Teal and Grape are arriving prior to group buy. This thread and the product page will be updated when these colors arrive

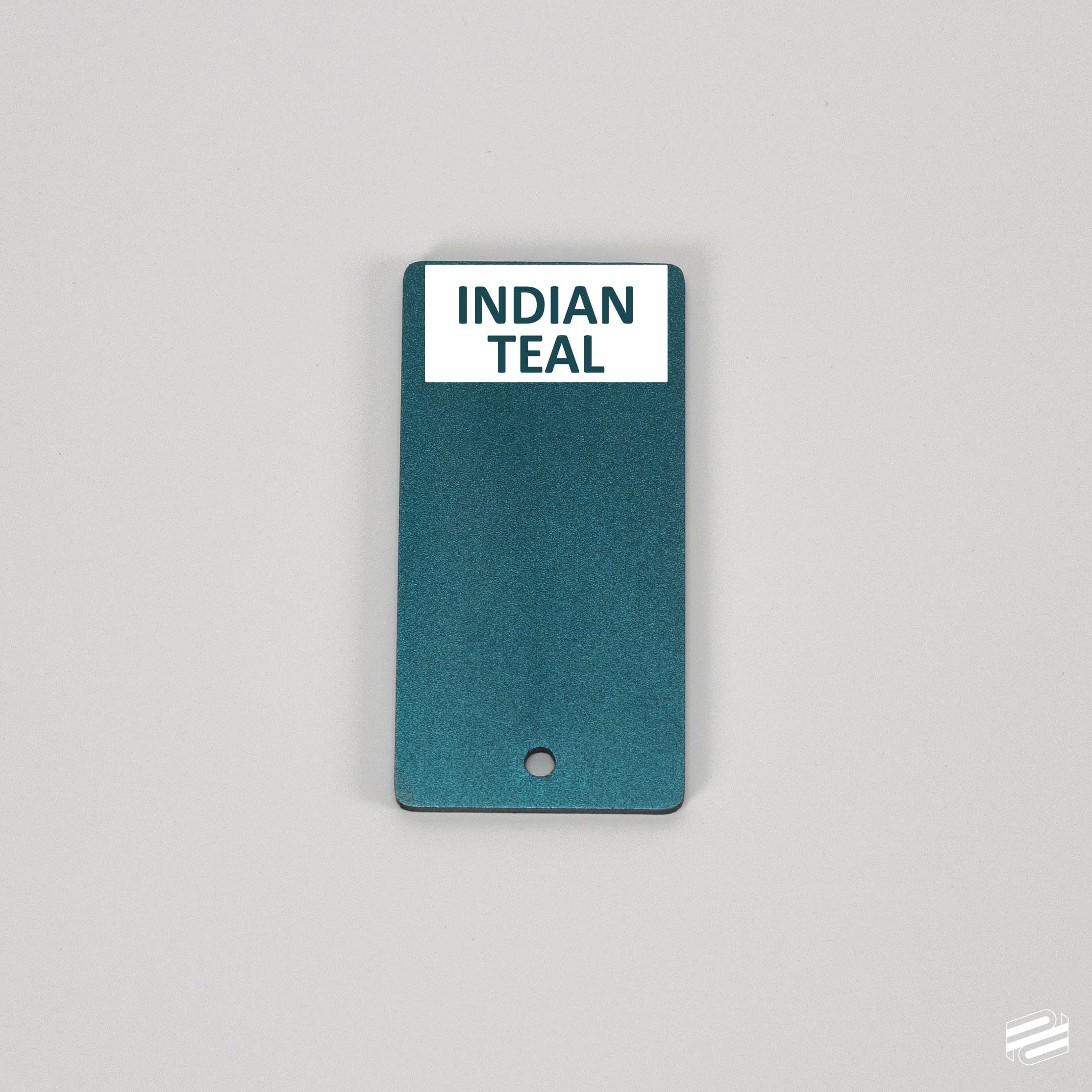

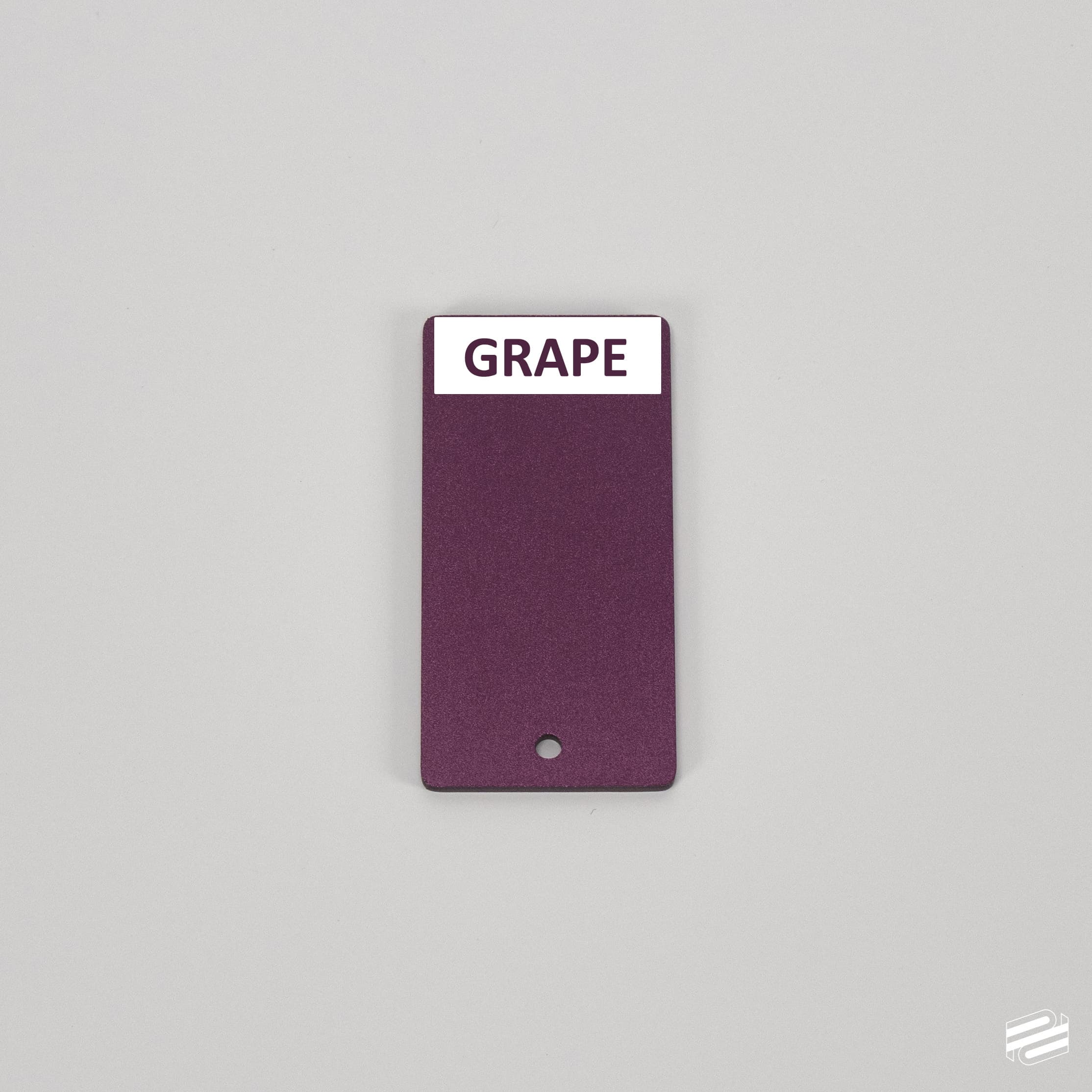

[2022/05/20] Final color samples for Indian Teal and Grape have arrived. Please see the product page!
Plate / Bottom - Black

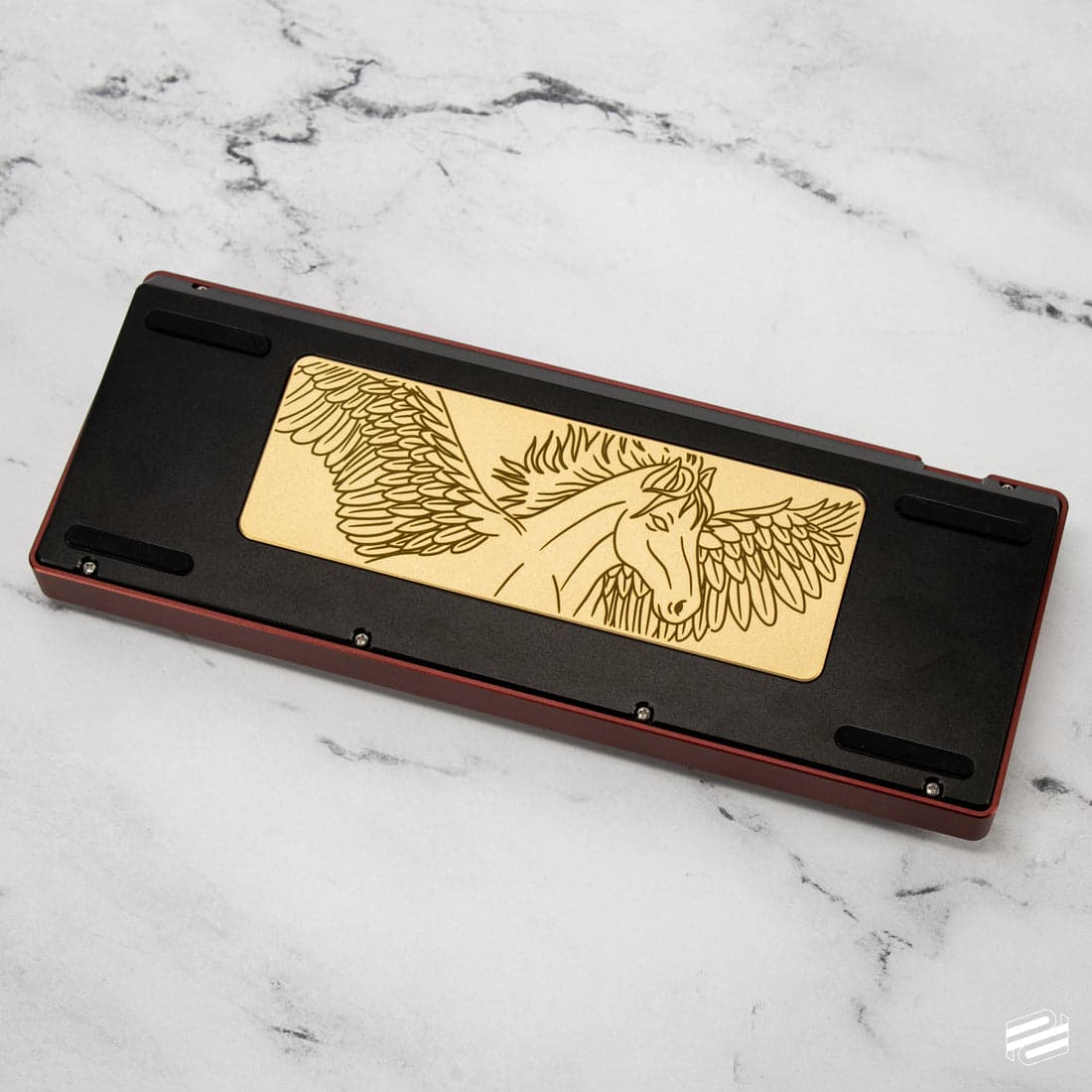

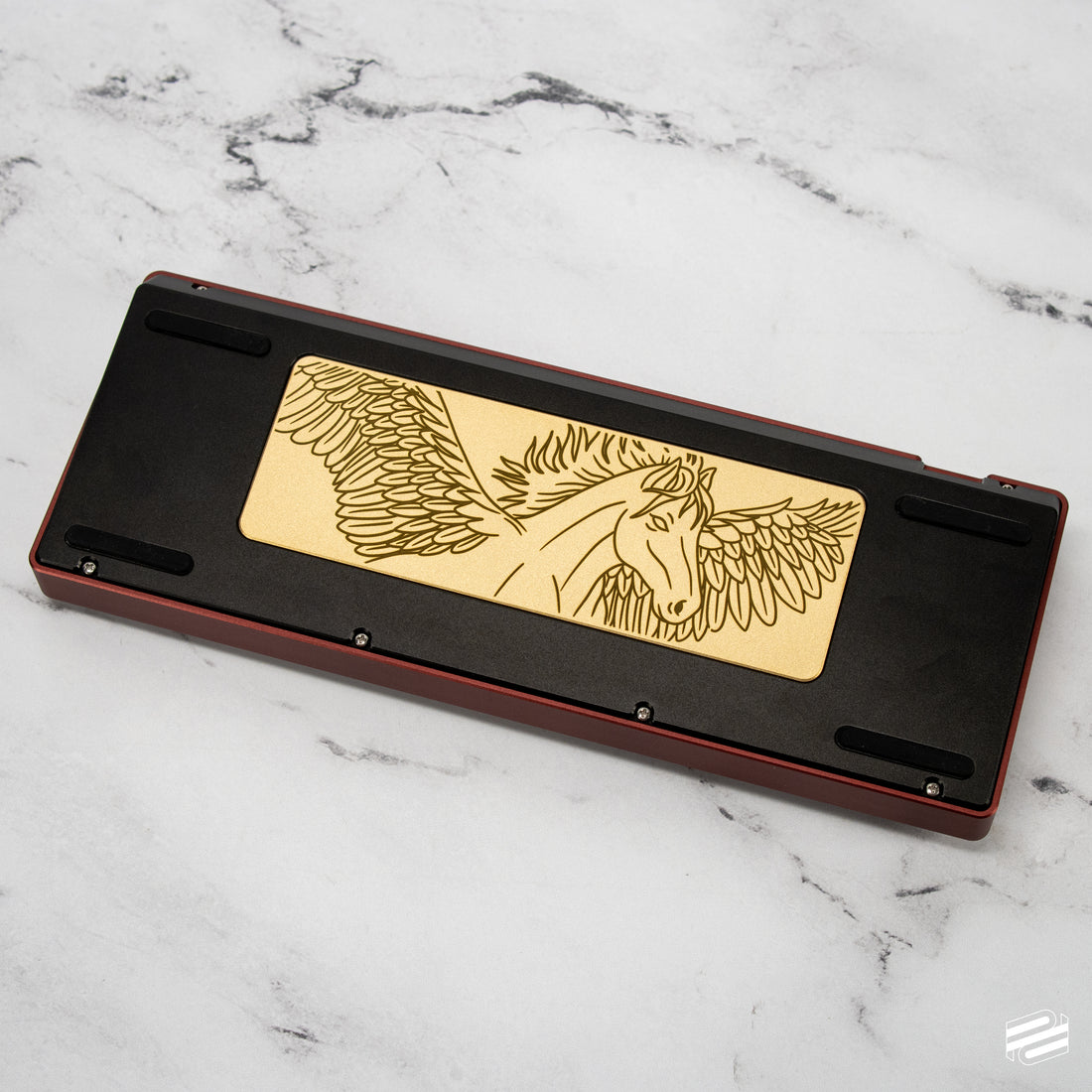

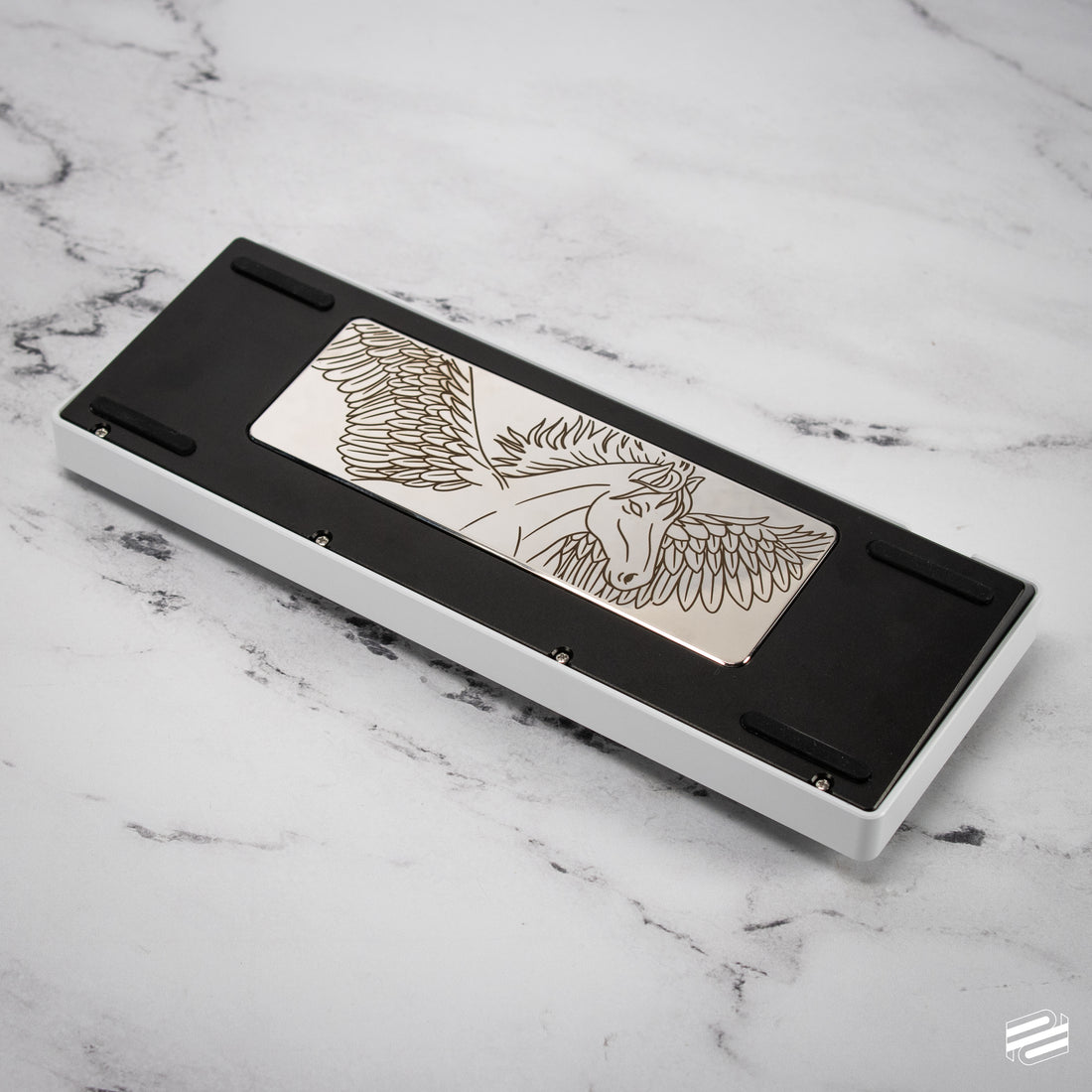

Weight - Polished Stainless Steel, Raw Brass
In-house Cerakote service will be made available. See product page or pricing section below for more information.
Included in Pegasus Kit 1x Top | anodized or e-coating (white) 1x Plate | anodized 1x Bottom | anodized 1x Weight | polished stainless steel or raw brass 1x PCB (soldered), JST cable, C3 unified daughterboard 4x bumpons 1x screw and accessory bag
If the shipping price does not match the +$30 for Canada and +$40 for the rest of the world, please place your order and contact P3D store by email for a partial shipping refund. We greatly apologize for the inconvenience. Support email: [email protected]
Cearkote Options Single Color | $25 per piece Multi Color | $35 per piece
Extra Add-Ons Anodized or E-White Top | Product Page | $70 Black Anodized Switch Plate | $60 PCB (no daughterboard) | $40 Black EVA Plate Foam | $10 Black EVA Caes Foam | $10 Rotary Encoder | $4
1. Where will this be shipping from? Minnesota, USA.
2. Will there be any other vendors? No. P3D Store is the worldwide vendor for this project.
3. What's the expected fulfillment timeline? We are expecting 4 months from the time of group buy close. This will vary based on how COVID-19 regulations may change in China.
4. Is there a way to get notified of when the group buy starts? Yes! Please sign up for the email notification on the bottom of the product page linked above.
5. Will custom cerakote orders ship after standard colors ship? Yes. We expect cerakote orders will ship a few weeks after standard colors ship. This timeline may vary depending on how many cerakote orders and unique colors there are. We will have a better idea after the group buy closes.
6. Why is the brass offered as raw/uncoated? Many folks expressed interest in raw brass to force patina their weights. However, a coated option will be offered at group buy.
7. What cerakote options are available? Please refer to the Cerakote Color Gallery on P3Dstore.com
