Typ 65+ by axiöm studiosGB Date: 30th November 2021- 7th December 2021 [FCFS]Time: 30th November 2021, 9AM (+8 GMT) Click this to check the countdown time in your timezone
renders by motohiroWebsiteJoin our discord groupFollow us on InstagramUpdates:TYP 65+ Updates (Last updated: 5th September 2022) :-
Estimated shipping period: Early Q4
Part listCurrent ProgressAluminum caseCompleted - ReadyBrass weightCompleted - ReadyAccent PC/BrassCompleted - ReadyPCB (Hotswap/Solder)Completed - ReadyCarrying caseCompleted - ReadyScrews and miscCompleted - ReadyCarbon fiber plateCompleted - ReadyFR4 plateCompleted - ReadyPacking box and materialsCompleted - Ready
Currently we are having all the orders packed, tracking numbers will start rolling out to your email up for the next upcoming days.
Kit Pricing:- (RM = Malaysian Ringgit)
RM1640 (S =Solder Kit)
RM1680 (HS = Hotswap Kit)

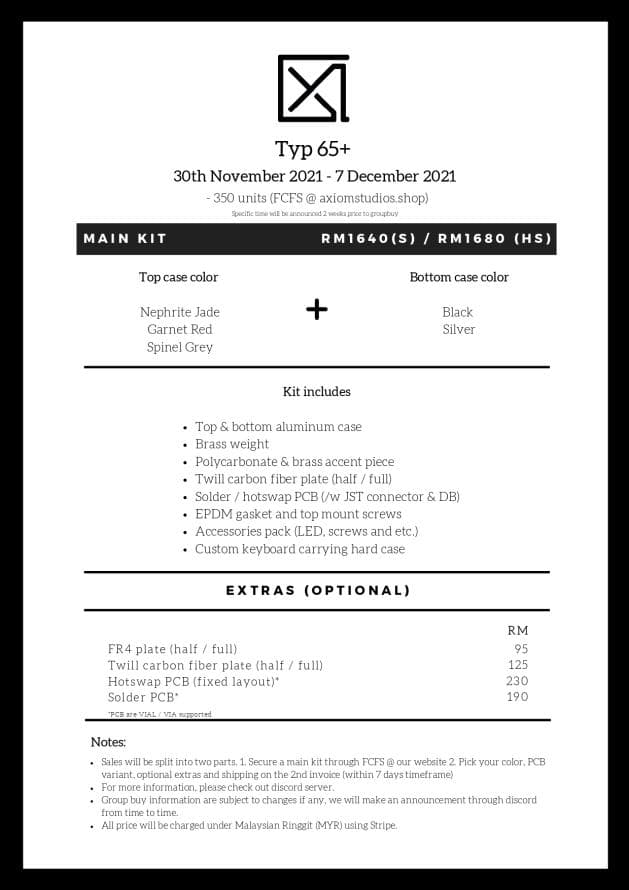

For more info refer to the leaflet below.
IMPORTANT GB DETAILS The group buy will be held on our website: https://www.axiomstudios.shop

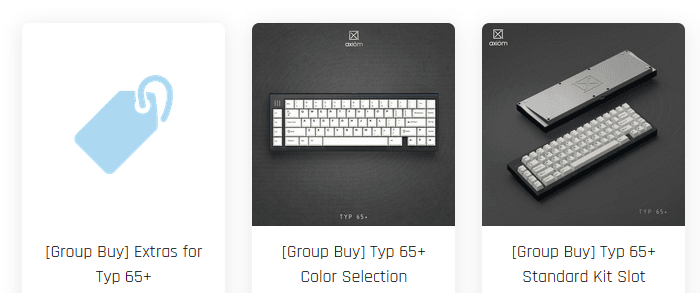

Store view:
There will be a total of 2 invoice in the gb process
TLDR: Secure slot in first invoice and then choose color/extras later in second invoice
TLDR: Secure slot in first invoice and then choose color/extras later in second invoice
TLDR: Secure slot in first invoice and then choose color/extras later in second invoice
TLDR: Secure slot in first invoice and then choose color/extras later in second invoice
The first invoice (secure GB slot):
• This is a group buy slot for Typ 65+ on FCFS basis (Limited to 350 units).
• For this invoice user just need to buy this slot "Typ 65+ Standard Kit Slot" at the base price of MYR 1640 and checkout (solder pcb price, upgrade to hotswap on second invoice if needed).
• One unit per invoice, orders with more than 1 unit will be cancelled
• Selection for colors, PCB, plate layout and optional extras will be happen on the 2nd invoice where shipping will be charged.
The second invoice (color selection, extras and shipping):
• This is for color selection and kit configuration for those who acquired Typ 65+ slots which will be open after the Typ 65+ slot GB ended.
• Once your slot is secured, you can choose color, plate option and pcb option on "Typ 65+ Color Selection".
• For optional extras, please make sure you add them on "Extras for Typ 65+" and check out together with "Typ 65+ Color Selection" in one invoice.
• Please refrain from placing order if you do not have slot invoice (first invoice) else orders will be cancelled minus fees.
• Please use the same account to check out the color selection and optional extras order as the GB slot order.
• If different account has been used, we will automatically cancel your slot as we are unable to trace back to the original order.
• Shipping will be calculated here as well.
Payment method will be using:
• Stripe (CARD ONLY. No apple pay, no google pay, no paypal, no shoppay).
• Local bank deposit (MALAYSIAN bank accounts only).
Estimated fulfillment time will be around Q3 2022.
2nd Proto Build Stream
There will also be build stream of the proto boards by:
• Taekeyboards:
• Diego from Lightning Keyboards:
Configuration: Cherry mx hyperglide blacks with half cf plate• Jae from Prototypist Keyboards:
Configuration: OP blacks with full cf plate, ISO layout• Nextrift:
Configuration: Boba U4T with full fr4 plateDesign
The design is inspired from the JER mini layout with a functional blocker. Featuring a seamless case to maintain and clean and minimal look. The board feature 2 type of mounting system with top mount and gasket mount configuration. The blocker can function as layers indicator with LED soldered and a diffuser or as cosmetic with brass badge insert.

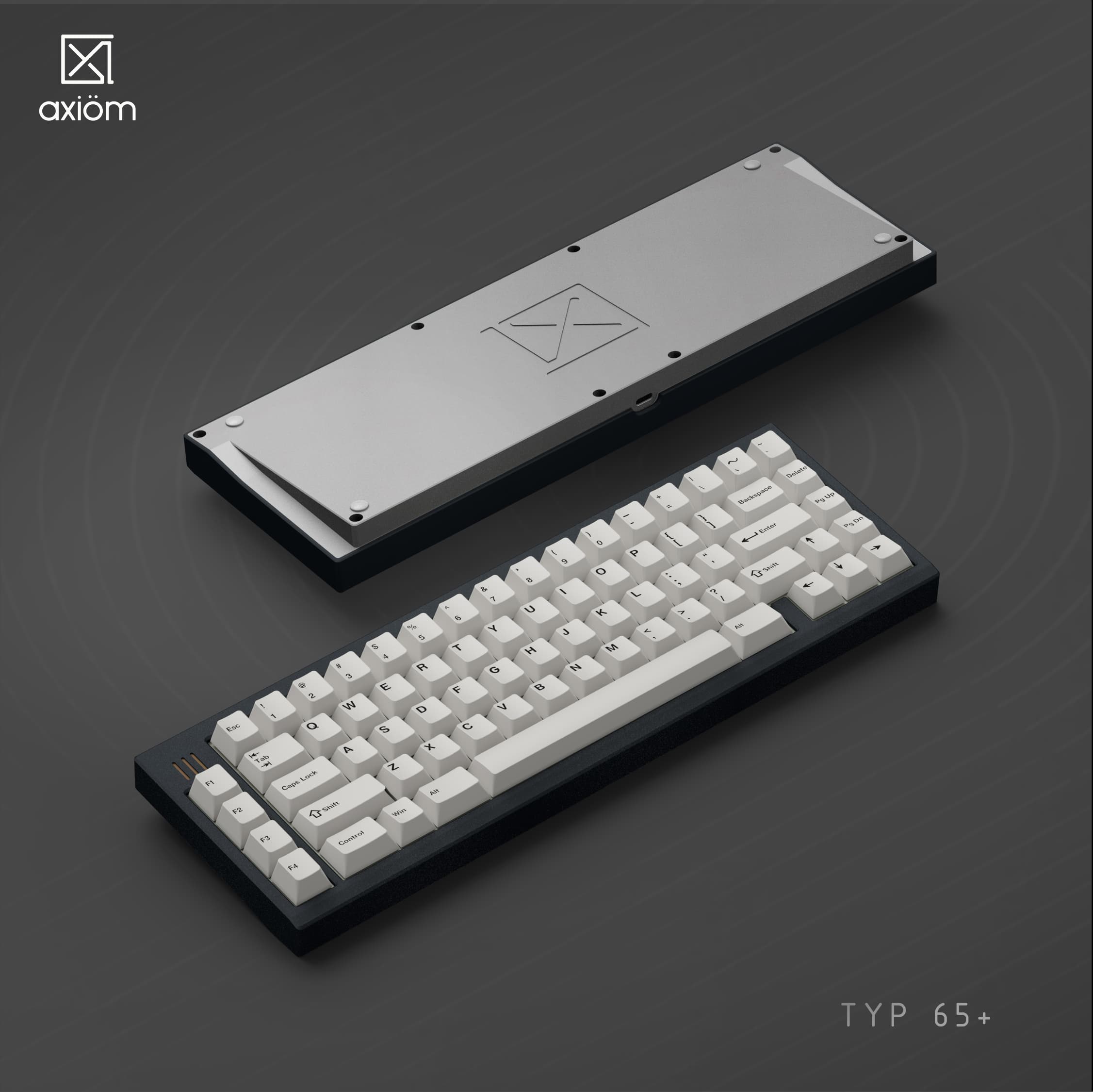

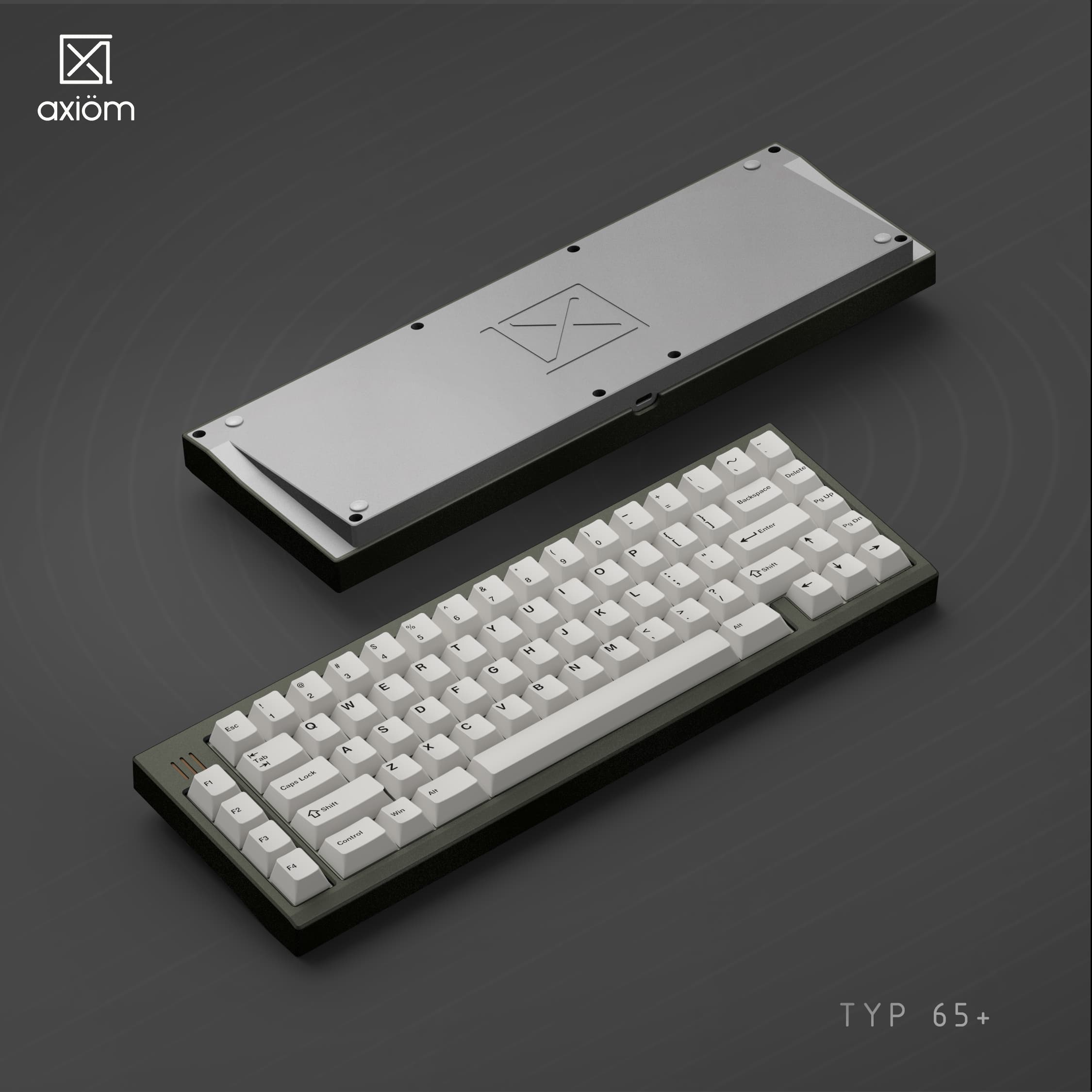

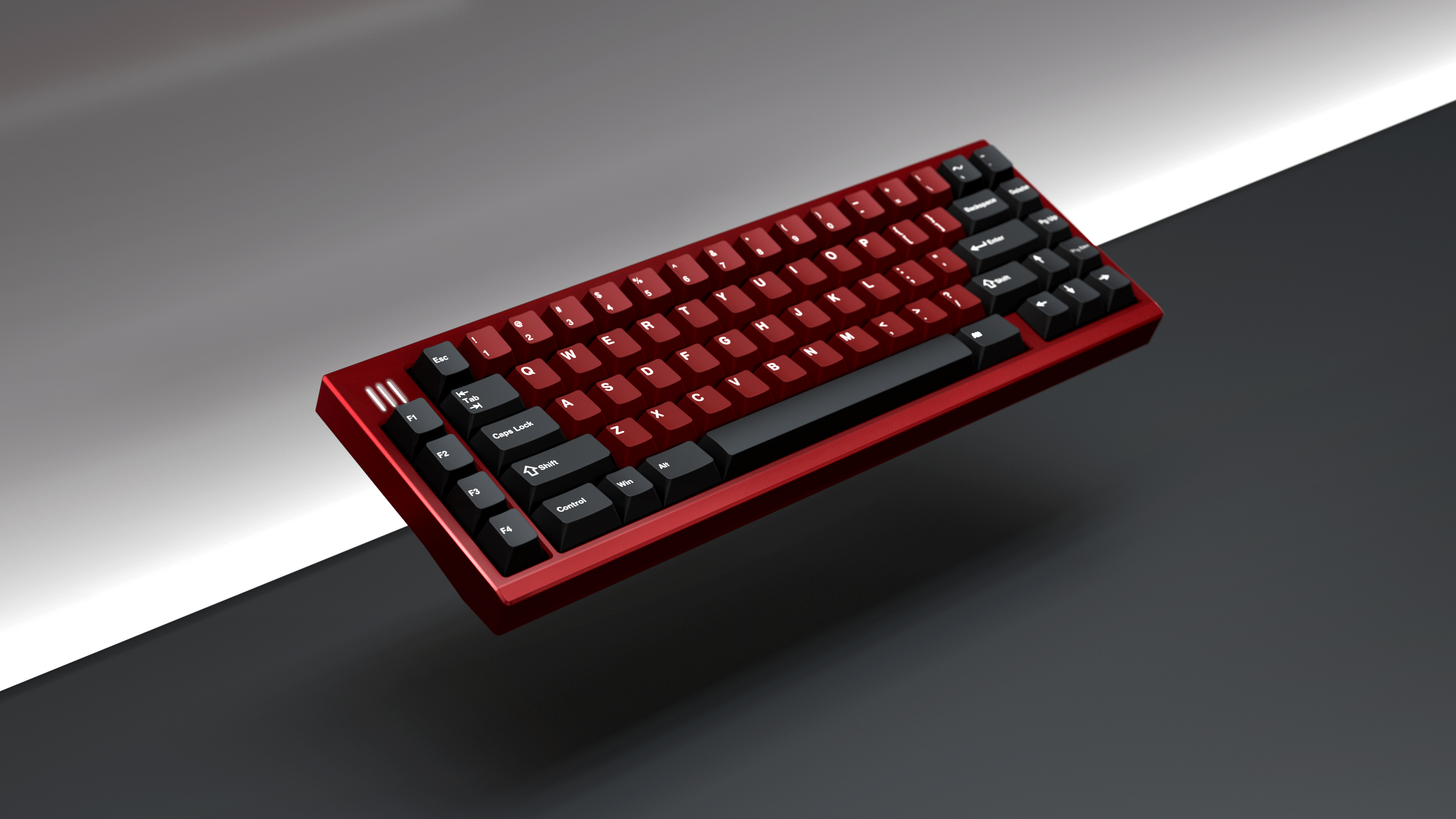

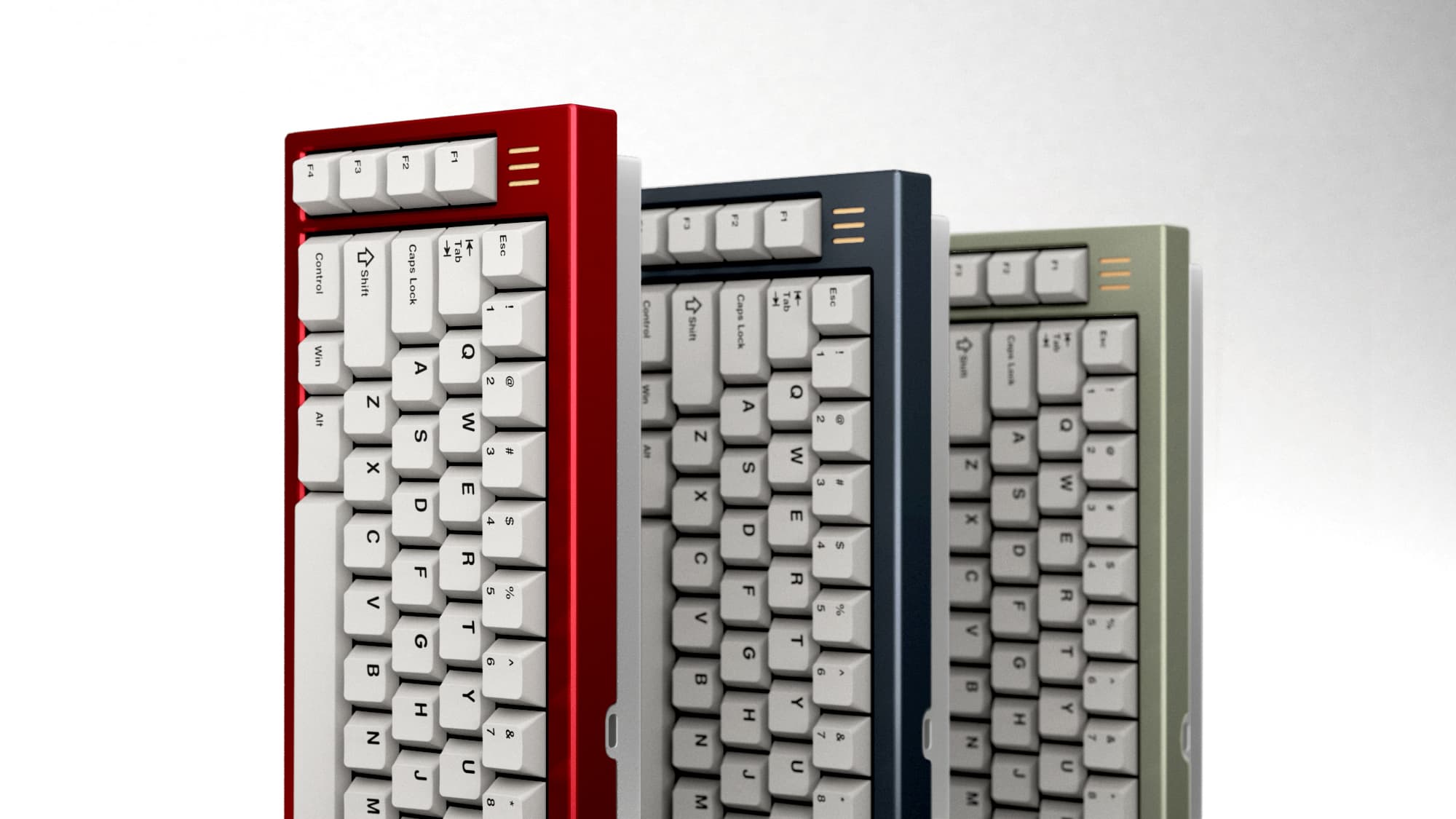

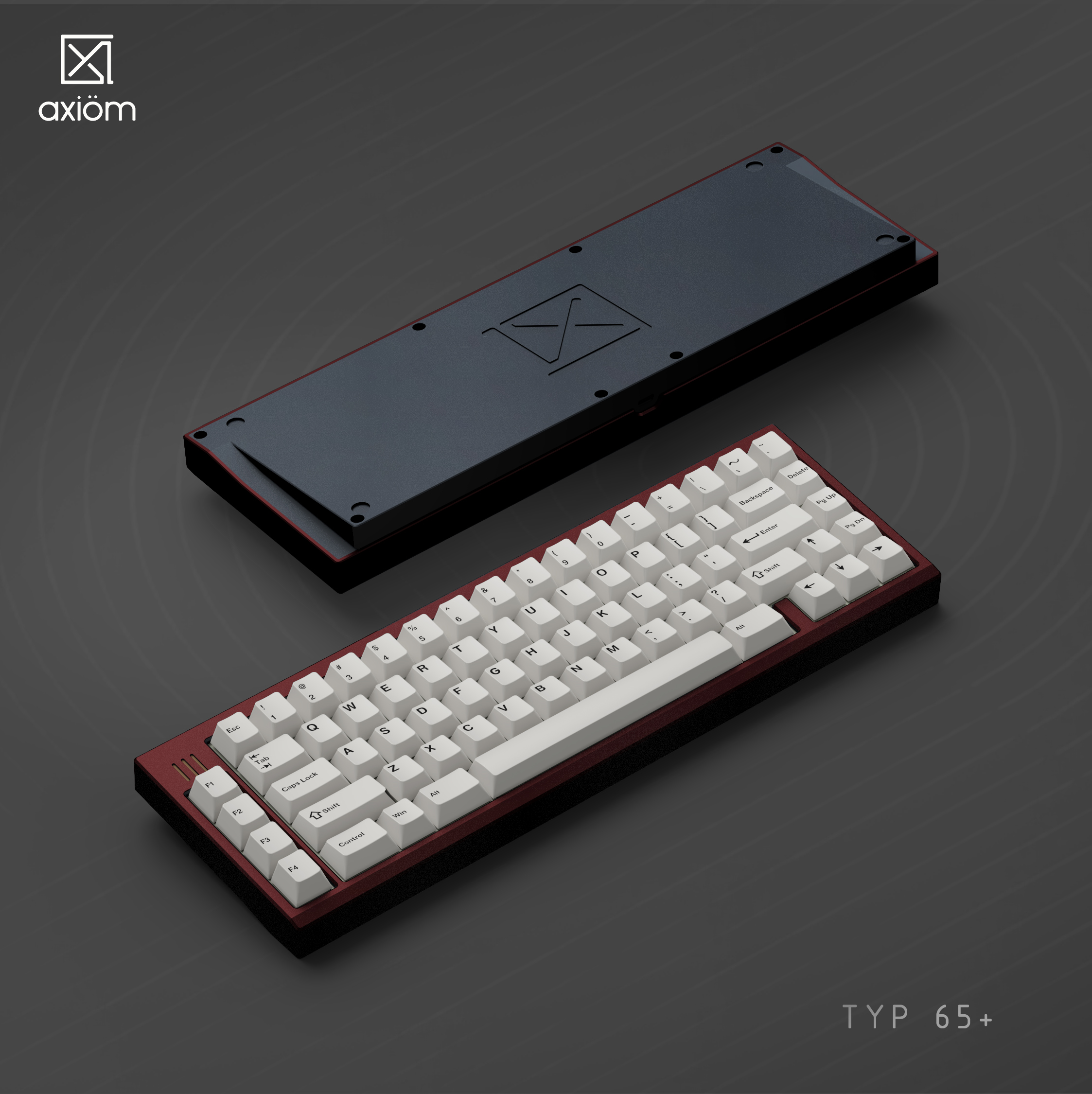

Typ 65+, a 65% layout with left macro cluster and chamfered edges.

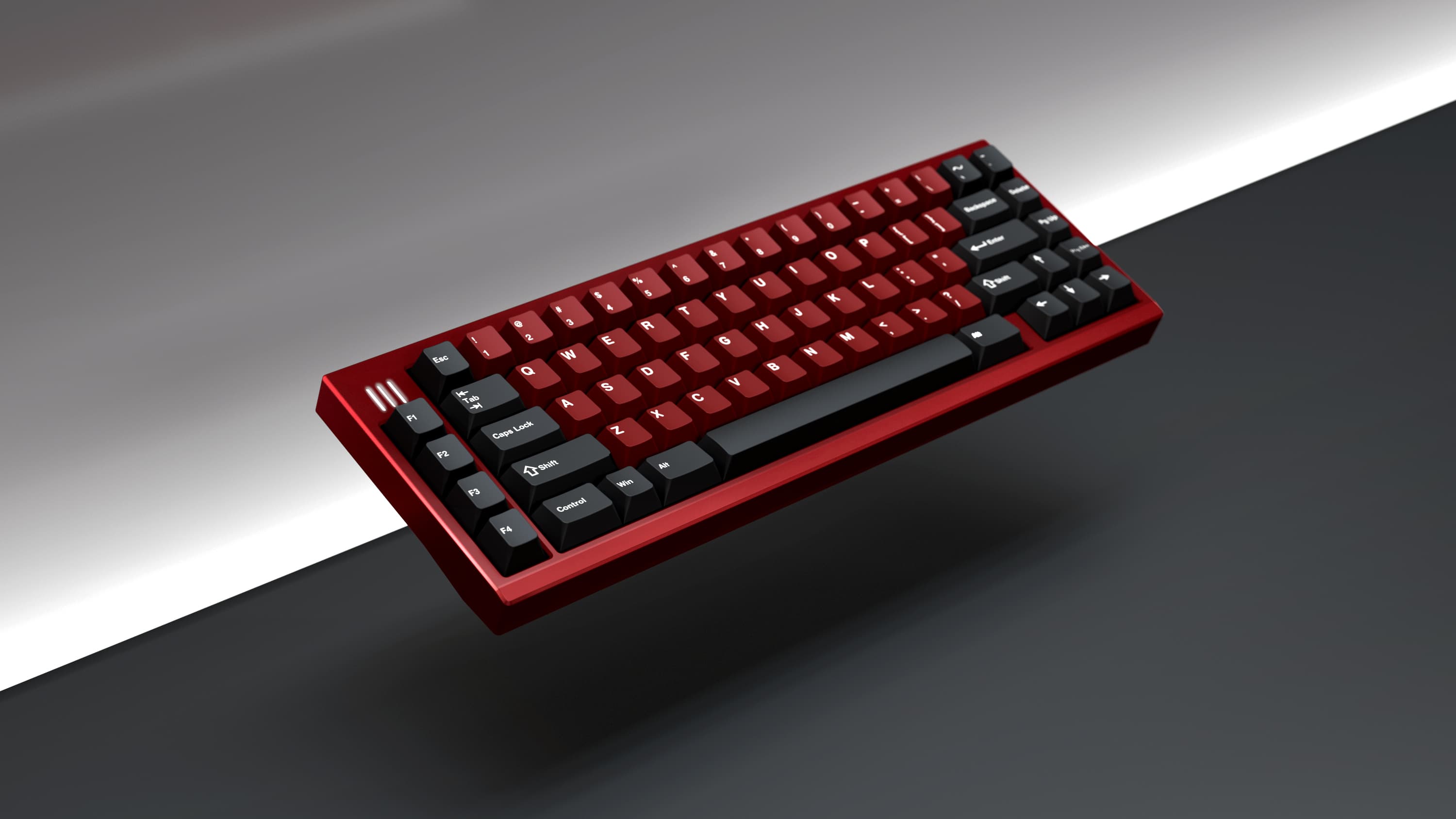

renders by motohiro
More Renders
More

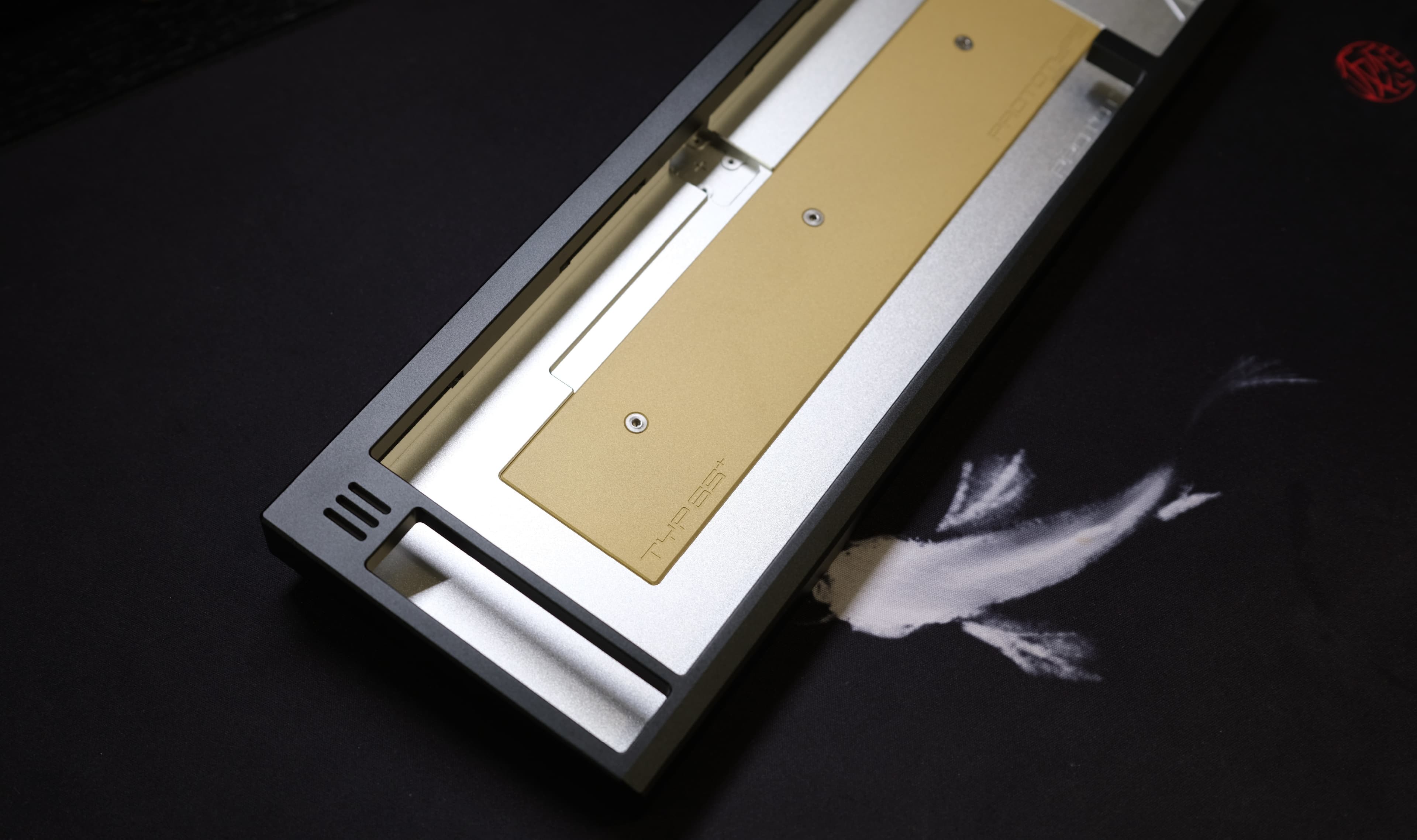

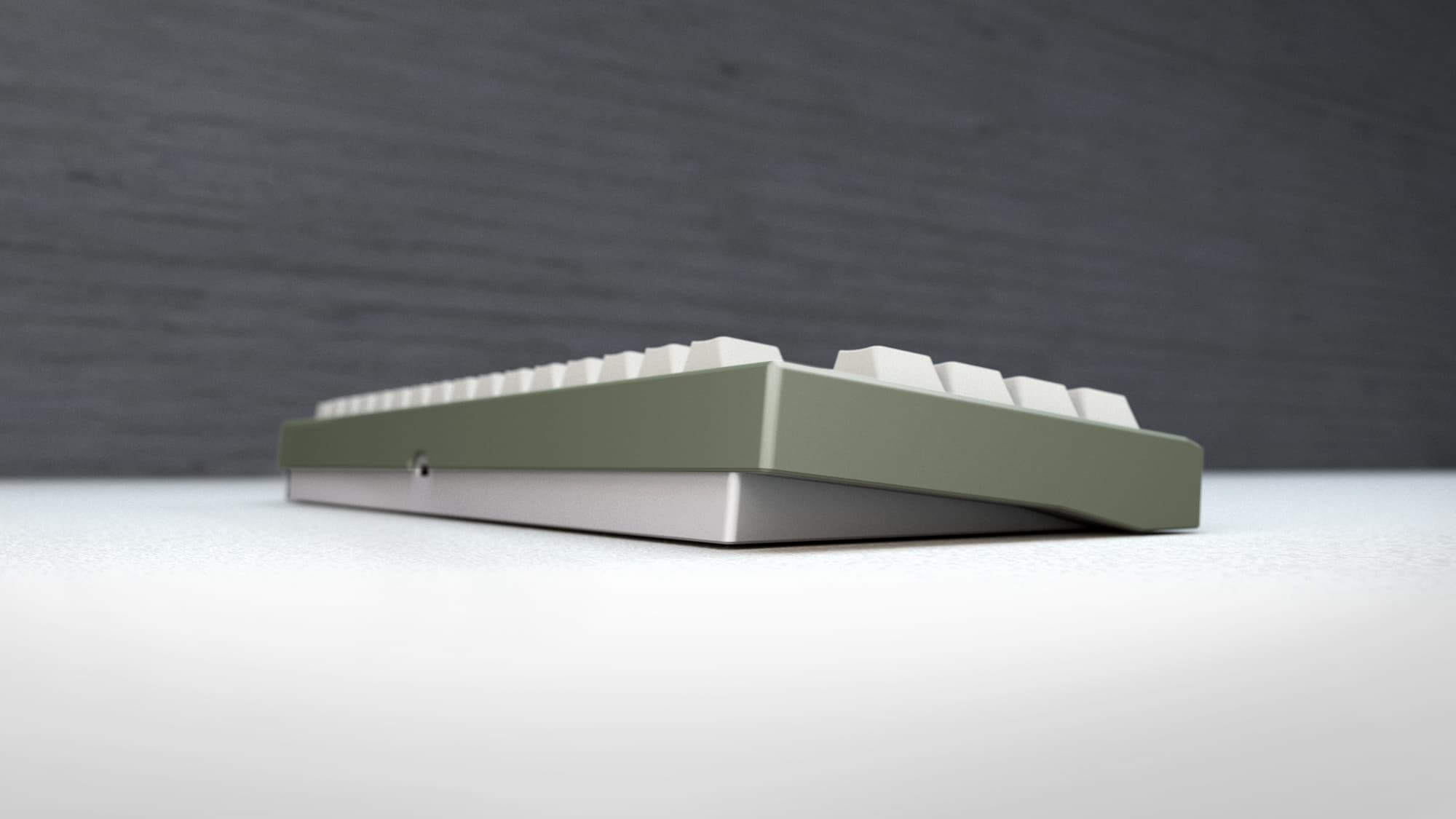

Final proto pic finalised colours and carrying case

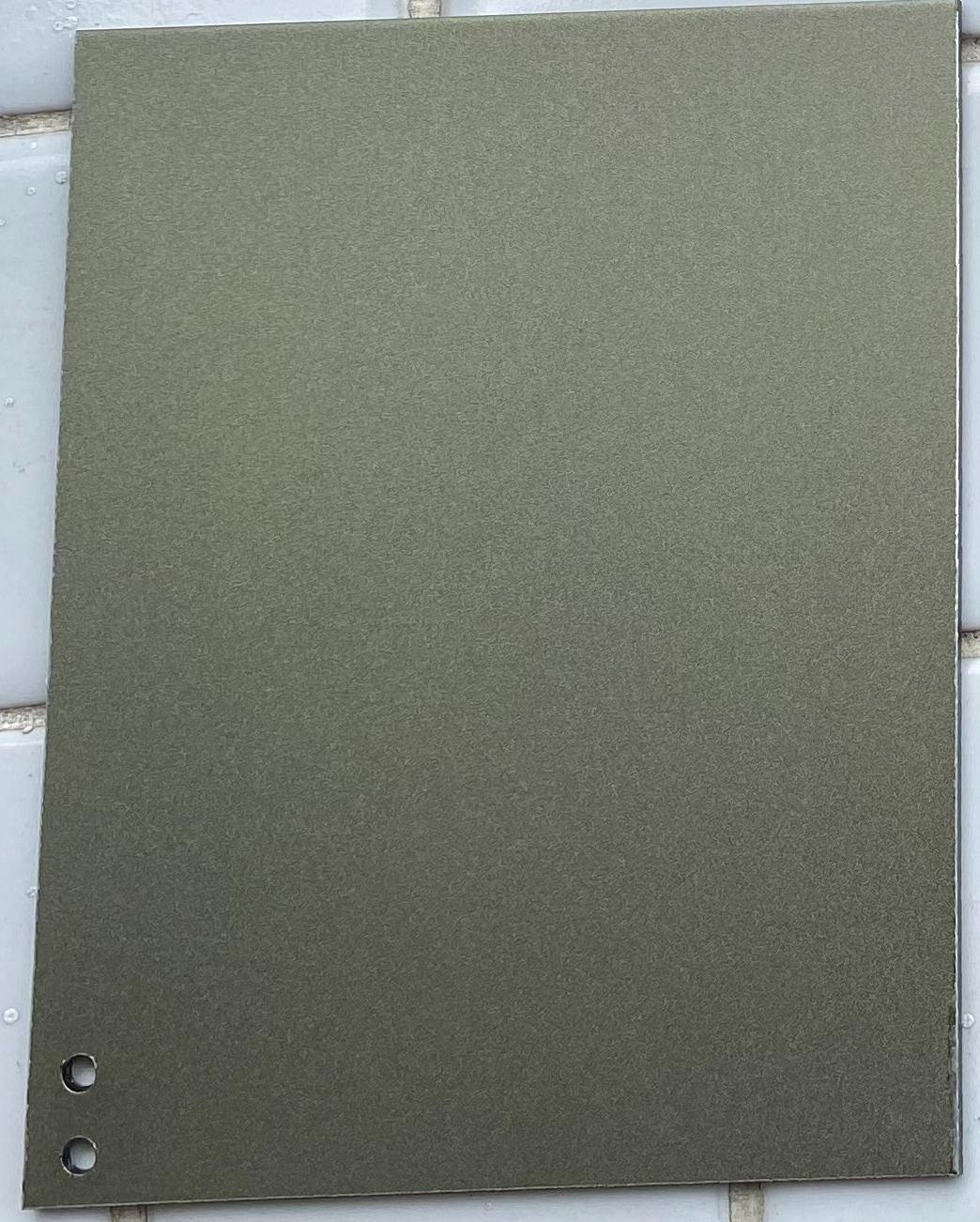

Finalized Jade Ano Colour Colour chip using the same 6063 aluminium and sandblasted with the same surface finish as the proto units to provide an accurate colour sample for production unit
Fun Fact:
Nephrite Jade is inspired from the R34 GTR Millennium Jade paint

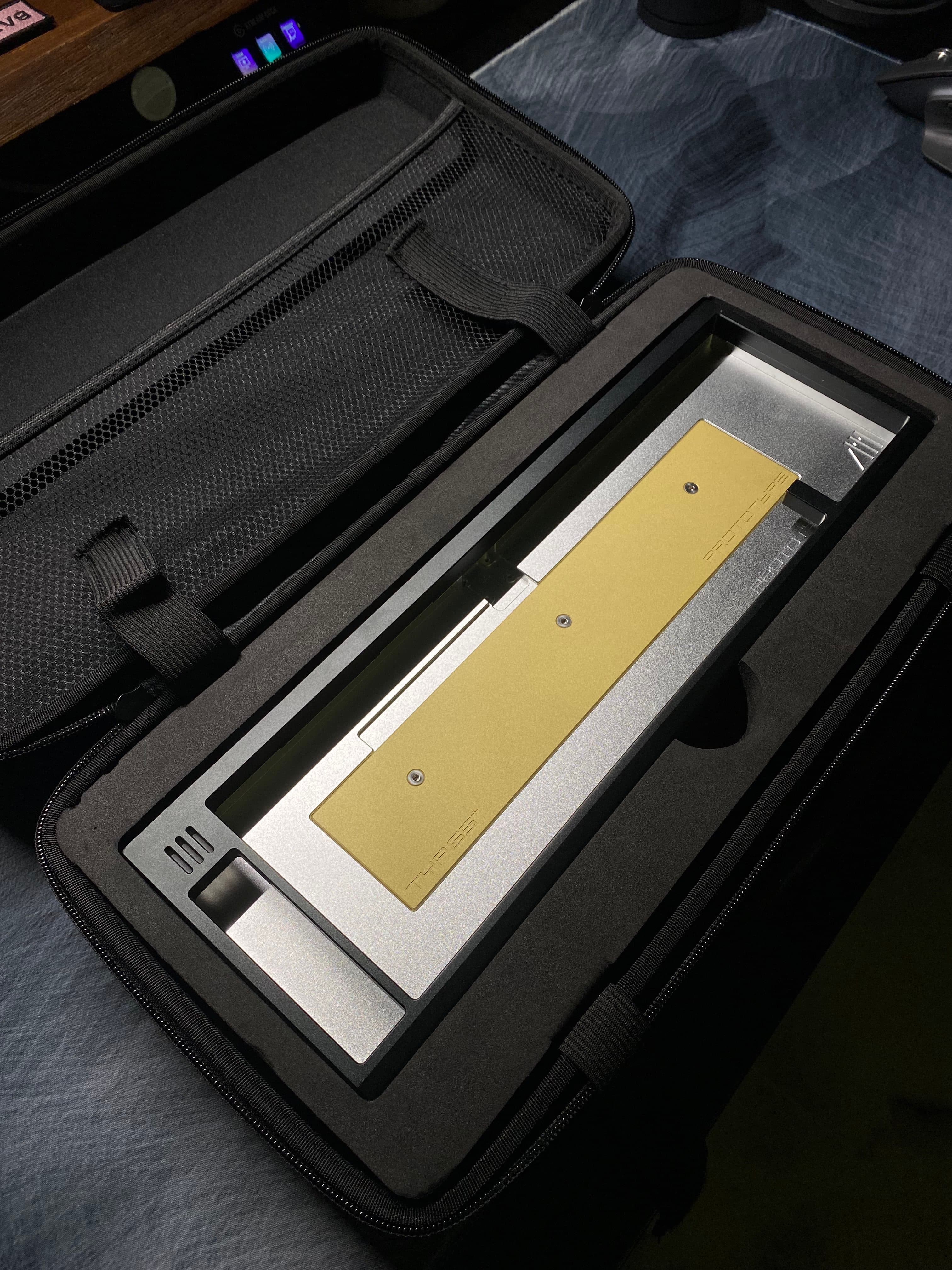

Carrying case
Case specifications:-• Designed by 14x71
• CNC aluminum 6063
• 65% layout with left macro cluster design
• 6 degree typing angle
• Dual mount configuration: Top mount or Oring gasket mount
• 17.7mm front lip height - centred USB-C port
• Colors:- Nephrite Jade, Spinel Grey, Garnet Red (Top) - Silver, Black (Bottom)
PCB specifications:-• Designed by Kopibeng
• Comes in solder and hotswap variant
• Solder pcb will have universal layout support 6.25u, 7u, ISO, a universal plate file will be provided later on if you wish to use 6.25u bottom row
• PCB compatible with QMK,VIA and VIAL support
• USB-C daughterboard (ai03 unified c3 db)
• OTD 356 mini style PCB flex cut and relief cut
• LED indicator (if soldered) for layers but there will also be firmware file for lock keys instead if there is demand

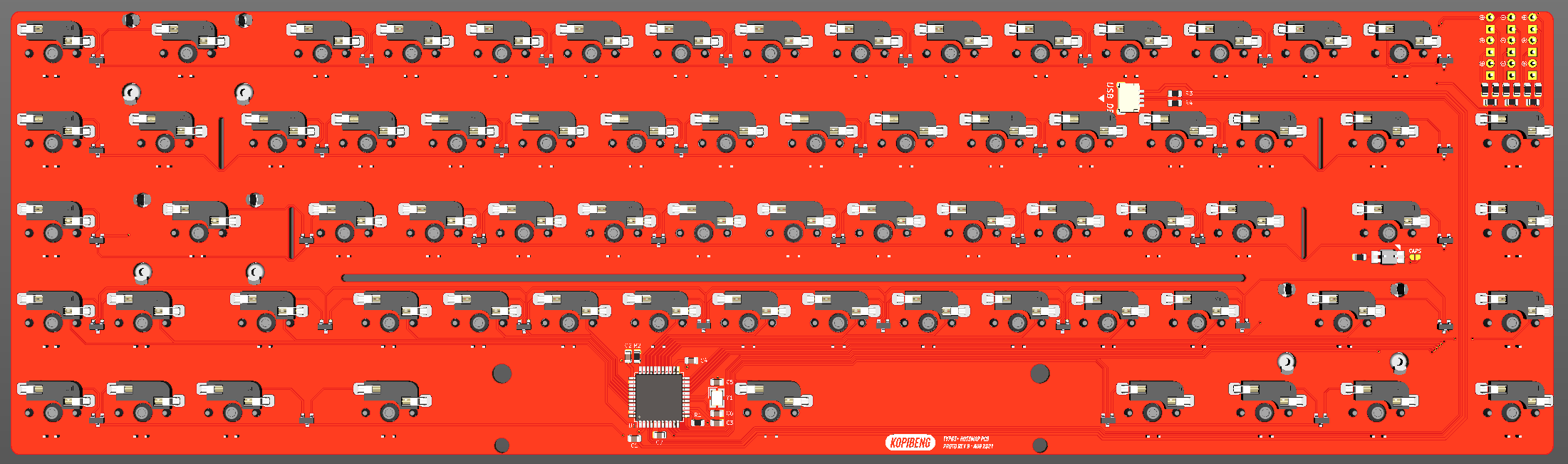

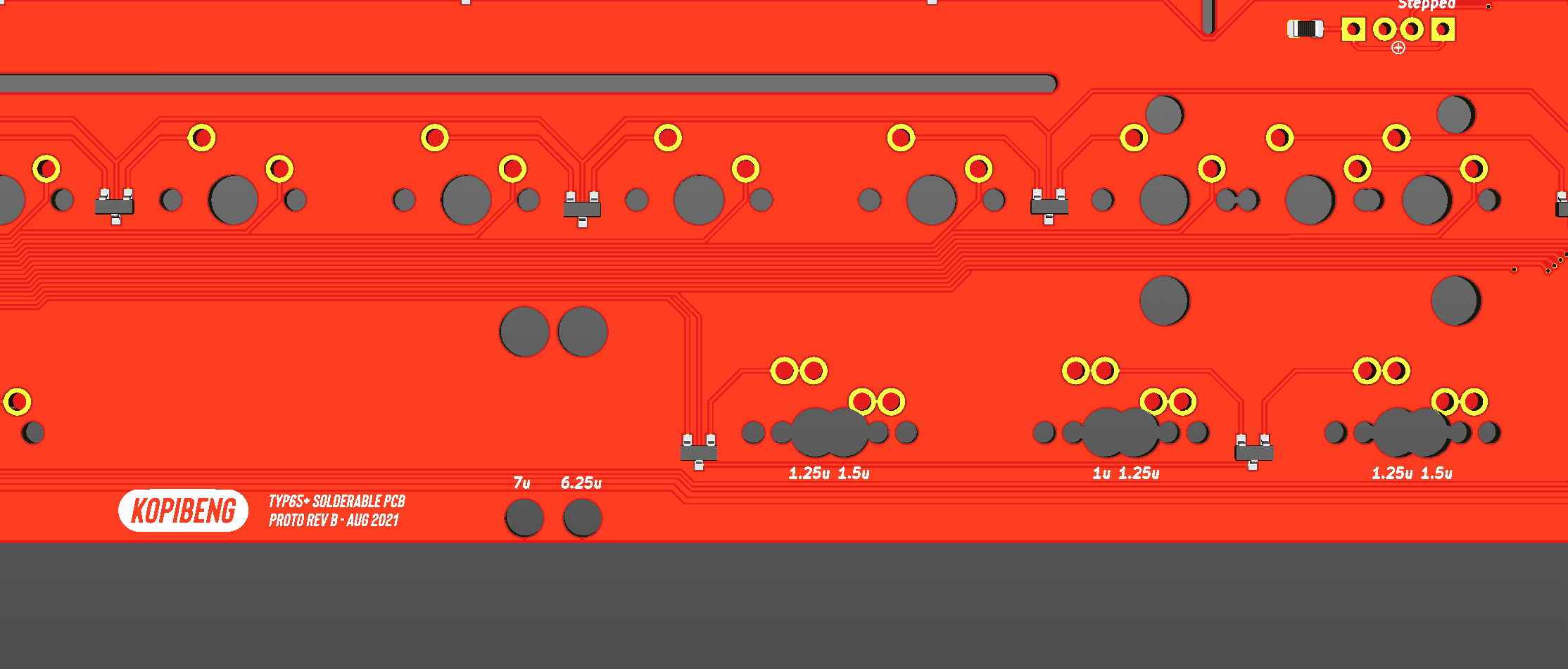

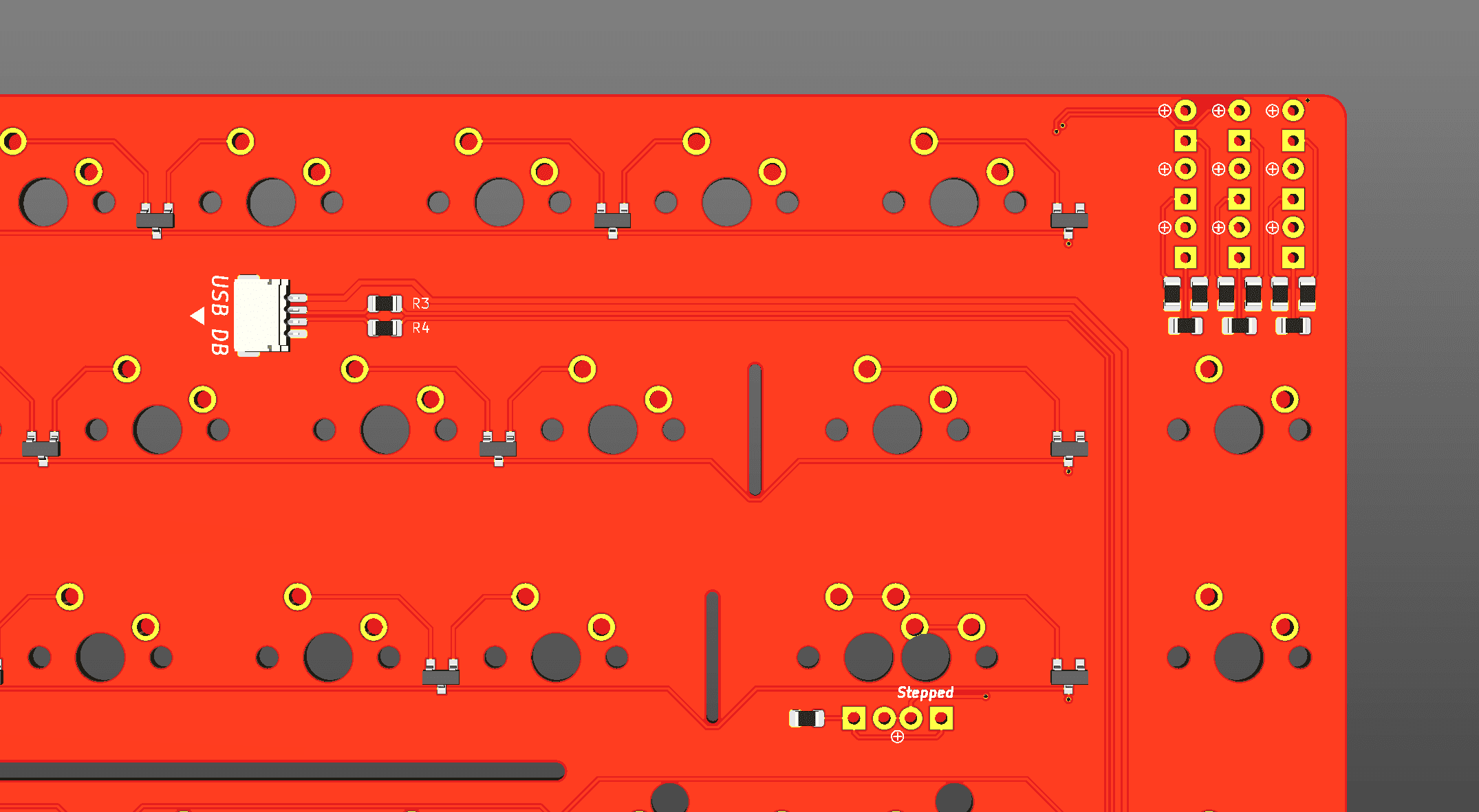

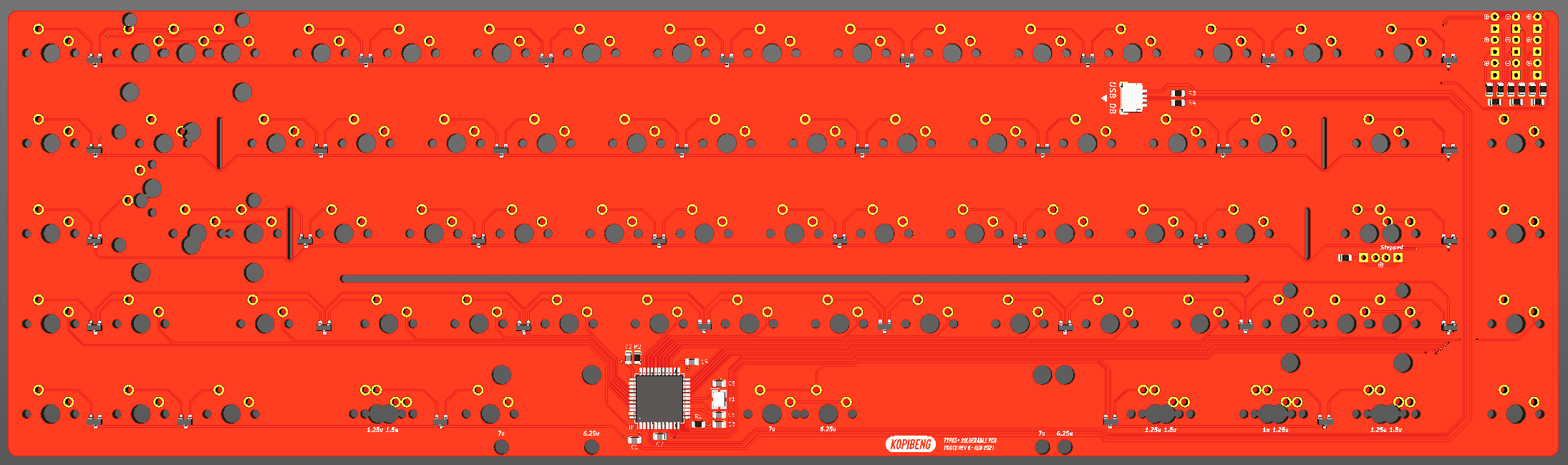

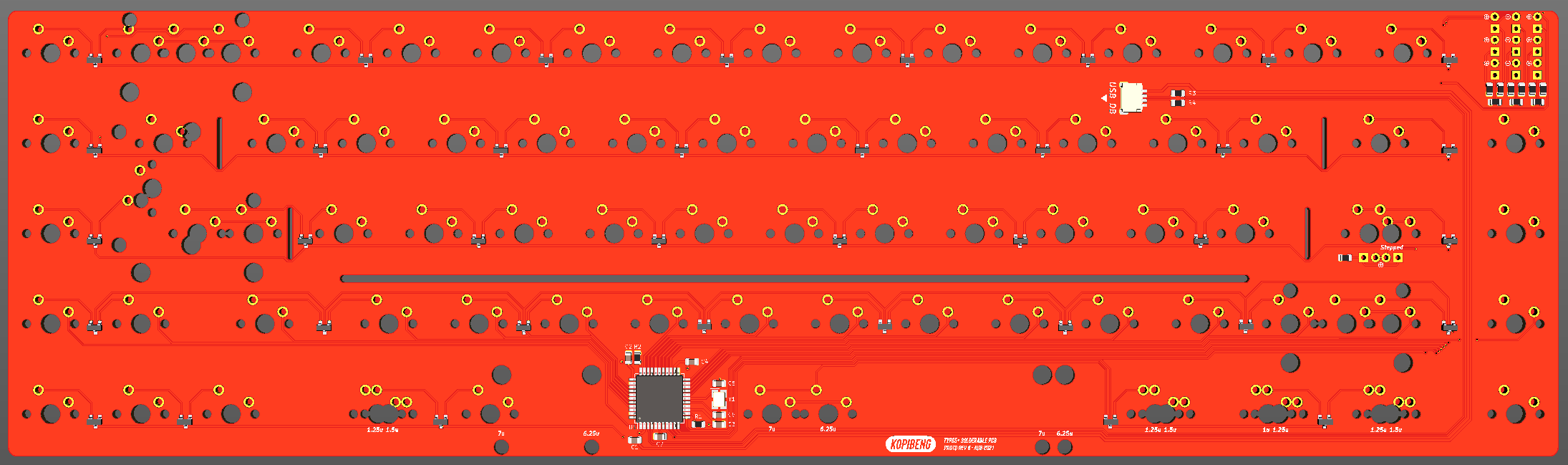

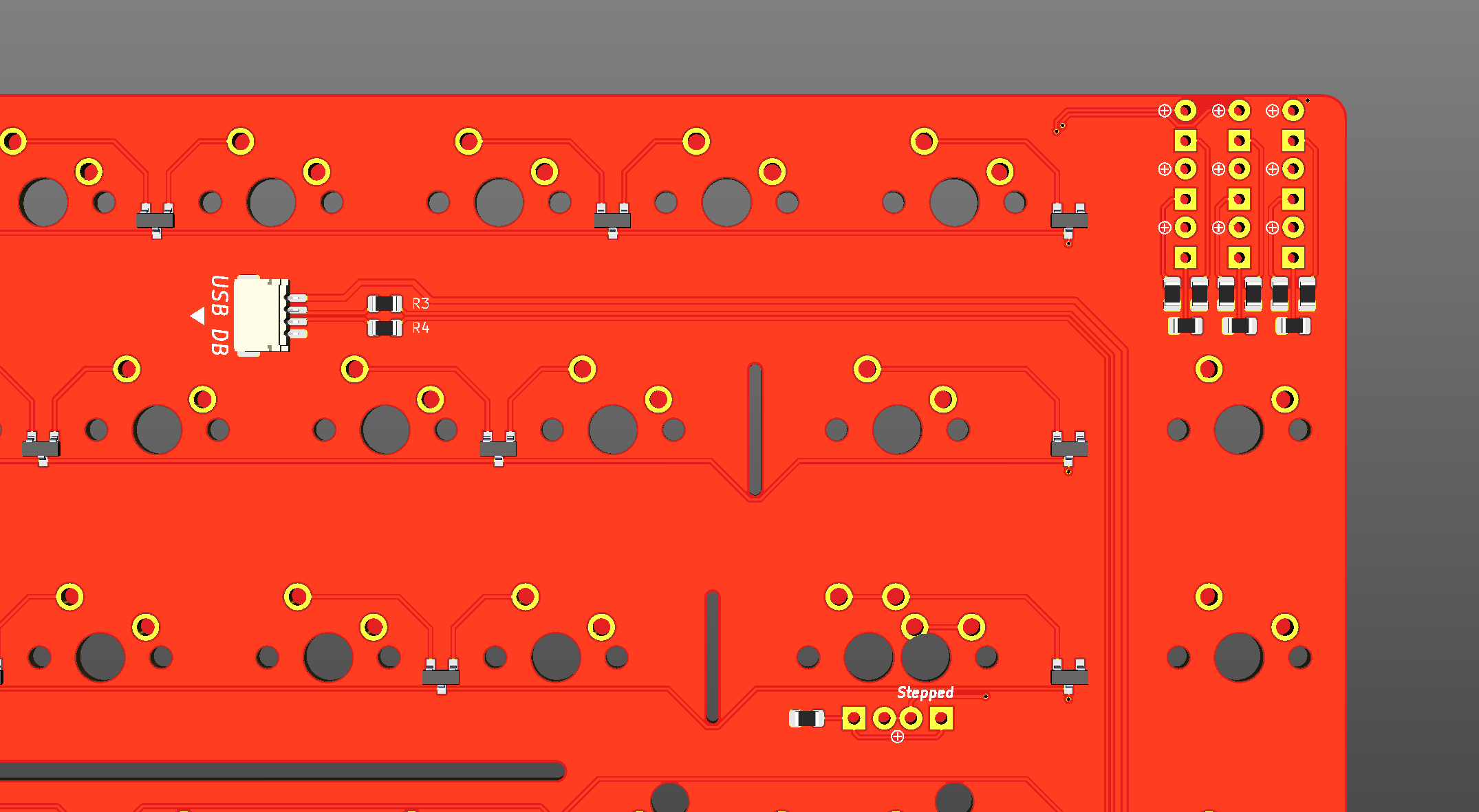

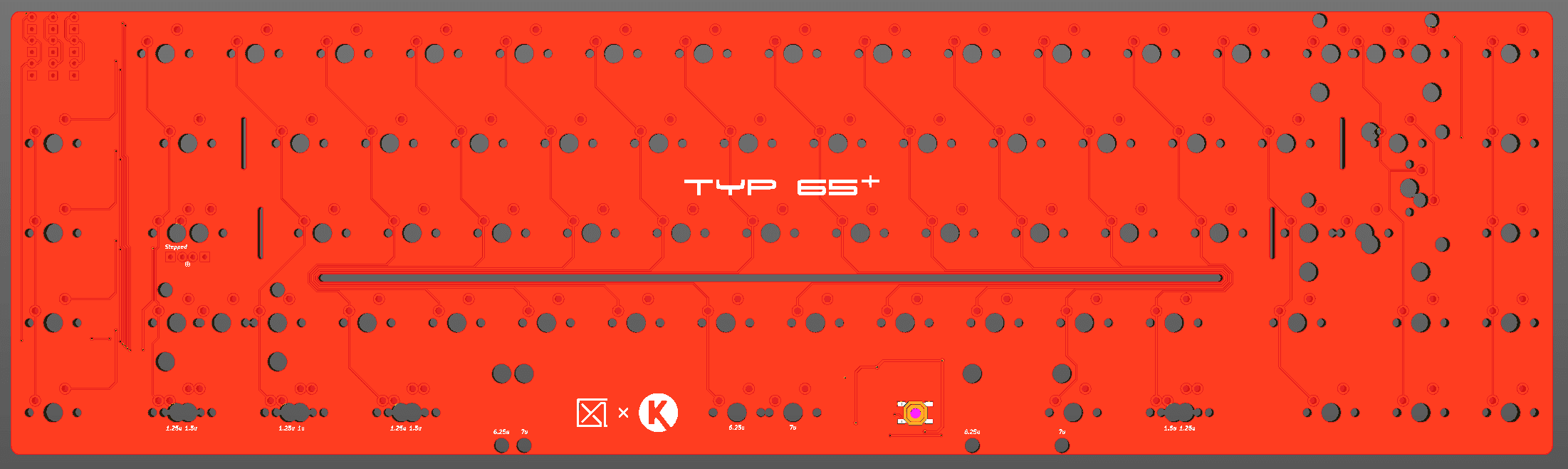

• Red solder mask for solder pcb and yellow for hotswapSolder and Hotswap PCB pics
More

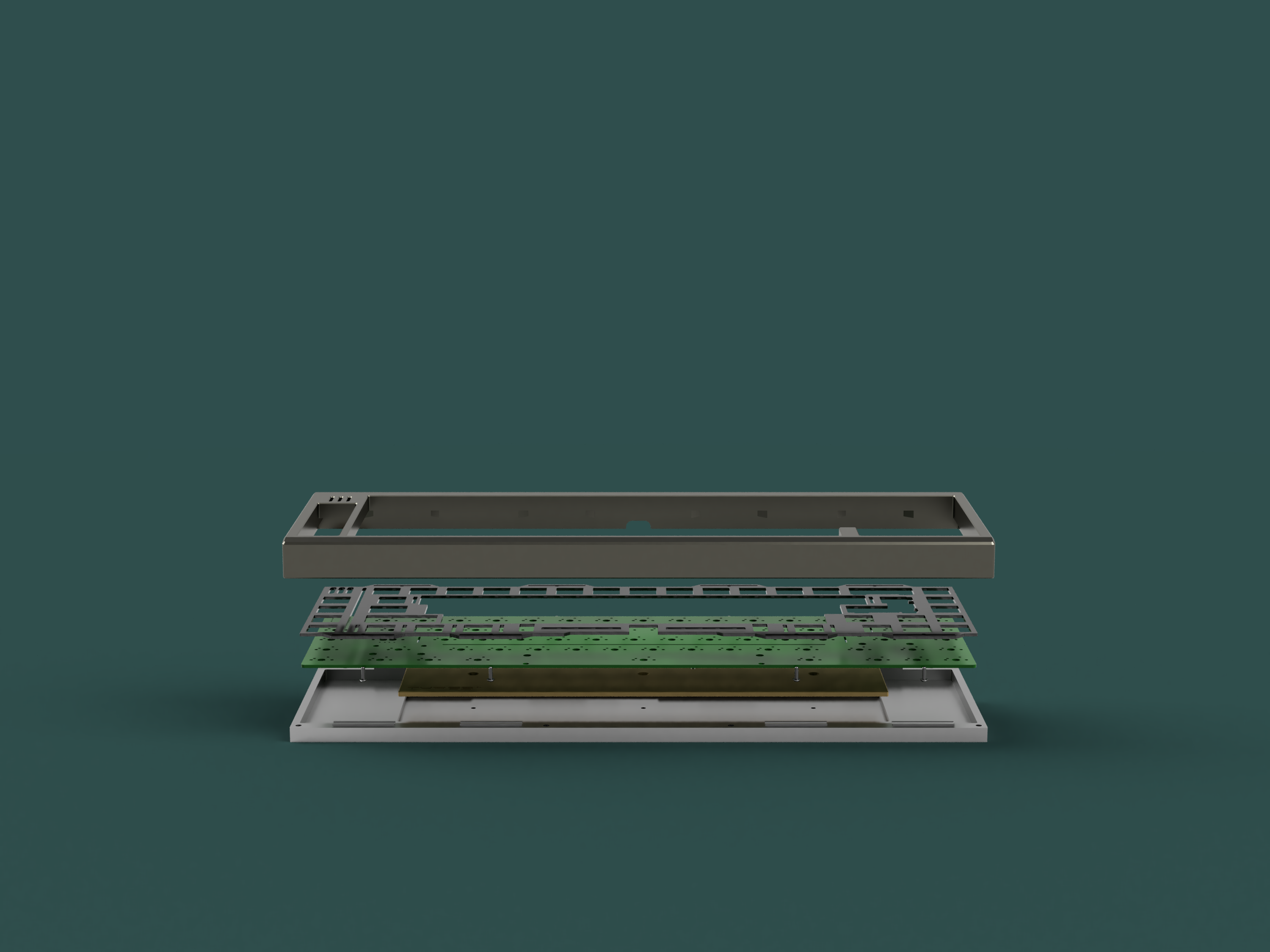

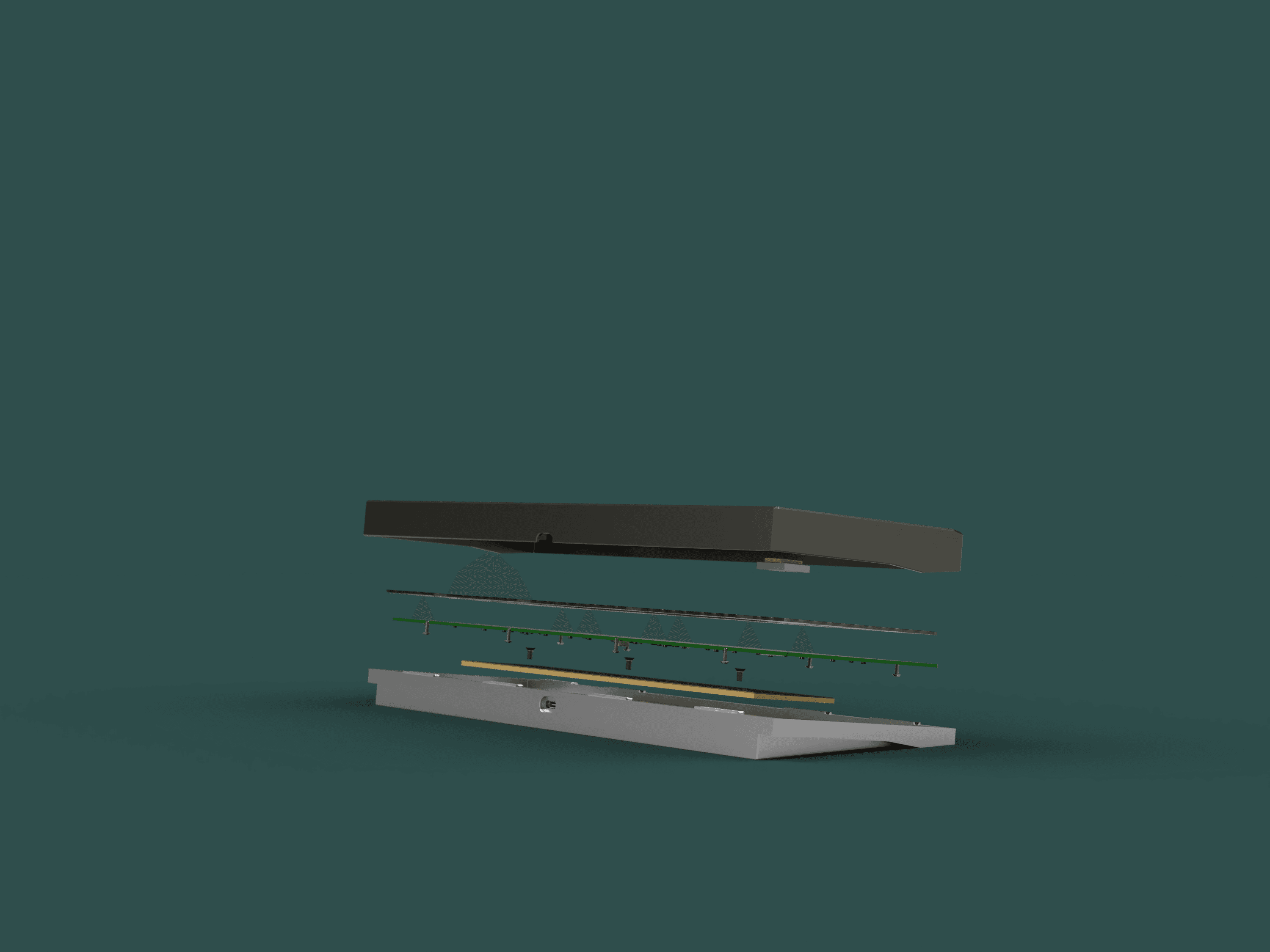

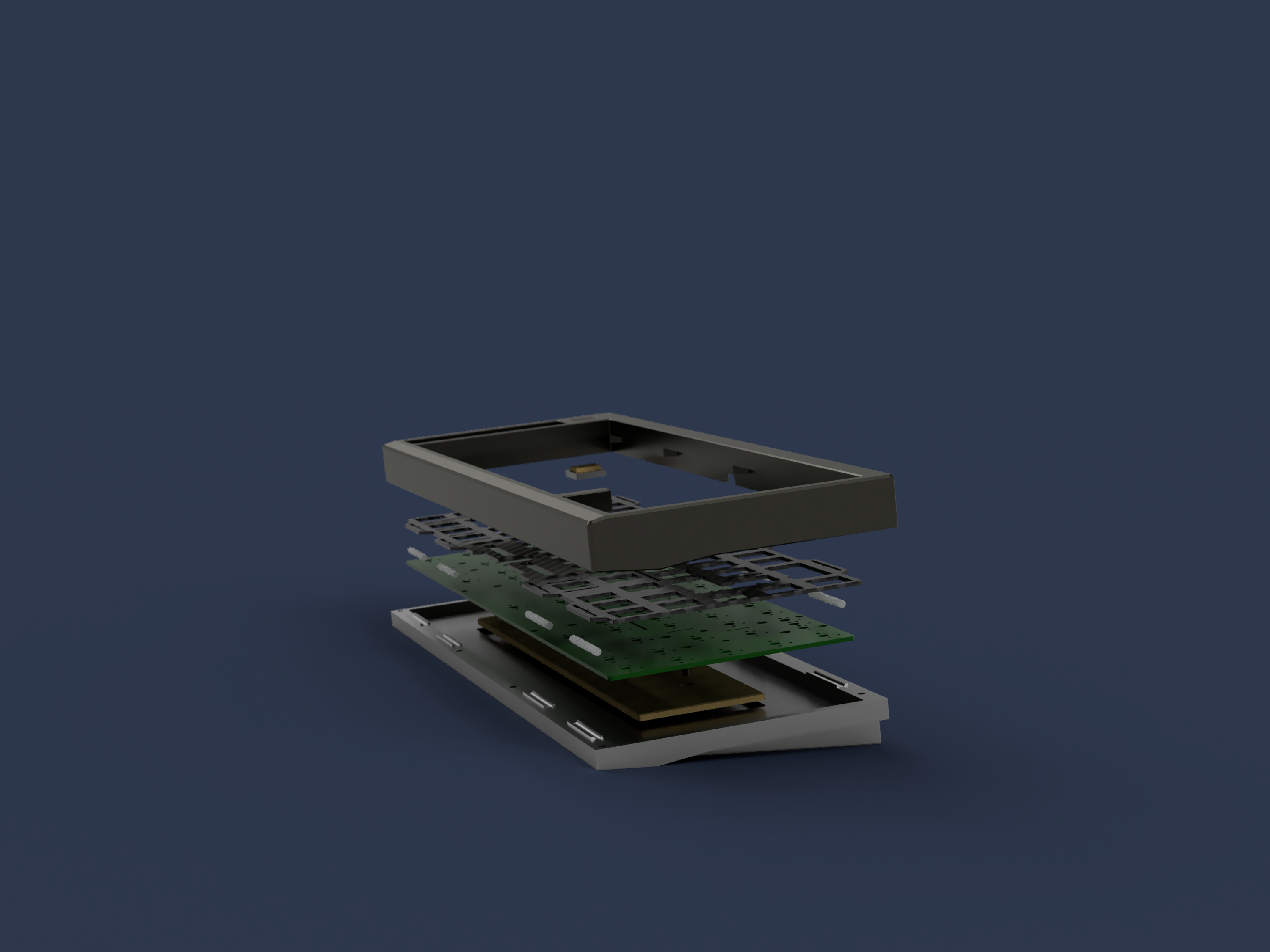

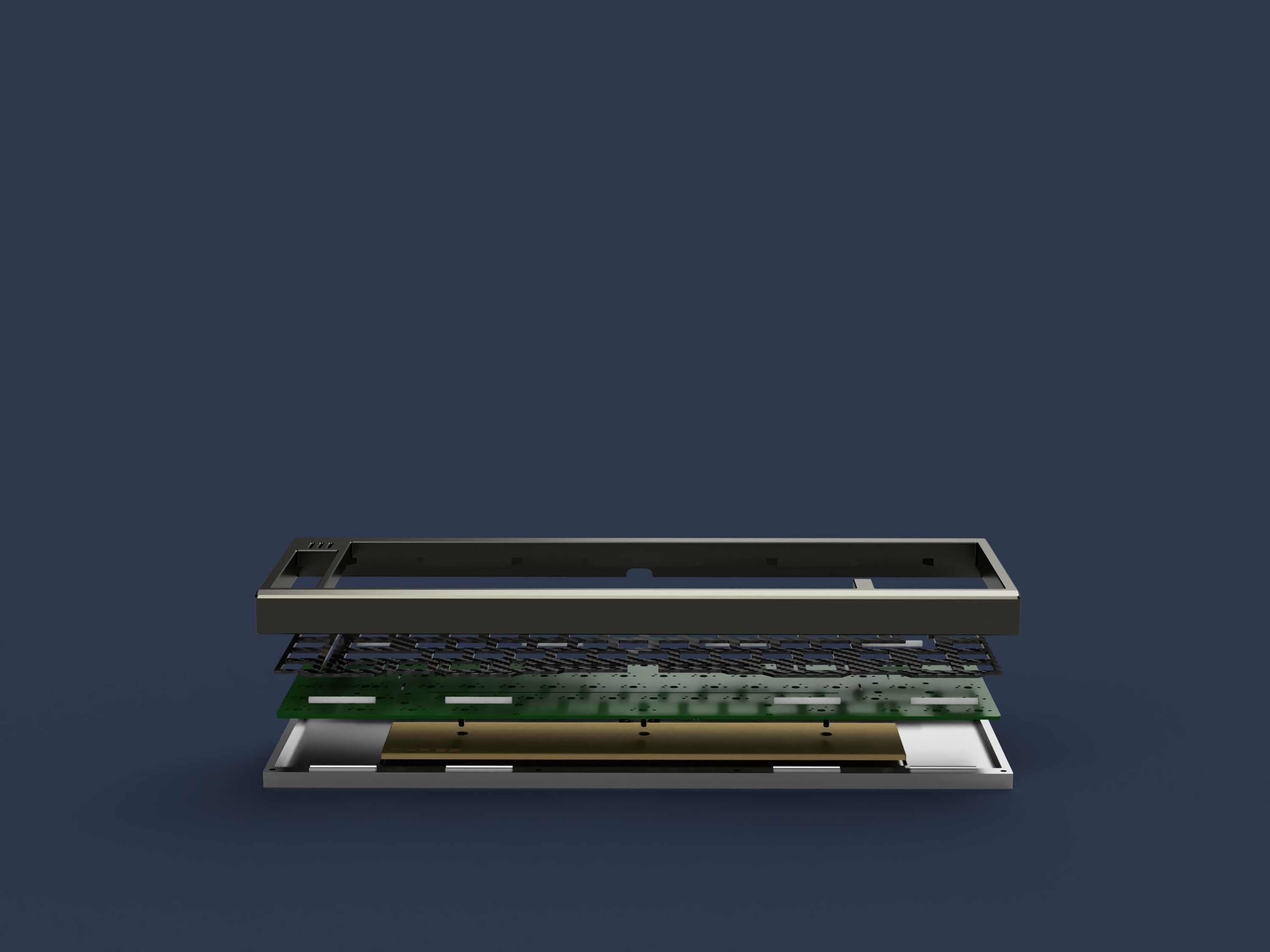

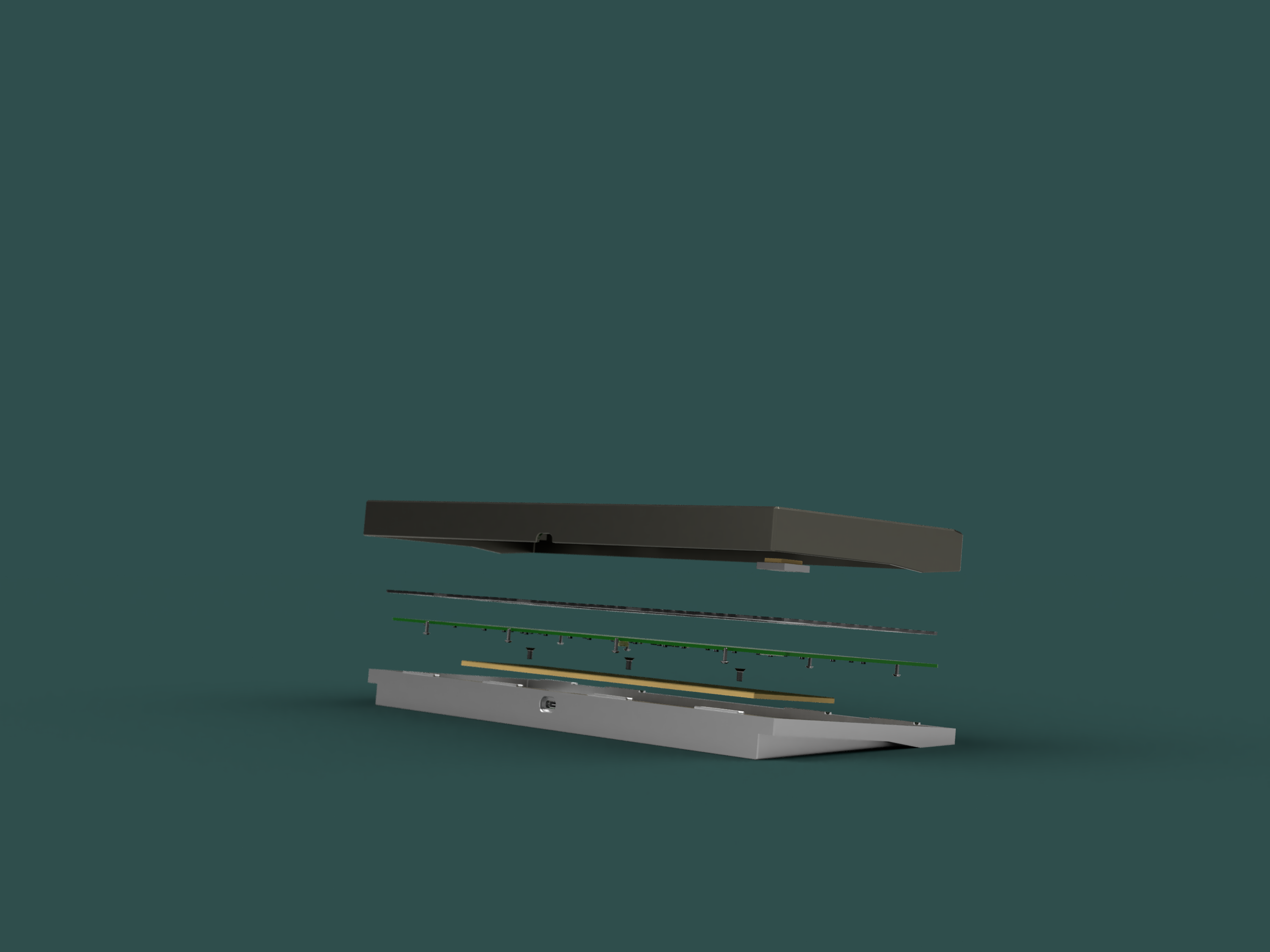

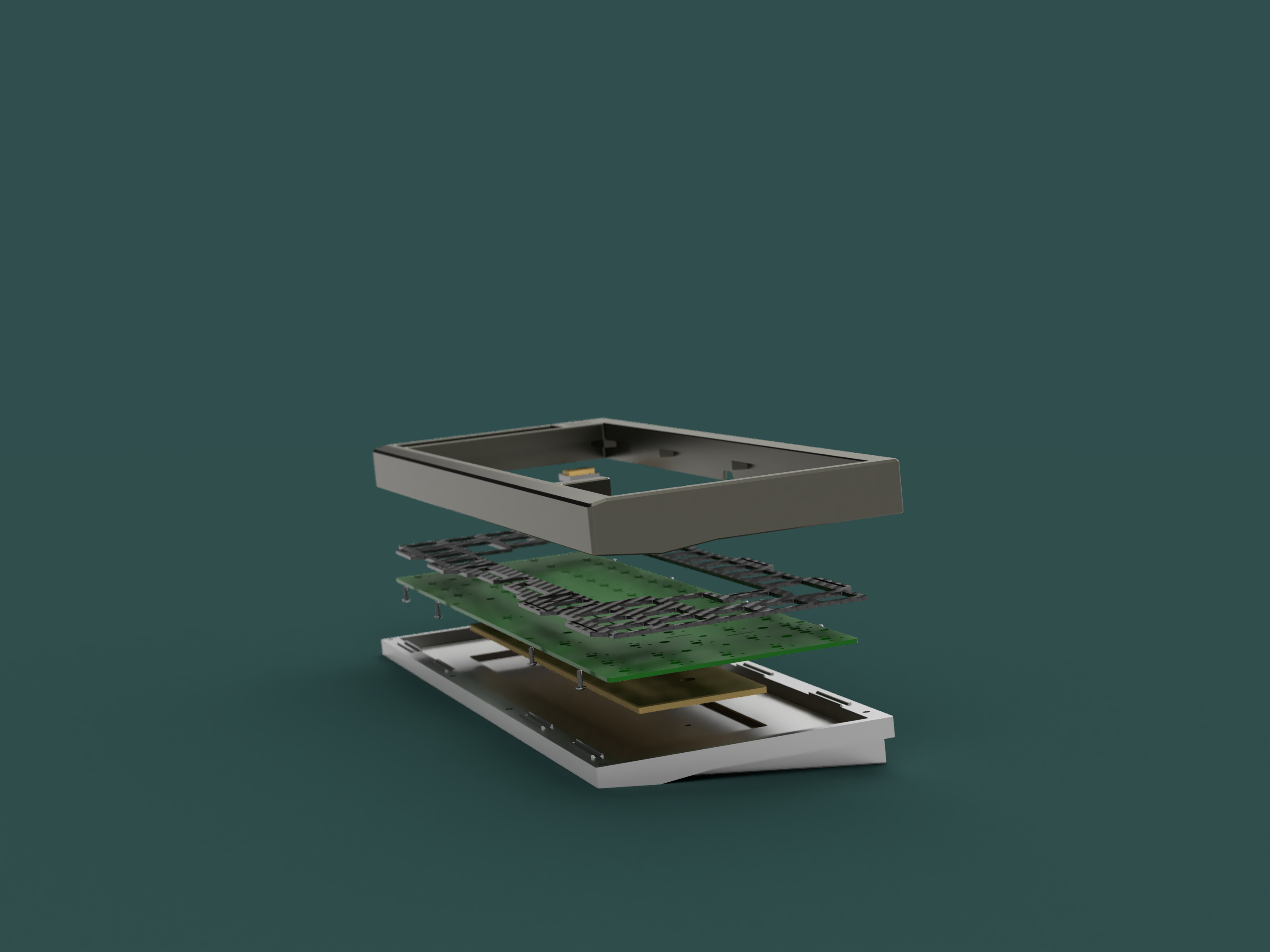

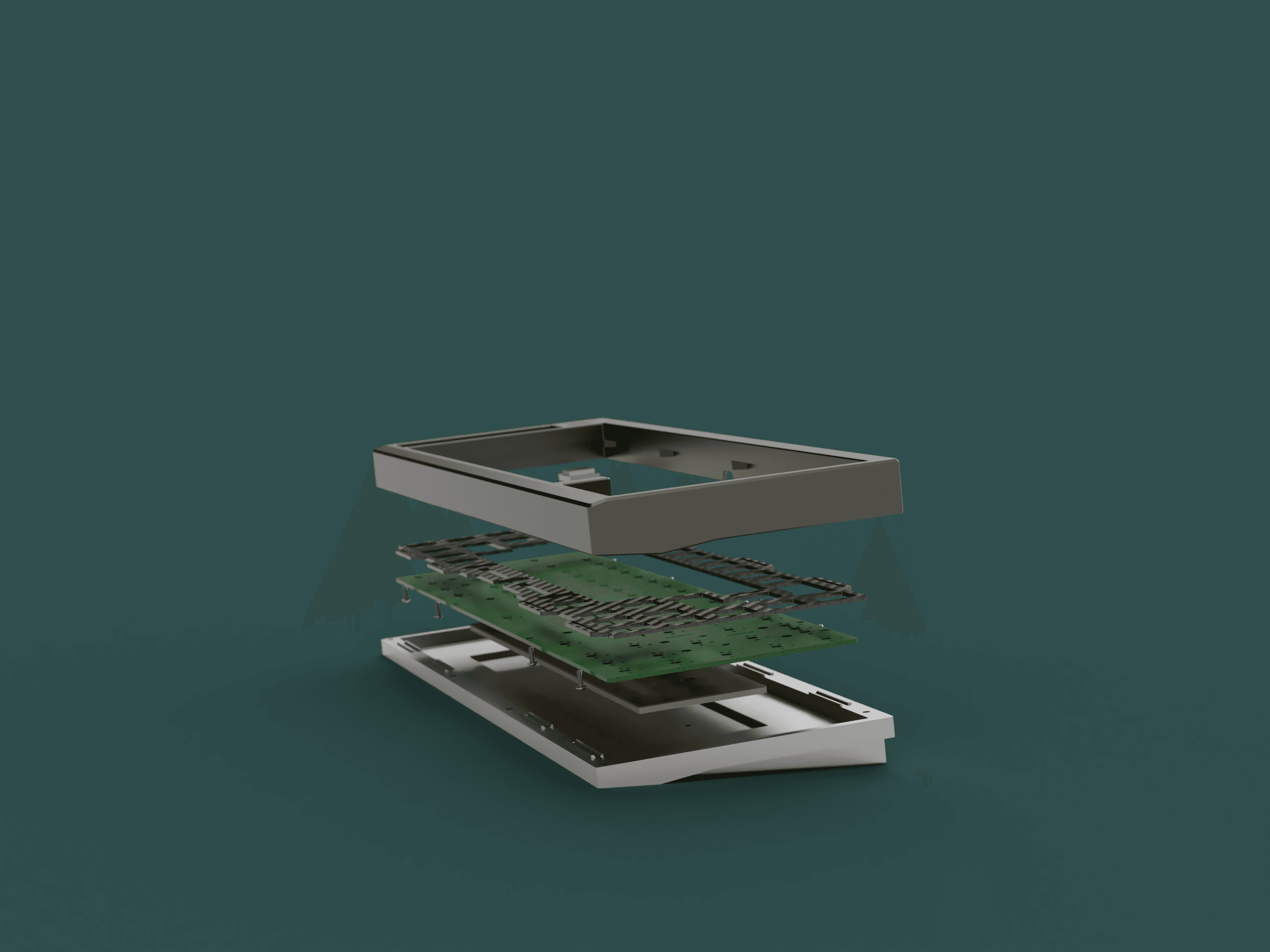

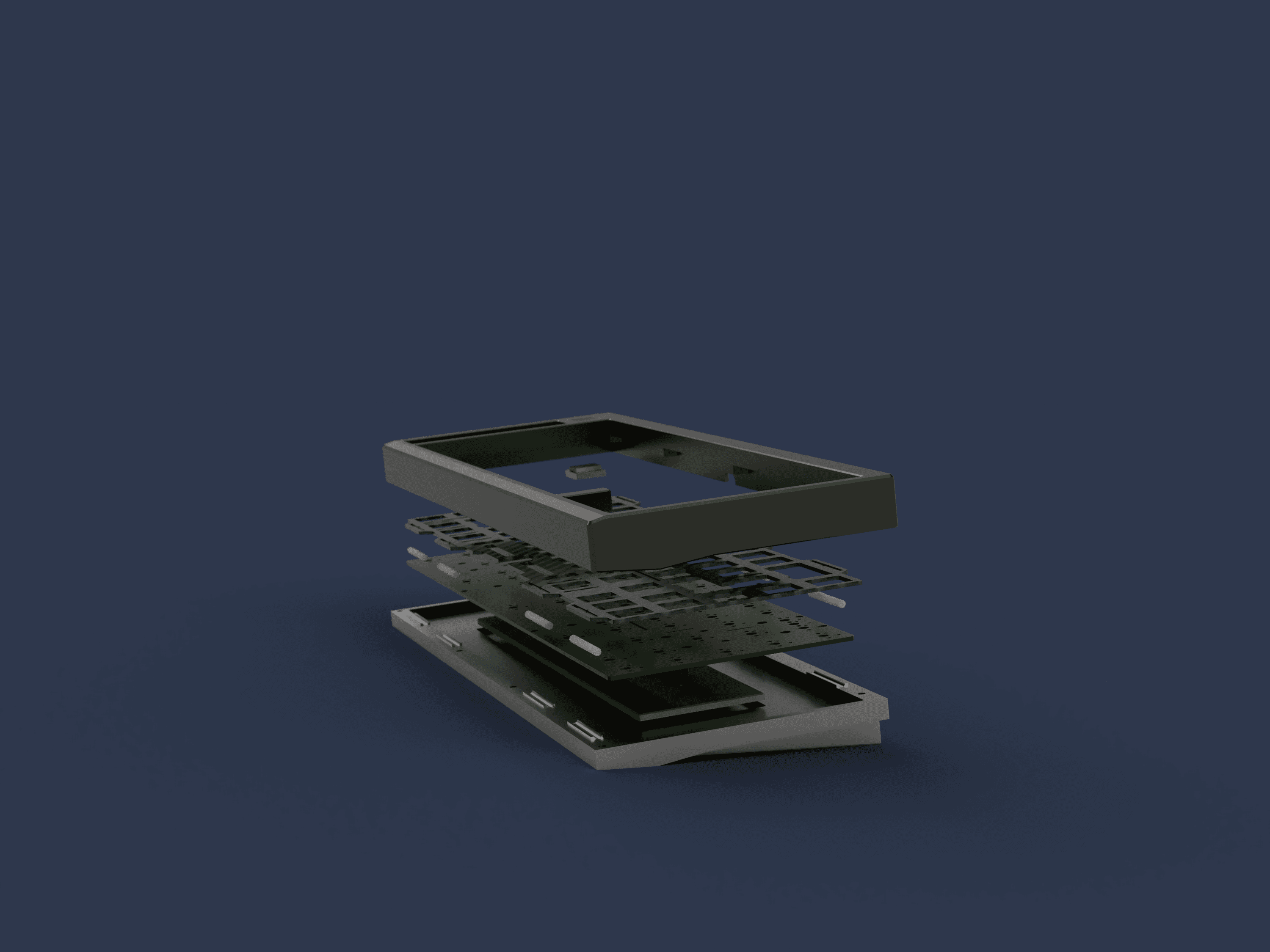

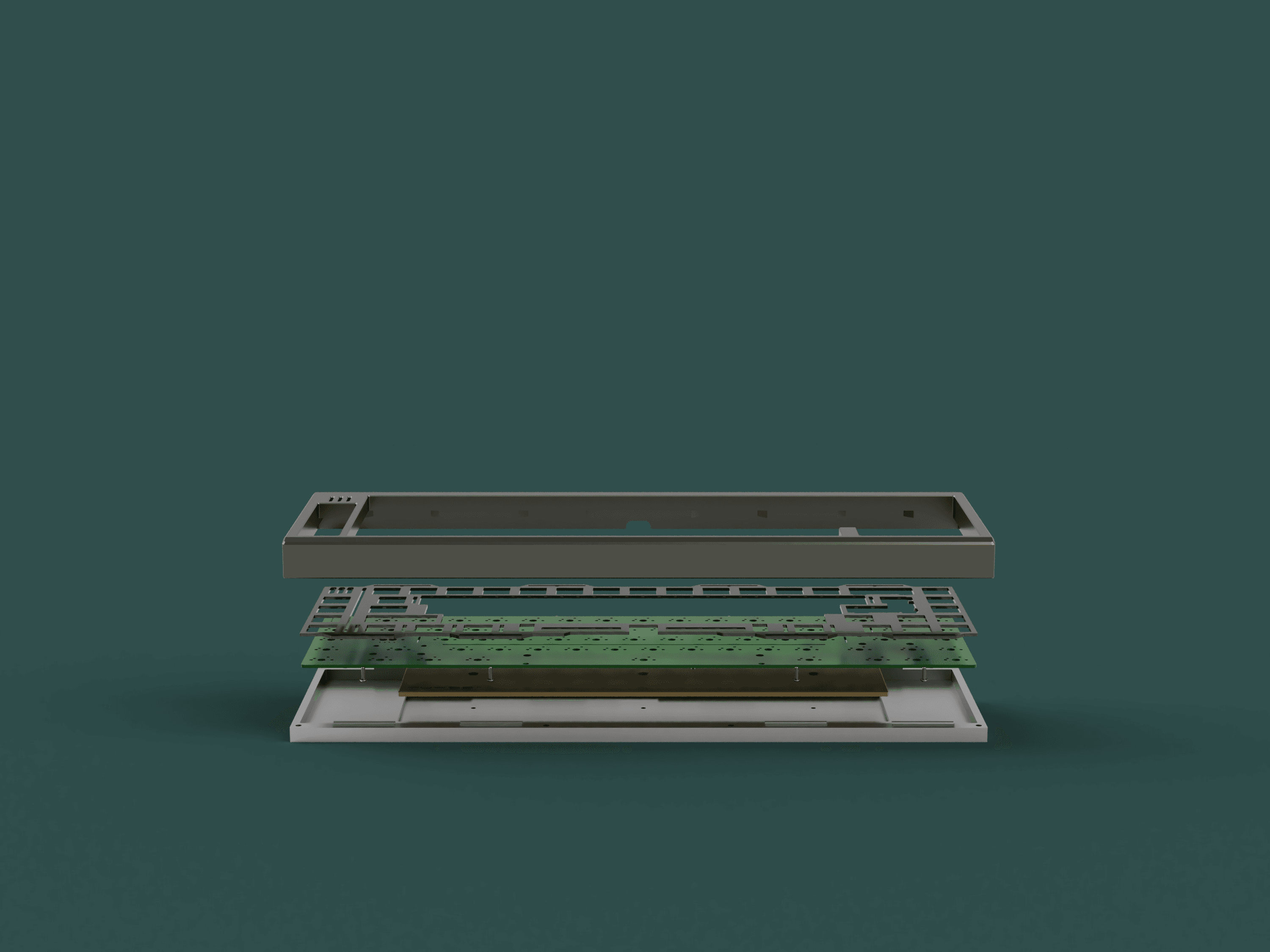

Exploded view:Gasket MountMore

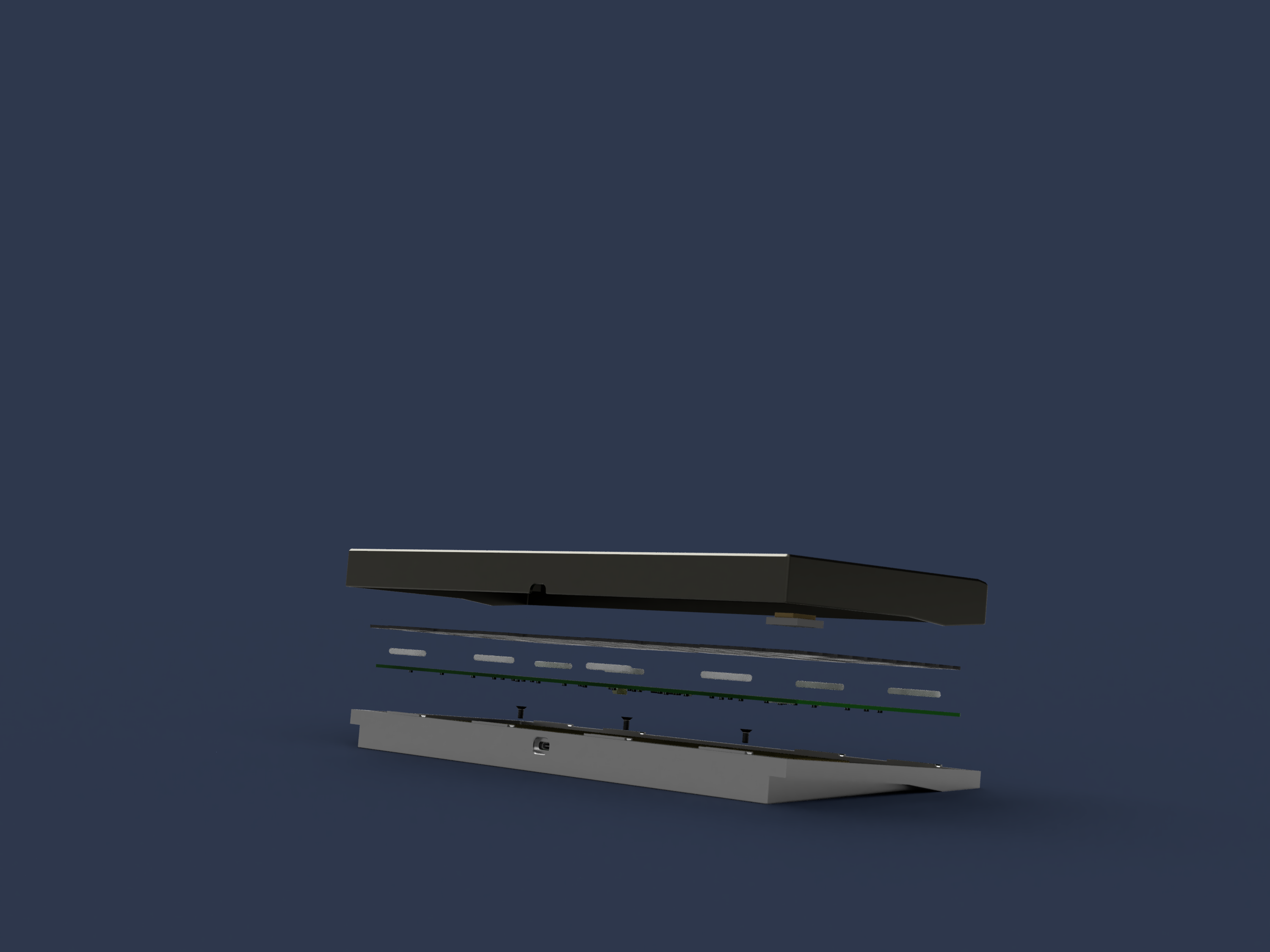

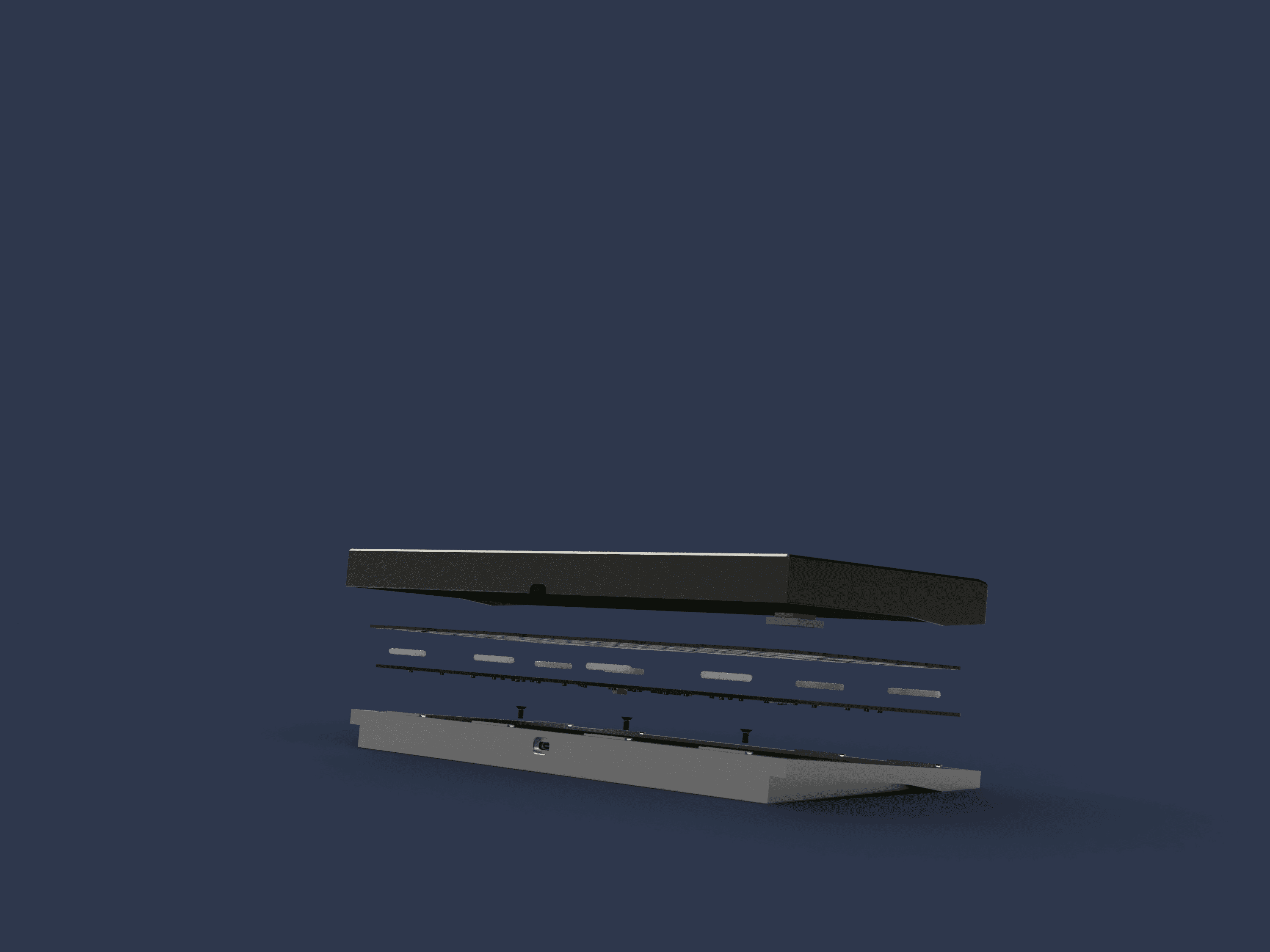

Top Mount:
More

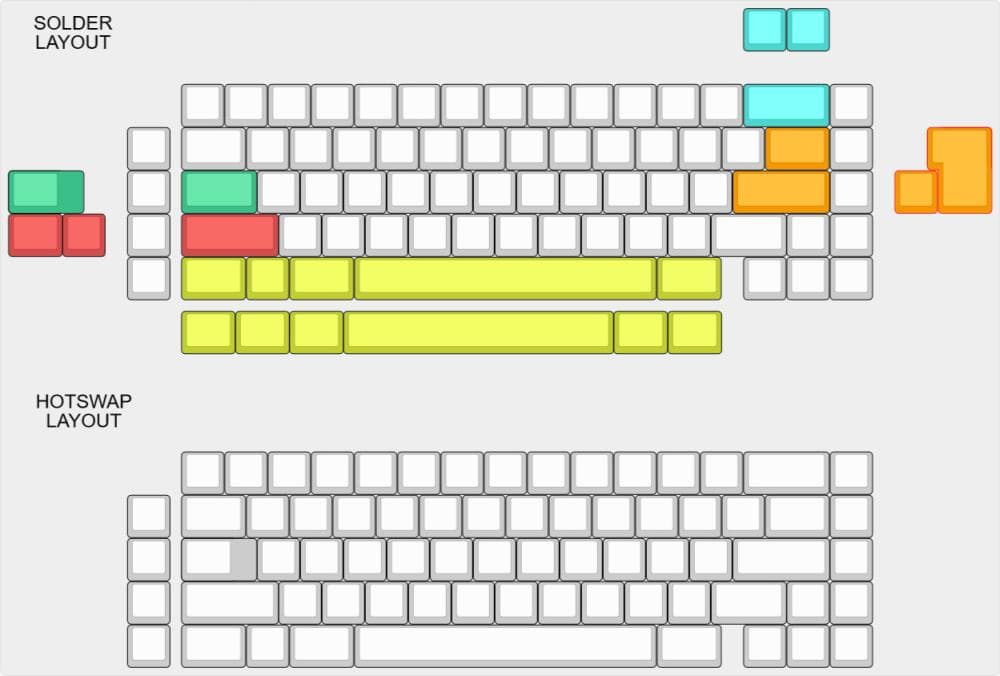

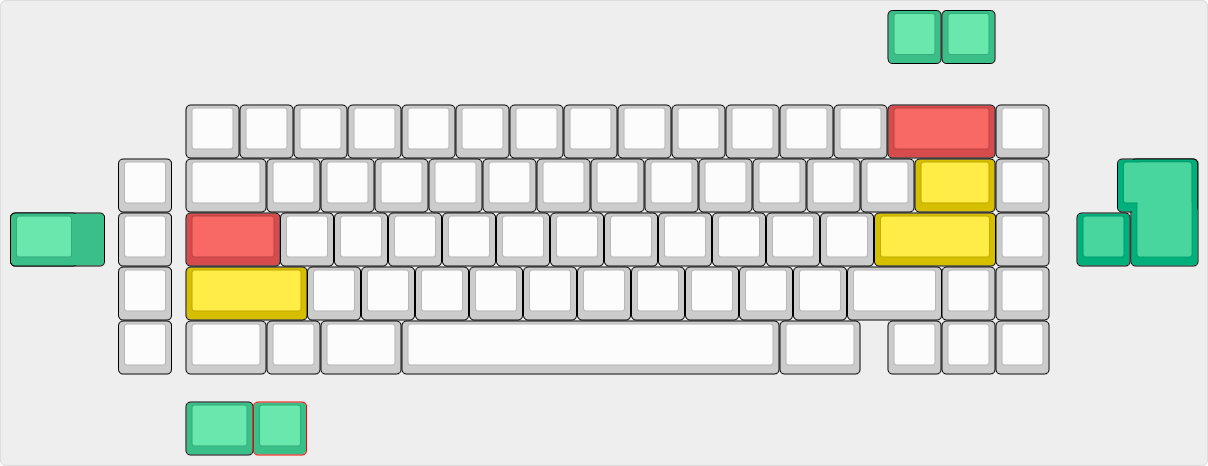

Plate Supported Layout:-
Kitting:-• CNC top and bottom case (Anodized)

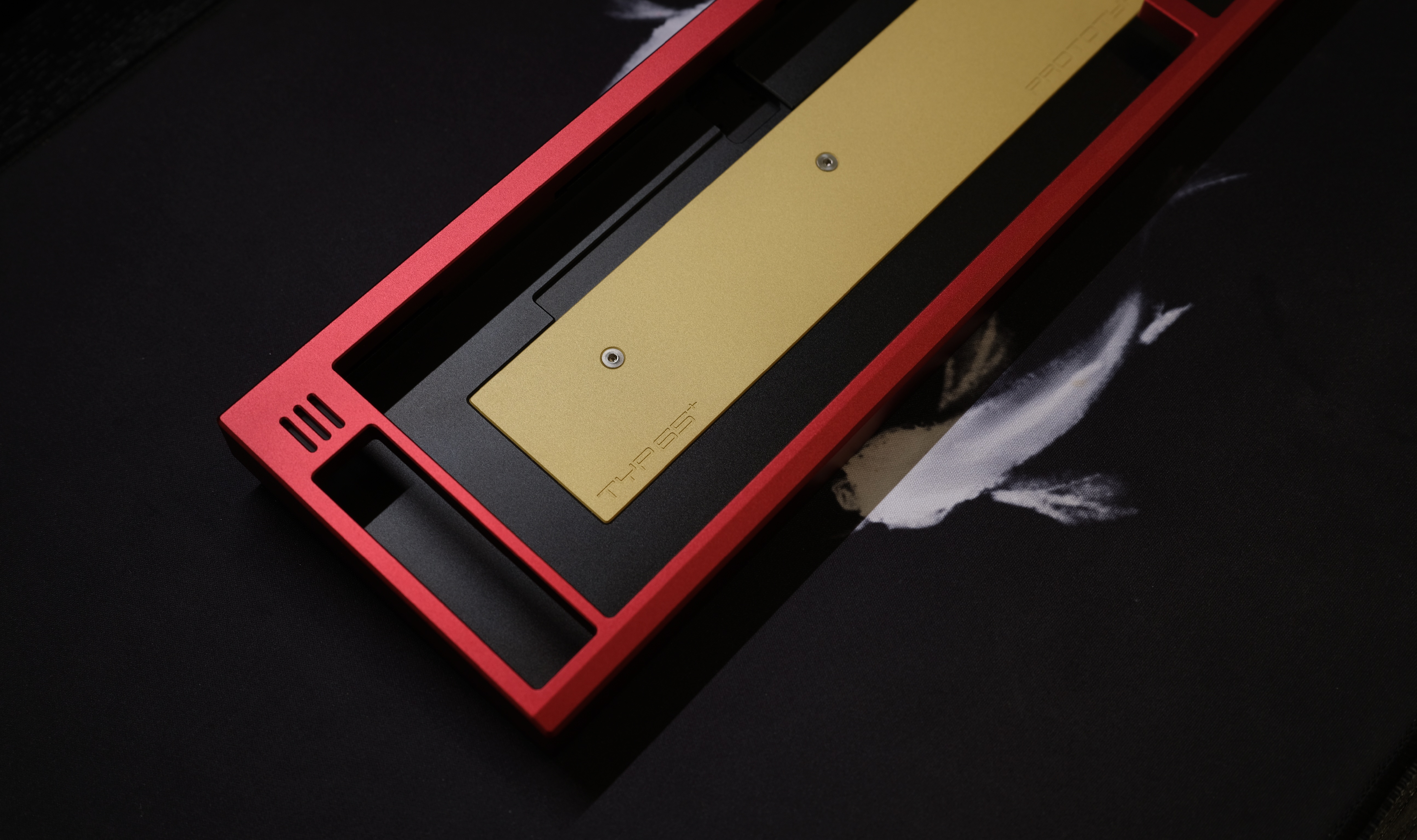

• Brass weight (Sandblasted)
• Brass blocker and PC Blocker (Both sandblasted)
• Carbon fiber twill plate (Half/Full)
• Accessories (Bumpons, screws, gasket and etc.)
• Typ 65+ PCB by Kopibeng (Solder -or- Hotswap)
• Custom hard carrying case Sales format:-• Groupbuy format (FCFS)
• 350 units
• Price: MYR 1640 (solder pcb) MYR 1680 (hotswap pcb) Our challenges and how we react to it:-• Possible anodization color did not live up to expectations?To overcome such challenges we will try to minimize such uncertainty by placing 2nd prototype and anode chip to color check against our renders). • Delay in shipping and bad product being handled to doorstep which will further delay the GB?
We have placed our own representative to facilitate local manufacturer processes to minimize risk and ensuring manufactured goods are to what we expected before shipping to our doorstep for further QC and fulfilment.
Frequently-asked-questions :-Q: Is there any hotswap PCB to be made available?
A: Currently we have no plans to provide for hotswap PCB. 29/07 - Due to demand in hotswap pcb, we are going to provide one.
Q: Is the LED programmable, if so isit RGB?
A: No it’s not RGB, you would have to solder in the LEDs (we will provide only white LEDs). Else, you could just install with the brass blocker if you prefer non luminated.
Q: How long is the fulfilment time or groupbuy dates?
A: ETA: Q3 2022
Q: Where are you guys based?
A: We are based in Penang, Malaysia. and our designer is based in Bali, Indonesia.
For more updates please follow our Discord / Instagram / website for any development.
Website
Join our discord group
Follow us on Instagram
Special thanks to :-
Beamingrobot from monokei
Lbaron from Smith and Rune
Jae from Prototypist Keyboards
Kaster and YZ from Hex Keyboards
Elaine from Singakbd
Motohiro for the renders
Keebmunity, Kopibeng, IMKG community, jebbra, itsundone, zedbraxmen
Everyone who has supported us this far, Thank you
Current updates (25th January 2022):

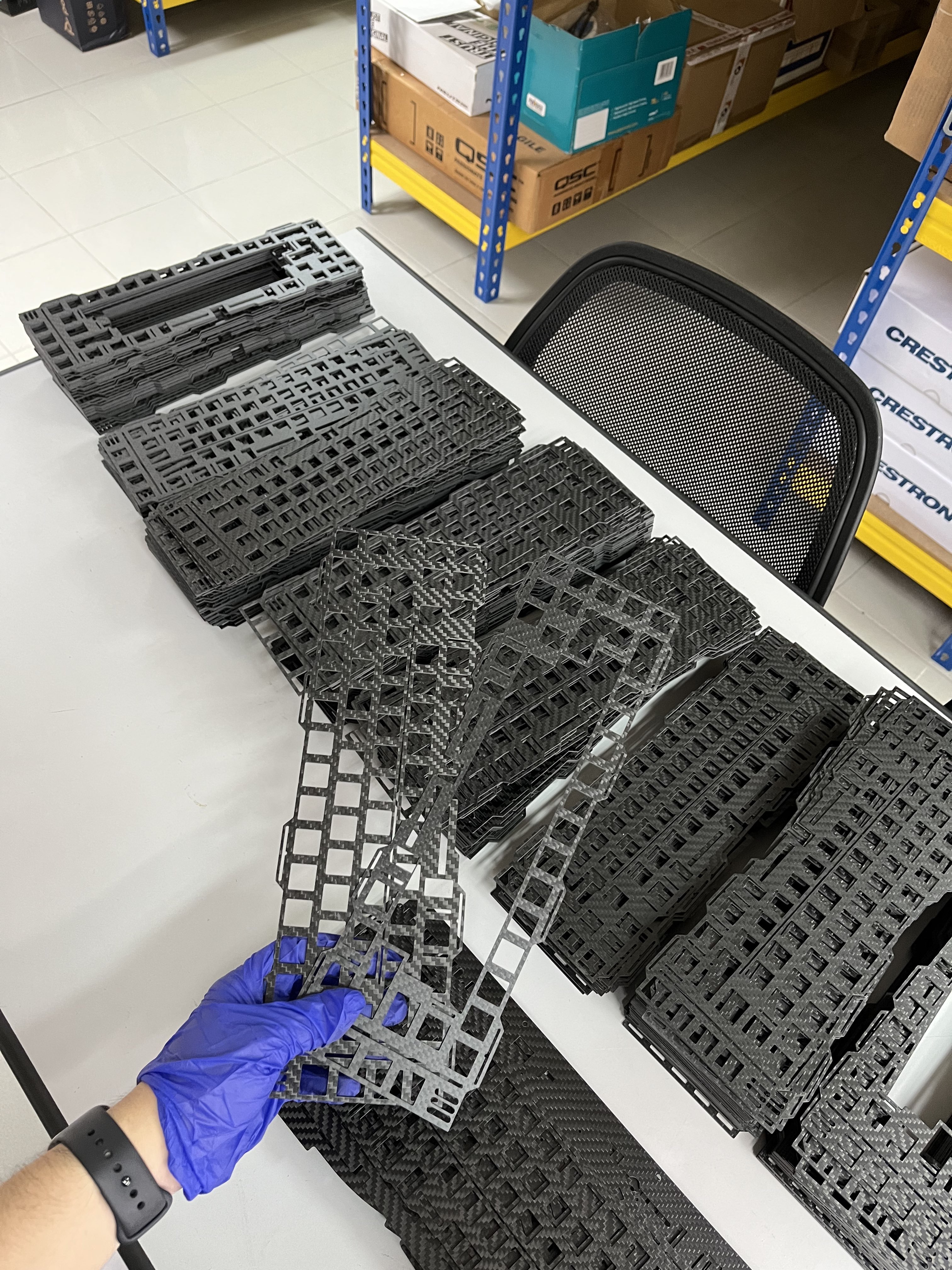

QC cf plate completed

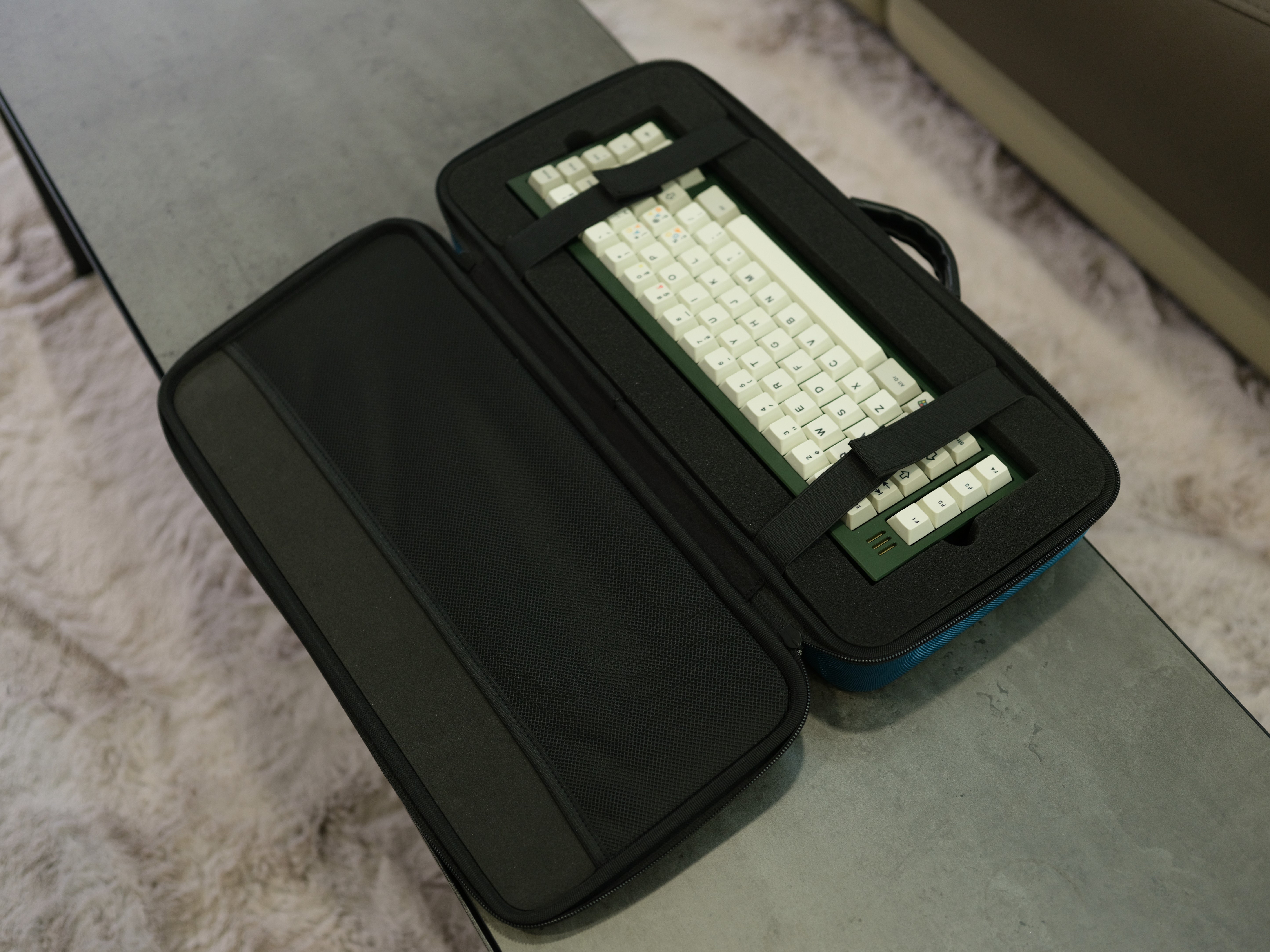

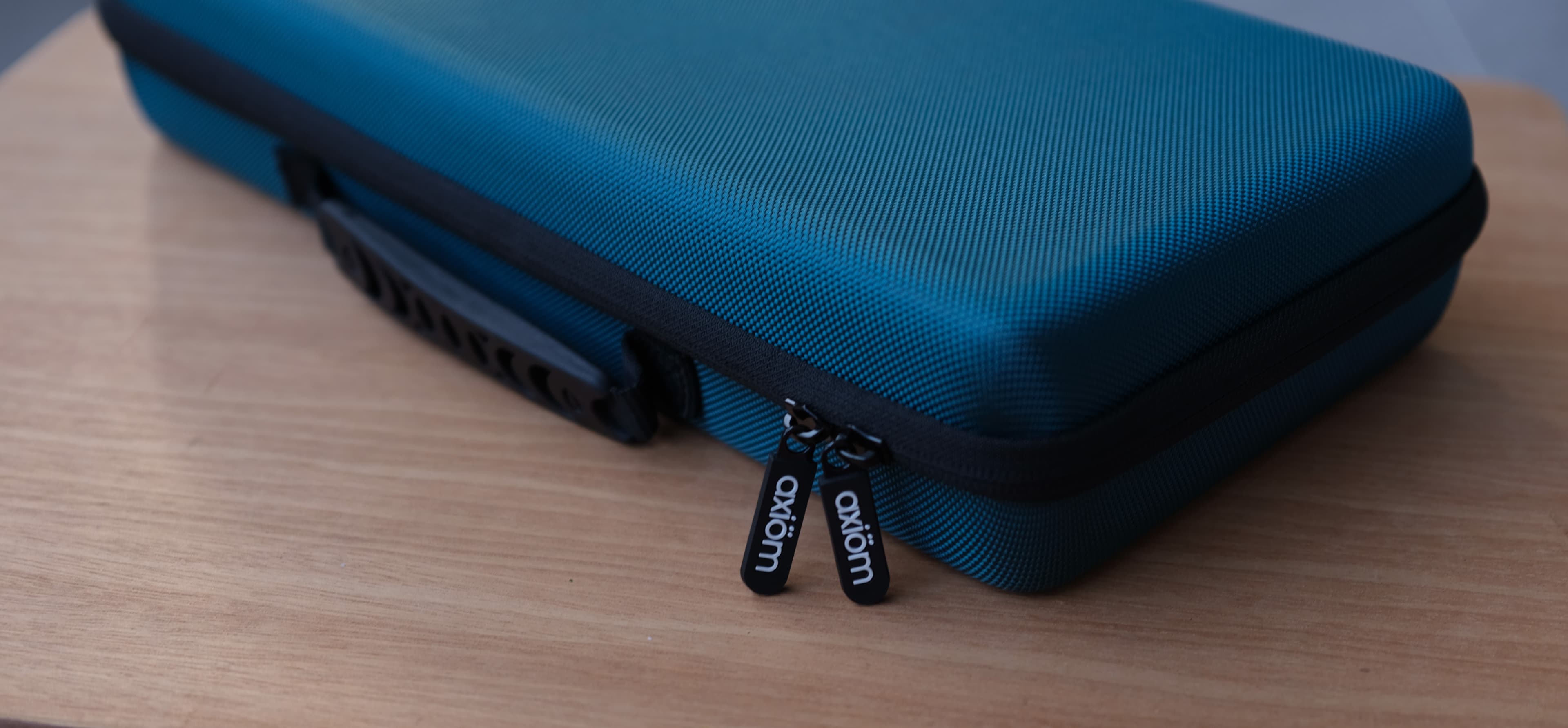

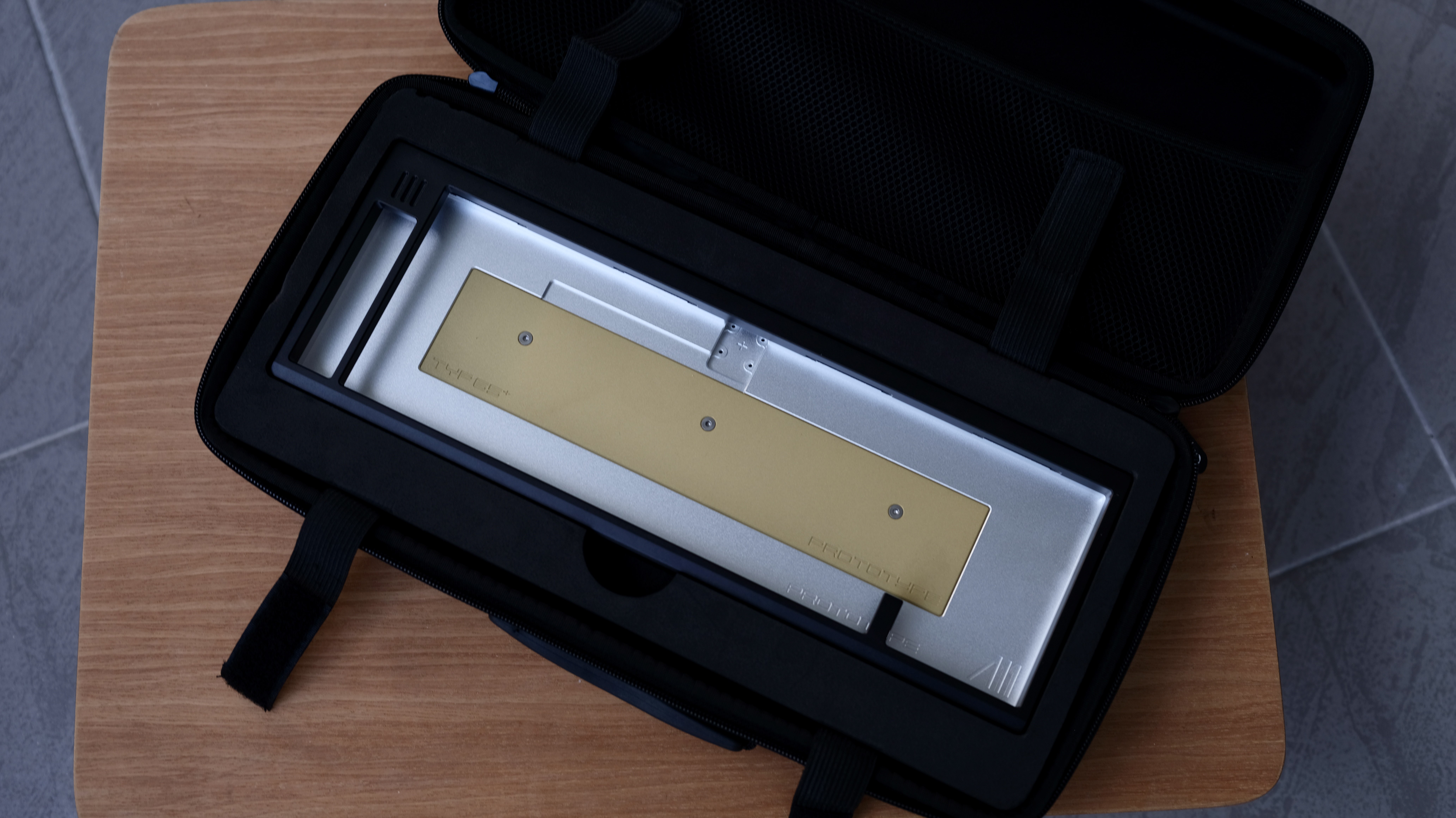

I promised that we will have an update on the new carrying case we been working on and it finally came into the studio today. The new case turns out better than we expected when compared to the older case we had.
Some slight changes we had done as summarized below :-
1. New carrying case will support for both Typ 65+ and Typ 60
2. Case is much more rigid as you can see from the picture (yes we done some squish test to it)
3. Precise cut that fits well without cloth/ with cloth
4. Two channel cutout at the bottom of the case to fit Typ 60 blockers / To fit extra tools or anything you may fit with friction fit sponge cut so stuff wont slide around
5. Better hard plastic/rubber handle instead of rubber/nylon handle given in V1.
More pics of the carrying case
