NIZ duo82 - 75% EC Keyboard

geekhackauto-imported

0 followers0 bookmarks0 comments

Description

Hello, From the first IC to the GB, NIZ DUO82 has undergone three design changes and three protype. let's see what the final DUO 82 looks like

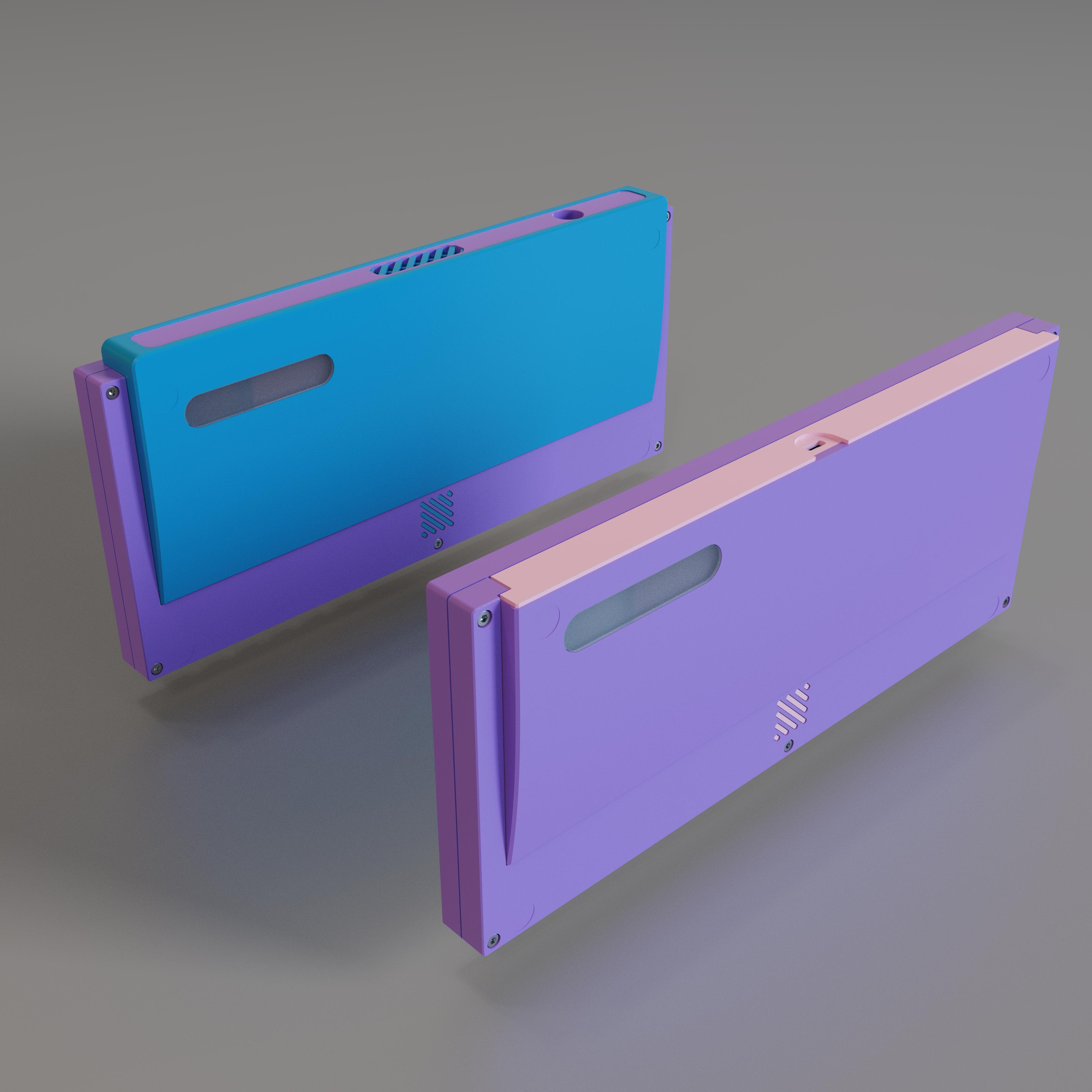

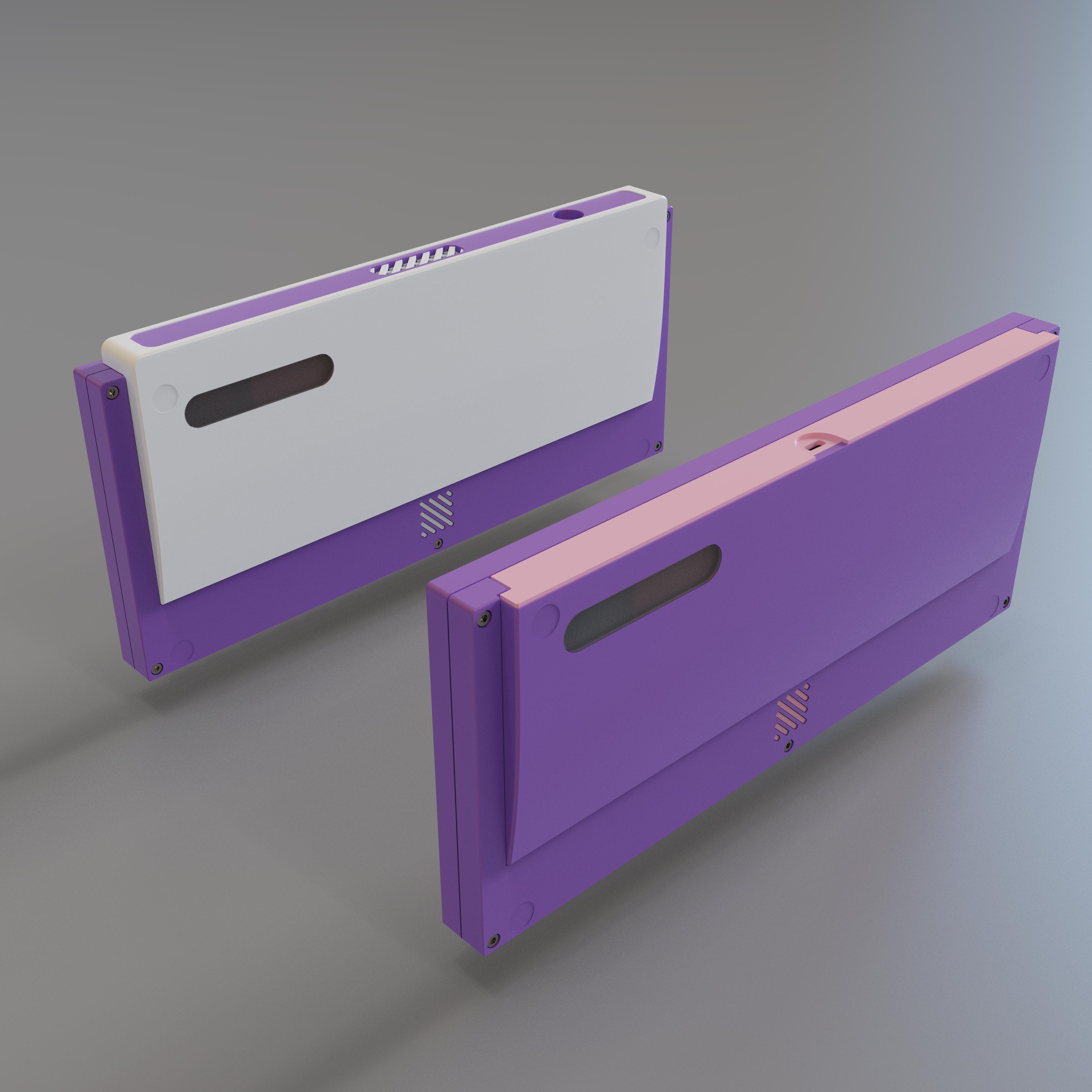

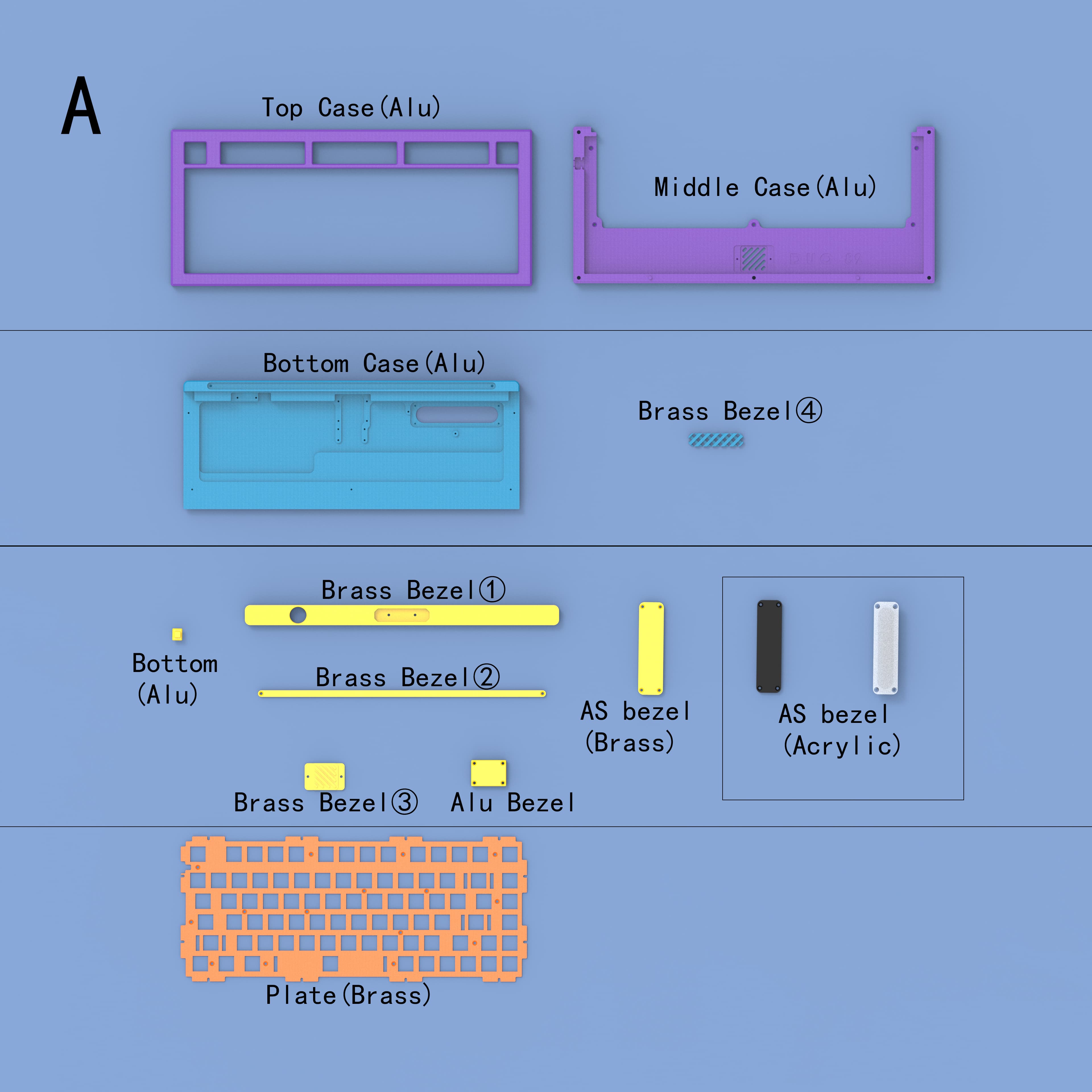

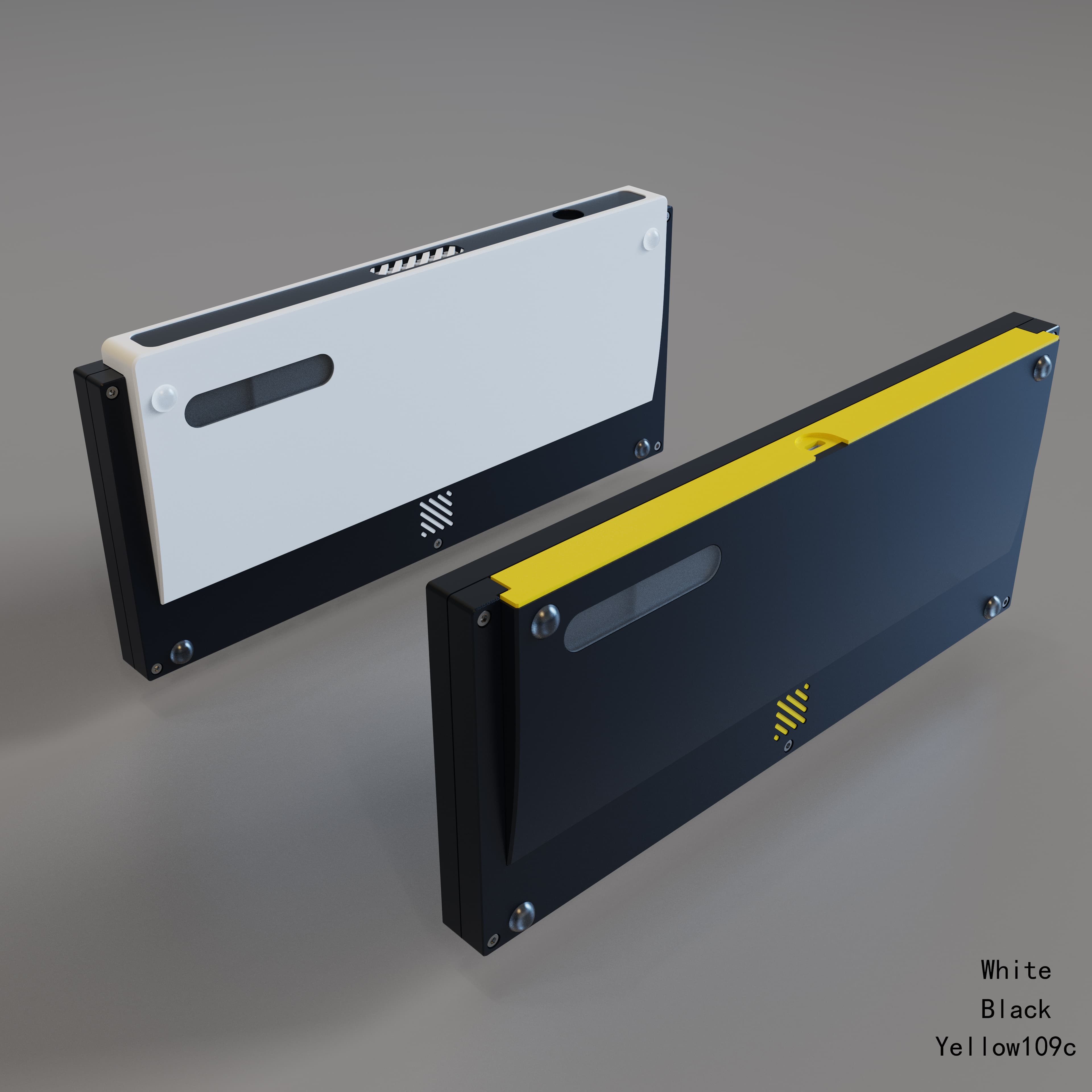

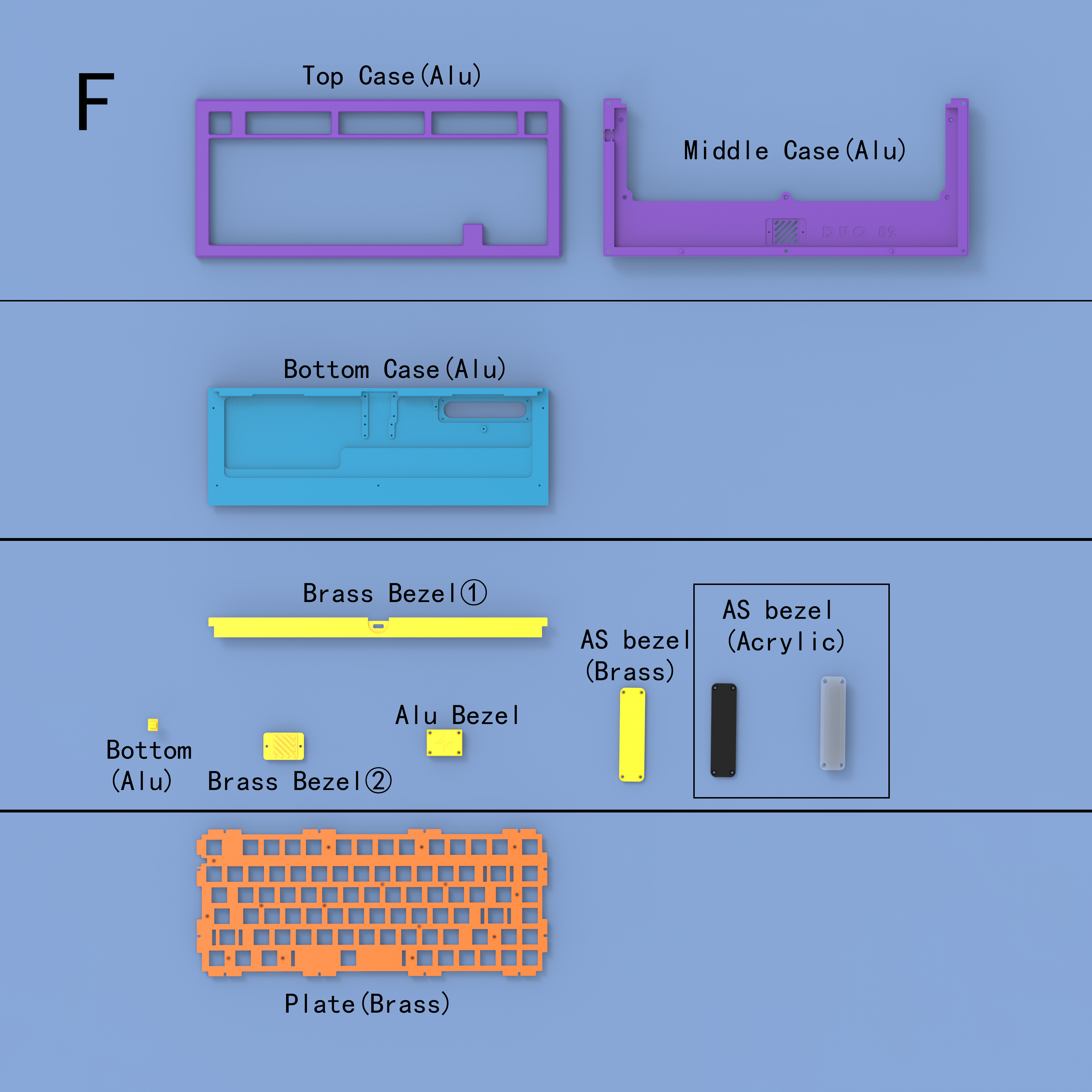

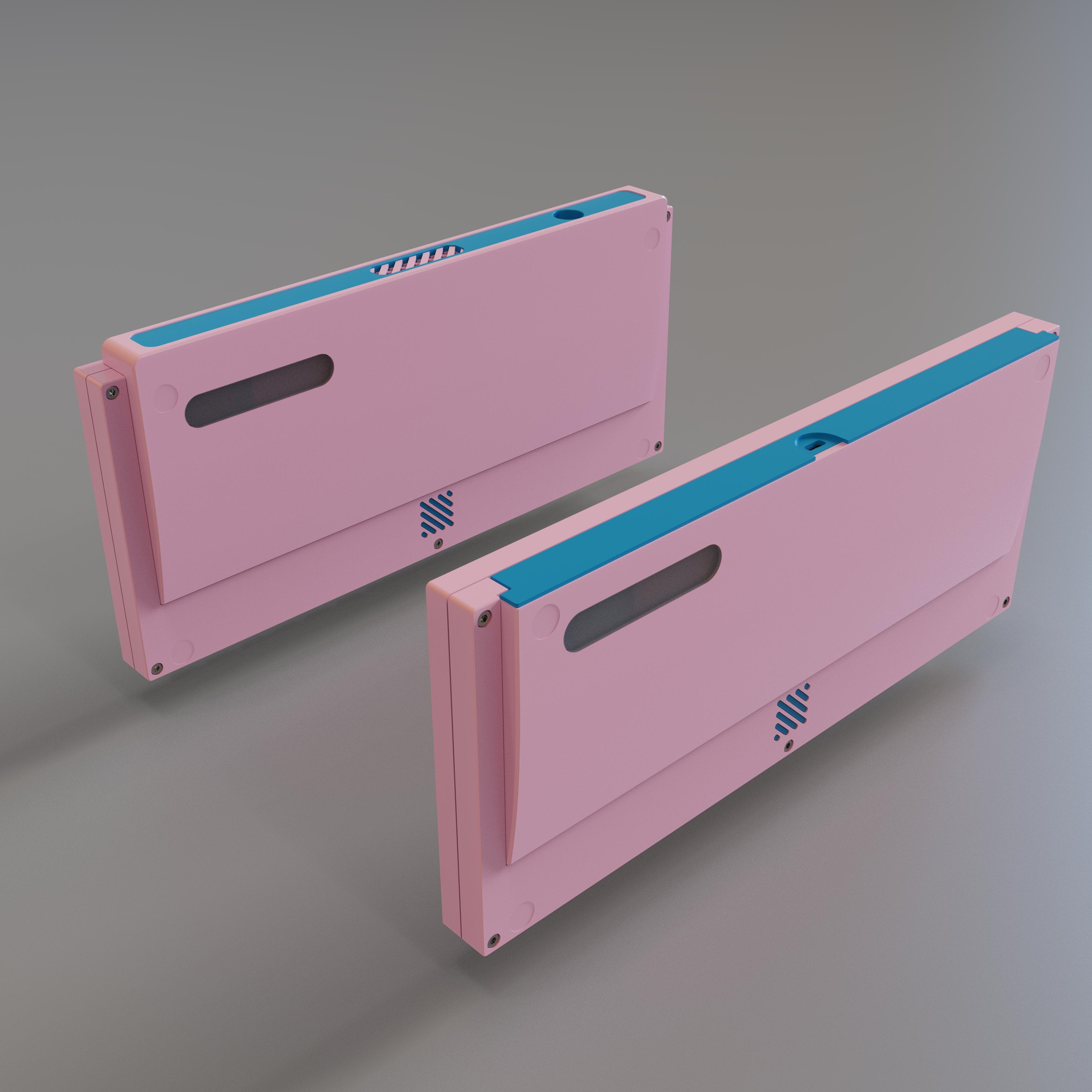

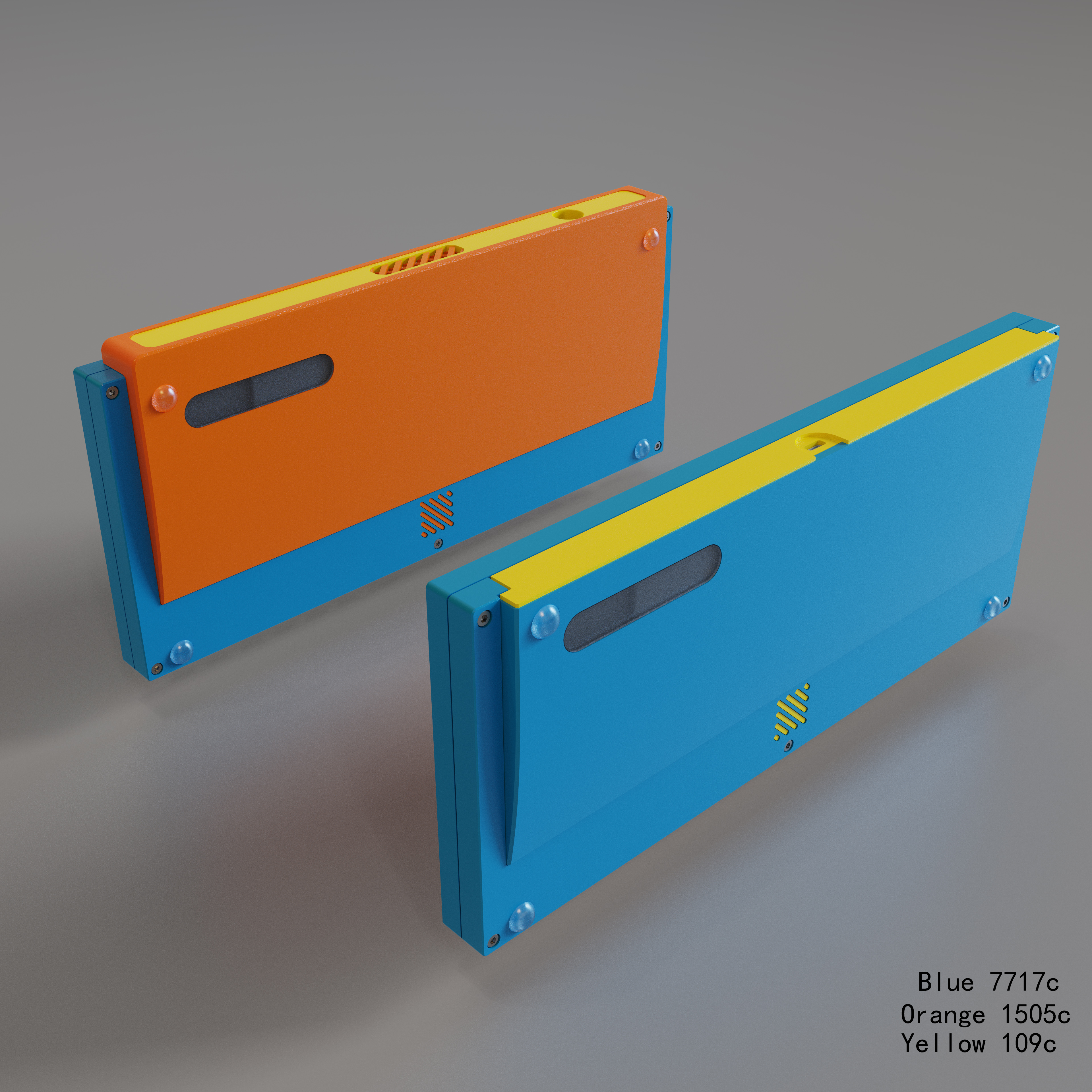

Due to the process coating, there are various color choices for DUO82. Also we make 2 designs for this case. There are A and F styles (decided by vote).
In the following pictures, only one color can be selected for the yellow part and one color can be selected for the purple part (not supported different colors). That is to say, the part with the same color in the picture only supports the overall change, and other colors can be matched freely
I must also explain one small parts, which is actually the key parts of duo82 to achieve Bluetooth. During our assembly and testing, we realized this bezel with more choice can show us more fun.so,each duo82 Suite contains 3 such parts, respectively:Black AS, Transparent AS, Brass (same color as other Bezel）

1 Basic Information.
1 Typing Angle: 6°
2 Case options:
Aluminum: Black, purple, Yellow, White, Blue,pink,orange

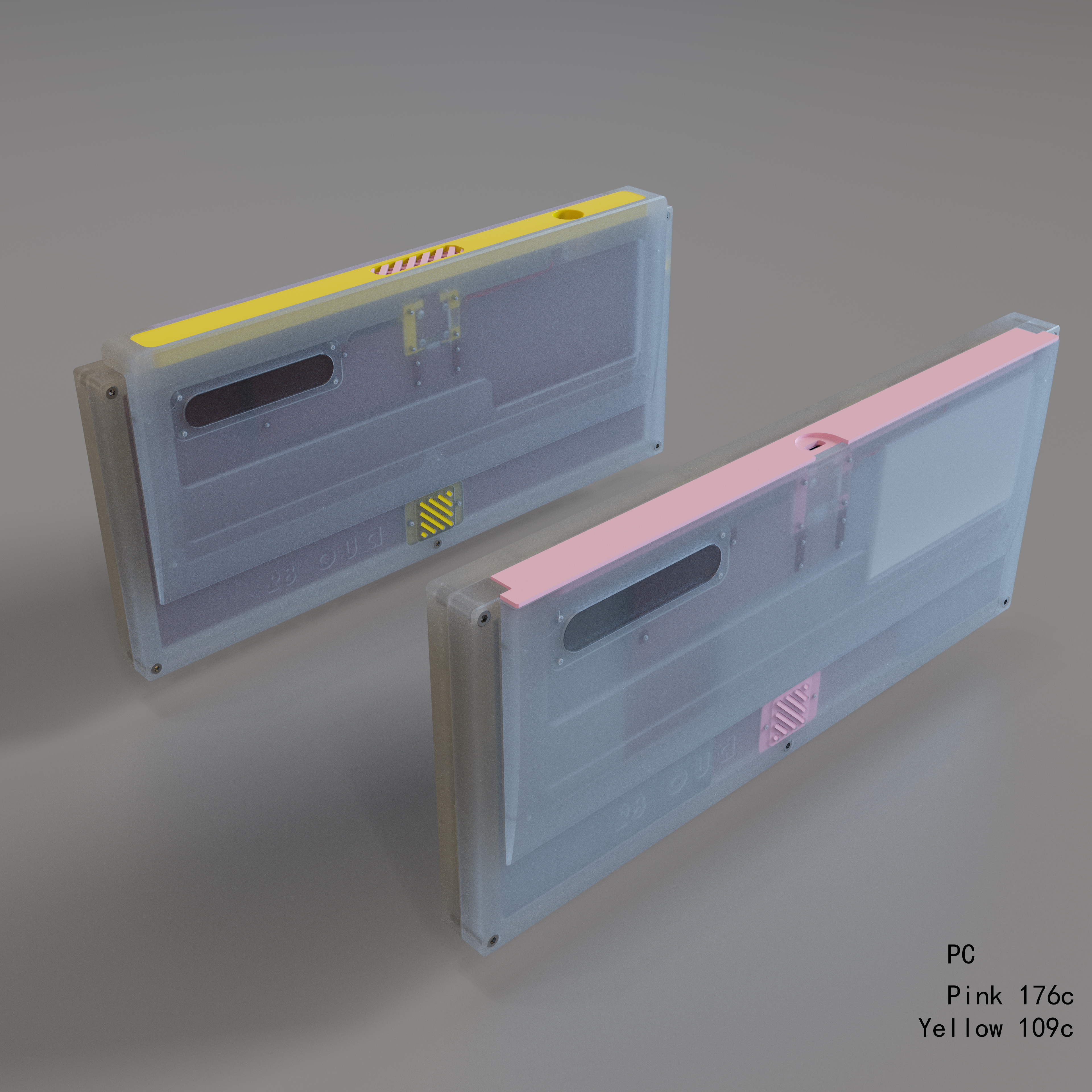

PC: white frosted
3 Weight options:
Brass: Black, purple, Yellow, White, Blue,pink,orange
4 Plate options
Brass：Black, purple, Yellow, White, Blue,pink,orange

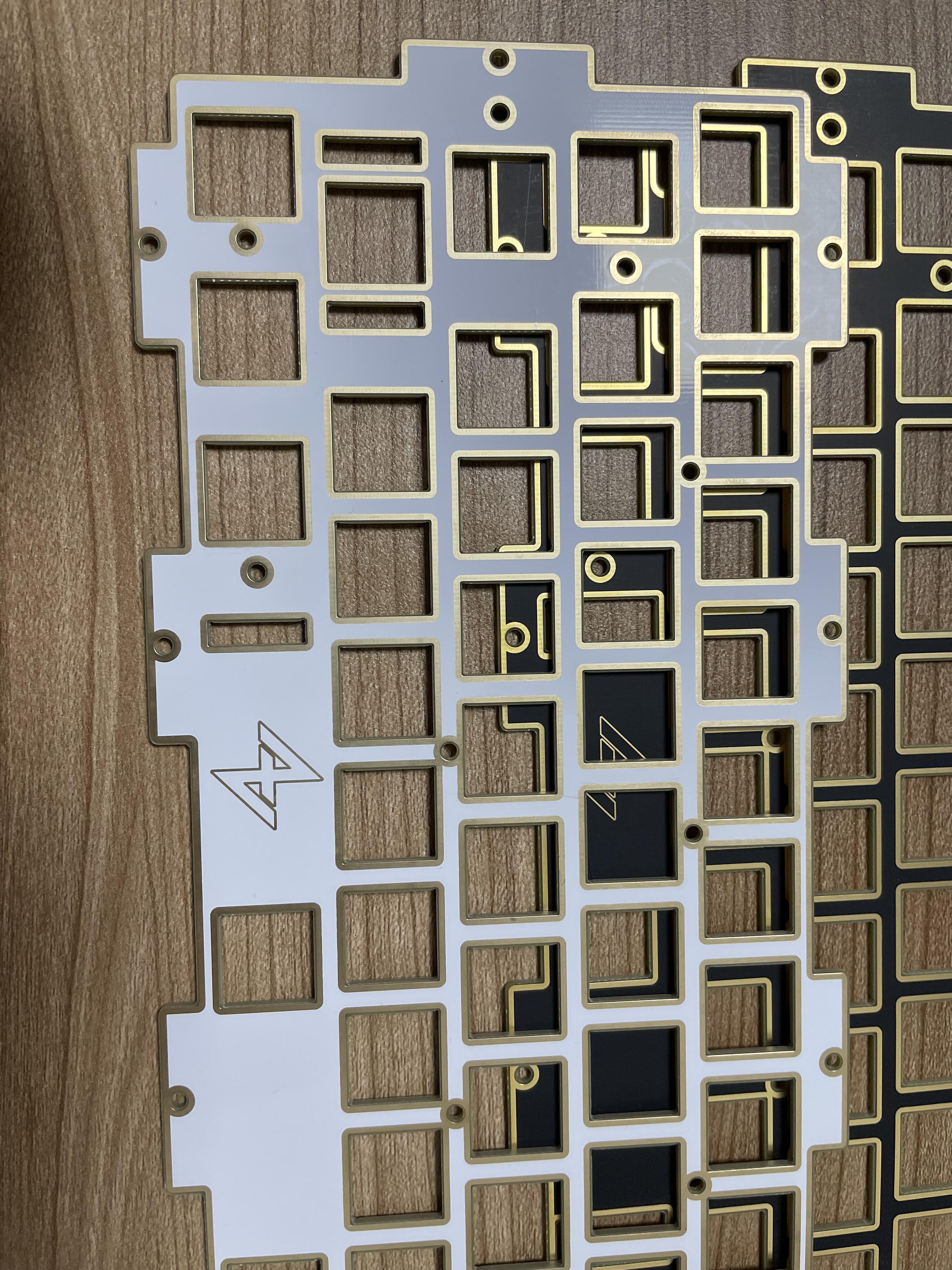

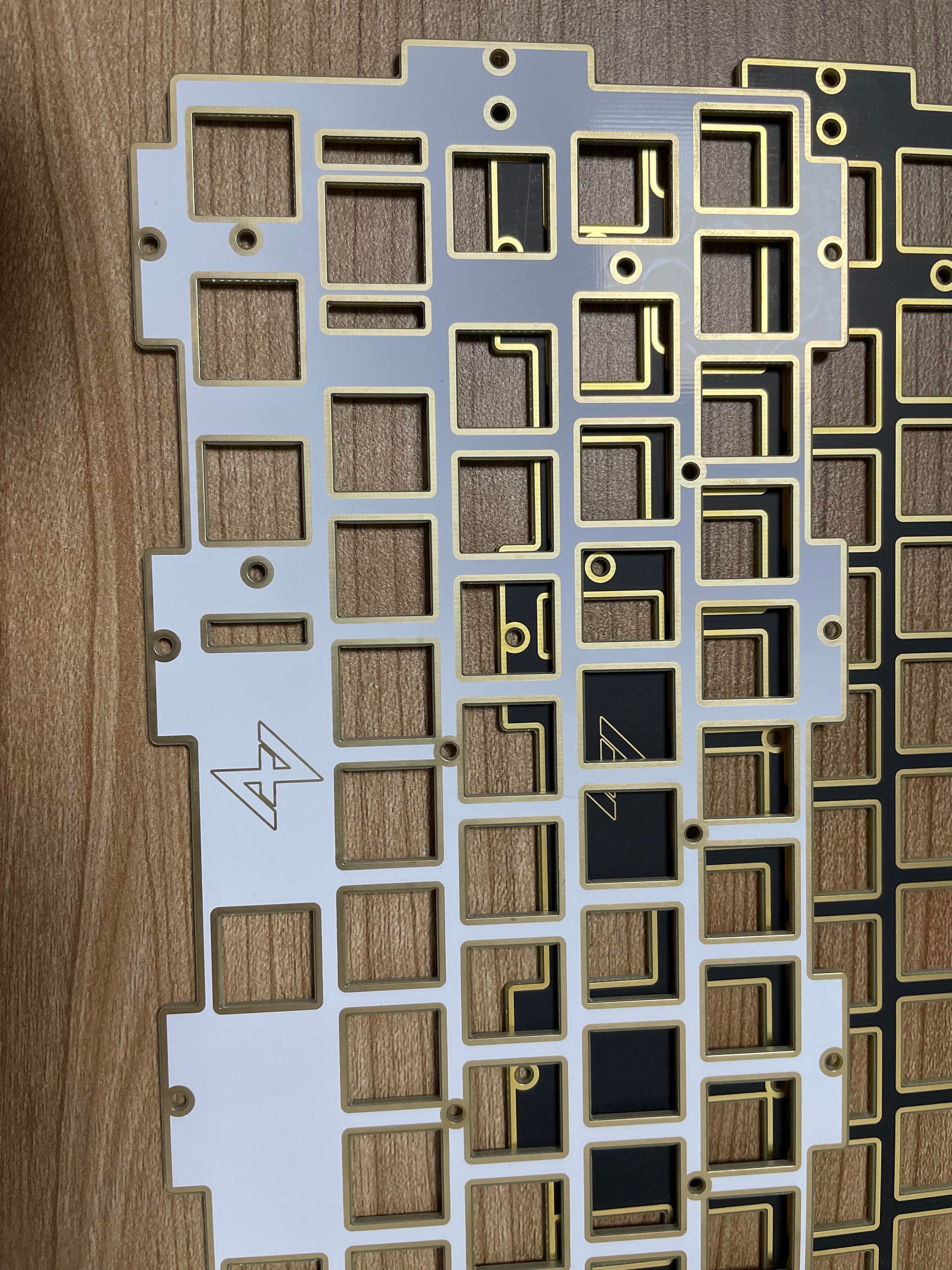

FR4：Black with gold trim, White with platinum trim
*Plates are 1.5mm thick
5 Stabilizers
Choice of:
1 Costar stabilizers
2 Cherry-style plate-mount stablizers
*Each plate will be cut to support only one style of stabilizers
6 Plate mounting system: Top mount
7 PCB: NIZ EC PCB with type-C daughterboard,NIZ firmwire support
8 Battery: 5000mah
9 Keycaps: compatible with all heights of Cherry MX-style keycaps
10 Domes: 35g/45g/50g/60g/65g
11 Layout：
75% layout
1.75u Right Shift
1u Right Ctrl, Fn, and Alt
6.25u Spacebar
2 GB information
1 Launch Date：2021.05.15(Beijing time 8:00),https://www.nizkeyboard.com/collections/duo-82/products/gb-duo82?variant=39744345702574
2 Group Buy duration：the group buy will run for 7 days or until orders reach 200 units
3 Shipping estimate：within 3 months after the close of the GB
4 Price：basic kit 350usd(Paypal fee included)➕shipping( depends on destination )
Wired suite：+135usd
Bluetooth suite：+179usd
BLE&RGB suite：+249usd
All suite are updated with new version 0601）
Additional EC switches：sliders+switches（100pcs）+25usd
Additional domes:+30usd(84pcs)

3 Pics
