SPV1 by Bisoromi x [H] Hi all!
After many years I'm excited to finally announce the SPV1, a Southpaw 75%! This was a joint effort between myself and
H3NT4I to create a practical and productive layout.
At the time of designing this back in 2018 there weren't any layouts like this so we decided to make our own with the help of
Gondolindrim for designing the PCB.
Big thank you to CannonKeys and all of their staff for graciously helping out with fulfilment of this board!!
Specs 8° angle
Top mount
1.5mm plate

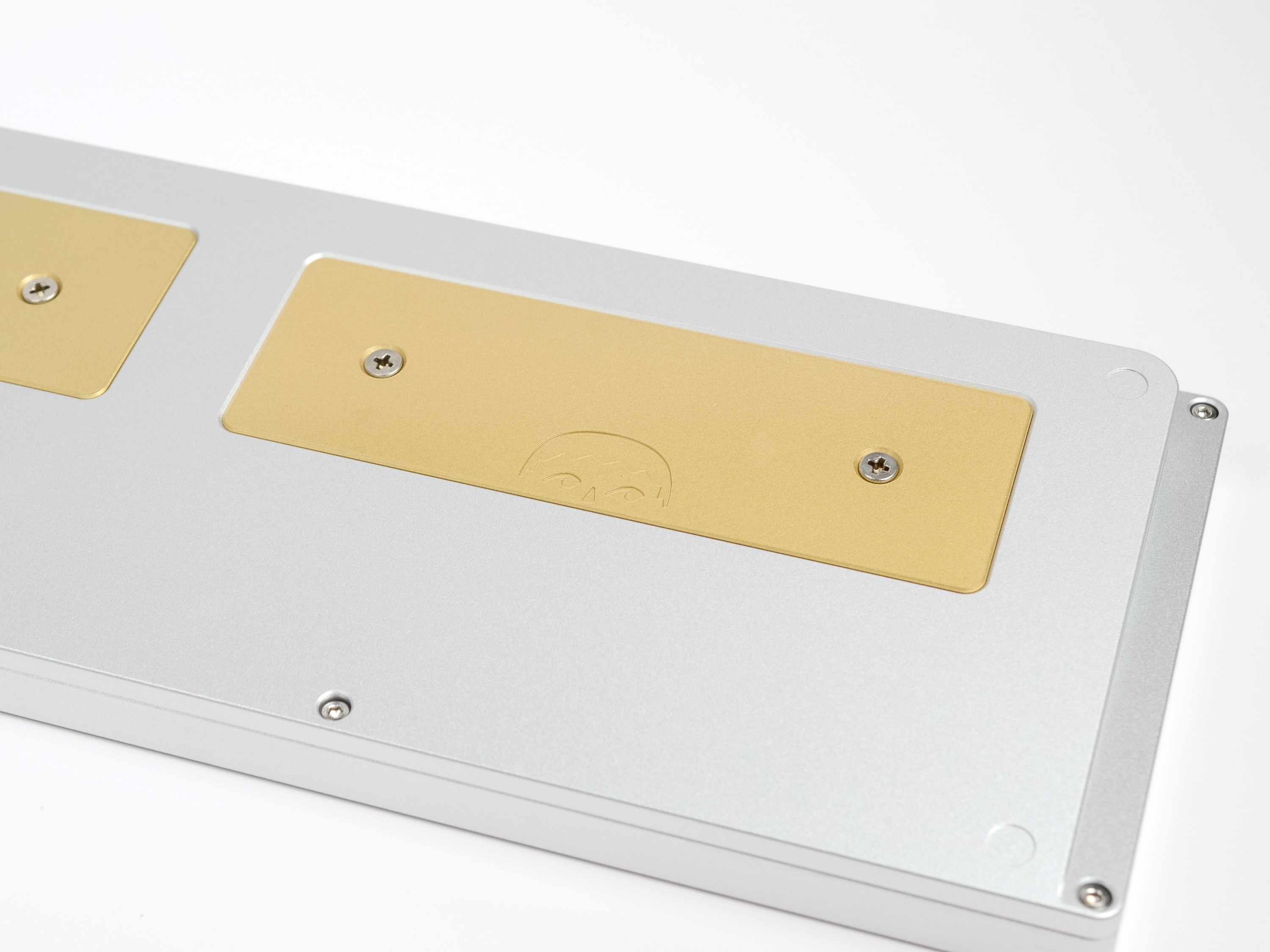

2x 8mm brass reversible weights

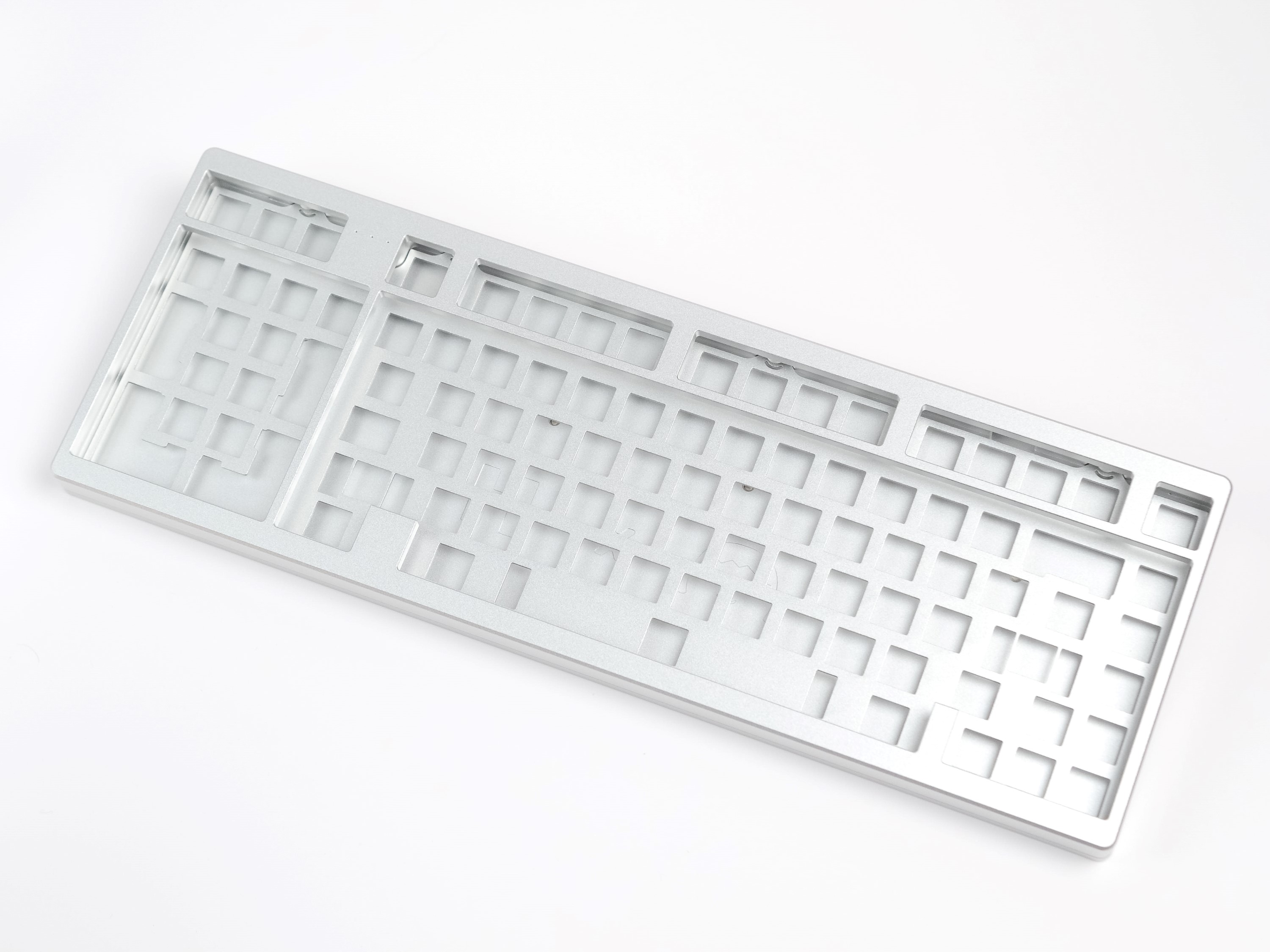

Aluminum case
Numpad, mirrored numpad, or macropad options

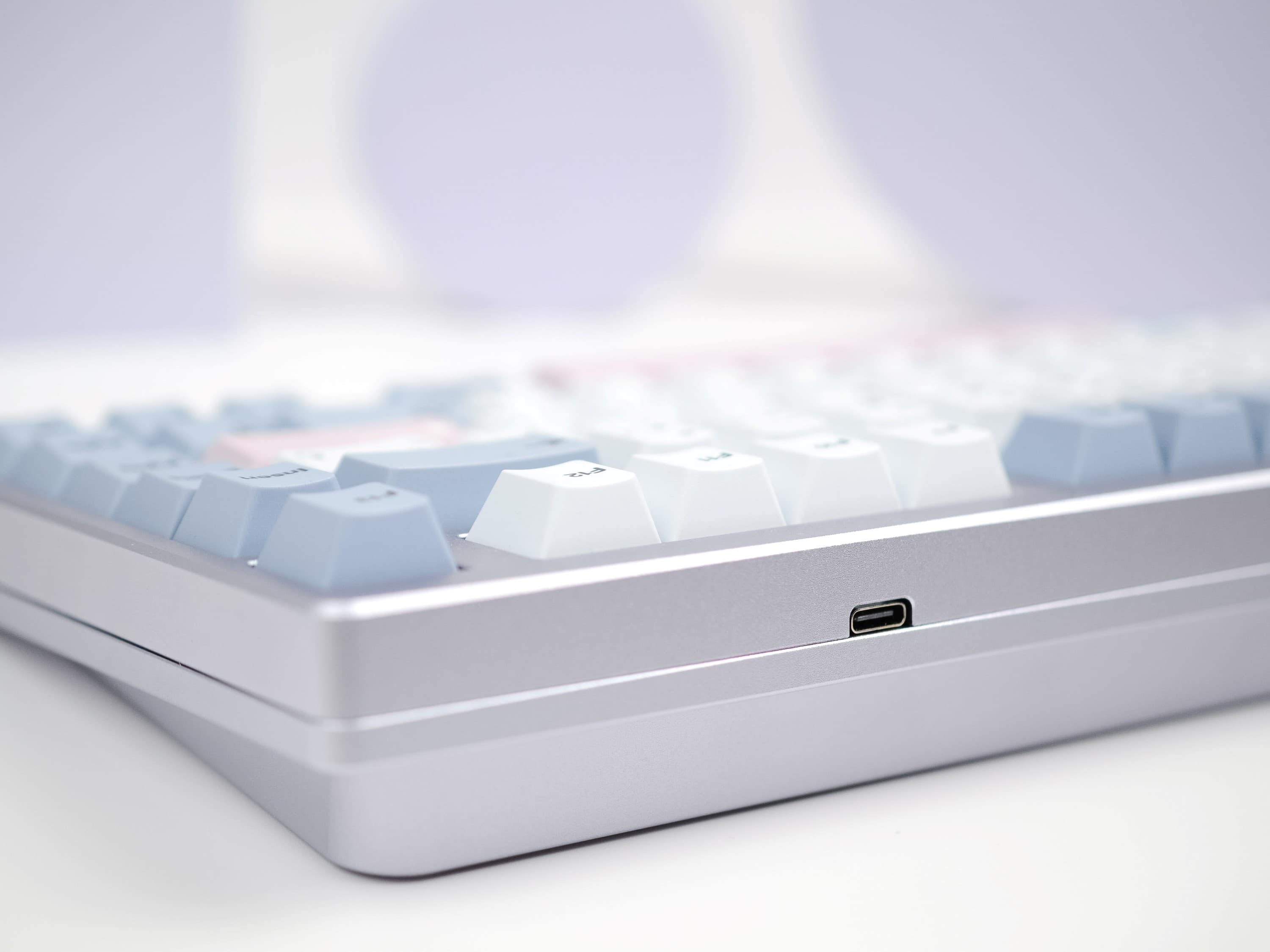

USB-C
Fixed ANSI 7u WKL layout (will provide plate file)
10mm top/bottom bezels, 5mm side bezels
Caps/num/scroll LED indicators
18.8mm front face height
Solder-only PCB (For first run)

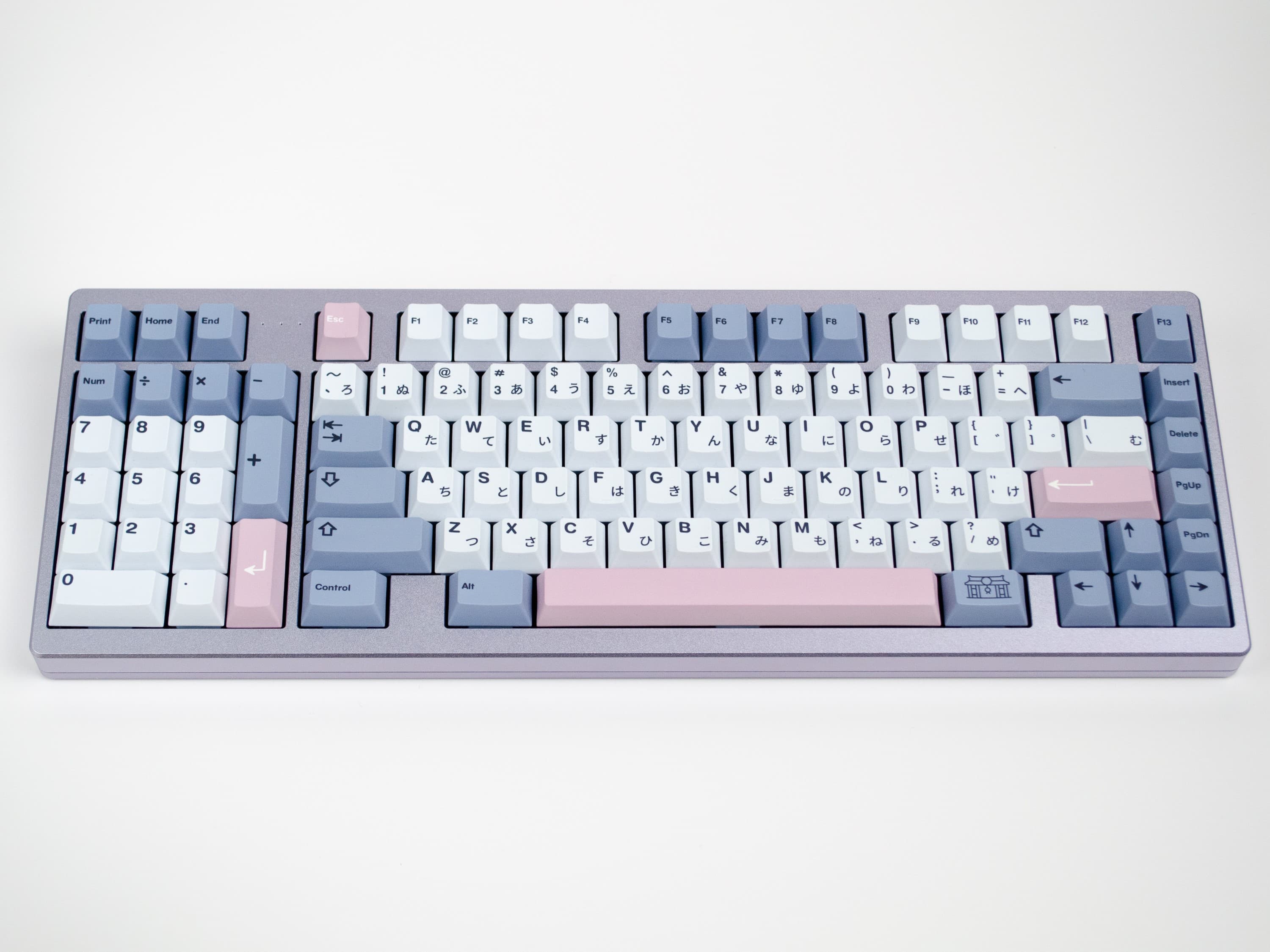

Renders (by Pontus)

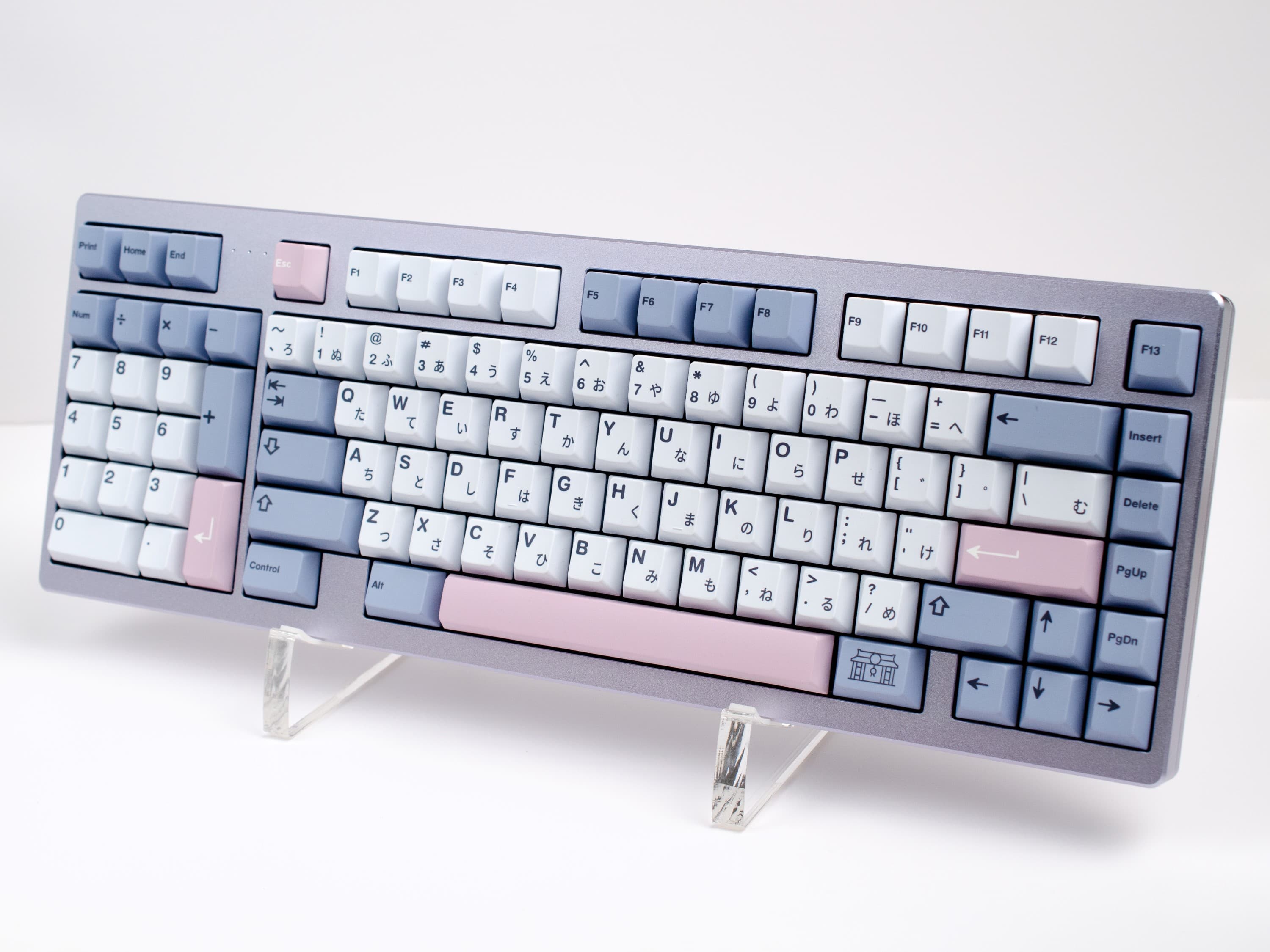

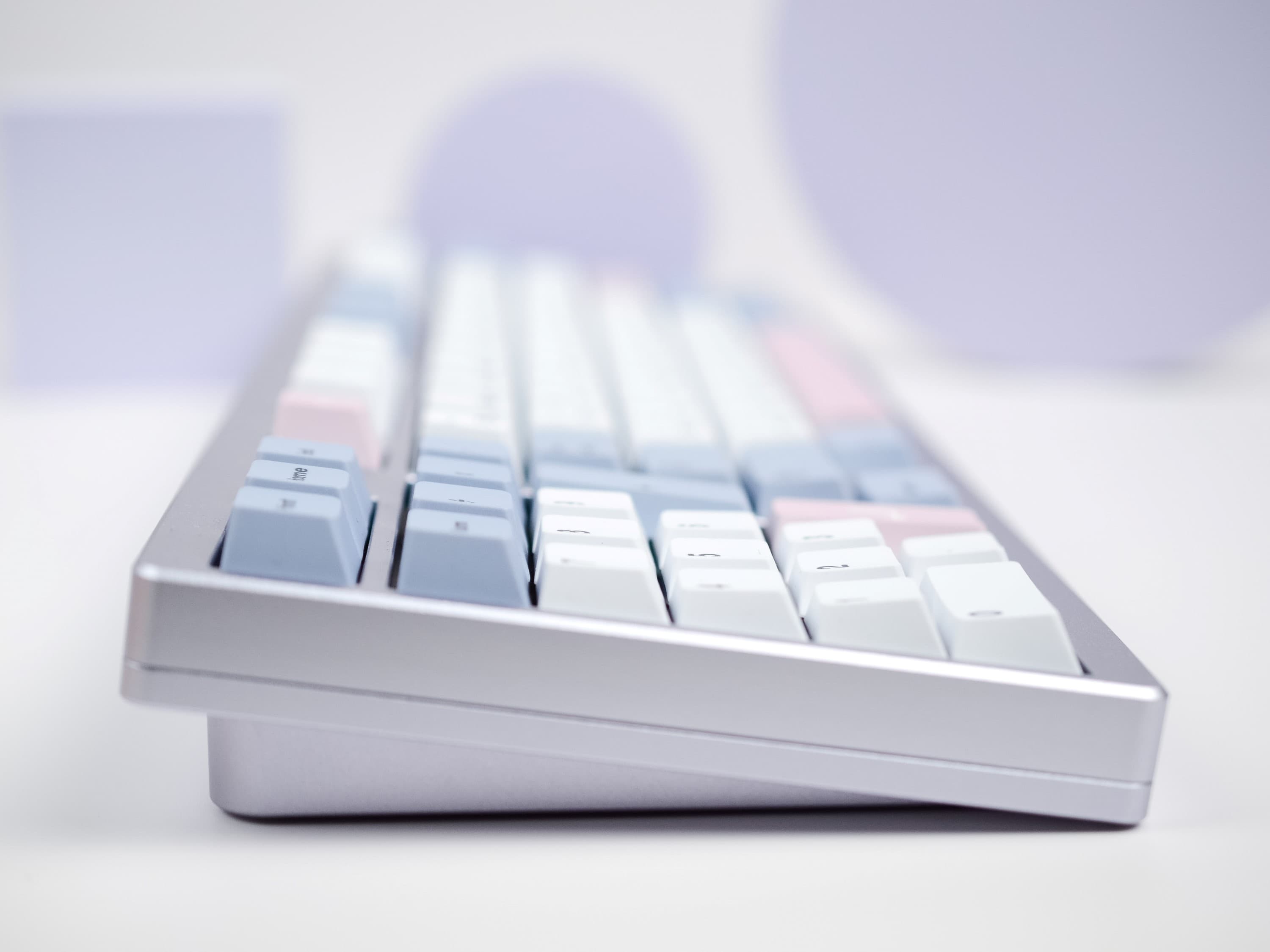

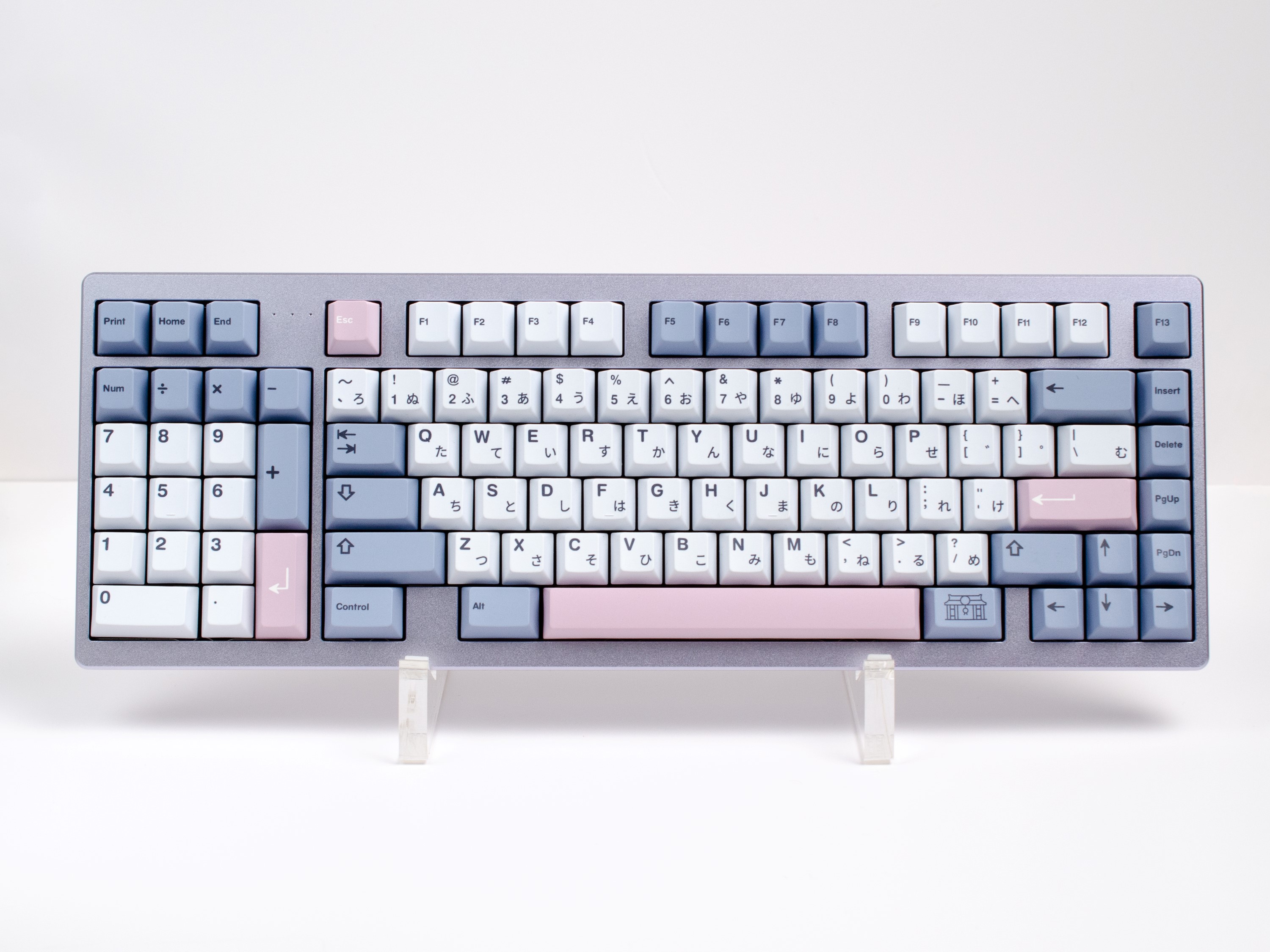

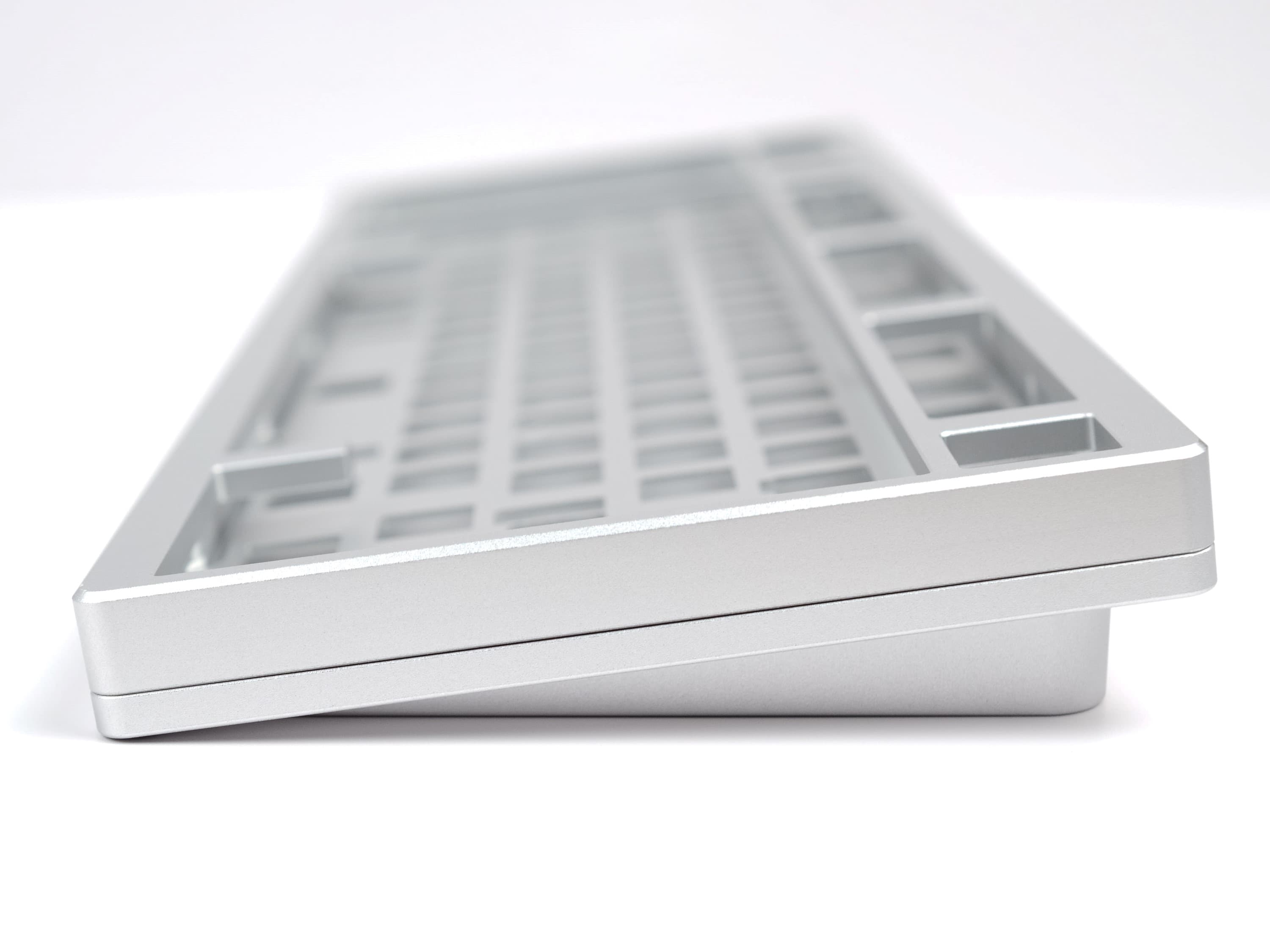

Proto Images
Layouts

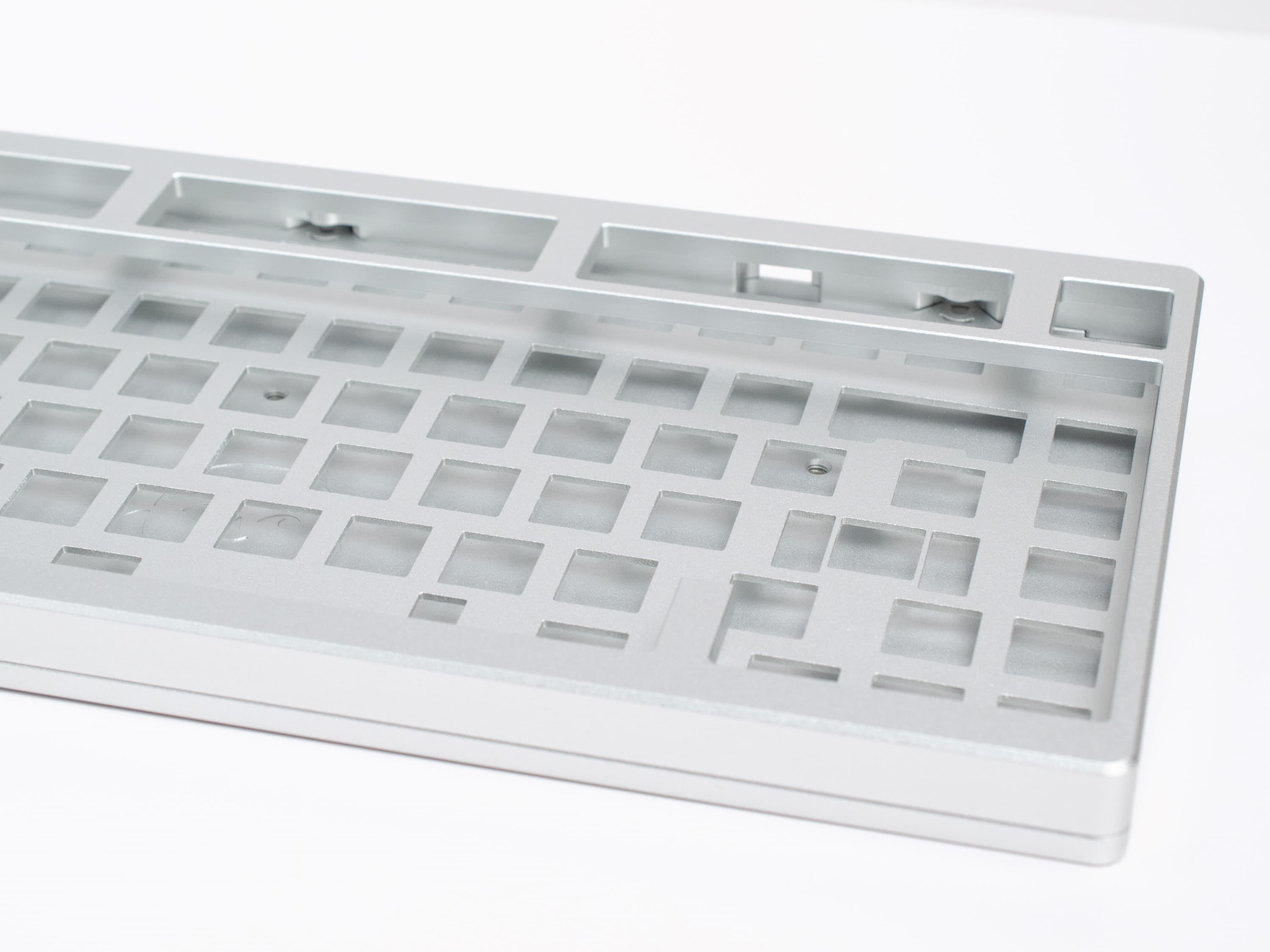

Plate
PCB
FAQ
Will there be a hotswap PCB option?
No hotswap PCB for this initial run.
Does this support burger mount?
This is strictly only top mount, but I encourage anyone to experiment!
Is there a WK option?
There will only be a WKL top for now. Making a WK top is trivial, but the PCB would have to be modified and tested for WK.
