70o - WKLFRL GB date: 25th May 2023 (Cancelled)

70O fixed wkl frl

[Introduction]

Update:
GB dates: 25th May to 15th June, $420 / AED ~1,542.32 FCFS @ https://sandkeys.me/
ETA for Shipping: Q4 2023


The rectangle details below as following:

[Specs]

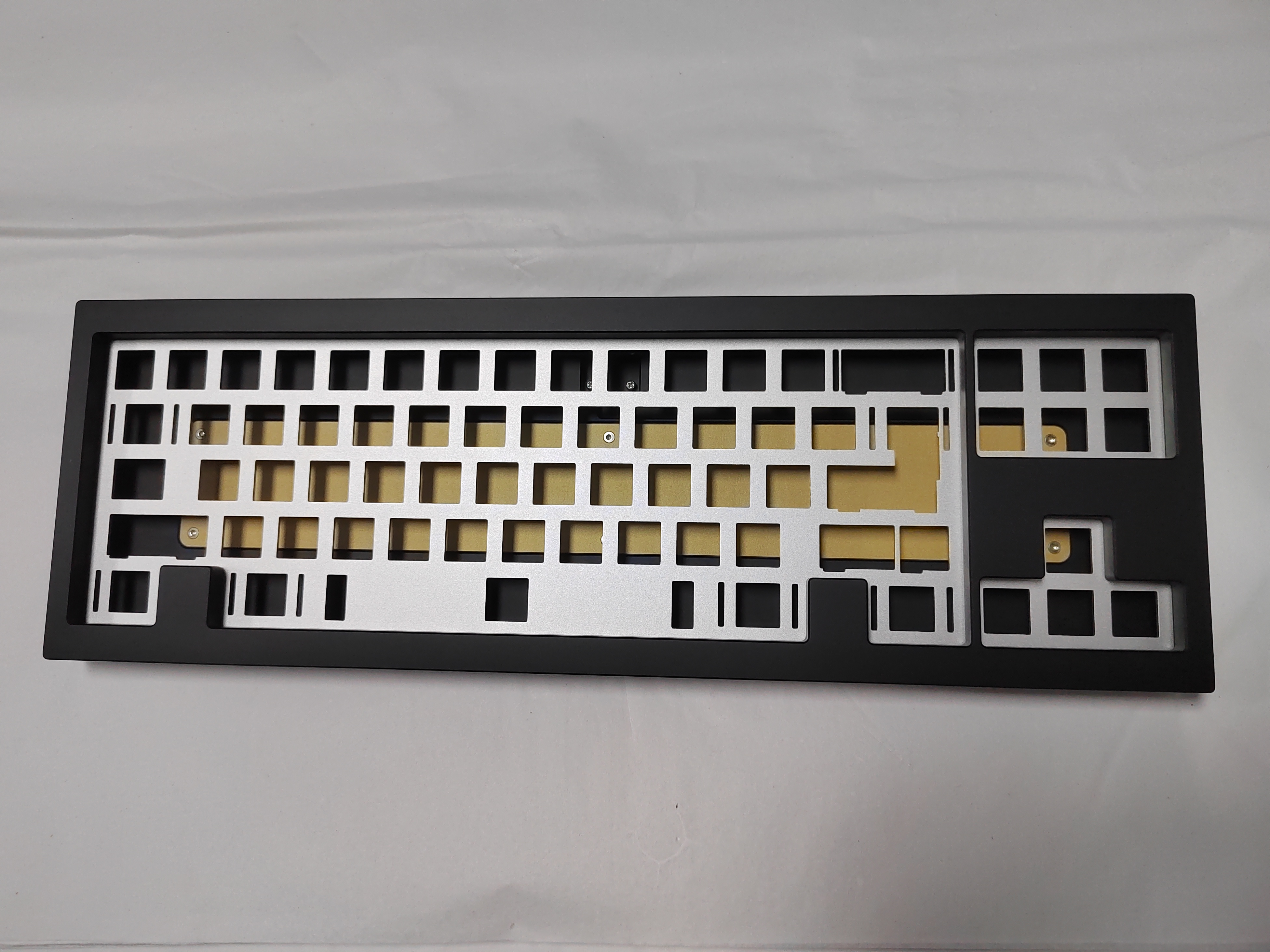

Case:
- Layout: 7.5 degree 70% WKL FRL .
- W: 356.613 mm * L: 121.55mm .

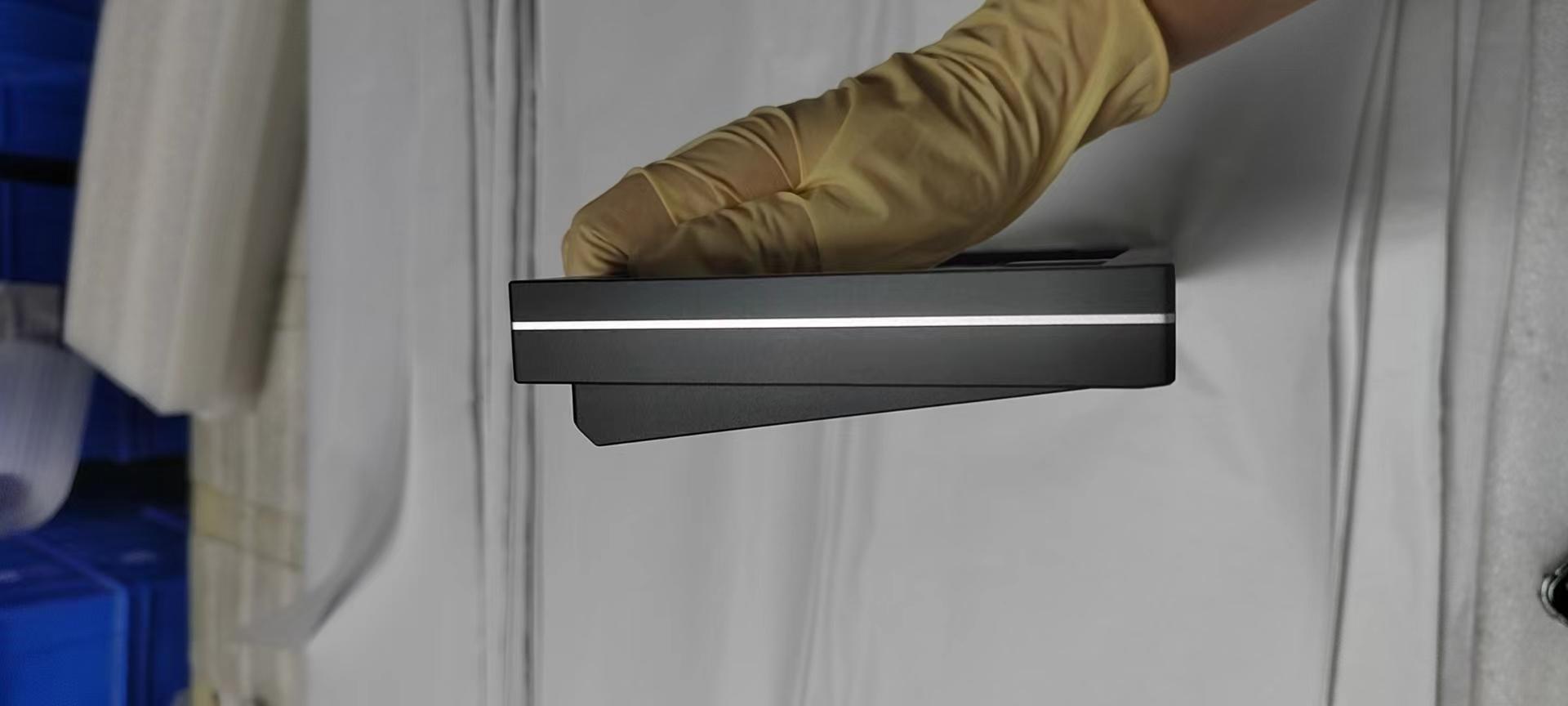

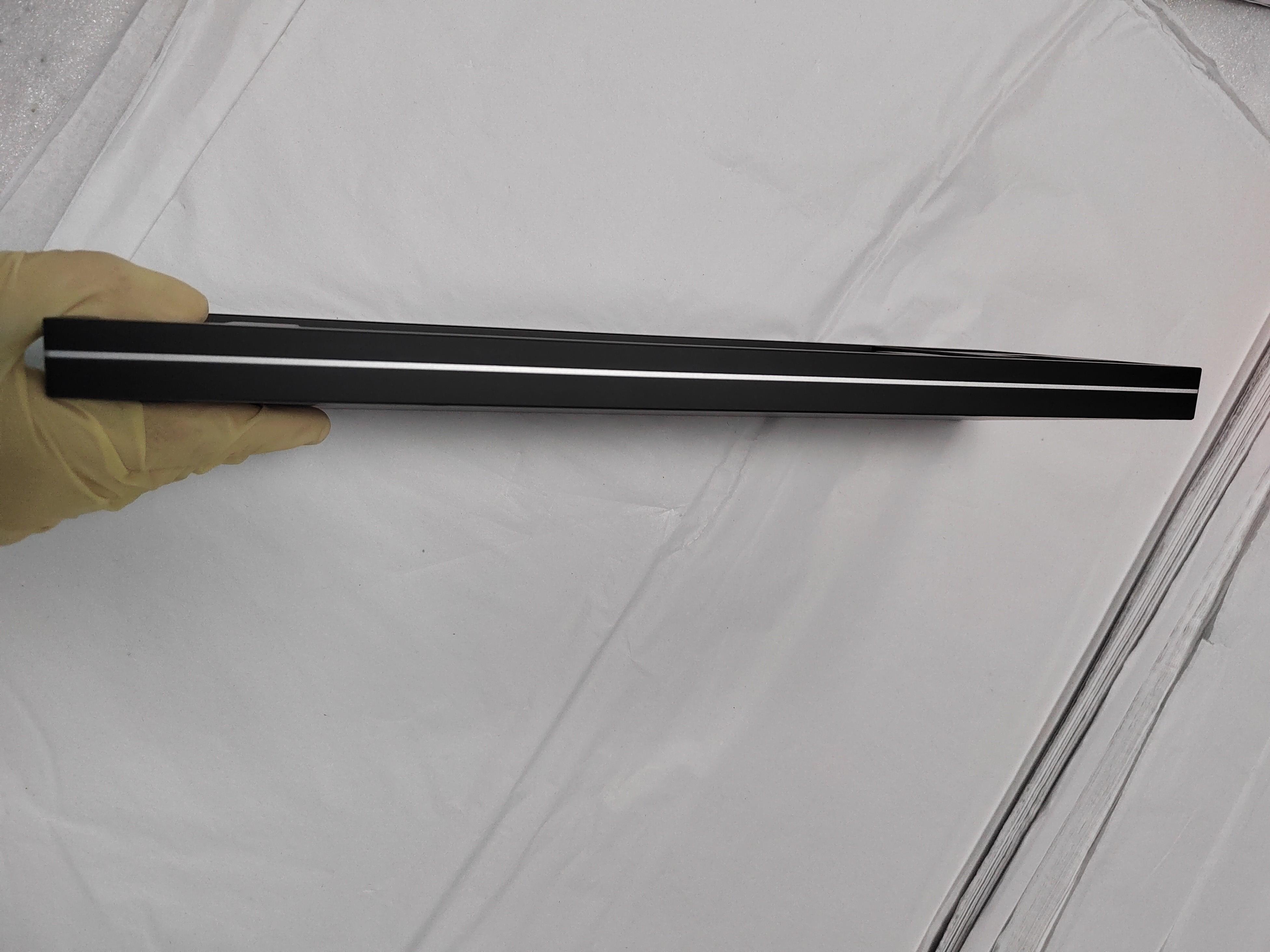

- Front H: 19.36 mm, Back H: 31.97 mm.
- Mount: leaf-spring sandwich mount.
- Internal brass weight.
- Plate to top case: 7.8 mm.
- Alignment pillars total of 4.
- AKB feet.

Plate:
- Leaf-spring anodized aluminum plate.
- Thickness: 1.5 mm.

PCB:
- Fixed WKL.
- Thickness: 1.2 mm.
- Soldered only.

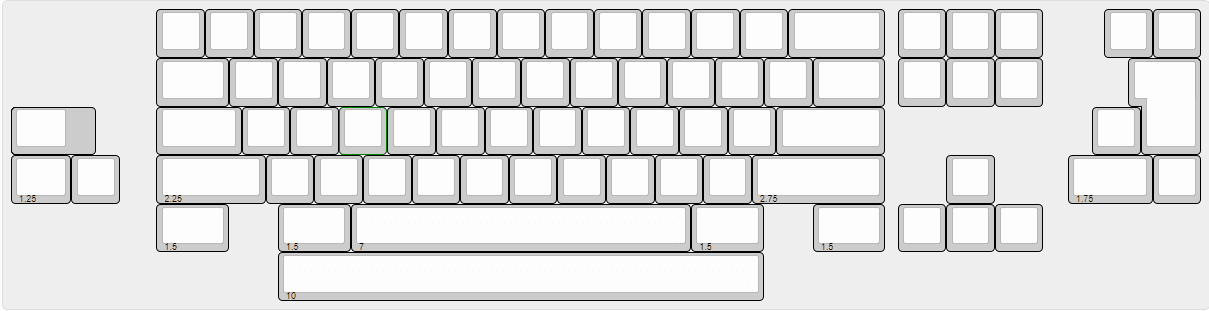

- PCB layout support: 10U spacebar, split back, ISO enter,
1.25U left shift and 1.75U right shift. caps_lock and scroll_lock indicator.
- Firmware: QMK, VIA and Vial.
- Support Mx and Alps.



[Internals]



[Prototypes Pictures]

V1:









Notes: The V1 had spacing issues and its been fixed in V2 also the sides changed from 8mm to 4mm

V2:










Albums:

https://imgur.com/a/ah2M97V
https://imgur.com/a/IXaPvPQ
https://imgur.com/a/OpMTofU

Sound test by Baul:
https://clips.twitch.tv/BashfulPolishedPelicanHeyGuys-CFRqQm9D88i4QHz8

Build by Lightningkeyboards:

Sound test by Lightningkeyboards:

[Sales Format]

FCFS 420 USD - 50 moq
sales @ https://sandkeys.me/

- Case colors: Silver, Black, Bright Red and Navy.
- Plate colors: Silver, Red and Black.

Whats included:
- Aluminum wkl top & bottom case.
- Anodized aluminum plate.
- Internal brass weight.
- Soldered pcb.
- UDB (universal daughter board) with JST cable
- Screws (extra included).
- Stabilizer shims.
- Hard carrying case.
